IMPORTANT INFORMATION
To achieve the highest satisfaction, enjoy the product's
performance and learn about all its features and functions,
please read this manual before using the product.
Before using the device, read the Operating Instructions and
comply to its contents. The manufacturer shall not be liable for
any damage caused by the use of the device other than for its
intended purpose or by improper handling.
Keep these Operating Instructions for future reference.
• This device is for domestic use only. Do not use for any other
purposes.
• The device should only be connected to an socket with values
corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all
devices plugged into the wall outlet does not exceed the fuse
in the circuit.
• If you are using an extension cord, make sure that the total
power consumption of the equipment plugged into the
extension cord does not exceed the extension cord power
rating. Extension cords should be arranged in such a way as
to avoid tripping hazards.
• Do not let cord hang over edge of counter, or touch any hot
surface.
• The device is not designed to be controlled via an external
timer, separate remote control, or other equipment that can
turn the device on automatically.
• Before maintenance work always disconnect the unit from
the power supply.
• When unplugging the power cord from electrical outlet, hold
it by the plug only and remove the plug carefully. Never pull
the cable as it may cause damage to the plug or power cord.
Damage to the power cord or plug can lead to an
electrocution hazard.
1

• Never leave the product connected to the power source
without supervision.
• Never put the power cable, the plug or the whole device into
the water or any other liquids.
• The device should be cleaned regularly complying with the
recommendations described in the section on cleaning and
maintenance.
• Do not place the device near sources of heat, flame, an
electric heating element or a hot oven. Do not place on any
other device.
• The appliance must not be used by children. Keep the
appliance and its cord out of the reach of children.
• The appliance may be used by individuals with limited
physical, sensory or mental capability as well as those
without knowledge of or previous experience in the use of
similar appliances, provided such individuals are supervised
or instructed with regard to the safe operation of the
appliance and are informed about the potential hazards.
• Additional precautions should be taken when using this
device in the presence of children or pets. Do not allow
children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as
direct sun light or rain, etc... Never use the product in humid
conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage.
If the power cable is damaged the product should be taken to
a professional service location to be fixed or replaced to
prevent any hazards from arising.
• Never use the product with a damaged power cable or if it
was dropped or damaged in any other way or if it does not
work properly. Do not try to repair the defected product by
yourself as it can lead to electric shock. Always return the
damaged device to a professional service in order to repair it.
2
RS6010

All the repairs should only be performed by authorized
service professionals. Any attempted unauthorised repairs
performed can be a hazard to the user.
• Only Original accessories should be used, as well as
accessories recommended by the manufacturer. Using
accessories which are not recommended by the
manufacturer may result in damage of the device and may
render the device unsafe for use.
• Keep your workplace tidy and well lit.
• Disorder and insufficient lighting lead to accidents.
• Do not use power tools in explosive atmospheres, i.e. in the
presence of flammable liquids, gases or dust.
• A moment of carelessness may cause losing control of your
tool.
• If it is possible to fit power tools for dust extraction or
collection, check that they are fitted and working correctly.
Using such power tools reduces the risk posed by the
presence of dust.
• Do not lean out too far when working with your power tool.
Maintain a stable posture and balance. This allows you to
keep better control of your power tool in unforeseen
situations.
• Avoid starting the power tool unintentionally. Make sure the
power switch is in the OFF position before connecting the
power tool to the mains. Carrying a power tool with your f
inger on its trigger or plugging in a power tool after
switching it on can lead to accidents.
• Wear appropriate clothing. Do not work in loose clothing and
do not wear jewellery while working. Keep your hair, clothing
and gloves away from moving parts. The moving parts of a
power tool can catch and pull in loose pieces of clothing,
jewellery or long hair.
• Remove any spanners or tools from the power tool before
starting it. A tool or spanner still connected to the rotating
3
RS6010

part of the power tool may cause personal injury.
• Be careful when working with power tools, concentrate on
your work and use common sense. Do not use a power tool
when tired or under the influence of drugs, alcohol or
medication. Even a moment of carelessness while working
with a power tool can lead to a serious accident.
• Keep children away from the work area and DO NOT allow
children to pull on the power cord - this can cause serious
injury.
• Before making any adjustments, changing accessories or
storing the power tool, move the switch to the off position to
disconnect the power tool from the power supply. Such
precautions reduce the risk of accidentally starting the
power tool.
• Ensure that the vents are free from debris.
• The device may only be used in a dry, well-lit environment.
• This tool should not be used by anyone under the age of 16.
• Use only sharp blades in perfect condition. Condition to
replace: cracked, distorted or blunt.
• Make sure the foot adjustment screws are tightened before
resuming work.
• Choose the right blade for the material, stroke frequency and
pendulum.
• Make sure that the saw blade does not touch other objects
when the tool is switched on.
• Hold the device by the insulated handle as the blade may run
over the electrical wires or its own power cord when cutting.
• After finishing work, always wait for the device to come to
complete stop.
• Do not turn off the power tool during operation, it may get
stuck and you may lose control of the device if you try to
switch it on again.
• Do not saw objects with a larger diameter/thickness than the
length of the blade.
4
RS6010

• Use the blades according to their intended use, and before
cutting the material, inspect them carefully for foreign
objects such as nails or screws.

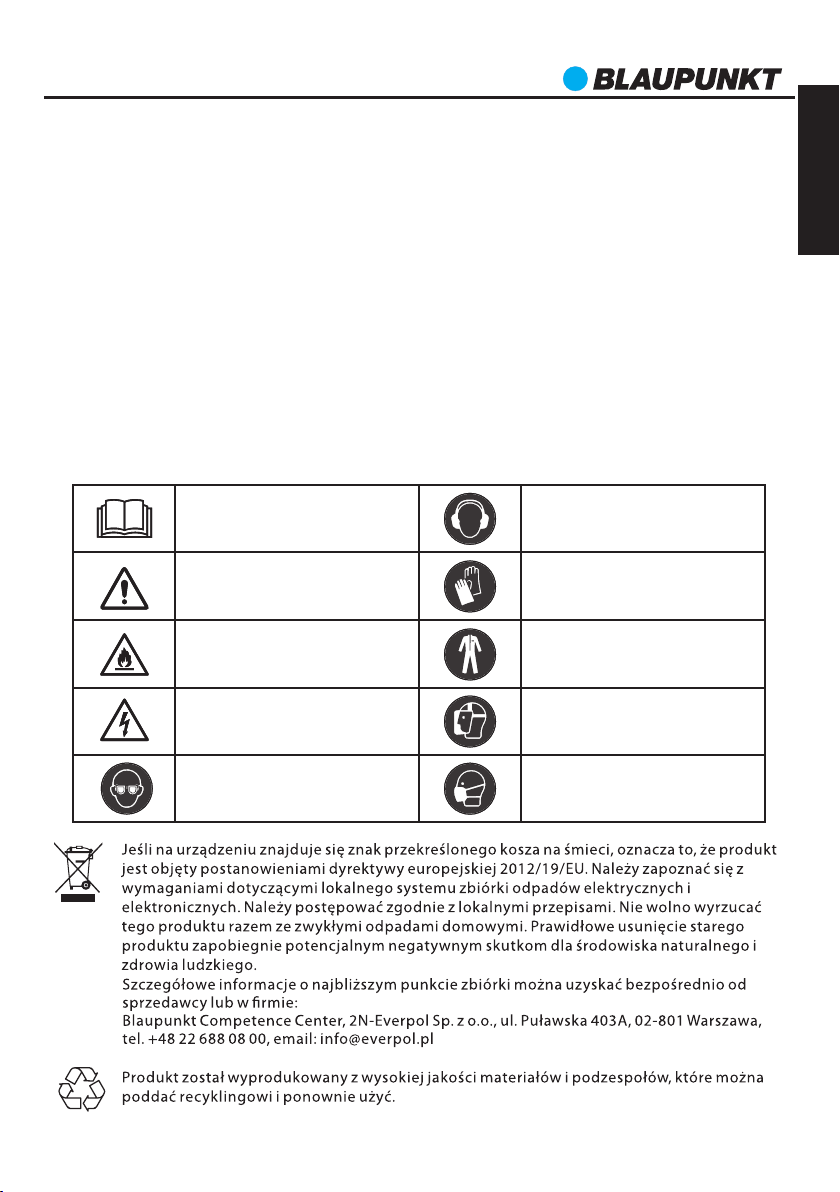

SYMBOLS
• The following symbols may appear in the operating instructions or on the tool’s nameplate.
• These signs contain important information about the product and instructions on how to use it.
WEAR PERSONAL PROTECTIVE EQUIPMENT
• Wear safety glasses according to En166
• Use protective masks in accordance with En149
• Use other types of proper personal protective equipment, depending on the type of work involved.

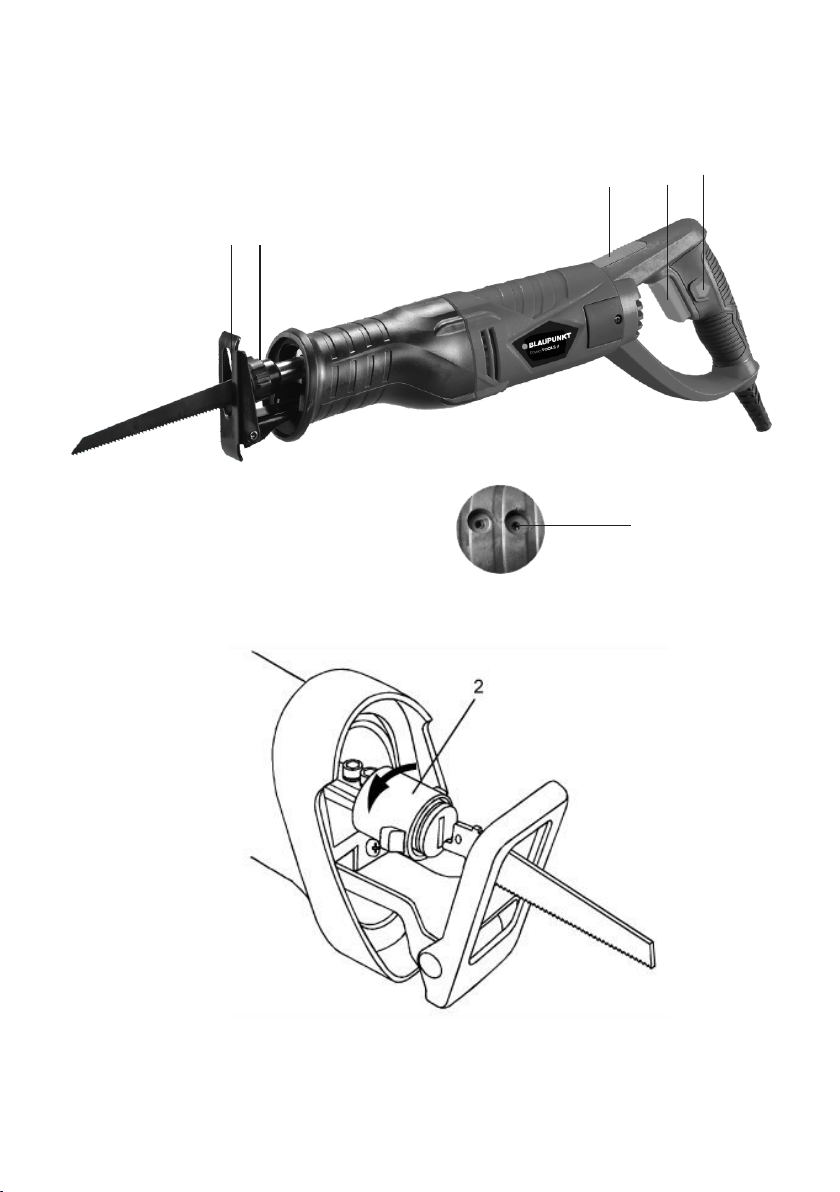

Description of equipment
5
RS6010
Read the user manual.
Use ear protection
Wear protective glovesGeneral warning
Wear protective clothing
Wear a protective mask
Wear safety glasses
Fire hazard
Wear respiratory protection
Electric shock hazard
1. Foot
2. SDS chuck
3. On/Off switch
4. Switch locki
5. Foot adjustment screws
6. Handle position change button.

6
Blade installation:
Make sure the device is disconnected from the power source.
The device is equipped with a rapid blade installation system (SDS).
Turn the SDS chuck.
Place the blade in the chuck.
Release the SDS clamping ring.
When replacing the blade make sure that:
The blade holder is free from other materials
Always check that the blade is securely clamped before use.
Blade removal:
Remember to wait after work because the blade may be hot.
Make sure the device is disconnected from the power source.
Rotate the saw blade chuck SDS ring
and remove the blade from the chuck.
SPEED CONTROL
To change the rotation speed use the adjustment knob (2).
The knob is used to set the motor speed within the range specified in the technical data.
The control changes the blade oscillation frequency which is particularly important when cutting
various types of materials susceptible to high temperature, such as plastics.
Operating the device:
Press the button (3) to turn the device on
Keep the button(3) pressed and press the lock button (4) at the same time to put the dvice in
continuous operation.
Release the button (3) to stop the device.
Press the button (3) again to turn off the continuous mode.
The device has a cutting speed control knob (7), which is located on the button (3)
Foot length adjustment screws (5)
Button for changing the handle position (6)
Secure the workpiece with clamps.
Always hold the device with both hands and
make sure that you have a secure backrest when cutting.
The foot can be extended by loosening
two fixing screws (5) using an Allen wrench.
Incorrect operation can cause damage to the machine.
CLEANING AND MAINTENANCE
Before cleaning and maintenance, make sure the device is disconnected from the power source.
Keep the ventilation apertures (air inlets and outlets) of the device free of dirt. Wipe the device with a
dry cloth or blow it with compressed air. Keep the work tool chuck free of dust. It is recommended to
clean the device after each use. Do not immerse in water or other liquids. Do not use aggressive
cleaning agents or solvents.
SPECIFICATIONS
• 0-2800 strokes per minute
• Maximum cutting length 115 mm
• Power supply: 230-240 V ~ 50 Hz, power 800 W, max 1200 W
Noise
Typical A-weighted noise level measured in accordance with ISO/TR 11688-1:
Sound pressure level (LpA): 87 dB (A) ; LwA：98 dB (A)
Measurement uncertainty (K): 5.0 dB (A) ; KWA：5.0 dB (A)
RS6010

7
Noise level during operation may exceed: 99 dB (A).
Wear hearing protection!
Vibrations
Total vibration value measured in accordance with EN1299:
Vibration emission: ahB=7.94m/s² ; ahWB=6.92m/s²
Measurement uncertainty (K): Km=1.5 m/s² ; KB=1.5 m/s²
Permissible Operating Time: 15 minutes of operation, 30 minutes off.
The declared vibrations has been measured according to the standard test method and can be used to
compare tools.
The declared vibrations can also be used in the initial exposure assessment.
RS6010
