Blaze scooters MAXSPEEDX Series User manual

1. Name of each part ........................................................................................... 01
2. Product features .............................................................................................. 02
3. How to unfold ................................................................................................ 03
4. How to fold..................................................................................................... 04
5. How to use the dashboard.......................................................................... 05-06
6. How to charge ................................................................................................ 07
7. Safety precautions for lithium-ion battery............................... 08-09
8. Safety driving tips ........................................................................................ 1 0
9. Daily protection and maintenance ............................................................. 11-13
10. Product specification ..........................................................................14-15
11. Guarantee card ........................................................................................... 1 7
Name of each part

A masterpiece
Created by our award winner
designer. New innovative ways to
brighten up our scooter.
Product Features
How to unfold
Style yet light
We enhance every aspect with
innovation yet without compromising
the weight less than 20kgs
Comfortable
comfort is as important as the design,
we include front and rear high quality
suspension to fit the criteria
Step3: Adjust the height of T
handlebar
Step4: Fasten the nut and buckle
(make sure the stem fixed well)
Step2: Extend the T handle bar
and fasten the red rods
LED acrylic Light
Using bright LED to light
through acrylic rode to create a
sleek and beautiful beast in the
night or day
Stepl: Pull out the red lever

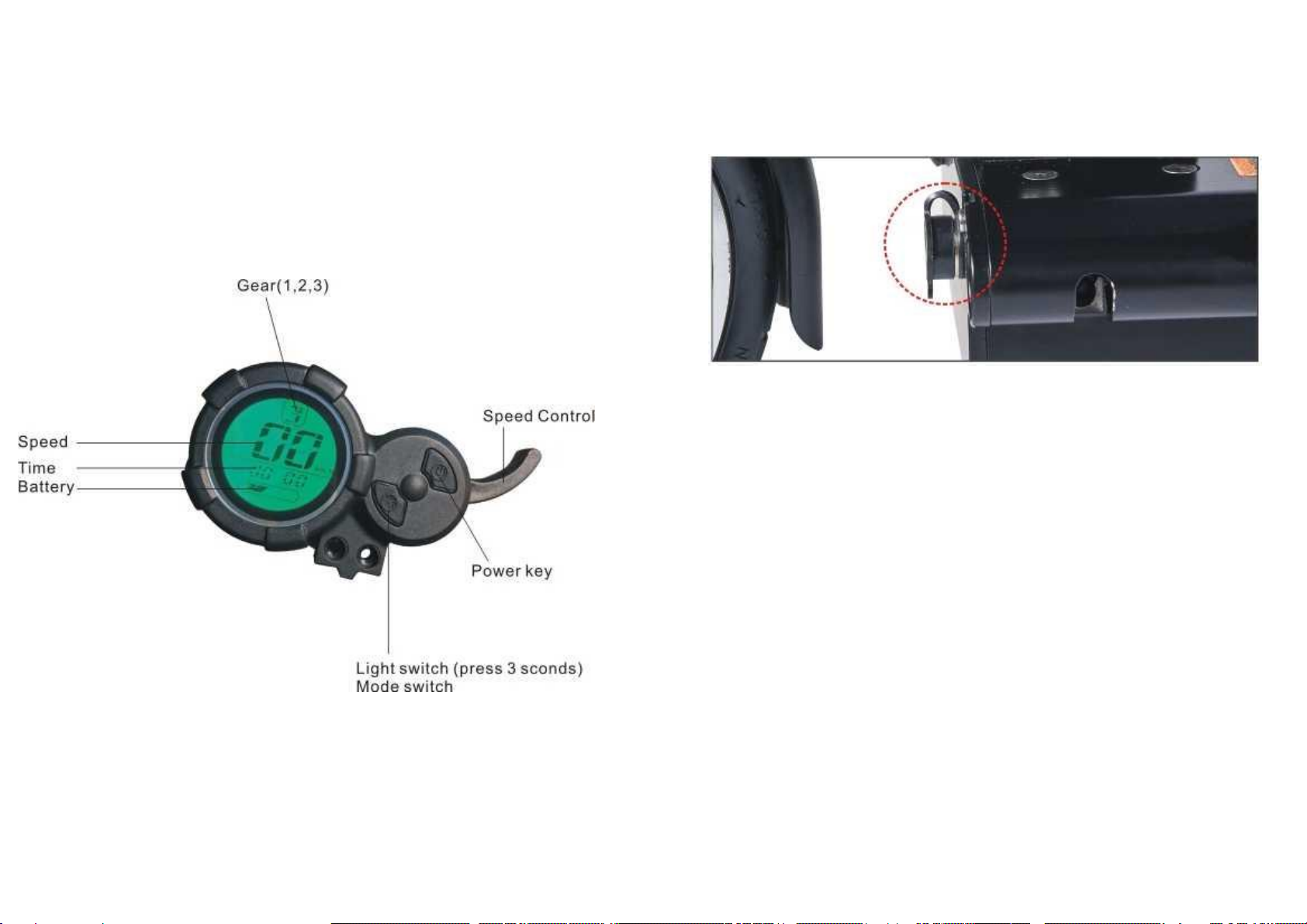

How to use the dashboard
Basic operation:
Power Switch
Press the power switch for over 3 seconds, then the LCD screen will turn on. The device
will turn off automatically if it doesn't move after 180 seconds.
Speed Control
After power on, press mode switch to show speed level(L1-Low seep,L2 -medium
speed,L3 high speed)
Press mode switch 3 seconds, lights will turn on.
Power Indication
Number of bars indicates the rest power of lithium battery.
Note: Recharge when there is only one bar, because over discharging may damage the
battery.
After power on, press the power key to change modes: ODD: accumulate mileage
TRIP: Current mileage
VOL: Current voltage (Volt)
How to fold
Step 2: Loose the red rods Step 3: unscrew the nut and
fold the T handle bar and loose the buckle
Step 4: Pull downward
the T handle bar
Step 5: Pull out the red lever,
and fold the scooter stem at
the same time
L CD Screen
Step 1: power off

o
1 )As shown in the picture, open the charging ports and connect them to the
charger's connector and connect them into a household outlet.
2) Charging status indicator. Red : not fully charged, Green: fully charged.
3) lf the charger indicates green light.it is fully charged, so disconnect the charger
and remove it.
4) When connecting the connector to the charging port, metallic sparks due to the
voltage difference may occur, but this is normal.
CAUTION:
1 .We recommend that you always use a dedicated charger.
Performance and safety are not guaranteed when using a charger other than the
dedicated charger.
2.Charger failure may cause a fire while charging.
Be sure to disconnect the charger terminal when you leave the place for atime. 3.If
the child uses a charger, please use it under the supervision of a guardian. 4.After
unplugging the charger, do not touch the plug for about 10 seconds.
How to use the dashboard
How to charge

o
Safety precautions for lithium-ion battery
Safety precautions for lithium-ion battery
1) Only use the charger that was supplied with your product to charger lithium-ion
battery.Use of an unauthorized charger could cause serious damage to the battery and
can cause fire.
1 ) Charge lithium-ion battery within 0-45°C and discharge within -20-60°C.
Charging and discharging the battery not within the appropriate temperature may
damage the lithium-ion battery.
2) Don not leave lithium-ion battery in any place exposed to direct sunlight or high
temperature. Don not store it in wet places. Always store it in dry places.
3) Charge lithium-ion battery in dry,open,and well-ventilated place.Do not charge
the battery near inflammable goods.
4) In the winter.bring the battery from outside to inside,the temperatures changed
from low to high and this many cause dew condensation. In this case,don not charge
the battery immediately.but charge it after reducing temperature difference.
5) If the battery protection circuit is damaged,the battery emits an unusual smell, or
the battery leaks,contact the authorized service center immediately and get technical
support.
6) Put lithium-ion battery in a safe place out of the reach of children and pets.
7) Do not reverse the polarity on a battery and short-circuit.Also exposing the battery
to excessive shock can result in an explosion of the battery.
8) Do not do stunts or jumps on the product on bumpy surfaces.
Exposing a battery pack to excessive shock can result in fire on the battery. If there are
some crashes while driving,then you should remove it out of the product to check
whether the battery is working well.
9) Connecting the charger when the product is water logged. The risk of electric shock
and fire is very high. Do not charge the battery in this case and the battery should be
checked by an expert before charging.
10) Do not disassemble or incinerate lithium-ion battery.
To safely dispose of lithium-ion battery, put it as industrial waste and be careful not
short-circuit occurs in terminals.
11 )lf the battery requires replacement after long-term use, replace it with the new one
through the authorized dealer.
12) Do not use the battery if the leaks or fives off an odor and short-circuit inside the
battery pack. Lithium-ion is inflammable material. Avoid charging the battery without
proper care. Be very alert to the time that you have charged the battery to prevent fire.
13) External temperature effects much on the battery in the winter when the
temperature is low. The performance of the battery degrades. Driving distance and
power are reduced and when the weather gets warmer.it returns to its original state.
14) When the scooter needs to be stored long time without using, keep it with charging
around 70-80% from the max charging.
15) If a product with a lithium-ion battery detects overheating ,smoke,or ignition, you
should stop charging and using it immediately. Move the product outdoors as soon as
possible and then evolve using a fire extinguisher. As it is more dangerous, do not spill
or immerse the water on the product to evolve.

Daily protection and maintenance
1) To prevent a safety accident.wear safety gears such as comfortable hoes, knee
protector, helmet and elbow protector. Rider should comply with the Road Traffic
Law.
2) The scooter is not waterproof product. Never use when it is rainy or snowy and if
the road is wet or icy. The damage from the water is not
free even though it is in warranty period.
3) Changing the settings of dashboard may result in a safety hazard. If you need
change the settings, please ask for help from expert or authorized dealer.
4) When turning left and right make sure that there are no obstacles and then turn
slowly with keeping a wide turning radius.
5) For the night driving, check the position of the light and the state of the taillight
when you hold the brake.
Clean and storage of electric scooter
If there is stain on the surface of the scooter, just use soft cloth with clean water to
scrub, if there is stubborn stain, please apply with toothpaste a. and then clean with wet
cloth, if there is scratch on the plastic part, use abrasive paper or other abrasive material
to polish.
Note: Do not use alcohol, gasoline, kerosene or other corrosive chemical solution to
clean, otherwise the appearance or internal structure of the scooter may be damaged.It's
forbidden to flush with hydraulic cannon. Make sure the electric scooter is powered off
and disconnected with power cord and the cover of charging port is closed when
cleaning: otherwise electric shock or serious fault may occur due to penetration of
water.
When disused, it's suggested to store the electric scooter at dry and cool place in house.
Outdoor string for a long time should be avoided. Outdoor (environment with blazing
sun, too hot or cold weather will speed up the aging process of overall appearance and
tires, and shorten the service lifetime of the electric scooter and its battery set.
Folding and handling
Folding
Make sure the electric scooter is powered off, hold the tube and push aside the thumb
shifter, then open the folding lever.
Safety driving tips

Daily protection and maintenance
Daily protection and maintenance
If the brake is too tight, use a M5 hex wrench to loose the bolts of tension disc on the brake
base by rotating anticlockwise, and then withdraw the brake cord (the exposed length
decreases) and fasten the bolts of tension disc, If the brake is too loose, unscrew the bolts of
tension disc and pull out the brake cord (the exposed length increases) and then fast the bolts of
tension disc.
If the tires are insufficiently inflated, please inflate them in time, so as to avoid damage of the
tires.
Handling
Handing he scooter by holding the tube with one
hand or two hands.
Adjusting brake
Adjusting shaking handles
If the vertical tube shakes during your riding the scooter, please use a M5 hex wrench to
fasten the two bolts at the folding mechanism.
Use of inflation inlet

Product Name
Blaze 600 Smart Lithium Scooter
Single HUB Motor
48V 600Watt
Motor Cover Material
Aluminum Alloy
Max Power
600Watt
Max Speed
30 mph flat road speed, 40+ mph downhill
Max Mileage
48V 11AH (25 miles)
Gradeability(Max Uphill Climb Ability)
25 ' Max Road Inclination
Battery Type
Lithium-ion Samsung UL listed batteries
Battery Capacity
48 V 11AH
Lights
LED Front Light & Tail light / Brake light/Acrylic light
Braking
Rear Drum brake ♦ E-ABS Brake System
Tires
8.5 Inch On-road Tires
Suspension
Front and rear Spring Suspension
Dashboard
blue Smart Display
Display Functions
Battery. Trip. ODO. Time.Speed, Mode. Cruise Control and Magnetic Brake
Folding
5 Sec- folding and locking
Body Frame
Ultra strong aluminum alloy
Covers Material
Polypropylene
Max Rider Weight
250 lbs
Product Size
104-21.5M14CM (Open size)
Product Weight
42 lbs
Box size
39” x 10” x 21”
Color
Black
User information:
Name:
Contact number:
Email:
Address :
Product information
Model:
Repair station:
Date of return:
Fault disruption:
Fault cause:
Signature of the repairer:.......................
Start date of warranty extension
(DDMMYY)
Start date of warranty extension
(DDMMYY)
Start date of warranty extension
(DDMMYY)
Product specification
Guarantee card
View Video Install Front Wheel
