ii | Table of Contents
Table of Contents
1
Safety Notice
III-V
2
Diagrams
1-3
Hood Dimensions . . . . . . . . . . . . 1
Control Panel . . . . . . . . . . . . . . 2
Clearance . . . . . . . . . . . . . . . 3
3
Installation
4-10
Instructions . . . . . . . . . . . . . 4-6
Venting Options . . . . . . . . . . . . . 7
Hood Installation . . . . . . . . . . . .
4
Care & Cleaning
11-12
5
Troubleshooting
13
6
Warranty Information
14
Warranty . . . . . . . . . . . . . . 14
Motor Rotation Instructions
......... 10
.
Wiring Diagram
......... 10
...
8-9

| IIIIMPORTANT SAFETY NOTICE
upon receipt of your hood:
1) Inspect your hood for any damage in
shipping
2) Plug in and test controls (lights, fan)
before installing.
3) Call your dealer immediately to report
any damage
Please note: You must report any damage directly to your dealer immediately
upon receipt to address any issues.
CALIFORNIA PROPOSITION 65 WARNING
WARNING: This product can expose you to chemicals including Chromium
(hexavalent compounds), which are known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go
to: www.P65Warnings.ca.gov

Installer: Leave this guide with the homeowner.
Consumer: Keep this guide for future reference.
The Important Safety Notice and warnings in this manual are not meant to cover all
possible problems and situations that can occur. Use common sense and caution when
installing, maintaining or operating this or any other appliance.
Always contact your dealer with any problems or situations that you do not understand.
Safety Symbols and Labels
danger
To avoid the possibility of explosion or fire, do not store or use combustible, flammable
or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or
any other appliance. Keep items that could explode (such as aerosol cans) away from
cook-top burners, ovens and range hoods. Do not store flammable or explosive materials
in adjacent cabinets or surrounding areas.
warning
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact your dealer. Before servicing or cleaning your hood, turn
the power off.
To reduce the risk of fire, electric shock, serious injury or death when using your range hood,
follow basic safety precautions, including the following:
1IMPORTANT SAFETY NOTICE
iv | Safety Notices
General Safety Precautions:

Warning
♦If you receive a damaged product, immediately contact your dealer. Do not install or use a
damaged hood.
♦Do not install, repair or replace any part of the range hood unless specifically recommend-ed
in the literature accompanying it.
♦Use the range hood only for its intended purpose as outlined in this manual. DO NOT use
this range hood to vent hazardous or explosive materials or vapors.
♦Do not tamper with the controls.
♦Never allow the filters to become blocked or clogged. Do not allow foreign objects, such as
cigarettes or napkins, to be sucked into the hood.
♦If the cook-top and range hood is near a window, use an appropriate window treatment .
Avoid long drapes or other window coverings that could blow over the cook-top and hood,
resulting in a fire hazard.
♦Always run the blower(s) while the appliance is in operation. Failure to do so could result in
the overheating and failure of components.
♦Do not leave children or pets alone or unattended in the area while the cook-top and range
hood are in use.
♦The minimum vertical distance between the cooking surface and the exterior part of the hood
must be no less than 36”. The vertical distance may be longer for the range or cook-top
being used.
To reduce the risk of a range top grease fire:
1. Never leave surface units unattended at high settings. Boil-overs cause smoking and greasy
spills that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking.
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
To reduce the risk of injury to person in the event of a range top grease fire:
4. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT .
5. NEVER PICK UP A FLAMING PAN - you may be burned.
6. DO NOT USE WATER, including wet dish clothes or towels - a violent steam explosion may
result.
1IMPORTANT SAFETY NOTICE
Safety Notices | v

1| BLAZE OUTDOOR

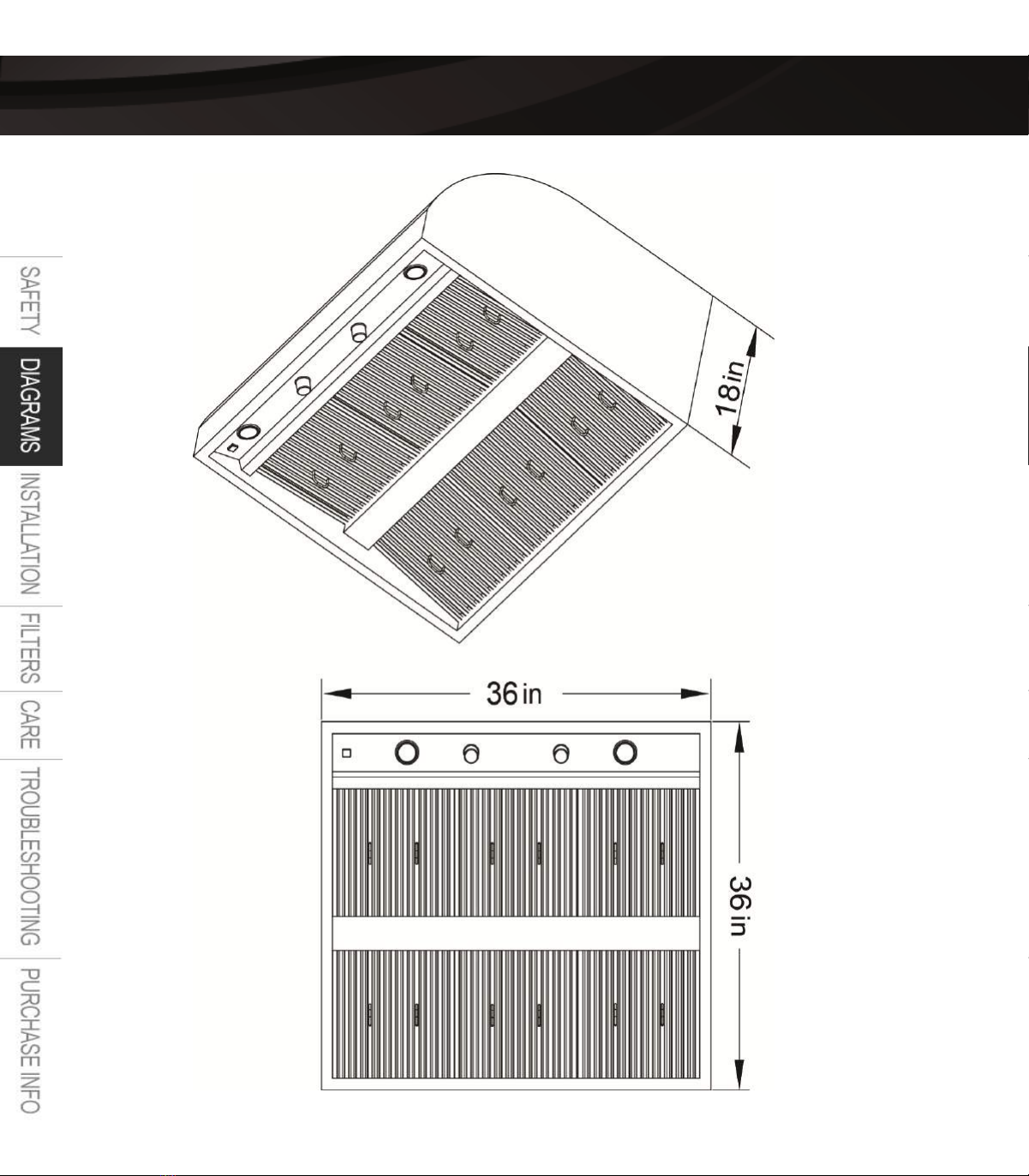

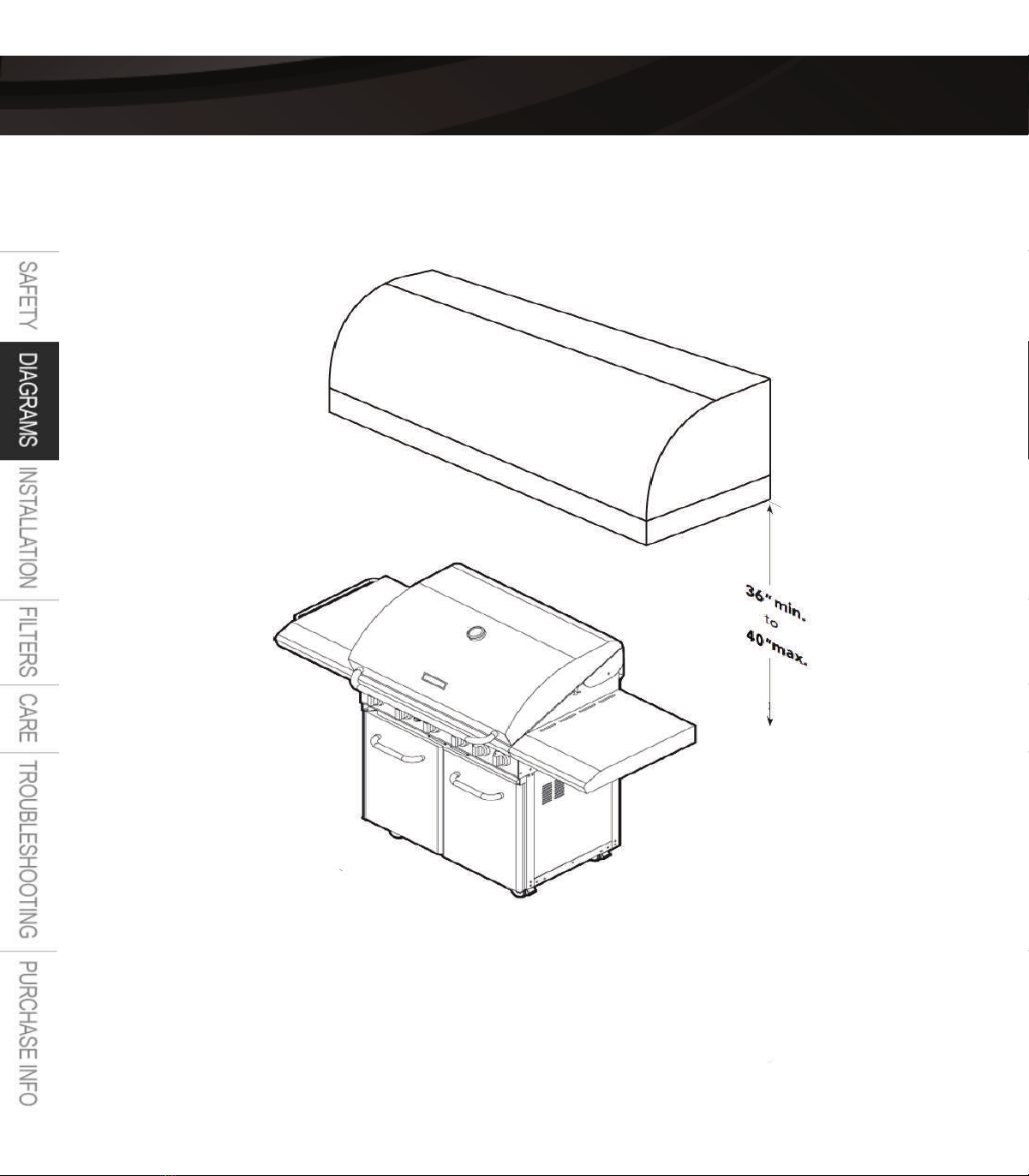

clearance dimensions

USER MANUAL |
2

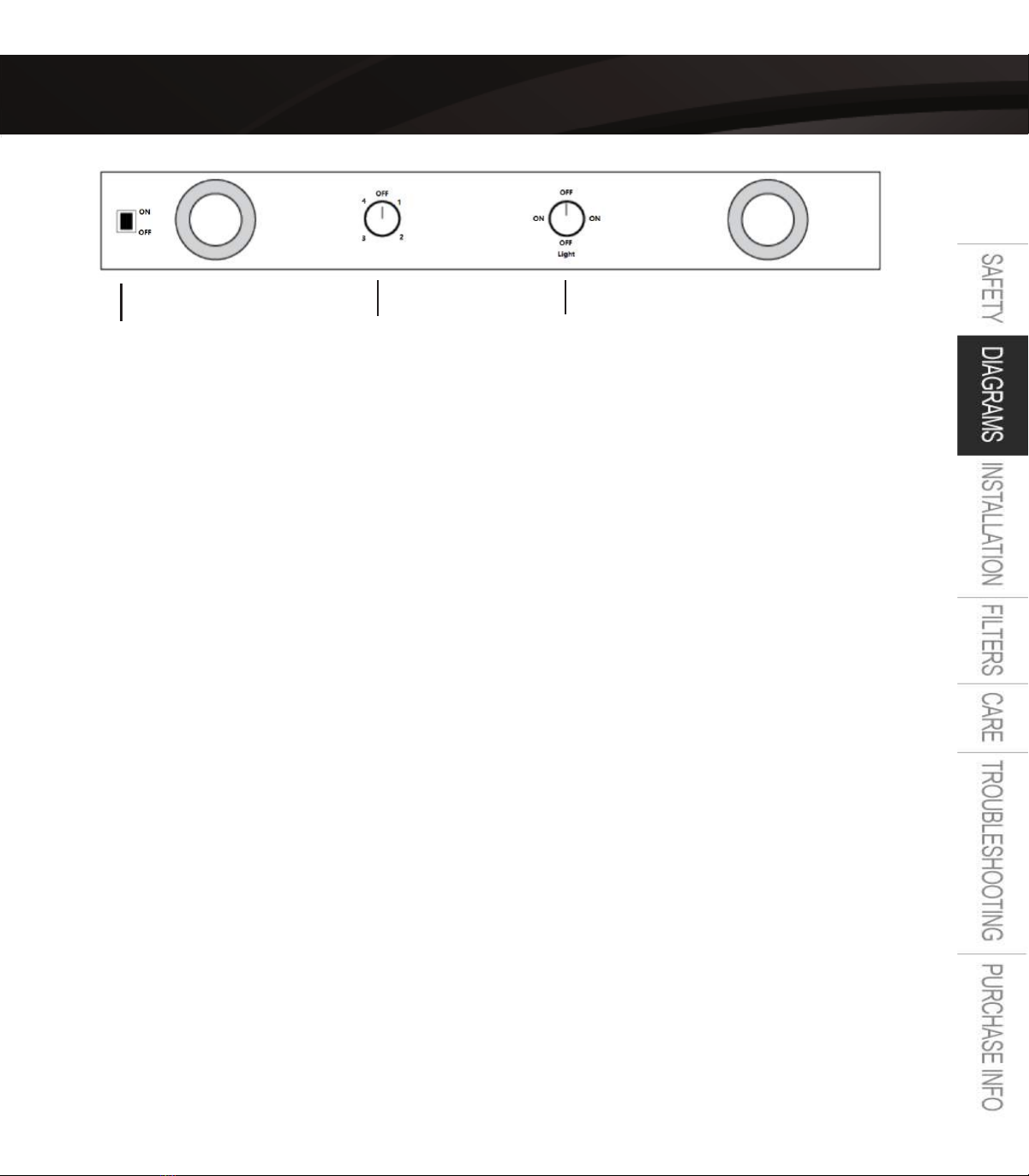

Control Panel
A) FAN:
B) LIGHTS:
ABC
A
B
To adjust the speed of motor, each motor has 4 speed settings. Turning the knob once clockwise will start
the motor in the lowest speed setting. Continuing to turn the knob clockwise will allow the motor to advance
to the highest setting. Turning counter clockwise will return the motor to the original position and stop the
motor.
To turn on lights, turning the knob once clockwise will turn on the lights. Turning the knob once more or
counter clockwise will turn off the lights.
MAIN SWITCH
MAIN SWITCH:
To turn on or off the main power for motors and lights.

3| BLAZE OUTDOOR
clearance dimensions

USER MANUAL | 4
♦Plug in and test controls (lights, fan) before installing.
♦Allow 36-40” between the top of your cooking surface and the bottom of hood
♦Vent through a sidewall if you cannot vent directly above your range hood
♦Vent with completely straight runs of pipe. If necessary, use as few elbows in
the venting as possible, with no more than 3 90-degree elbows. Every elbow in
the ducting reduces airflow and the vent hoods performance.
♦Make sure there is at least 24” of straight vent between any elbows
♦Use silver or duct tape to seal all joints in the vent system
♦Use caulking to seal exterior openings around the cap
♦Always use metal or aluminum ducts for maximum airflow
♦Always keep the duct clean to ensure proper airflow
DO NOT:
♦Terminate the vent system into an attic or other enclosed area
♦Use 4” (10.2cm) laundry-type wall caps
♦Use plastic venting
♦Use corrugated flexible ducting.
♦Combine ducting (see below NOTE)
warning
It is important to install the hood at the proper mounting height. Hoods mounted too
low could result in heat damage and fire hazard. Hoods mounted too high will be
hard to reach and will lose performance and efficiency.
For best installation, we recommend you:
instructions
Note: This model comes with two vent outlets each ready to accept 8”pipe. To ensure proper
performance, maintain the dual exhaust paths vs. combining into a single pipe. Combining
into a single pipe can create a competition between the two motors either creating poor
performance and/or one motor overtaking the other. As vented as described above, one
would require two vent caps with damper and screen each having a rating of 1000 CFM per
cap.

5
| BLAZE OUTDOOR
5
Level
Powered
Drill Flat & Phillips
Screwdrivers
Measuring
Tape
Utility Knife
Marker
or Pencil

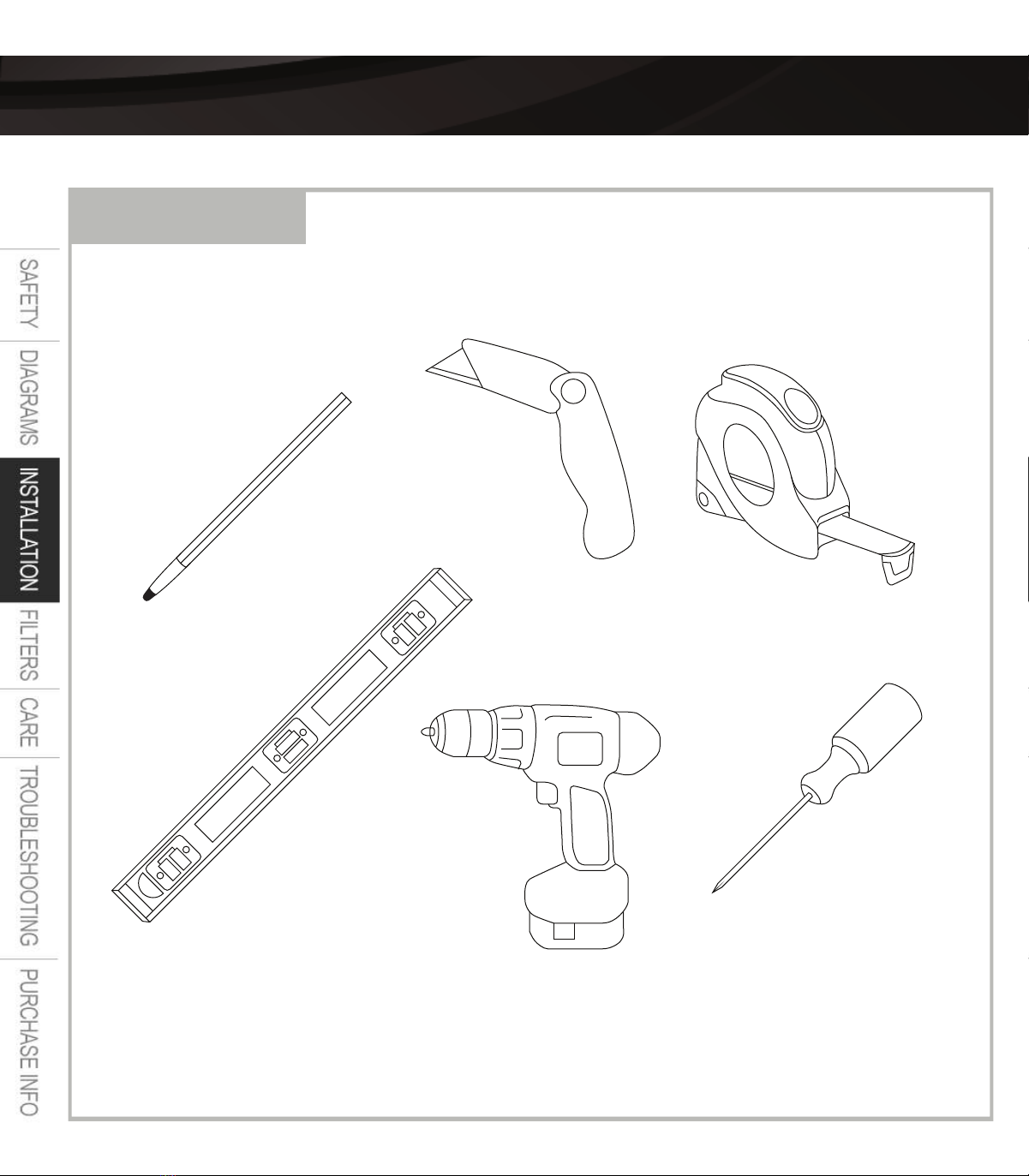

Tools Needed
instructions

Range Hood

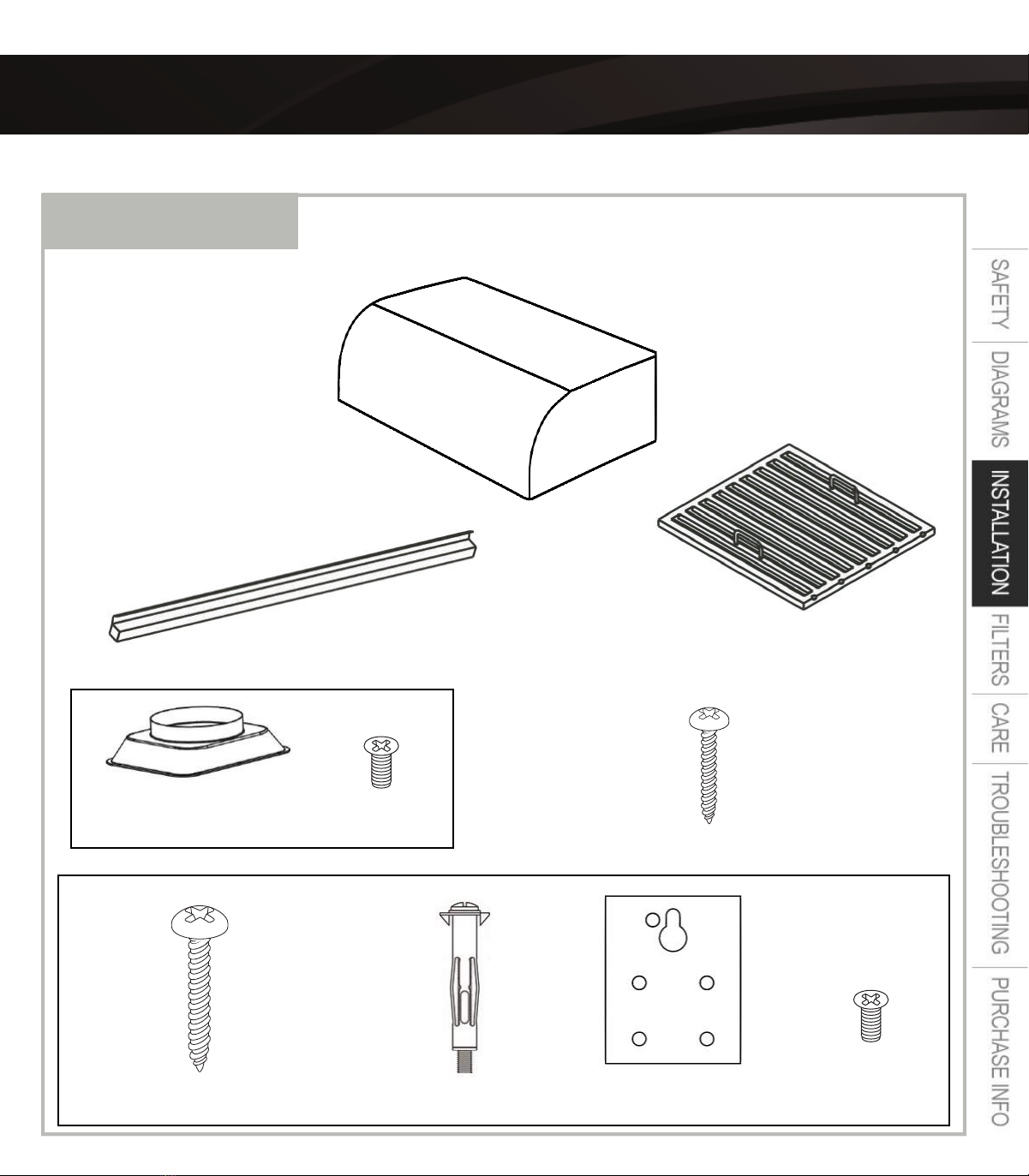

Parts Supplied
Qty: 10 PCS
Amounting Screws Qty: 4 PCS
Stainless Steel Baffle Filters: 6 PCS
Mounting Bracket: 2 PCS
Grease Trays: 2 PCS
Wall Anchors Qty: 2 PCS
Duct Connector 1 PCS
instructions
Qty: 8 PCS
#1
#2 #3
#5
Amounting Screws Qty: 7 PCS
#4
USER MANUAL |
6

5
| BLAZE OUTDOOR

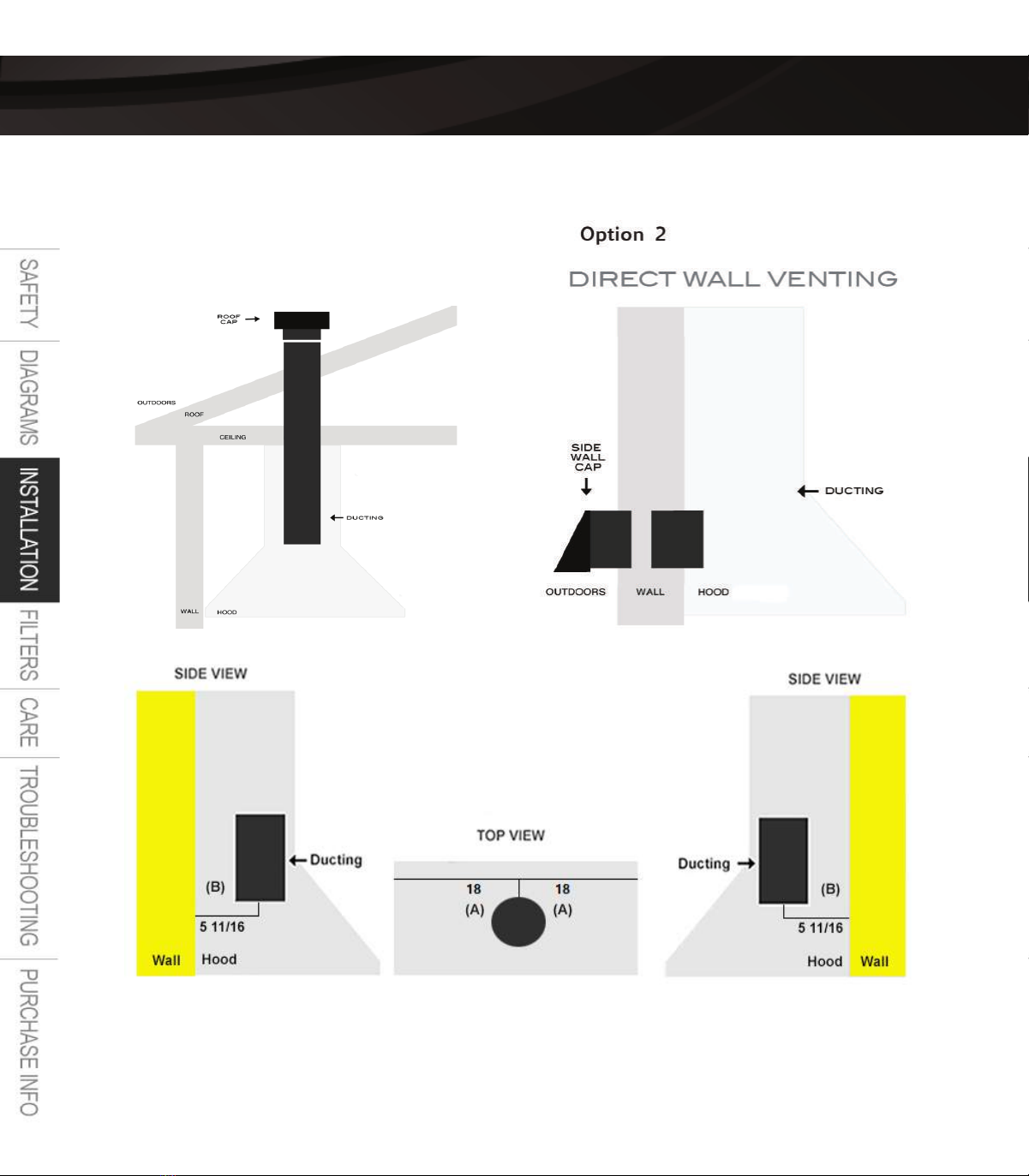

venting options
Wall venting
Option 1
vertical roof venting
7
A -18” from the side edge of the hood to the center of the duct
B - 5 11/16" from the wall to the center of the duct (using the included mounting bracket which is between the wall and hood
and is roughly an 1/8”thick)
*Note: the included transition pieces come ready to accept 8" ducting

PREPARATION
Plan where the ductwork will be located. Install proper-sized ductwork, and roof or wall cap, depending on where
you will be venting your hood. Adjust your measurements to accommodate heights of ceilings, cabinets, or range-
tops. Remember to plug in and test the hood prior to installation. When planning for the installation of the vent
hoodplease include an opportunity to access the top of the hood when the installation i s complete. This i s necessary
for service or replacing parts over time as there are several fasteners that will need to be accessed over time.
Electrical Requirements -Hood comes with foot cord, and will plug into the top of the hood and then into an
GFI protected outlet that should be wired to a AMP breaker.
STEP1
wall hood installation
3- 15
110V
Secure hood to wall using appropriate screws and parts.
Different wall material situation using different method.

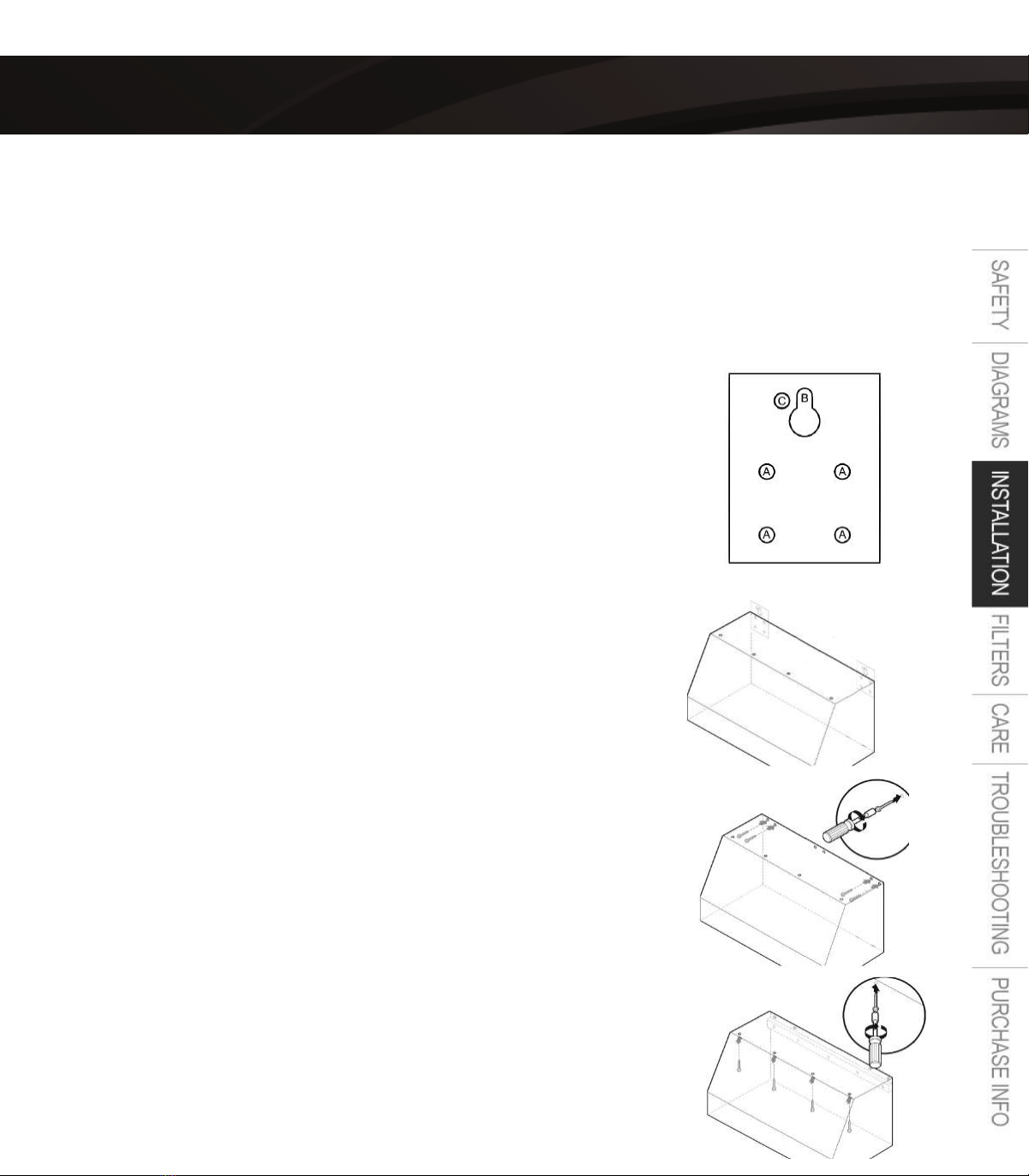

Wooden wall without studs:
Using three mounting bracket (pictured) to help secure the
hood to the wall.
1. Using 8pcs of flat screws #1 through hole “A” to secure the
3pcs of mounting brackets on the back of the hood.
2. Using 2pcs of mounting screws #3 through top of the hole
“B” to secure the hood on the wall.
3. Using 2pcs f mounting screws #2 through hole “C” into the
Wall to make double secure.
Dry wall or sheet rock wall:
1. Using 8pcs of flat screws #1 through hole “A” to secure the 3pcs
of mounting brackets on the back of the hood.
2. Beat 2pcs of wall anchors #3 (make sure the inside screws are
taking out) into the wall first, screw the wall anchor’s screw
into the wall anchors (leave a space to hang the mounting bracket).
3. Hang the hood on the wall, then tighten the screws #3 into the wall
anchors.
Install the range hood on the wall studs:
Using 4pcs of mounting screws #2 directly to the wall studs.
-OPTIONAL-
If not using a duct cover, using #4 of shorter mounting screws,
make sure top mounting screws are secured into soffit or cabinet
framing use additional mounting screws, if necessary.
USER MANUAL |
8

9| BLAZE OUTDOOR
STEP 2
Install the two grease trays in the front and
back of the unit. When installed, these trays.
will accept the grease filters on the bottom
side.
wall hood installation
Install all grease lter handles to the lters using
the included screws. Three lters cover the front
section of the hood and three cover the rear.
Install the lters leaving the bottom of the lters
resting in the previously installed grease trays
and the tops will lay in the U shaped channel in
the center support. Install the center grease
trays rst (as there is an opening for the tray to
leaving the middle tray for last.
STEP 3
When installing the drip trays, place each tray in
the recession at the front and rear as show in the
drawing. Be sure to have the small front bend
hook over the lip of the recession.
Electrical Requirements - Hood comes with a 3 foot cord, and will plug into a 110V 3 prong outlet
which should be wired to a 15 AMP breaker.

MOTOR ROTATION INSTRUCTIONS
Getting Started
The image to the right shows the position of the motors directly from the
factory. This position of the motor is used when running vertical pipe
for your venting.

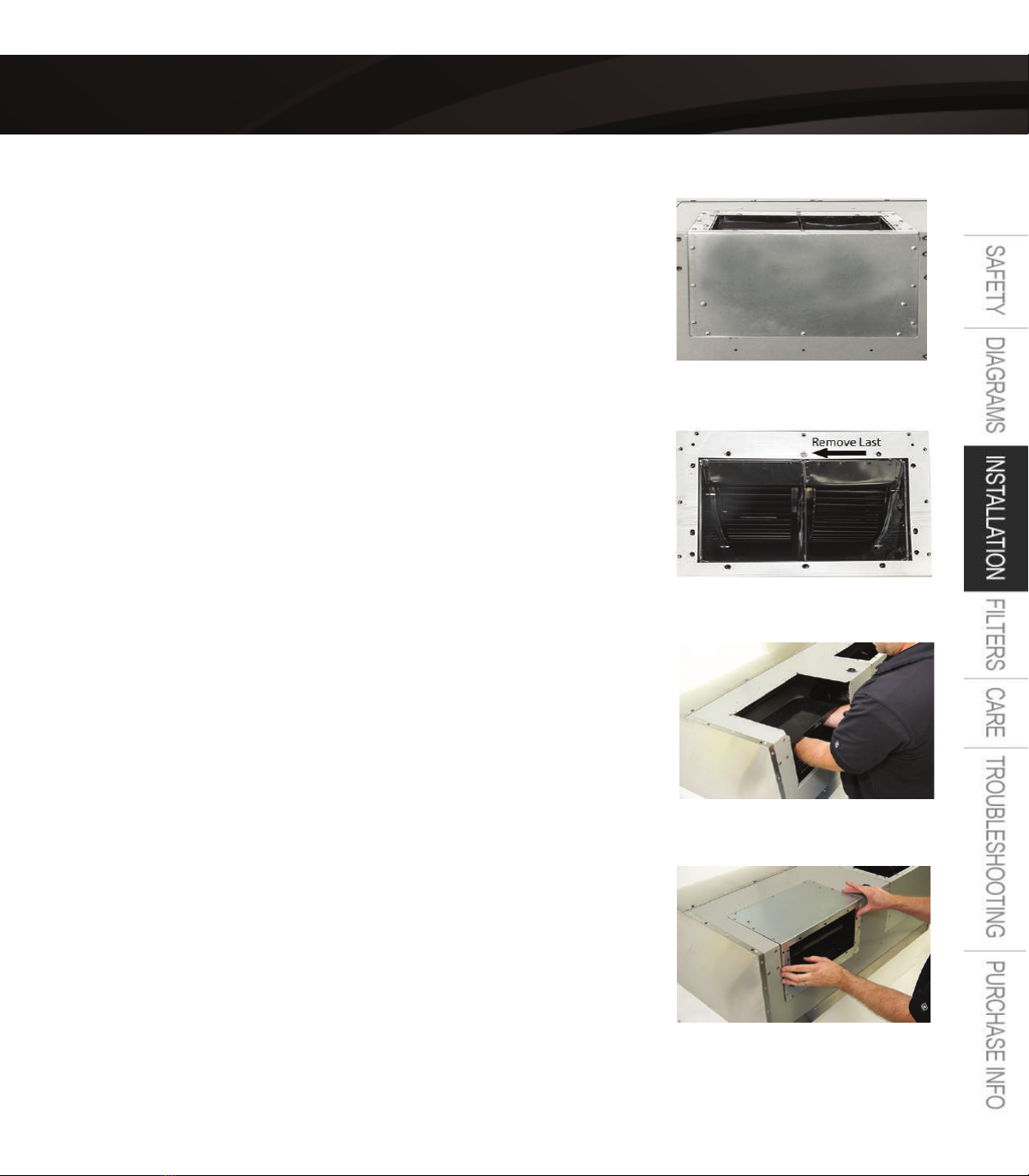

STEP 1 REMOVE COVER PLATE
There are two sets of screws you will be working with on the cover plate.
The smaller screws closest to the edges of the plate hold the plate to the
hood itself. The larger screws closer to the center hold the motor to the
cover plate. Remove all of the smaller screws holding the cover plate to
the hood body.
STEP 2
Next, remove all of the larger screws,which hold the motor to the cover
plate leaving the center screw . The center screw to be left in place can
be seen in the below image.
REMOVE MOTOR SCREWS
STEP 3 DETACH MOTOR FROM PLATE
Holding the center of the motor, remove the nal screw, which will free
the motor from the cover plate. Lower the motor gently until it comes to
resting position.
STEP 4 ROTATE MOTOR
At this point, the cover piece can be removed and you are ready to rotate
the motor to the horizontal discharge position. When lifting the motor out
of the housing, tilting the motor down on one side is typically the best
method for getting the motor out of the opening.
Once out of the hood, simply rotate 180 degrees and place the motor back
into the hood. For both the removal and reinstallation of the Motor, be
careful not to pinch the wiring. Allow it to rest at the initial position when
you started.
STEP 5 REPLACE THE COVER PLATE
Next, re‐install the cover plate with the discharge in the horizontal
position. The cover plate can be reattached with the small screws.
STEP 6 ATTACH THE MOTOR
Re attach the motor to the cover plate. Start with the center screw
which was the last screw removed when the motor was disattached.
Once the initial screw is in place, attach the remaining screws to
hold the motor onto the cover plate.
STEP 7 SECURE LOOSE CABLES
You will nd some of the connecting cables now lying below the motor. Secure wires above motor and the
rotation process is complete. Repeat same process for additional motor.
USER MANUAL |
10

Care & Cleaning
warning
cleaning exterior surfaces
♦
Regular care will help preserve the appearance of your range hood .
♦
Always wipe stainless steel surfaces with the grain to avoid scratches
♦
Clean periodically with hot soapy water and clean cotton cloth .
♦
For heavier soil, use a liquid degreaser such as 409™ or Fantastic™
.
♦
If hood looks splotchy, use a stainless steel cleaner on the surface . Promptly
and gently remove cleaner with a soft towel or wipe .
♦
After cleaning, you may use non-abrasive stainless steel polish (such as 3m™ or
ZEP™) to buff out stainless luster . Always scrub lightly and with a clean cotton
cloth.
DO NOT:
♦
Use corrosive or abrasive detergent (eg, Comet Power Scrub™ or EZ-Off™
oven cleaner).
♦
Use steel wool or scouring pads, which will scratch and damage the stain -
less steel surface .
♦
Leak cleaning solution onto or into the control panel
♦
Allow deposits to accumulate or remain on the hood
♦
Allow salt solutions, disinfectants, bleaches, or cleaning compounds to re -
main in contact with the stainless steel for extended periods .
cleaning baffle filters
All BLAZE BBQ hoods come with stainless steel baffle filters . They should be inspected
for grease accumulation periodically . The baffle filters can be washed in a dishwasher
or in a sink with hot, soapy water . Simple periodic cleaning will ensure maximum filter
effectiveness
♦Never put your hand into the area housing the fan while the fan is operating.
♦Turn off and disconnect power to the hood before cleaning.
♦Make sure your cook-top and hood are cool before cleaning.
♦Use only the types of cleaning solutions mentioned in this manual.
♦Completely dry the filter(s) immediately after cleaning.
.
.
.
.
.
1| BLAZE OUTDOOR
1

Care & Cleaning

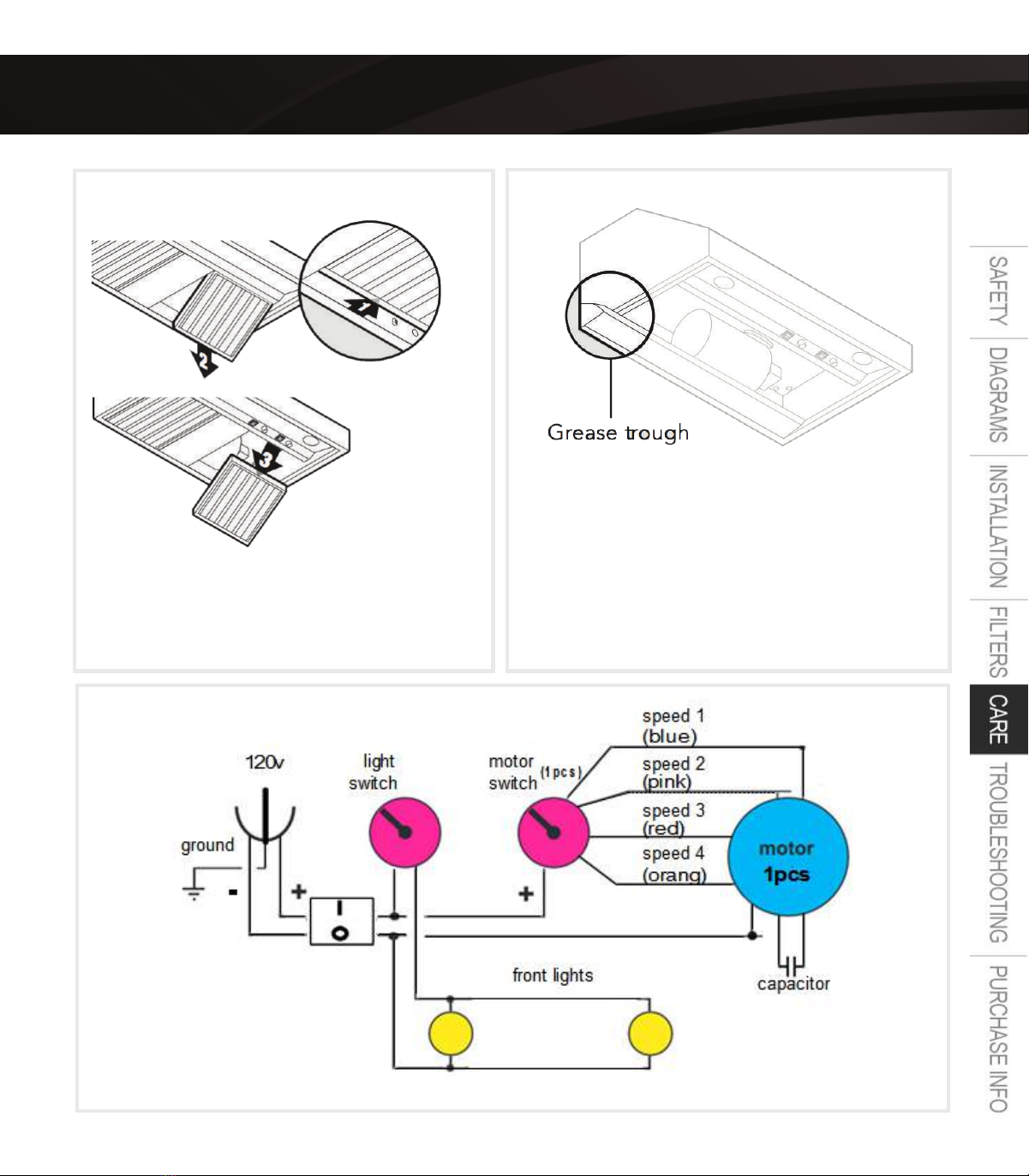

step 1 step 2
Slide filter forward off of rear lip.
Lower filter rear, then slide filter front
out. Repeat this step for all filters on
the front and back of the hood.
When cleaning filters, always remove
the grease channels and clean with
hot soapy water. Both the filters and
the channels are dishwasher safe.
Dry throughly before re-installing.
Wiring Diagram
| 12
USER MANUAL

troubleshooting
NOTHING WORKS (Control Panel not responding, Blower not working)
Solution 1: Turn on power at circuit breaker panel or fuse box . Check for
tripped breaker or blown fuse under the black plastic cover on the rear of
the hood.
Solution 2: Make sure hood power cable is plugged in and powered.
LIGHTS NOT TURNING ON
RANGE HOOD VIBRATES WHEN BLOWER IS ON
Solution 1: Make sure the range hood has been secured properly to the ceiling
or wall.
Solution 2: Ensure the two nuts (one on each side) on the blower moter’s axle are
tight. These are accessible by removing the safety covers on each side.
Solution 3: Ensure the venting system is correct. Back-pressure caused by incorrect
venting not only leads to poor performance but can also create vibrations at the
hood.
BLOWER SYSTEM SEEMS WEAK
Solution 1: Increase the fan speed, ensure that it is at a high enough setting.
Solution 2: Make sure the ducting is sized and run correctly. Range hood will
not function efficiently with insufficient duct size (IE, 9” duct over 8” hole).
Solution 3: Check to see if the duct is clogged or if the damper unit (half-
circular flapper) is installed correctly. A tight mesh on the side wall cap unit
might also cause restriction to the air flow.
Solution 4: Ensure the correct vent termination cap is used with whose cfm
rating matches that of each motor.
.
.
AIR NOT VENTING OUT PROPERLY
Solution 1: Make sure there is at least 36” between the top of the cooking
surface and the bottom of the hood.
Solution 2: Reduce the number of elbows and length of duct work. Check to
ensure all joints are properly connected, sealed and taped.
Solution 3: Make sure power is on high speed for heavy cooking.
Solution 4: See checks under “Blower system seems weak” above.
Solution 1: see “nothing works”
Solution 2: Check the wiring on the lights to insure a secure connection/
no. loose wires.
Solution 3: Swap out lights to determine if bulbs are defective.
13 | BLAZE OUTDOOR

Warranty
One Year Warranty - Parts Only
For one year from the date of original purchase, we will repair or replace any
non-consumable parts or components that failed due to manufacturing defects.
What is NOT Covered:
♦ Consumable parts such as light bulbs and filters (stainless, aluminum, or
charcoal)
♦Damage due to natural wear, improper maintenance, or use of abrasive
cleaning products
♦Chips, dents, or cracks due to abuse, misuse, or improper installation
♦Damage caused by accident, fire, floods, or natural disaster
ATTENTION International Customers: Please consult your selling dealer or
distributor for specifics pertaining to your product warranty and procedure. No
one else is authorized to perform any obligations under this warranty.
| 14
USER MANUAL


