Blaze BLZ-HOOD User manual

user manual
Model #: BLZ-HOOD

ii | Table of Contents
Table of Contents
1 Saftey Notice III-V
2 Diagrams 1-3
Hood Dimensions . . . . . . . . . . . .1
Control Panel . . . . . . . . . . . . . . 2
Clearance . . . . . . . . . . . . . . . 3
3 Installation 4-9
Instructions . . . . . . . . . . . . . .4
Venting Options . . . . . . . . . . . . . 5
Hood Installation . . . . . . . . . . . . 6-7
4 Care & Cleaning 8-9
5 Troubleshooting 10
6 Warranty Information 11
Warranty . . . . . . . . . . . . . . 11
IMPORTANT SAFETY NOTICE

| III
Table of Contents
IMPORTANT SAFETY NOTICE
upon receipt of your hood:
1) Inspect your hood for any damage in shipping
2) Plug in and test controls (lights, fan) before insalling.
3) Call your dealer immediately to report any damage
Please note: you must report any damage directly to your dealer immediately
upon receipt to address any issues.

Installer: Leave this guide with the homeowner.
Consumer: Keep this guide for future reference.
The Important Safety Notice and warnings in this manual are not meant to cover all
possible problems and situations that can occur. Use common sense and caution when
installing, maintaining or operating this or any other appliance.
Always contact your dealer with any problems or situations that you do not understand.
Safety Symbols and Labels
danger
To avoid the possibility of explosion or fire, do not store or use combustible, flammable
or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or
any other appliance. Keep items that could explode (such as aerosol cans) away from
cooktop burners, ovens and range hoods. Do not store flammable or explosive materials
in adjacent cabinets or surrounding areas.
warning
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact your dealer. Before servicing or cleaning your hood, turn
the power off.
General Safety Precautions:
To reduce the risk of fire, electric shock, serious injury or death when using your range hood,
follow basic safety precautions, including the following:
1IMPORTANT SAFETY NOTICE
iv | Safety Notices

warning
♦If you receive a damaged product, immediately contact your dealer. Do not install or use a
damaged hood.
♦Do not install, repair or replace any part of the range hood unless specifically recommend-
ed in the literature accompanying it.
♦Use the range hood only for its intended purpose as outlined in this manual. DO NOT use
this range hood to vent hazardous or explosive materials or vapors.
♦Do not tamper with the controls.
♦Never allow the filters to become blocked or clogged. Do not allow foreign objects, such as
cigarettes or napkins, to be sucked into the hood.
♦If the cooktop and range hood are near a window, use an appropriate window treatment.
Avoid long drapes or other window coverings that could blow over the cooktop and hood,
resulting in a fire hazard.
♦Always run the blower(s) while the cooktop is operating.
♦Do not leave children or pets alone or unattended in the area while the cooktop and range
hood are in use.
♦The minimum vertical distance between the cooking surface and the exterior part of the
hood must be no less than 36”. The vertical distance may be longer for the range or cook-
top being used.
To reduce the risk of a range top grease fire:
1. Never leave surface units unattended at high settings. Boil-overs cause smoking and greasy
spills that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
To reduce the risk of injury to person in the event of a range top grease fire:
4. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACU-
ATE AND CALL THE FIRE DEPARTMENT.
5. NEVER PICK UP A FLAMING PAN - you may be burned.
6. DO NOT USE WATER, including wet dish clothes or towels - a violent steam explosion may
result.
1IMPORTANT SAFETY NOTICE
Safety Notices | v

1| BLAZE OUTDOOR PRODUCTS

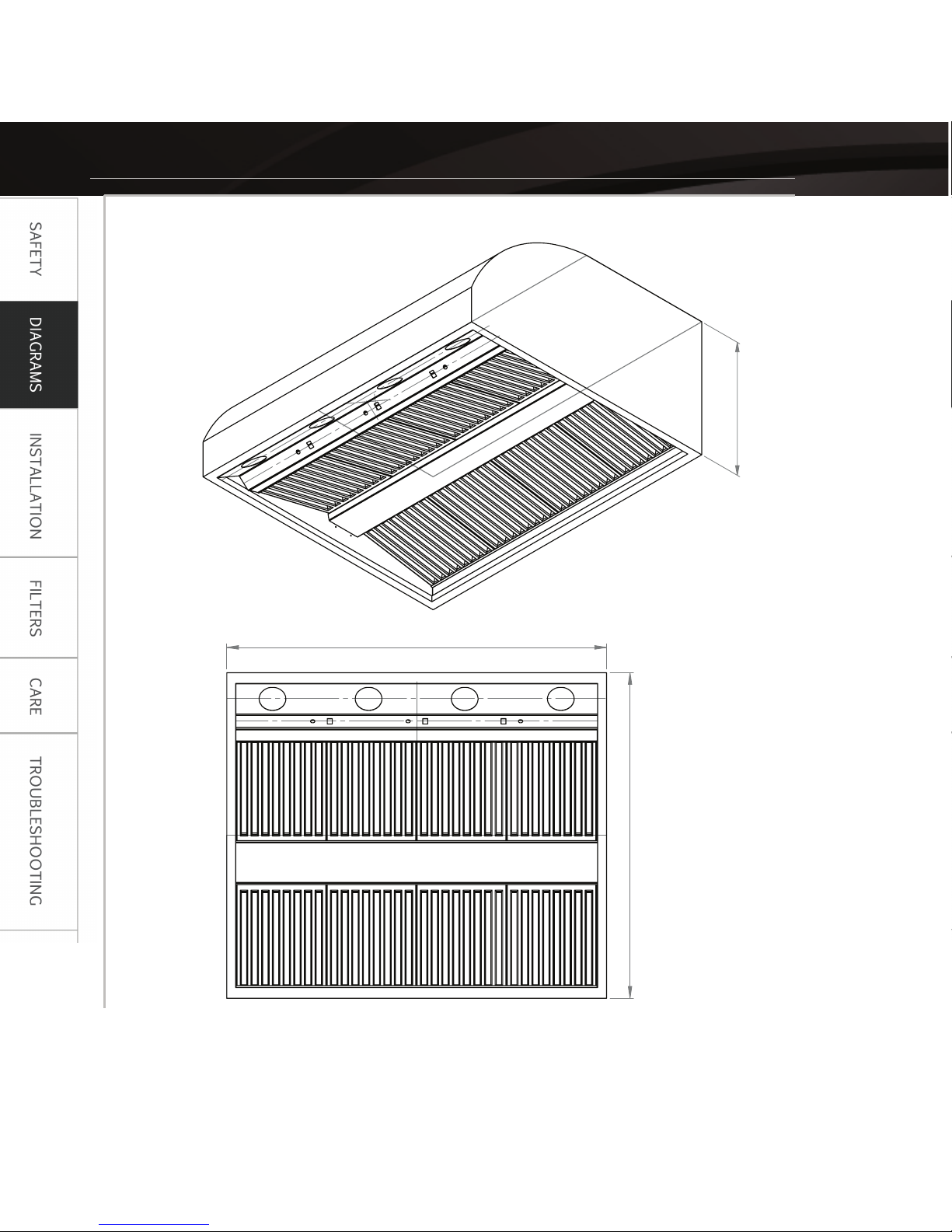

BLAZE BBQ HOOD
18.00in
42.00in
36.00in
BBQ Hood 20131026 Main Page
WEIGHT:
A4
SHEET 1 OF 1
SCALE:1:20
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN

USER MANUAL | 2
Control Panel
A) LEFT FAN:
To turn on the fan, flip the switch on the left. Press up (I) to power on, and down
(o) to power off.
To adjust the intensity of the fan, use the knob on the right. Turn the knob coun-
terclockwise for the lowest fan speed and quietest output. Turn the knob clockwise
for the highest, most powerful speed.
B) LIGHTS:
To turn on lights, flip the switch on the left. Press up (I) to power on, and down (o)
to power off.
To adjust the brightness of the lights, use the knob on the right. Turning the knob
counterclockwise will dim the lights. Turning the knob clockwise will brighten the
lights.
C) RIGHT FAN:
To turn on the fan, flip the switch on the left. Press up (I) to power on, and down
(o) to power off.
To adjust the intensity of the fan, use the knob on the right. Turn the knob coun-
terclockwise for the lowest fan speed and quietest output. Turn the knob clockwise
for the highest, most powerful speed.
ABC

3| BLAZE OUTDOOR PRODUCTS
clearance dimensions

USER MANUAL | 4
♦allow 36-40” between the top of your cooking surface and the bottom of
hood
♦vent vertically through the roof if possible
♦vent through a side wall if you cannot vent directly above your range hood
♦use as few elbows in the venting as possible, with no more than three 90°
elbows.
♦make sure there is at least 24” of straight vent between any elbows
♦use silver or duct tape to seal all joints in the vent system
♦use caulking to seal exterior openings around the cap
♦always use metal or aluminum ducts for maximum airflow
♦always keep the duct clean to ensure proper airflow
For best operation, we recommend you:
DO NOT:
♦terminate the vent system into an attic or other enclosed area
♦use 4” (10.2 cm) laundry-type wall caps
♦use plastic venting
warning
It is important to install the hood at the proper mounting height. Hoods mounted too
low could result in heat damage and fire hazard. Hoods mounted too high will be
hard to reach and will lose performance and efficiency.
instructions

5| BLAZE OUTDOOR PRODUCTS
venting options
horizontal wall venting
Option 1 Option 2
vertical roof venting
Note: This model comes with two 8” outlets. You can vent straight up with both, or
you may combine them into a 10” or 12” pipe. Do not combine into one 8” outlet.
We recommend you use hard pipe and vent straight up 12-18” with two 8” outlets
before combining into the 10” or 12” pipe. It is also recommended to have a roof
cap with a damper and screen.

USER MANUAL | 6
preparation
Plan where the ductwork will be located. Install proper-sized duct work, and roof or wall
cap, depending on where you will be venting your hood. Recommended and most com-
mon installations are shown in the venting diagrams on the previous page. Adjust your
measurements to accomodate heights of ceilings, cabinets, or rangetops.
wall hood installation
step 1
Secure hood to wall stud using
screws. If necessary, use additional
mounting screws and wall anchors. If
your stud does not line up with the
provided screw holes, you may drill
into the stainless steel.
Note: These are suggested mounting
points only. Find the stud closest to
these mounting points, and create new
holes in the hood there.
--optional--
If not using a duct cover, using
screws, make sure top mount-
ing screws are secured into soffit
or cabinet framing use additional
mounting screws, if necessary.
Installation Tip:
Use the mounting bracket (pictured below) to help secure the hood
to the wall.

7| BLAZE OUTDOOR PRODUCTS

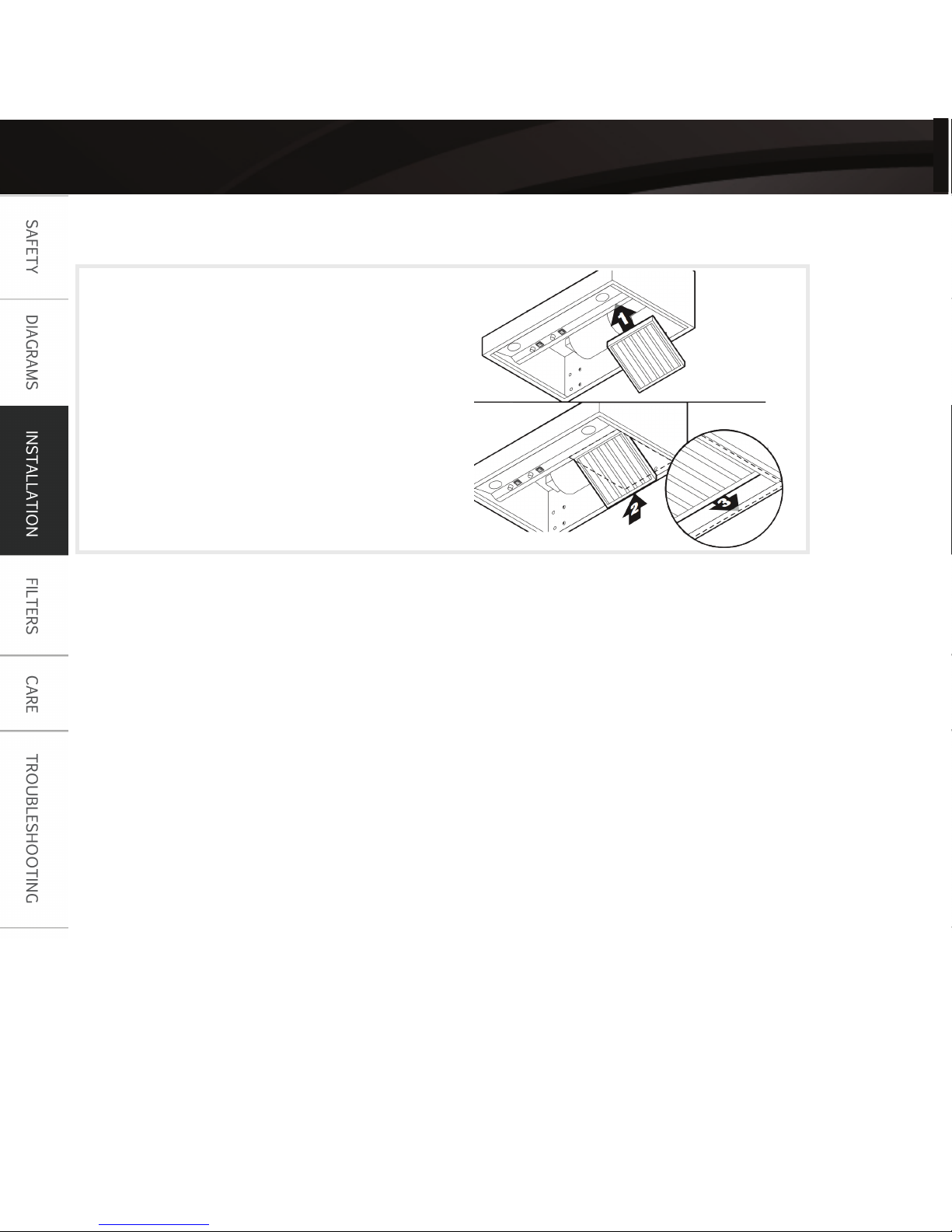

step 2
Slide filter front over front lip. Push
filter rear up, then slide back over
rear lip. Repeat this step for all
filters on the front and back of the
hood.
Electrical Requirements - Hood will plug into a 110V
outlet which should be wired to a 15 AMP breaker.
wall hood installation

USER MANUAL | 8
Care & Cleaning
warning
♦Never put your hand into the area housing the fan while the fan is operating
♦Turn off power to the hood before cleaning
♦Make sure your cooktop and hood are cool before cleaning
♦Use only the types of cleaning solutions mentioned in this manual
♦Completely dry the filter(s) immediately after cleaning
cleaning exterior surfaces
♦Regular care will help preserve the appearance of your range hood.
♦Always wipe stainless steel surfaces with the grain to avoid scratches
♦Clean periodically with hot soapy water and clean cotton cloth.
♦For heavier soil, use a liquid degreaser such as 409™ or Fantastic™.
♦If hood looks splotchy, use a stainless steel cleaner on the surface. Promptly
and gently remove cleaner with a soft towel or wipe.
♦After cleaning, you may use non-abrasive stainless steel polish (such as 3m™ or
ZEP™) to buff out stainless luster. Always scrub lightly and with a clean cotton
cloth.
DO NOT:
♦Use corrosive or abrasive detergent (eg, Comet Power Scrub™ or EZ-Off™
oven cleaner).
♦Use steel wool or scouring pads, which will scratch and damage the stain-
less steel surface.
♦Leak cleaning solution onto or into the control panel
♦Allow deposits to accumulate or remain on the hood
♦Allow salt solutions, disinfectants, bleaches, or cleaning compounds to re-
main in contact with the stainless steel for extended periods.
cleaning baffle filters
All BLAZE BBQ hoods come with stainless steel baffle filters. They should be inspected
for grease accumulation periodically. The baffle filters can be washed in a dishwasher
or in a sink with hot, soapy water. Simple periodic cleaning will ensure maximum filter
effectiveness.

9| BLAZE OUTDOOR PRODUCTS
Care & Cleaning

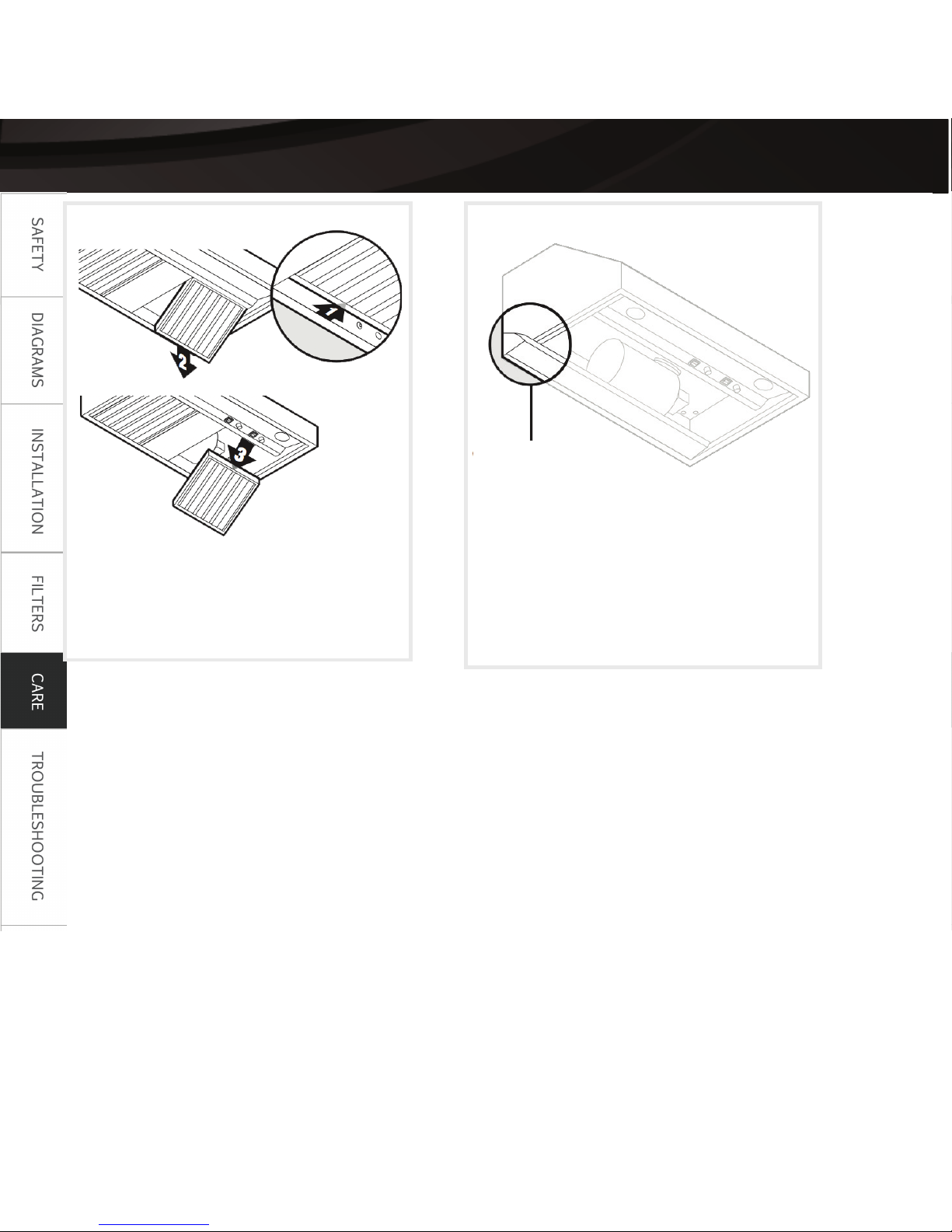

step 1 step 2
Slide filter forward off of rear lip.
Lower filter rear, then slide filter
front out. Repeat this step for all
filters on the front and back of the
hood.
When cleaning filters, always re-
move the grease channels and
clean by soaking in a sink with hot
soapy water. Both the filters and
the channels are dishwasher safe.
Dry thoroughly beforere-installing.

| 10
troubleshooting
NOTHING WORKS (Control Panel not responding, Blower not working)
Solution 1: Turn on power at circuit breaker panel or fuse box. Check for
tripped breaker or blown fuse.
Solution 2: Make sure hood power cable is plugged in and powered.
LIGHTS NOT TURNING ON
Solution 1: see “nothing works”
Solution 2: Swap out lights to determine if bulbs are defective.
RANGE HOOD VIBRATES WHEN BLOWER IS ON
Solution: Make sure the range hood has been secured properly to the ceiling
or wall.
BLOWER SYSTEM SEEMS WEAK
Solution 1: Increase the fan speed, ensure that it is at a high enough setting.
Solution 2: Make sure the ducting is sized correctly. Range hood will not
function efficiently with insufficient duct size (IE, 9” duct over 8” hole)
Solution 3: Check to see if duct is clogged or if damper unit (half-circular
flapper) is installed incorrectly. A tight mesh on a side wall cap unit might
also cause restriction to the air flow.
AIR NOT VENTING OUT PROPERLY
Solution 1: Make sure there is at least 36” between the top of the cooking
surface and the bottom of the hood
Solution 2: Reduce the number of elbows and length of duct work. Check to
ensure all joints are properly connected, sealed, and taped.
Solution 3: Make sure power is on high speed for heavy cooking.
USER MANUAL

11 | BLAZE OUTDOOR PRODUCTS
Warranty
One Year Warranty - Parts Only
For one year from the date of original purchase, we will repair or replace any
non-consumable parts or components that failed due to manufacturing defects.
What is NOT Covered:
♦Consumable parts such as light bulbs and filters (stainless, aluminum, or
charcoal)
♦Damage due to natural wear, improper maintenance, or use of abrasive
cleaning products
♦Chips, dents, or cracks due to abuse, misuse, or improper installation
♦Damage caused by accident, fire, floods, or natural disaster

7655 Airline Highway Baton Rouge, LA 70814 • 1-866-976-9510 • http://www.blazegrills.com/
