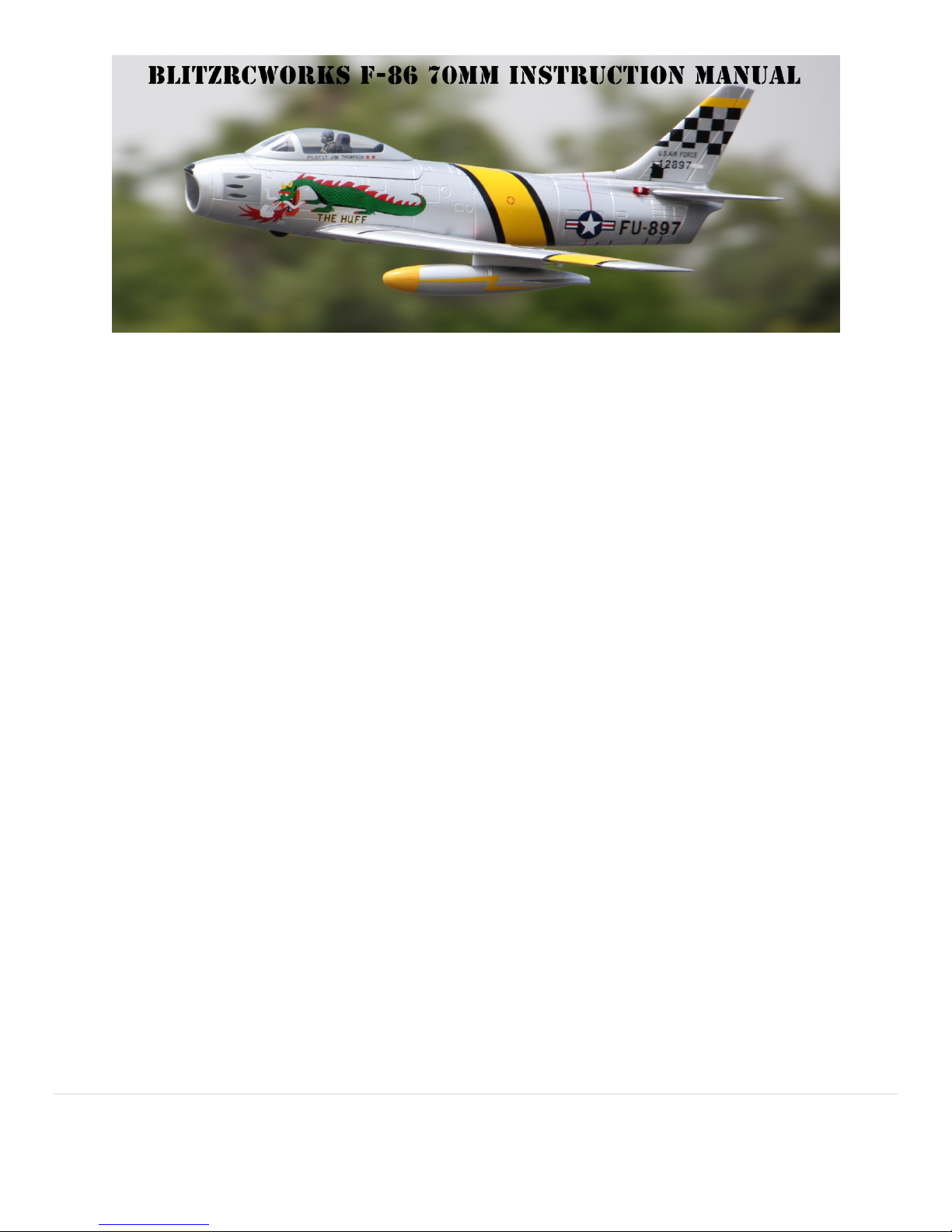

BlitzRCWorks F-86 70MM User manual
ThankyouforthepurchaseoftheBlitzRCworksF‐86ElectricRadioControlJet!TheBlitzRCworksF‐86isaHigh
PerformanceElectricDuctedFanJetwhichisidealfortheIntermediatetoAdvancedPilot.
Congratulationsonowningyourownpieceofflyinghistory!TheF‐86isaclassicJetintheworldofaviation!Banana
HobbyandBlitzRCworksissoveryproudtobeabletobringthisFlyingRadioControlmodeltoyou!Thisflyinghobbyis
aboutapassionforflightandapassionforaircrafts!Itisachancetopilotyourownpieceofhistory!YourF‐86Sabre
comepackedfullofstateofartelectronics!Apowerfulbrushlessmotorandbrushlessspeedcontrolisattheofthis
flyingmachine!(intheRTForPNPpackage).TheF‐86exhibitsaverydocileflightcharacterforthesportflier!Forthe
speedthrilled,aerobaticyearningpilot,pegthatthrottlestickforwardandOWNtheskywithSpeedandAerobatics!
YourF‐86SabreisanawesomereplicaoftheFullSizeF‐86!Extremedetailintheappearancethatcommandsattention
atanyairfieldyouvisit!SoflywithconfidenceasBlitzRCworksandBananaHobbyareproudtobringyouthisquality
EDFF‐86Sabre!
InordertoFlyyourF‐86EDF,pleaseinsureyoureadthroughandfollowtheinstructionsprovidedherecarefullybefore
operatingyourJetforthefirsttime.
Youaloneareresponsibleforthesafeoperationofyourradiocontrolledmodel.Childrenshouldonlybepermittedto
operatethismodelunderthesupervisionandinstructionofanexperiencedadult.
IfyoumayhaveanyquestionsaboutthesafeoperationofourRadioControlledaircraft,pleasecontactyourlocalhobby
retailerforprofessionaladviceoryoucancontactBananaHobbyCustomerServiceat:(626)248‐2888oryoucanlogon
toLiveChatbetweenthehoursof9amto6pmMontoFriPST.(12to1pmPSTLunchBreak).TheLiveChatoptionis
providedatwww.bananahobby.comhomepage.Youmayalsosendanemailto:[email protected]
RadioControlledmodelsareverydemandingandpotentiallydangerousmachines.Theseproductsrequireahighlevel
oftechnicalknowledgeandskillfromtheoperator.togetherwitharesponsibleattitudewillyieldingreatexperiences.
Pleasealwayskeeptheinstructionmanualhandyforreferenceevenafterthebuild.Canbeusedasaquickreference
guide.
1|Page
2|Page
WARNING:
ThisBlitzRCworksF‐86ElectricR/CAircraftisNOTATOY.Itisnotsuitableforchildrenunder14yearsofage.Banana
HobbyandBlitzRCworksarenotheldliableformisuseofthisproduct.
1.DonotFlyyourBlitzRCworksF‐86near:Houses,Buildings,Playgrounds,Traffic,Railways,Airports,OverheadPower
Linesandortelephonepoles.Donotflynearheavypopulatedareasandoverpeople.
2.Theidealflyinglocationisalargeemptyfieldorwideopenspacewithnopeoplepresent.Ifyouareflyingatamodel
airfield,makesureyoucontacttheairfield'sadministratorforproperpermission.
3.Thebatteryshouldnotbeoverchargedorchargedunattendedatanytime.Donotchargenearanyflammable
materialorontopofanyflammablematerial.
4.Ifyouareflyingon72mhz,alwayscheckwithotherpilotsflyinginyoursameareaornearyoursameareaforany
frequencyconflicts.Two72mhzonthesamechannelcannotbeflownatthesametime.Ifyouareusing2.4gHz,there
isnoneedforfrequencychecks.
5.Donotflyinstrongwindsoranyadverseweatherconditions.
6.Donotattempttotryandcatchtheplaneduringflight.Thiscancauseextremeinjuryandharm.
7.Childrenundertheageof14mustnotoperatethisproductalone.Theymustbeaccompaniedbyanexperience
adultatalltimes.
8.Thismodelaircraftisdesignedtobepoweredbyanelectricmotor.Flyingthismodelaggressivelymayleadtoserious
accidentsorinjuries.
9.DonottouchtheFANUNITwhenitisspinningasitcancauseseriousinjuries.
10.DonoteverpoweronyourF‐86firstwithoutFIRSTturningonyourTransmitter.DonoteverTurnOFFyour
TransmitterFIRSTafteraflightwithoutdisconnectingthebatterytotheaircraftFIRST.Doingsomaycauselossof
communicationbetweentheaircraftandthetransmitterresultingintheaircraftbeingdamaged.
Features:
Powerful 70mm Electric Ducted Fan Jet
Perfect aerobatics maneuvers, such as rolls, loops, cobra maneuvers, and etc…
Stable inverted flight
Excellent pitch stability
Steerable nose wheel
Molded foam parts are easily replaceable
Wingspan: 1103mm (43.4 in)
Length: 1085mm (42.7 in)
Flying Weight: 1500g (52.9 oz)
Wing Area: 15dm2 (232 sq in)
Wing Load: 100g/dm2
Drive System: Ducted Fan 70mm w/ Thrust Tube (Powerful 2836KV Outrunner Brushless Motor)
Servo: 11X 9g high speed micro servos
Speed Controller: 45 Amp Brushless Speed Control w/ 5A BEC
Retract System: Air Retracts
3|Page
4|Page

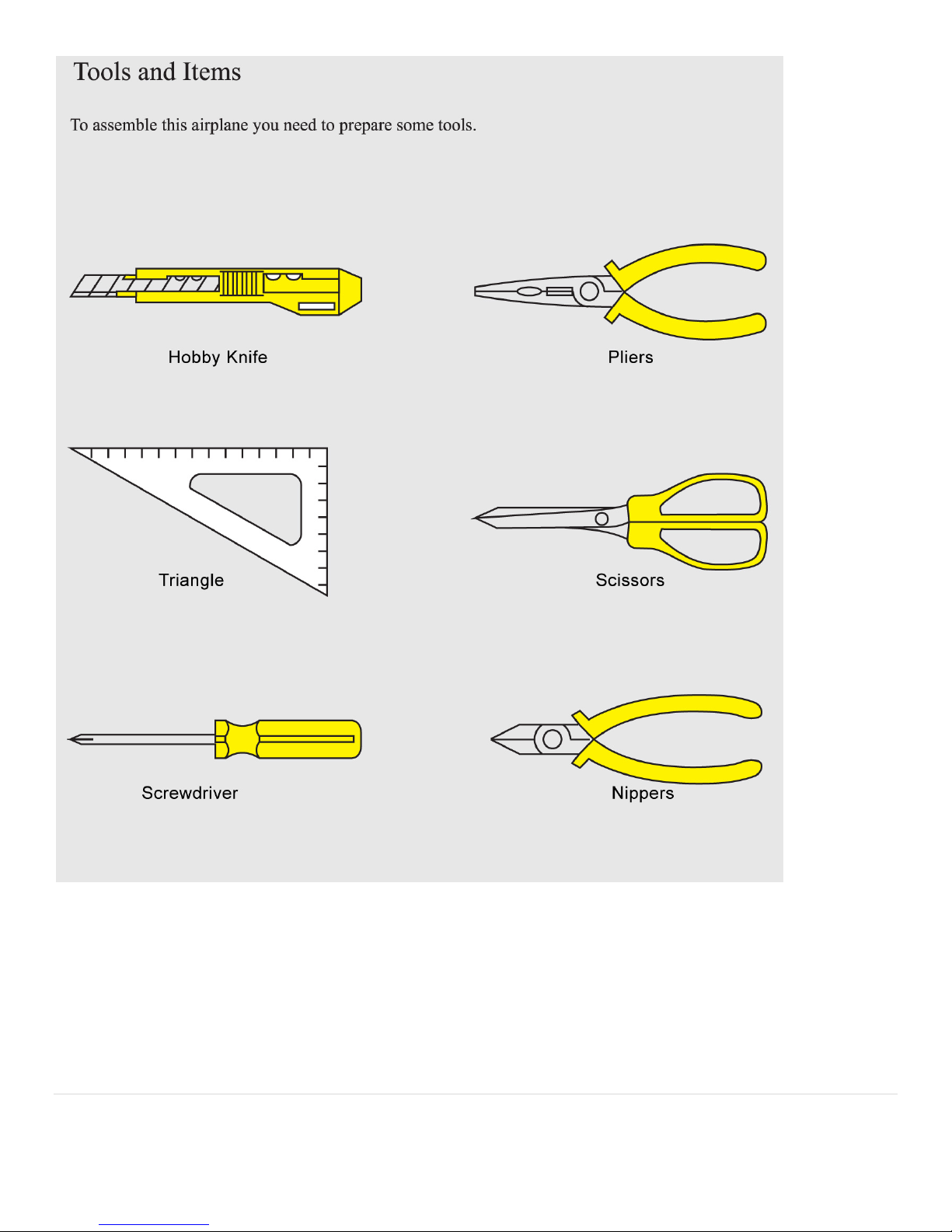

5|Page
6|Page

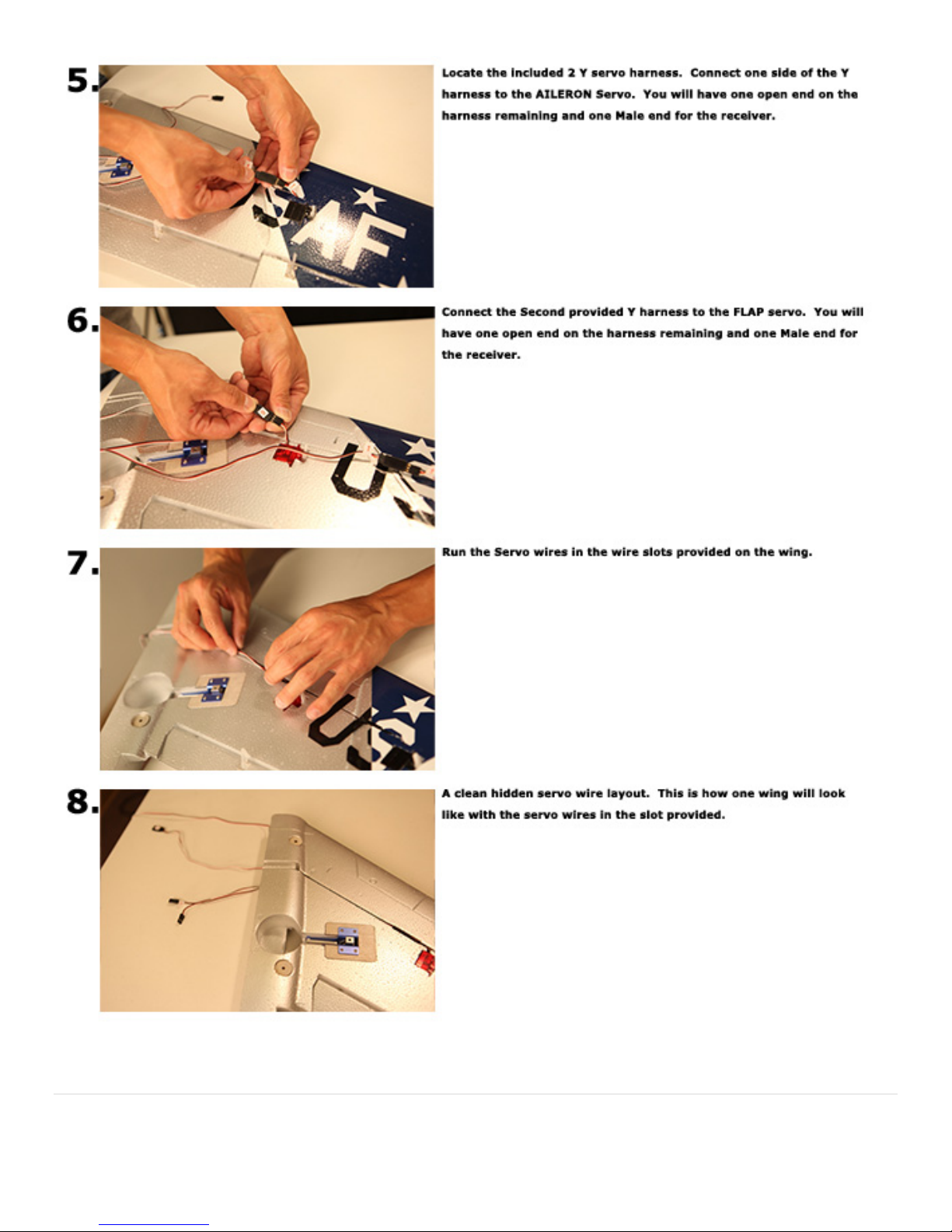

7|Page
8|Page
9|Page

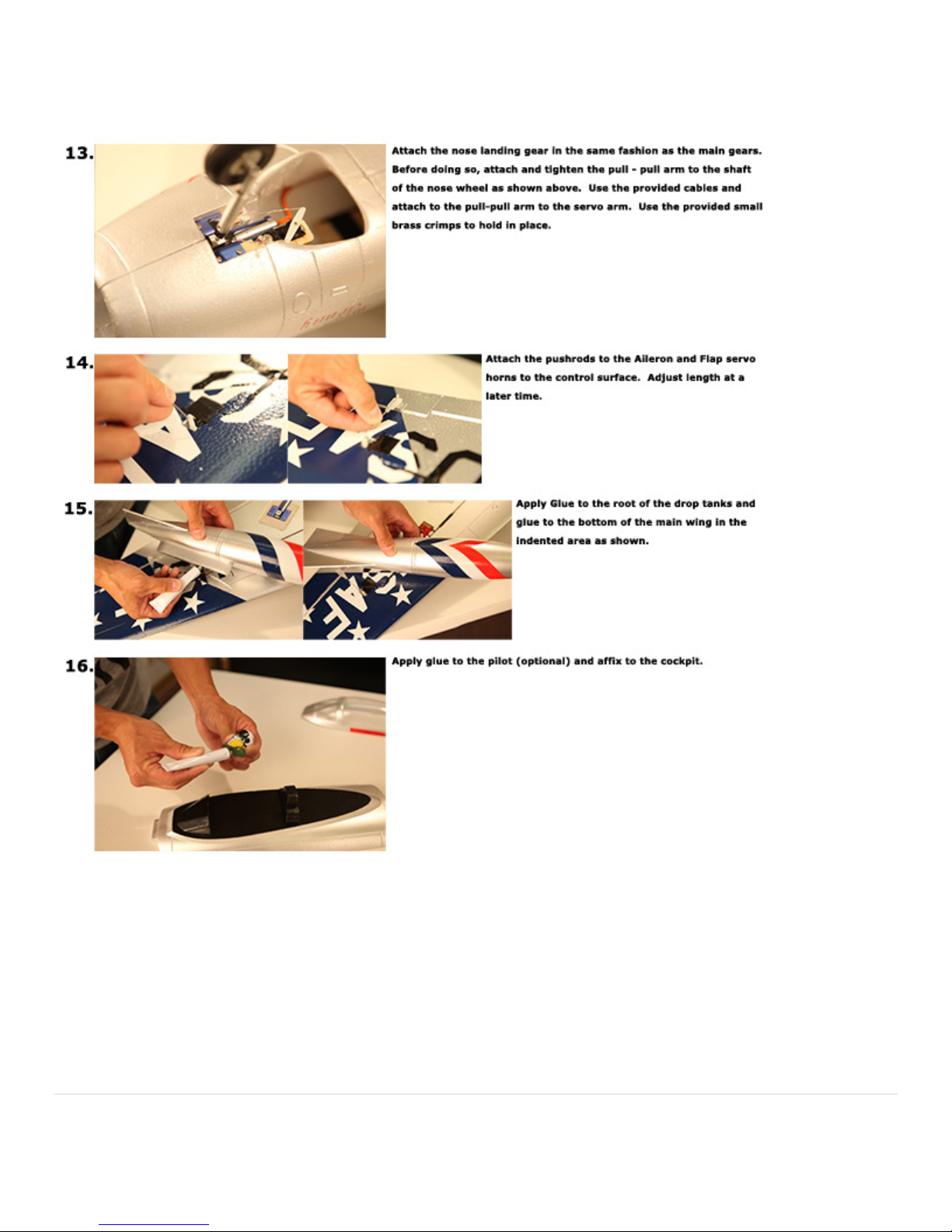

10|Page
11|Page
Congratulations on the completion of the main build on your New BlitzRCworks F-86 Sabre!
The only remaining steps are to connect the servo leads to your radio system and perform a
few final adjustments!
Channel Assignments:
Channel 1: Ailerons
Channel 2: Elevator
Channel 3: Throttle
Channel 4: Rudder
Channel 5: Retracts
Channel 6: Flaps
Channel 7: Fuselage Air Brakes
You may choose to combine the Airbrakes on the fuselage to the flaps if you wish
BATT Channel: External BEC
Control Surface Throws
These are the recommended control surface throw amounts. Can be adjusted to the individual's flying style as
you please.
Elevator- 8mm (5/16")
Aileron- 10mm (13/32")
Rudder- 8mm (5/16")
Flaps- 25mm (31/32")

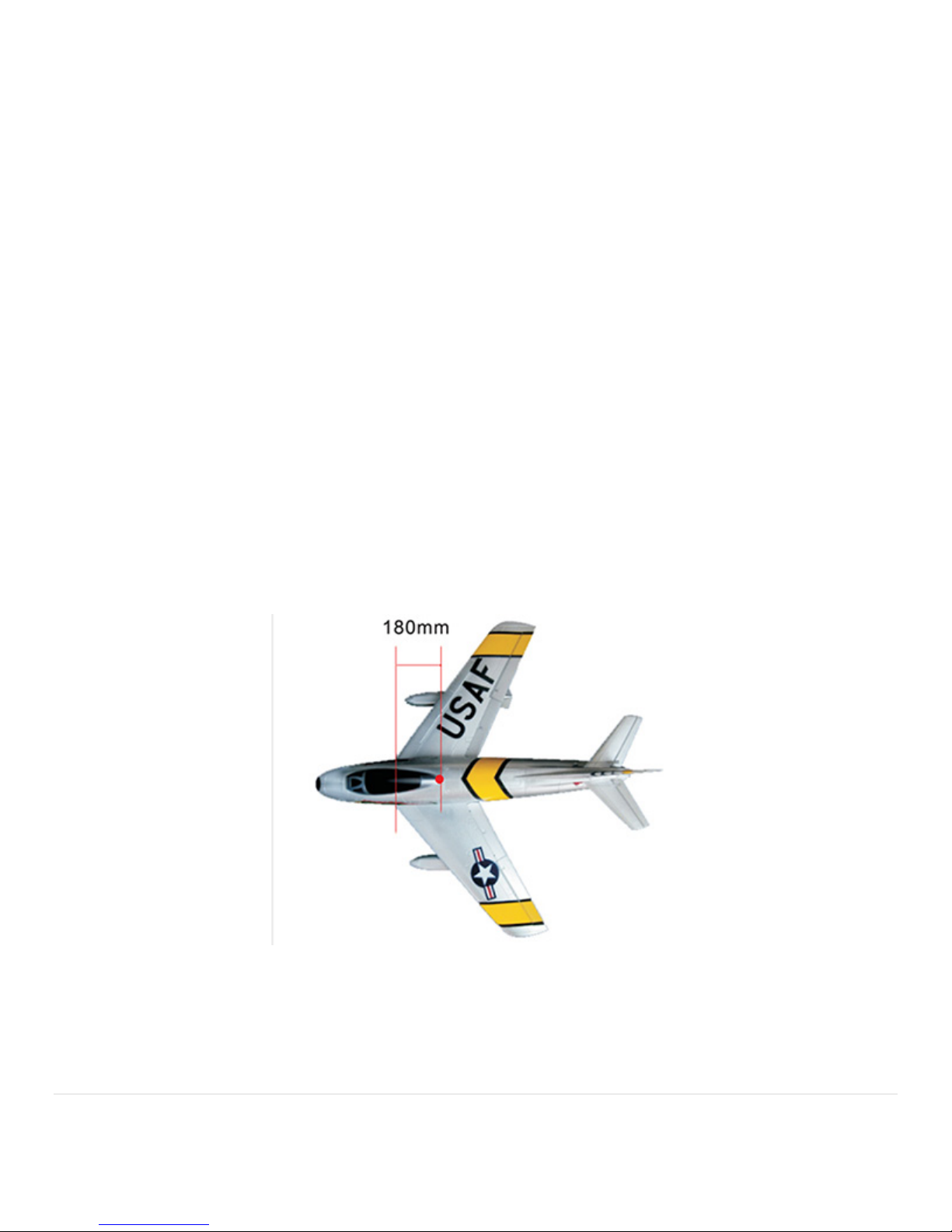

Center of Gravity
Center of Gravity is: 180mm From the leading edge of the main wing at the ROOT . (center of the main wing
root)
*RETRACT Fill Pressure to NO MORE THAN 100PSi. **
12|Page
13|Page
Pre-Flight Check
1. Check for any broken or damaged parts on main wing, fuselage or tail.
2. Check the fan, adapter and all screws are securely fastened.
3. Always check there are no other pilots using the same frequency (band) in the same area.
4. Securely fasten the main wing.
5. Make sure the power switch on the plane is OFF before connecting the battery. Make sure
you stay clear of the fan.
6. Switch the transmitter ON, then switch the receiver ON.
7. In case motor starts rotating accidentally, have an assistant hold the fuselage of the plane
securely.
8. Check that the plane responds properly to control signals.
9. Test the range of the radio signal. Step back about 65 feet (20m) and check for interference.
10. Check the plane control surfaces if functioning properly.
11. Make sure retract air tank fill pressure to no more than 100 PSI.
FAQ:
Q: Why are my retracts lowering in the DOWN position by itself after only 1 minute into my flight?
A: There is a slow leak in the air hose lines. Pump 80 PSi into the holding tank and go to a quiet room to
determine if you can hear an air leak. If you can not, you will need to apply drops of soapy water to each of
the joints where the air line meets a connector.
Q: What do I do if my "Check Valve" is leaking air?
A: Put one drop of bearing oil into the check valve and use a tooth pick to press the Check Valve Flap open
and let it spring close. Press the flap a few times to lubricate the valve.
Q: Why is my retracts not functioning when it is filled with air?
A: Air Pressure is too low. Fill to 100PSi minimum.
Q: Why are my retracts not functioning when my air tank has 100PSi of air?
A: Check the servo with the pushrod attached controlling the Air Solenoid. Make sure the servo is moving
and the solenoid is sliding. If not, put a couple of drops of oil on the cylinder slide on the solenoid.
14|Page
Release of Liability
Banana Hobby, BlitzRCworks, its affiliates, manufacturers, distributors, or retail partners shall not be
held liable or responsible for any accident, injury, to persons, or damage to property resulting from
the use, misuse, or the abuse of any Banana Hobby/BlitzRCworks product. In purchasing a Banana
Hobby/BlitzRCworks product, the User agrees to accept responsibility for all such risks.
General Warranty Policies
Banana Hobby products are warranted to be free of material and workmanship defects for a period of
30 days from the date of purchase. If a component is defective or was not correctly made, Banana
Hobby will, at its sole discretion, repair or replace the item or its components free of charge granted it
falls within the 30 day warranty period and the policies listed on our website. This warranty does not
cover normal wear and tear, CRASH DAMAGE, modifications, failure to perform routine maintenance,
or any damages arising as a result of improper use.
User is required to read all instruction manuals and follow the manufacturer’s guidelines as well as
the pre-flight checklist. BananaHobby.com DOES NOT accept responsibility for injury, crash or
damage, loss of kits or accessories, or parts and materials that occurs during the use of any radio-
controlled model. Great care shall be taken when using RC products.
Notice of Rights
All rights reserved. No part of this box may be reproduced or transmitted in any form at any time,
electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of
Banana Hobby.
Actual Product may vary from product shown. Product subject to change.
This product contains chemicals known in the State of California to cause Cancer, Birth Defects, and
other Reproductive Harm.
This product is not intended for use by person or persons, including children, with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of this product by a person responsible for their safety.
