Blizzard BZ-CD100R User manual

Refrigerator
BZ-CD100R BZ-CD400R

1
Thank you for choosing and purchasing our product. Please carefully read the operation
instructions before use for a correct application and satisfactory effect.
This appliance compliance with the requirement of directive 2006/42/EC.
Contents
2 General
2 Structure and Parts
3 Handle and Erection
3 Handle and Erection
4 Preparation and Power Supply
4 Preparation and Power Supply
5 Use and Caution
7 Maintenance
7 Trouble Shooting
8 Principle of Refrigeration System and Electric Circuit Diagram
9 Major Parameters

2
General
1. Top brand fully enclosed compressor is used on the standing refrigerator. The
refrigerantR290 or R600a is of an environmentally friendly agent. It features a rational
configuration of refrigeration system with blower forced air cooling. The temperature is
quite even inside the refrigerator.
2. Double hollow transparent glasses are used on door and body. It features an artistic
and elegant appearance, perfect perspective and easy access.
3. It has a wide application in department store and house as well as the meeting room
and sitting room.

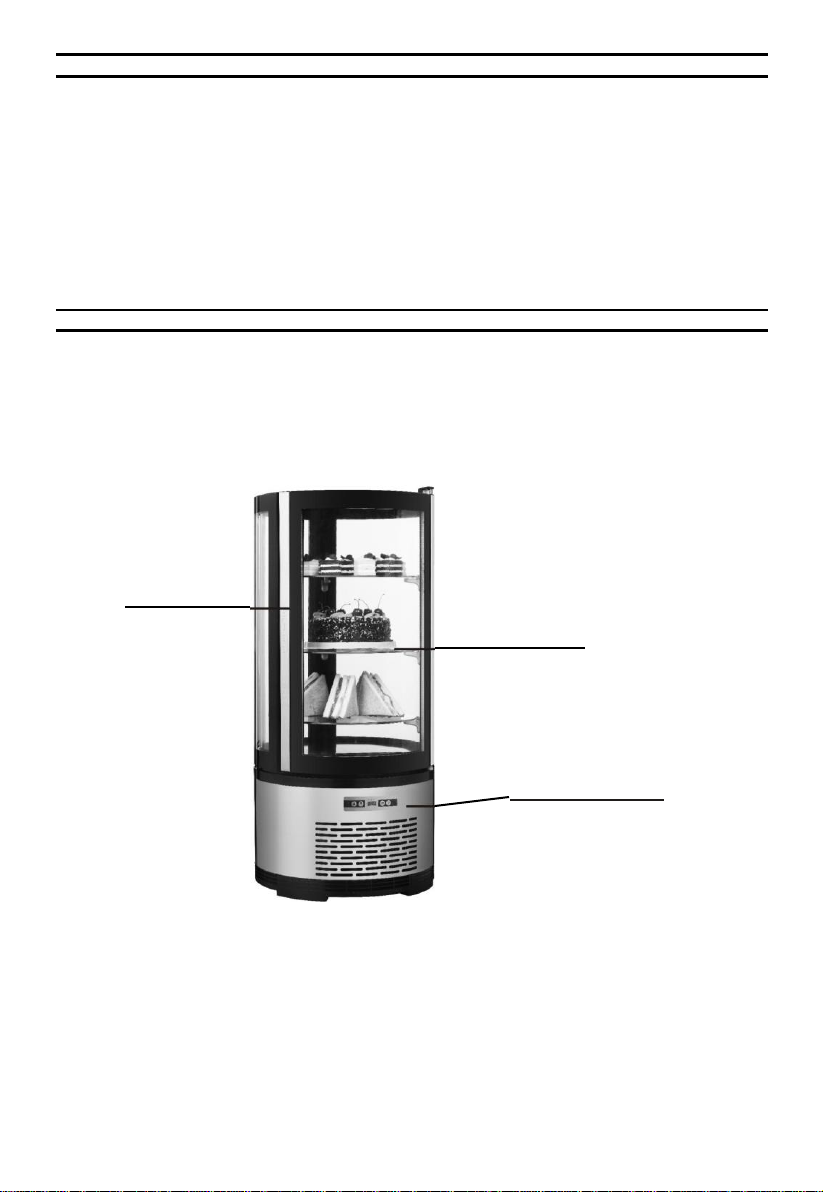

Structure andParts
Glass door
Glass shelf
Digital temperature controller

3
Handle and Erection
Handle with care
Unplug the wall socket first.
Never tilt it over 45 degree during
handling.
Dry place
Always locate the refrigerator at
a dry place.
Sufficient space
The distance from both sides and
back of refrigerator to wall or other
substance must be More than 10cm.
The refrigeration capability might
be decreased if its surround space
is too small to circulate air.
Well ventilation
Always locate the refrigerator at a
place with fine ventilation. For the
first time use, wait for 2 hours after
handling and then plug the wall
socket and start it.
,, [
Handle and Erection
No heavy load
Never put any heavy load on the
top of the refrigerator.
Nohole making
Never make hole on the
refrigerator. Never install other
matter on the refrigerator.
Stable location
To avoid the unexpected noise
and vibration, Unpacking and
locate the refrigerator on a flat
and solidplace.

4

5
Use and Caution
1. Before use:
Plug the refrigerator on 220-240V- exclusive socket.
After the refrigerator running, put hand on the air suction to confirm it is sufficient cold.
Thenyou may put food inside the cold box.
2. Digital temperature controller
Refrigerant LED Defrost LED
It is a mini-sized and integrated intelligent controller and applicable to the compressor of
one Hp.
The main functions are: Temperature Display/Temperature Control/Manual, automatic
defrost by turning off/illuminationControl/Value Storing /Self Testing /Parameter Locking
Front panel operation
1, Set temperature
Press button, the set temperature is displayed.
Press or button to modify and store the displayed value.
Press button to exit the adjustment and display the cold-room temperature.
2, If no more button is pressed within 10 seconds , the cold-room temperature will be
displayed.
3, lllumination: Press button, it lights; Press again, it stops.
Manual start/stop defrost: Press button and hold for 6 seconds todefrost or stop
defrost.
4, Refrigerant LED: During refrigeration, the LED is on; When the cold room temp. is
constant, the LED is off; During the delay start, the LED flashes.
5, Defrost LED: during defrosting, the LED is on; When is stops defrosting , the LED is
off, During the delay display of defrost, the LED flashes.
,6 Digital controller reset
When display shows "Disorder" , press" " button for 2s until buzzer rings, quickly
press" " button for 6s until buzzer rings again , the display will flash for 3s and it
restores factory setting.

6
3.Cautions
Shorten the door open time and reduce open frequency is good to keep a cold temperature
inside the refrigerator.
Never block the air suction and outlet. Keep air circulation and refrigeration capability.
Do not make food congested as it will influence the cooling effect.
Adjust the rack height for proper food storage.
Cool the hot food down to room temperature before you put it into the refrigerator.
Try to reduce the open times and keep refrigerator inside cold in case the power is cut off.
Only skilled service man is allowed to repair the damaged power cable with special tools.
Never touch compressor to avoid from scald.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
The operation manual is not suitable for the persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and knowledge.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
During normal operation, the emission noise level does not exceed 70dB(A).
The maximum loading of the Shelf does not exceed 18kg.
The climatic class of the appliance is 4, the Units are suggested to be used at
16°C-32 °C ambient temperature.
To avoid damages or other problems, this product cannot be put or stored with
anycorrosive food.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
WARNING: Do not use mechanical devices of other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
ADDITIONAL WARNING
Caution: risk of fire. The height of the triangle in the symbol shall be at least 15mm.

7
Maintenance
1. Notice
Often keep the refrigerator clean and periodical maintenance is necessary.
Always unplug the socket before maintenance.
Neveruse damagedplugorloosesockettopreventfromelectricshockor shortcircuit.
Never flush the refrigerator. Never use alkali detergent,,soap, gasoline, acetone or brush.
2. Cleanoutside
Dipsoftclothin neutraldetergent (tablewaredetergent)to cleanthe outsideof the refrigerator
andthenwipeit withdry softcloth.
3. Cleaninside
Take rack out for cleaning with water.
Usesoftclothto wipethe box.
4. Shut down refrigerator for a long time
Takeall foodoutandunplugthewall socket.
Clean both inside and outside of the refrigerator thoroughly and open the door for sufficient
dry.
The glass breaks easily. Keep the glass far from children.
5. Replacementof lampin thelightbox
If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent.
TroubleShooting.._
Trouble
CauseandRemedy
No refrigeration
Is the plug in socket well?
Is the fusebroken?
Is there no power?
Unsatisfactory refrigeration
Isit under thesunshine? ls thereanyheatsource nearby?
Is thesurrounding ventilation bad?
Does thedoorclose well? Does door openfor a long time?
Is thedoorsealstripdeformedor damaged?
Is foodcongested or toomuch?
Does foodblock theair suction or outlet?
Regulatethetemperaturecontroller.
Muchnoise
Therefrigerator doesnot level.
The refrigerator contacts wall or other matter.
Thereis loosepartinrefrigerator.
Contact localservice agentfor help if simple troubleshooting does notsolve the problems.
Note!
Following phenomena are not troubles
The murmur of water is heard when the refrigerator is working. It is a normal phenomenon
as the coolantis circulating inthe system.
In wet season, condensation might be found on the outside of the refrigerator. It is not a
trouble, whichis causedby highhumidity.Simplyuse clothto wipeit.

8

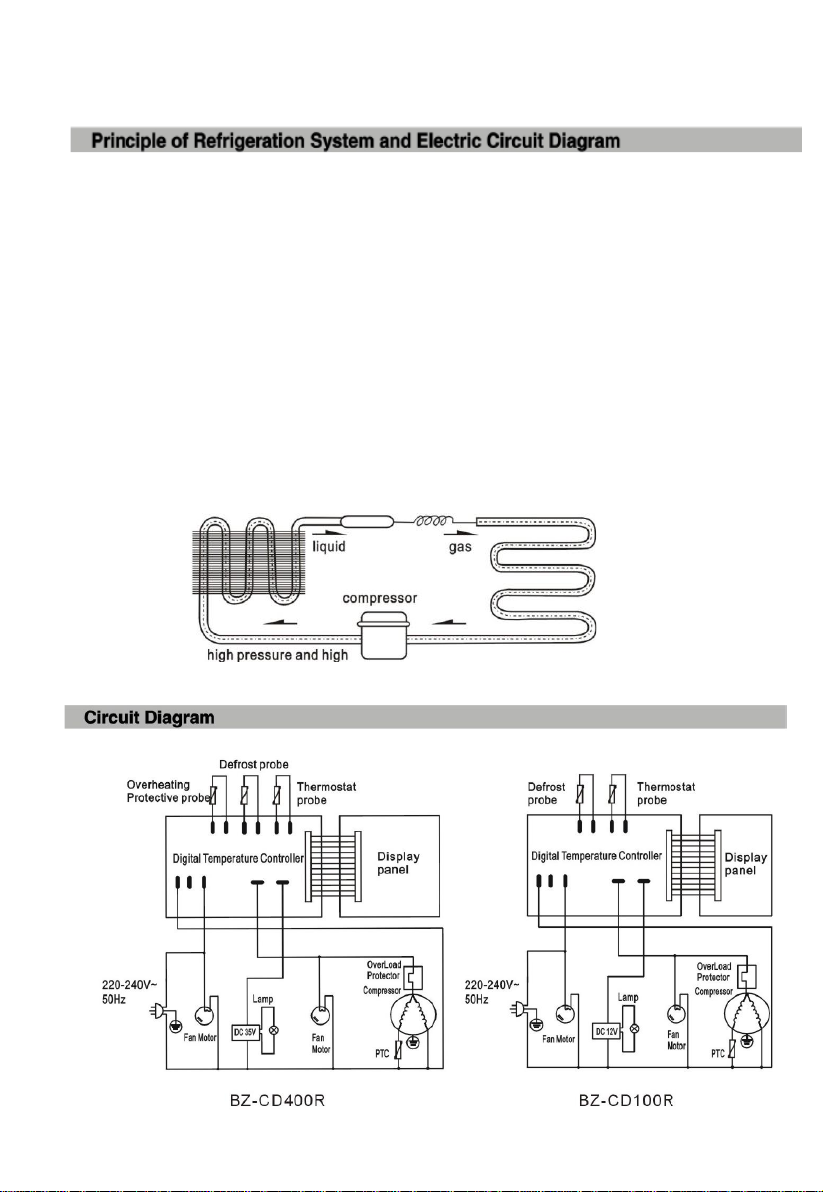

The principle of compression refrigeration consists of "compression” , "condensation" ,
" throttling" and " vaporization" . The compression is undertaken by compressor, the
condensation is completed by condenser, the throttling valve is executed by capillary and
the vaporization is implemented by evaporator. When the coolant is circulating in the
closedrefrigeration system, the compressor sucks coolant, which has absorbs heat in
evaporator, the coolant becomes a high pressure and high temperature gas. In condenser,
it dissipates heat in air, while the coolant is re-liquefied and throttled in capillary and then
enters into evaporator with low pressure. The liquefied coolant quickly boils and vaporizes
into gas when the pressure suddenly drops. Meanwhile, it absorbs heat inside the
refrigerator. And the compressor sucks the low pressure and low temperature gaseous
coolant.It is circulating in this way up to realization of intended refrigeration.
drying filter capillary device
(1)
<
,:
'
,
"
0
al
low pressure gas
temperature gas

9
-
Major Parameters
Model:
BZ-CD100R
BZ-CD400R
Rated Input Power(W):
210
460
Rated Current(A):
1.35
2.6
Refrigerant& Injection(g):
R600a(50)
R290(115)
Refrigeration Temperature("C):
2-8
2-8
RatedFrequency (Hz):
50
50
Type of Climate:
6
4
Protected Mode:
I
I
LampPower(W):
6(LED)
7(LED)
RatedVoltage(V):
220-240
220-240
Storage Volume(L):
100
360
Net Weight(kg):
50
127
Overall Dimension
(mm)(LxWxH):
480x480x1030
680x680x1750
Note
The electric circuit diagram and parameters on the product nameplate are final
ones if they have been changed.
2. The design might be improved without notice.

10
Consult repair manual/owner’s guide before attempting to install or service this product. All safety precautions must be
followed. Dispose of properly in accordance with federal or local regulations.
Disposal
EU regulations require refrigeration product to be disposed of by specialist companies who
remove or recycle all gasses,
metal and plastic components.
Consult your local waste collection authority regarding disposal of your appliance. Local
authorities are not obliged to
dispose of commercial refrigeration equipment but may be able to offer advice on how to
dispose of the equipment locally.
All packaging materials should be disposed of in an environmentally friendly way.
The cardboard may be used as scrap paper. The protective foil and the foam cushions are CFC-
free.
Do not allow children to play with the packaging and destroy plastic bags safely.
Environmental protection
Discarded electric appliances are recyclable and should not be discarded in the domestic waste!
Please actively support us in conserving resources and protecting the environment by returning
this appliance to the collection centers (if available).
Compliance
Parts have undergone strict product testing in order to comply with regulatory standards and specification
set by international, independent, and federal authorities.
Products have been approved to carry the following symbols:
