Blomberg MEE 4040 User manual

17
General discription . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Microwave power settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Quick-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Minute timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Microwave function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Automatic Programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Child lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Care & Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
After-sales services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Important safety instructions. Read careffully
and keep for future reference.
CONTENTS

18
GENERAL DESCRIPTION
Turntable Wheel
support
Control Panel
Door open
button
Identification
label
• THE TURNTABLE :
ensures equal cooking of food throughout with no need to intervene.
- It may be used as a cooking dish.
- Rotation is controlled by the drive shaft and the wheel support.
- The turntable rotates in both directions.
- If it does not turn, verify that all components are properly positioned.
• THE WHEEL SUPPORT :
Do not try to rotate the roller ring manually, as you could damage the drive system.
If it does not turn smoothly, make sure that there is nothing in the well beneath the
turntable.
• MICROWAVE OUTPUT POWER : 900 W

19
INSTALLATION
• Make sure that your oven has not suffered any damage during transport (defor-
med door or door seal, etc.). If you see any signs of damage, contact your dea-
ler before use.
• Check the power voltage. If there is a PERMANENT undervoltage (200-210 volts),
consult your electrical installer.
Location
• The appliance should be installed at a distance of 85 cm above the floor.
• Place the oven on a flat and horizontal surface, away from any source of heat or steam.
• Make sure that nothing obstructs the ventilation louvers at the back of the
appliance.
• Make sure the electrical plug will be accessible after installation.
• Do not use your appliance immediately (wait approx. 1-2 hours) after transfer from a
cold place to a warm place as condensation may cause a malfunction.
• Your installation must be protected by a 16 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordan-
ce with current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable
of separating the appliance from the mains power and whose contact opening is at
least 3 mm at all of the poles.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Electrical connection
Before connection

20
INSTALLATION
500
min
560 min
450
50
460
592
22
4x25 mm

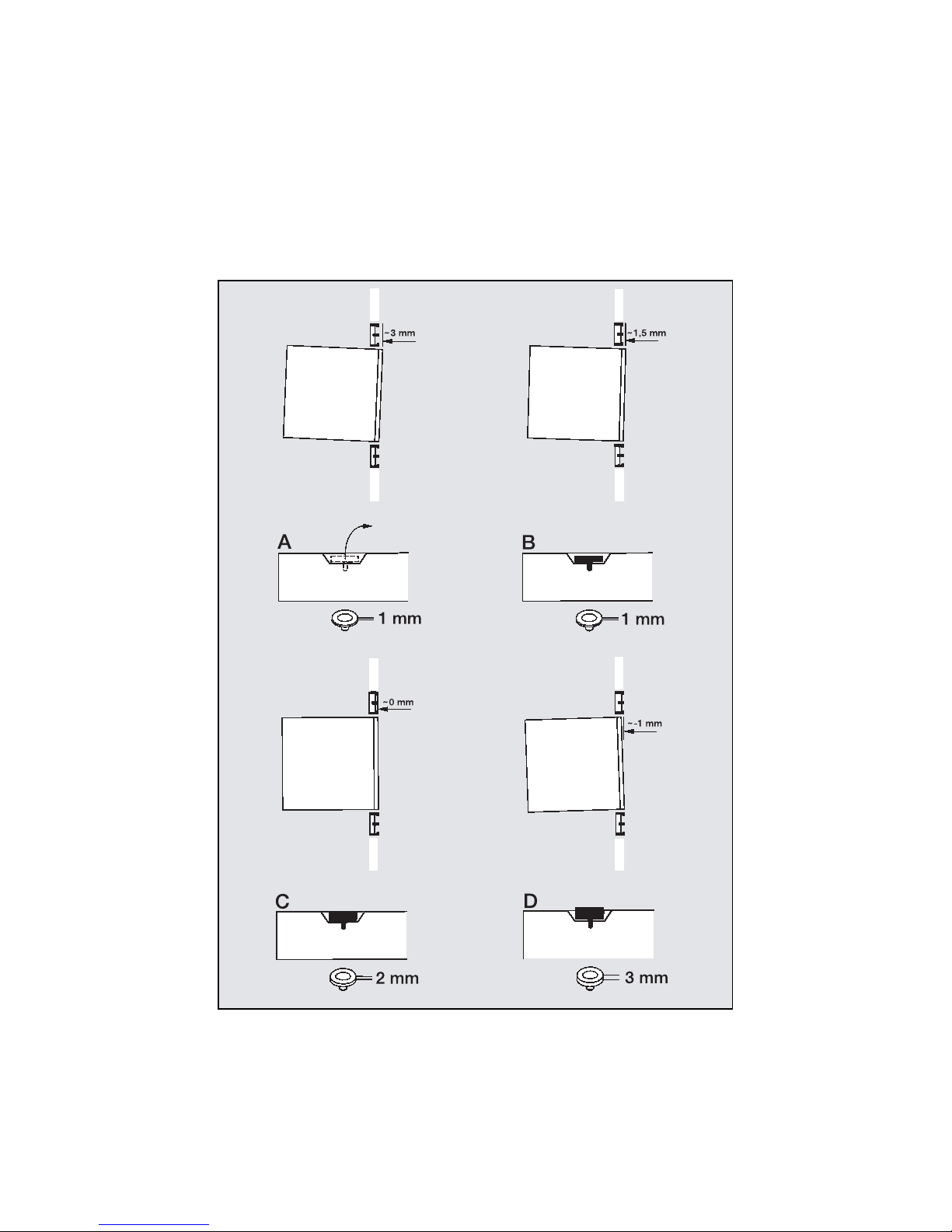

A
B
C
4x
4x
1 mm
2 mm
3 mm

21
AB
x 4 x 4
INSTALLATION

22
INSTALLATION

23
WARNING
• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or
cooking foods. The manufacturer bears no responsibility in the case of improper usage.
• Only use ustensils that are suitable for use in microwave ovens.
• To avoid deterioration of your microwave oven, never operate it empty or without the
turntable.
• Never tamper with the lock mechanism of your microwave oven; you could cause damage
requiring repair by an authorised technician.
• When heating food in plastic or paper containers, keep an eye on the oven due to the
possibility of ignition.
• It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for
deep-freeze bags.
• The contents of feeding bottles are baby food jars shall be stirred or shaken and the
temperature checked before consumption in order to avoid burns.
• Only allow children to use the oven without supervision when adequate instructions
have been given so that the child is able to use the oven in a safe way and understands
the hazards of improper use.
• Liquids and other foods must not be heated in sealed containers they are liable to explode.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens
since they may explode, even after microwave heating has ended.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care
must be taken when handling the container.
• For small amounts (one sausage, a single croissant, etc.), place a glass of water along-
side the food item.
• Time settings that are too long may dry out and burn the food. To avoid such incidents,
never use the same cooking times as those recommended for traditional ovens.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in
order to stifle any flames.
• In order to evacuate moisture, your appliance is fitted with a delayed ventilation func-
tion. Depending on the applied cooking mode (solo / grill / combination), the oven ven-
tilation will continue to operate after the cooking end.

24
A Display window – shows time of day,
cooking time and weight.
B Power control knob – for setting desired
microwave power level.
C Timer control knob – to select cooking
time or weight.
D Stop / Clear button – to cancel or inter-
rupt a cooking programme.
E Start button – to start desired programme
and to start the Quick start programme.
F Auto Defrost by weight.
G Auto button – for Automatic cooking pro-
grammes.
H Door open button
CONTROL PANEL
D
EF
G
H
C
B
A

25
Example : To set 12:15
1.Plug the appliance into the mains. The display starts to flash
0000::0000. The dots between the digits will flash rapidly.
2.Set the time of day with the Timer knob.
The dots between the digits flash slowly.
3.Confirm by pressing either the Start button or the Clear button.
The time of day is displayed. The appliance is now ready for use.
00:00
12:15
The Timer knob can be turned clockwise (to increase) or counterclockwise (to decrease).
The time of day can be changed at any time by pressing the Stop/Clear button for 5
seconds, turning the Timer knob and confirming with the Start or Stop/Clear button.
SETTING THE CLOCK
MICROWAVE POWER SETTINGS
900 Watt - Heating liquids
700 Watt - To start a cooking sequence, start roasting, stewing, etc.
- Cooking vegetables
- Cooking dishes
- Defrosting and heating of deep frozen ready made meals
- Heating refrigerated ready made meals
600 Watt - Finish cooking casseroles
500 Watt - Cooking egg based dishes
450 Watt - Finish cooking dishes
350 Watt - Cooking of delicate dishes
250 Watt - Heating baby food in glass jars
- Soaking rice
- Heating delicate dishes
- Melting of gelatin
150 Watt - Defrosting meat, fish and bread
80 Watt - Defrosting cheese, cream and butter
- Defrosting cakes with cream or butter icing
- To make dough rise
- Warming cold dishes, drinks, softening butter

26
01:30
QUICK-START
0
01:59
02:00
The QUICK-Start button provides full microwave power from 30 seconds up to 2 minutes
and 30 seconds, by 30 second-intervals. Each time you push the Quick-START button the
programme time is increased by 30 seconds.
Example : heating a cup of water (1 min 30 s)
1. Press the START button three times. The time appears in the dis-
play and the programme begins.
2. You may increase the time by 30 second-intervals while the pro-
gramme is running up to a limit of 2 minutes and 30 seconds by
pressing the START button
You cannot use Quick-START for programmes exceeding 2 minutes and 30 seconds.
The minute timer with alarm can also be used as a general purpose reminder. For
example, you could use it to set the time it takes to boil an egg on the hob.
The timer works without switching on the appliance, as long as no other functions have
been selected.
MINUTE TIMER
1. Select microwave power 00using the power knob (all the way to
the left).
2. Set the required time with the Rotary knob. The time of day
disappears from the display and the required length of time
appears.
3. Press the START button. The pre-set time will start to count
down. A triple bell rings when the timer has finished counting
down.

27
900
01:15
01:14
Exemple : Décongeler un poulet de 1 kg
1. Appuyez sur la touche programmes automatiques jusqu’à ce
que le programme souhaité apparaisse sur l’afficheur.
2. Entrez le poids à l’aide du bouton Temps/Poids.
3. Appuyez sur la touche START. La durée nécessaire est indiquée
sur l’afficheur. Le four démarre, le temps se décompte.
4. Si vous souhaitez modifier les données, appuyez sur la touche
Annulation et recommencez les opérations.
1000
29:57
d1
1. Set the required microwave power by turning the power knob.
The time of day disappears from the displayand the required
microwave power appears :
Turn to the left = lower power.
Turn to the right = higher power.
2. Set the required cooking time by turning the Rotary knob. The
chosen time appears in the display.
3. Press the START button. The selected time starts to count down.
Cooking times can be set as follows :
from 0 to 2 min in 5 second steps
from 2 to 5 min in 10 second steps
from 5 to 10 min in 20 second steps
from 10 to 20 min in 30 second steps
starting from 20 min in 1 minute steps
Maximum programme lenght is 60 minutes.
Metal items must be kept at least 2 cm from the cavity wall and the oven door.
THE MICROWAVE FUNCTION
Example : 1 min 15 s on microwave output level 750 W
Programmes for defrosting and cooking are available. After having selected the program-
me, merely enter the weight of the dish, the rest of the programming is done automati-
cally. The following gives you an overview of which food can be defrosted and/or cooked
which programme.
AUTOMATIC PROGRAMMES

28
Defrost
Progr. Food categories Exemples Weight from - up to
d1 Poultry 1) Poultry (whole or portions) 100 - 2000 g
d2 Meat Pork roast, Goulash 100 - 2000 g
d3 Fish Fish (whole or fillets) 100 - 2000 g
d4 Delicate cakes Cream pie 100 - 1000 g
Programme Aliment Exemples Poids de - à
C1 Fresh vegetables I Brussels sprouts, cabbage, 100 - 1000 g
carrots, celery
C2 Fresh vegetables II Zucchini, potatoes, leeks, 100 - 1000 g
spinach, fennel; cauliflower
broccoli
C3 Frozen vegetables Carrots, cauliflower, broccoli 100 - 1000 g
Brussels sprouts, leeks, spinach
Zucchini, broccoli
Unpack your frozen item, place on the top of a small overturned dish set inside a larder
one to catch the liquid from defrosting.
Be sure and follow our recommended standing time.
(general rule : standing time = defrosting time).
A triple bell will ring halfway through defrost time. Turn dish or stir contents and, if pos-
sible, break up into pieces.
1) Cover legs and wings with aluminium foil before derosting
Cooking
Cook food covered, in a heat-resistant glass dish, whenever possible. A triple bell rings
halfway through cooktime. If cooking over 500 g of vegetables, stir once or twice during
the programme.
Please add water in the following amounts :
for fresh vegetables (I + II) : 100 - 500 g : 3 - 6 tablespoons
500 - 1000 g : 9 - 12 tablespoons
for frozen vegetables : 100 - 500 g : 3 - 9 tablespoons
500 - 1000 g 9 -15 tablespoons
AUTOMATIC PROGRAMMES

29
CHILD LOCK
This oven is equipped with a Child Lock Safety feature to prevent accidental operation by
children.
How to set :
First press the Clear button 5 times, then press the Start button. The
display shows LLOOCC. The safety lock prevents the oven from opera-
ting. There will be no effect if you turn either knob or any button.
How to cancel :
Press the Clear button 5 times, then press the Start button. A beep
will sound. The time of day will reappear in the display and the
appliance will function normally.
LOC
TROUBLESHOOTING GUIDE
Problem
▼The microwave oven is noisy when
operating.
▼The turntable does not revolve correctly.
▼The food is not heated up.
▼The appliance produces sparks.
Suggestion
▲Clean the wheels and the well area
beneath the turntable.
▲Make sure that you use only containers
which are adapted to microwave cooking.
▲Check whether the wheel support is cor-
rectly positioned. Thoroughly clean the
appliance : remove any greasy deposits,
cooking residue, etc... Move any metal
objects away from the oven walls.

30
• WARNING : It is recomended to clear the oven regularly and to take
any food deposit inside and outside the appliance.Use a soapy and
wet cloth. If the appliance is not kept clean, its surface could deteriorat
and adversely affect its life and possibly result in a hazardous situation.
If the door or door seals are damaged, the oven must not be operated
until it has been repaired by a competent person.
• A steam cleaner is not to be used.
• Do not use abrasives, alcohol or solvents as they are liable
to damage the oven.
• In the event of bad odors or caked-on dirt, boil water containing lemon juice or
vinegar in a cup for 2 minutes and clean the walls with a little dishwashing
liquid.
•The turntable can be removed for cleaning. Wells are
provided on both sides for easy access.If you remove
the drive shaft, do not allow water to enter the motor
shaft hole.Be sure to put the turntable, the drive shaft
and the wheel support back in their proper place.
CARE & CLEANING
SOAP
+
WATER
• If the equipment has sustained any damage :
- Check that the door is not deformed.
• If the oven does not operate, before calling the repairman :
- Check the electrical supply.
- Check that the door is properly closed.
- Check your programming.
CAUTION : never attempt to repair your oven yourself.
WARNING : It is hazardous for anyone other then a competent person to carry out
any service or repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
AFTER-SALES SERVICES
