Blomberg DNE9840A+ User manual

www.blomberginternational.com
[email protected]
DNE9840A+
DNE9840XA+
Refrigerator
User Manual
Kühlschrank/Gefrierschrank
Bedienungsanleitung
Congélateur/Réfrigérateur
Manuel d'utilisation
Køleskab
Brugervejledning

Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in modern plants and
checked under the most meticulous quality control procedures, will provide you
an effective service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future references.
This manual
• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
2
1 Your refrigerator 3
2 Important Safety
Warnings 4
Intended use .....................................4
General safety ..................................4
For products with a ..........................8
water dispenser;................................8
Child safety........................................9
Compliance with WEEE Directive and
Disposing of the Waste Product: .......9
Package information..........................9
HC warning .......................................9
Things to be done for energy saving 10
3 Installation 11
Points to be paid attention to when the
relocation of the refrigerator .............11
Electrical connection........................11
Disposing of the packaging .............12
Disposing of your old refrigerator .....12
Placing and Installation ....................12
Adjusting the legs ............................13
Installing the lower ventilation cover .13
Changing the illumination lamp .......13
CONTENTS
4 Preparation 14
5 Using your refrigerator 15
Temperature setting button..............15
Setting the temperature of your
refrigerator.......................................15
Dual cooling system ........................15
Dual protection................................15
Vacation Function............................16
Odour filter ......................................17
Sliding Body Shelves .......................17
Crisper humidity control sliders........18
Icematic and ice storage container ..18
Reversing the doors ........................19
6 Maintenance and
cleaning 20
Protection of plastic surfaces ..........20
7 Troubleshooting 21

EN
3
Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your refrigerator
1- Freezer compartment shelf
2- Icematic
3- Ice storage container
4- Odour filter (in the air duct)
5- Temperature setting button
6- Adjustable glass shelves
7- Bottle shelf
8- Crisper humidity control sliders
9- Crisper cover
10- Crispers
11- Lower ventilation cover
12- Adjustable legs
13- Freezer compartment door shelf
14- Egg holders
15- Fridge compartment door shelves
16- Sliding storage containers
17- Bottle shelter wire
18- Freezer compartment
19- Fridge compartment
3
6
6
6
8
9
10
11
12
1
2
13
15
15
15
15
14
13
16
4
5
18
19
7
17

EN
4
2Important Safety Warnings
Please review the
following information.
Failure to observe this
information may cause
injuries or material
damage. Otherwise, all
warranty and reliability
commitments will
become invalid.
The service life of your
product is 10 years.
During this period,
original spare parts will be
available to operate the
product properly.
Intended use
This product is intended
to be used
• indoors and in closed
areas such as homes;
• in closed working
environments such as
stores and offices;
• in closed
accommodation areas
such as farm houses,
hotels, pensions.
• It should not be used
outdoors.
General safety
• When you want to
dispose/scrap the
product, we recommend
you to consult the
authorized service
in order to learn the
required information and
authorized bodies.
• Consult your authorized
service for all your
questions and problems
related to the refrigerator.
Do not intervene or let
someone intervene to
the refrigerator without
notifying the authorised
services.
• For products with a
freezer compartment;
Do not eat cone ice
cream and ice cubes
immediately after you
take them out of the
freezer compartment!
(This may cause frostbite
in your mouth.)
• For products with a
freezer compartment;
Do not put bottled
and canned liquid
beverages in the
freezer compartment.
Otherwise, these may
burst.
• Do not touch frozen food
by hand; they may stick
to your hand.

EN
5
• Unplug your refrigerator
before cleaning or
defrosting.
• Vapor and vaporized
cleaning materials
should never be used in
cleaning and defrosting
processes of your
refrigerator. In such
cases, the vapor may
get in contact with the
electrical parts and
cause short circuit or
electric shock.
• Never use the parts on
your refrigerator such as
the door as a means of
support or step.
• Do not use electrical
devices inside the
refrigerator.
• Do not damage the
parts, where the
refrigerant is circulating,
with drilling or cutting
tools. The refrigerant
that might blow out
when the gas channels
of the evaporator, pipe
extensions or surface
coatings are punctured
causes skin irritations
and eye injuries.
• Do not cover or block
the ventilation holes on
your refrigerator with any
material.
• Electrical devices must
be repaired by only
authorised persons.
Repairs performed by
incompetent persons
create a risk for the user.
• In case of any failure or
during a maintenance or
repair work, disconnect
your refrigerator’s mains
supply by either turning
off the relevant fuse
or unplugging your
appliance.
• Do not pull by the cable
when pulling off the plug.
• Ensure highly alcoholic
beverages are stored
securely with the lid
fastened and placed
upright.
• Never store spray
cans containing
flammable and explosive
substances in the
refrigerator.
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those

EN
6
recommended by the
manufacturer.
• This product is not
intended to be used by
persons with physical,
sensory or mental
disorders or unlearned
or inexperienced people
(including children)
unless they are attended
by a person who will
be responsible for their
safety or who will instruct
them accordingly for use
of the product
• Do not operate a
damaged refrigerator.
Consult with the service
agent if you have any
concerns.
• Electrical safety of your
refrigerator shall be
guaranteed only if the
earth system in your
house complies with
standards.
• Exposing the product
to rain, snow, sun and
wind is dangerous with
respect to electrical
safety.
• Contact authorized
service when there is a
power cable damage to
avoid danger.
• Never plug the
refrigerator into the wall
outlet during installation.
Otherwise, risk of death
or serious injury may
arise.
• This refrigerator is
intended for only storing
food items. It must not
be used for any other
purpose.
• Label of technical
specifications is located
on the left wall inside the
refrigerator.
• Never connect your
refrigerator to electricity-
saving systems; they
may damage the
refrigerator.
• If there is a blue light on
the refrigerator, do not
look at the blue light with
optical tools.
• For manually controlled
refrigerators, wait for at
least 5 minutes to start
the refrigerator after
power failure.
• This operation manual
should be handed in to
the new owner of the
product when it is given
to others.

EN
7
• Avoid causing damage
on power cable when
transporting the
refrigerator. Bending
cable may cause fire.
Never place heavy
objects on power cable.
Do not touch the plug
with wet hands when
plugging the product
• Do not plug the
refrigerator if the wall
outlet is loose.
• Water should not be
sprayed on inner or outer
parts of the product for
safety purposes.
• Do not spray substances
containing inflammable
gases such as propane
gas near the refrigerator
to avoid fire and
explosion risk.
• Never place containers
filled with water on top
of the refrigerator; in
the event of spillages,
this may cause electric
shock or fire.
• Do not overload the
refrigerator with food.
If overloaded, the food
items may fall down and
hurt you and damage
refrigerator when you
open the door.
• Never place objects on
top of the refrigerator;
otherwise, these objects
may fall down when
you open or close the
refrigerator’s door.
• As they require a precise
temperature, vaccines,
heat-sensitive medicine
and scientific materials
and etc. should not be
kept in the refrigerator.
• If not to be used for a
long time, refrigerator
should be unplugged.
A possible problem in
power cable may cause
fire.
• The plug’s tip should be
cleaned regularly with a
dry cloth; otherwise, it
may cause fire.
• Refrigerator may move
if adjustable legs are not
properly secured on the
floor. Properly securing

EN
8
adjustable legs on the
floor can prevent the
refrigerator to move.
• When carrying the
refrigerator, do not hold
it from door handle.
Otherwise, it may be
snapped.
• When you have to place
your product next to
another refrigerator or
freezer, the distance
between devices
should be at least 8cm.
Otherwise, adjacent side
walls may be humidified.
• The product shall never
be used while the
compartment which is
located at the top or
back of your product
and in which electronic
boards are available
(electronic board box
cover) (1) is open.
1
1
For products with a
water dispenser;
• Pressure for cold water
inlet shall be maximum
90 psi (6.2 bar). If your
water pressure exceeds
80 psi (5.5 bar), use a
pressure limiting valve
in your mains system. If
you do not know how
to check your water
pressure, ask for the
help of a professional
plumber.
• If there is risk of water
hammer effect in your
installation, always
use a water hammer
prevention equipment
in your installation.
Consult Professional
plumbers is you are not
sure that there is no

EN
9
water hammer effect in
your installation.
• Do not install on the
hot water inlet. Take
precautions against
of the risk of freezing
of the hoses. Water
temperature operating
interval shall be 33°F
(0.6°C) minimum
and 100°F (38°C)
maximum.
• Use only potable water.
Child safety
• If the door has a lock,
the key should be kept
away from reach of
children.
• Children must be
supervised to prevent
them from tampering
with the product.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies
with EU WEEE Directive
(2012/19/EU). This product
bears a classification
symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manufactured
with high quality parts and materials
which can be reused and are suitable
for recycling. Therefore, do not dispose
the product with normal domestic
waste at the end of its service life. Take
it to a collection point for the recycling
of electrical and electronic equipment.
Please consult your local authorities
to learn the nearest collection point.
Help protect the environment and
natural resources by recycling used
products. For children’s safety, cut the
power cable and break the locking
mechanism of the door, if any, so
that it will be non-functional before
disposing of the product.
Package information
Packaging materials of the product
are manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
Do not forget...
Any recycled substance is an
indispensable matter for nature and
our national asset wealth.
If you want to contribute to the
re-evaluation of the packaging
materials, you can consult to your
environmentalist organizations or the
municipalities where you are located.
HC warning
If your product's cooling system
contains R600a:
This gas is flammable. Therefore, pay
attention to not damaging the cooling
system and piping during usage and
transportation. In the event of damage,
keep your product away from potential
fire sources that can cause the
product catch a fire and ventilate the
room in which the unit is placed.

EN
10
Ignore this warning if your
product's cooling system contains
R134a.
Type of gas used in the product is
stated in the type label which is on the
left wall inside the refrigerator.
Never throw the product in fire for
disposal.
Things to be done for energy
saving
• Do not leave the doors of your
refrigerator open for a long time.
• Do not put hot food or drinks in your
refrigerator.
• Do not overload your refrigerator so
that the air circulation inside of it is not
prevented.
• Do not install your refrigerator
under direct sunlight or near heat
emitting appliances such as ovens,
dishwashers or radiators. Keep your
refrigerator at least 30cm away from
heat emitting sources and at least
5cm from electrical ovens.
• Pay attention to keep your food in
closed containers.
• For products with a freezer
compartment; You can store
maximum amount of food items in
the freezer when you remove the
shelf or drawer of the freezer. Energy
consumption value stated for your
refrigerator has been determined
by removing freezer shelf or drawer
and under maximum load. There
is no harm to use a shelf or drawer
according to the shapes and size of
food to be frozen.
• Thawing frozen food in fridge
compartment will both provide energy
saving and preserve the food quality.

EN
11
3Installation
BIn case the information which are
given in the user manual are not
taken into account, manufacturer will
not assume any liability for this.
Points to be paid attention
to when the relocation of the
refrigerator
1. Your refrigerator should be
unplugged.Before transportation of
your refrigerator, it should be emptied
and cleaned.
2. Before it is re-packaged,
shelves, accessories, crisper, etc.
inside your refrigerator should be
fixed with adhesive tape and secured
against impacts. Package should
be bound with a thick tape or sound
ropes and the transportation rules
on the package should be strictly
observed.
3. Original packaging and foam
materials should be kept for future
transportations or moving.
Before you start the refrigerator,
Check the following before you
start to use your refrigerator:
1. Attach 2 plastic wedges as
illustrated below. Plastic wedges are
intended to keep the distance which
will ensure the air circulation between
your refrigerator and the wall. (The
picture is drawn up as a representation
and it is not identical with your
product.)
2. Clean the interior of the
refrigerator as recommended in the
“Maintenance and cleaning” section.
3. Connect the plug of the
refrigerator to the wall socket. When
the fridge door is opened, fridge
internal lamp will turn on.
4. When the compressor starts to
operate, a sound will be heard. The
liquid and gases sealed within the
refrigeration system may also give rise
to noise, even if the compressor is not
running and this is quite normal.
5. Front edges of the refrigerator
may feel warm. This is normal. These
areas are designed to be warm to
avoid condensation.
Electrical connection
Connect your product to a grounded
socket which is being protected by a
fuse with the appropriate capacity.
Important:
The connection must be in compliance
with national regulations.
• The power plug must be easily
accessible after installation.
• Electrical safety of your refrigerator
shall be guaranteed only if the earth
system in your house complies with
standards.
• The voltage stated on the label
located at left inner side of your
product should be equal to your
network voltage.

EN
12
• Extension cables and multi plugs
must not be used for connection.
BA damaged power cable must be
replaced by a qualified electrician.
BProduct must not be operated before
it is repaired! There is the risk of
electric shock!
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance with the
waste instructions stated by your local
authorities. Do not throw away with
regular house waste, throw away on
packaging pick up spots designated
by the local authorities.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the environment.
• You may consult your authorized
dealer or waste collection center of
your municipality about the disposal
of your refrigerator.
Before disposing of your refrigerator,
cut out the electric plug and, if there
are any locks on the door, make them
inoperable in order to protect children
against any danger.
Placing and Installation
AIf the entrance door of the room
where the refrigerator will be installed is
not wide enough for the refrigerator to
pass through, then call the authorized
service to have them remove the
doors of your refrigerator and pass it
sideways through the door.
1. Install your refrigerator to a
place that allows ease of use.
2. Keep your refrigerator away
from heat sources, humid places and
direct sunlight.
3. There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
If the refrigerator is to be placed in a
recess in the wall, there must be at
least 5 cm distance with the ceiling
and at least 5 cm with the wall. Do not
place your product on the materials
such as rug or carpet.
4. Place your refrigerator on an
even floor surface to prevent jolts.

EN
13

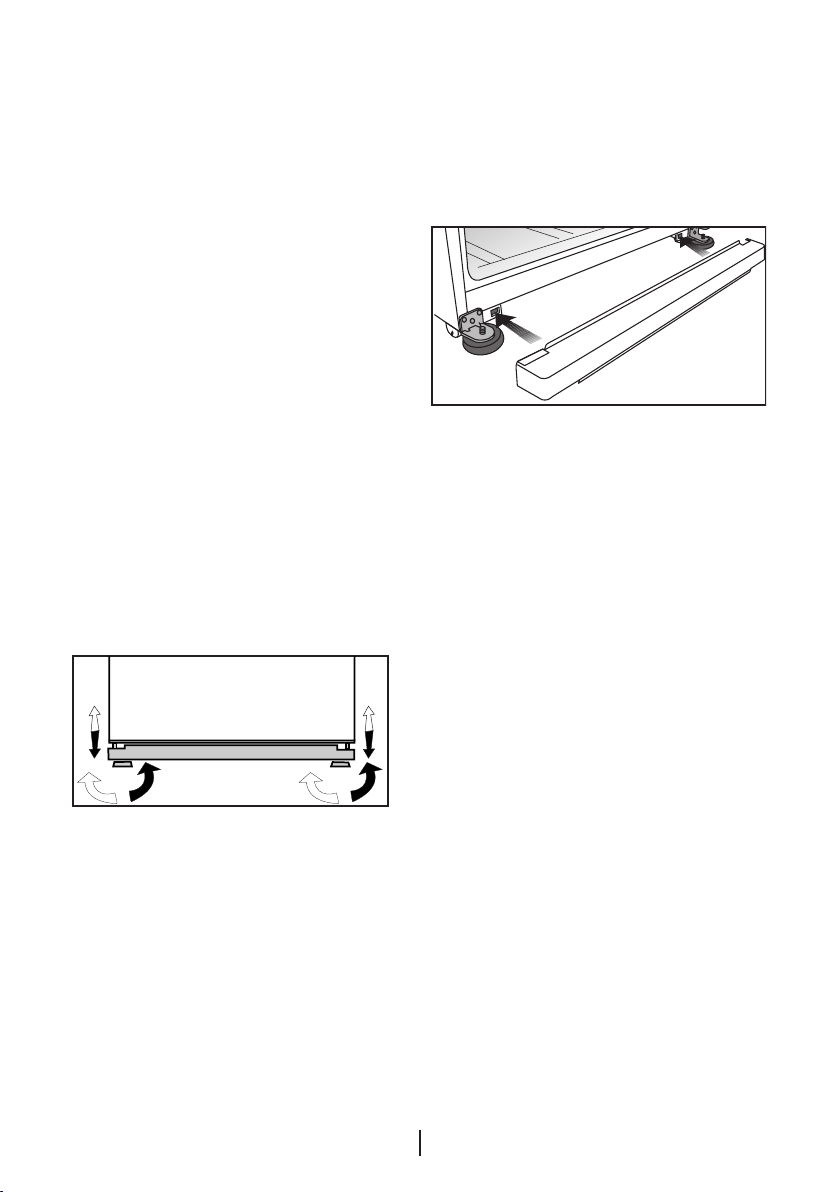

Installing the lower
ventilation cover
You can install the lower ventilation
cover as illustrated in the figure.
Adjusting the legs
If your refrigerator is unbalanced;
You can balance your refrigerator by
turning the front legs of it as illustrated
in the figure. The corner where the
leg exists is lowered when you turn
in the direction of black arrow and
raised when you turn in the opposite
direction. Taking help from someone to
slightly lift the refrigerator will facilitate
this process.
Changing the illumination
lamp
To change the lamp used for
illumination of your refrigerator, please
call your Authorized Service.

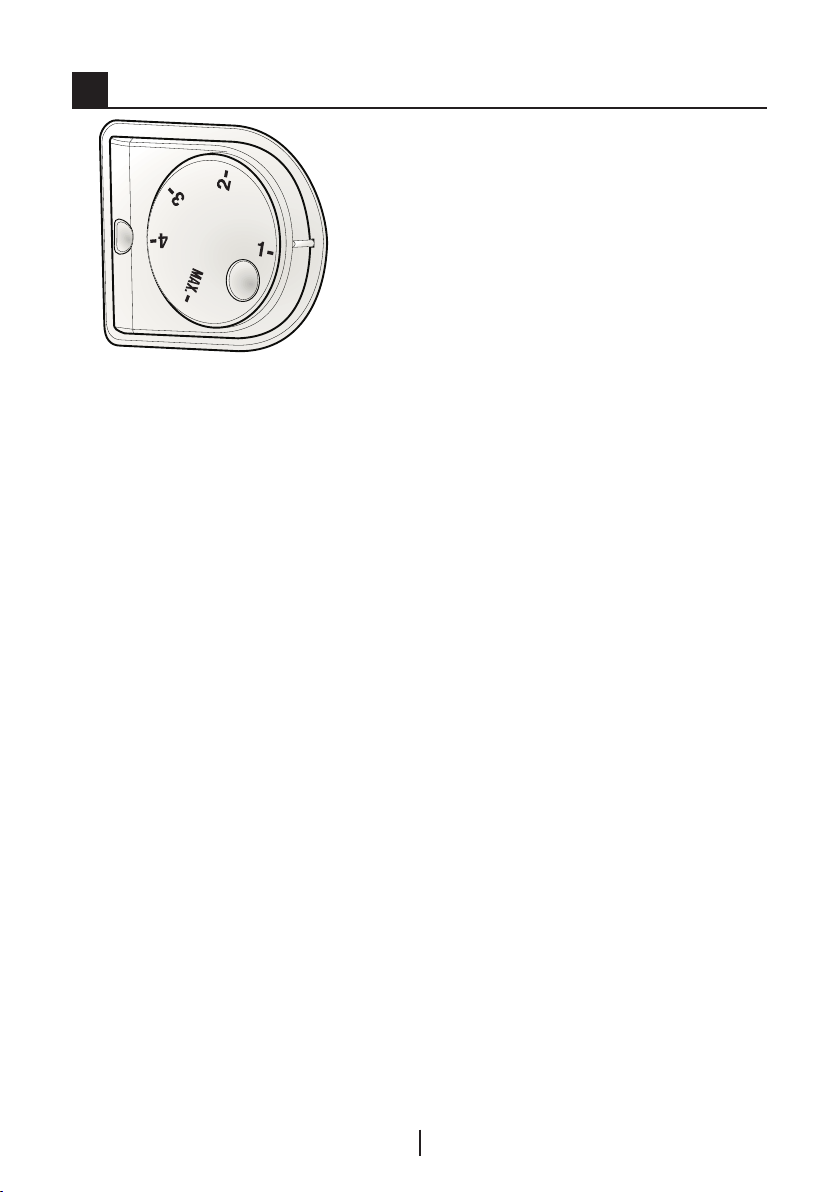

CThis appliance is designed that at
the advised setting [4 - four on the
knob] the frozen food in the freezer
will not defrost even if the ambient
temperature falls as low as -15 °C. So
you may then install your appliance
in a garage or an unheated room
without having to worry about frozen
food in the freezer being spoilt. When
the ambient temperature returns to
normal, you may change the knob
setting to suit your needs.

EN
14
4Preparation
• Your refrigerator should be installed at
least 30 cm away from heat sources
such as hobs, ovens, central heater
and stoves and at least 5 cm away
from electrical ovens and should not
be located under direct sunlight.
• The ambient temperature of the room
where you install your refrigerator
should at least be 10°C. Operating
your refrigerator under cooler
conditions is not recommended with
regard to its efficiency.
• Please make sure that the interior
of your refrigerator is cleaned
thoroughly.
• If two refrigerators are to be installed
side by side, there should be at least
2 cm distance between them.
• When you operate your refrigerator
for the first time, please observe the
following instructions during the initial
six hours.
• The door should not be opened
frequently.
• It must be operated empty without
any food in it.
• Do not unplug your refrigerator. If
a power failure occurs out of your
control, please see the warnings in
the “Recommended solutions for the
problems” section.
• Original packaging and foam
materials should be kept for future
transportations or moving.
• The baskets/drawers that are
provided with the chill compartment
must always be in use for low energy
consumption and for better storage
conditions.
• Food contact with the temperature
sensor in the freezer compartment
may increase energy consumption of
the appliance. Thus any contact with
the sensor(s) must be avoided.
• In some models, the instrument panel
automatically turns off 5 minutes
after the door has closed. It will
be reactivated when the door has
opened or pressed on any key.
• Due to temperature change as a
result of opening/closing the product
door during operation, condensation
on the door/body shelves and the
glass containers is normal

EN
15
5Using your refrigerator
Dual protection
Hygiene : Odour filter in the air duct of
the fridge compartment helps to clean
the air in the refrigerator. This filter
reduces the formation of bad odours
by means of its coating.
Silver: Inner surfaces and crispers
of the refrigerator are rendered
antibacterial by means of the silver-
ion additive. Thus, growth and
reproduction of bacteria on interior
body parts and crisper are prevented.
Temperature setting button
Temperature setting button allows you
to make the temperature setting of
your refrigerator.
Setting the temperature of
your refrigerator
The overall temperature setting of your
refrigerator is made by means of the
temperature setting button on the right
wall of the fridge compartment. This
button has 5 different temperature
setting position. Select the position
suitable to your needs.
Dual cooling system
Your refrigerator is equipped with
two separate cooling systems to
cool the fresh food compartment and
freezer compartment. Thus, air in the
fresh food compartment and freezer
compartment do not get mixed.
Thanks to these two separate cooling
systems, cooling speed is much higher
then other refrigerators. Odours in the
compartments do not get mixed. Also
additional power saving is provided
since the automatic defrosting is
performed individually.

EN
16
Vacation Function
If the doors of the product are
not opened for 12 hours after the
thermostat is switched to the hottest
position, then the vacation function will
be activated automatically.
Open the door of the product or
change the thermostat setting to
cancel the function.
Vacation function is optional. It may
vary depending on the product type
and may not be contained in every
product.
It is not recommended to store food
in cooler compartment when the
vacation function is active.

EN
17
Sliding Body Shelves
Sliding body shelves can be pulled
by slightly lifting up from the front and
moved back and forth. They come to
a stop point when pulled towards front
to allow you reach the foods placed at
the back of the shelf; when it is pulled
after slightly lifting upwards at the
second stop point, the body shelf will
be released.
The shelf should be held tightly from
the bottom as well in order to prevent
it from tipping over. The body shelf is
placed on the rails at the sides of the
refrigerator body by bringing it to one
lower or one upper level.
The body shelf should be pushed
backwards to seat it completely.
Odour filter
Odour filter in the air duct of the fridge
compartment prevents the build-up of
unpleasant odours in the refrigerator.

EN
18
Icematic and ice storage
container
Using the Icematic
* Fill the Icematic with water and place
it into its seat. Your ice will be ready
approximately in two hours. Do not
remove the Icematic from its seating to
take ice.
* Turn the knobs on it clockwise by 90
degrees.
Ice cubes in the cells will fall down into
the ice storage container below.
* You may take out the ice storage
container and serve the ice cubes.
* If you wish, you may keep the ice
cubes in the ice storage container.
Ice storage container
Ice storage container is only intended
for accumulating the ice cubes. Do not
put water in it. Otherwise, it will break.
Crisper humidity control
sliders
Using the crisper humidity control
sliders
Crisper of your refrigerator is designed
specially to keep your vegetables fresh
without loosing their humidity. Cold air
circulates basically around the crisper
and the amount of the cold air passing
through the crisper is controlled by the
sliders on the front side of the crisper
cover.
You can adjust the humidity control
sliders to a suitable position according
to the humidity and cooling condition
of your food in the crisper.
If you want your food in the crisper
to cool more, open the holes of the
humidity control sliders and if you
want them to cool less and keep their
humidity for a longer time, close the
holes.

EN
19
12 13
5
4
4
2
1
10
7
9
21
21 22
24
23
22
16
17
18
19
3
8
18 17
15
45¡
180¡
11
14
6
20
25
Reversing the doors
Proceed in numerical order .
