Please read this manual first!
Dear Customer,
We hope that your product, which has been produced in a 1st-class
manufacturing facility and checked under the most meticulous quality control
procedures, will provide you with years of good service.
For this, we recommend you to carefully read the entire manual of your product
before using it and keep it at hand for future reference.
This manual
• Will help you use your appliance quickly and safely.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
Please note that this manual may be valid for other models as well.
Symbols and their descriptions
This instruction manual contains the following symbols:
CImportant information or useful usage tips.
AWarning against dangerous conditions for life and property.
BWarning against electric voltage.

EN
3
1 Your refrigerator 4
2 Warning 5
For models with water dispenser .......6
Electrical Requirements .....................7
Warning! This Appliance Must Be
Earthed .............................................8
Energy Saving Tips............................9
Compliance with WEEE Directive and
Disposing of the Waste Product: .......9
Compliance with RoHS Directive: ....10
Package information........................10
3 Installation 11
Installation Instructions ....................11
Changing the illumination lamp .......13
4 Before operating 19
Starting............................................19
5 Using your refrigerator 20
Temperature Setting ........................21
Defrost ............................................21
6 Maintenance and cleaning 22
Protection of plastic surfaces ..........22
7 Troubleshooting 23
8 How To Obtain Service 27
9 Guarantee Details 28

EN
4
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in the
product you have purchased, then it is valid for other models.
1Your refrigerator
Congratulations on your choice of a BLOMBERG quality Appliance which has
been designed to give you service for many years.

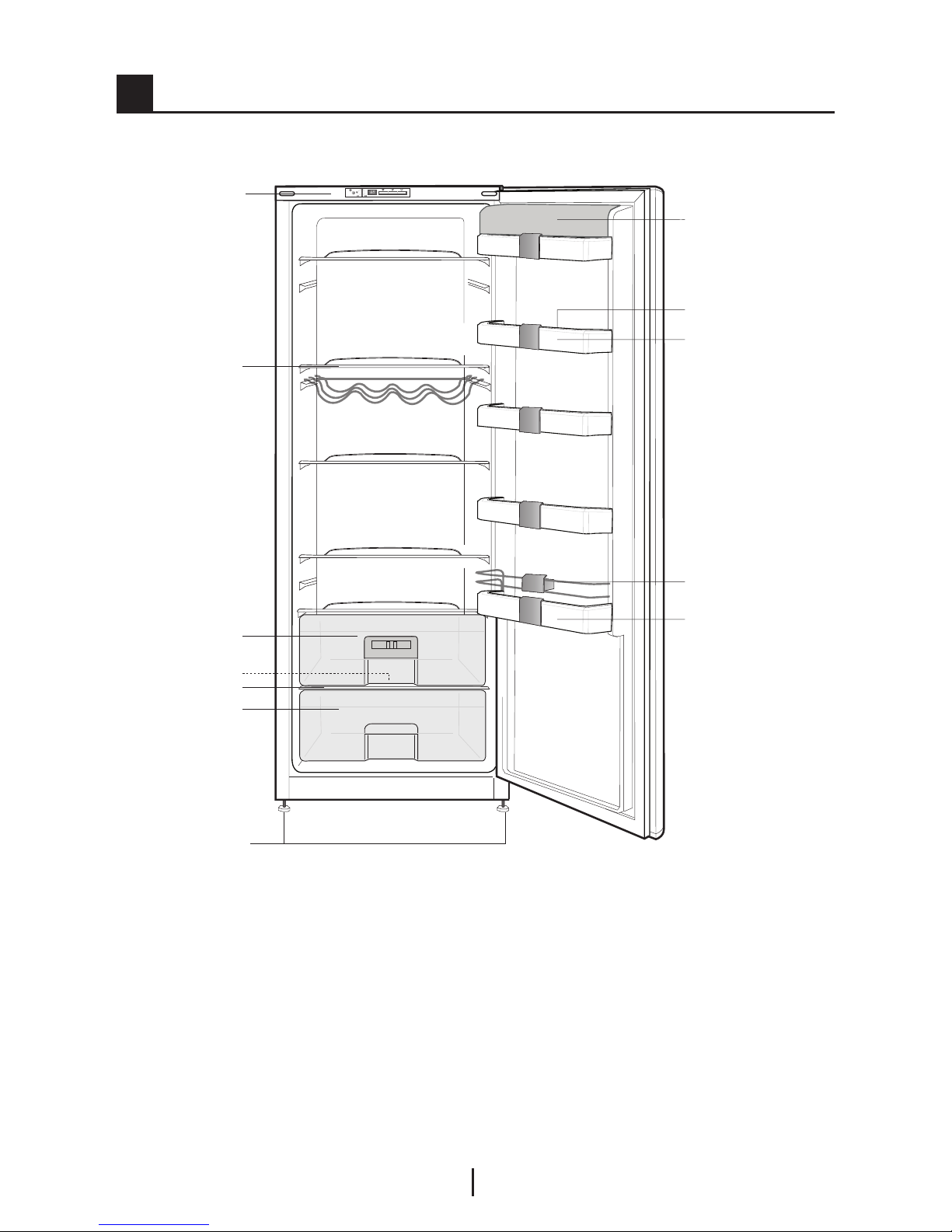

1.Interior light
2.Movable shelves
3.Defrost water collection channel - Drain
tube
4.Crisper cover
5.Chiller compartment
6.Crisper
7.Adjustable front feet
8.Dairy compartment
9.Egg compartment
10.Adjustable door shelves
11.Shelf Divider
12.Bottle shelf
7
6
3
5
4
1
2
9
12
8*
10
11*

EN
5
2Warning
• DO NOT connect
your appliance to the
electricity supply until
all packing and transit
protectors have been
removed.
• Leave to stand for at
least 4 hours before
switching on to allow
compressor oil to settle if
transported horizontally.
• If you are discarding an
old refrigerator with a
lock or latch fitted to the
door, disable the lock/
latch, ensure that it is
left in a safe condition to
prevent the entrapment
of young children.
• This appliance must only
be used for its intended
purpose i.e the storing of
edible foodstuff.
• Do not dispose of the
appliance on a fire.
At BLOMBERG, the
care and protection of
our environment is an
ongoing commitment.
This appliance which
is among the latest
range introduced is
particularly environment
friendly. Your appliance
contains non CFC /
HFC natural substances
in the cooling system
(Called R600a) and in
the insulation (Called
cyclopentane) which are
potentially flammable
if exposed to fire.
Therefore, take care
not to damage, the
cooling circuit / pipes
of the appliance in
transportation and in
use. In case of damage
do not expose the
appliance to fire or
potential ignition source
and immediately ventilate
the room where the
appliance is situated.
• We suggest you contact
your local authority for
disposal information and
facilities available.
• To obtain the best
possible performance
and trouble free
operation from your
appliance it is very
important to carefully
read these instructions.

EN
6
• On delivery, check to
make sure that the
product is not damaged
and that all the parts
and accessories are in
perfect condition.
• Ensure that the
plug remains readily
accessible. Do not use
multiple adapter or
extension cable.
• Failure to observe
these instructions may
invalidate your right to
free service during the
guarantee period.
• Keep ventilation
openings, in the
appliance enclosure or
in the built-in structure,
clear of obstruction.
• Do not use mechanical
devices or other means
to accelerate the
defrosting process,
other than those
recommended by the
manufacturer.
• Do not damage the
refrigerant circuit.
• Do not use electrical
appliances inside
the food storage
compartments of the
appliance, unless
they are of the type
recommended by the
manufacturer.
• We suggest you keep
these instructions in
a safe place for easy
reference.
• This appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction concerning
use of the appliance
in a safe way and
understand the hazards
involved.
• Children should be
supervised to ensure
that they do not play with
the appliance.

EN
7
Electrical Require-
ments
Before you insert the
plug into the wall socket
make sure that the volt-
age and the frequency
shown on the rating plate
inside the appliance cor-
responds to your electric-
ity supply.
Rating label is on the left
hand side of inner liner.
We recommend that this
appliance be connected
to the mains supply via a
suitable switched and
fused socket. The appli-
ance must be positioned
so that the plug is acces-
sible.
Should the mains lead
of the appliance become
damaged or should it
need
replacing at any time, it
must be replaced by a
special purpose made
mains lead which can
only be obtained from a
BLOMBERG Authorised
Service Agent.
Warning! This Appli-
ance Must Be Earthed
If the fitted moulded plug
is not suitable for your
socket, then the plug
should be cut off and
an appropriate plug fit-
ted. Destroy the old plug
which is cut off as a plug
with bared cord could
cause a shock hazard
if inserted into a socket
elsewhere in the house.
The moulded plug on
this appliance incorpo-
rates a 13 A fuse. Should
the fuse need to be re-
placed an ASTABEAB
approved BS 1362 fuse
of the same rating must
be used. Do not forget to
refit the fuse cover. In the
event of losing the fuse
cover the plug must not
be used until a replace-
ment fuse cover has
been fitted. Colour of the
replacement fuse cover
must be the same colour
as that visible on the pin
face of the plug. Fuse
covers are available from
any good electrical store.

EN
8
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm. 32mm.
12mm.
FUSE
CORD GRIP

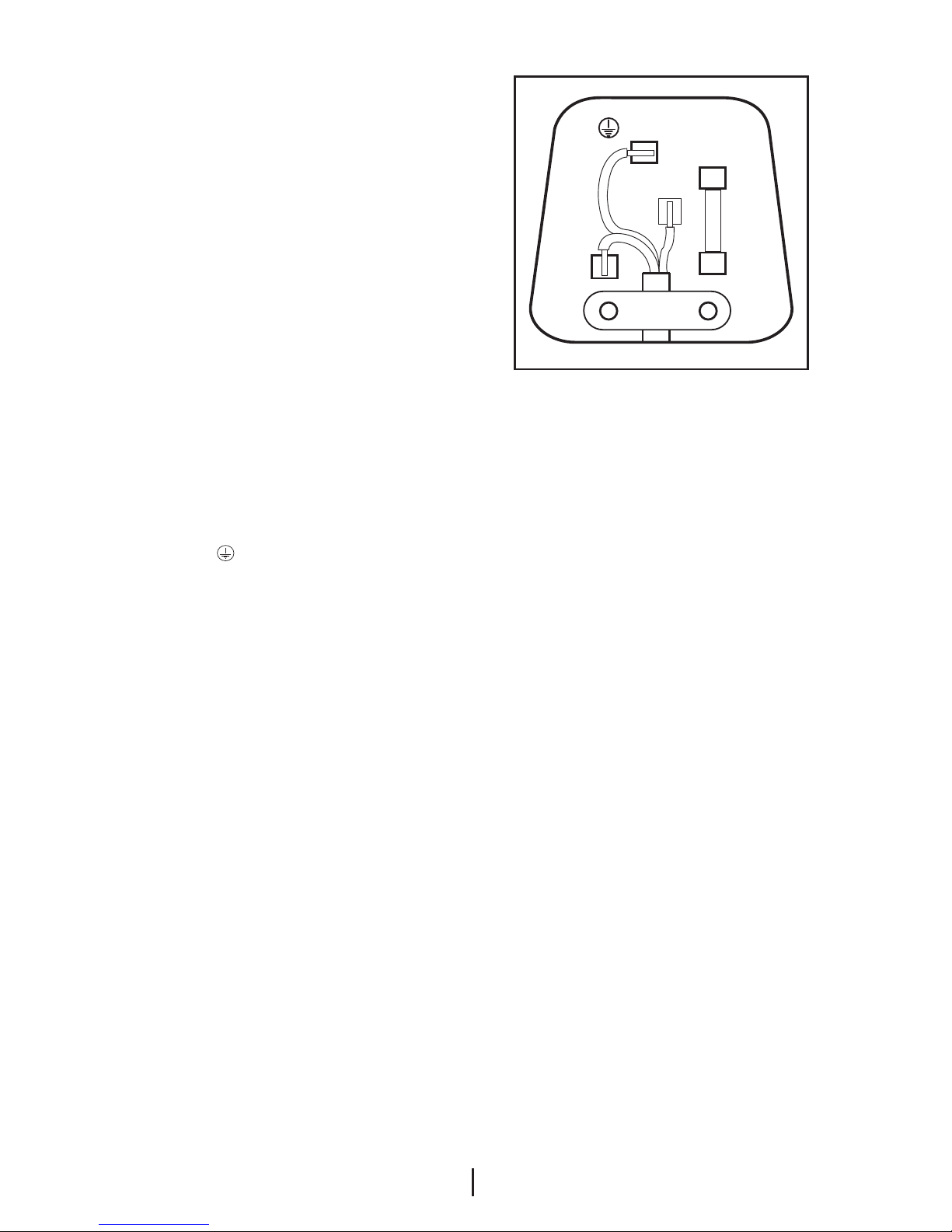

Important! Fitting A
Different Plug
As the colours of the
wires in the mains lead
of this appliance may not
correspond with the co-
loured markings identify-
ing the terminals in your
plug proceed as follows:
(See diagram).
1. Connect the
green-yellow or green
(Earth) wire to the
terminal in the plug
marked ‘E’ or with the
symbol or coloured
green and yellow or
green.
2. Connect the
blue (Neutral) wire to
the terminal in the plug
marked ‘N’ or coloured
black.
3. Connect the
brown (Live) wire to
the terminal in the plug
marked ‘L’ or coloured
red.
4. With alternative
plugs a 13 A fuse must
be fitted either in the
plug or adaptor or in
the main fuse box. If in
doubt contact a qualified
electrician.
Energy Saving Tips
1. Ensure your
appliance is installed in a
well ventilated area.
2. Ensure the time
between buying chilled/
frozen food and placing
them in your appliance
is kept at minimum,
particularly in summer.
We recommend you use
a cool bag or a special
carrier bag to carry
perishable food.
3. Do not leave the
door (s) of your appliance
open longer than
necessary and ensure
they are closed properly
after each opening.
4.Defrost frozen food in
the fridge, so that frozen
food acts as an ice pack
to assist cooling in fridge.

EN
9
Compliance with
WEEE Directive and
Disposing of the Waste
Product:
Thisproduct
complies with EU
WEEE Directive
(2012/19/EU).
This product
bears a classification
symbol for waste
electrical and electronic
equipment (WEEE).This
product has been
manufactured with high
quality parts and
materials which can be
reused and are suitable
for recycling. Do not
dispose of the waste
product with normal
domestic and other
wastes at the end of its
service life. Take it to the
collection center for the
recycling of electrical and
electronic equipment.
Please consult your local
authorities to learn about
these collection centers.
Compliance with RoHS
Directive:
The product you have
purchased complies
with EU RoHS Directive
(2011/65/EU). It does
not contain harmful and
prohibited materials
specified in the Directive.
Package information
Packaging materials
of the product are
manufactured from
recyclable materials in
accordance with our
National Environment
Regulations. Do not
dispose of the packaging
materials together with
the domestic or other
wastes. Take them to
the packaging material
collection points
designated by the local
authorities.

EN
10

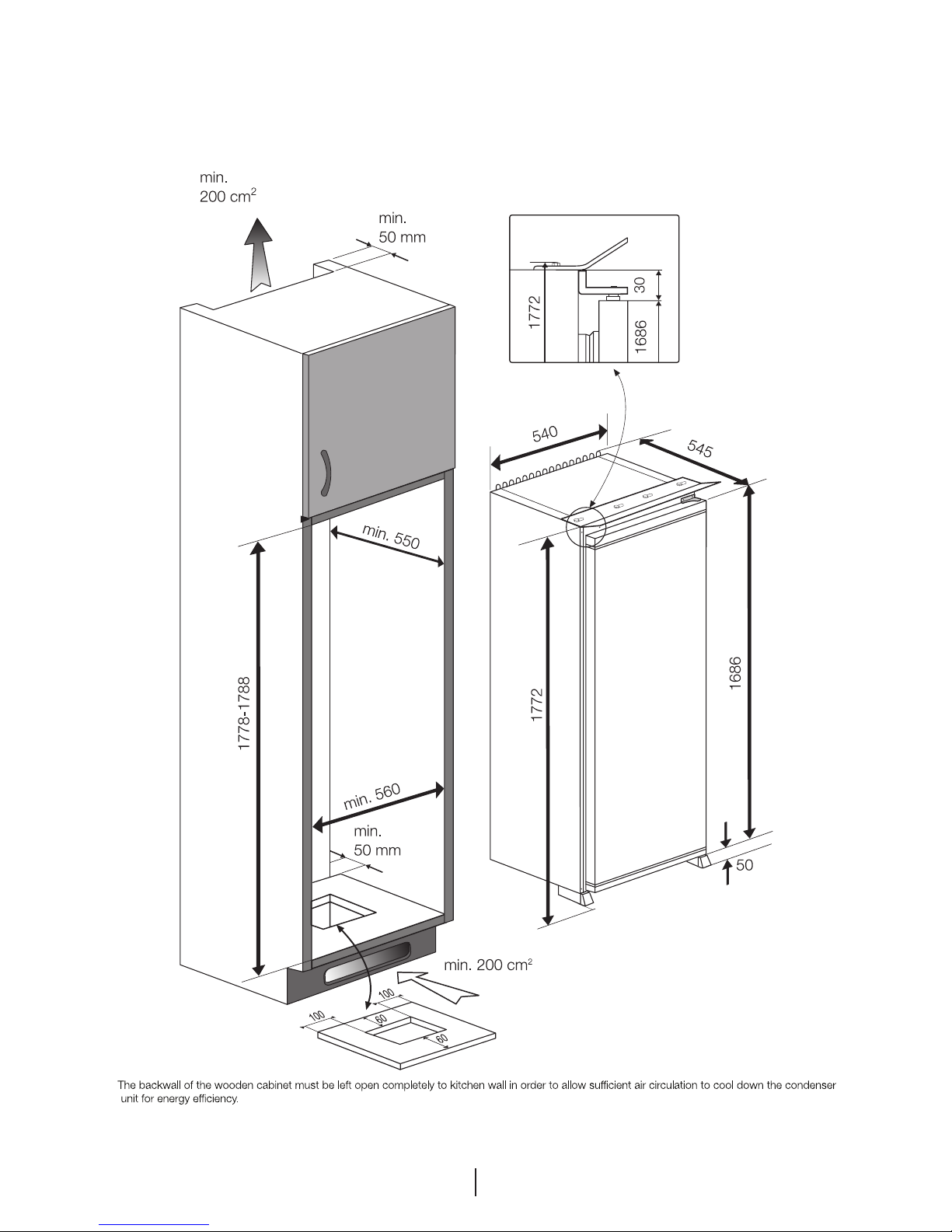

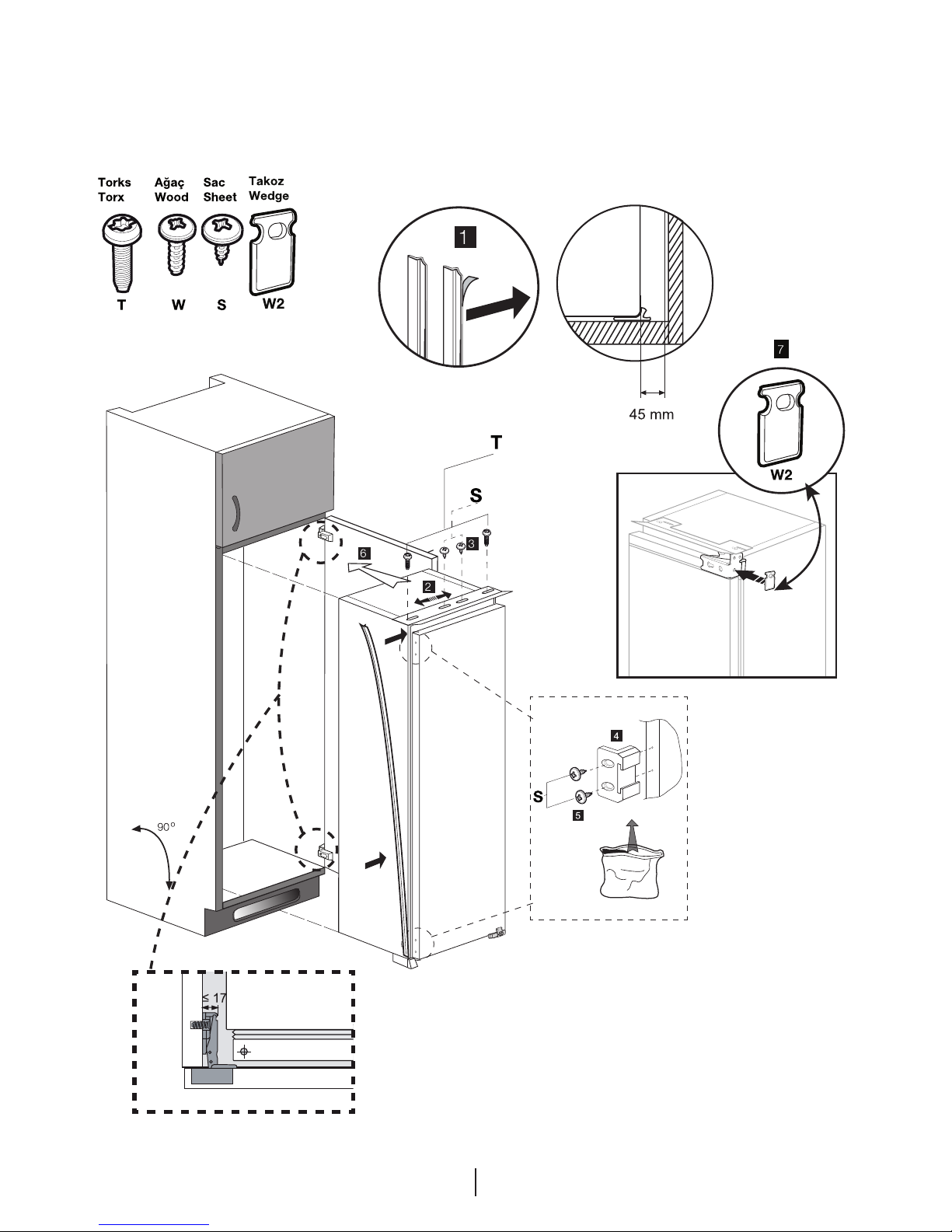

Installation Instructions
1. The space in the room where
the appliance is installed must not be
smaller than 10 cubic metres.
2. If possible avoid placing the
appliance near cookers, radiators or
in direct sunlight as this will cause the
compressor to run for long periods.
If installed next to a source of heat
or refrigerator, maintain the following
minimum side clearances:
From Cookers 2” (50 mm)
From Radiators 12” (300 mm)
From Refrigerators or Freezers 1”(25
mm)
3. Make sure that sufficient room
is provided around the appliance to
ensure free air circulation.
4. The appliance should be
located on a smooth surface.
The two front feet can be adjusted as
required.
To ensure that,your appliance is stan-
ding upright adjust the two front feet by
turning clockwise or anti-clockwise, un-
til the product is in firm contact with the
floor. Correct adjustment of feet avoids
excessive vibration and noise.
5. Refer to “Cleaning and Care”
section to prepare your appliance for
use.
6. A special receptacle is supplied
to store the mains plug during transit.
The receptacle is fixed at the back of

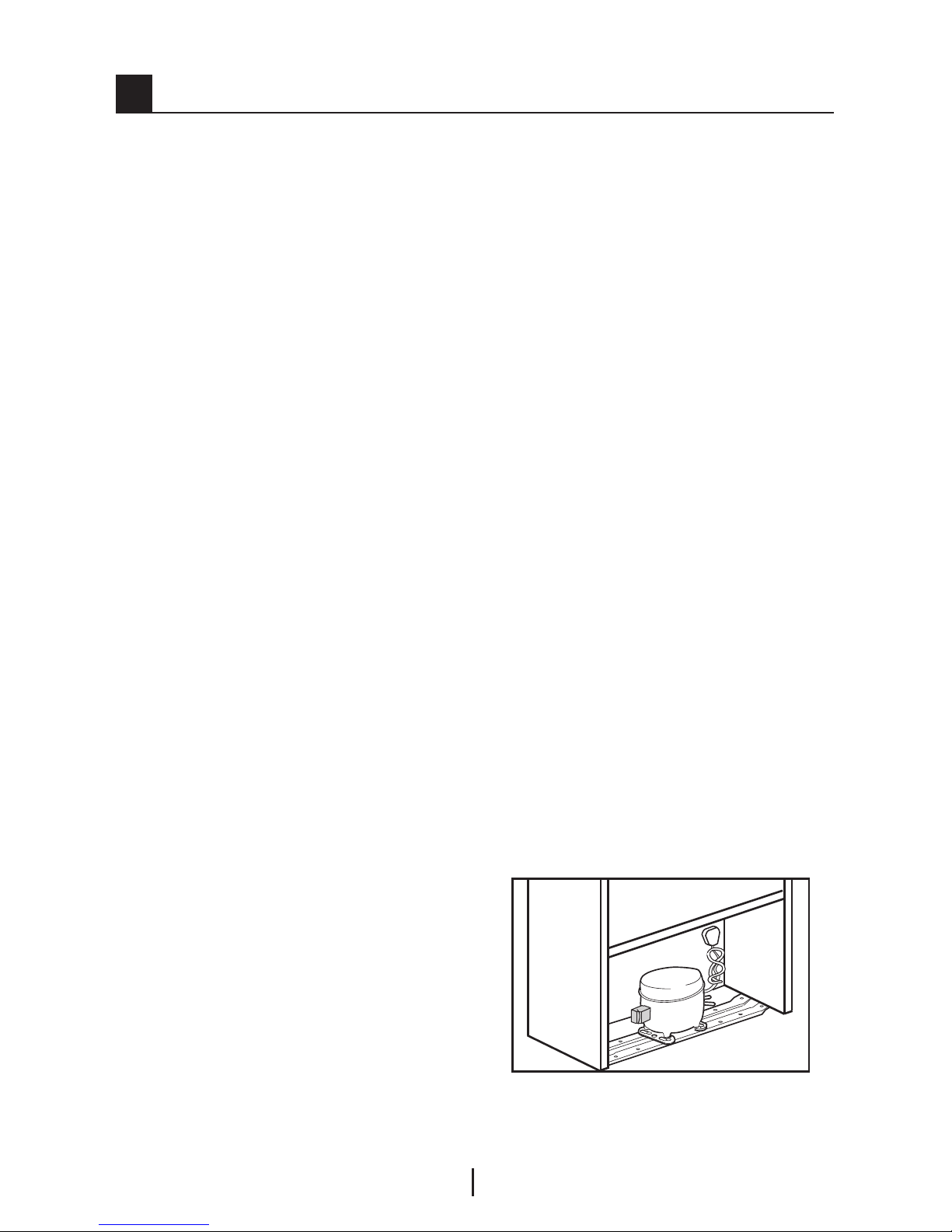

the cabinet, on the right hand side of
the compressor. (See diagram) Gently
remove the plug from the receptacle.
Never pull the mains cord, you may
damage the appliance. In the case
of transportation, ensure you locate
the plug in the receptacle provided to
avoid transit damage. transit provided
to avoid transit damage.
3Installation

EN
11
The following guidelines and
recommendations are suggested to
obtain the best results and storage
hygiene.
1. The larder fridge is suitable for
the short term storage of fresh food
and drinks.
2. Cooked dishes must be stored
in airtight covered containers.
3. Fresh wrapped produce can
be placed on the shelf. Fresh fruit and
vegetables should be cleaned and
stored in the salad crisper bin.
4. Bottles can be placed upright in
the door rack.
5. To store raw meat and fish place
either on the lowest shelf or in the
chiller compartment (recommended).
Do not allow to come into contact with
cooked food to avoid contamination.
For safety, only store raw meat for two
to three days. Fish should be stored in
the chiller compartment
6. Keep the food packed, wrapped
or covered. Allow hot food and
beverages to cool before placing them
in the fridge. Do not store poisonous
or dangerous substances in the
refrigerator. High proof alcohol must
be stored upright in sealed containers.
Left over canned food should not be
stored in the can.
7. Some fruit and vegetables
suffer damage if kept at temperatures
near 0 degrees centigrade. Therefore
wrap pineapples, melon, cucumbers,
tomatoes and similar produce in
polythene bags.
8. Do not leave frozen food at
room temperature to thaw; the best
way to defrost food is to put it in the
fridge to thaw slowly. Make sure you
avoid defrosting food or food juices
drip onto other food.
9. For hygiene reasons, always
wrap food using a suitable packaging
material before storing in your
appliance to avoid contact with the
appliance surface.
10. Chiller Drawer humidity
controlsThis has been designed to
keep your vegetables fresh, without
losing moisture. For this purpose,
cold air circulates around the crisper.
The amount of cold air passing out of
the crisper can be regulated with the
controls found on the front of its cover.
You may set the humidity-control slider
to the position appropriate to adjust
the degree of moisture and coldness
of the foodstuffs inside. If you want
these to cool further, set the control
to “Open”, if you want them to cool
less but retain their moisture for a long
period, set it to “Closed”. Positions in
between allows you to regulate cooling
and moisture-retention as you desire.
(See the below diagram)
11. Door open alarm will bleep after
the door has been left open for over 1
(One) minute

EN
12
Changing the illumination
lamp
To change the Bulb/LED used for
illumination of your refrigerator, call your
AuthorisedService.
The lamp(s) used in this appliance
is not suitable for household room
illumination. The intended purpose of
this lamp is to assist the user to place
foodstuffs in the refrigerator/freezer in
a safe and comfortable way.The lamps
used in this appliance have to withstand
extreme physical conditions such as
temperatures below -20 °C.
(only chest and upright freezer)

EN
13

EN
14

EN
15

EN
16

EN
17

EN
18
4Before operating
Starting
Final Check
Before you start using the refrigerator
check that:
1. The front feet have been
adjusted so the appliance is level.
2. The interior is dry and air can
circulate freely around the outside of
the product.
3. Clean the interior as
recommended under “CLEANING
AND CARE.”
4. Insert the plug into the wall
socket and switch on the electricity
supply.When the door is open the
interior light will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
whether the compressor is running or
not which is quite normal.
6. We recommend that you set
the thermostat thermostat to 3 (three)
and monitor the temperature to ensure
the appliance maintains desired
storage temperatures (See section
Temperature Control and Adjustment).
7. Do not load the appliance
immediately it is switched on. Wait until
the correct storage temperature has
been reached.
8. We recommend that you check
the temperature with an accurate
thermometer

EN
19
5Using your refrigerator
Led Indicators And
Control Panel
LED indicators in the front section of
your refrigerator are intended to help
you in monitoring the operation of your
appliance.
Keep your food in the refrigerator in a
safe manner by monitoring and using
these LEDs and controls as explained
below:
Quick Cool Button (1):
Used to cool the food quickly.
Compressor may not operate
immediately but after some time when
the button is pressed and this is quite
normal.
Thermostat Setting Button (2):
Used to set your refrigerator between
minimum and maximum values.
Temperature Indicator (3):
Displays the inner temperature of your
refrigerator.
Amber LED (4):
Lights up when the Quick Cool
button on the LED panel is pressed.
In this case, your refrigerator operates
continuously.
Press the button again when the food
you would like to quick cool comes to
the desired temperature and the orange
LED will turn off.
Green LED (5):
Lights up continuously after plugging
in your refrigerator.
Red LED (6):
It warns you by lighting up continuously
when your refrigerator starts to operate,
if not enough cooling effect is obtained,
when the door of your refrigerator
remains open for a long time and when
excessive food is loaded.
If the red LED lights up continuously
when the conditions stated in the
adjacent column do not exist, then call
our Authorised Service.

EN
20
Temperature Setting
The interior temperature of your
refrigerator changes for the following
reasons;
• Seasonal temperatures,
• Frequent opening of the door and
leaving the door open for long
periods,
• Food put into the refrigerator
without cooling down to the room
temperature,
• The location of the refrigerator in
the room (e.g. exposing to sunlight).
You may adjust the varying interior
temperature due to such reasons by
using the thermostat. If the ambient
temperature is higher than 30°C, turn
the thermostat button to maximum
position.
Defrost
It is normal that ice crystals build up
on the surface of the rear wall of your
refrigerator while it is operating. There
is no need to scrape of wipe them off.
Your refrigerator defrosts automatically.

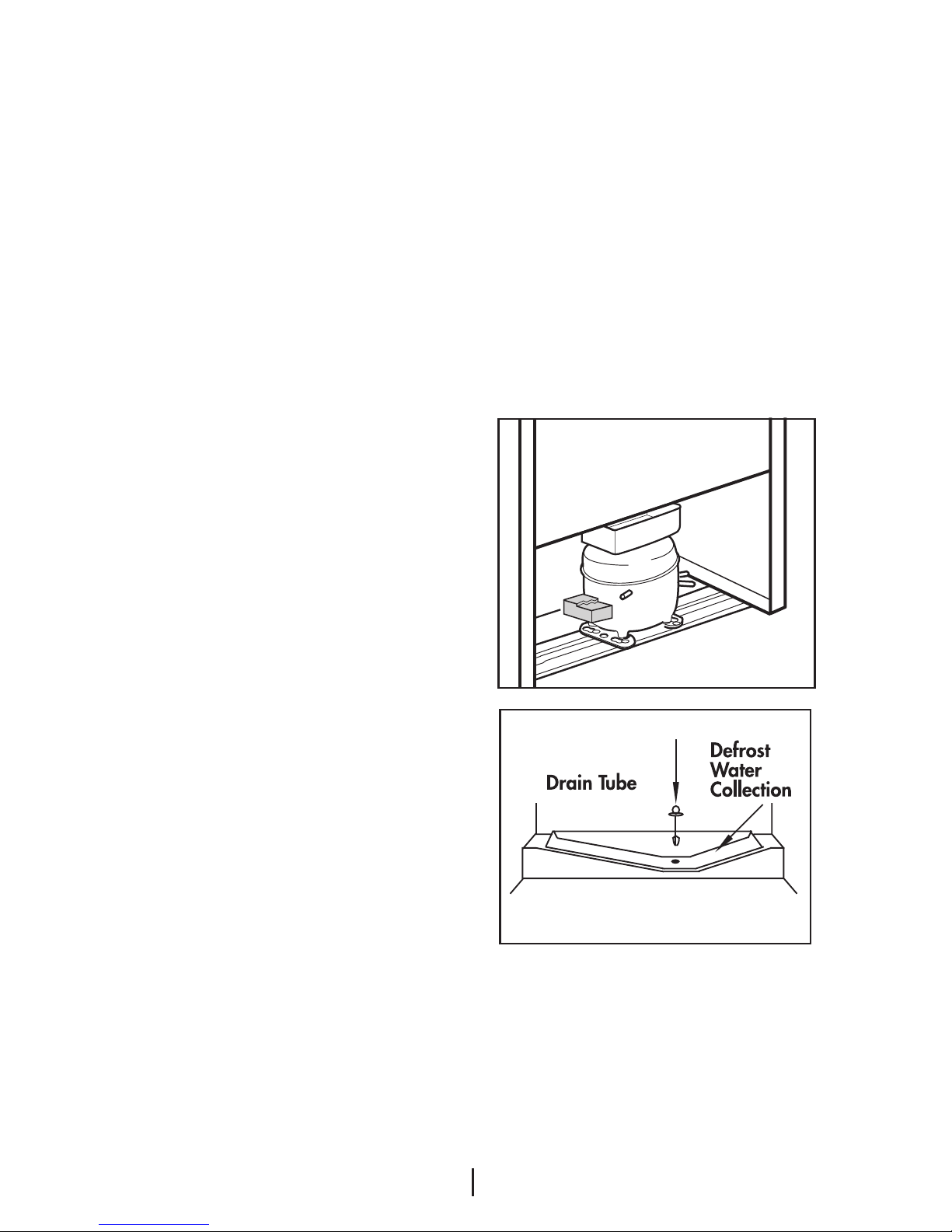

Water resulting from the defrosting
passes from the water collection groove
and flows into the evaporator through
the drain pipe and evaporates there by
itself.
