Blomberg WAF 6080 User manual

Washing Machine
WAF 6150 A - WAF 6140 A
WAF 6120 A - WAF 6100 A
WAF 6080 A
User's Manual

2
1- Technical Features of Your Washing Machine 3
2- Warning 5
3- Preparation 7
4- Program Selection and Starting Machine 11
5- Care and maintenance 15
6- Installation 17
7- Before calling service 19
Contents

3
Technical Features of Your Washing Machine
WA 6150 A WA 6140 A WA 6120 A WA 6100 A WA 6080 A
Maximum dry laundry
capacity (kg.) 6 6 6 6 6
Height (cm.) 85 85 85 85 85
Width (cm.) 60 60 60 60 60
Depth (cm.) 54 54 54 54 54
Net Weight (kg.) 71 71 71 71 71
Electricity (V/Hz.) 230/50 230/50 230/50 230/50 230/50
Total Current (A) 10 10 10 10 10
Total Power (W) 2350 2350 2350 2350 2350
Washing -rinsing cycle
(cyc/min) 52 52 52 52 52
Spinning cycle (max
cyc/min) 1500 1400 1200 1000 800
There may be changes in the technical
features without prior notice in order to
enhance product quality.
The figures in the manual are schematic
and may not represent your actual ma-
chine one-to-one.
Labelling on your product and ones
declared in the documents accompany-
ing product are the values obtained under
laboratory conditions with given stand-
ards. These values may vary according to
usage and environmental conditions.
1

4
1Detergent dispenser
2Front Panel
3Front door
4Kick Plate Cover
5Height-adjustable feet
Your Washing Machine
12
5
3
4

5
• This product is designed for home
use.
• Your washing machine is adjusted
to 230V.
• If the fuse in your house is less
than 16A than have a certified
electrician deploy an 16A fuse.
• In case of transformer or non-
transformer use, grounding instal-
lation must be performed with a li-
censed electrician. Any use before
grounding is not our responsibility.
• In order to make your machine
ready call Authorized Service,
prepare clean tap water and water
draining with licensed plumber.
• Never place your machine over a
carpet covered floor. Otherwise
electrical parts of your machine
may overheat. This may cause
malfunction of your machine.
• Make sure hot and cold taps are
connected correctly. Otherwise
your laundry may come out hot
and torn .
• Please call certified service for a
failure of electric plug / cable.
• Be careful about your water hoses
are not old. Do not use old / torn
water hoses. This may cause stain
in your laundry .
• At first use, washing must be
performed at Cotton 90°C program
without loading with laundry for
getting your machine ready for
washing.
• Performance of your washing
machine depends on the quality
of water and hygiene compound
used. If low quality and unfitting
cleaning material is used the
stains will be fixed. Before wash-
ing your laundry with stain keep
your attention on cleaning the
laundry as explained in following
pages.
• This is period of keeping spare
parts for your machine to operate.
Because of quality control proce-
dures there might be little amount
of water in your machine. This
does not have any damage to your
machine.
• Your machine is programmed for
starting operation again when
electricity is off and on afterwards.
You can not press On / Off button
to cancel program. Machine will
go on program when electricity is
on. To CANCEL the program press
>Start/Pause/Cancel< button for
three seconds. (See. Cancelling a
program)
If “Door” led on program progress
display is blinking program selec-
tion knob is middle position. In this
case turn the knob and adjust it
again. If the warning continues call
authorized service.
• After your machine starts opera-
tion, if Start/Pause/Cancel key
starts blinking than door is not
locked. Open and close the door
again begin washing program
again.
• If the “washing” led on the pro-
gram progress display is blinking
either there is no water or tap is
2Warning

6
off. Check your taps. Turn your
machine off and on. If the problem
persists unplug your machine, turn
off tap water and call authorized
service.
• If program is started and program
selection can not be performed
your machine might be in protec-
tion mode due to infrastructure
problem (voltage, water pressure,
etc.) Press and hold the > Start/
Pause/Cancel < button for 3 sec-
onds in order to switch machine to
factory settings.
• Most of the warnings resulting in
calling an authorized service are
due to infrastructure problems. For
this reason applying to an Author-
ized Service is recommended.

7
Before starting your machine
please beware of below men-
tioned points:
Did you plug the cable?
Did you connect draining hose cor-
rectly?
Did you close front door?
Did you open tap water?
If you haven’t installed your ma-
chine please read to “Installation”
section.
Sorting the Laundry
Sort laundry according to type of
fabric, color, level of dirtiness and
allowed washing temperature. Do
not wash white laundry together with
colored ones. Remove hard parts like
belt, wrist button, curtain buttons, etc.
or place laundry in a cloth bag. Empty
pockets. Zip up and button up. Very
tiny laundry like baby clothes may get
into inside of drum, midst of bellow,
pump filter, hose, etc. in order to pre-
vent this it is advised to place such
laundry in a special laundry string bag
or large laundry. See practical and
useful information section for soiled
laundry. Your machine can wash “Ma-
chine Wash” or “No-matting” labeled
woolen with special woolen program.
Delicate laundry with “Do not wash”
or “hand wash” label (silk, cashmere,
pure wool, etc.) can be washed in the
special hand-wash program.
Opening front door
Pull the handle to open the front door.
Your machine’s front door is designed
for opening during only machine
is not operating. If the led displays
“door” than door can open.
Loading machine with laun-
dry
Fill the machine by unfolding and
not squeezing laundry. Place hand-
woven garments inside-out to the
machine. Make sure there is no
laundry jammed between bellow and
front-door.
Close the loading door by pushing.
If loading door is not properly closed
machine will not start.
Selection of detergent and
softener
Quantity of the detergent used
depends on hardness of water and
how soiled laundry is. Recommended
values are indicated on the package.
If your laundry is low soiled and/or
hardness of water is low use less de-
tergent as indicated on the package.
Otherwise it may result in excessive
foam.
You should use detergent specially
designed for automatic washing
machines. Avoid using bleach product
containing sulfur or chlorine. Place
powder detergent and softener in
appropriate drawer compartment and
close detergent dispenser.
3
Preparation

8
a. Compartment I, powder detergent
drawer for pre-wash.
b. Compartment II, powder detergent
drawer for main wash.
c. Softener dispenser
d. Siphon
Fill the softener as indicated (usu-
ally <100ml; 1 tea bag) on pack-
age. Never fill more than “MAX”
level. Excess amount will drain to
suction cup and be wasted. You
might need to fill softener again.
If softener is thickened over time
add some water for thinning.
Softener may obstruct siphon and
block flow.

9
Control Panel
1- Program selection knob
2- Time delay selection button
3- Auxiliary function buttons
4- On / Off button
5- Program progress display
6- Spin speed selection knob
12
4
3
65

10
Auxiliary Functions
Quick-wash
Shortens washing time for lightly
soiled fabrics.
Rinse plus
By using this function your machine
will add another rinse process to the
three rinse processes that it has al-
ready done. This additional rinse will
reduce any affects on sensitive skin
by washing leftover detergent.
Anti-creasing
To avoid wrinkling of your clothes,
select this function. When Easy-iron
is chosen please load less cloth, this
way a special washing and spinning
profile will reduce the wrinkles and
your clothes will be easy to iron.
Spin speed selection knob
You can spin the laundry up to 1500
cycle / min.(depending on model)
with the models having cycle selec-
tion button. Your machine will spin not
more than 800 cycle / min. for syn-
thetic programs and 600-400 cycle/
min. for woollen programs.
In addition if you do not want to spin
your laundry you may choose “No
Spin” position.

11
Program Selection and Starting Machine
4
Plug you machine to outlet. Turn on
the machine by pressing “On / Off”
key. Open the door by pulling the
handle and load the machine without
exceeding loading capacity and close
the door. Specify the appropriate pro-
gram by looking at program selection
table according to type of laundry,
degree of soiledness and washing
temperature. Position program selec-
tion key to desired washing program-
temperature. Select convenient spin
speed related to selected program. If
you are using auxiliary function press
desired auxiliary function key.
Afterwards place appropriate deter-
gent and softener to your machine’s
detergent drawer. Start your machine
by pressing Start/Pause/Cancel but-
ton. Start/Pause/Cancel key’s led will
be on. After your machine starts, you
can follow from the program progress
display at which step your machine is.
3
12
6
87 9
45

12
Program Type of laundry
Max Load (kg) Program Du- ration (min.) Water Consumption (lt) Energy Consumption (kWh) Quick wash Rinse Plus Anti-creasing
Cotton 95 with
Prewash
Heavy soiled Durable fabrics
made of cotton and linen 6 160 60 2.60 • •
Cotton 95 Heavy soiled Durable fabrics
made of cotton and linen 6 150 55 2.00 • • •
Cotton 60 * Normal soiled cotton and linen
durable to heat 6 135 49 1.14 • • •
Cotton 40 Less soiled cotton and linen
sensitive to heat 6 125 49 0.70 • • •
Intensive 60 Heavy soiled Durable fabrics
made of cotton and linen 6 160 65 1.30 •
Hygiene 65
Normal oiled Durable fabrics
made of cotton and linen (baby
clothes etc.)
6 170 65 1.40
Synthetic 60
with prewash
Normal soiled cotton/synthetic
blended durable to heat 3 125 60 1.00 • •
Synthetic 60 Normal soiled cotton/synthetic
blended durable to heat 3 115 55 0.90 • • •
Synthetic 40 Less soiled cotton/synthetic
blended durable to heat 3 105 55 0.50 • • •
Synthetic 30 Very Less soiled or cotton/syn-
thetic blended sensitive to heat 3 90 55 0.30 • • •
Mix 40 Very Less soiled or cotton/syn-
thetic blended sensitive to heat 3.5 95 55 0.50 • • •
Delicate 40 Delicate, sensitive synthetic, cot-
ton blended 2 70 60 0.35 • •
Delicate 30 Delicate, sensitive synthetic, cot-
ton blended 2 65 60 0.25 • •
Woolen 40 Woolen and delicate blended
with machine wash label 1.5 55 55 0.30 •
Woolen Cold Woolen and delicate laundry with
machine wash sign 1.5 45 55 0.03 •
Handwash 30
Special program for silk, cash-
mere or laundry with no machine
wash sign
1 40 35 0.15
Mini 30
Special program for silk, cash-
mere or laundry with no machine
wash sign
2.5 30 45 0.25
Rinse Rinse Program 6 23 13 0.04
Spin Spin Program 6 13 _ 0.03
Pump Pump Program _ 2 _ _
Program selection table
* Energy Labeling Program (EN 60456)

13
Pressing “On/Off”
By pressing “On/Off” button you can
make your machine ready for select-
ing program. When “On/Off” key is
pressed “door” led will light on mean-
ing “door can open”. Press “On/Off”
key again for turning your machine
off.
Pressing “On/Off” does not mean
program started operation. You must
press “Start/Pause/Cancel” for start-
ing the program.
Child-proof lock
During washing laundry in order to
maintain that program progress is not
affected by pressing keys by children
there is child-proof lock. To enable
child-proof lock, after washing begins,
press Express and Rinse Plus func-
tion buttons together simultaneously
for three seconds. Pre-wash addition-
al function led will always blink.
After program ends in order to start a
new program or alter the program you
have to disable child-proof lock. To
do this press same buttons for three
seconds and Child-proof lock led will
be off.
Function Selection
Additional functions selectable ac-
cording to selected program can be
selected by pressing related key. Led
of selected function will be on.
If not selected together some addi-
tional functions go off when it is not
selected with other one. For example;
when using cotton program, exspress
and rinse plus auxillary functions can
not be selected together. After select-
ing express program, if rinse plus key
is pressed fast program will be on
and express function led will go off.
Program Progress
After machine starts operation rel-
evant program led on program prog-
ress display will be on. When a step
is completed that step’s led is off and
next step’s led is on. When “On/Off
button is pressed “door” led will be
on. After washing program is selected
when “Start/Pause/Cancel” key is
pressed “Washing” led on program
progress display will be on. At the
final step “Spin cycle” led is on. When
program is completed “Door” led
will be on again. During machine
operation you can press “Start/Pause/
Cancel” key for getting machine to
“Pause” position. In this case “Start/
Pause/Cancel” led will blink.

14
Changing Program
You can use this feature for wash-
ing laundry in the same textile group
for washing at lower or higher tem-
peratures. For example, instead of
Cotton60, Cotton40 can be used.
For selecting Cotton40 instead of
Cotton60 by pressing “Start/Pause/
Cancel” key machine is switched
to pause position. Program knob is
turned for selecting Cotton40 pro-
gram.
Even when the program selection
button is changed during the pro-
gram initially selected program will
be executed. For changing washing
program continuing program must be
cancelled. (See Cancelling a pro-
gram)
For selecting auxillary functions
or spin speed necessary changes
can be performed after pressing
Start/Pause/Cancel button. Although
selected auxillary functions must be
compatible with washing program.
For example when your machine is
intensive program you can select
additional rinse plus function but you
can not select express.
Time delay for program start
Using time delay key you can delay
the starting of the selected program
for 3 hours, 6 hours or 9 hours.
When time delay key is pressed once
3hours delay is adjusted and led
will light on. If same key is pressed
once more delay is 6hours, and if it is
pressed once more 9 hours delay is
selected. If time delay key is pressed
again delay is cancelled. After the
selection of time delay when “Start/
Pause/Cancel” is pressed program
can be started with delay. During
delay period door can be opened or
laundry can be added
After time delay is initiated by press-
ing “Start/Pause/Cancel” you can
switch machine to “Pause” mode and
change delay time.
Adding laundry
If you want to add laundry to your
machine after program begins press
Start/Pause key for switching ma-
chine to pause mode. If water level
in the machine is appropriate “door”
led on program progress display is
on and laundry can be added to the
machine. If “door” led is not on after
one minute than water level in the
machine is not appropriate and laun-
dry can not be added. You can press
“Start/Pause/Cancel” key for continu-
ing program.
Canceling a Program
For canceling a program “Start/
Pause/Cancel” key is pressed for
three seconds. After this period “Start/
Pause/Cancel” and all other leds will
be off .You can select a new program
and start washing.
If cancel task is performed during
washing “Spin” led on display will
light on, machine will pump and when
“Spin” led is off “door” led will be on,
door can be opened and new pro-

15
gram can be selected.
Even program selection button is
changed during the program initially
selected program will be executed.
For changing washing program “Can-
celing a program” must be performed
afterwards new program can be
selected and started
After machine starts operation even if
spin speed or washing temperature is
changed, initial speed and tempera-
ture is valid. In order to change spin
speed or temperature after pressing
“Start/Pause/Cancel” new cycle or
temperature can be selected.
End of Program
When program ends “ door” led will
light on and door can be opened and
machine is ready for next washing.
Press “On/Off” for turning machine
off.
Emptying Laundry
After program ends machine auto-
matically stops. Turn off tap water.
Pull the handle and open loading
door. Turn off your machine by press-
ing “On/Off”. After taking laundry out
keep the loading door open and let
the drum ventilate. Check the bellow
and clean.

16

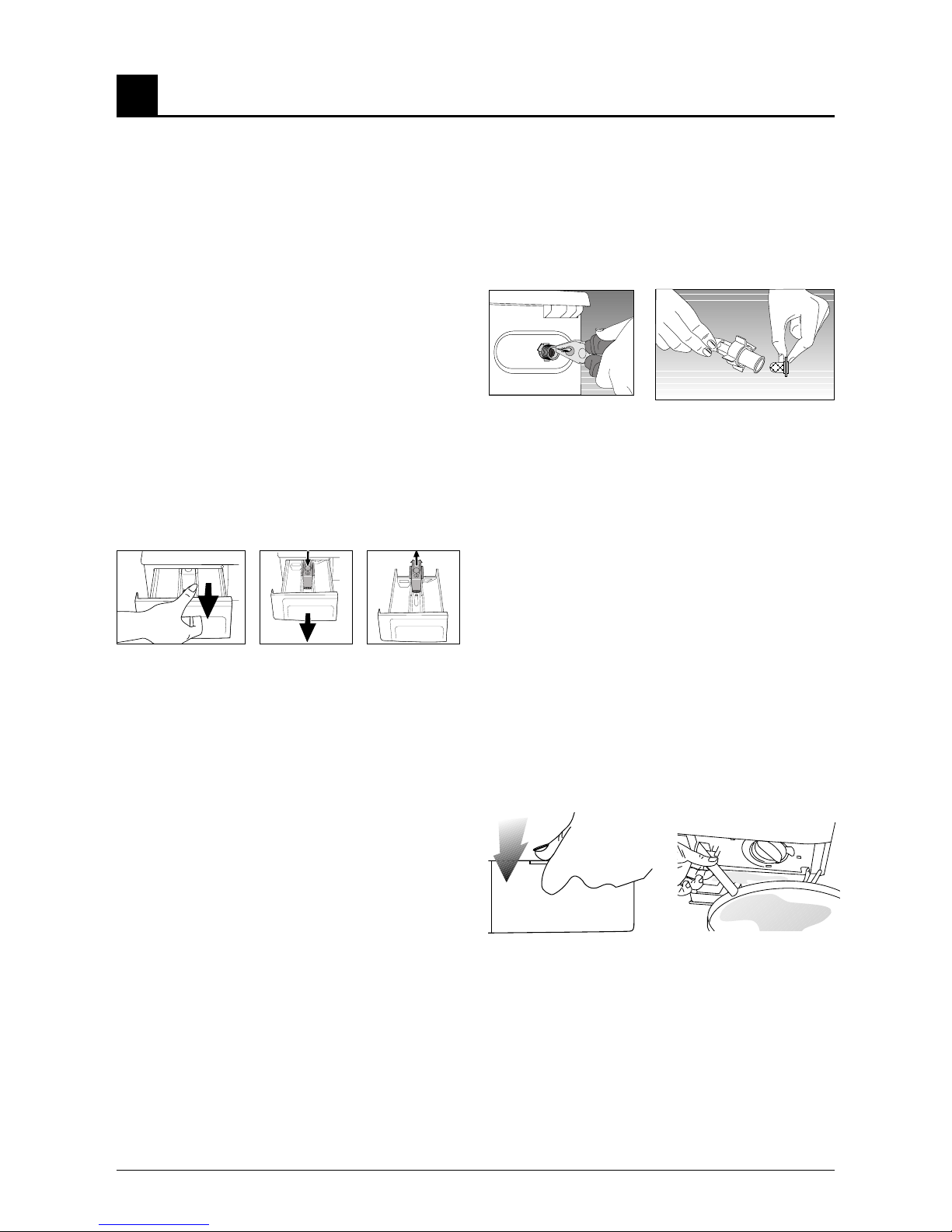

Detergent Dispenser
Powder detergent residue may ac-
cumulate in drawer after a while. In
order to clean detergent drawer press
the marked point of the siphon on
softener compartment and push the
drawer towards yourself. Wash the
drawer with water
Siphon
Do not neglect cleaning suction cup
when it becomes soiled. In order take
suction cup out first take detergent
drawer out. Clean it in order to elimi-
nate blocking by softener residue.
After cleaning place suction cup to
its place and make sure it is placed
properly.
Water Entrance Filters
There is a filter at each flat end where
water inlet hose is connected to
tap and at each of water inlet valve
placed behind the machine. These
filters blocks entrance of foreign
objects and dirts to the machine.
Filters must be cleaned regularly to
avoid clogging. For doing this, turn off
tap water. Pull out water inlet hoses.
Clean the top of the water inlet valve
filter with a brush. If filters are ex-
tremely clogged you can pull it out
with a pincer. You can take out the flat
side of water inlet hoses with its seal
and clean with tap water. (2 filters in
Single water inlet machines, 4 filters
in double water inlet machines)
Hose
There is risk of freezing in cold
region, if your machine is placed in a
cold place remaining water in hoses
must be drained with pump filter
when machine is not used. Water
inlet hoses can be drained by taking it
out from tap.
Cleaning Pump Filter
There is filter system maintaning long
lifetime of pump by blocking foreign
objects like button, cloth fiber enter
to the pump during drain of washing
water. It is useful to clean the filter
when it is soiled.
In order to do this:
Unplug your machine. Open the filter
at bottom right corner by pressing
marked space on the lid.
Hot water risk: There might be 15 lt.,
90°C hot water in the drum. Open the
filter carefully.
Before opening the filter drain the
water with drain hose. Pull out the
drain hose from its place. Prepare a
suitable container and open the tap
of hose. After water is drained place
the tap properly. Open the filter by
turning and drain the remaining water
(max30ml) to filter tap. Clean remain-
ing foreign object in the filter. When
5Care and maintanence

17
If your system is not ready, let a certi-
fied plumber make it ready.
1. Removing the transportation
safety bolts
Before the washing machine is oper-
ated, the transit bars must be re-
moved! In order to do this:
1. Loosen “C” bolts by rotating them
counter clockwise with a suitable
spanner
2. Remove transportation safety bolts
by turning.
3. Place “P” plastic covers onto the
openings of transportation locks by
rotating in direction of arrow and
pushing.
Attention please! Keep the transit
bars for using when machine is to be
transported again. Always transport
your machine with transportation
locks.
2. Leveling the feet
In order to operate your machine
without noise and vibration it must
be properly on balance. Four feet
of your machine can be adjusted.
First loosen the plastic counter bolt.
Tighten the counter bolt after adjust-
ing the feet for leveling your machine.
3. Water Connections
a) Water Inlet Hose
Your machine is connected to water
supply by special hoses supplied by
the machine. Red hose or hose writ-
ten red on it is hot water inlet, blue
hose or hose written blue on it is cold
water inlet.
There are plastic seals (4 for double
6
finished turn in clockwise direction
and close. Close the filter tap by
pushing.
Caution!
If the filter and hose tap does not fit, it
leaks water.
Installation

18
water inlet models, 2 for single water
inlet models) on hose or plastic bag
for eliminating any leakage in con-
nections points. These seals must be
used on each side of the connection.
Seals on machine side must be con-
nected filter cannal.
After connecting the hose, check
all connections for leaks In order to
eliminate any risk due to water leak-
age keep the taps off when machine
is not used.
Your machine will operate efficiently if
the water from tap is minimum 1 and
maximum 10 bars. Practically 1 bar
means 8 liters of water in one minute
when tap is fully on.
Connect hose to the machine.
Tighten bolts with hand power, do not
use spanner.
Double inlet models can be used with
blind cap as a single inlet machine.
Connect blind cap to hot water inlet.
Seal must be for stopping water leak-
age.
Do not connect single inlet machine
to hot water. If machine is connected
with Y part to a double inlet and over
40˚C for single inlet machines, ma-
chine may switch to protection mode.
b) Water drain hose
Water drain hose could be placed
either at the side of the bath tub, or
directly to the drain. The hose should
not be bent. Water drain hose should
be secured with the holder so that it
would not fall down on the ground.
The hose should be placed between
40 and 100 cm. from the ground.
Water drain hose could be placed
directly to the drain water inlet.

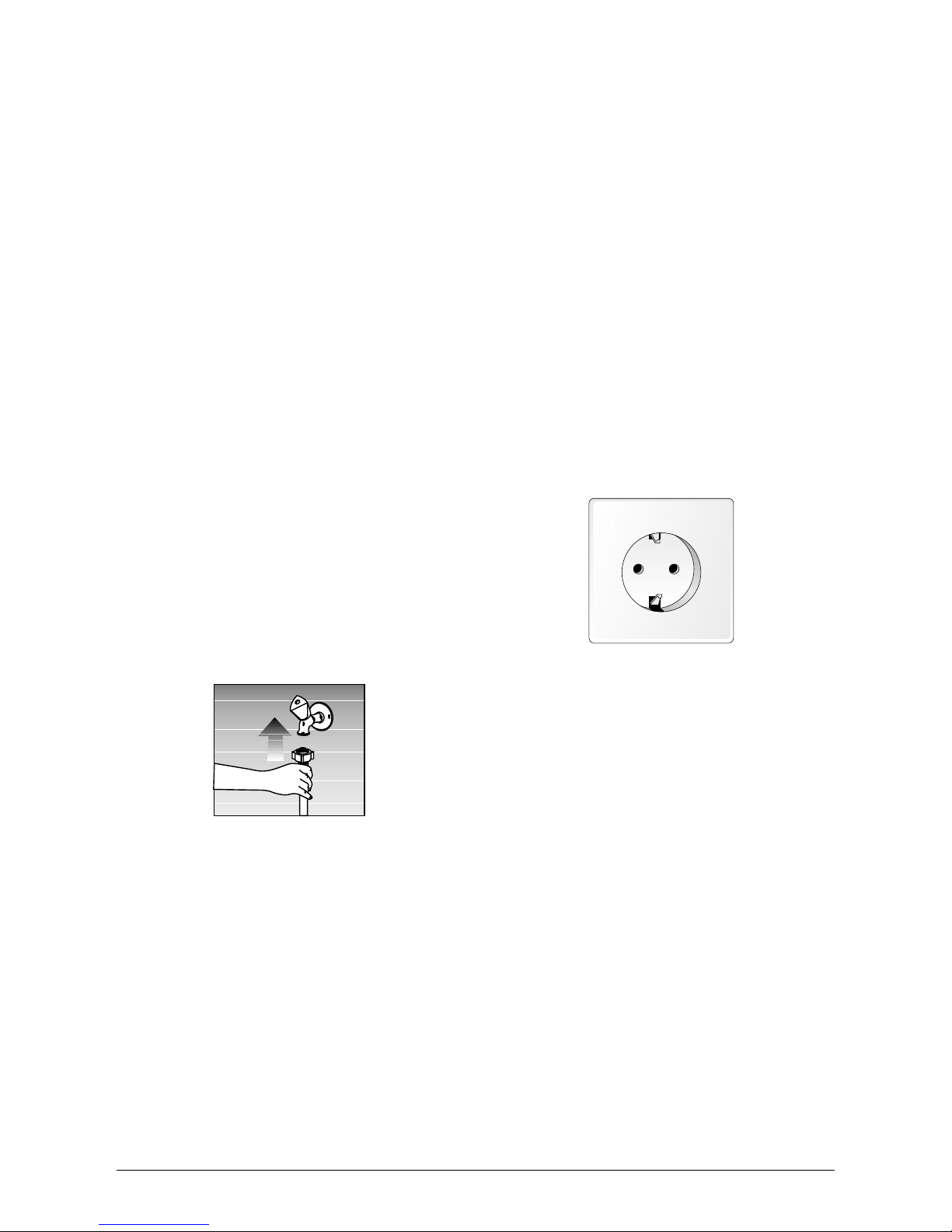

4. Electrical connection
Connect the power cord to the ap-
propirate electrical system which is
being supported by the maximum
voltage and current rating indicated
on the rating plate placed inside the
kick plate.
Look! Page 1, Steps before operating
Fullautomatic Washing Machine and
safety precautions.
Make sure that you have grounded
power outlet.
Attention! Before any operation of the
machine check the following.
• Did you close the front door?
• Is the tap open?
• Is water drain hose placed properly?
• Is power connected?

19
You turned the machine on, but the
leds are off on the panel.
Check the grounding on the power
cable or a blown fuse. Check the front
door proper closure.
Machine does not take water.
Check the front door for proper clo-
sure. Either taps are closed or water
intake filters are clogged.
Taken water is directly discharged.
Check if the discharge hose placed
as described in the users manual or
not.
Water coming from beneath the
machine.
Check the water intake and drain
hoses. Tighten the connections. The
washers of the hoses may be worn
out. If non of the both, the pump filter
is not closed properly.
Foam coming out of the detergent
dispenser.
Check whether your detergent is
suitable for automatic machines. Next
time use less detergent.
Pump does not drain water.
Clean the pump filter. Check whether
the drain hose is bent or not. If there
is need to clean the pump filter, refer
to the pump filter cleaning section of
the manual.
7 Before calling service
