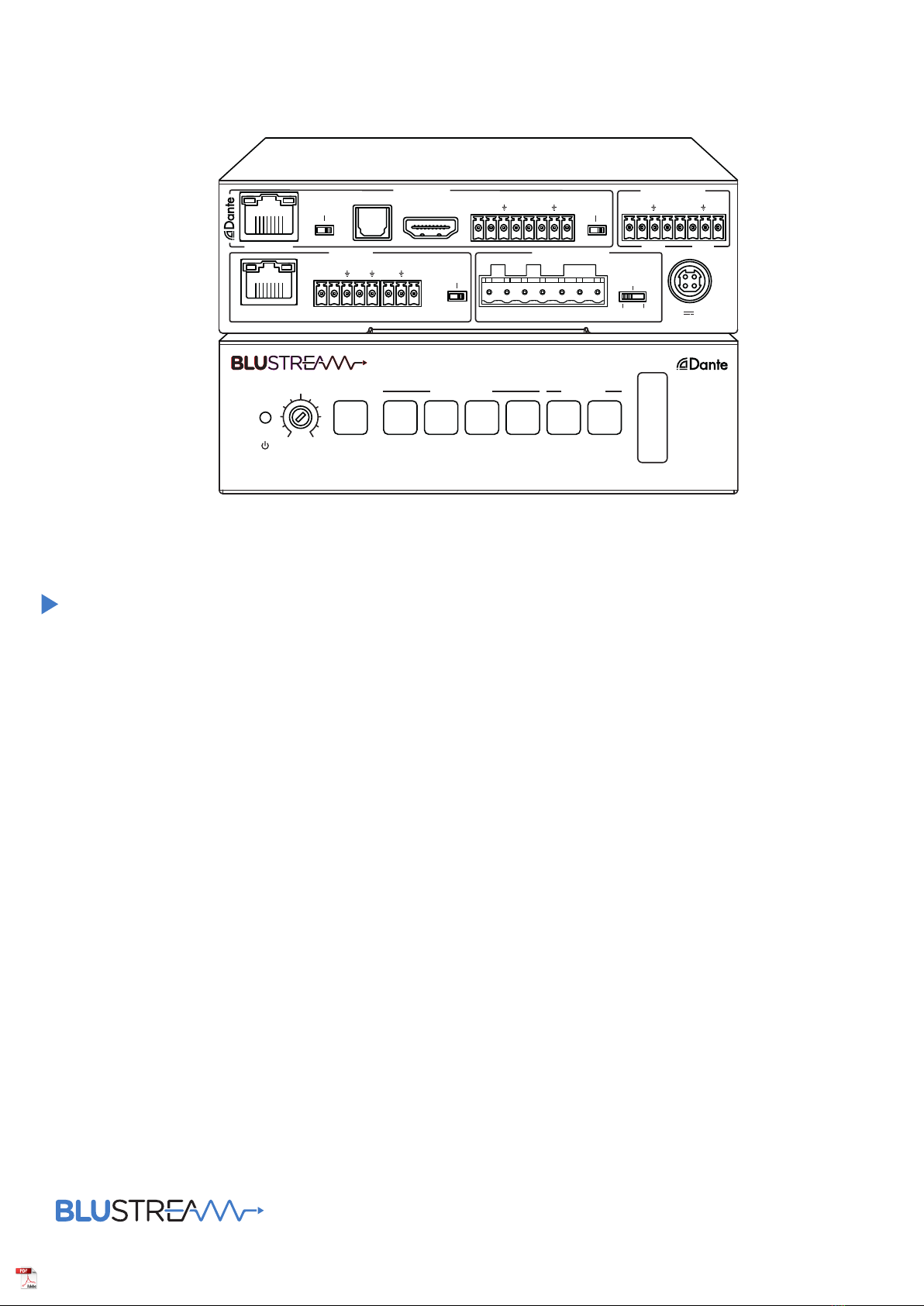

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk02
Surge Protection Device
Recommended
This product contains sensitive
electrical components that may be
damaged by electrical spikes, surges,
electric shock, lightning strikes, etc.
Use of surge protection systems is
highly recommended in order to
protect and extend the life of your
equipment.
Contents
Thank you for purchasing
this product.
For optimum performance and safety,
please read these instructions care-
fully before connecting, operating or
adjusting this product. Please keep this
manual for future reference.
Introduction 03
Features 03
Front Panel Description 04
Rear Panel Description 04
Speaker Connections 05
Audio Connections 05
Microphone Connection 06
Trigger Connection 06
IR Connection 06
Network Connections 06
Dante® Audio 07
Dante® Controller 07-08
Advanced Dante® Settings 08
Web GUI Control 08-15

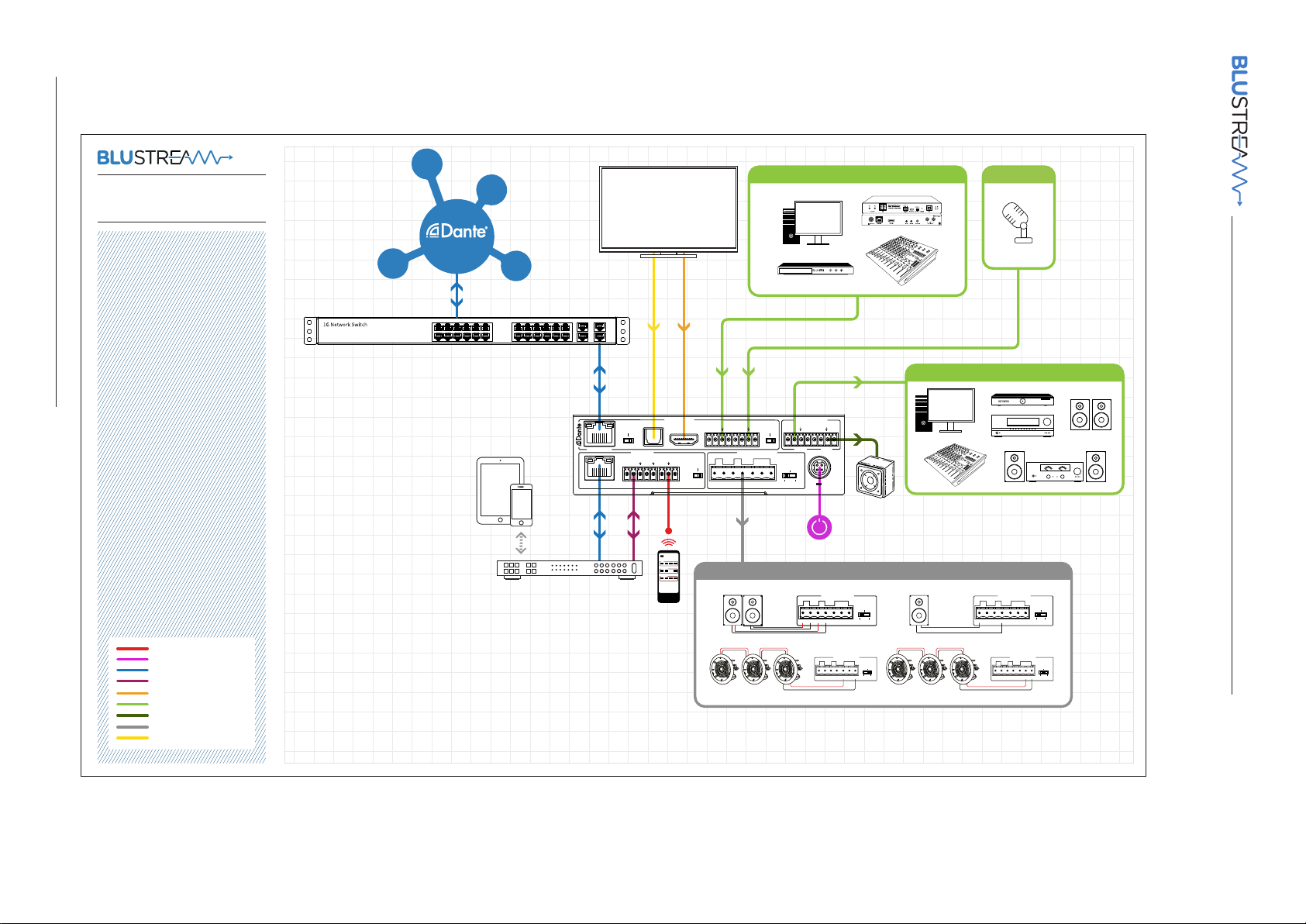

Schematic 16
Telnet & RS-232 Control Port 17-18
Specifications 19
Package Contents 19
Maintenance 19
Acknowledgements 20
Certifications 20

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 03
Our NPA100DA networked audio zone amplifier delivers advanced audio
integration within a commercial or residential AV installation.
The NPA100DA features a 2 x 50W digital amplifier (1 x 100W mono) or 70V /
100V hi-level constant voltage output, dedicated LFE subwoofer output, Dante
audio integration and 2ch balanced / unbalanced audio outputs.
The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI
ARC, MIC audio with 48V Phantom power support, optical audio and 2ch
balanced / unbalanced analogue audio.
The NPA100DA can be powered via PoE++ from a compatible network switch,
or locally should the switch not support PoE++. The unit also includes the
ability to lower the amplifier power output subject to PoE capabilities, support
for combined or independent LAN and Dante connections, DSP with a 10 band
EQ, audio delay for lip sync correction, independent gain control for audio
inputs and control via front panel, IR, RS-232, TCP/IP, web-GUI or 12V trigger.
Introduction
FEATURES:
• Advanced network audio amplifier with Dante Integration
• Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm or 70 / 100V constant output for multiple speakers with longer
cable runs
• Supports power via PoE++ on Dante LAN connection or Local power supply*
• Dual network option - independent Dante and LAN control ports, or combined to a single LAN
• Audio inputs include:
- 2ch Dante / AES67 audio input
- HDMI ARC, with CEC volume control
- MIC audio input with phantom power and auto-ducking
- 2ch analogue audio input – unbalanced & balanced
- 1 x optical (S/PDIF) audio input
• Audio outputs include:
- 2ch Dante/AES67 audio output
- 2ch variable / fixed analogue output, unbalanced & balanced
- 1 x LFE subwoofer output
• Independent gain control for input channels
• DSP with 31 band EQ with +/-10dB and audio delay
• Local 12V input trigger for automated power control
• Control via front panel, IR, RS-232 and IP
• Auto standby mode with signal sensing
• In-built web-GUI for setup and control
* Amp power limited when using PoE+

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk04
Front Panel Description
1Power Status LED
2MIC Gain Rotary Dial - Adjust the microphone gain between -10 to +10dB
3Lock Button - Press to lock or unlock the front panel buttons
4Dante Button - Select Dante audio input
5Opt Button - Select optical audio input
6HDMI Button - Select HDMI ARC audio input
7Line Button - Select analogue line audio input
8Volume - Button - Decrease master output volume
9Volume + Button - Increase master output volume
qVolume Level LED’s - Illuminates to show current volume level
Note: To factory reset this device, press and hold the Lock button and Volume + button for 10 seconds
1Dante (PoE) Port - RJ45 connector supporting PoE power to power NPA100DA
2Network Mode Switch - Mode 1 allows Dante audio and TCP/IP and web-GUI control via the Dante PoE port
- Mode 2 allows Dante audio via the Dante PoE Port, and TCP/IP and web-GUI control via the TCP/IP port
3Optical Digital Audio Input - S/PDIF
4HDMI ARC Audio Input - Supports HDMI ARC audio only, connect to HDMI ARC port on display. Supports 2ch PCM audio only
5Analogue L/R Audio Input - Phoenix connector supports balanced or unbalanced analogue audio signals
6MIC Audio Input - Phoenix connector supports balanced or unbalanced microphone audio signals
748V Phantom Power Switch - Enable or disable 48V phantom power for microphone audio input
8Analogue L/R Audio Output - Phoenix connector supports balanced or unbalanced variable analogue audio signals
9Sub Audio Output - Phoenix connector supports balanced or unbalanced analogue audio signal with fixed 80Hz Low Pass Filter
qTCP/IP Port - RJ45 connector for TCP/IP and web-GUI control of the device
wRS-232 - Phoenix connector for RS-232 control of the device
eTrigger Input - Phoenix connector triggers device power on/o. Low level (0V) to turn amp on, high level (5-12V) to turn amp o
rIR Input - 3.5mm stereo connector to connect to Blustream IR receiver for IR control of the device
tIR Voltage Switch - Select between 5V or 12V IR voltage. Please note: included Blustream IR accessories are 5V
ySpeaker Output - Phoenix connector to connect speaker outputs, see Speaker Connections section for more information
uSpeaker Impedance Switch - Select low impedance (LO-Z, 4-8ohm) speakers, or high impedance (HI-70V or HI-100V) speakers
iPower Port - Use included 36V/5.5A DC power adaptor if not powered via PoE++ device
Rear Panel Description
1 4 5 632
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
87 9 10
10 12 13
1 2 3 4 8 9
11
5 6 7
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
14 15 16 17

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 05
Speaker Connections
The NPA100DA supports both Low Impedance (4-8ohm) speakers as well as High Impedance (70V-100V) speakers.
It is necessary to configure the Speaker Impedance Switch as well as wire up the speakers according to the specific
speakers you are using. Wiring examples for each of the available configurations are as follows:
Low Impedance (4-8ohm) Stereo Speakers:
Low Impedance (4-8ohm) Mono Speaker:
High Impedance 70V Speakers:
High Impedance 100V Speakers:
HI-70V
LO-Z HI-100V
+- BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
HI-70V
LO-Z HI-100V
+- BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
HI-70V
LO-Z HI-100V
+- BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
HI-70V
LO-Z HI-100V
+-
+
-
+
-
+
-
BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
HI-70V
LO-Z HI-100V
+-
+
-
+
-
+
-
BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
+
-
+-+-
LINE
L+ L-R- R+
Balanced - XLR Unbalanced - RCA
+
-
-
+
Audio Connections
The NPA100DA supports both balanced and unbalanced analogue audio input and output connections.
The unit also features a subwoofer line level output with fixed high pass filter at 80Hz.
The wiring configuration for these connections is as follows:

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk06
Microphone Connection
The NPA100DA supports both balanced and unbalanced microphone connections. The unit also features support for
microphones that require 48V Phantom power via a switch located next to the microphone input.
When using unbalanced microphones, please ensure that both the ground and negative pins are connected to the
negative signal together. The wiring configuration for these connections is as follows:
ON OFF
MIC
-
+48V
Balanced XLR
Microphone
-
+
ON OFF
MIC
-
+48V
Unbalanced
Microphone
+
-
Trigger Connection
The NPA100DA features a trigger input to allow 3rd party devices to trigger the unit on or o. When
the trigger input senses a low voltage level (0V) it will enable the amplifier output, while when it
senses a high voltage level (5-12V) it will disable the amplifier out. This feature is enabeld by default
and can be adjusted via the web-GUI, or control API.
Network Connections
The NPA100DA features 2 xRJ45 sockets for combined or independent Dante network and Control network
connectivity. The Network Mode switch, located next to the RJ45 socket, determines the mode of operation for the
RJ45 sockets as follows:
• Mode 1 allows combined Dante audio, TCP/IP, and web-GUI control via the Dante PoE port
• Mode 2 allows Dante audio via the Dante PoE Port, then TCP/IP and web-GUI control via the TCP/IP port
TRG
T
+ -
IR Connection
The NPA100DA supports both 5V and 12V IR receivers via the IR input. There is a toggle switch to the right of the IR
input port to specify the voltage required. Please note: if using a Blustream IR receiver, the switch should be in the 5V
position.
The wiring for a Blustream IR receiver is as follows:
5V 1
2V
IR IN IR
S V
S
V
TCP/IP
DANTE PoE
RS-232
CONTROL
RXTX
MODE 1 MODE 2
NETWORK
PIN COLOUR
SRed
GND Black
VWhite

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 07
Dante® Controller soware is required in order to setup and configure the NPA100DA as well as control your Dante®
network. Audinate provide extensive training videos and documentation on their website. This can be found here:
http://www.audinate.com/products/soware/dante-controller
Upon connecting the NPA100DA to a compatible network, the Dante® Controller soware should automatically
discover the device. The NPA100DA will appear in the Dante® Controller with the name “NPA100DA”. On the “Routing”
screen it is possible to then create audio routing between Dante® transmitters and receivers within the same system.

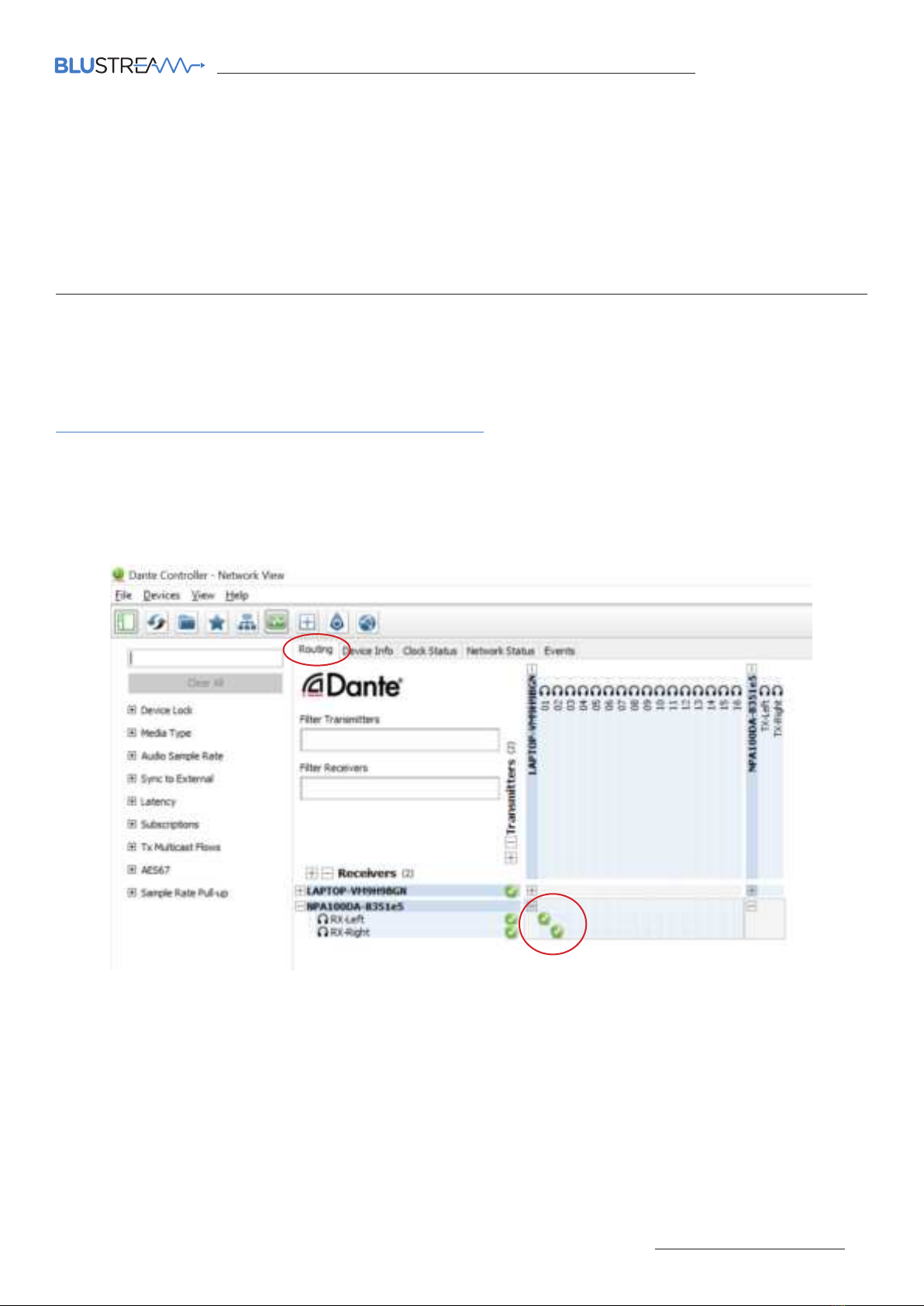

Dante® Controller
Dante® Audio
The NPA100DA features both a Dante Audio input and a Dante Audio output. The current source that is selected will
always be the source that is output via Dante (eg: analogue line input, optical audio input, or HDMI ARC input).
Please note: It is not possible to route the Dante® audio input into the NPA100DA to the Dante® audio output within
the same NPA100DA due to limitations within the Dante® Ultimo chipset utilised.

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk08
Advanced Dante® Settings

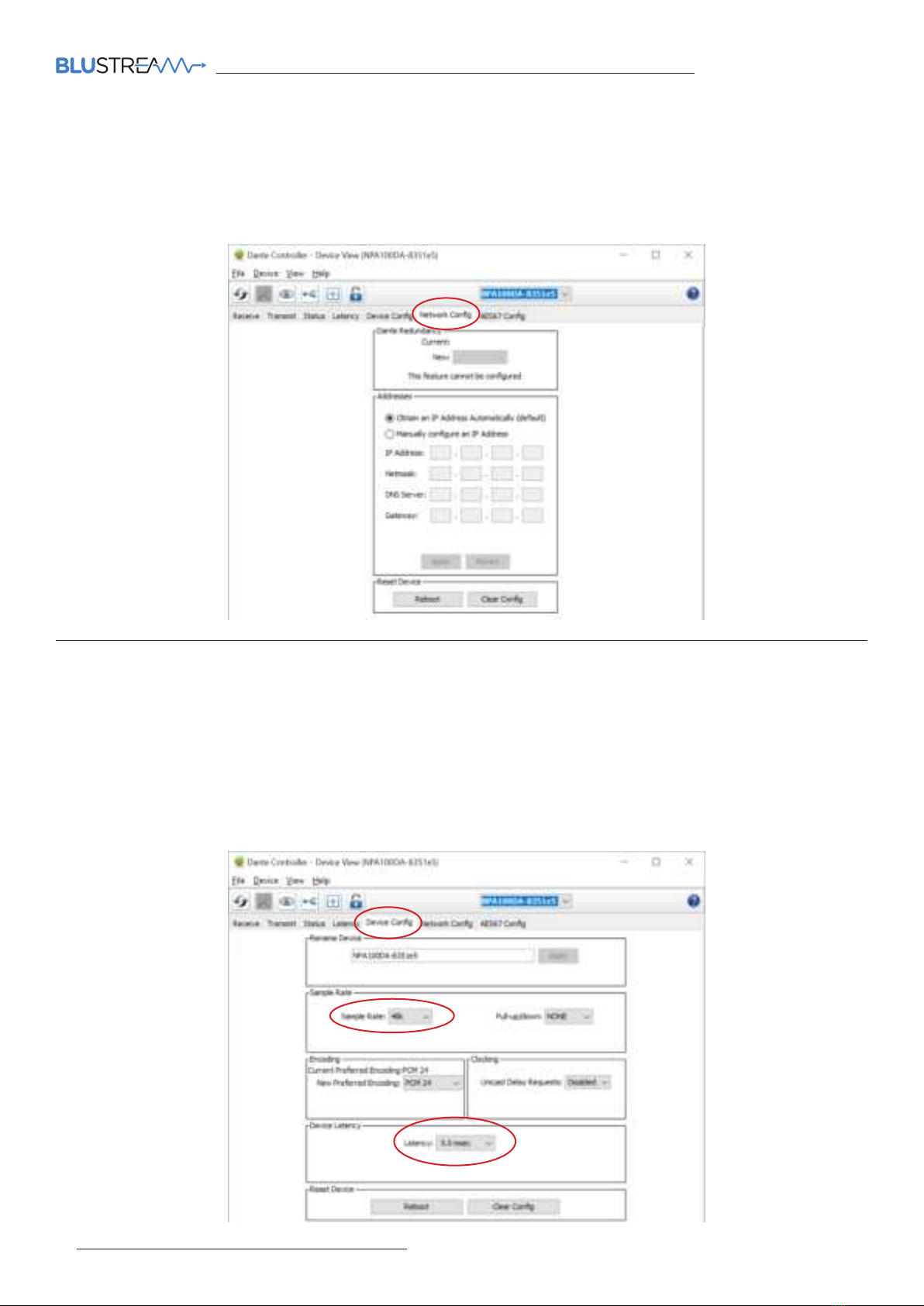

It is possible to change various Dante® related settings of the NPA100DA under the “Device Info” screen in the Dante®
Controller soware. To do so, select the “Device Config” menu.
Here it is possible to adjust the sample rate of the NPA100DA. Please note: that Dante® products can only transmit
or receive audio from other Dante® products that are set up with the same sample rate. A mismatch in sample rate
may stop audio from transmitting.
Under the “Device Config” screen the latency of the NPA100DA can be configured with 1, 2 or 5 milliseconds delay.
By default, the NPA100DA is shipped with the network settings set to obtain an IP Address automatically. This
means that if a DHCP server is present on the network, the NPA100DA will be provided with an IP Address. If
no DHCP server is present then the NPA100DA will receive a default IP Address in the 169.254.xxx.xxx range. To
change the IP Address of the NPA100DA, enter the “Network Config” menu in the “Device Info” screen of the Dante®
Controller soware:
Dante® Controller

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 09

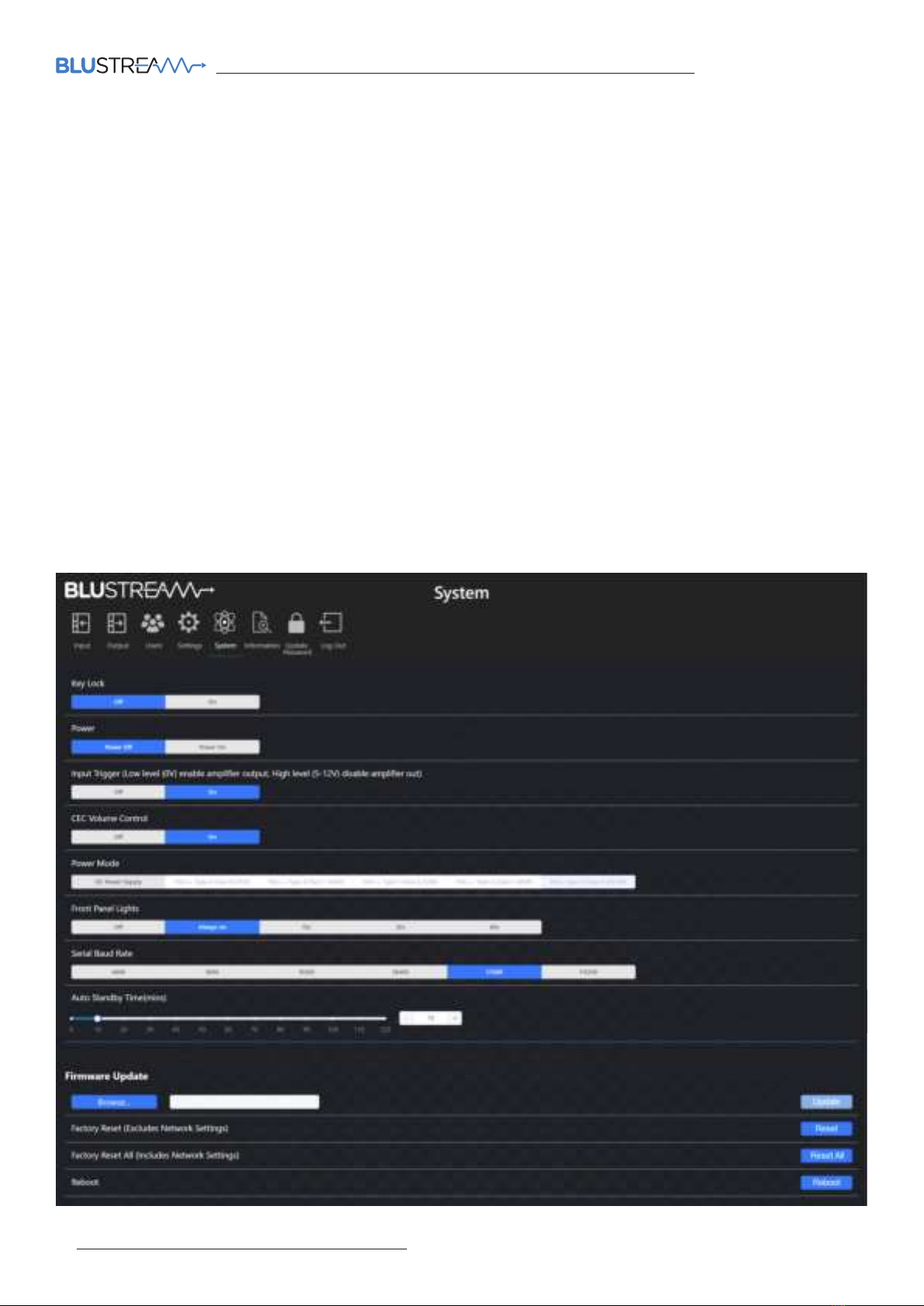

Web-GUI Control
The NPA100DA features an in-built web-GUI for control and configuration of the unit. By default the device is set to
DHCP, however if a DHCP server (eg: network router) is not installed the device IP address will revert to below details:
Default Username: blustream Default Password: 1234 Default IP Address: 192.168.0.200
The device can also be accessed via its mDNS name which is defaulted to: http://npa100da.local/
The web-GUI supports multiple users along with multiple user permissions as follows:

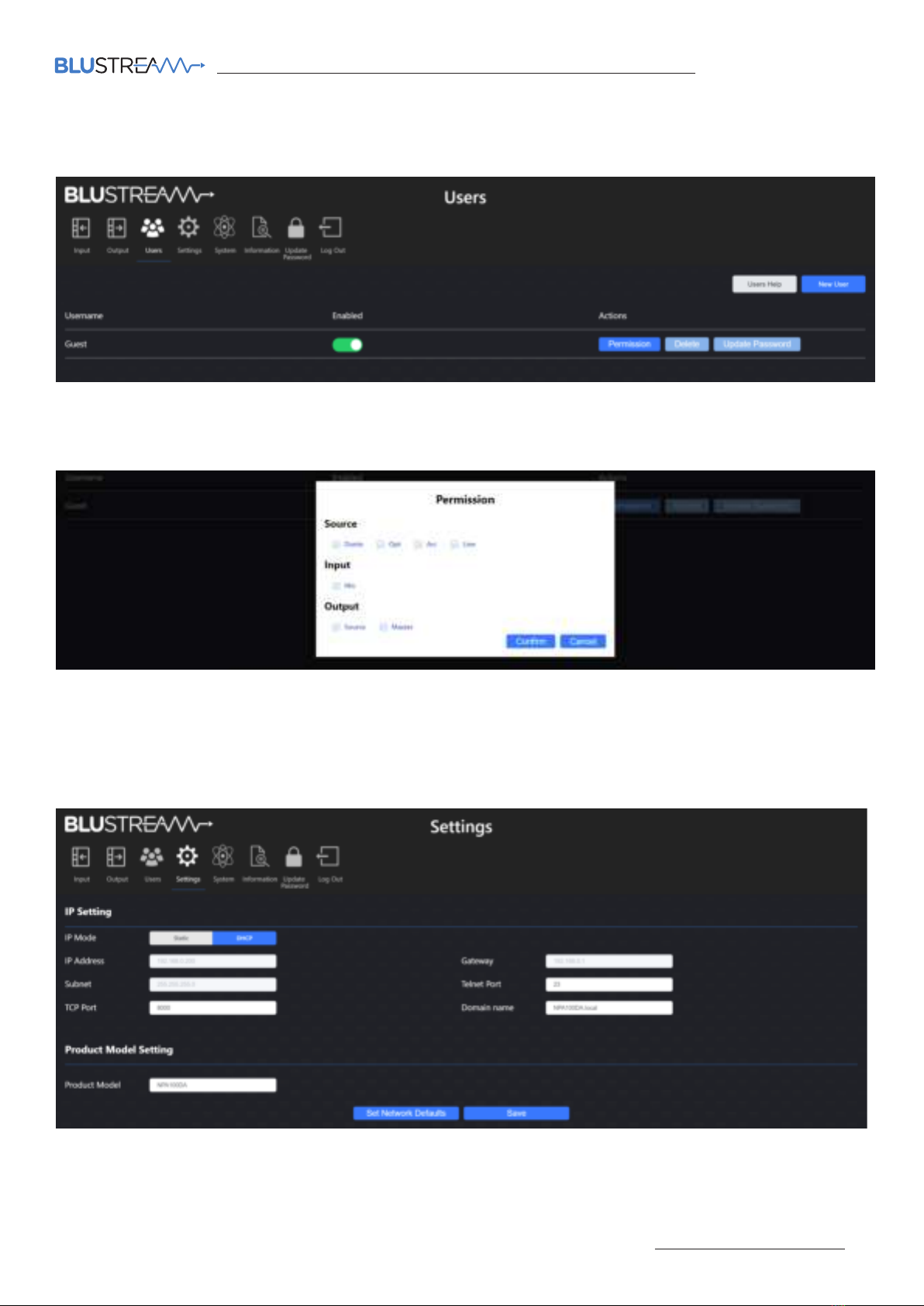

Guest Account - This account does not require a user to login. The Guest account can only change sources for each
zone. Guest access can be changed by the Admin, limiting inputs or outputs as necessary. The Guest account can be
disabled.
User Accounts - User accounts can be utilised, each with individual login details. User accounts can be assigned
permissions to specific areas and functions. A User must log in to make use of these functions.
Admin Account - This account allows full access to all functions of the unit as well as assigning users with permissions
as required.

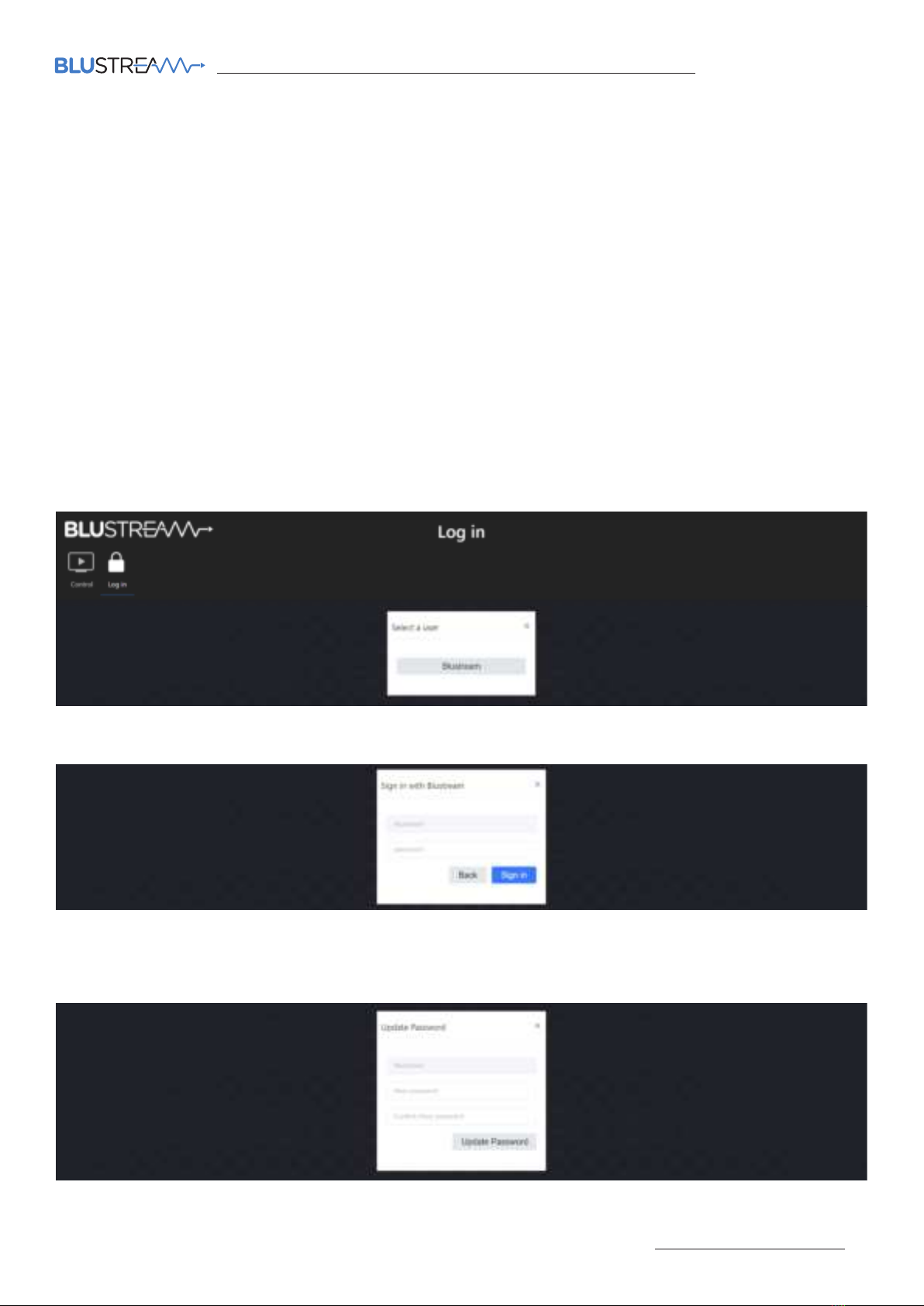

Login Page:
The Login Page allows a user or admin to login and access additional functionality within the web GUI.
Once a user is selected from the list it is required to enter the pasword for that user in order to sign in.
Please note: the first time the Admin logs into the web GUI, the default admin password will need to be changed. It is
important to record this password as there is no way to recover it in the event that it is forgotten.

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk10
Guest Control Page:
The Guest Control Page allows a guest to change source inputs by simply selecting the square that corresponds with
the input you wish to listen to. The guest can also adjust the master volume output of the unit by using the volume
slider or the volume up / down buttons as well as the mute toggle button.
The guest user also has the ability to adjust the microphone input volume, as well as select the MIC only button which
will mute all source audio with the exception of the microphone input.

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 11
Input Page:

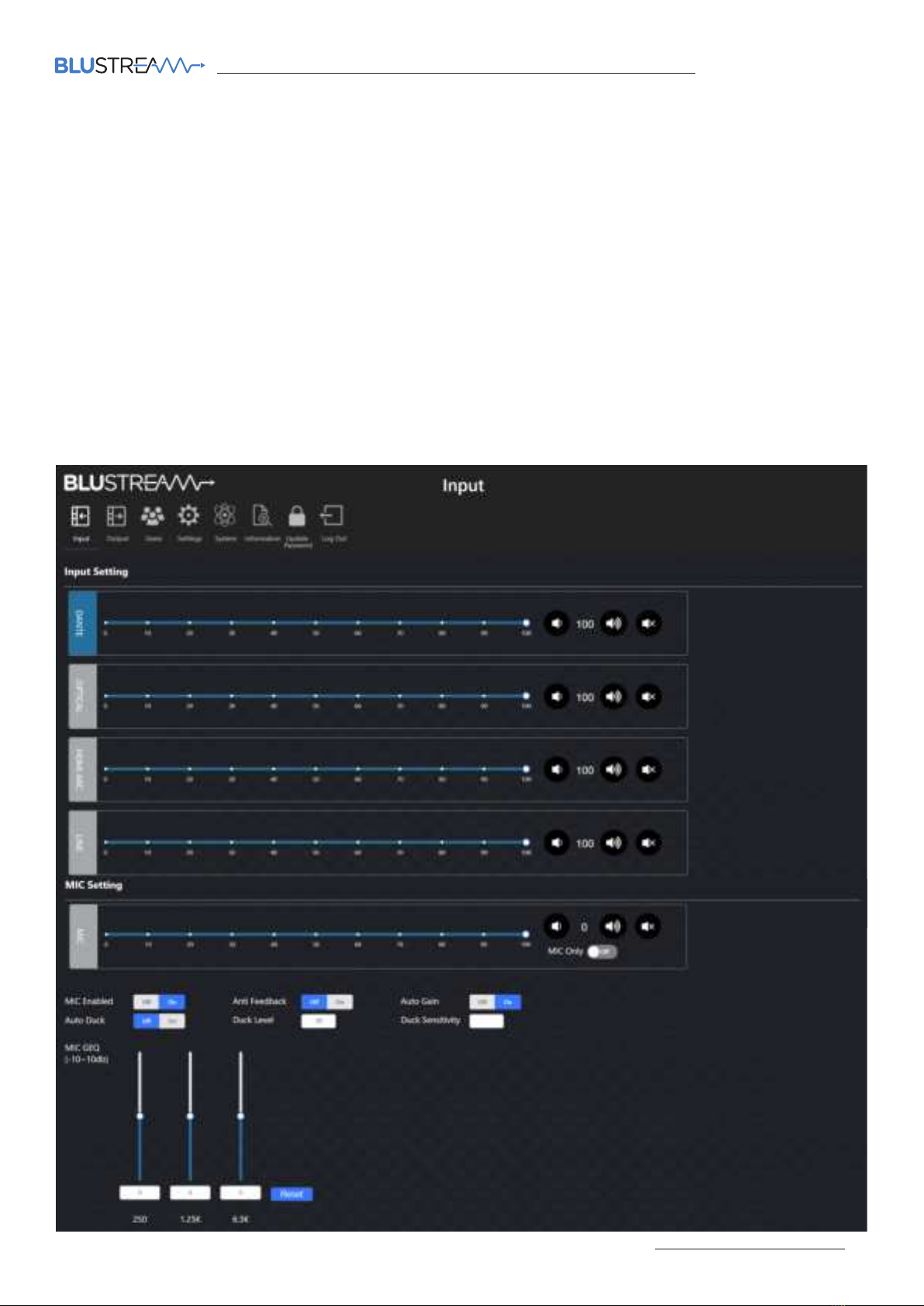

The Input Page allows for a user to adjust settings related to the inputs of the NPA100DA, including changing the
source input. To change inputs, simply select the input required. The user also has the ability to adjust the volume
for each input independently, as well as mute individual inputs. The following Microphone input settings can also be
adjusted at the bottom of the Input page:
• MIC Enabled - enable or disable the microphone input
• Anti Feedback - when enabled, the unit attempts to reject microphone feedback loops to avoid squealing
• Auto Gain - when enabled, the unit will automatically adjust the microphone input gain based on the audio signal
level being received
• Auto Duck - when enabled, the input audio signal will automatically reduce in level when microphone audio is
sensed
• Duck Level - when enabled, this is the level in % that the input audio signal will be reduced to
• Duck Sensitivity - sets the sensitivity level of the Auto Duck function between 0-100 (low to high)
• Mic GEQ - 3 band graphic EQ to adjust the audio performance of the microphone input
The user can also update their password via the Update Password button, or log out via the Log Out button.

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk12
Output Page:
The Output page allows users to change settings specific to the outputs of the NPA100DA.
The NPA100DA features 4 audio output options:
• Master output - this controls the audio output for all outputs (independent to the individual outputs below)
• Amp output - this controls the audio amplifier output volume
• Line output - this controls the analogue line level output volume
• Dante output - this controls the Dante audio output volume
It is also possible to invert either the le and/or right audio channel, mute each output, mix each output (stereo output,
le channel only, right channel only, le and right channels summed into mono) as well as adjust the audio delay from
0-50ms. The Amp output also has the ability to change the output impedance. It is important to configure this to either
4Ω or 8Ω to match the impedance of speakers being used or you could risk clipping the amplifier output.
A user can also adjust the 31 band GEQ (Graphic Equaliser) per each output channel (Amp, Line and Dante). There are 3
configuration options - Flat, Custom and Custom 2, where a user can save their own configuration into these slots.

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 13
User Page:
The Users page allows the admin to add, remove or disable users. Updating passwords of a user can be carried out
from here also.
You can adjust individual user permissions such as source input selection and output selection, to allow users access
to only specific inputs and outputs.
Settings Page:
The Settings page allows users to change settings specific to the network configuration of the NPA100DA such as the
devices IP address and port settings. You can also adjust the mDNS or Domain Name for the device, which can also be
used to access unit via, for example: http://NPA100DA.local/

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk14
System Page:
The System page allows users to change the system configuration of the NPA100DA such as:
• Key Lock On/O - enable or disable to front panel keys from functioning
• Power On/O - turn the unit on or o
• Input Trigger On/O - enable or disable input trigger function
• CEC Volume Control On/O - enable or disable CEC volume control to allow a television remote to control the
volume of NPA100DA
• Power Mode - if the NPA100DA is connected to DC power supply, then PoE power modes will not be selectable. If
the NPA100DA is connected via PoE, it will default to the minimum PoE power specification (PoE+ Type 2 Class 4). It
is recommended to set this to the PoE power specification of the PoE adapter powering the NPA100DA
• Front Panel Lights - enable or disable the front panel LED lights, or set them to time out aer a specific time (15, 30
or 60 seconds)
• Serial Baud Rate - specify the baud rate of the serial RS-232 port on the device
• Auto Standby Time (minutes) - specify the time in minutes where the unit will enter standby mode if no audio
signal is being received on the selected input (default is 10 minutes)
• Firmware Update - allows a user to update the firmware of the device
• Factory Reset (Excludes Network Settings) - factory defaults all settings except for network configuration
• Factory Reset (Includes Network Settings) - factory defaults all settings including network configuration
• Reboot - power cycles the unit without changing any configuration settings

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 15

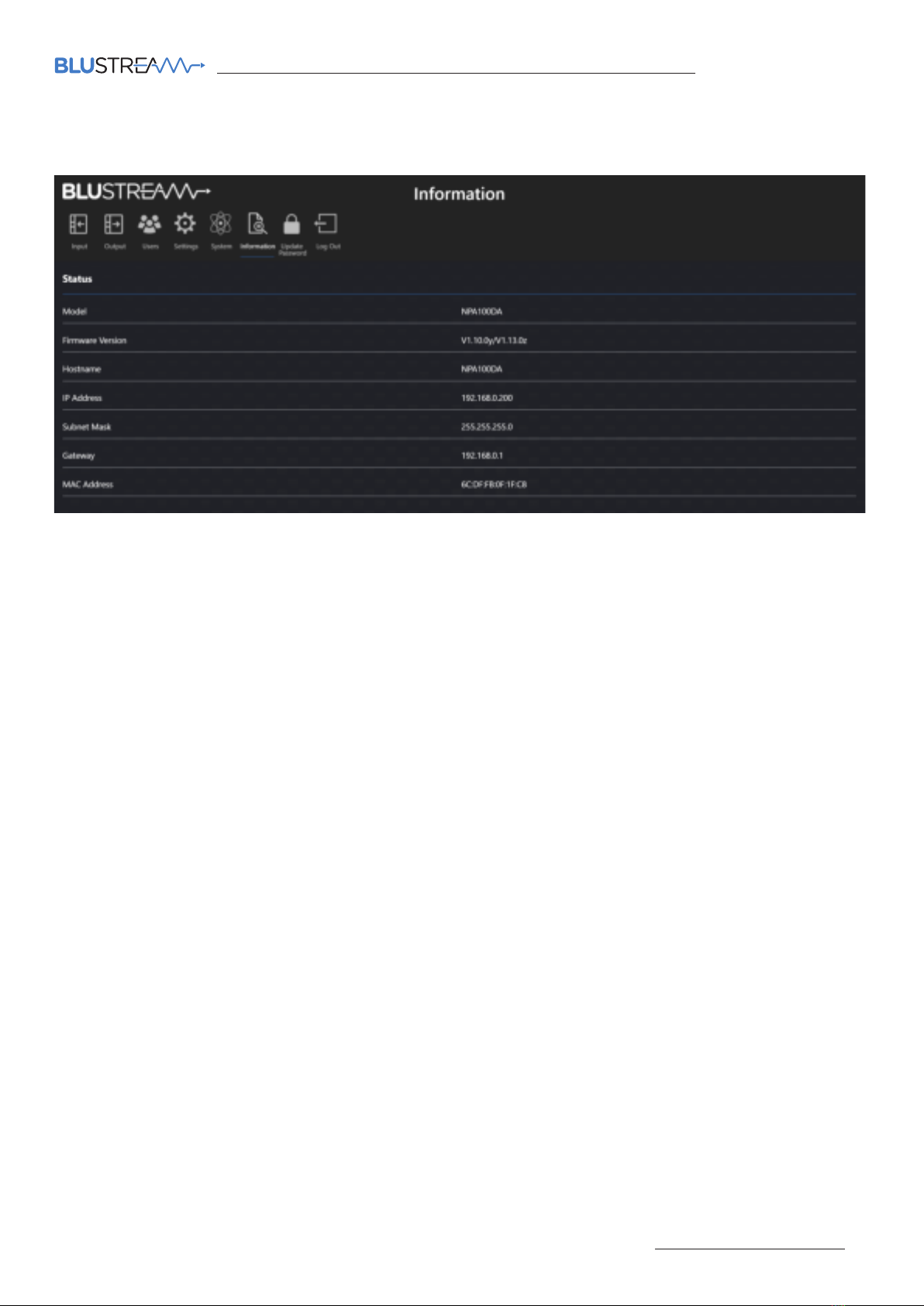

Information Page:
The Information page provides useful information such as firmware version and network settings.

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk16
Schematic
NPA100DA
Example Schematic
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MI C
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPU T
CONTR OL SPEAKEROUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
HI-70V
LO-Z HI-100V
+-
+
-
+
-
+
-
BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
HI-70V
LO-Z HI-100V
+-
+
-
+
-
+
-
BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
Speaker Options
Control Processor
Analogue Output
Mic InputAnalogue Input
Audio Return
For Display

HDMI ARC
Analogue Audio
RS-232
LAN
Speaker Cable
Sub Audio
Optical Audio
Power
IR
HI-70V
LO-Z HI-100V
+- BRIDGED
SPEAKEROUTPUT
100V COM70V
L- R- R+ L+
HI-70V
LO-Z HI-100V
+- BRIDGED
SPEAKEROUTPUT
100V COM70V
L- R- R+ L+
+-+-
HI-70V
LO-Z HI-100V
+- BRIDGED
SPEAKEROUTPUT
100V COM70V
L- R- R+ L+
+
-

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 17
Telnet & RS-232 Control Port
Baud Rate: 57600 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
The NPA100DA can be controlled via a 3-pin Phoenix to serial RS-232 cable or via Telnet.
The RS-232 communication settings and commands are as follows:
RS-232 COMMAND DESCRIPTION
?/HELP Print Help Information
STATUS Print System Status And Port Status
PON Power On, System Run On Normal State
POFF Power O, System Run On Power Save State
RESET "Reset System Settings To Default
(Should Type ""Yes"" To Confirm, ""No"" To Discard)"
RESET ALL "Reset System and Network Settings To Default
(Should Type ""Yes"" To Confirm, ""No"" To Discard)"
REBOOT Set System Reboot
AUTO STB xx Set System Auto Standby Time
xx=0:Auto Standby O
xx=[1...120]:Auto Standby Time,(mins)
AMPMODE xxx
Set Amp Power to xxx
xxx=2:PoE++ Type 4 Class 8 (71W)
xxx=3:PoE++ Type 4 Class 7 (62W)
xxx=4:PoE++ Type 3 Class 6 (51W)
xxx=5:PoE++ Type 3 Class 5 (40W)
xxx=6:PoE+ Type 2 Class 4 (25.5W)
KEY ON/OFF Set System KEY Control On Or O
LCD ON/OFF/15/30/60 Set LCD Always On Or Auto Turn O In
Power On State Or Turn On 15s/30s/60s
IR ON/OFF Set System IR Control On Or O
TRIG ON/OFF Set Trigger On Or O
CEC ON/OFF Set CEC Volume Control On Or O
RSB xx Set RS232 Baud Rate to xx bps
xx=[1...3]:1:4800,2:9600,3:19200
xx=[4...6]:4:38400,5:57600,6:115200
FAN xx ON/OFF Set Onboard Fan:xx Auto Turn On Or Always O
xx=[0...2]:0:All,1:Fan1,2:Fan2
VOL+ Increase System Volume
VOL- Decrease System Volume
VOLxx Set System Volume Value to xx
xx=[0...100]:Volume Value
MUTE ON/OFF Set Mute On Or O
IN xx VOL yy Set Input:xx Volume to yy
xx=[0...4]:0:All,1:DANTE,2:OPT,3:HDMI,4:LINE
yy=[0...100]:Volume Value
IN xx VOL+ Increase Input:xx Volume
xx=[0...4]:0:All,1:DANTE,2:OPT,3:HDMI,4:LINE
IN xx VOL- Decrease Input:xx Volume
xx=[0...4]:0:All,1:DANTE,2:OPT,3:HDMI,4:LINE
IN xx MUTE ON/OFF Set Input:xx Mute On Or O
xx=[0...4]:0:All,1:DANTE,2:OPT,3:HDMI,4:LINE
MIC EN ON/OFF Set Mic Enable On Or O
MIC ONLY ON/OFF Set Mic Only On Or O
MIC MUTE ON/OFF Set Mic Mute On Or O

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk18
RS-232 COMMAND DESCRIPTION
MIC AF ON/OFF Set Mic Anti Feedback On Or O
MIC AG ON/OFF Set Mic Auto Gain On Or O
MIC AD ON/OFF Set Mic Auto Duck On Or O
MIC EQ xx VAL yy Set Mic EQ:xx to Value:yy
xx=[0...3]:EQ Index,0:ALL,1:250,2:1.25K,3:6.3K
yy=[0...20]:Mic EQ Value
MIC EQ RESET Set Mic EQ Reset
MIC ADLV xx Set Mic Auto Duck Level to xx
MIC ADSV xx Set Mic Auto Duck Sensitivity to xx
xx=[0...100]:Duck Level
MIC VOL xx Set Mic Volume to xx
xx=[0...100]:Volume Value
MIC V O L+ Increase Mic Volume
MIC VOL- Decrease Mic Volume
OUT xx FR yy Set Output:xx From Input:yy
xx=[00-01] for all Output. (Not Support Single Output Switching)
yy=[0...4]:0:Default(LINE),1:DANTE,2:OPT,3:HDMI,4:LINE
OUT xx VOL yy Set Output:xx Volume to yy
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
yy=[0...100]:Volume Value
OUT xx VOL+ Increase Output:xx Volume
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
OUT xx VOL- Decrease Output:xx Volume
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
OUT xx MUTE ON/OFF Set Output:xx Mute On Or O
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
OUT xx DLYT yy Set Output:xx Delay Time to yy(ms)
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
yy=[1..50]:Delay Time, Millisecond
OUT xx REVB ON/OFF Set Output:xx Reverb On Or O
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
OUT xx PHASE yy INV ON/OFF Set Output:xx L-Inverter Or R-Inverter On Or O
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
yy=[0,1]0:LEFT,1:RIGHT
OUT xx MIX yy Set Output:xx Mix yy
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
yy=[1,2]:1:STEREO,2:LEFT-CH
yy=[3,4]:3:RIGHT-CH,4:LEFT-CH and RIGHT-CH
OUT xx EQ yy VAL zz Set Output:xx GEQ:yy to zz
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
yy=[1..31]:EQ Index
zz=[0..20]:EQ Value
OUT xx EQ PRESET yy Set Output:xx GEQ:yy to Preset:yy
xx=[0...3]:0:ALL,1:AMP,2:LINE,3:DANTE
yy=[1...3]:1:Flat,2:Custom1,3:Custom2
NET DHCP ON/OFF Set Auto IP(DHCP) On Or O
NET IP xxx.xxx.xxx.xxx Set IP Address
NET GW xxx.xxx.xxx.xxx Set Gateway Address
NET SM xxx.xxx.xxx.xxx Set Subnet Mask Address
NET TCPPORT xxxx Set TCP/IP Port
NET TN xxxx Set Telnet Port
NET RB Network Reboot and Apply New Config!!!
NET DNS xxxx Set DNS Domain Name To xxxx

NPA100DA USER MANUAL
Contact: [e-mail] |[e-mail] |[e-mail] 19
Specifications
AMP POWER SPECIFICATION
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
NPA100DA
• Audio Inputs: 1 x 5-Pin Phoenix connector (analogue)
1 x 3-Pin Phoenix connector (MIC)
1 x HDMI Type A, 19-pin, female, locking (ARC)
1 x Optical (S/PDIF)
• Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker)
1 x 3-Pin Phoenix connector (70 / 100V speaker)
1 x 5-Pin Phoenix connector (analogue audio)
1 x 3-Pin Phoenix connector (LFE subwoofer)
• Ethernet Port: 1 x LAN RJ45 connector (Dante)
1 x LAN RJ45 connector (Network)
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• IR Input Ports: 1 x 3-Pin Phoenix connector
• Trigger Input: 1 x 2-Pin Phoenix connector
• Rack Mountable: 19” Rack mounting and wall / surface mounting kit included
• Casing Dimensions (W x H x D): 250mm x 150mm x 45mm
• Dimensions Including Connections (W x H x D): 252mm x 150mm x 45mm
• Shipping Weight: 2.8kg
• Operating Temperature: 32°F to 104°F (0°C to +40°C)
• Storage Temperature: -4°F to 140°F (-20°C to +60°C)
• Power Supply: PoE++ Type 4, or 36V/5.5A DC 4-pin DIN
Package Contents
NPA100DA
• 1 x NPA100DA
• 1 x 36V/5.5A power supply
• 1 x Remote control
• 1 x IR Receiver
• 1 x Rack mounting kit
• 1 x Wall / surface mounting kit
• 4 x Rubber feet
• 1 x Quick Reference Guide
POWER SOURCE AMP OUTPUT
36V/5.5A DC 100W
PoE++ Type 4 Class 8 55W
PoE++ Type 4 Class 7 45W
PoE++ Type 3 Class 6 35W
PoE++ Type 3 Class 5 25W
PoE+ Type 2 Class 4 10W
Maintenance
Clean this unit with a so, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.

NPA100DA USER MANUAL
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk20
Acknowledgements
Dante® is a registered trademark of Audinate Pty Ltd.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.
CANADA, AVIS D’INDUSTRY CANADA (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférence et (2)
cet appareil doit accepter toute interférence, notamment les interférences qui peuvent aecter son fonctionnement.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other household wastes. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your used device, please
use the return and collection systems or contact the retailer where the product was purchased. They
can take this product for environmentally safe recycling.
Certifications
