RX70CS QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk

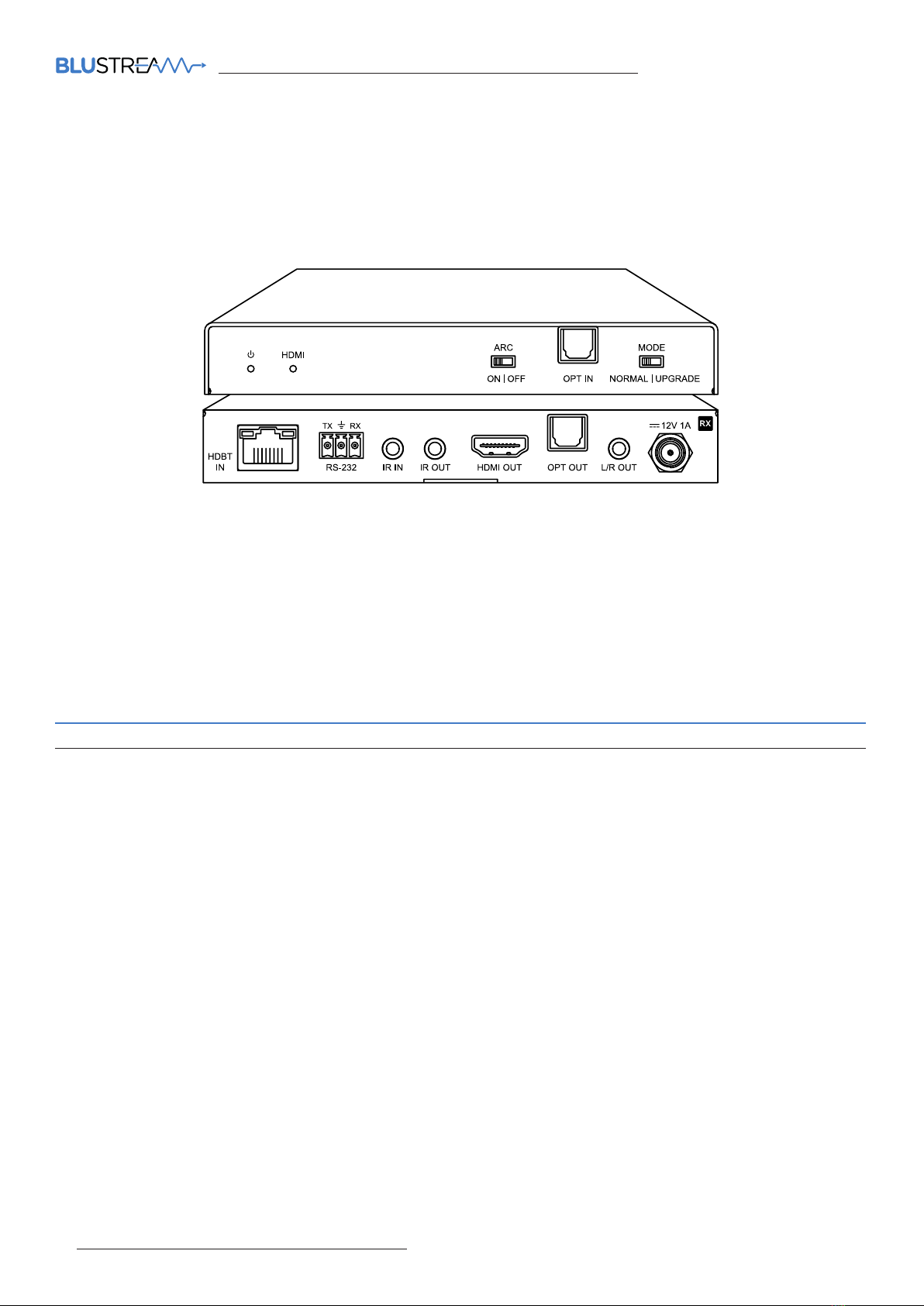

RX70CS
Quick Reference Guide
01
Our RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver
oers market leading features and outstanding value utilising CSC technology.
The product extends HDMI,Bi-directional IR & RS-232 and and is powered by the
matrix up to lengths of 70m (4K 40m). The Receiver features ARC support when
used with compatible Blustream hardware and simultaneous analogue stereo and
Optical Toslink audio breakout.
Introduction
FEATURES:
• Advanced HDBaseT™ technology oering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
• Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with
compatible Blustream transmitter / matrix)
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through to compatible HDBaseT™ device
• Supports PoC (Power over Cable) from Blustream matrix or transmitter products
• HDCP 2.2 support

RX70CS QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail] 02
Panel Descriptions
Front Rear

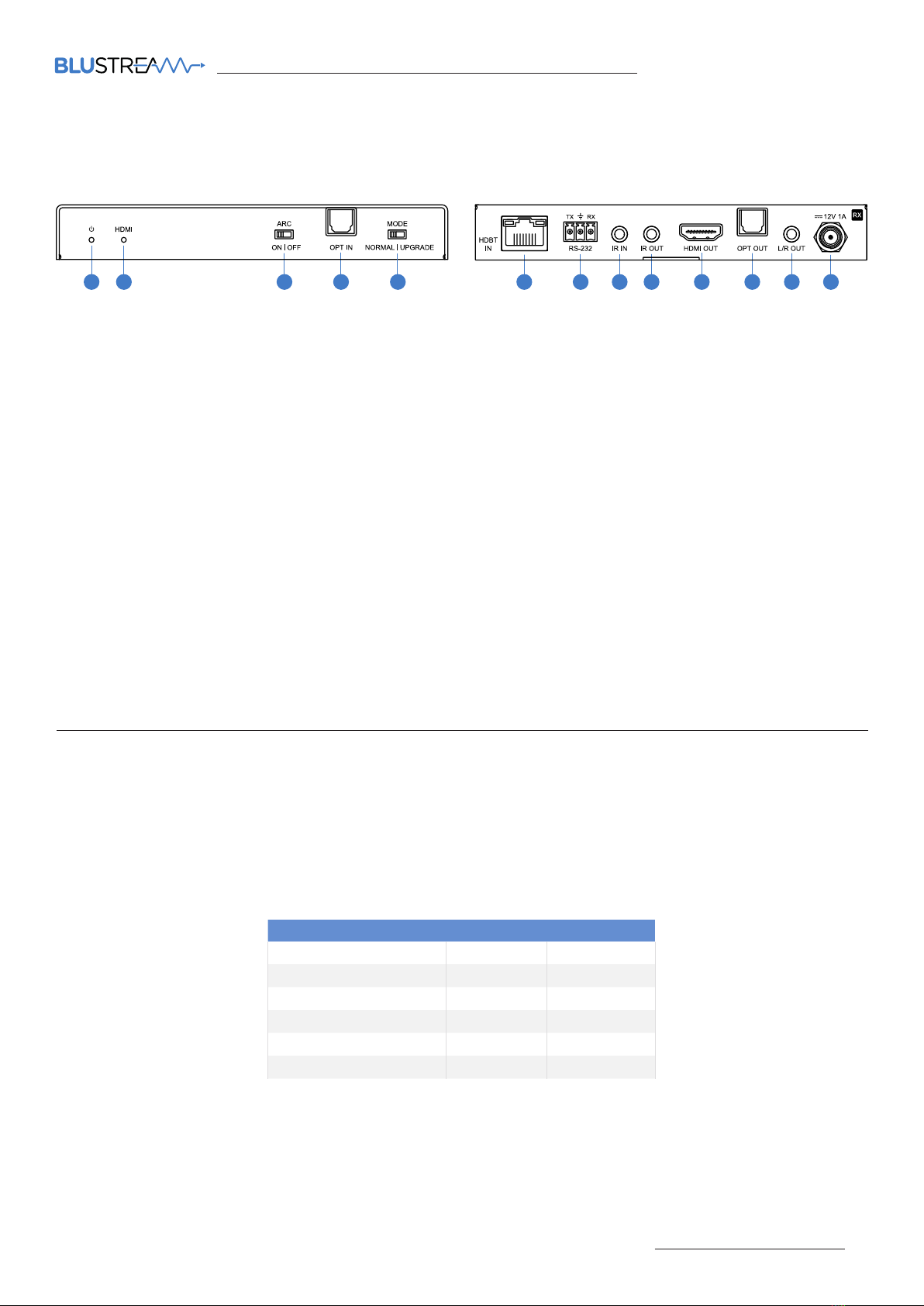

1Power status indicator
2HDMI signal link indicator
3ARC Mode selection switch. Alters PoC mode when used with compatible ARC enabled Matrix products - see below
4Optical audio input - Toslink audio input. Connects to the Optical output of the local display device for Audio Return
Channel feature
5RS-232 Port Mode selection switch. Firmware upgrade mode or normal operating mode.
6HDBaseT™ input
7RS-232 3-pin Phoenix connector
8IR IN (to Blustream 5V 3.5mm IR receiver)
9IR OUT (to Blustream 5V 3.5mm IR emitter)
qHDMI Output - connect to HDMI on display
wOptical Toslink audio output. Connects to local AV amplifier and allows local HDMI audio breakout
eAnalogue audio Le / Right output - 3.5mm stereo jack de-embedded audio from HDMI input.
Supports stereo 2ch PCM audio only
e12V/1A DC power input screw type connector
421 3 6 7 8 9 10 11 12 13
Advanced Functions
The RX70CS has been designed to partner with all Blustream HDBaseT™ matrix products and will receive audio and
video from these devices, as well as bi-directional IR and RS-232 control. Advanced functions such as ARC and CSC will
only function with a compatible Matrix or Transmitter product.
The below chart outlines the matrix products that support these advanced functions:
MATRIX / TRANSMITTER CSC ARC
HMXL88ARC Yes Yes
HMXL66ARC Yes Yes
HMXL42ARC Yes Yes
AMF42AU Yes Yes
C88CS Yes No
C66CS Yes No
5

RX70CS QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
03
Terminating the Interconnecting HDBaseT™ CAT Cable
It is important that the interconnecting CAT cable between the Blustream HDBaseT™ products is terminated using the
correct RJ45 pin configuration. The link CAT cable MUST be a ‘straight’ (pin-to-pin) CAT cable and it is advised that this
is wired to the T568B wiring standard as this format is less prone to EMI (Electro-Magnetic Interference).
When installing CAT cables it is advised that you use the best possible CAT cable quality possible. HDMI distribution
products will only work if used with CAT5e standard cable or above. Blustream recommends using a CAT6 (or better)
cable for your installations, especially when running over longer distances, in areas of high EMI, or for 4K signal
distribution.
Understanding the HDBaseT™ Signal Status Lights
The Blustream HDBaseT extender solutions include status LED indicators on both the Matrix/Transmitter and Receiver
products to show all connections are active and to help diagnose possible problems.
Understanding the Status Lights
Receiver:
• The HDMI signal link light will be o when there is no connection with a display/sink
• The HDMI link light will be on when there is an active connection with a display
• The HDBaseT link light will be o when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT
input
• The HDBaseT link light will blink if there is an unstable connection between the Transmitter/Matrix and Receiver
• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter/
Matrix and an active connection is achieved with the Receiver
• The Power link light will be o when no power is connected to the Receiver, or to the connected Transmitter unit
• The Power link light will be on when power is connected directly to the Receiver or is being received from the
Transmitter unit
Transmitter:
• The HDMI signal link light will be o when there is no connection with a source device
• The HDMI link light will be on when there is an active connection with a source device
• The HDBaseT link light will be o when there is no CAT cable/active HDBaseT connection on the RJ45 HDBaseT
output
• The HDBaseT link light will blink if there is an unstable connection between the Transmitter and Receiver/Matrix
• The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Transmitter
and an active connection is achieved with the Receiver/Matrix.
• The Power link light will be o when no power is connected to the Transmitter, or to the connected Receiver unit
• The Power link light will be on when power is connected directly to the Transmitter or is being received from the
Receiver unit

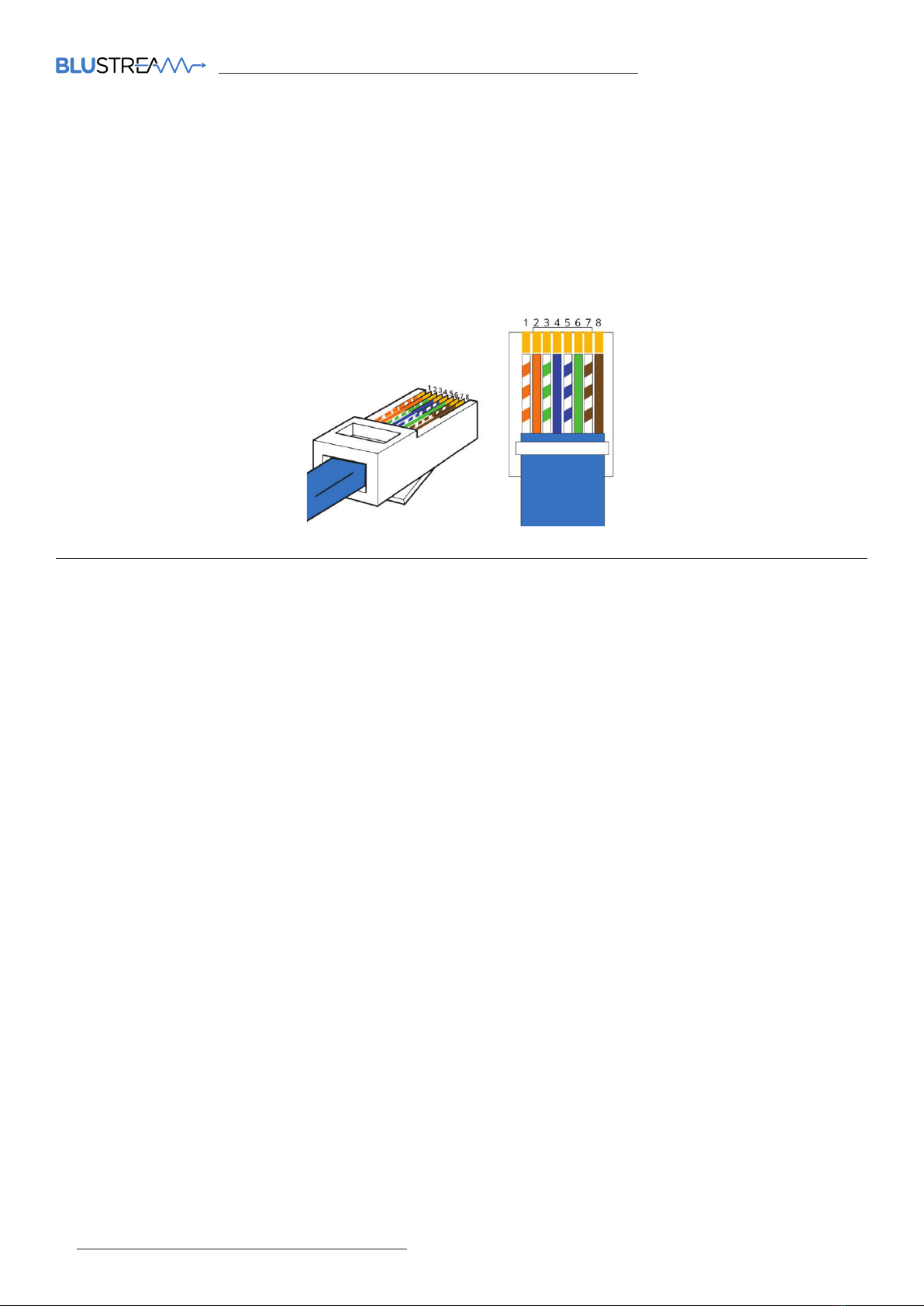

RJ45 Wiring - T568B

RX70CS QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail]
RevA1_RX70CS_QRG
Package ContentsSpecifications
RX70CS
• 1 x RX70CS
• 1 x Mounting Bracket Set
• 1 x Quick Reference Guide
Maintenance
Clean this unit with a so, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
RX70CS
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, female
• RS232 Input Port: 1 x 3-pin Phoenix connector
• IR Input Port: 1 x 3.5mm stereo jack
• IR Output Port: 1 x 3.5mm mono jack
• Mounting Kit included
• Casing Dimensions (W x H x D): 140 x 84 x 18mm
• Dimensions Including Connections (W x H x D): 140 x 98 x
18mm
• Power Supply: 12V/1A DC, screw type connector (not
included)
• Shipping Weight: 0.5Kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
