BLUE EMBER GRILLS FGQ65079 User manual

Do not store or use gasoline or other flammable
liquids or vapors in the vicinity of this or any
other appliance.
2. An lP cylinder not connected for use shall not be
stored in the vicinity of this or any other
appliance.
IF YOU SMELL GAS:
1. Shut off gas supply to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance
and immediately call your gas supplier or your
fire department.
Distributed by
Home Depol U.S.A., Inc.
2455 Paces Ferry Rd., N.W.
Allanla, GA 30339
1·800·396-3838
© 2004 Homer nc, Inc. All Rlghls Reserved.
BLUE EMBER GRILLS ~
GAS GRILLS
Outdoor Gas
Barbeq ue/Gri II
Assembly manual .
. andUse,and,~Care· ' ••
··;{>";~~fk~b];;~lj;~j:;·:··:,·,: :
MANUFACTURED FOR:
Fiesta Gas Grills, LLC.
One Fiesta Drive
Dickson, TN USA 37055
Hazardous Fire or Explosion may result
if these instructions are ignored.
It is your responsibility to see that your new
barbeque is assembled, installed, maintained
and cared for properly. Failing to carefully
follow the instructions in this manual could
result in serious bodily injury and/or property
damage, Any modification to the barbeque
is dangerous and is not permitted.

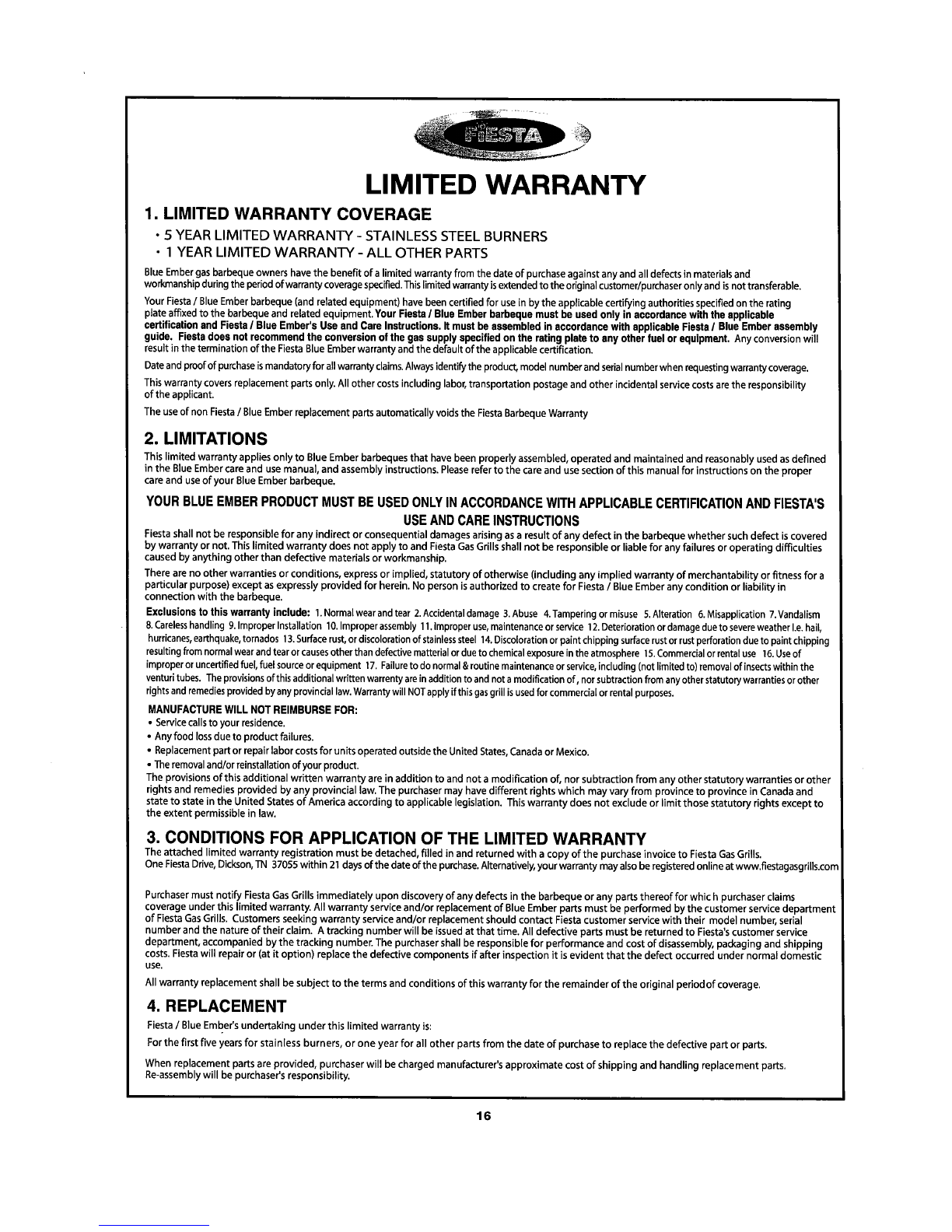

WARRANTY INFORMATION
A WARNING!
Full Model No.
from outer carton: _
Date Purchased: _
Serial Number
(from rating plale): _
SAVE THIS MANUAL FOR FUTURE REFERENCE
Installer must leave instructions with the consumer for future reference.
KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE
THE WARRANTY. ATTACH YOUR RECEIPT TO THE INSIDE
COVER OF THIS MANUAL FOR EASY REFERENCE.

SAFETY SYMBOLS
The symbols and boxes shown below explain what each
heading means. Read and follow all of the messages found
throughout the manual.

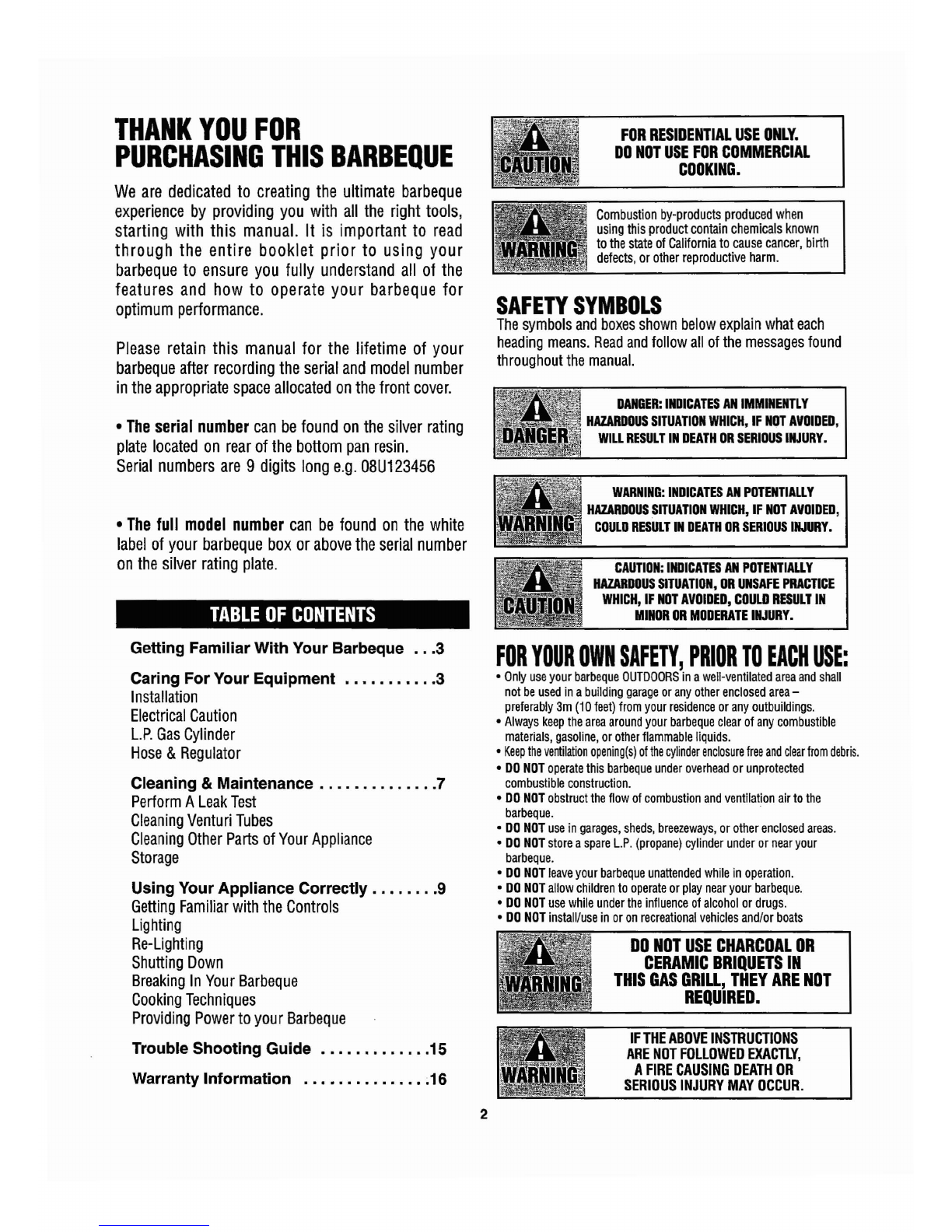

THANK YOU FOR
PURCHASING THIS BARBEQUE
We are dedicated to creating the ultimate barbeque
experience by providing you with all the right tools,
starting with this manual. It is important to read
through the entire booklet prior to using your
barbeque to ensure you fully understand all of the
features and how to operate your barbeque for
optimum performance.
Please retain this manual for the lifetime of your
barbeque after recording the serial and model number
in the appropriate space allocated on the front cover.
• The serial number can be found on the silver rating
plate located on rear of the bottom pan resin.
Serial numbers are 9 digits long e.g. 08U123456
• The full model number can be found on the white
label of your barbeque box or above the serial number
on the silver rating plate.
TABLE OF CONTENTS
FOR RESIDENTIAL USE ONLY.
DO NOT USE FOR COMMERCIAL
COOKING.
Combustion by-products produced when
using this product contain chemicals known
to the state of California to cause cancer, birth
defects, or other reproductive harm.
DANGER: INDICATES AN IMMINENTLY
HAZARDOUS SITUATION WHICH, IF NOT AVOIDED,
WILL RESULT IN DEATH OR SERIOUS INJURY.
WARNING: INDICATES AN POTENTIALLY
HAZARDOUS SITUATION WHICH, IF NOT AVOIDED,
COULD RESULT IN DEATH OR SERIOUS INJURY.
CAUTION: INDICATES AN POTENTIALLY
HAZARDOUS SITUATION, OR UNSAFE PRACTICE
WHICH, IF NOT AVOIDED, COULD RESULT IN
MINOR OR MODERATE INJURY.
Getting FamiliarWith Your Barbeque •.• 3
Caring
For Your Equipment •..•...•..• 3
Installation
Electrical Caution
L.P. Gas Cylinder

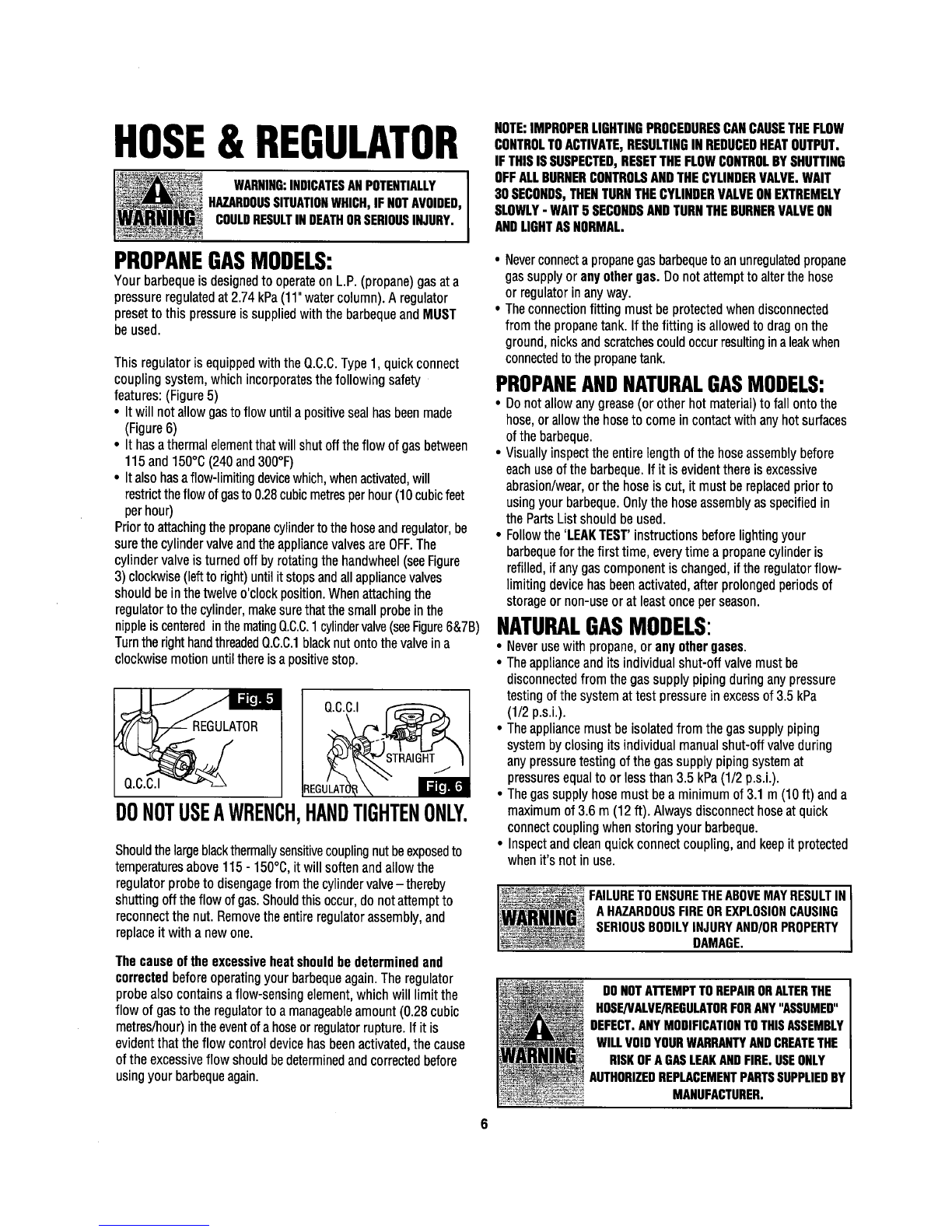

Hose & Regulator
Cleaning &Maintenance 7
Perform A Leak Test
Cleaning Venturi Tubes
Cleaning Other Parts of Your Appliance
Storage
Using Your Appliance Correctly ..•..... 9
Getting Familiar with the Controls

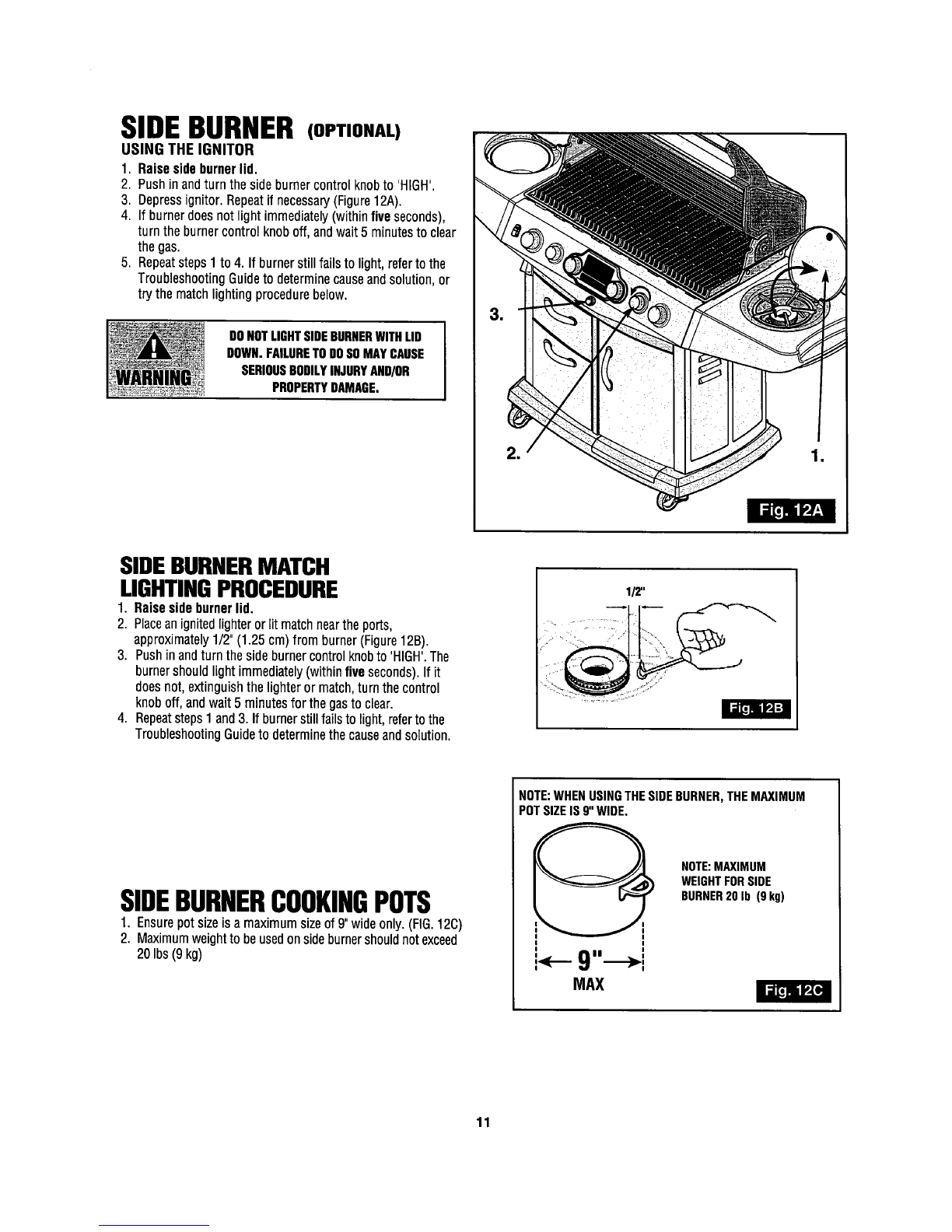

Lighting

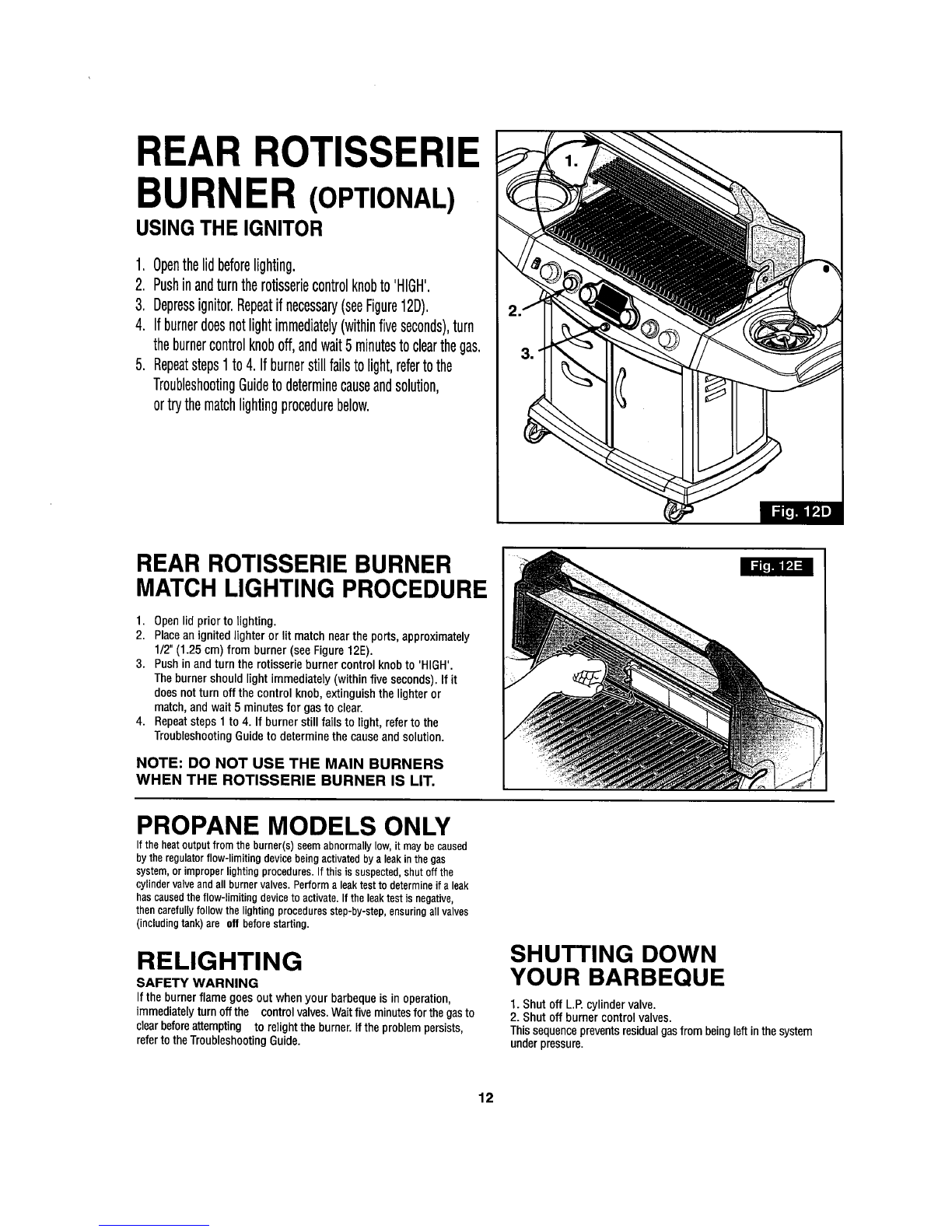

Re-Lighting
Shutting Down

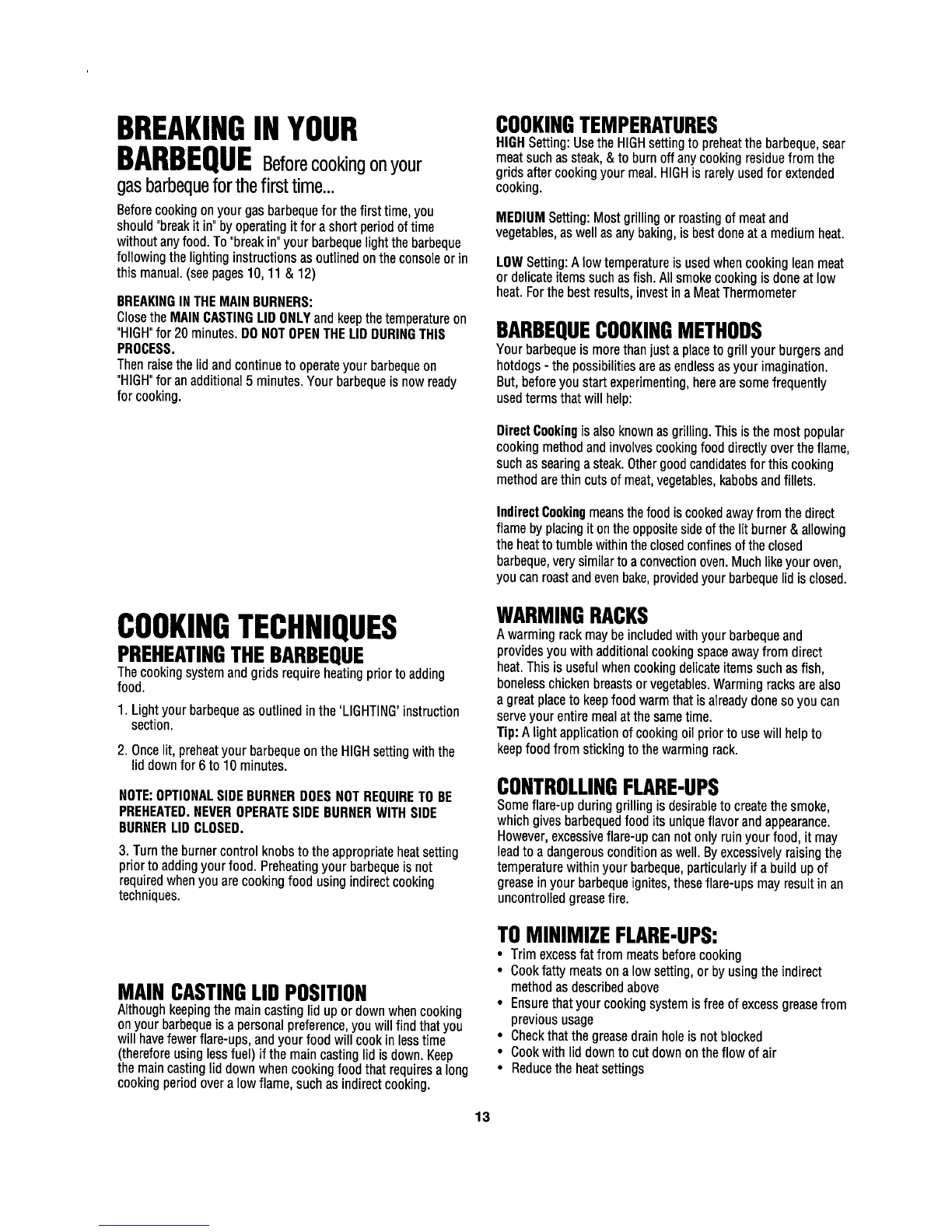

Breaking In Your Barbeque
Cooking Techniques
Providing Power to your Barbeque

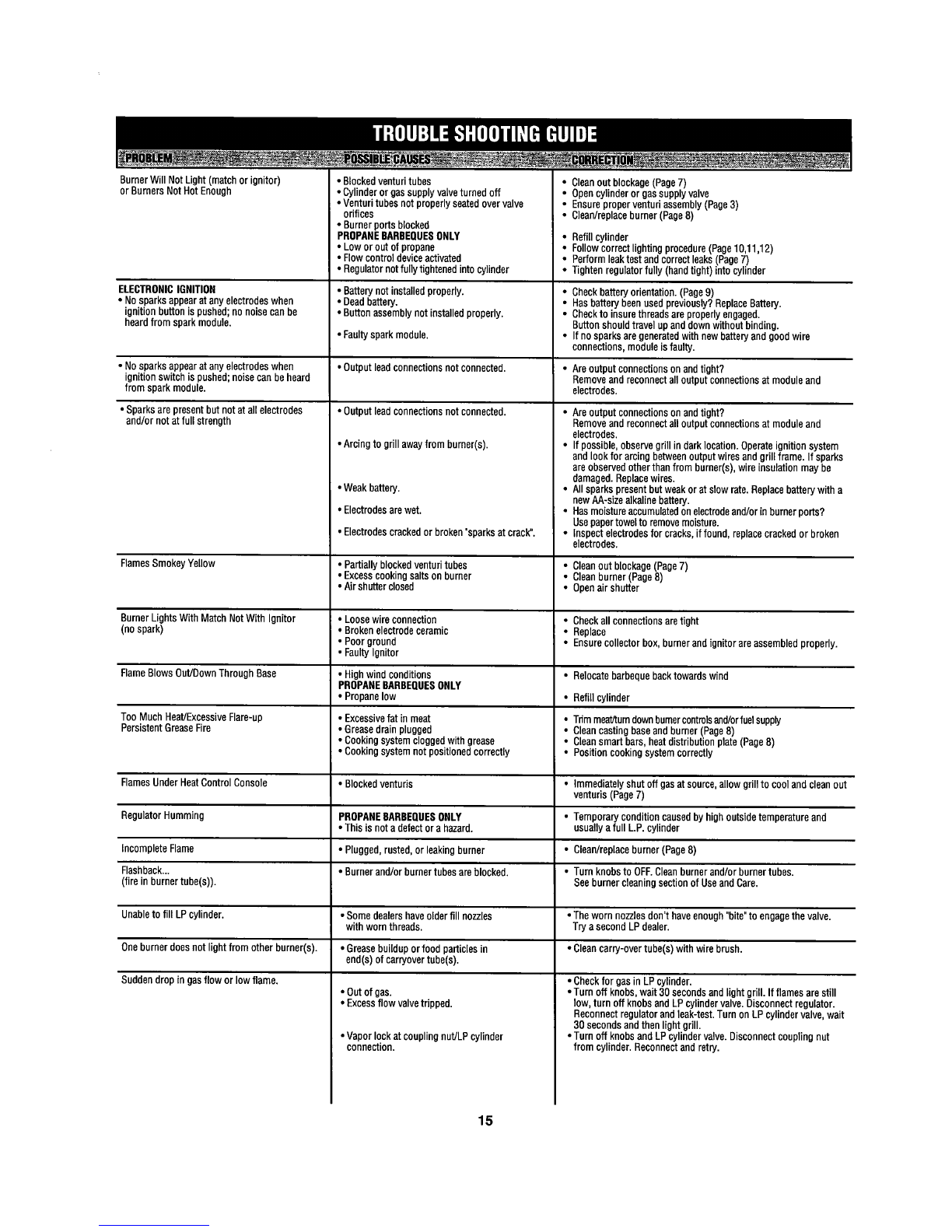

Trouble Shooting Guide •••..••...... 15
Warranty Information
..••.........•. 16
2
FOR YOUR OWN SAFETY, PRIOR TO EACH USE:
• Only use your barbeque OUTDOORS in a well-ventilated area and shall
not be used in a building garage or any other enclosed area -
preferably 3m (10 feet) from your residence or any outbuildings.
• Always keep the area around your barbeque clear of any combustible
materials, gasoline, or other flammable liqUids.
• Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
• DO NOT operate this barbeque under overhead or unprotected
combustible construction.
• DO NOT obstruct the flow of combustion and ventilation air to the
barbeque.
• DO NOT use in garages, sheds, breezeways, or other enclosed areas.
• DO NOT store a spare L.P. (propane) cylinder under or near your
barbeque.
• DO NOT leave your barbeque unattended While in operation.
• DO NOT allow children to operate or play near your barbeque.
• DO NOT use while under the influence of alcohol or drugs.
• DO NOT install/use in or on recreational vehicles and/or boats
DO NOT USE CHARCOAL OR
CERAMIC BRIQUETS IN
THIS GAS GRILL, THEY ARE NOT
REQUIRED.
IF THE ABOVE INSTRUCTIONS
ARE NOT FOLLOWED EXACTLY,
A FIRE CAUSING DEATH OR
SERIOUS INJURY MAY OCCUR.

DO NOT USE YOUR BARBEQUE UNTIL YOU HAVE
READ AND UNDERSTOOD ALL THE
INFORMATION IN THIS MANUAL.
IT IS EXTREMELY IMPORTANT TO BE SURE THAT:

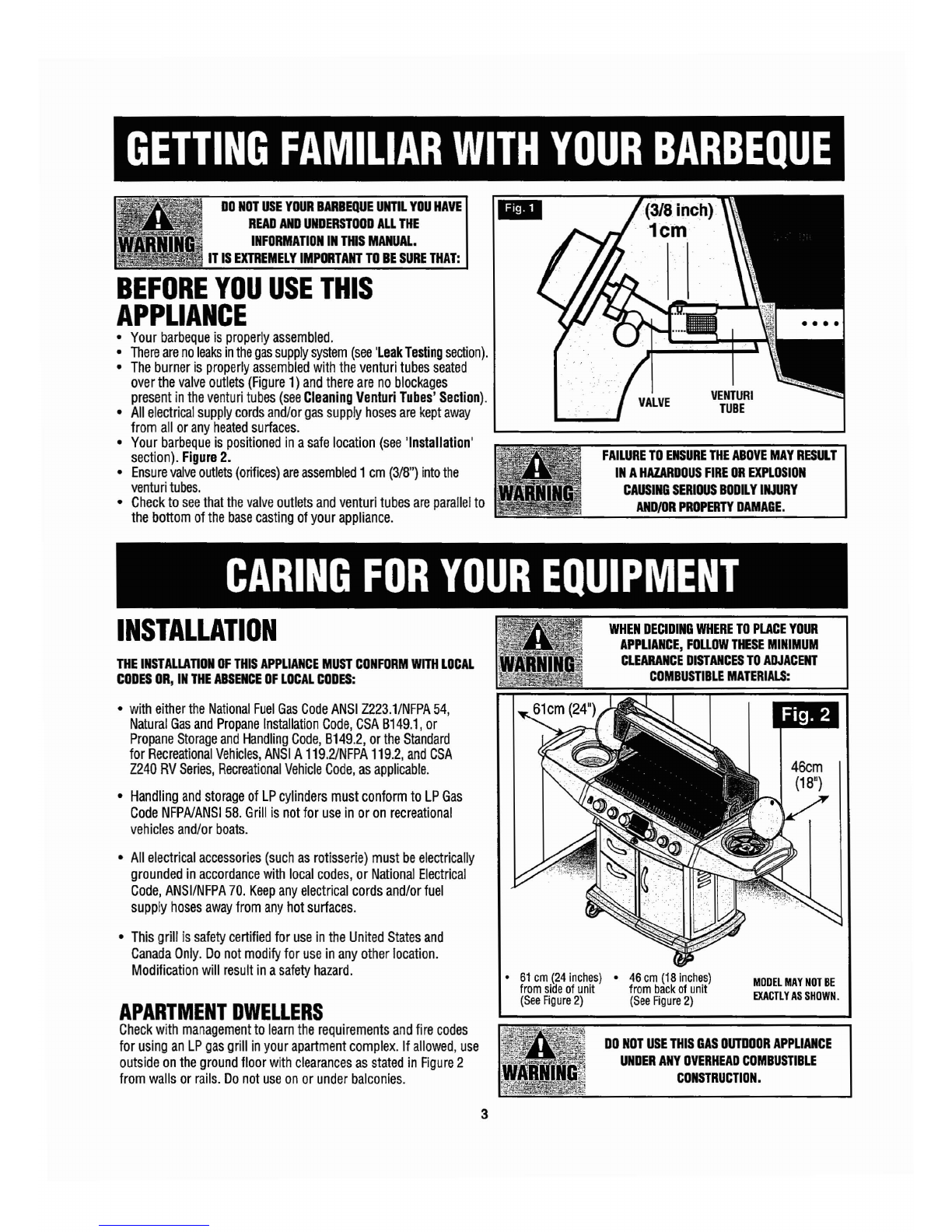

BEFORE YOU USE THIS
APPLIANCE
• Your barbeque is properly assembled.
• There are no leaks in the gas supply system (see 'Leak Testing section).
• The burner is properly assembled with the venturi tubes seated
over the valve outlets (Figure 1) and there are no blockages
present in the venturi tubes (see Cleaning Venturi Tubes' Seclion).
• All electrical supply cords and/or gas supply hoses are kept away
from all or any heated surfaces.
• Your barbeque is positioned in a safe location (see 'Inslallalion'
section). Figure 2.
• Ensure valve outlets (orifices) are assembled 1 cm (3/8") into the
venturi tubes.
• Check to see that the valve outlets and venturi tubes are parallel to
the bottom of the base casting of your appliance.
VENTURI
TUBE
FAILURE TO ENSURE THE ABOVE MAY RESULT
IN A HAZARDOUS FIRE OR EXPLOSION
CAUSING SERIOUS BODILY INJURY
AND/OR PROPERTY DAMAGE.
CARING FOR YOUR EQUIPMENT
• 61 cm (24 inches) • 46 cm (18 inches)
from side of unit from back of unit
(See Figure 2) (See Figure 2)
INSTALLATION
THE INSTALLATION OF THIS APPLIANCE MUST CONFORM WITH LOCAL
CODES OR, IN THE ABSENCE OF LOCAL CODES:
• with either the National Fuel Gas Code ANSI Z223.1/NFPA 54,
Natural Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2, or the Standard
for Recreational Vehicles, ANSI A 119.2/NFPA 119.2, and CSA
Z240 RV Series, Recreational Vehicle Code, as applicable.
• Handling and storage of LP cylinders must conform to LP Gas
Code NFPAlANSI 58. Grill is not for use in or on recreational
vehicles and/or boats.
• All electrical accessories (such as rotisserie) must be electrically
grounded in accordance with local codes, or National Electrical
Code, ANSI/NFPA 70. Keep any electrical cords and/or fuel
supply hoses away from any hot surfaces.
• This grill is safety certified for use in the United States and
Canada Only. Do not modify for use in any other location.
Modification will result in a safety hazard.
APARTMENT DWELLERS
Check with management to learn the requirements and fire codes
for using an LP gas grill in your apartment complex. If allowed, use
outside on the ground floor with clearances as stated in Figure 2
from walls or rails. Do not use on or under balconies.
3
WHEN DECIDING WHERE TO PLACE YOUR
APPLIANCE, FOLLOW TtESE MINIMUM
CLEARANCE DISTANCES TO ADJACENT
COMBUSTIBLE MATERIALS:
MODEL MAY NOT BE
EXACTLY AS SHOWN.
DO NOT USE TillS GAS OUTDOOR APPLIANCE
UNDER ANY OVERHEAD COMBUSTIBLE
CONSTRUCTION.

CARING FOR YOUR EQUIPMENT
ELECTRICAL CAUTION
•If any accessory installed on this barbeque requires an external
electrical power source, it must be electrically grounded in
accordance with local laws or in the absence of local laws, with
the Canadian Electrical Code CSA C22.1 or in the U.S., with the
National Electrical Code ANSI-NFPA 70.
• The three-prong plug provides protection against shock hazard
and should be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove the grounding
prong from this plug.
• To ensure continued protection against risk of electric shock,
connect to properly earthed outlets only.
• Ensure all electrical supply cords and fuel supply hoses are
kept well away from any heated surfaces.
PROVIDING POWER TO YOUR BARBEQUE
To provide power to the barbecue, plug grounded electrical cord into
rear electrical box as shown. Page 14 (Fig.15)
Plug electrical cord into properly grounded
GFI (Ground Fault Interrupt) receptacle. If
use of an extension cord is required, be
sure that it is a minimum 16 AWG, 3 wire
-.......''-IN ..... well insulated cord, marked for OUTDOOR
, USE ONLY and properly grounded. (Fig.14)
CAUTION: To ensure continued protection against risk of
electric shock, connect to properly earthed outlets only.
DO NOT CONNECT TO A PROPANE GAS CYLINDER EXCEEDING THIS
CAPACITY, OR USE A CYLINDER WITH ANY OTHER TYPE OF VALVE
L.P.GAS CYLINDER
IF THE ABOVE INSTRUCTIONS
ARE NOT FOLLOWED EXACTLY,
A FIRE CAUSING DEATH OR
SERIOUS INJURY MAY OCCUR.
SAFETY:
o Always turn off the cylinder valve tightly when your barbeque is not in use.
o Handle tank valves with care.
o Never connect an unregulated L.P. gas cylinder to your barbeque.
• Never store a spare cylinder under or near your barbeque when in use.
o Never subject any cylinder to excessive heat or direct sunlight.
o Always keep your in-use cylinder securely fastened in an upright position.
o Do not insert any foreign objects into the valve outlet. You may damage
the back-check. A damaged back-check can be the source of a leak. Leaking
propane may result in explosion, fire, severe personal injury or death.
o Never fill the cylinder beyond 80% full.
CONNECTION DEVICE.
The Type 1 valve is recognizable by the large external thread on the outlet
part of the valve. Standard existing valves do not have these exterior threads.
Any attempt to connect a regulator, with other than the:
i) Mating Type 1 connector (recognized by the large black coupling nut) or
ii) Standard #510 P.O.L. fitting,
by use of adapters or any other means, could result in damage, fire or injury
and may negate the important safety features designed into the Type 1
system. The connection of a #510 P.O.L. fitting will not provide the flow control
or temperature shut-off features buill into the complete Type 1 system.
We strongly reconvnend use of a propane cylinder with Q.C.C.I aid O.P .D.
safety features.
THE CYLINDER MUST AlSO BE EQIDPPED WITH:
a. A shut-off valve terminating in a proper cylinder valve outlet specified in
current standards:
o Canada: CAN/GGA - 1.6a - M98 - Outdoor Gas Grills - Amend.
o U.S.: ANSI Z 21.58a-1998 OUTDOOR COOKING APPLIANCES.
b. A listed overfilling protection device (O.P.D.).
c. A safety relief valve having direct communication with the vapor space of
the cylinder.
d. A collar to protect the tank shut off valve.
e. An arrangement for vapor withdrawal.
f. A bottom ring for securing to tank support assembly.
THE CYLINDER SHOULD NOT EXCEED 472 MM (18112'1 IN HEIGHT AND 317
MM (121/2'1 IN DIAMETER.
NEWOPD
HANDWHEEL
,
/~",
,,',;or--
:'/ FLOAT
FILLING STOPS AT 80%
1. SPECIFICATIONS
Self-contained propane gas
barbeque systems are designed to
be used only with a 9.1 kg (20 Ib)
propane cylinder, equipped with a
Type 1 cylinder valve and
incorporating an overfill protection
device (O.P.D). This barbeque
cannot be connected to an existing
#510 P.O.L. type valve (ones with
left-hand threads). The cylinder for
your gas barbeque must be
constructed and marked in
accordance with the specifications
of L.P. gas cylinders:
In Canada: The National Standards of Canada CAN/CSA-B339,
Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;
and Commission.
In the U.S.: U.S. Department of Transportation (D.O.T.)
Gas cylinders manufactured today have mechanisms to provide worry
free barbequing year round:
Q.C.C.1 or Type 1-Quick Connect Coupling Valve, ensure fast tank hook-
ups requiring only hand tightening. The redundant valve system inhibits
the flow of gas to the burner if the connection is not 100% correct.
a.p.D. or Overlill Protection Device prevents accidental gas leaks
caused by cylinder "over pressurization", the leading cause of cylinder
gas leaks. The float in the tank will automatically stop filling at 80%
capacity, leaving a 20% area for the expansion of liquid. Without this safety
feature, the relief valve may open and discharge propane, creating a
potential safety hazard. An O.P.D. cylinder is easily distinguished by its
triangular hand wheel valve. Figure 3)
liAS ~
IiURRDIAn™
Look for the Gas Guardian symbol
to easily Identify propane cylinders
with these safety features.
4
