Blue Line Phantom User manual

Manual
BlueLine 150w Phantom

Remote Controller

1. Functional Keys
ON/OFF Right navigation key
Adjusts LED intensity by 10% Programs timer settings.
ID setting and multiple linking key Confirmation Key
Time Setting & Operating Temperature To set the channelA light intensity individually
To set the channel C light intensity individually
To set the channel B light intensity individually
Notice: You must be in standby mode before programming.

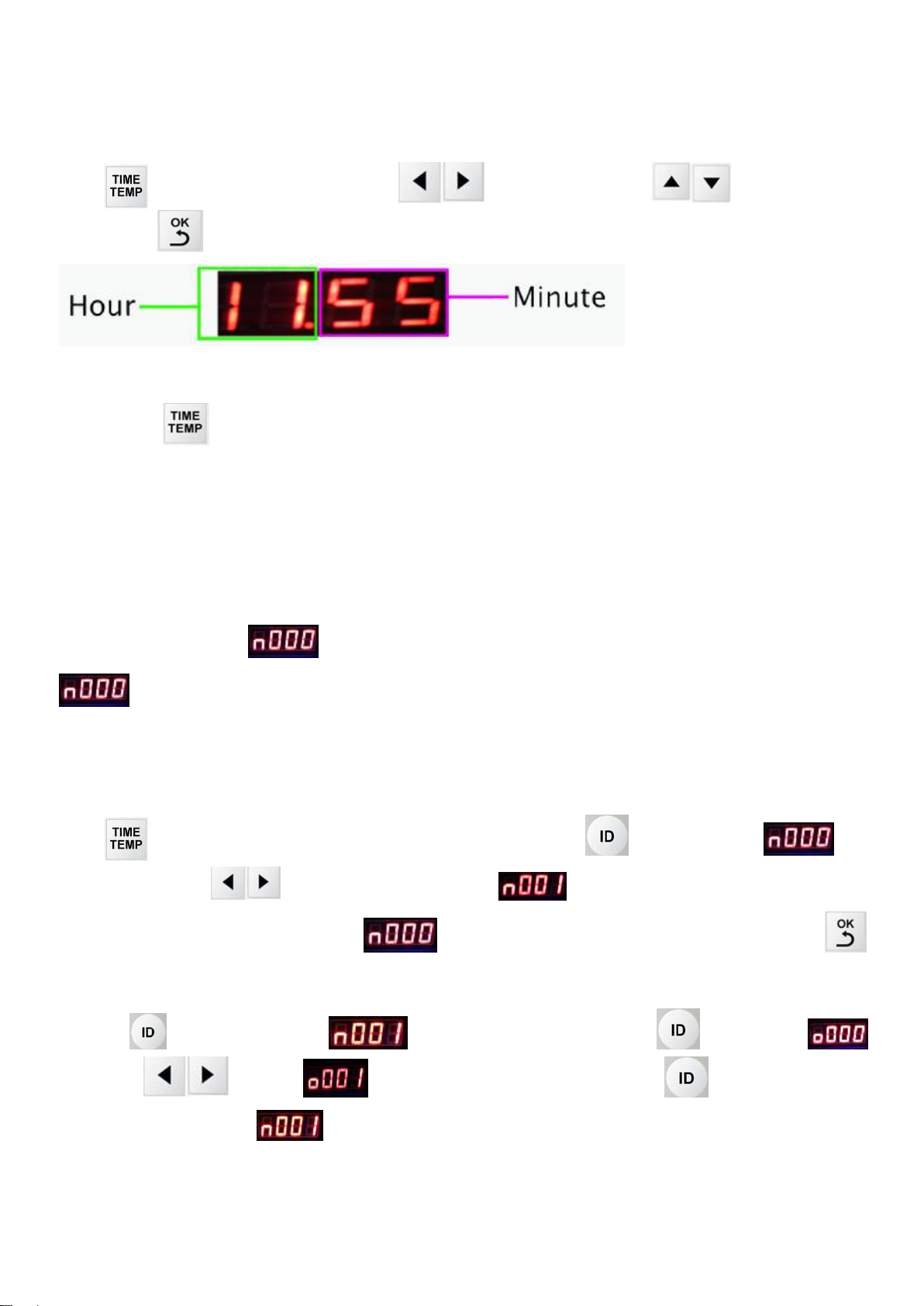

2. Local System Time Setting
Press when in the standby mode , press to choose the hour , to choose the minute ;
lastly , press to save the setting .
3.To view the lamp's working temperature .
Double press when in the standby mode .
4. Memory Function
The control module automatically saves settings if no signal is received after 45 seconds.
If the power was cut off during the operation , the lamp will return to the original setting next time.
5. Multiple Linking Function
The ID No.of the lamp is , and the remote controller is acquiescently to control all the lights with ID No.
, that is to say the remote controller controls multiple units .
If single unit controlled is required , please operate as following :
To set every fixture with a different ID .
Press t twice , then the temperature shown on the screen , click , the previous ID shown
on the screen press to select a new ID No. , i.e ,
Please notice that the new ID cannot be and not the same as ID which others have . Press to
done the ID setting .
To unlock remote controller .
Click the button , it will turn to (this is your ID ) , then click the again , turn to ,
press the until the shown on the screen , at the end click , the remote controller
will work , but the ID still is
Notice: the remote will be locked out after 1 minute of no operation.

6.Programmable Function setting
How to adjust the all lamp light intensity ?
A. Enter the standby mode first , press to turn up /down the intensity by 10% scale .
B. Enter the standby mode first , press to turn up/down the intensity by 1% scale .
How to adjust the light intensity of each LED channel ?
Enter the standby mode , then press corresponding paired buttons to adjust each LED channel light
intensity respectively .
Channel A controls multicolor lights
Channel C controls white lights
Channel B controls blue lights
i.e

How to set programmable dimming and timing ?
There are 3 LED channels , each LED channel has 4 time zones per 24 hours .
Qpoint lighting effect setting : when 12:00 LED channel B turns to 30% light intensity .
Steps
Keys
Procedures
LCD
1
Enter into the
programmable lighting
mode
2
Select LED channel
3
Select the timing point
4
Activate the timing point
5
Confirm and enter into
timing setting
6
Timing point setting
( Hour= left/ right keys)
( Minute=up/down keys )
7
Confirm the timing setting
8
Expected light intensity
setting
9
Save the ultimate setting
All time zones can be set using the example above.

7. Apply to following LED Fixtures .
