Blue point DMX MP3 VMusic2 Player User manual

Playback, Stop, Pause and Resume functions
Select any one of up to 32 MP3 recordings
Select to control the volume either with the left and right channels
ganged (3 DMX channel operation) or separately (4 DMX channel operation). ( NOTE: due to the
restrictions of the VMusic2 Player , the volume levels cannot be updated more than once every 0.5
seconds.
Connections
DMX:2-way terminal block- DMX connections 2 and 3
Power: 2-way terminal block- requires 9 Vdc at 0.5 A DC
VMusic2:7-way header to match to the VMusic2 serial interface connector
Command Syntax
The DMX- VMusic2 interface requires 3 or 4 consecutive control channels.
Base Address Selection
The Base Address is read continuously and may be set from 1 to 510
The base address is calculated by adding the values associated with each DIP switch that is set to ON
Address 0 is treated as being 1
Power LED
Correct power applied- Solid Green
DMX Status LED
Receiving valid DMX signal- Solid Red, No DMX signal, Flashing Red
Track Playing LED (yellow)
The DMX MP3 VMusic 2 Player provides up to 32- sound tracks of
playback with volume control when connected to a DMX network
The board Base Address may be set between 1 and 510.
Overview

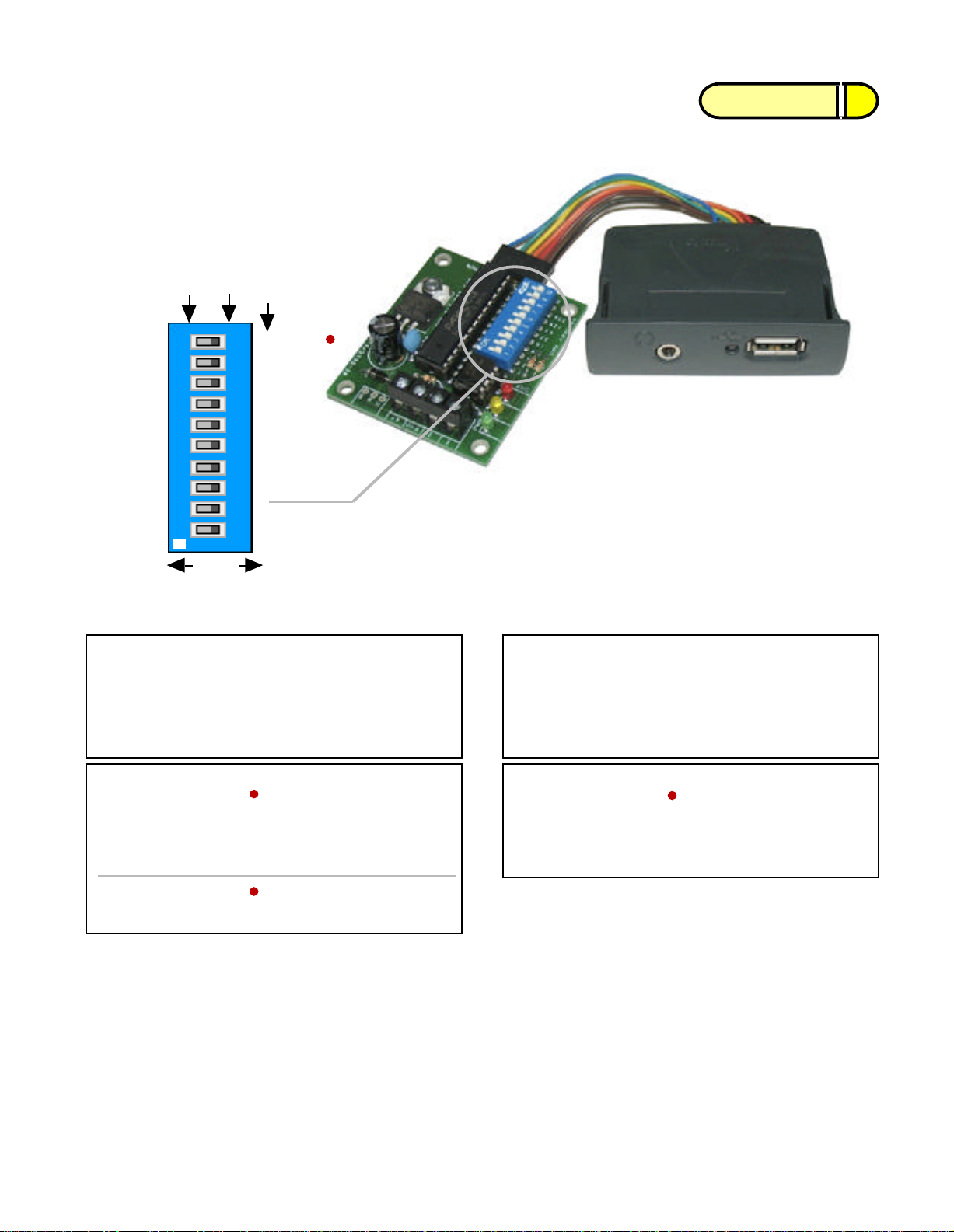

DIP Switches ( Addressing ) 16+32 = 48
Switch Number
Switch Value
Switch Position
( ON or OFF ) ON
OFF
1
2
4
8
16
32
64
128 256
S
1
2
4
8
16
32
64
128
256
SW1
2 3 4 5 6 7 8 9 10
ON
1
Channel 1- Command Byte
Value Operation - Playback
0-63 Stop
64-191 Play or resume currently selected track
192-255 Pause
Channel 2- Audio Select Tracks 1-32
Value Audio Track Numbers
0-7 001.MP3 - Sound No 1
8-15 002.MP3 - Sound No 2
16-23 003.MP3 - Sound No 3
248- 255 032.mp3 - Sound No 23
Channel 3-
If SW10 is set to ON
Value Operation - Volume
0-255 Volume for both the Left and Right channels
(0 is Mute)
If SW10 is set to OFF
Value Operation - Volume
0-255 Volume for the Left channel
(0 is Mute)
Channel 4-
If SW10 is set to OFF
Value Operation - Volume
0-255 Volume for the Right channel
(0 is Mute)
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T
DMX MP3 VMusic2 Player

Overview
DIP Switches ( Addressing ) 16+32 = 48
Switch Number
Switch Value
Switch Position
( ON or OFF ) ON
OFF
1
2
4
8
16
32
64
128 256
S
USB
Drive

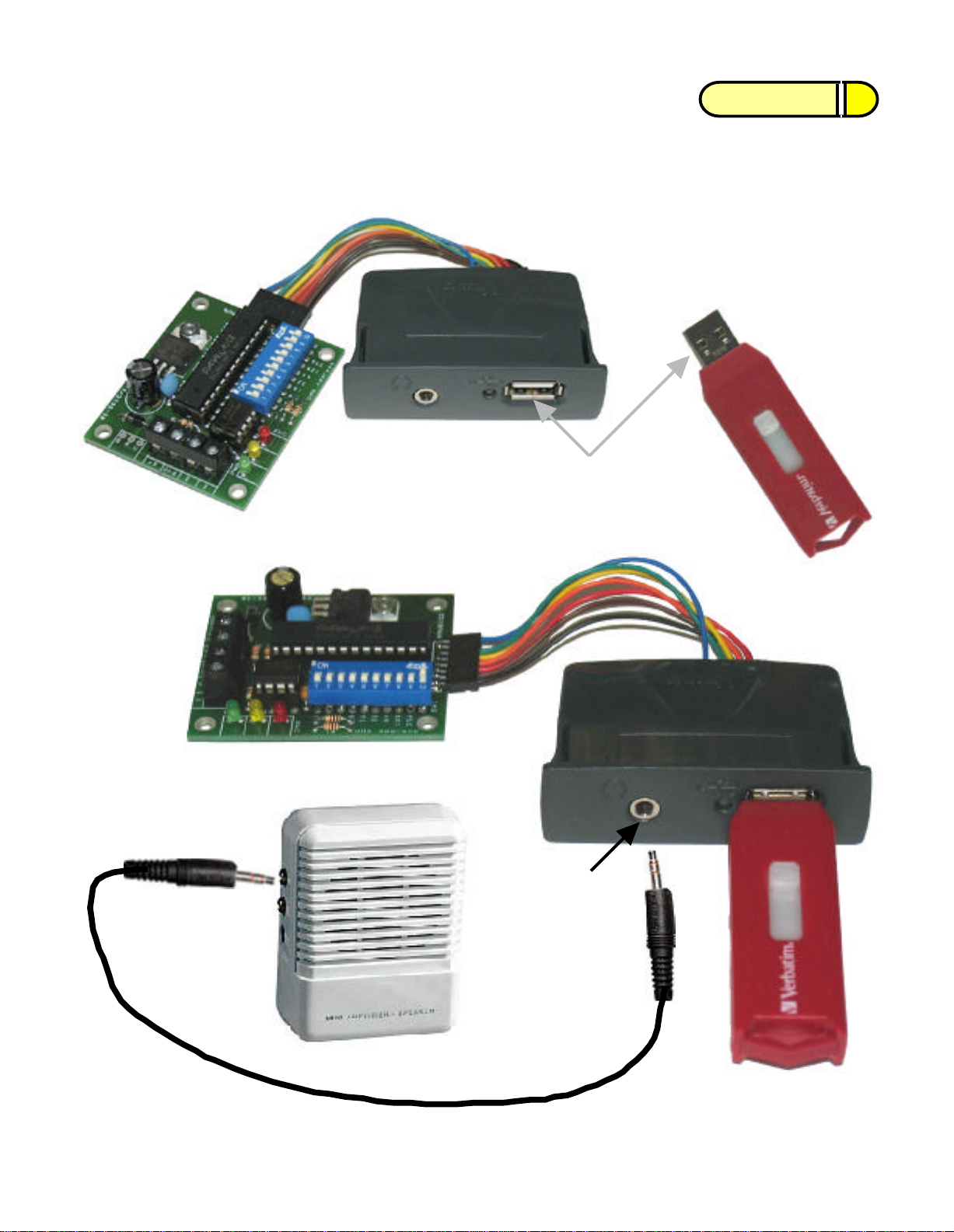

Audio Jack Port
1/8 Stereo
USB
Drive
Stereo Audio Cable with
1/8" audio Plugs
Audio Amp and
Speaker Module
1
2
4
8
16
32
64
128
256
SW1
2 3 4 5 6 7 8 9 10
ON
1
MP3 DMX
Interface Board
VMusic2 MP3
Playback Module
Audio Amp/ Speaker
Module
DMX MP3 VMusic2 Player
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T

Overview
DIP Switches ( Addressing ) 16+32 = 48
Switch Number
Switch Value
Switch Position
( ON or OFF ) ON
OFF

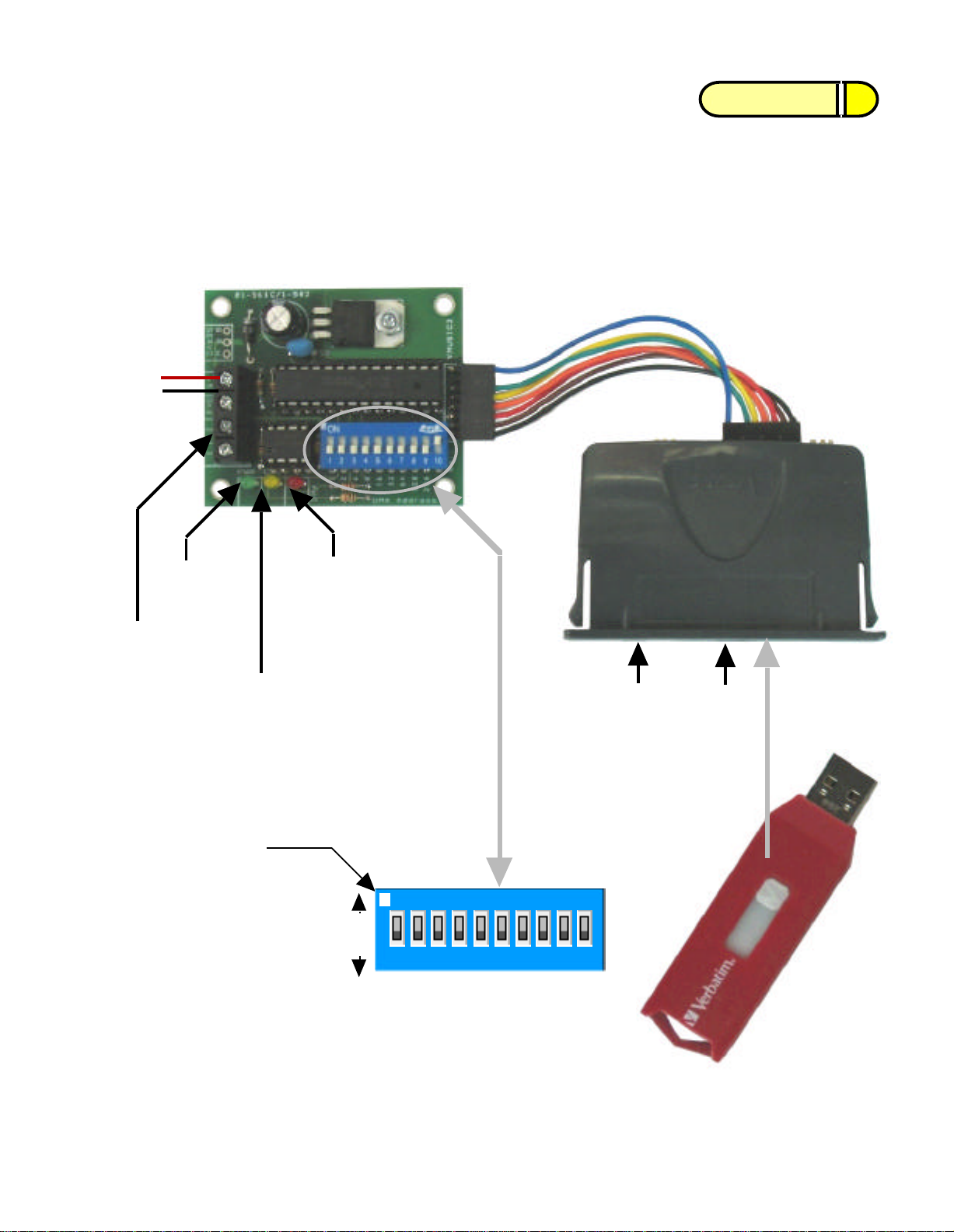

Power
Connection
DMX- Board
Address DIP
Switches
DMX- Signal
LED
Board
Power
LED
DIP Switches
( Addressing )
DMX
Network
Wire
Connections
DMX MP3 VMusic2
Playback Board
VMusic2 Track
Playing Status
NOTE:
DIP Switch Numbers
10
9
8
7
6
5
4
3
2
1
=
=
=
=
=
=
=
=
=
=
SW10
256
128
64
32
16
8
4
2
1
9VDC
ON = DMX Signal Present
Flashing = No DMX Signal
-
+
ON
OFF
1
2
4
8
16
32
64
128 256
SW10
2 3 4 5 6 7 8 9 10
ON
1
VMusic2
Module
USB
Drive
(Front Side )
Audio Jack Port
1/8 Stereo
Connects to USB
Port on Front of
VMusic2 Module
1
2
4
8
16
32
64
128
256
SW1
2 3 4 5 6 7 8 9 10
ON
1
LED Player
Status
DMX MP3 VMusic2 Player
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T

Overview
USB to DMX
Interface
USB
PORT
Computer Control Software
(VSA)
USB Cable
USB
Cable Computer
USB
PORT
- OR -
Software
DMX- MP3
VMusic2
Player Board
- OR -
5-Pin (F) XLR
Connector
DMX - XLR
Cables
5 Pin XLR
Wire
Adapter Connection
Wires
5-Pin (M) XLR
Connector
DMX - XLR Cables
To Next
DMX Device
2
3
Power
Supply
9VDC
DIP Switches ( Addressing ) 16+32 = 48
Switch Number
Switch Value
Switch Position
( ON or OFF ) ON
OFF
1
2
4
8
16
32
64
128 256
S
5-Pin (F) XLR
Connector 5-Pin (M) XLR
Connector
USB
Drive
VMusic2
Module
Speaker
and
Amplifier
Audio Cable
Large
Volume OR
Speaker
Amp
Audio
Cable
1
2
4
8
16
32
64
128
256
SW1
2 3 4 5 6 7 8 9 10
ON
1
DMX MP3 VMusic2 Player
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T

DIP Switches ( Addressing ) 16+32 = 48
Switch Number
Switch Value
Switch Position
( ON or OFF ) ON
OFF
-
+
-
Power
Connection
Board Power
Connections
DMX
Network
Connection
5- Pin
XLR Cable
2
3
DMX -Network
Wire Terminal
Block
XLR
Connection
M
F
9VDC Cable to
MP3
VMusic2
Module
Wall Plug Power Supply
9 Vdc @ 1 Amp
5-Pin (M) XLR
Connector
Connection Wires
5 Pin XLR Wire
Adapter
White = 3
Black = 2
DMX-XLR
Wire
5-Pin (F) XLR
Connector
To DMX Controller 2
3
1
2
4
8
16
32
64
128 256
S
1
2
4
8
16
32
64
128
256
SW1
2 3 4 5 6 7 8 9 10
ON
1
DMX MP3 VMusic2 Player
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T

CHANNEL-1 CHANNEL-2
Overview Board Address
Setting the base address:
Add the value of the address DIP switches set to the ON
position to calculate the base address.
Example: DIP switches 5 and 6 set to ON position, the
base address is now 48, (16+32) this setting is used to
determine the starting address output of Channel-1, the
next Channel would be address 49 for Channel-2, and
the next 50 for Channel-3, 51 for Channel-4.
DMX - Values
Base address
selectable
between 1 and 510
DIP Switches ( Addressing )
ON
ON
16+32 = 48
OFF
Switch Number
Switch Value
Switch Position
( ON or OFF ) ON
OFF
1
2
4
8
16
32
64
128 256
S
1
2
4
8
16
32
64
128
256
SW10
2 3 4 5 6 7 8 9 10
ON
1
Address 0 is
treated as being 1
Command Byte
Value
0-63 =
64-191 =
192-255 =
Playback Functions
Stop
Play or resume currently track
Pause
Command Byte
Value
0-7 =
8-15 =
16-23 =
Sound Track Number
001.MP3 (Sound FX Track - 1)
002.MP3 (Sound FX Track - 2)
003.MP3 (Sound FX Track - 3)
Command Byte
CHANNEL-3
Value
0-255
(0 is Mute)
Operation - Volume
Volume for both the Left and Right
Audio Channels
Command Byte
CHANNEL-4
Value
Operation Volume
The DMX-VMusic2 Interface requires 3 or 4 consecutive control channels.
(See Track Chart for full Listing)
If SW10 is Set to OFFIf SW10 is Set to ON
If SW10 is Set to OFF
Volume for Left Audio Channels
0-255
(0 is Mute)
Volume for Right Audio Channels0-255
(0 is Mute)
Channel-1
Channel-2
Channel-3
Channel-3
Channel-4
= Operation- Stop, Play, Pause
= Track ( 001.MP3, 002.MP3, 003.MP3...... ... ..... 032.MP3)
= Operation- (SW10- ON) - Volume control for both Left and Right Audio Channels )
= Operation- (SW10- OFF)- Volume control for Left Audio Channels )
= Operation- (SW10- OFF)- Volume control for Right Audio Channels )
Command Syntax
Base address is read continously
and may be set from 1 to 510
DMX MP3 VMusic2 Player
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T

Overview
DMX MP3 VMusic2 Player Board
USB
Drive

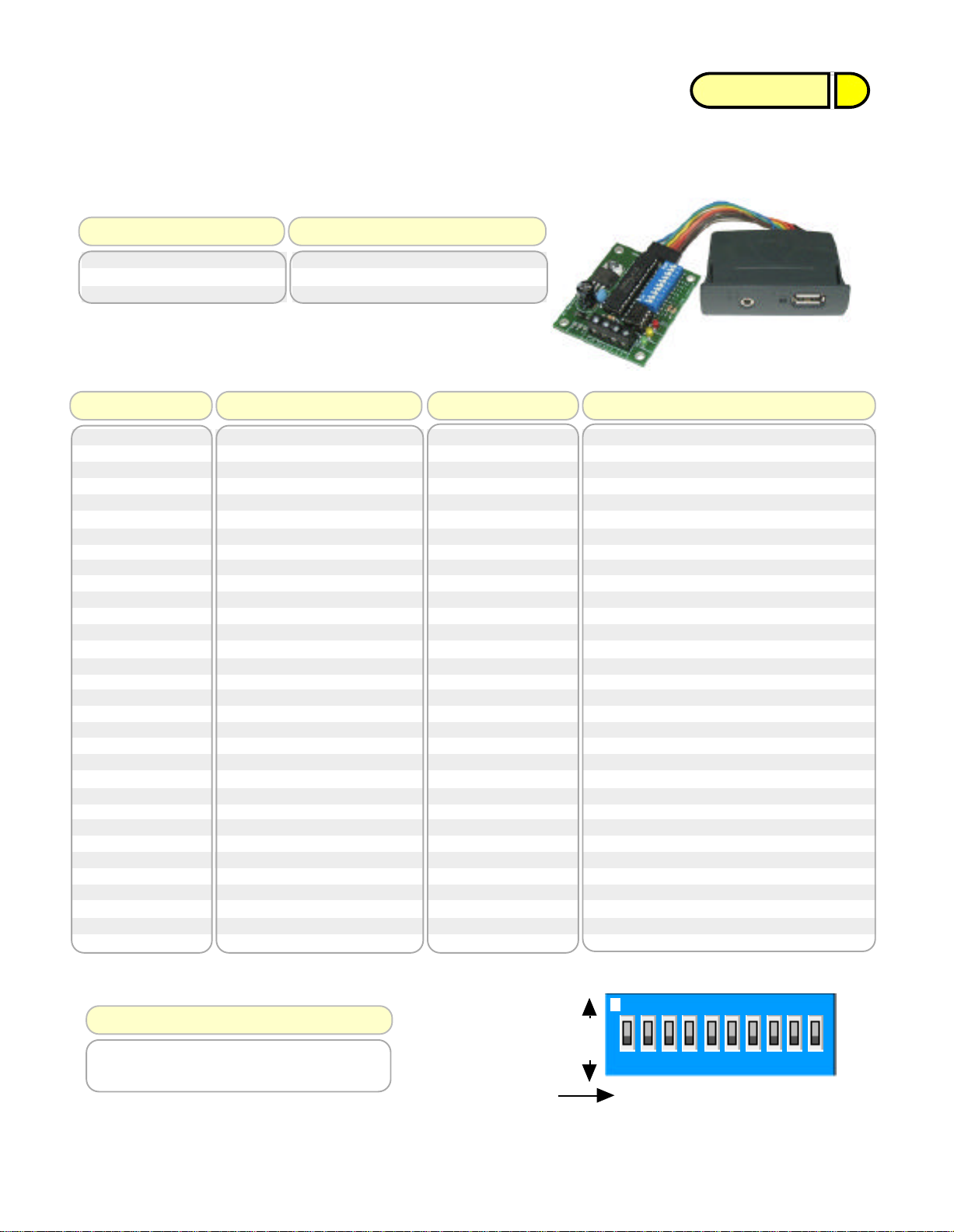

Audio Track Command Byte Value Track Name
SFX Track - 1
SFX Track - 2
SFX Track - 3
SFX Track - 4
SFX Track - 5
SFX Track - 6
SFX Track - 7
SFX Track - 8
SFX Track - 9
SFX Track -10
SFX Track -11
SFX Track -12
SFX Track -13
SFX Track -14
SFX Track -15
SFX Track- 16
SFX Track -17
SFX Track -18
SFX Track -19
SFX Track -20
SFX Track- 21
SFX Track- 22
SFX Track- 23
SFX Track- 24
SFX Track -25
SFX Track- 26
SFX Track- 27
SFX Track- 28
SFX Track- 29
SFX Track -30
SFX Track- 31
SFX Track- 32
0 - 7
8 - 15
16 - 23
24 - 31
32 - 39
40 - 47
48 - 55
56 - 63
64 - 71
72 - 79
80 - 87
88 - 95
96 - 103
104 - 111
112 - 119
120 - 127
128 - 135
136 - 143
144 - 151
152 - 159
160 - 167
168 - 175
176 - 183
184 - 191
192 - 199
200 - 207
208 - 215
216 - 223
224 - 231
232 - 239
240 - 247
248 - 255
001.MP3
002.MP3
003.MP3
004.MP3
005.MP3
006.MP3
007.MP3
008.MP3
009.MP3
010.MP3
011.MP3
012.MP3
013.MP3
014.MP3
015.MP3
016.MP3
017.MP3
018.MP3
019.MP3
020.MP3
021.MP3
022.MP3
023.MP3
024.MP3
025.MP3
026.MP3
027.MP3
028.MP3
029.MP3
030.MP3
031.MP3
032.MP3
DMX Control Channel - 2
Command Syntax
Track Name
Syntax
on Root Directory
of USB Drive
Note: The Sound Files must be named as
shown below, or they will not work with
the MP3 Player when operated.
The optional software
program "Audicity"
can be used to work
with MP3 Audio Files
4
16
128
1 2 8
32
64 256
S1
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T

Optional Amp Setup
Audio Connection
MP3 Playback
Board
VMusic2 Module
Audio Output
Connector Jack 1/8"
Stereo
Audio
Amplifier
LEFT
RIGHT
(Audio Signal Input)
RCA Audio
Connectors
RCA Jack - Left (White)
RCA Jack - Right (Red)
(Audio Signal Input)
RCA to Mini
1/8" "Y" Cable
Adapter
Radio Shack
Part No: 42-495
RCA
Connectors
4
16
128
1 2 8
32
64 256
S1
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Technical T
DMX MP3 VMusic2 Player

Notes / Worksheet:
4
16
128
1 2 8
32
64 256
Switch Positions
(UP / Down )
UP
Down

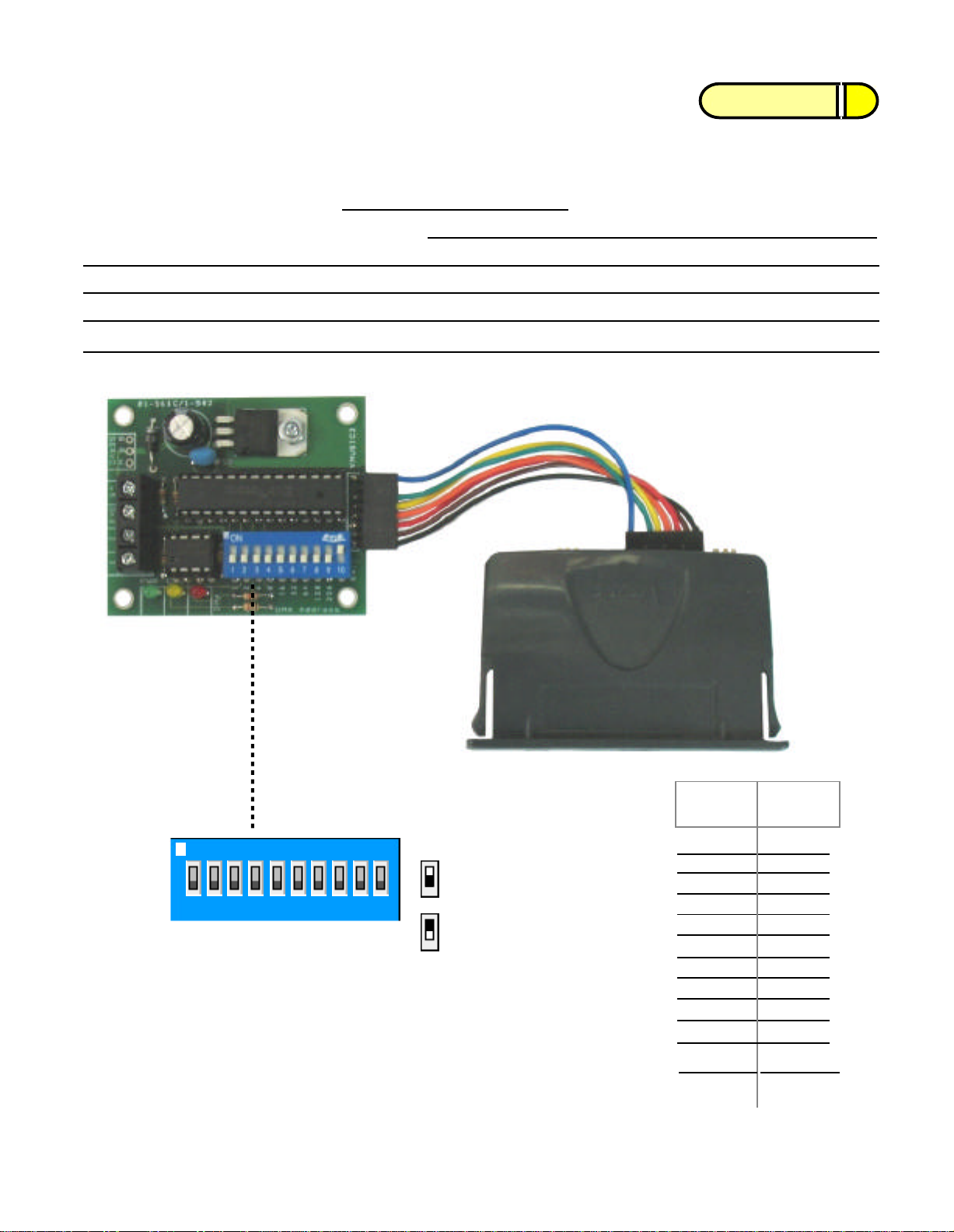

Addressing
DMX MP3 BOARD NO:
SW-1
SW-2
SW-3
SW-4
SW-5
SW-6
SW-7
SW-8
SW-9
SW-10
DMX MP3 BOARD Application:
ON
OFF
ONOFF
BASE
Addressing
1 = ON
0 = OFF
DMX
Value 01
Position
SW10
2 3 4 5 6 7 8 9 10
ON
1
Copyright © 2010 Blue Point Engineering, All Rights Reserved
Worksheet W
DMX MP3 VMusic2 Player

Custom Equipment, Unique Electronic ProductsPhone [phone]
Blue Point Engineering
www.BPEsolutions.com
MP3 Audio Controller & USB Flash Drive used
on Macintosh Computer with OS X... System
Blue Point
Engineering
Instruction I
Pointing the Way to Solutions!
www.BPEsolutions.com
Copyright © 2009 Blue Point Engineering
All Rights Reserved
Version 1.0
01/09
NOTE: any number of file can be recorded from 1 to 32 audio files. The length of the recorded audio
files available is determined by the size of the USB Flash Memory Drive.
Min number=1 file (001.mp3) and the Max number=32 file (032.mp3)
Audio File Size= As large as the USB Flash memory Drive capacity is.
Q.
A.
Troubleshooting - Macintosh Computer - OS X System Hints and Guide
I have recorded my sounds, but nothing plays back when I activate theDMX Channel.
Check to see that you have named the audio files correctly. For example, if you only have 5-MP3 audio files
on the drive, they would be named “001.mp3” “002.mp3” “002.mp3” “004.mp3”
“004.mp3”
Check to see if your Hide File Extension display is turned ON in your computer, if so, then the files probably
have double extensions added,“001.mp3.mp3. -“021.mp3.mp3. The second extension is
incorrect, should be 001.mp3” to “032.mp3, Turn Hide OFF and rename the files.
Try using just the file name “001" without a period.
Check to see that the audio files you are using are not a different format, The audio file must be MP3 type.
Check your USB Flash Memory Drive to see that it has been formatted as a blank drive, before adding you
new sound files, Some USB Flash Memory Drives have a security or Auto Boot feature that prevents the
MP3 player from using the sound files correctly even when formatted. Re-format your USB Flash Memory
Drive removing any security or Auto Boot formats first. (Format USB Flash Drive as a MS-DOS FAT)
Try a different USB Flash Memory Drive type, as some manufacture brands operate different than others.
A.
A.
A.
Macintosh OS X Operating System - USB Flash Drive Formating
1. Disk Utility Application
2. Select USB Flash Drive
3. Erase - Set to MS-DOS FAT
4. Pertition- Current
5. ERASE USB Flash Drive

Custom Equipment, Unique Electronic ProductsPhone [phone]
Blue Point Engineering
www.BPEsolutions.com
Audio Controller & USB Flash Drive
Formatting Drives
Blue Point
Engineering
Instruction I
Pointing the Way to Solutions!
www.BPEsolutions.com
Copyright © 2009 Blue Point Engineering
All Rights Reserved
Version 1.0
01/09
Windows Platform (OS)
1. Start your computer and plug in the flash drive in the USB port.
2.Click on "My Computer." Click on "Manage" in the "Explorer" window of "My Computer."
3.Open the "Device Manager" and locate your USBDrive installed under the "Disk Drives" tab.
Right click on "Removable Disk Drive" and click on "Properties" from the menu.
4. Click on the "Policies" tab and choose "Optimize for Performance" from the options.
Click "OK" and continue.
5.Click on "My Computer" and choose the format on the flash drive.
6.Choose "FATor FAT16" from the dropdown menu box.
7. Click "OK" to complete the format.
Formating USB Flash Drive for PC (Windows Platform (OS)
Method - 1

Version 1.0
01/09
Custom Equipment, Unique Electronic ProductsPhone [phone]
Blue Point Engineering
www.BPEsolutions.com
Blue Point
Engineering
Instruction I
Pointing the Way to Solutions!
www.BPEsolutions.com
1. Formatting a drive, of any kind, will wipe out all of the data on that drive. Make sure you’ve copied
any files from your USB thumb drive to a different location before formatting.

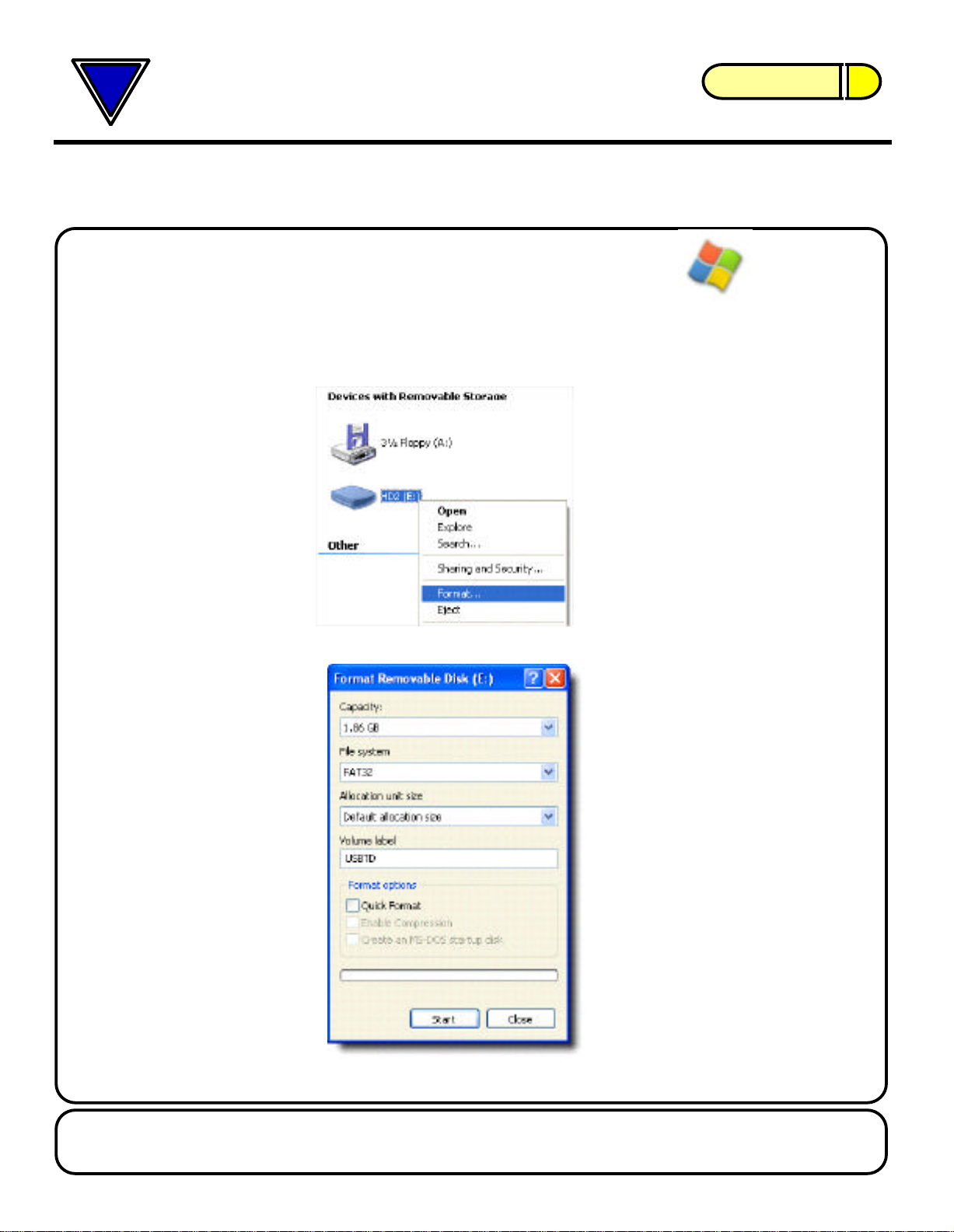

2. Plug in the device and open My Computer. Right-click the USB drive and select Format….
MP3 Audio Controller & USB Flash Drive
Formatting Drives
Formating USB Flash Drive for PC (Windows Platform (OS)
Method - 2
3. Select the File System "FAT or FAT16" and give the drive a name in the Volume label field.
Click Start to format the drive.
Copyright © 2009 Blue Point Engineering All Rights Reserved

Custom Equipment, Unique Electronic ProductsPhone [phone]
Blue Point Engineering
www.BPEsolutions.com
Blue Point
Engineering
Instruction I
Pointing the Way to Solutions!
www.BPEsolutions.com

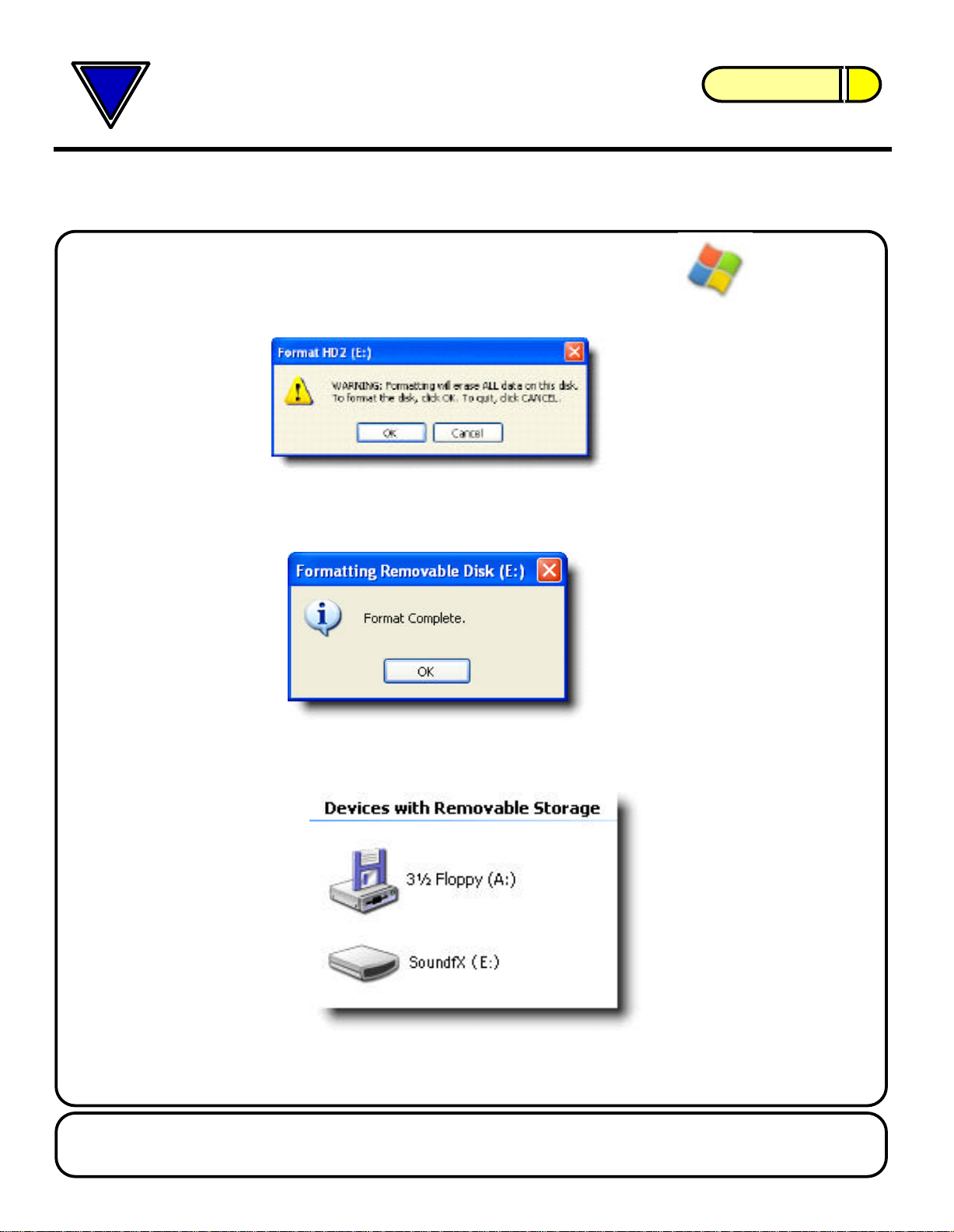

4. Click OK on the warning window.
MP3 Audio Controller & USB Flash Drive
Formatting Drives
Formating USB Flash Drive for PC (Windows Platform (OS)
( Method - 2 Cont. )
5. Once the format has completed, click OK
Copyright © 2009 Blue Point Engineering All Rights Reserved
6. USB Thumb Drive, Formatted, ready for sound files to be copied to drive.

US Standard DMX 512 Example
Address
422
Address = 422 Switch ON = 2, 3, 6, 8, 9
2+4+32+128+256= 422
DIP Switches ( Addressing )
2345678910
ON 1
Switch Number
Switch Position
( ON or OFF ) ON
OFF
2 3 4 5 6 7 8 9 10
ON 1
4
16
X
2
8
32
64
128
256
1
Switch Value
2
4
8
16
32
64
128
256
1
X
DMX- MP3 Player
16
128
1 - 510
Board Base Address
0 - 63
64 - 191
192 - 255
Command Byte Value Operation
Stop Playback
Play or Resume Currently Selected Track
Pause Playback
DMX Audio Track Chart
Command Syntax
Audio Track Audio Description Command Byte Value Track Name
SFX Track - 1
SFX Track - 2
SFX Track - 3
SFX Track - 4
SFX Track - 5
SFX Track - 6
SFX Track - 7
SFX Track - 8
SFX Track - 9
SFX Track -10
SFX Track -11
SFX Track -12
SFX Track -13
SFX Track -14
SFX Track -15
SFX Track- 16
SFX Track -17
SFX Track -18
SFX Track -19
SFX Track -20
SFX Track- 21
SFX Track- 22
SFX Track- 23
SFX Track- 24
SFX Track -25
SFX Track- 26
SFX Track- 27
SFX Track- 28
SFX Track- 29
SFX Track -30
SFX Track- 31
SFX Track- 32
0 - 7
8 - 15
16 - 23
24 - 31
32 - 39
40 - 47
48 - 55
56 - 63
64 - 71
72 - 79
80 - 87
88 - 95
96 - 103
104 - 111
112 - 119
120 - 127
128 - 135
136 - 143
144 - 151
152 - 159
160 - 167
168 - 175
176 - 183
184 - 191
192 - 199
200 - 207
208 - 215
216 - 223
224 - 231
232 - 239
240 - 247
248 - 255
001.MP3
002.MP3
003.MP3
004.MP3
005.MP3
006.MP3
007.MP3
008.MP3
009.MP3
010.MP3
011.MP3
012.MP3
013.MP3
014.MP3
015.MP3
016.MP3
017.MP3
018.MP3
019.MP3
020.MP3
021.MP3
022.MP3
023.MP3
024.MP3
025.MP3
026.MP3
027.MP3
028.MP3
029.MP3
030.MP3
031.MP3
032.MP3
DMX Control Channel - 2
Command Syntax
Address 0 is treated as 1
DMX-VMusic2 Interface
DIP Switches
( Addressing ) 2 3 4 5 6 7 8 9 10
ON
1
ON
OFF
2
4
8
32
64 256
Switch Value
1
SW1
2
4
8
32
64 256
1
16
128
X
Technical T

Technical T
DMX Address Chart
DMX- MP3 Player
US Standard DMX 512
Ch - Switches Ch - Switches Ch - SwitchesCh - Switches Ch - Switches
Example
Address
422
Address = 422 Switch ON = 2, 3, 6, 8, 9
2+4+32+128+256= 422
DIP Switches ( Addressing )
2345678910
ON 1
Switch Number
Switch Position
( ON or OFF ) ON
OFF
2 3 4 5 6 7 8 9 10
ON 1
4
16
X
2
8
32
64
128
256
1
157 = 1, 3, 4, 5, 8
158 = 2, 3, 4, 5, 8
159 = 1, 2, 3, 4, 5, 8
160 = 6, 8
161 = 1, 6, 8
162 = 2, 6, 8
163 = 1, 2, 6, 8
164 = 3, 6, 8
165 = 1, 3, 6, 8
166 = 2, 3, 6, 8
167 = 1, 2, 3, 6, 8
168 = 4, 6, 8
169 = 1, 4, 6, 8
170 = 2, 4, 6, 8
171 = 1, 2, 4, 6, 8
172 = 3, 4, 6, 8
173 = 1, 3, 4, 6, 8
174 = 2, 3, 4, 6, 8
175 = 1,2, 3, 4, 6, 8
176 = 5, 6, 8
177 = 1, 5, 6, 8
178 = 2, 5, 6, 8
179 = 1, 2, 5, 6, 8
180 = 3, 5, 6, 8
181 = 1, 3, 5, 6, 8
182 = 2, 3, 5, 6, 8
183 = 1, 2, 3, 5, 6, 8
184 = 4, 5, 6, 8
185 = 1, 4, 5, 6, 8
186 = 2, 4, 5, 6, 8
187 = 1, 2, 4, 5, 6, 8
188 = 3, 4, 5, 6, 8
189 = 1, 3, 4, 5, 6, 8
190 = 2, 3, 4, 5, 6, 8
191 = 1, 2, 3, 4, 5, 6, 8
192 = 7, 8
193 = 1, 7, 8,
194 = 2, 7, 8,
195 = 1, 2, 7, 8
196 = 3, 7, 8
197 = 1, 3, 7, 8
198 = 2, 3, 7, 8
199 = 1, 2, 3, 7, 8
200 = 4, 7, 8,
201 = 1, 4, 7, 8
202 = 2, 4, 7, 8
203 = 1, 2, 4, 7, 8
204 = 3, 4, 7, 8
205 = 1, 3, 4, 7, 8
206 = 2, 3, 4, 7, 8
207 = 1, 2, 3, 4, 7, 8
208 = 5, 7, 8
209 = 1, 5, 7, 8
210 = 2, 5, 7, 8
211 = 1, 2, 5, 7, 8
212 = 3, 5, 7, 8
213 = 1, 3, 5, 7, 8
214 = 2, 3, 5, 7, 8
215 = 1, 2, 3, 5, 7, 8
216 = 4, 5, 7, 8
217 = 1, 4, 5, 7, 8
218 = 2, 4, 5, 7, 8
219 = 1, 2, 4, 5, 7, 8
220 = 3, 4, 5, 7, 8
221 = 1, 3, 4, 5, 7, 8
222 = 2, 3, 4, 5, 7, 8
223 = 1, 2, 3, 4, 5, 7, 8
224 = 6, 7, 8
225 = 1, 6, 7, 8
226 = 2, 6, 7, 8
227 = 1, 2, 6, 7, 8
228 = 3, 6, 7, 8
229 = 1, 3, 6, 7, 8
230 = 2, 3, 6, 7, 8
231 = 1, 2, 3, 6, 7, 8
232 = 4, 6, 7, 8
233 = 1, 4, 6, 7, 8
234 = 2, 4, 6, 7, 8
235 = 1, 2, 4, 6, 7, 8
236 = 3, 4, 6, 7, 8
237 = 1, 3, 4, 6, 7, 8
238 = 2, 3, 4, 6, 7, 8
239 = 1, 2, 3, 4, 6, 7, 8
240 = 5, 6, 7, 8
241 = 1, 5, 6, 7, 8
242 = 2, 5, 6, 7, 8
243 = 1, 2, 5, 6, 7, 8
244 = 3, 5, 6, 7, 8
245 = 1, 3, 5, 6, 7, 8
246 = 2, 3, 5, 6, 7, 8
247 = 1, 2, 3, 5, 6, 7, 8
248 = 4, 5, 6, 7, 8
249 = 1, 4, 5, 6, 7, 8
250 = 2, 4, 5, 6, 7, 8
251 = 1, 2, 4, 5, 6, 7, 8
252 = 3, 4, 5, 6, 7, 8
253 = 1, 3, 4, 5, 6, 7, 8
254 = 2, 3, 4, 5, 6, 7, 8
255 = 1, 2, 3, 4, 5, 6, 7, 8
256 = 9
257 = 1, 9
258 = 2, 9
259 = 1, 2, 9
260 = 3, 9
105 = 1, 4, 6, 7
106 = 2, 4, 6, 7
107 = 1, 2, 4, 6, 7
108 = 3, 4, 6, 7
109 = 1, 3, 4, 6, 7
110 = 2, 3, 4, 6, 7
111 = 1, 2, 3, 4, 6, 7
112 = 5, 6, 7
113 = 1, 5, 6, 7
114 = 2, 5, 6, 7
115 = 1, 2, 5, 6, 7
116 = 3, 5, 6, 7
117 = 1, 3, 5, 6, 7
118 = 2, 3, 5, 6, 7
119 = 1, 2, 3, 5, 6, 7
120 = 4, 5, 6, 7
121 = 1, 4, 5, 6, 7
122 = 2, 4, 5, 6, 7
123 = 1, 2, 4, 5, 6, 7
124 = 3, 4, 5, 6, 7
125 = 1, 3, 4, 5, 6, 7
126 = 2, 3, 4, 5, 6, 7
127 = 1, 2, 3, 4, 5, 6, 7
128 = 8
129 = 1, 8
130 = 2, 8
131 = 1, 2, 8
132 = 3, 8
133 = 1, 3, 8
134 = 2, 3, 8
135 = 1, 2, 3, 8
136 = 4, 8
137 = 1, 4, 8
138 = 2, 4, 8
139 = 1, 2, 4, 8
140 = 3, 4, 8
141 = 1, 3, 4, 8
142 = 2, 3, 4, 8
143 = 1, 2, 3, 4, 8
144 = 5, 8
145 = 1, 5, 8
146 = 2, 5, 8
147 = 1, 2, 5, 8
148 = 3, 5, 8
149 = 1, 3, 5, 8
150 = 2, 3, 5, 8
151 = 1, 2, 3, 5, 8
152 = 4, 5, 8
153 = 1, 4, 5, 8
154 = 2, 4, 5, 8
155 = 1, 2, 4, 5, 8
156 = 3, 4, 5, 8
53 = 1, 3, 5, 6
54 = 2, 3, 5, 6
55 = 1, 2, 3, 5, 6
56 = 4, 5, 6
57 = 1, 4, 5, 6
58 = 2, 4, 5, 6
59 = 1, 2, 4, 5, 6
60 = 3, 4, 5, 6
61 = 1, 3, 4, 5, 6
62 = 2, 3, 4, 5, 6
63 = 1, 2, 3, 4, 5, 6
64 = 7
65 = 1, 7
66 = 2, 7
67 = 1, 2, 7
68 = 3, 7
69 = 1, 3, 7
70 = 2, 3, 7
71 = 1, 2, 3, 7
72 = 4, 7
73 = 1, 4, 7
74 = 2, 4, 7
75 = 1, 2, 4, 7
76 = 3, 4, 7
77 = 1, 3, 4, 7
78 = 2, 3, 4, 7
79 = 1, 3, 4, 7
80 = 5, 7
81 = 1, 5, 7
82 = 2, 5, 7
83 = 1, 2, 5, 7
84 = 3, 5, 7
85 = 1, 3, 5, 7
86 = 2, 3, 5, 7
87 = 1, 2, 3, 5, 7
88 = 4, 5, 7
89 = 1, 4, 5, 7
90 = 2, 4, 5, 7
91 = 1, 2, 4, 5, 7
92 = 3, 4, 5, 7
93 = 1, 3, 4, 5, 7
94 = 2, 3, 4, 5, 7
95 = 1, 2, 3, 4, 5, 7
96 = 6, 7
97 = 1, 6, 7
98 = 2, 6, 7
99 = 1, 2, 6, 7
100 = 3, 6, 7
101 = 1, 3, 6, 7
102 = 2, 3, 6, 7
103 = 1, 2, 3, 6, 7
104 = 4, 6, 7
1 = 1
2 = 2
3 = 1, 2
4 = 3
5 = 1, 3
6 = 2, 3
7 = 1, 2, 3
8 = 4
9 = 1, 4
10 = 2, 4
11 = 1, 2, 4
12 = 3, 4
13 = 1, 3, 4
14 = 2, 3, 4
15 = 1, 2, 3, 4
16 = 5
17 = 1, 5
18 = 2, 5
19 = 1, 2, 5
20 = 3, 5
21 = 1, 3, 5
22 = 2, 3, 5
23 = 1, 2, 3, 5
24 = 4, 5
25 = 1, 4, 5
26 = 2, 4, 5
27 = 1, 2, 4, 5
28 = 3, 4, 5
29 = 1, 3, 4, 5
30 = 2, 3, 4, 5
31 = 1, 2, 3, 4, 5
32 = 6
33 = 1, 6
34 = 2, 6
35 = 1, 2, 6
36 = 3, 6
37 = 1, 3, 6
38 = 2, 3, 6
39 = 1, 2, 3, 6
40 = 4, 6
41 = 1, 4, 6
42 = 2, 4, 6
43 = 1, 2, 4, 6
44 = 3, 4, 6,
45 = 1, 3, 4, 6
46 = 2, 3, 4, 6
47 = 1, 2, 3, 4, 6
48 = 5, 6
49 = 1, 5, 6
50 = 2, 5, 6
51 = 1, 2, 5, 6
52 = 3, 5, 6
DMX-VMusic2
Interface
Switch Value
2
4
8
16
32
64
128
256
1
X
16
128
2
4
8
32
64 256
1
SW1
ON ON ON ON ON
2
4
8
32
64 256
1
16
128
X

Ch - Switches Ch - Switches Ch - Switches
US Standard DMX 512
Ch - SwitchesCh - Switches
Example
Address
422
Address = 422 Switch ON = 2, 3, 6, 8, 9
2+4+32+128+256= 422
DIP Switches ( Addressing )
2345678910
ON 1
Switch Number
Switch Position
( ON or OFF ) ON
OFF
2 3 4 5 6 7 8 9 10
ON 1
4
16
X
2
8
32
64
128
256
1
261 = 1, 3, 9
262 = 2, 3, 9
263 = 1, 2, 3, 9
264 = 4, 9
265 = 1, 4, 9
266 = 2, 4, 9
267 = 1, 2, 4, 9
268 = 3, 4, 9
269 = 1, 3, 4, 9
270 = 2, 3, 4, 9
271 = 1, 2, 3, 4, 9
272 = 5, 9
273 = 1, 5, 9
274 = 2, 5, 9
275 = 1, 2, 5, 9
276 = 3, 5, 9
277 = 1, 3, 5, 9
278 = 2, 3, 5, 9
279 = 1, 2, 3, 5, 9
280 = 4, 5, 9
281 = 1, 4, 5, 9
282 = 2, 4, 5, 9
283 = 1, 2, 4, 5, 9
284 = 3, 4, 5, 9
285 = 1, 3, 4, 5, 9
286 = 2, 3, 4, 5, 9
287 = 1, 2, 3, 4, 5, 9
288 = 6, 9
289 = 1, 6, 9
290 = 2, 6, 9
291 = 1, 2, 6, 9
292 = 3, 6, 9
293 = 1, 3, 6, 9
294 = 2, 3, 6, 9
295 = 1, 2, 3, 6, 9
296 = 4, 6, 9
297 = 1, 4, 6, 9
298 = 2, 4, 6, 9
299 = 1, 2, 4, 6, 9
300 = 3, 4, 6, 9
301 = 1, 3, 4, 6, 9
302 = 2, 3, 4, 6, 9
303 = 1, 2, 3, 4, 6, 9
304 = 5, 6, 9
305 = 1, 5, 6, 9
306 = 2, 5, 6, 9
307 = 1, 2, 5, 6, 9
308 = 3, 5, 6, 9
309 = 1, 3, 5, 6, 9
310 = 2, 3, 5, 6, 9
311 = 1, 2, 3, 5, 6, 9
312 = 4, 5, 6, 9
313 = 1, 4, 5, 6, 9
314 = 2, 4, 5, 6, 9
315 = 1, 2, 4, 5, 6, 9
316 = 3, 4, 5, 6, 9
317 = 1, 3, 4, 5, 6, 9
318 = 2, 3, 4, 5, 6, 9
329 = 1, 2, 3, 4, 5, 6, 9
320 = 7, 9
321 = 1, 7, 9
383 = 1, 2, 3, 4, 5, 6, 7, 9
384 = 8, 9
385 = 1, 8, 9
386 = 2, 8, 9
387 = 1, 2, 8, 9
388 = 3, 8, 9
389 = 1, 3, 8, 9
390 = 2, 3, 8, 9
391 = 1, 2, 3, 8, 9
392 = 4, 8, 9
393 = 1, 4, 8, 9
394 = 2, 4, 8, 9
395 = 1, 2, 4, 8, 9
396 = 3, 4, 8, 9
397 = 1, 3, 4, 8, 9
398 = 2, 3, 4, 8, 9
399 = 1, 2, 3, 4, 8, 9
400 = 5, 8, 9
401 = 1, 5, 8, 9
402 = 2, 5, 8, 9
403 = 1, 2, 5, 8, 9
404 = 3, 5, 8, 9
405 = 1, 3, 5, 8, 9
406 = 2, 3, 5, 8, 9
407 = 1, 2, 3, 5, 8, 9
408 = 4, 5, 8, 9
409 = 1, 4, 5, 8, 9
410 = 2, 4, 5, 8, 9
411 = 1, 2, 4, 5, 8, 9
412 = 3, 4, 5, 8, 9
413 = 1, 3, 4, 5, 8, 9
414 = 2, 3, 4, 5, 8, 9
415 = 1, 2, 3, 4, 5, 8, 9
416 = 6, 8, 9
417 = 1, 6, 8, 9
418 = 2, 6, 8, 9
419 = 1, 2, 6, 8, 9
420 = 3, 6, 8, 9
421 = 1, 3, 6, 8, 9
422 = 2, 3, 6, 8, 9
423 = 1, 2, 3, 6, 8, 9
424 = 4, 6, 8, 9
425 = 1, 4, 6, 8, 9
426 = 2, 4, 6, 8, 9
427 = 1, 2, 4, 6, 8, 9
428 = 3, 4, 6, 8, 9
429 = 1, 3, 4, 6, 8, 9
430 = 2, 3, 4, 6, 8, 9
431 = 1, 2, 3, 4, 6, 8, 9
432 = 5, 6, 8, 9
433 = 1, 5, 6, 8, 9
434 = 2, 5, 6, 8, 9
435 = 1, 2, 5, 6, 8, 9
436 = 3, 5, 6, 8, 9
437 = 1, 3, 5, 6, 8, 9
438 = 2, 3, 5, 6, 8, 9
439 = 1, 2, 3, 5, 6, 8, 9
440 = 4, 5, 6, 8, 9
441 = 1, 4, 5, 6, 8, 9
442 = 2, 4, 5, 6, 8, 9
443 = 1, 2, 4, 5, 6, 8, 9
505 = 1, 4, 5, 6, 7, 8, 9
506 = 2, 4, 5, 6, 7, 8, 9
507 = 1, 2, 4, 5, 6, 7, 8, 9
508 = 3, 4, 5, 6, 7, 8, 9
509 = 1, 3, 4, 5, 6, 7, 8, 9
510 = 2, 3, 4, 5, 6, 7, 8, 9
322 = 2, 7, 9
323 = 1, 2, 7, 9
324 = 3, 7, 9
325 = 1, 3, 7, 9
326 = 2, 3, 7, 9
327 = 1, 2, 3, 7, 9
328 = 4, 7, 9
329 = 1, 4, 7, 9
330 = 2, 4, 7, 9
331 = 1, 2, 4, 7, 9
332 = 3, 4, 7, 9
333 = 1, 3, 4, 7, 9
334 = 2, 3, 4, 7, 9
335 = 1, 2, 3, 4, 7, 9
336 = 5, 7, 9
337 = 1, 5, 7, 9
338 = 2, 5, 7, 9
339 = 1, 2, 5, 7, 9
340 = 3, 5, 7, 9
341 = 1, 3, 5, 7, 9
342 = 2, 3, 5, 7, 9
343 = 1, 2, 3, 5, 7, 9
344 = 4, 5, 7, 9
345 = 1, 4, 5, 7, 9
346 = 2, 4, 5, 7, 9
347 = 1, 2, 4, 5, 7, 9
348 = 3, 4, 5, 7, 9
349 = 1, 3, 4, 5, 7, 9
350 = 2, 3, 4, 5, 7, 9
351 = 1, 2, 3, 4, 5, 7, 9
352 = 6, 7, 9
353 = 1, 6, 7, 9
354 = 2, 6, 7, 9
355 = 1, 2, 6, 7, 9
356 = 3, 6, 7, 9
357 = 1, 3, 6, 7, 9
358 = 2, 3, 6, 7, 9
359 = 1, 2, 3, 6, 7, 9
360 = 4, 6, 7, 9
361 = 1, 4, 6, 7, 9
362 = 2, 4, 6, 7, 9
363 = 1, 2, 4, 6, 7, 9
364 = 3, 4, 6, 7, 9
365 = 1, 3, 4, 6, 7, 9
366 = 2, 3, 4, 6, 7, 9
367 = 1, 2, 3, 4, 6, 7, 9
368 = 5, 6, 7, 9
369 = 1, 5, 6, 7, 9
370 = 2, 5, 6, 7, 9
371 = 1, 2, 5, 6, 7, 9
372 = 3, 5, 6, 7, 9
373 = 1, 3, 5, 6, 7, 9
374 = 2, 3, 5, 6, 7, 9
375 = 1, 2, 3, 5, 6, 7, 9
376 = 4, 5, 6, 7, 9
377 = 1, 4, 5, 6, 7, 9
378 = 2, 4, 5, 6, 7, 9
379 = 1, 2, 4, 5, 6, 7, 9
380 = 3, 4, 5, 6, 7, 9
381 = 1, 3, 4, 5, 6, 7, 9
382 = 2, 3, 4, 5, 6, 7, 9
Switch Value
2
4
8
16
32
64
128
256
1
X
444 = 3, 4, 5, 6, 8, 9
445 = 1, 3, 4, 5, 6, 8, 9
446 = 2, 3, 4, 5, 6, 8, 9
447 = 1, 2, 3, 4, 5, 6, 8, 9
448 = 7, 8, 9
449 = 1, 7, 8, 9
450 = 2, 7, 8, 9
451 = 1, 2, 7, 8, 9
452 = 3, 7, 8, 9
453 = 1, 3, 7, 8, 9
454 = 2, 3, 7, 8, 9
455 = 1, 2, 3, 7, 8, 9
456 = 4, 7, 8, 9
457 = 1, 4, 7, 8, 9
458 = 2, 4, 7, 8, 9
459 = 1, 2, 4, 7, 8, 9
460 = 3, 4, 7, 8, 9
461 = 1, 3, 4, 7, 8, 9
462 = 2, 3, 4, 7, 8, 9
463 = 1, 2, 3, 4, 7, 8, 9
464 = 5, 7, 8, 9
465 = 1, 5, 7, 8, 9
466 = 2, 5, 7, 8, 9
467 = 1, 2, 5, 7, 8, 9
468 = 3, 5, 7, 8, 9
469 = 1, 3, 5, 7, 8, 9
470 = 2, 3, 5, 7, 8, 9
471 = 1, 2, 3, 5, 7, 8, 9
472 = 4, 5, 7, 8, 9
473 = 1, 4, 5, 7, 8, 9
474 = 2, 4, 5, 7, 8, 9
475 = 1, 2, 4, 5, 7, 8, 9
476 = 3, 4, 5, 7, 8, 9
477 = 1, 3, 4, 5, 7, 8, 9
478 = 2, 3, 4, 5, 7, 8, 9
479 = 1, 2, 3, 4, 5, 7, 8, 9
480 = 6, 7, 8, 9
481 = 1, 6, 7, 8, 9
482 = 2, 6, 7, 8, 9
483 = 1, 2, 6, 7, 8, 9
484 = 3, 6, 7, 8, 9
485 = 1, 3, 6, 7, 8, 9
486 = 2, 3, 6, 7, 8, 9
487 = 1, 2, 3, 6, 7, 8, 9
488 = 4, 6, 7, 8, 9
489 = 1, 4, 6, 7, 8, 9
490 = 2, 4, 6, 7, 8, 9
491 = 1, 2, 4, 6, 7, 8, 9
492 = 3, 4, 6, 7, 8, 9
493 = 1, 3, 4, 6, 7, 8, 9
494 = 2, 3, 4, 6, 7, 8, 9
495 = 1, 2, 3, 4, 6, 7, 8, 9
496 = 5, 6, 7, 8, 9,
497 = 1, 5, 6, 7, 8, 9
498 = 2, 5, 6, 7, 8, 9
499 = 1, 2, 5, 6, 7, 8, 9
500 = 3, 5, 6, 7, 8, 9
501 = 1, 3, 5, 6, 7, 8, 9
502 = 2, 3, 5, 6, 7, 8, 9
503 = 1, 2, 3, 5, 6, 7, 8, 9
504 = 4, 5, 6, 7, 8, 9
16
128
2
4
8
32
64 256
1
SW1
ON ON ON ON
ON
2
4
8
32
64 256
1
16
128
X
Address Chart: DMX- MP3 Player Cont.

2
4
8
32
64 256
1
SW1
DMX- MP3 Player
Audio Track Audio DescriptionByte Value Track Name
SFX Track - 1
SFX Track - 2
SFX Track - 3
SFX Track - 4
SFX Track - 5
SFX Track - 6
SFX Track - 7
SFX Track - 8
SFX Track - 9
SFX Track -10
SFX Track -11
SFX Track -12
SFX Track -13
SFX Track -14
SFX Track -15
SFX Track- 16
SFX Track -17
SFX Track -18
SFX Track -19
SFX Track -20
SFX Track- 21
SFX Track- 22
SFX Track- 23
SFX Track- 24
SFX Track -25
SFX Track- 26
SFX Track- 27
SFX Track- 28
SFX Track- 29
SFX Track -30
SFX Track- 31
SFX Track- 32
0 - 7
8 - 15
16 - 23
24 - 31
32 - 39
40 - 47
48 - 55
56 - 63
64 - 71
72 - 79
80 - 87
88 - 95
96 - 103
104 - 111
11 - 119
12 - 127
128 - 135
136 - 143
144 - 151
152 - 159
160 - 167
168 - 175
176 - 183
184 - 191
192 - 199
200 - 207
208 - 215
216 - 223
224 - 231
232 - 239
240 - 247
248 - 255
001.MP3
002.MP3
003.MP3
004.MP3
005.MP3
006.MP3
007.MP3
008.MP3
009.MP3
010.MP3
011.MP3
012.MP3
013.MP3
014.MP3
015.MP3
016.MP3
017.MP3
018.MP3
019.MP3
020.MP3
021.MP3
022.MP3
023.MP3
024.MP3
025.MP3
026.MP3
027.MP3
028.MP3
029.MP3
030.MP3
031.MP3
032.MP3
DMX-VMusic2 Interface
Notes / Worksheet
Base Board Address =
DMX Channel-1 Address =
DMX Channel-2 Address =
DMX Channel-3 Address =
DMX Channel-4 Address =
Comments:
Base Address = 1- 510
2 3 4 5 6 7 8 9 10
ON
1
ON
OFF
2
4
8
32
64 256
Switch Value
1
16
128
X
See Address Chart for Switch Settings
Worksheet W
