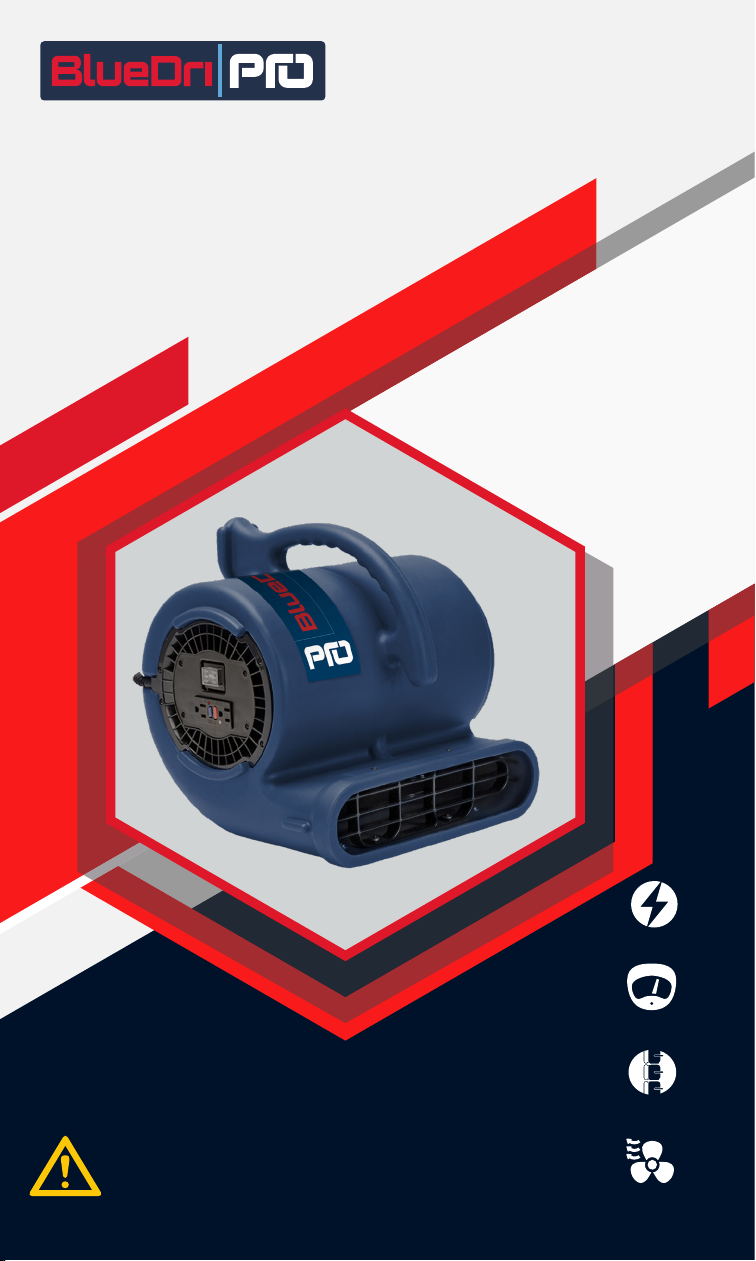

Bluedri BD PRO-33 User manual

1/3 HP
BD PRO-33
OPERATION
SAFETY
SERVICE
WARRANTY
CONTACT
SPECIFICATIONS
TROUBLESHOOTING
Please READ and UNDERSTAND this MANUAL
carefully before using the product in order to REDUCE
the RISK of INJURY. SAVE this manual for instructions.
LOW AMPS
2 SPEEDS
STACKABLE
POWERFUL
AIR MOVER
HIGH VELOCITY FAN

Table Of Contents
Important Safety Instructions
Motor Specifications & Electrical Requirements
Grounding Instructions
Introduction
Product Features
Unpacking & Checking Of Contents
Operating Instructions
Maintenance
Cleaning
User Servicing Instructions
Lubrication
Storage & Transportation
Servicing
Limited Warranty
Parts List
Specifications
Troubleshooting
Warranty Registration
3
4
4
5
5
6
6
6
6
6
7
7
7
7
8
9
10
11
BLUEDRIPRO.COM

IMPORTANT SAFETY INSTRUCTIONS
Your SAFETY is of utmost importance. Please stay alert, use your common sense and
know how this air mover works at all times.
While reading through this manual, please note these IMPORTANT safety signal words:
ATTENTION! Read all safety rules carefully before attempting to operate the
BD PRO-33. Please retain this manual for future reference.
NEVER operate this unit when flammable materials or vapors are
present – electrical devices produce arcs or sparks which may cause a
fire or an explosion.
NEVER operate this unit unattended.
WARNING!
To reduce the risk of fire, electric shock or injury:
Observe the following warnings that appear on the motor housing of your air mover:
• Read and understand this manual and all labels on
the Air Mover before operating the product.
• Use product only as described in this manual.
• To reduce the risk of electric shock, do not expose
to rain, immerse in or use in standing water.
• Store indoors only.
• Use only with GFCI-protected outlets.
• When storing or transporting, do not stack air
movers more than 5 units high.
• Do not use an extension cord with this air mover.
• Electrical appliances can ignite flammable vapors
or dust. Do not use near combustible liquids,
gases or dusts.
• Do not leave plugged into outlet when not in use or
when servicing. Turn off before unplugging.
• To reduce the risk of stirring up and inhaling
toxic vapors, do not use near toxic or hazardous
materials.
• Never operate with safety grills removed.
• This unit has an automatically-operated protective
device which may shut down the unit during
operation. Unplug before servicing or cleaning.
• Do not use with solid state speed control device.
DANGER: indicates a hazardous situation,
which WILL result in death or serious injury,
if not avoided.
CAUTION:
• For dusty operations, wear dust mask.
• Do not move or carry air mover when it is operating.
• Only operate on a level and stable surface to prevent it from falling and possibly causing injury or
damage to unit.
WARNING!
To reduce the risk of electric shock, connect only to a GFCI-protected outlet. Do not expose to water.
WARNING!
TO REDUCE THE RISK OF TIP-OVER DURING STORAGE OR TRANSPORT, STACK UP TO 5 UNITS
HIGH ONLY.
CAUTION:
• This fan has an automatic motor shutoff device. It may restart without notice. To reduce the risk
of injury, unplug before servicing.
• Do not use an extension cord with this fan.
WARNING: indicates a hazardous
situation, which COULD result
in death or serious injury, if not
avoided.
CAUTION: indicates a hazardous situation,
which COULD result in minor or moderate
injury, if not avoided.
• Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
• Do not unplug by pulling on cord. To unplug,
grasp the plug, not the cord.
• Do not use with damaged cord, plug or other parts.
• Call customer service if your air mover is not working
as it should, has missing parts, has been dropped,
damaged, left outdoors or dropped into water.
• Do not pull or carry by cord, use cord as handle,
close a door on cord, or pull cord around sharp
edges or corners. Keep cord away from heated
surfaces.
• Do not run cord under carpeting. Do not cover cord
with throw rugs, runners or similar coverings.
Do not route cord under furniture or appliances.
Arrange cord away from traffic area and where it will
not be tripped over.
• Do not handle plug, switch or the air mover with wet
hands.
• Do not put any object into air intake openings.
• Keep hair, loose clothing, fingers and all parts of the
body away from openings and moving parts.
• Direct air discharge only at work area. Do not direct
air at bystanders.
3
BLUEDRIPRO.COM

Motor Specifications & Electrical Requirements
This BD PRO-33 has a 2-speed, 115-volt, 60 Hz induction motor with a grounding conductor. Ther-
mally protected, it will automatically shut down if overheated. The motor will restart
automatically once cooled, for as long as it is plugged into a power source.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This air mover is equipped with an electric
cord having an equipment grounding conductor and a grounding plug. The plug must be plugged
into a matching outlet that is properly installed and grounded in accordance with all local codes
and ordinances.
Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a
qualified electrician.
Grounding Instructions
The BD PRO-33 must be grounded. Should it malfunction or break down, grounding provides a
path of least resistance for electric current and reduces the risk of electric shock. This appliance
is equipped with a cord that has an equipment-grounding conductor and a grounding plug. The
plug must be inserted into a properly installed and grounded outlet, in accordance with all local
codes and ordinances.
CORDS
• Use three-pronged adapters that are UL and CE approved and with Ground Fault Circuit
Interrupter (G.F.C.I.).
• Do not use cords that show any kind of wear or damage.
• Cords are not covered by warranty.
WARNING! The Total amperage of the BD PRO-33 Air Mover plus all other devic-
es plugged into the receptacle must not exceed 12 amps.
WARNING! Improper connection
of the equipment-grounding
conductor can result in the risk
of an electric shock. Check with
a qualified electrician or service
person if you are in doubt as to
whether the outlet is properly
grounded. Do not modify the plug
provided with the appliance. If
plug does not fit the outlet, have
a proper outlet installed by a
qualified electrician.
NOTE: In Canada, the use of a
temporary adapter is not
permitted by the Canadian
Electrical Code.
4
BLUEDRIPRO.COM

BALANCED CARRYING HANDLE WITH CORD WRAP
INTAKE GRILL
2 SPEED POWER SWITCH
2 ADDITIONAL DAISY CHAINABLE OUTLETS
EXHAUST OUTLET
5
Introduction
Water damage projects require effective air movers that work effectively and efficiently to
deliver results. The BD PRO-33 Air Mover from BLUE DRI PRO® is among the most effective
and efficient products at helping water damage restoration professionals achieve outstand-
ing results. The BD PRO-33 is tough and fully capable of doing its job in rugged commercial
and industrial environments.
Product Features
The BD PRO-33 combines easy maneuverability with professional power. Designed for
restoration contractors, this air mover is half the size of any other in its class, yet never fails
to get the job done. The BD PRO-33 uses only 2.9 amps and an on-board GFCI outlet, allow-
ing up to 4 units to be daisy chained to a single standard 15-amp household circuit.
Conveniently designed to produce airflow at three different angles: horizontally, 45°, and 90°.
The BD PRO-33 is made using extremely durable rotationally folded plastic, which protects
the powerful 1/3 HP motor from being damaged by moisture. This commercial air mover is
extremely easy to carry and maneuver due to its lightweight size and compact design.
This is a unit that can be left on overnight for days until the job is completed and dry.
Note: The unit should not be left unattended for any length of time.
Interlocking contact points at air intake grills and exhaust points allows the Vent line of air
movers to be stacked securely up to 5 units high. The sturdy handle serves as a power cord
manager as well as a way to mount in trucks and on storage walls. Overall, this simple piece
of equipment has a lot to offer.
BLUEDRIPRO.COM

Unpacking & Checking Of Contents
Unpack your BD PRO-33 carefully and inspect if all parts are intact. If any of the parts are
missing or damaged, please call 844-240-0444 or email inf[email protected].
Operating Instructions
This BD PRO-33 requires NO ASSEMBLY. The BD PRO-33 is packaged and ready to be put to
work.
The BD PRO-33 is intended to be used for drying carpet spills, drying surfaces such as bath-
room, garage or room floors, ventilating and circulating air, as well as drying hard-to-reach
areas such as under a leaky sink or inside damp cabinets.
1. Place the unit on the surface that needs to be dried.
2. Plug the unit into a grounded outlet .
3. Select the desired speed and position (0º, 45º or 90º].
Maintenance
Cleaning
User Servicing Instructions
WARNING: As with all electrical equipment, the unit must be disconnected
from power before servicing or cleaning.
WARNING: To reduce the risk of injury from the air mover accidentally
starting, unplug power cord before cleaning. The outside of the unit may be
cleaned with a damp cloth to remove any dust or residue.
WARNING: Be sure to disconnect power supply before attempting to service
or remove any components. Do not attempt to service your air mover beyond
what is described in the user manual. For all other servicing, follow instructions
in the Warranty section.
1. Before each use, inspect the unit for damage, blocked inlets and exhaust and for foreign
material buildup.
2. When the BD PRO-33 is turned on, inspect the unit for excessive vibration. In the event
of excessive vibration or if the fan wheel rubs against the rotomolded housing,
immediately turn off the unit and have a certified technician inspect the unit.
6

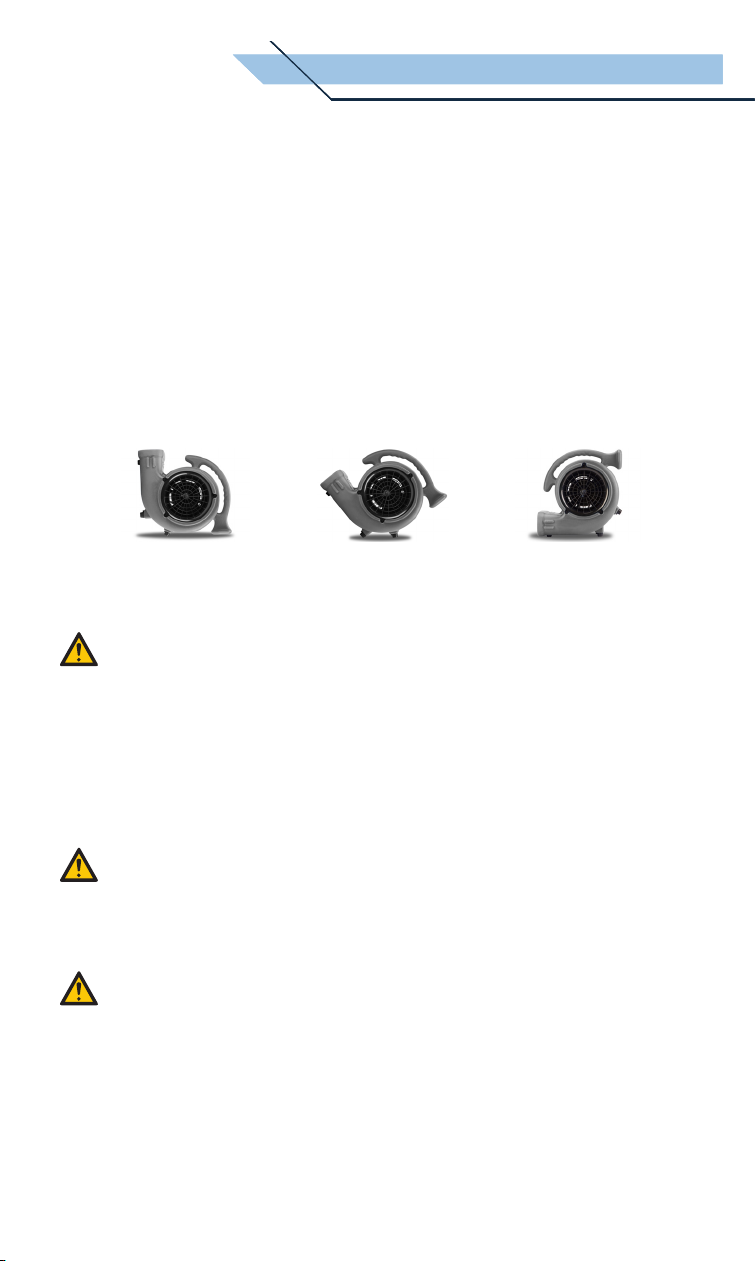

90º Angle
Ceiling and Ventilation
45º Angle
Walls
Horizontal
Floors and Carpet
BLUEDRIPRO.COM

Lubrication
NO LUBRICATION IS NECESSARY. The motor is equipped with lifetime lubricated bearings.
Storage & Transportation
1. Before storing your air mover, it should be cleaned.
2. Wrap the power cord around the carry handle on top of the unit to keep it untangled.
3. If you have more than one unit, store units by stacking. Do not stack more than
5 units high.
4. Never operate unit while on its side or while stacked.
5. THE BD PRO-33 SHOULD BE STORED INDOORS.
Servicing
In order to receive service or replacement parts under warranty, you must:
a. Call BLUE DRI PRO for an RMA (Return Merchandise Authorization Number)
b. Have your proof of purchase ready.
Upon inspection, we will advise you of the repairs needed and the cost (if applicable). BLUE DRI
PRO will issue repair or replacement parts depending on warranty.
Limited Warranty
Warranty covers against defects in material and craftsmanship under normal intended use to
original purchaser for a term of two (2) years from original date of purchase including parts,
labor and one-way shipping. Housing is covered for a term of five (5) years from date of original
purchase.
IMPORTANT!
Warranty does not cover signs of misuse, including (but not limited to) rough handling, abuse,
tampering, improper voltage use and unauthorized maintenance or repairs.
CAUTION:
Do not operate this air mover while stacked on top of each other.
Do not stack more than 5 units high.
7
BLUEDRIPRO.COM

VP-33
B-AIR.COM

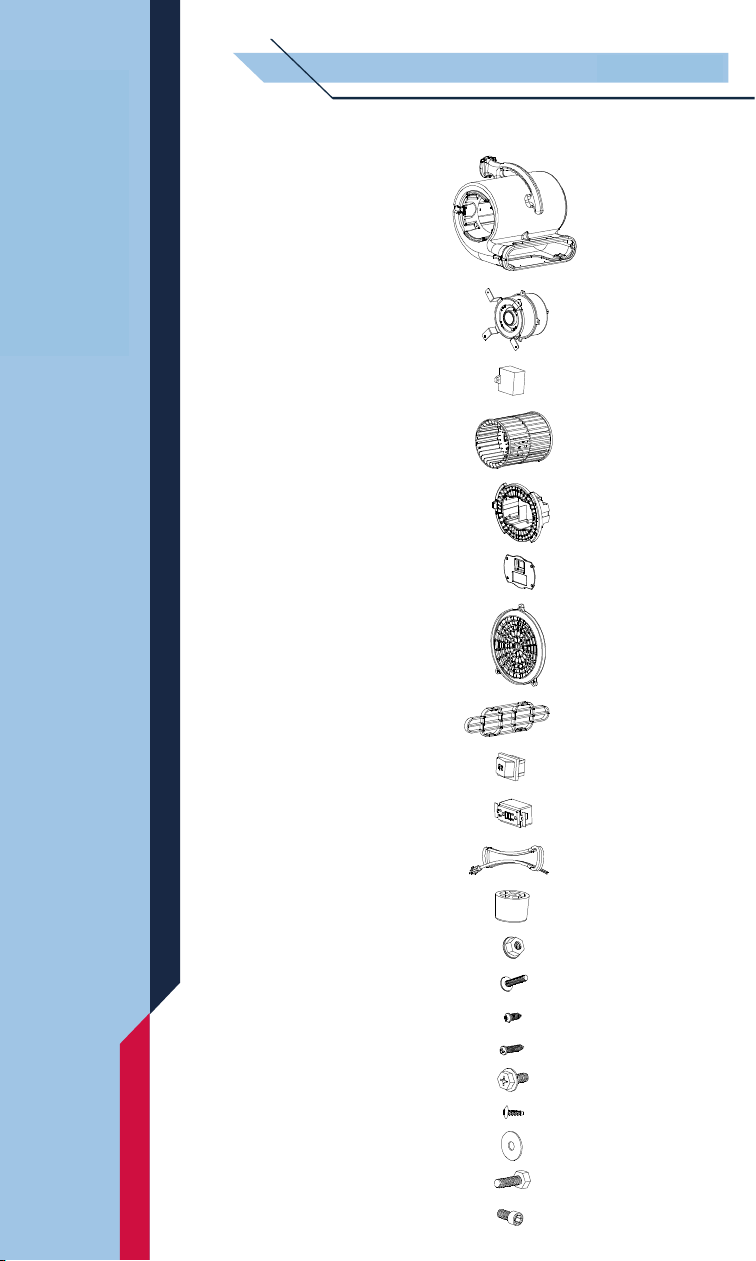

Parts List
1. Housing --------------------------
2. Motor --------------------------
3. Capacitor ------------------------
4. Fan ------------------------------
5. Air Intake Grill (M) ---------------
6. Switch Cover --------------------
7. Air Intake Grill (F)------------------
8. Air Exhaust Grill ------------------
9. Switch ----------------------------
11. Power Cord -----------------------
10. GFCI ------ -----------------------
12. Rubber Feet ---------------------
13. Nut 5mm -------------------------
14. Screw 5x20mm ------------------
15. Screw 4x12mm ------------------
16. Screw 4x18mm ------------------
17. Screw 6x14mm ------------------
18. Screw 4x10mm ------------------
19. Washer 6mm -------------------
20. Screw (L) 6x20mm -------------
21. Screw 6x8mm ------------------
------------- X1
------------- X1
------------- X1
------------- X1
------------- X1
------------- X1
------------- X1
------------- X1
------------- X1
------------- X1
------------- X1
------------- X4
------------- X6
------------- X6
------------- X6
------------- X7
------------- X4
------------- X4
------------- X1
------------- X1
------------- X1
8
BD PRO-33
BLUEDRIPRO.COM

9
SPECIFICATIONS
Motor 1/3 HP
Amps L 2.6 / H 2.9 AMPS
Built in Power Outlet 9 AMPS
Speeds 2 / Positions 3, 0º, 45º, 90º
Certification C-ETL-US
Daisy Chain Yes / Stackable 5 units
Voltage 115V
Cycle 60Hz
Max Static Pressure 1.7”
Weight Net 21 Lbs (24 Lbs with box)
Size (LxWxH) 16”x 14.5”x 15.5”
Wheel Speed (RPM) L 1510 / H 1700
Attached Cord 25’ (FT) 14 AWG
BLUEDRIPRO.COM

TROUBLESHOOTING
PROBLEM
Unit Not Running
Running But Making
Loud, Grating Noise
Excessive Vibration
Blower Wheel Not Turning
Unit Runs But Shuts Off
On Overload
*For these issues, please contact factory for further instructions and assistance.
POSSIBLE CAUSE
a) Switch is OFF
b) No Power
c) Bad Outlet
d) Faulty Switch
e) Faulty or Broken
Motor Wire or Cord
a) Severe Jolting Causing
Blower Wheel To Rub
Against Housing
b) Severe Jolting Deformed
Housing
a) Severe Jolting Caused
Motor Shaft To Bend; Unit Is
Out Of Balance
b) Damaged Blower Wheel Blade
c) Build Up Of Dirt On One Side
Of Blower Wheel
a) Blower Wheel Jammed
Against Housing
b) Broken/Loose Capacitor
Wire; Failed Capacitor
c) Damaged Housing Is
Pressing On Blower Wheel
a) Failing Motor Bearings;
Internal Electrical Fault
In Motor
b) Obstruction In Intake
Grill/Exhaust Grill
SOLUTION
a) Turn Switch On
b) Plug Unit In; Check
Circuit Breaker
c) Check Outlet/Change
To Another Outlet
d) Replace Switch*
e) Use Volt/Amp Meter
to Check On
Continuity; Replace
Faulty Motor Wire
or Cord*
a) Remove And Replace
Damaged Motor Or
Motor Mounts, If
Needed*
b) Replace Blower Wheel
Or Damaged Housing*
a) Remove And Replace
Motor*
b) Replace Blower Wheel*
c) Clean Blower Wheel
Blades
a) Remove And Replace
Damaged Motor
Mounts*; Replace
Blower Wheel, If Needed*
b) Replace Capacitor Wire/
Motor, If Needed*
c) Replace Housing/Unit,
If Needed*
a) Replace Motor*
b) Remove Obstruction
10
BLUEDRIPRO.COM

11
www.bluedripro.com/register
Warranty Registration
ONLINE
BY MAIL
Please fill out and submit your warranty form at:
For multiple units, please list serial numbers on a seperate sheet.
This warranty card and your bill of sale must be presented for warranty service.
Please complete, mail or fax your product registration card.
Company name
Contact name
Street adress
City
Title
State Zip
Fax
Date of purchase
Phone
Email
Product serial number
Purchase form
Thank you for your purchase.
BLUEDRIPRO.COM

SENDER
ADRESS
HERE
MAIL TO
BLUE DRI PRO
WARRANTY REGISTRATION
550 South Ayon Ave
AZUSA, CA 91702
AFFIX
STAMP
HERE
550 S Ayon Ave
Azusa, CA 91702
844-240-0444
Email: [e-mail]
Website: www.bluedripro.com
BLUEDRIPRO.COM
