BlueRhino Razor GGC1643L-C User manual

Outdoor LP Gas Griddle
Model No. GGC1643L-C
OWNER’S MANUAL
Table of Contents
Important Safeguards ...........................................................Page 2
Expanded View & Hardware .......................................................... 4
Assembly Instructions............................................................... 5
Transporting & Storage Instructions .................................................... 8
Installing LP Gas Tank.............................................................. 11
Operating Instructions.............................................................. 11
Cleaning and Care ................................................................ 12
Product Registration ............................................................... 13
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Limited Warranty ................................................................. 14
Troubleshooting .................................................................. 15
The use and installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1,
or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/
NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP
FOR FUTURE REFERENCE.
If you are assembling this unit for someone else, give this manual to them to read and save for future
reference.
Made from 75% Bagasse
(environmentally friendly sugar
cane pulp by-product)
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury, or
death.
4. This instruction manual contains important
information necessary for the proper
assembly and safe use of the appliance.
5. Read and follow all warnings and
instructions before assembling and using
the appliance.
6. Follow all warnings and instructions when
using the appliance.
7. Keep this manual for future reference.
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
2. An LP cylinder not connected for use shall
NOT be stored in the vicinity of this or any
other appliance.
DANGER
Never operate this appliance unattended.
Manufactured in China for: RevoAce Inc. Limited
Hong Kong, China • 1.800.694.0013 • ser[email protected]
© RevoAce Inc. Limited
Blue Rhino®is a registered trademark of Blue Rhino Global Sourcing, Inc. Used with permission.
Razor™ is a trademark of Blue Rhino Global Sourcing, Inc. Used with permission. GGC1643L-C-EF-OM-F109
IMPORTANT
After each use, always season your griddle per “Seasoning
Griddle” section.
PATENT PENDING

Outdoor LP Gas Griddle
Model No. GGC1643L-C
2
WThis griddle is for outdoor use only, and should not be used in a
building, garage or any other enclosed area.
WDo NOT operate, light or use this appliance within ten feet (3.05 m) of
walls, structures or buildings.
WFor residential use only. This griddle is NOT for commercial use.
WThis griddle is not intended for and should never be used as a heater.
TOXIC fumes can accumulate and cause asphyxiation.
WThis griddle is safety certified for use in the United States and/or
Canada only. Do NOT modify for use in any other location. Modification
will result in a safety hazard and will void your warranty.
WThis griddle is for use with liquid propane (LP) gas only. The conversion
to or attempted use of natural gas in this LP gas griddle is dangerous,
may cause bodily harm and will void your warranty.
WLP gas characteristics:
a. LP gas is flammable and hazardous if handled improperly. Become
aware of the characteristics before using any LP gas product.
b. LP gas is explosive under pressure, heavier than air, and settles/
pools in low areas.
c. LP gas in its natural state has no odor. For your safety, an odorant is
added that smells like rotten cabbage.
d. Contact with LP gas can cause freeze burns to skin.
WApartment dwellers: Check with management to learn the requirements
and fire codes for using a LP gas griddle in your apartment complex.
If allowed, use outside on the ground floor with a ten foot (3.05 m)
clearance from any structure. Do NOT use on or under balconies.
WLP gas cylinder needed to operate. Only cylinders marked “propane”
may be used.
WThe LP gas cylinder must be constructed and marked in accordance
with the Specifications for LP-gas Cylinders of the U.S. Department
of Transportation (D.O.T.) or the National Standard of Canada, CAN/
CSA-B339, Cylinders, Spheres and Tubes for the Transportation of
Dangerous Goods; and Commission.
WLP gas cylinder must be arranged for vapor withdrawal.
WThe LP gas cylinder must have a listed overfilling prevention device
(OPD).
WOnly use LP gas cylinders equipped with a cylinder connection device
compatible with the connection for outdoor cooking appliances.
WThe LP gas cylinder must have a cylinder collar to protect the cylinder
valve.
WNever use an LP gas cylinder with a damaged body, valve, collar or
footing.
WDented or rusted LP gas cylinders may be hazardous and should be
checked by your LP gas supplier prior to use.
WThe LP gas cylinder should not be dropped or handled roughly.
WLP gas cylinders must be stored outdoors out of the reach of children
and must not be stored in a building, garage or any other enclosed area.
Your cylinder must never be stored where temperatures can reach over
125°F.
WDo NOT insert any tool or foreign object into the valve outlet or safety
relief valve. You may damage the valve and cause a leak. Leaking
propane may result in an explosion, fire, severe personal injury or death.
WDo NOT block holes in sides or back of griddle.
WNever keep an LP gas cylinder in a hot car or trunk. Heat will cause the
gas pressure to increase, which may open the relief valve and allow gas
to escape.
WPlace dust cap on cylinder valve outlet whenever the cylinder is not in
use. Only install the type of dust cap on the cylinder valve outlet that is
provided with the cylinder valve. Other types of caps or plugs may result
in leakage of propane.
WIf griddle is not in use, the gas must be turned off at the supply cylinder
and disconnected.
WDo NOT store a spare LP gas cylinder under or near this appliance.
WNever fill the cylinder beyond 80 percent full.
WA fire causing serious injury or damage to property may occur if the
above is not followed exactly.
WNever attempt to attach this griddle to the self-contained LP gas system
of a camper trailer, motor home or house.
WNever use charcoal, lighter fluid, lava rocks, gasoline, kerosene or
alcohol with this product.
WYour griddle has been checked at all factory connections for leaks.
Re-check all connections as described in the “Operating Instructions”
section, as shipping can loosen connections.
WCheck for leaks even if your unit was assembled for you by someone
else.
WDo NOT operate if a gas leak is present. Gas leaks may cause a fire or
explosion.
WYou must follow all instructions in the “Checking for Leaks” section
before operating. To prevent fire or explosion hazard when testing for a
leak:
a. Always perform a leak test before lighting the griddle and each time
the cylinder is connected for use.
b. No smoking. Do NOT use or permit sources of ignition in the area
while conducting a leak test.
c. Conduct the leak test outdoors in a well-ventilated area.
d. Do NOT use matches, lighters, or a flame to check for leaks.
e. The use of alcohol, prescription or non-prescription drugs may
impair the consumer’s ability to properly assemble or safely operate
the appliance.
f. Strong odors, colds, sinus congestion, etc. may prevent the
detection of propane. Use caution and common sense when testing
for leaks.
g. Do NOT use griddle until any and all leaks are corrected.
If you are unable to stop a leak, disconnect the LP gas supply. Call a
gas appliance serviceman or your local LP gas supplier.
WThis griddle is designed to operate at an inlet pressure of: 11 inches
water column.
WDo NOT store or use gasoline or other flammable liquids or vapors
within 25 feet (7.62 m) of this appliance.
WDo NOT use in an explosive atmosphere. Keep griddle area clear and
free from combustible materials, gasoline and other flammable vapors
and liquids.
WMinimum clearance from sides and back of unit to combustible
construction is 36 inches (91.4 cm). Do NOT use this appliance under
any type of overhang or roof.
WIt is essential to keep the griddle’s valve compartment, burners and
circulating air passages clean.
WInspect griddle before each use.
WDo NOT alter griddle in any manner. Any alteration will void your
warranty.
WDo NOT use the griddle unless it is COMPLETELY assembled and all parts
are securely fastened and tightened.
WDo NOT build this model of griddle in any built-in or slide-in
construction. Ignoring this warning could cause a fire or an explosion
that can damage property and cause serious bodily injury or death.
WThis griddle should be thoroughly cleaned and inspected on a regular
basis.
WClean and inspect the hose before each use of the appliance. If there
is evidence of abrasion, wear, cuts or leaks, the hose must be replaced
prior to operation.
WUse only the regulator and hose assembly provided. Use only the
replacement regulator and hose assembly specified by RevoAce Inc.
Limited
WUse only RevoAce Inc. Limited factory-authorized parts. The use of any
part that is not factory-authorized can be dangerous and will void your
warranty.
WDo NOT operate this appliance without reading “Operating Instructions”
in this manual.
WDANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion
causing damage to property.
WWARNINGS:
Important Safeguards

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013 3
WDo NOT touch metal parts of griddle until they have completely cooled
to avoid burns, unless you are wearing protective gear (pot holders,
gloves, BBQ mittens, etc.).
WDo NOT install or use in or on boats or recreational vehicles.
WWhen cooking, fire extinguishing materials should be readily accessible.
In the event of an oil/grease fire, do NOT attempt to extinguish with
water. Use type BC dry chemical fire extinguisher or smother with dirt,
sand or baking soda.
WDo NOT use griddle in high winds.
WNever lean over the griddle when lighting.
WDo NOT leave a lit griddle unattended. Keep children and pets away from
griddle at all times.
WDo NOT leave griddle unattended while preheating or burning off food
residue on high. If griddle has not been cleaned, a grease fire can occur
that may damage the product.
WDo NOT place empty cooking vessels on the appliance while in
operation.
WUse caution when placing anything on the griddle while the appliance is
in operation.
WDo NOT attempt to move griddle when in use. Allow the griddle to cool
before moving or storing.
WLP gas cylinder must be properly disconnected and removed prior to
moving this griddle.
WStorage of griddle indoors is permissible only if the cylinder is
disconnected, removed from the griddle and properly stored outdoors.
WDo NOT attempt to disconnect the gas regulator from the cylinder or any
gas fitting while the griddle is in use.
WAlways place your griddle on a hard, non-combustible, level surface. An
asphalt or blacktop surface may not be acceptable for this purpose.
WMove gas hoses as far away as possible from hot surfaces and dripping
hot grease.
WKeep all electrical cords away from a hot griddle.
WAfter a period of storage and/or nonuse, check for leaks, burner
obstructions and inspect for any abrasion, wear or cuts to the hose.
WFailure to open side shelves while igniting the griddle’s burners, or not
waiting 5 minutes to allow the gas to clear if the griddle does not light,
may result in an explosive flame-up.
WAlways use a meat thermometer to ensure food is cooked to a safe
temperature.
WUse protective gloves when assembling this product.
WDo NOT force parts together as this can result in personal injury or
damage to the product.
WNever cover entire cooking area with aluminum foil.
WDeaths, serious injury or damage to property may occur if the above is
not followed exactly.
Important Safeguards

Outdoor LP Gas Griddle
Model No. GGC1643L-C
4
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10 Wrench 2 pcs
Hardware
AScrew M6x16 Nickel Plated Phillips Truss Head 8 pcs
BNut M10 Nickel Plated 2 pcs
Parts List
1Griddle Surface* G1643-010
2Left Side Shelf* G1643-020
3Towel Bar (2)* G1643-030
4U Burner* G1643-040
5Burner (3)* G1643-050
6Griddle Body Assembly* G1643-061
7Right Side Shelf* G1643-070
8Main Control Knob
Bezel (3)* G1143-090
9Sear Control Knob Bezel* G1143-091
10 Brand Plate* B0109-BR0
11 Locking Wheel (2)* G1643-080
12 Left Cart Frame* G1643-090
13 Right Cart Frame* G1643-100
14 Side Handle (2) G1643-110
15 Control Knob (4) G0850-G23
16 Grease Cup G1643-120
17 Regulator/Hose
Assembly* B0308-A18
18 Lighting Hook* B0223-D04
19 Upper LP Gas Tank
Support* †G1643-130
20 Leg Locking Assembly* G1643-140
21 Lower LP Gas Tank
Support* †G1643-150
22 Wheel (2) G1643-160
23 Bottom Shelf G1643-170
24 Side Shelf Lock A (2)* †B0107-E05
25 Side Shelf Lock B (2)* †B0107-I09
26 Bottom Shelf Screw (2) G1643-180
27 Axle G1643-190
28 LP Gas Tank Heat
Shield* G1643-200
* Pre-assembled
†Not replaceable

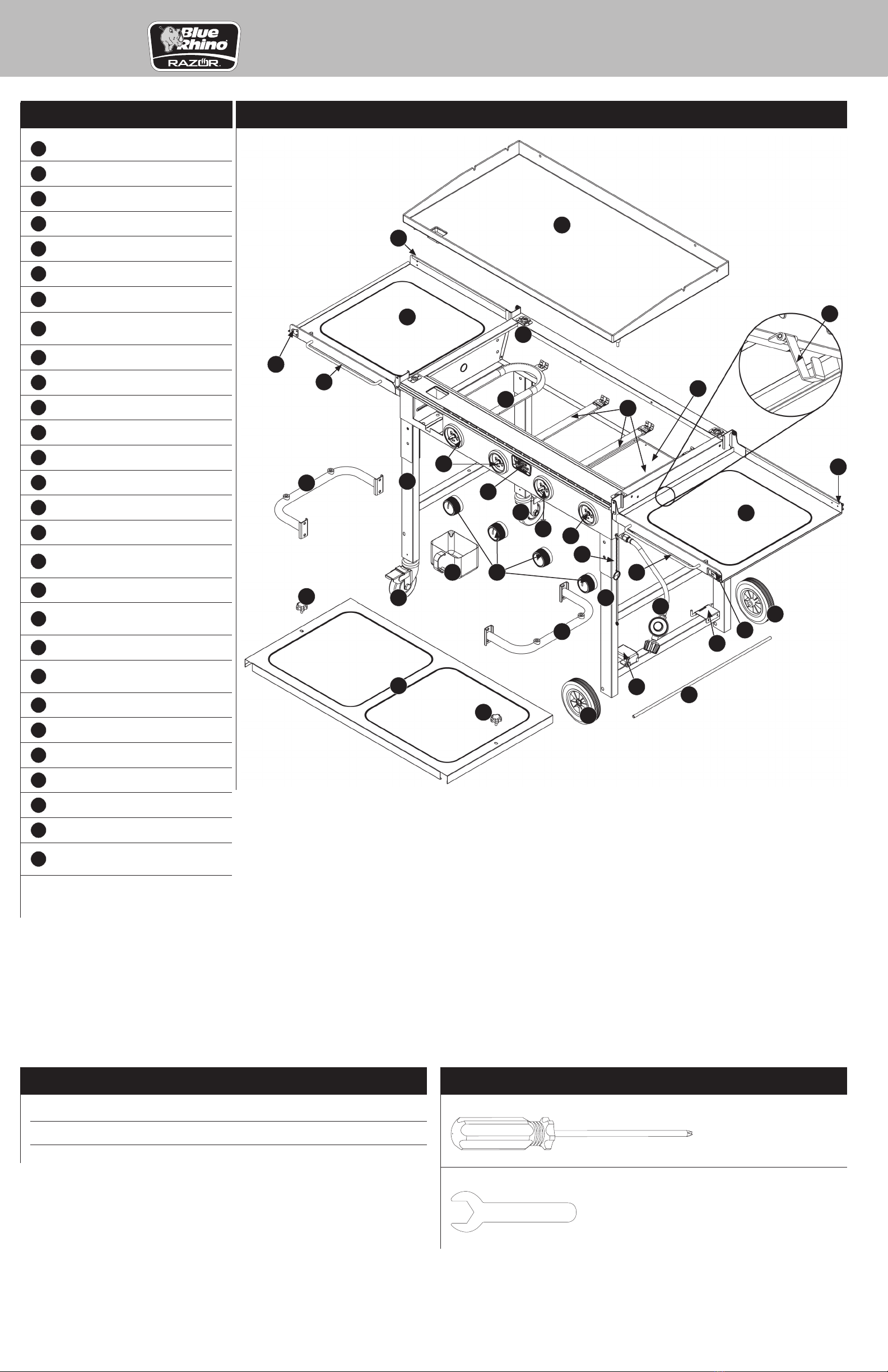

Expanded View
1
22
22
3
3
6
11
11
4
7
12
23
26
26
24
24
25
27
25
8
89
2
20
19
18
21
13
10
5
14
14
15
17
16
28

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013 5
1
DO NOT RETURN TO PLACE OF PURCHASE.
For assistance, call 1.800.694.0013 toll-free. Please have
your owner’s manual and model number available for
reference.
Note: The model number is printed on a label which can be found on
the bottom shelf.
Assembly Tips:
1. Select an area where you will assemble this product. To
protect components, choose a smooth surface that’s free of
cracks or openings.
2. Spread out all parts.
3. Tighten all hardware connections by hand first. Then, before
completing each step, go back and fully tighten all hardware.
Be careful not to over-tighten. That could damage surfaces or
strip threads.
4. For best results, complete each step in the order presented.
To complete assembly you will need:
• (1) Leak detection solution (instructions on how to make the
solution are included in the “Operating Instructions” section of
this manual).
• (1) Precision-filled LP gas grill tank with Acme Type 1 external
threaded valve connection (standard grill size) (not included).
Typical assembly is approximately one hour.
WCAUTION: Two (2) people are required for
assembly.
Assembly Instructions
3

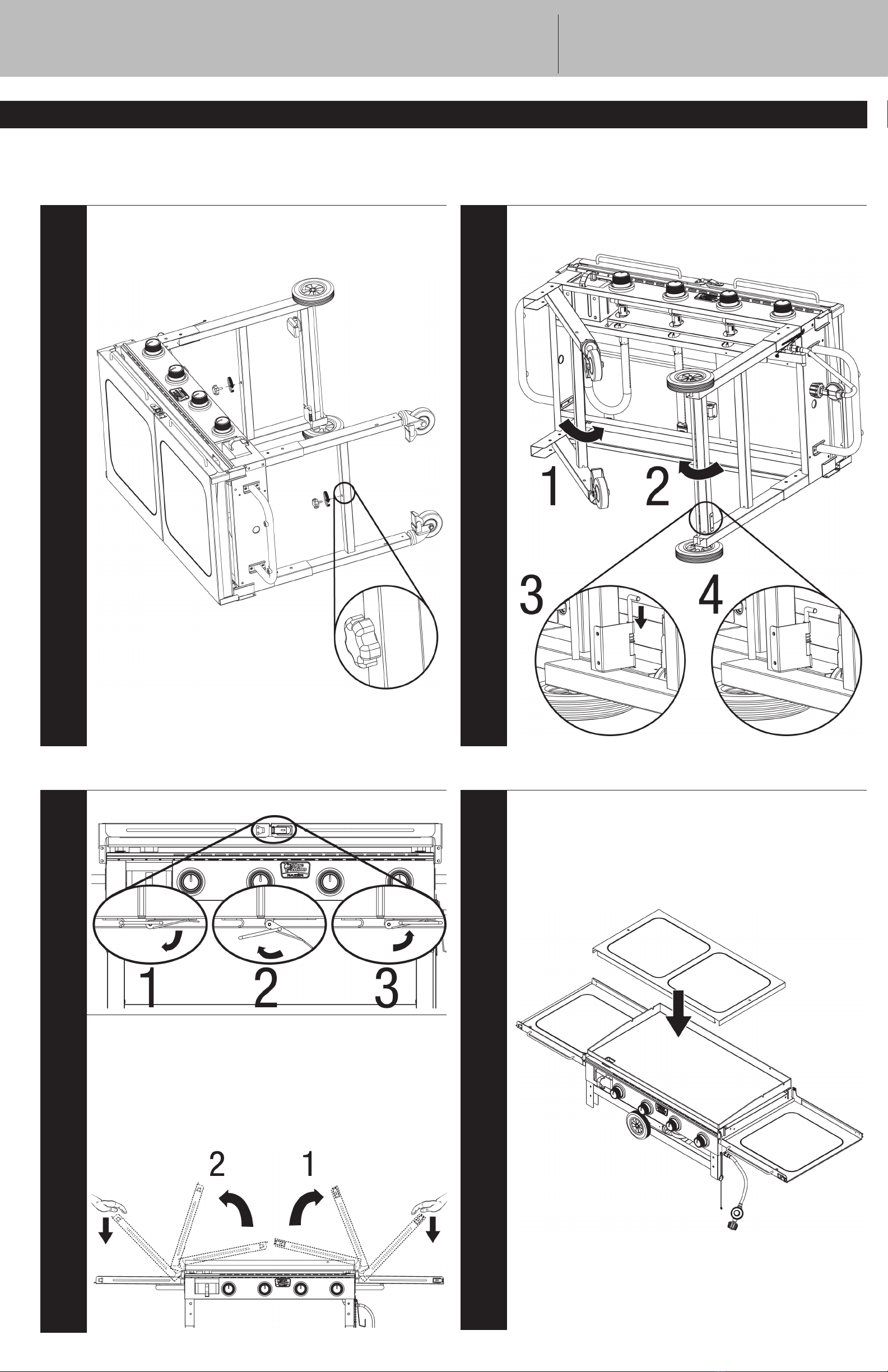

Remove Bottom Shelf and Axle
2
Unlock Side Shelves
Open Side Shelves
Open right side shelf first, then left side. Make sure side shelves are pushed all the
way down.
Note: support springs may cause the side shelves NOT to rest completely flush with
the side handles.
WCAUTION: Hold side shelf securely while opening. Do NOT
release until fully extended.
WCAUTION: Maximum side shelf weight is 33 lbs (15 kg).
4
Close Side Shelves
Close left side shelf first, then right side shelf.
WCAUTION: Hold side shelf securely while closing. Do NOT
release until fully closed.
Lock Side Shelves

Outdoor LP Gas Griddle
Model No. GGC1643L-C
6

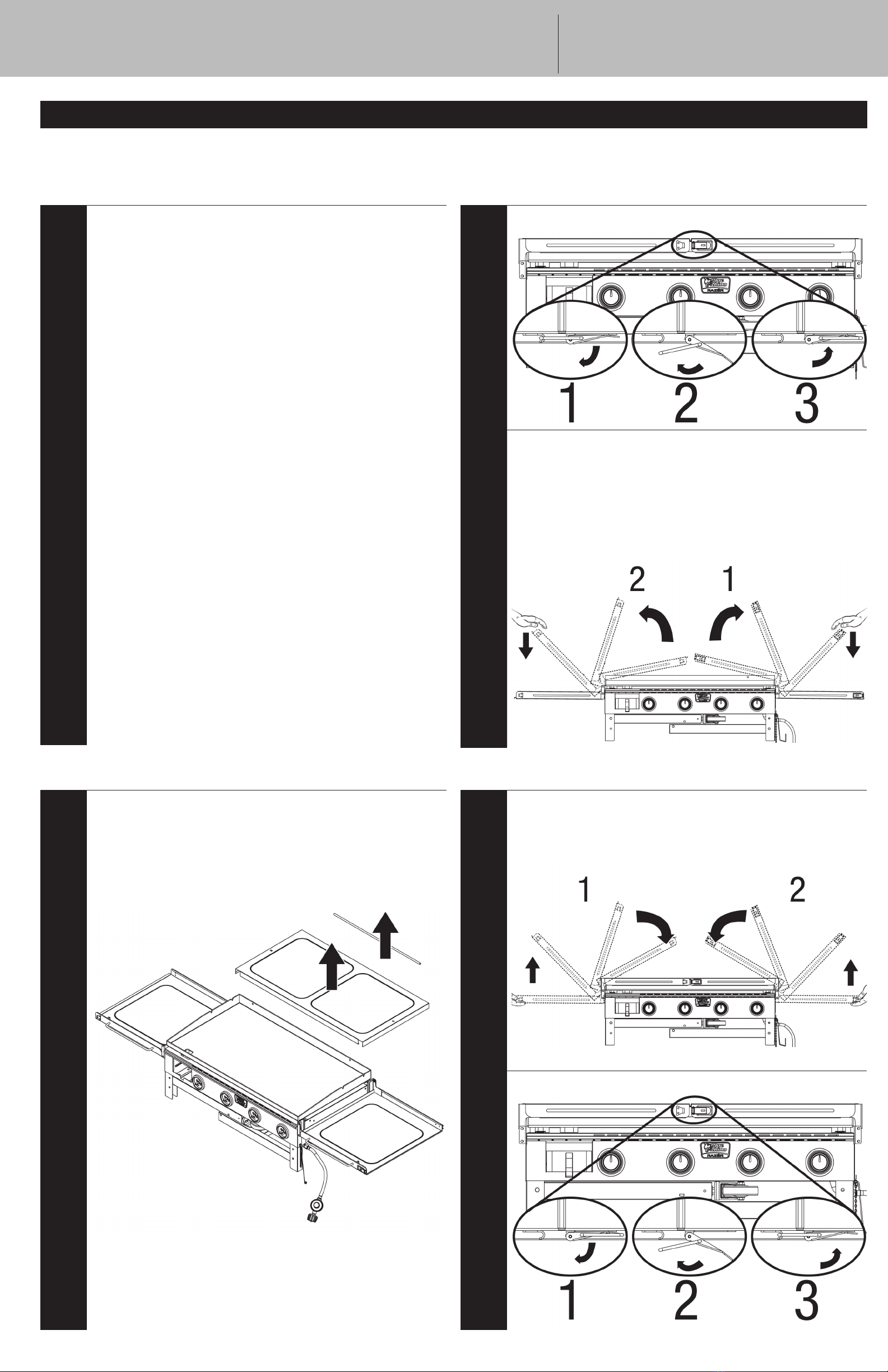

Assembly Instructions (continued)
7
Attach Bottom Shelf
8
Attach Side Handles and Insert Control Knobs
WCAUTION: Two (2) people will be required to stand griddle
upright.
Ax 8
6
Open Legs
WCAUTION: Two (2) people will be required to lay griddle on
back.
Note: Open right leg first.
5
Attach Wheels
Bx 2

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013 7

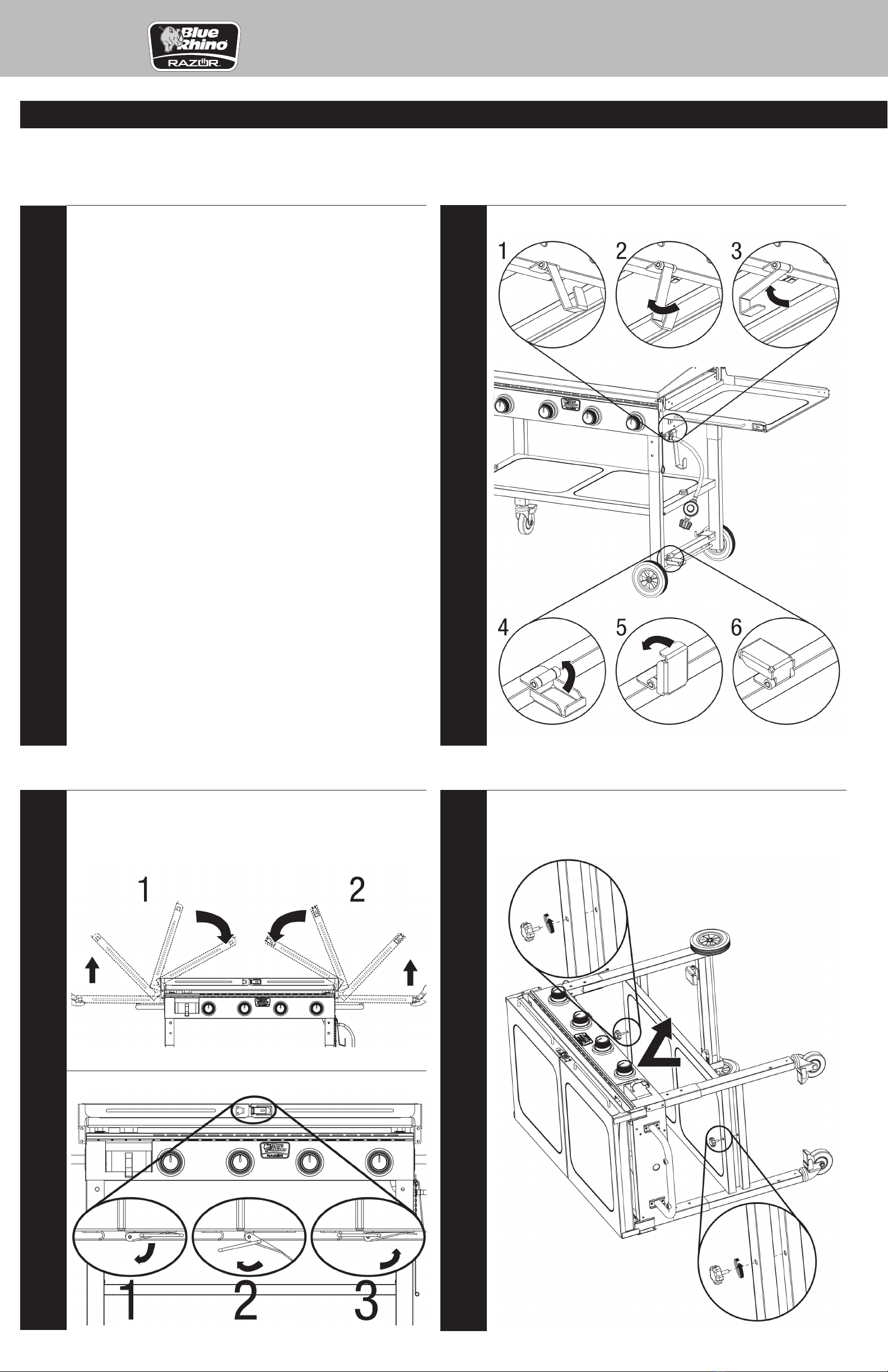

Assembly Instructions (continued)
9
Insert Grease Cup
11
Close Side Shelves
Close left side shelf first, then right side shelf.
WCAUTION: Hold side shelf securely while closing. Do NOT
release until fully closed.
Lock Side Shelves
10
Unlock Side Shelves
Open Side Shelves
Open right side shelf first, then left side. Make sure side shelves are pushed all the
way down.
Note: support springs may cause the side shelves NOT to rest completely flush with
the side handles.
WCAUTION: Hold side shelf securely while opening. Do NOT
release until fully extended.
WCAUTION: Maximum side shelf weight is 33 lbs (15 kg).
IMPORTANT
Before first use and after each use, always
season your griddle per “Seasoning Griddle”
section.

Outdoor LP Gas Griddle
Model No. GGC1643L-C
8
Transporting & Storage Instructions
1
WWARNING: Before transporting or storing this
griddle:
a. Always season griddle per “Seasoning
Griddle” section.
b. Always clean griddle per “Cleaning
Instructions” section.
c. Always wait until griddle is cool.
d. Always turn griddle off per “Turning Off”
section.
e. Always disconnect tank per “Disconnecting
LP Gas Tank” section.
f. Always empty and properly dispose of all
items in grease cup.
WWARNING: When transporting or storing this
unit, always follow the instructions found in
this section.
WCAUTION: Two (2) people will be required to
prepare for transportation and/or storage.
2
Secure LP Gas Tank Supports
4
Remove Bottom Shelf
WCAUTION: Two (2) people will be required to lay griddle on
back.
3
Close Side Shelves
Close left side shelf first, then right side shelf.
WCAUTION: Hold side shelf securely while closing. Do NOT
release until fully closed.
Lock Side Shelves

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013 9

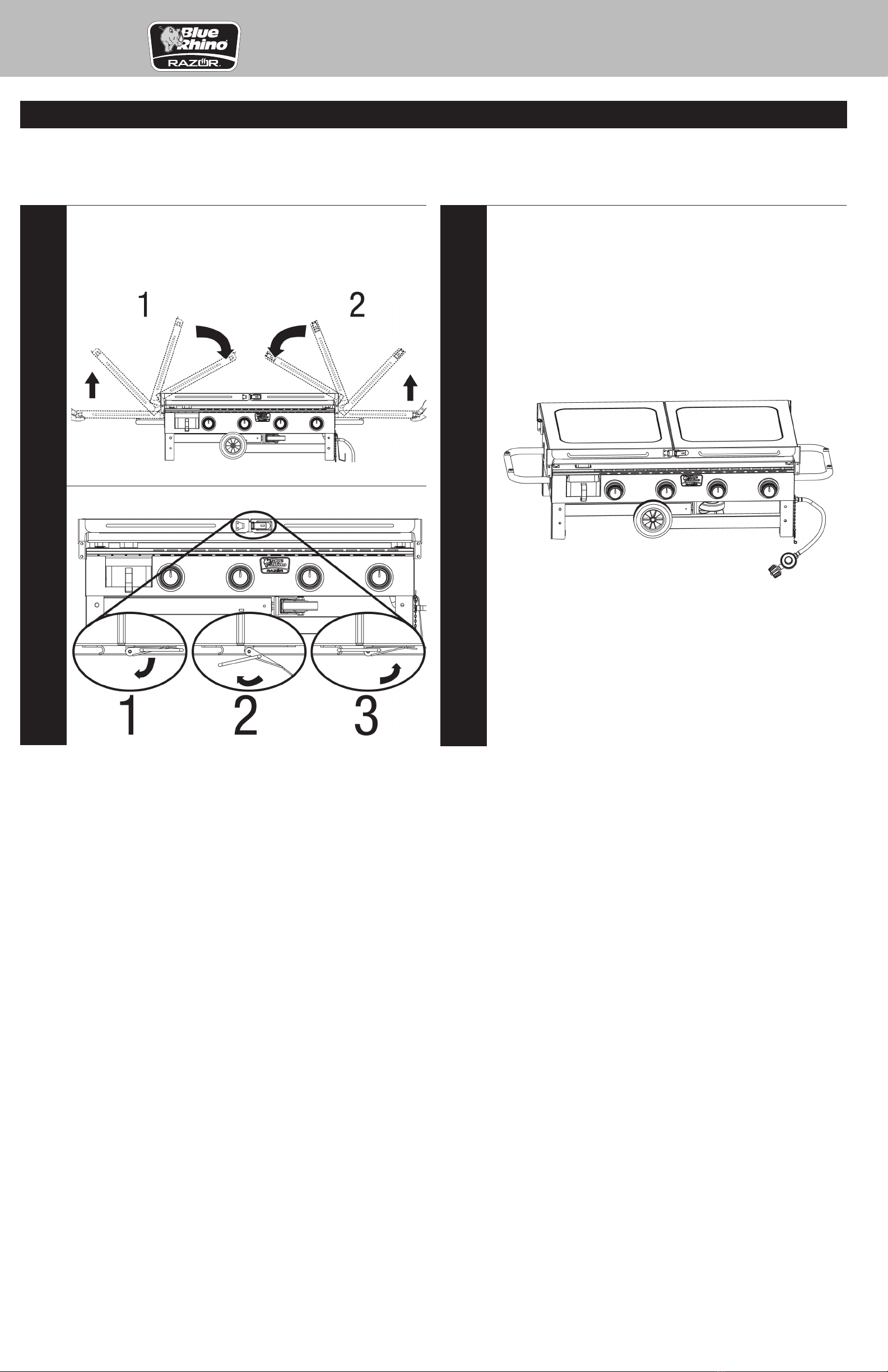

Transporting & Storage Instructions
5
Attach Bottom Shelf Screws
6
Close Legs
Note: Close left leg first.
8
Place Bottom Shelf
7
Unlock Side Shelves
Open Side Shelves
Open right side shelf first, then left side. Make sure side shelves are pushed all the
way down.
Note: support springs may cause the side shelves NOT to rest completely flush with
the side handles.
WCAUTION: Hold side shelf securely while opening. Do NOT
release until fully extended.
WCAUTION: Maximum side shelf weight is 33 lbs (15 kg).

Outdoor LP Gas Griddle
Model No. GGC1643L-C
10
10
Transport or Store your Griddle
Transporting & Storage Instructions (continued)
9
Close Side Shelves
Close left side shelf first, then right side shelf.
WCAUTION: Hold side shelf securely while closing. Do NOT
release until fully closed.
Lock Side Shelves

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013 11
Installing LP Gas Tank
To operate, you will need one precision-filled standard barbecue
grill LP gas tank with external valve threads.
WCAUTION: LP gas tank must be properly
disconnected and removed prior to moving this
griddle.
Inserting and Securing LP Gas Tank
1. Unfold the upper LP gas tank support.
2. Unfold the lower LP Gas tank support.
3. Place precision-filled LP gas tank upright onto the upper and lower LP gas tank support so
the tank valve is facing the gas line connection.
Connecting LP Gas Tank
1. Make sure control knobs are in the “ OFF” position
(Figure 2).
2. Before connecting, be sure there is no debris caught
in the head of the LP gas tank, head of the regulator
valve or in the head of the burner or burner ports.
3. Connect regulator/hose assembly to tank by turning
knob clockwise until it stops.
4. Perform leak test per “Checking for Leaks” section.
Disconnecting LP Gas Tank
1. Make sure control knobs are in the “ OFF” position
(Figure 2).
2. Before disconnecting, make sure the LP gas tank valve
is “CLOSED.”
3. Disconnect regulator/hose assembly from LP gas tank
by turning knob counterclockwise until it is loose.
WCAUTION: LP gas tank must be properly
disconnected and removed prior to
moving this griddle.
4. Place the protective cap cover on the LP tank and
store the tank outdoors in a well ventilated area out of direct sunlight.
20 lb
9 Kg
17.9 in. / 45.5 cm
12.2 in. / 31 cm
Operating Instructions
Checking for Leaks
Burner Connections
1. Make sure the regulator hose and valve
connections are securely fastened to the burner
and the tank.
2. Visually check the connection between the
burner/venturi tube and orifice.
3. Make sure the burner/venturi tube fits over the
orifice.
WWARNING: Failure to inspect this
connection or follow these instructions
could cause a fire or an explosion
which can cause death, serious bodily
injury or damage to property.
4. Please refer to diagram for proper installation
(Figure 1).
5. If the burner/venturi tube does not rest flush to the
orifice, as shown, please contact 1.800.694.0013
for assistance.
Tank/Gas Line Connection
1. Make 2-3 oz. of leak detection solution by mixing
one part liquid dish washing soap with three parts
water.
2. Make sure control knobs are in the “ OFF”
position (Figure 2).
3. Connect LP gas tank per “Installing LP Gas Tank”
section.
4. Turn LP gas tank valve to “OPEN.”
5. Spoon several drops of solution, or use a squirt
bottle, at all “X” locations (Figures 1 and 3).
a. If any bubbles appear, turn LP gas tank valve to
“CLOSED,” reconnect and re-test.
b. If you continue to see bubbles after several
attempts, turn LP gas tank valve to “CLOSED”
and disconnect LP gas tank, per “Disconnecting
LP Gas Tank” section. Contact 1.800.694.0013
for assistance.
c. If no bubbles appear after one minute, turn
LP gas tank valve to “CLOSED,” wipe away
solution and proceed.
Operating Main Burners
First Use
1. Make sure all labels, packaging and protective
films have been removed from the griddle.
2. Light griddle per “Lighting” section.
3. Remove manufacturing oils before cooking on this
griddle for the first time.
4. Season your griddle per “Seasoning Griddle”
section.
Lighting
WCAUTION: Keep outdoor gas cooking
appliance area clear and free from
combustible materials, gasoline and
other flammable vapors and liquids.
WCAUTION: Do NOT obstruct the flow of
combustion and ventilation air.
WCAUTION: Check and clean burner/
venturi tubes for insects and insect
nests. A clogged tube can lead to a
fire.
WCAUTION: Do NOT use non-stick
cooking sprays because they contain
a lot of water and can burn onto the
griddle, damaging the surface.
WCAUTION: Do NOT use corn oil as it
contains a high level of sugar, which can carmelize and burn onto the
surface.
1. Open side shelves.
2. Check for obstructions of airflow to the burners. Spiders, insects and webs can clog the
burner/venturi tube. A clogged burner tube can lead to a fire.
3. All control knobs must be in the “ OFF” position (Figure 2).
4. Connect LP gas tank per “Installing LP Gas Tank” section.
Figure 1
Burner/
Venturi Tube
LP Gas
Valve with
Orifice
LP Gas
Connection
Figure 2
OFF
ARRÊT
Figure 3
X
XX
XX
Figure 4
Lighting
Hook
Match
Figure 5
Lighting
Hook
Match

Outdoor LP Gas Griddle
Model No. GGC1643L-C
12

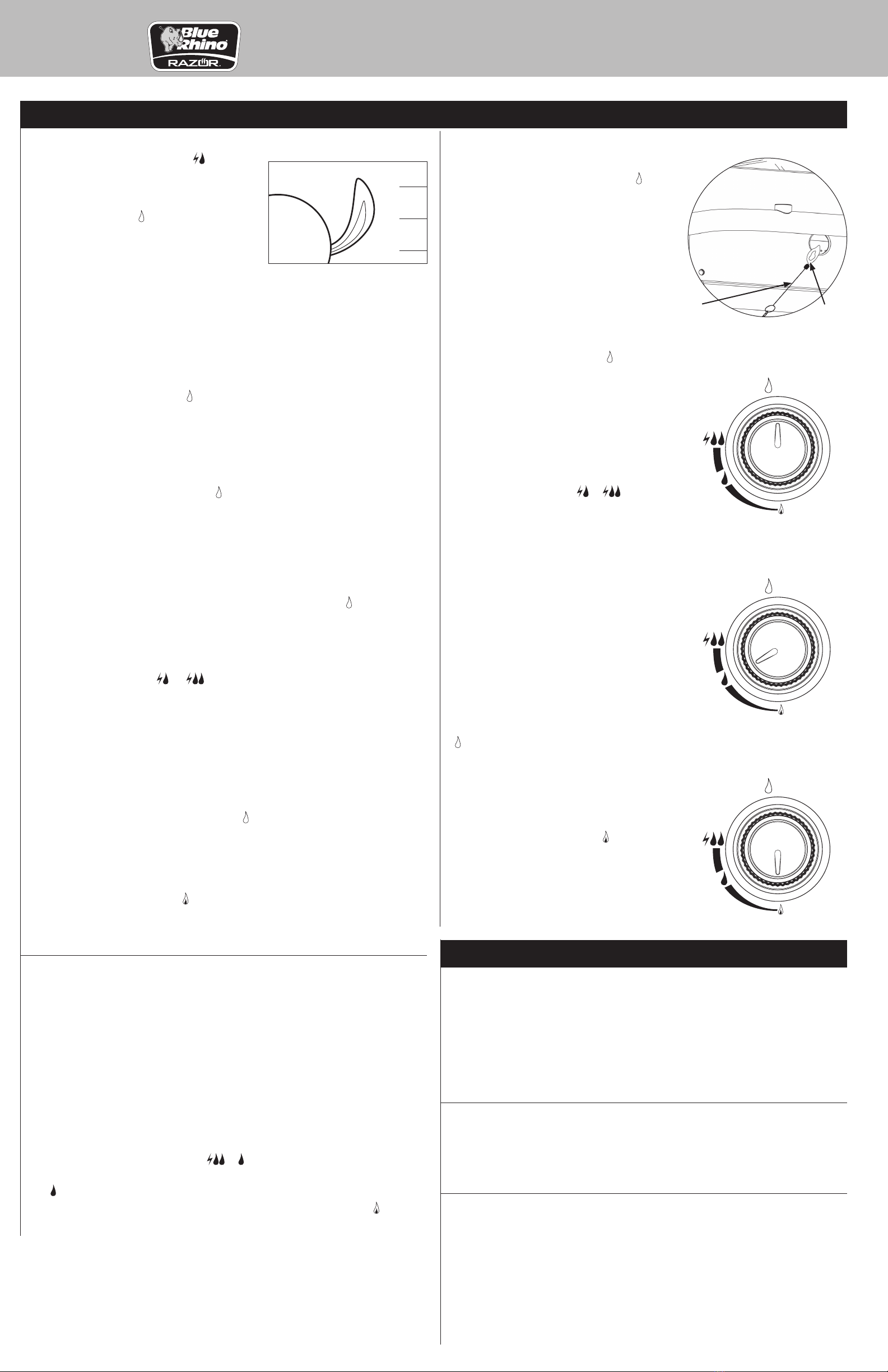

Turning Off
1. Turn LP gas tank valve to “CLOSED.”
2. Turn all control knobs clockwise to the “ OFF”
position. (Figure 8).
Note: A “poof” sound is normal as the last of the
LP gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP
Gas Tank” section.
4. Season your griddle per “Seasoning Griddle”
section.
Controlling Flare-ups
WCAUTION:
1. If a grease fire develops, turn
control knobs to the “ OFF”
position and LP gas tank valve to
“CLOSED.” Do NOT use water on
a grease fire. This can cause the
grease to splatter and could result
in serious burns, bodily harm or
other damage.
2. Do NOT leave griddle unattended
while preheating or burning off
food residue on or (HIGH).
If griddle has not been cleaned, a
grease fire can occur.
WWARNING: When cooking, fire
extinguishing materials should be
readily accessible. In the event of
an oil/grease fire, use type BC dry
chemical fire extinguisher or smother
with dirt, sand or baking soda. Do NOT
attempt to extinguish with water.
Flare-ups are a part of cooking meats on a griddle and
add to the unique flavor of grilling.
Excessive flare-ups can over-cook your food and
be dangerous.
Important: Excessive flare-ups result from the build-
up of grease in the bottom of your griddle.
If a grease fire occurs, turn the control knob(s) to
“OFF” until the grease burns out.
If excessive flare-ups occur, do NOT pour water onto
the flames.
Minimize Flare-ups:
1. Trim excess fat from meats prior to cooking.
2. Cook high fat content meats on (LOW) setting or
indirectly.
3. Ensure that your griddle is on a hard, level, non-
combustible surface and the grease is allowed to
drain into grease receptacle.
Cleaning and Care
WCAUTION:
1. All cleaning and maintenance should be done when griddle is cool
and with the fuel supply disconnected.
2. Do NOT clean any griddle part in a self-cleaning oven. The extreme
heat will damage the finish.
3. Do NOT enlarge valve orifices or burner ports when cleaning the
valves or burners.
Notices
1. This griddle should be thoroughly cleaned and inspected on a regular basis.
2. Abrasive cleaners will damage this product.
3. Never use oven cleaner to clean any part of griddle.
Before Each Use:
1. Keep the griddle area clean and free from any combustible materials, gasoline, and other
flammable vapors and liquids.
2. Do NOT obstruct the flow of the combustion of LP gas and the ventilation of air.
3. Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.
4. Visually check the burner flames to make sure your griddle is working properly (Figure 11).
5. See sections below for proper cleaning and seasoning instructions.
6. Check for obstructions of airflow to the burners. Spiders, insects and webs can clog the
burner/venturi tube. A clogged burner tube can lead to a fire.
5. Turn LP gas tank valve to “OPEN.”
6. Push and turn any control knob to (HIGH). The
burner should light. If it does not, repeat up to
three times.
7. If ignition does not occur in 5 seconds, turn
burner control knob “ OFF,” wait 5 minutes, and
repeat lighting procedure.
8. If igniter does not light burner, use a lit match
secured with the Lighting Hook (included with the
griddle) to light burners. Access the burners from
under the griddle. Position lit match near side of
burner (Figures 4 and 5).
Important: Always use the Lighting Hook (included) when lighting burners with a match.
9. After lighting, observe the burner flame. Make sure all burner ports are lit and flame height
matches illustration (Figure 6).
Note: Each burner lights independently - repeat steps 5-9 for the other burners.
WCAUTION: If burner flame goes out during operation, immediately turn
the control knobs to the “ OFF” position, turn the LP gas tank valve
to “CLOSED” and open lid to let the gas clear for 5 minutes before re-
lighting.
Turning Off
1. Turn LP gas tank valve to “CLOSED.”
2. Turn all control knobs clockwise to the “ OFF” position (Figure 2).
Note: A “poof” sound is normal as the last of the LP gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
4. Season your griddle per “Seasoning Griddle” section.
Controlling Flare-ups
WCAUTION:
1. If a grease fire develops, turn control knobs to the “ OFF” position
and LP gas tank valve to “CLOSED.” Do NOT use water on a grease
fire. This can cause the grease to splatter and could result in
serious burns, bodily harm or other damage.
2. Do NOT leave griddle unattended while preheating or burning off
food residue on or (HIGH). If griddle has not been cleaned, a
grease fire can occur.
WWARNING: When cooking, fire extinguishing materials should be
readily accessible. In the event of an oil/grease fire, use type BC dry
chemical fire extinguisher or smother with dirt, sand or baking soda.
Do NOT attempt to extinguish with water.
Flare-ups are a part of cooking meats on a griddle and add to the unique flavor of grilling.
Excessive flare-ups can over-cook your food and be dangerous.
Important: Excessive flare-ups result from the build-up of grease in the grease cup.
If a grease fire occurs, turn the control knob(s) to “ OFF” until the grease burns out.
If excessive flare-ups occur, do NOT pour water onto the flames.
Minimize Flare-ups:
1. Trim excess fat from meats prior to cooking.
2. Cook high fat content meats on (LOW) setting or indirectly.
3. Ensure that your griddle is on a hard, level, non-combustible surface and the grease is
allowed to drain into grease receptacle.
Operating Sear Burner
WCAUTION: Do NOT use non-stick cooking sprays as they can burn onto
the griddle, damaging the surface.
WCAUTION: Do NOT use corn oil as it contains a high level of sugar,
which can carmelize and burn onto the surface.
A sear burner operates at very high temperatures. It can sear your food and seal in juices.
Lighting
1. Light burner per “Operating Main Burners” section.
2. If igniter does not light burner, use a lit match secured with the Lighting Hook (included
with griddle) to light burners. Insert the Lighting Hook through the hole on the side of the
cart and position the lit match near side of the burner (Figure 7).
3. The sear burner is activated between to .
4. To turn the sear burner off and use as a main burner, turn the knob counterclockwise to
(HIGH) (Figure 9).
5. To lower the flame of main burner, keep turning the knob counterclockwise to (LOW)
(Figure 10).
Operating Instructions (continued)
Figure 7
Match
Lighting
Hook
Figure 8
OFF
ARRÊT
Figure 9
OFF
ARRÊT
Figure 10
OFF
ARRÊT
Figure 6
Burner
Flame Slight
Yellow
Slight
Blue
Dark
Blue

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013 13
Cleaning Cart Surfaces
1. Wipe surfaces clean with mild dish washing
detergent or baking soda mixed with water.
2. For stubborn surfaces, use a citrus-based
degreaser and a nylon scrubbing brush.
3. Rinse clean with water.
4. Allow to air dry.
Cleaning Main Burners
WCAUTION: Two (2) people will be
required to remove griddle.
1. Turn LP gas tank valve to “CLOSED.”
2. Turn all control knobs clockwise to the “ OFF”
position.
Note: A “poof” sound is normal as the last of the
gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP
Gas Tank” section.
4. Remove griddle by lifting it off the cart.
5. Remove burners by removing the fasteners, which
secure the burners to the frame bottom.
6. Lift burners up and away from gas valve orifice.
7. Disconnect wire from spark electrode.
8. Clean venturi of each burner with small bottle
brush or compressed air.
9. Remove all residue and dirt from burner surface.
10. Clean any clogged ports with a stiff wire (such as
an opened paper clip).
11. Inspect burners for any damage (cracks or holes).
If damage is found, replace with new burner(s)
from manufacturer.
12. Re-install burner(s). Checking to insure that gas valve orifice is correctly positioned inside
each burner/venturi tube. Also, check position of spark electrode.
13. Connect wire to spark electrode.
14. Replace griddle.
15. Connect LP gas tank per “Installing LP Gas Tank” section.
16. Perform leak test per “Checking for Leaks” section.
Before Storing
1. Turn LP gas tank valve to “CLOSED.”
2. Turn all control knobs clockwise to the “ OFF” position.
Note: A “poof” sound is normal as the last of the gas is burned.
3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.
4. Clean all surfaces.
5. Lightly coat the burner(s) with cooking oil to prevent excess rusting.
6. Season your griddle per “Seasoning Griddle” section.
7. If storing the griddle indoors, disconnect the LP tank per “Disconnecting LP Gas Tank”
section.
8. Place the protective cap cover on the LP tank and store the tank outdoors in a well-
ventilated area out of direct sunlight.
9. If storing the griddle indoors, cover the griddle and store in a cool dry place.
10. If storing the griddle outdoors, cover the griddle with a griddle cover for protection from
the weather.
Seasoning Griddle
Important: season your griddle every time you use it.
Griddle chefs at Japanese steakhouses and short-order restaurants season their griddles all
the time, and it is critical for you to do it too. Seasoning helps prolong the life of your griddle,
makes the cooking surface non-stick and helps prevent rust.
For more information, please visit BlueRhino.com/RazorFAQ.
Tools needed for seasoning:
• Metal scraper or metal spatula
• Cooking oil, such as vegetable oil or extra virgin olive oil
• Paper towels
• BBQ stone or steel wool
• Finishing oil such as cooking oil
WCAUTION: Do NOT use corn oil as it contains a high level of sugar,
which can carmelize and burn onto the surface.
First Use
1. Light griddle per “Lighting” section.
2. Keep burners on and (HIGH) for 15 minutes.
3. Turn griddle off per “Turning Off” section.
4. Allow griddle to cool, but still be slightly warm.
5. Wipe off griddle surface, inner and outer walls with paper towels until clean.
Note: While drying you may notice the towel may have some discoloration. This is normal.
6. Apply finishing oil onto griddle surface, inner and outer walls and evenly coat with rolled
up paper towels.
7. Repeat this process at least twice.
After Each Use
1. Turn griddle off per “Turning Off” section.
2. While the griddle is still warm, gently scrape off all food residue with a scraper.
3. Wipe down griddle surface, inner and outer walls with a towel or paper towels.
4. For stubborn food residue:
a. Light griddle per “Lighting” section.
b. Apply cooking oil onto griddle surface.
c. Allow oil to “boil” food residue off.
d. Repeat steps 1 through 3.
e. If necessary, use a BBQ stone and scrub the food residue off.
f. Continue with “Seasoning Griddle” instructions.
5. Wipe off griddle surface, inner and outer walls with paper towels until clean.
Note: While drying you may notice the towel has some discoloration. This is normal.
6. Apply finishing oil onto griddle surface, inner and outer walls and evenly coat with rolled
up paper towels.
7. Light griddle per “Lighting” section.
8. Keep burners on and (HIGH) for 15 minutes or until finishing oil starts to smoke.
9. Turn griddle off per “Turning Off” section.
10. Repeat steps 6-9 a minumum of 2 additional times.
11. Following “Before Storing” section.
Refurbish the Griddle Surface
1. If griddle is off, light per “Lighting” section for 10 minutes. Then turn griddle off per
“Turning Off” section.
2. If griddle is on, turn griddle off per “Turning Off” section.
3. While the griddle is still warm, use a scraper or metal spatula to remove as much rust and
food residue as you can from the griddle surface, inner and outer walls.
4. Apply a liberal amount of cooking oil onto the griddle surface.
5. Using a BBQ stone, scrub the griddle surface. Apply additional cooking oil as need.
6. Wipe off griddle surface, inner and outer walls with paper towels.
7. Repeat steps 3-5 until paper towels no longer show any rust.
8. Apply finishing oil onto griddle surface, inner and outer walls and evenly coat with rolled
up paper towels.
9. Light griddle per “Lighting” section.
10. Keep burners on and (HIGH) for 15 minutes or until finishing oil starts to smoke.
11. Turn griddle off per “Turning Off” section.
12. Repeat steps 7-10 until the surface has a nice dark color.
13. Following “Before Storing” section.
Product Registration
For faster warranty service, please register your product immediately. To register, call
1.800.694.0013.
Replacement Parts
For replacement parts, call 1.800.694.0013.
Cleaning and Care (continued)
Figure 11
Burner Flame Conditions
Use this chart to see if your burners
need to be cleaned.
1-2 in. /
25.4 - 50.8 mm
Normal: Soft blue flames with yellow
tips between 1 in. - 2 in. height.
Needs cleaning: Noisy with hard
blue flames.
Has to be replaced: Wavy with
yellow flames.

Outdoor LP Gas Griddle
Model No. GGC1643L-C
14
Limited Warranty
RevoAce Inc. Limited (“manufacturer”) warrants to the original retail purchaser of this
product, and to no other person, that if this product is assembled, maintained, and operated
in accordance with the printed instructions accompanying it, then for a period of one (1) year
from the date of purchase, all parts in such product shall be free from defects in material and
workmanship. Manufacturer may require reasonable proof of your date of purchase. Therefore,
you should retain your sales slip or invoice. This Limited Warranty shall be limited to the repair
or replacement of parts, which prove defective under normal use and service and which
manufacturer shall determine in its reasonable discretion upon examination to be defective.
Before returning any parts, you should contact manufacturer’s Customer Service Department
using the contact information listed below. If manufacturer confirms, after examination, a defect
covered by this Limited Warranty in any returned part, and if manufacturer approves the claim,
manufacturer will replace such defective part without charge. If you return defective parts,
transportation charges must be prepaid by you. manufacturer will return replacement parts to
the original retail purchaser, freight or postage prepaid.
This Limited Warranty does not cover any failures or operating difficulties due to accident,
abuse, misuse, alteration, misapplication, improper installation or improper maintenance or
service by you or any third party, or failure to perform normal and routine maintenance on the
product as set out in this owner’s manual. In addition, the Limited Warranty does not cover
damage to the finish, such as scratches, dents, discoloration, rust or other weather damage,
after purchase.
This Limited Warranty is in lieu of all other express warranties. manufacturer disclaims all
warranties for products that are purchased from sellers other than authorized retailers or
distributors, including the warranty of merchantability or the warranty of fitness for a particular
purpose. MANUFACTURER ALSO DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. MANUFACTURER SHALL HAVE NO LIABILITY TO PURCHASER OR
ANY THIRD PARTY FOR ANY SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES. manufacturer further disclaims any implied or express warranty of, and assumes no
responsibility for, defects in workmanship caused by third parties.
This Limited Warranty gives the purchaser specific legal rights; a purchaser may have other
rights depending upon where he or she lives. Some jurisdictions do not allow the exclusion or
limitation of special, incidental or consequential damages, or limitations on how long a warranty
lasts, so the above exclusion and limitations may not apply to everyone. manufacturer does not
authorize any person or company to assume for it any other obligation or liability in connection
with the sale, installation, use, removal, return, or replacement of its equipment, and no such
representations are binding on manufacturer.
RevoAce Inc. Limited
Hong Kong, China
[email protected]
1.800.694.0013

Need help? Call 1.800.694.0013
Do not return to place of purchase.
Replacement Parts
1.800.694.0013 15
Troubleshooting
Problem Possible Cause Prevention/Cure
Burner will not light using igniter
LP gas tank valve is closed Make sure regulator is securely attached to the LP gas tank per “Installing LP
Gas Tank,” then turn LP gas tank valve to “OPEN”
LP gas tank is low or empty Exchange, refill or replace LP gas tank
LP gas
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow “Checking for Leaks” section
Wires or electrode covered with cooking residue Clean wire and/or electrode with rubbing alcohol
Electrode and burners are wet Wipe dry with cloth
Electrode cracked/broken - sparks at crack Replacement part(s) may be needed - contact Customer Care at 1.800.694.0013
Wire loose or disconnected Reconnect wire or replacement part(s) may be needed - contact Customer Care
at 1.800.694.0013
Wire is shorting (sparking) between igniter and electrode Replacement part(s) may be needed - contact Customer Care at 1.800.694.0013
Bad igniter Replacement part(s) may be needed - contact Customer Care at 1.800.694.0013
Burner will not light with match
No gas flow
Check if LP gas tank is empty
A. If empty, exchange, refill or replace LP gas tank
B. If LP gas tank is not empty, refer to “Sudden drop in gas flow or reduced
flame height” (see below)
LP gas tank is low or empty Exchange, refill or replace LP gas tank
LP gas
1. Turn LP gas tank valve to “CLOSED”
2. Wait 5 minutes for gas to clear
3. Follow “Checking for Leaks” section
Coupling nut and regulator not fully connected Turn the coupling nut about one-half to three-quarters additional turn until solid
stop. Tighten by hand only - do NOT use tools
Obstruction of gas flow 1. Clear burner/venturi tube
2. Check for bent or kinked hose
Disengagement of burner to valve Re-engage burner and valve
Spider webs or insect nest in venturi Clean burner/venturi tube
Burner ports clogged or blocked Clean burner ports
Sudden drop in gas flow or reduced flame height
Out of gas Exchange, refill or replace LP gas tank
Overfilling prevention device may have been activated
1. Turn control knobs to “ OFF”
2. Wait 30 seconds and light griddle
3. If flames are still too low, reset the overfilling prevention device:
a. Turn control knob(s) “ OFF”
b. Turn LP gas tank valve to “CLOSED”
c. Disconnect regulator
d. Turn control knobs to and (HIGH)
e. Wait 1 minute
f. Turn control knobs to “ OFF”
g. Reconnect regulator and leak check connections, being careful not to
fully open valve
h. Light griddle per “Lighting” section
Irregular flame pattern, flame does not run the
full length of burner Burner ports are clogged or blocked Clean burner ports
Flame is yellow or orange
New burner may have residual manufacturing oils Burn griddle for 15 minutes on and (HIGH) with the lid closed
Spider webs or insect nest in venturi Clean venturi
Food residue, grease, etc. on burners Clean burner
Poor alignment of valve to burner/venturi tube Ensure burner/venturi tube is properly engaged with valve
Flame goes out
High or gusting winds Do not use griddle in high winds
Low on LP Gas Exchange, refill or replace LP gas tank
Overfilling prevention device may have been activated Refer to “Sudden drop in gas flow or reduced flame height” (see above)
Flare-up
Grease buildup Remove and clean all griddle parts per “Cleaning and Care” section
Excess fat in meat Trim fat from meat before cooking
Excessive cooking temperature Adjust to lower cooking temperature
Persistent grease fire Grease trapped by food buildup around burner system
1. Turn control knobs to “ OFF”
2. Turn LP gas tank valve to “CLOSED”
3. Leave lid in closed position and let fire burn out
4. After griddle cools, remove and clean all parts per “Cleaning and Care”
section
Flashback (fire in burner tube(s)) Burner and/or burner/venturi tube are blocked Clean burners and/or burner/venturi tube
Griddle Surface
Griddle has started to rust
With use the griddle surface will rust, this is normal. Follow the “Refurbish the
Griddle Surface” instructions in the “Seasoning Griddle” section to season your
griddle surface.
Griddle surface looks dull The cooking surface has gotten too hot, and is no longer seasoned. Season grill
per “Seasoning Griddle” section.
For more assistance, please call 1.800.694.0013.

Outdoor LP Gas Griddle
Model No. GGC1643L-C
16

Fabriqué en Chine pour: RevoAce Inc. Limited
Hong Kong, China • 1.800.694.0013 • ser[email protected]
© RevoAce Inc. Limited
Blue Rhino®es una marca registrada de Ferrellgas, L.P. Utilisé avec la permission.
CrossFire™ es una marca registrada de Blue Rhino Global Sourcing, Inc. Utilisé avec la permission. GGC1643L-C-EF-OM-F109
IMPORTANT
Après chaque utilisation, veillez à toujours préparer la
surface de la plaque chauffante en suivant les instructions du
paragraphe « Conditionnement de la plaque chauffante ».
MANUEL D’UTILISATION
Plaque chauffante au propane pour l’extérieur
Modèle nº GGC1643L-C
AVERTISSEMENT
POUR VOTRE SÉCURITÉ:
Pour usage à l’extérieur seulement
(hors de tout abri clos)
AVERTISSEMENT
POUR VOTRE SÉCURITÉ:
1. Toute installation défectueuse ou modification
incorrecte ainsi que tout mauvais réglage
ou entretien incorrect risque d’entraîner des
blessures ou des dégâts matériels.
2. Lire complètement les instructions
d’installation, d’utilisation et d’entretien avant
d’utiliser ou de procéder à l’ entretien de
l’appareil.
3. Le non-respect de ces consignes risque de
provoquer un incendie ou une explosion et
d’entraîner des dégâts matériels, des blessures
graves voire la mort.
4. Ce manuel d’utilisation contient des consignes
de sécurité indispensables au montage et au
bon fonctionnement ce l’appareil.
5. Lire et suivre toutes les mises en garde et
instructions avant d’assembler et d’utiliser
l’appareil.
6. Suivre toutes les mises en garde et instructions
lors de l’utilisation de l’appareil.
7. Conserver ce manuel afin de pouvoir s’y référer
ultérieurement.
AVERTISSEMENT
POUR VOTRE SÉCURITÉ:
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de l’appareil, ni de tout autre
appareil.
2. Une bouteille de propane qui n’est pas raccordée
en vue de son utilisation, ne doit pas être
entreposée dans le voisinage de cet appareil ou
de tout autre appareil.
DANGER
S’il y a une odeur de gaz:
1. Coupez l’admission de gaz de l’appareil.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l’odeur persiste, éloignez-vous de l’appareil
et appelez immédiatement le fournisseur de
gaz ou le service d’incendie.
DANGER
Ne jamais laisser cet appareil allumé sans
surveillance.
Fabriqué à partir de 75% de
bagasse de canne à sucre
(résidu de pulpe de canne à sucre sans
danger pour l’environnement)
Table des matières
Consignes de sécurité importantes .................................................Page 2
Vue éclatée des pièces et quincaillerie .................................................. 3
Instructions d’assemblage ........................................................... 4
Préparation avant le transport et le rangement ............................................ 9
Installer la bouteille de propane ...................................................... 11
Fonctionnement .................................................................. 11
Nettoyage et entretien ............................................................. 13
Enregistrement de l’appareil......................................................... 14
Pièces de rechange ............................................................... 14
Garantie limitée .................................................................. 14
Guide de dépannage............................................................... 15
L’utilisation et l’installation de cet appareil doivent être conformes aux codes locaux. En l’absence de codes
locaux, suivez le Code national du gaz combustible, les normes ANSI Z223.1/NFPA 54, le Code d’installation
du gaz naturel et du propane, CAN/CGA-B149.1 ou le Code sur le stockage et la manipulation du propane,
B149.2, ou la norme pour véhicules récréatifs ANSI A 119.2/NFPA 1192, la réglementation CSA Z240 pour
séries VR, et le Code sur les véhicules récréatifs selon le cas.
CE MANUEL D’UTILISATION CONTIENT DE L’INFORMATION IMPORTANTE CONCERNANT LA SÉCURITÉ.
VEUILLEZ LIRE ET CONSERVER CE MANUEL AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.
Si vous êtes en train d’assembler cet appareil pour une autre personne, veuillez lui fournir le manuel afin
qu’elle puisse le consulter plus tard.
BREVET EN INSTANCE

Plaque chauffante au propane pour l’extérieur,
modèle nº GGC1643L-C
2
WCette plaque chauffante doit être utilisée uniquement à l’extérieur et ne
doit pas être utilisée dans un immeuble, un garage ou tout autre espace
clos.
WNE PAS utiliser ou allumer cet appareil à moins de 3,05 m (10 pieds) de
tout mur, construction ou immeuble.
WPour usage domestique seulement. Cette plaque chauffante n’est PAS
destinée un usage commercial.
WCette plaque chauffante n’est pas sensée être utilisée pour se chauffer
et ne devrait jamais être utilisée en tant que chauffage d’appoint. Des
émanations TOXIQUES peuvent s’accumuler et provoquer l’asphyxie.
WCette plaque chauffante est homologuée afin de pouvoir être utilisée en
toute sécurité uniquement aux États-Unis et au Canada. NE PAS modifier
cette plaque chauffante afin de pouvoir l’utiliser autre part. Toute
modification ou altération présentera un danger de fonctionnement.
WCette plaque chauffante est expédiée de l’usine prête à fonctionner avec
du propane (GPL). Toute utilisation de gaz naturel avec cette plaque
chauffante ou tentative de conversion au gaz naturel de cette plaque
chauffante est dangereuse et entraînera l’annulation de la garantie.
WCaractéristiques du propane (GPL) :
a. Le propane est un gaz inflammable et dangereux si ce dernier n’est
pas manipulé correctement. Il est indispensable de connaître les
dangers encourus avant d’utiliser tout appareil fonctionnant au
propane.
b. Le propane est un gaz inflammable qui risque d’exploser sous
pression. Le propane qui risque d’exploser sous pression, est plus
lourd que l’air, se dépose et demeure au sol.
c. Le propane à l’état naturel est inodore. Pour votre sécurité, un
odorisant ayant l’odeur de choux avariés a été ajouté.
d. Tout contact du propane avec la peau risque d’entraîner des
engelures.
WAvis aux personnes habitant en appartements : Vérifier auprès de la
gérance pour connaître les conditions requises, la réglementation et
le code de prévention des incendies de votre complexe d’habitations
collectives pour l’utilisation d’une plaque chauffante au propane. Si
permis, utiliser la plaque chauffante en la posant au sol en laissant une
distance de sécurité de 3,05 m (10 pieds) entre la plaque chauffante et
toute structure. NE PAS utiliser sur ou sous un balcon.
WSeules les bouteilles marquées « propane » peuvent être utilisées.
WLa bouteille de propane doit être fabriquée, marquée et mise en
service conformément à la Réglementation sur les bouteilles de gaz
de pétrole liquéfié établie par le Ministère des transports des États-
Unis (DOT) ou répondre à la Norme nationale du Canada, CAN/CSAB339
sur les bouteilles, sphères et tubes destinés au transport de produits
dangereux et la commission.
WLa bouteille de propane doit être placée afin de permettre l’extraction
des vapeurs de gaz.
WLa bouteille de propane doit être équipée d’un système d’arrêt
volumétrique (OPD) empêchant tout remplissage excessif.
WUtiliser uniquement des bouteilles de propane équipées d’un dispositif
de branchement compatible avec le raccord d’un appareil de cuisson de
plein air.
WLa bouteille de propane doit posséder un col afin de protéger le robinet
et la valve de la bouteille.
WNe jamais utiliser une bouteille de propane si le corps, le robinet, le col
ou le socle sont endommagés.
WToute bouteille bosselée ou présentant des traces de rouille risque
d’être dangereuse et devrait être vérifiée par votre fournisseur avant de
l’utiliser.
WNE PAS laisser tomber la bouteille de propane ni la manipuler
brusquement ou brutalement!
WLes bouteilles de propane doivent être entreposées à l’extérieur, hors
de la portée des enfants et ne doivent pas être entreposées dans un
bâtiment, un garage ou dans tout autre lieu fermé. Les bouteilles de gaz
ne doivent jamais être entreposées dans un endroit où la température
risque de dépasser 51,6°C (125°F)!
WNE PAS introduire d’outil ni de corps étranger dans la sortie du
robinet de la bouteille de gaz ni dans la soupape de sécurité. Vous
risquez d’endommager la soupape et de provoquer une fuite. Toute
fuite de propane risque de provoquer une explosion ou un incendie et
d’entraîner des blessures graves voire la mort.
WNE PAS bloquer ni boucher les trous sur les côtés ou à l’arrière de la
plaque chauffante.
WNe jamais garder une bouteille de propane pleine dans une voiture ou
dans le coffre d’une voiture sous une forte chaleur. La chaleur peut
provoquer une augmentation de la pression du gaz, pouvant provoquer
l’ouverture de la soupape de sécurité et laissera s’échapper de gaz.
WMettre un bouchon antipoussière sur la sortie du robinet d’une
bouteille qui n’est pas utilisée. Utiliser uniquement le type de bouchon
antipoussière fourni avec le robinet de la bouteille. D’autres types de
bouchons pourraient ne pas être étanches et permettre des fuites de
propane.
WFermer le gaz et débrancher la bouteille lorsque la plaque chauffante
n’est pas utilisée.
WNe jamais entreposer une bouteille de propane de rechange sous ou à
proximité de cet appareil.
WNe jamais remplir la bouteille de propane à plus de 80% de sa capacité.
WLes consignes ci-dessus doivent être strictement respectées et le non
respect de ces consignes risque de provoquer un incendie et d’entraîner
des dégâts matériels ou des blessures graves.
WNe jamais essayer de raccorder cette plaque chauffante au circuit de
propane d’une tente-caravane, autocaravane ou de votre maison.
WNe jamais utiliser de charbon de bois, de liquide allume-barbecue, de
pierres de lave, d’essence, de kérosène, de pétrole lampant ou d’alcool
avec cette plaque chauffante.
WVotre plaque chauffante a été vérifiée en usine afin de s’assurer que
les raccords ne présentent aucune fuite. Vérifier à nouveau tous les
raccords en suivant les instructions du chapitre « Fonctionnement » du
manuel car il est possible qu’ils se soient desserrés lors du transport.
WVérifier que l’appareil ne présente aucune fuite même si ce dernier a été
assemblé pour vous par quelqu’un d’autre.
WNE PAS utiliser la plaque chauffante en cas de fuite de gaz. Toute fuite
de gaz risque de provoquer un incendie ou une explosion.
WIl est obligatoire de suivre toutes les procédures de détection de fuite
avant d’utiliser cet appareil. Afin d’éviter tout risque d’incendie et
d’explosion lorsque l’on recherche une fuite :
a. Vérifier que le circuit ne présente pas de fuite en effectuant un « test
d’étanchéité » avant d’allumer la plaque chauffante à chaque fois
que la bouteille de gaz est branchée afin de l’utiliser.
b. Interdiction de fumer. NE PAS utiliser ni laisser de sources d’ignition
à proximité de la plaque chauffante lorsque l’on essaye de détecter
une fuite.
c. Effectuer le test d’étanchéité en plein air, dans un emplacement bien
aéré.
d. NE PAS utiliser d’allumettes, de briquets ou de flamme nue afin de
rechercher une fuite.
e. La prise d’alcool, de médicaments ou de drogues risque de nuire à
l’aptitude de l’utilisateur à assembler ou à utiliser cet appareil en
toute sécurité.
f. La présence de fortes odeurs, ou si vous avez un rhume ou des
sinus bouchés, risque de nuire à la détection d’une fuite de propane.
Faites preuve de précaution et de bon sens lorsque vous effectuez
un test d’étanchéité et recherchez une fuite.
DANGER: Le non-respect des avis de danger, des mises en garde et des consignes de sécurité de ce manuel risque de provoquer un incendie ou une
explosion et d’entraîner des dégâts matériels, des blessures graves voire la mort.
AVERTISSEMENT :
Consignes de sécurité importantes

Vous avez besoin d’aide? Appelez le 1.800.694.0013.
Ne retournez pas au point de vente.
Pour pièces de rechange
1.800.694.0013 3
g. NE PAS utiliser la plaque chauffante avant d’avoir réparé toute les
fuites. S’il s’avère impossible d’arrêter une fuite, débrancher la
bouteille de propane. Contacter un réparateur ou votre fournisseur
de bouteilles de propane.
WCette plaque chauffante a été mise au point pour pouvoir fonctionner
avec la pression d’alimentation suivante : PROPANE : 11 po. (28 cm) de
colonne d’eau.
WNE PAS utiliser ni entreposer d’essence ou de liquides aux vapeurs
inflammables à moins de 7,6 m (25 pieds) de cet appareil.
WNE PAS utiliser la plaque chauffante en présence de vapeurs et
émanations explosives. Veiller à ce que la zone autour de la plaque
chauffante demeure dégagée et dépourvue de matières combustibles,
d’essence et d’autres liquides aux vapeurs inflammables.
WS’assurer que toute matière combustible se trouve toujours à une
distance de sécurité minimum de 92 cm (36 po.) sur les côtés et
derrière la plaque chauffante. NE PAS utiliser cette plaque chauffante
sous un toit ou une structure quelconque suspendue, en saillie ou en
surplomb au-dessus de la plaque chauffante.
WIl est primordial que le compartiment de la valve de commande de
la plaque chauffante, les brûleurs et les passages par où l’air circule
demeurent propres.
WVérifier la plaque chauffante avant chaque utilisation.
WNe modifier en aucune façon la plaque chauffante. Toute modification
ou altération entraînera l’annulation de la garantie.
WNE PAS utiliser la plaque chauffante à moins qu’elle ne soit
COMPLÈTEMENT assemblée et que les pièces ne soient toutes fixées et
serrées.
WNE PAS placer ce type de plaque chauffante dans un espace où la
plaque chauffante sera encastrée. Le non-respect de cette mise en
garde risque de provoquer une explosion ou un incendie et d’entraîner
des dégâts matériels, des blessures graves voire la mort.
WCette plaque chauffante doit être vérifiée et nettoyée en entier
régulièrement.
WNettoyer et inspecter le tuyau à chaque fois, avant d’utiliser l’appareil.
En cas d’abrasion, d’usure, de coupures ou de fuite, le tuyau doit être
remplacé avant que cet appareil ne soit mis en fonctionnement.
WUtiliser uniquement le régulateur et le tuyau fournis. Le régulateur et le
tuyau de rechange doivent être ceux spécifiés par RevoAce Inc. Limited.
WUtiliser uniquement des pièces agréées de l’usine RevoAce Inc. Limited.
L’emploi de toute pièce non agréée peut être dangereuse et entraînera
l’annulation de la garantie.
WNE PAS utiliser cet appareil avant de lire le chapitre « Fontionnement »
de ce manuel.
WNE PAS toucher les pièces métalliques de la plaque chauffante avant
qu’elle n’ait complètement refroidi (attendre environ 45 minutes) afin de
ne pas se brûler à moins de porter des vêtements de protection (gants,
maniques, attirail de barbecue, etc.).
WNE PAS installer ni utiliser cet appareil à bord d’un bateau ou d’un
véhicule récréatif.
WLors de la cuisson, conserver toujours à portée de main des articles ou
matières capables d’éteindre le feu. En cas de feu de graisse, ne tentez
pas d’éteindre le feu avec de l’eau. Utiliser un extincteur à poudre BC ou
étouffez le feu avec de la terre, du sable ou du bicarbonate de soude.
WNE PAS utiliser la plaque chauffante par grand vent.
WNe jamais se pencher au-dessus de la plaque chauffante pour l’allumer.
WNe jamais laisser une plaque chauffante allumée sans surveillance
surtout si des enfants ou des animaux domestiques et de compagnie se
trouvent à proximité.
WNE PAS laisser la plaque chauffante sans surveillance lorsqu’elle est en
phase de préchauffage ni après la cuisson pour éliminer des résidus
de nourriture par chaleur intense avec le brûleur sur son réglage
maximum. Si la plaque chauffante n’est pas nettoyée, un feu de graisse
risque de se produire et d’endommager la plaque chauffante.
WNE PAS placer de récipient vide sur la plaque chauffante lorqu’elle est
allumée.
WFaire preuve de précautions au moment de placer quelque chose sur la
plaque chauffante lorqu’elle est allumée.
WNE PAS essayer de déplacer la plaque chauffante quand elle est
allumée. Laisser la plaque chauffante refroidir avant de la déplacer ou
de la remiser.
WLa bouteille de propane doit être débranchée et retirée avant de
déplacer la plaque chauffante.
WLe remisage de la plaque chauffante à l’intérieur est autorisé seulement
si la bouteille a été débranchée et retirée de l’appareil et correctement
entreposée à l’extérieur.
WNE PAS tenter de débrancher le régulateur de gaz de la bouteille ou de
débrancher une pièce quelconque de l’alimentation du gaz lorsque la
plaque chauffante est allumée.
WPlacer toujours la plaque chauffante sur une surface plane et dure. Il est
déconseillé de la placer sur de l’asphalte ou du bitume.
WPlacer les tuyaux souples de gaz le plus loin possible des surfaces
chaudes et de l’égouttage des graisses brûlantes.
WVeiller à ce que les câbles et cordons électriques demeurent toujours
loin de la plaque chauffante lorqu’elle est chaude.
WAprès une période de remisage ou si la plaque chauffante n’a pas été
utilisée pour une certaine période, s’assurer qu’il n’y a pas de fuite et
que les brûleurs ne sont pas bouchés. Vérifier également que le tuyau
ne présente pas de traces d’abrasion, d’usure ou de coupures.
WLe fait de ne pas maintenir les tablettes latérales ouvertes lors de
l’allumage des brûleurs de la plaque chauffante ou de ne pas attendre
5 minutes afin que le gaz se dissipe au cas où la plaque chauffante ne
s’allume pas, risque de provoquer une flambée soudaine explosive.
WVeiller à toujours utiliser un thermomètre à viande afin de s’assurer que
la nourriture est cuite à une température adéquate.
WPorter des gants de protection pour assembler cet article.
WNE PAS forcer les pièces les unes dans les autres afin d’éviter toute
blessure et éviter d’endommager cet article.
WNe jamais recouvrir complètement la zone de cuisson avec du papier
d’aluminium.
WLes consignes ci-dessus doivent être strictement respectées et le
nonrespect de ces consignes risque de provoquer des dégâts matériels
ou d’entraîner des blessures graves voire la mort.
Consignes de sécurité importantes

Plaque chauffante au propane pour l’extérieur,
modèle nº GGC1643L-C
4
Outils requis pour l’assemblage (fournis)
Tournevis cruciforme Phillips nº 2 1 pc
Clé M10 2 pc
Quincaillerie
AVis Nickelée, à tête bombée Phillips, M6x16 8 pcs
BÉcrou Nickelé, M10 2 pcs
Vue éclatée
Liste des pièces
1Plaque chauffante* G1643-010
2Tablette gauche* G1643-020
3Porte-serviette (2)* G1643-030
4Brûleur en «U»* G1643-040
5Brûleur (3)* G1643-050
6Cadre de la plaque
chauffante* G1643-061
7Tablette droite* G1643-070
8Cadran du bouton de
commande (3)* G1143-090
9Saisir de cadran du
bouton de command* G1143-091
10 Plaque de la marque* B0109-BR0
11 Roue verrouillable (2)* G1643-080
12 Cadre gauche du
chariot* G1643-090
13 Cadre droit du chariot* G1643-100
14 Poignée latérale (2) G1643-110
15 Bouton de
commande (4) G0850-G23
16 Godet collecteur de
graisse G1643-120
17 Régulateur et tuyau* B0308-A18
18 Tige d’allumage* B0223-D04
19 Support supérieur de la
bouteille de propane* †G1643-130
20 Dispositif de
verrouillage de roue* G1643-140
21 Support inférieur de la
bouteille de propane* †G1643-150
22 Roue (2) G1643-160
23 Tablette de rangement
inférieure G1643-170
24 Verrou A de tablette
latérale (2)* †B0107-E05
25 Verrou B de tablette
latérale (2)* †B0107-I09
26
Vis de tablette de
rangement
inférieure (2)
G1643-180
27 Essieu G1643-190
28 Pare-chaleur de la
bouteille de propane* G1643-200
* Prémonté
†Non remplaçable
1
22
22
3
3
6
11
11
4
7
12
23
26
26
24
24
25
27
25
8
89
2
20
19
18
21
13
10
5
14
14
15
17
16
28
