Lang 148S-SC Owner's manual

IL1381
1
SELECTRONIC
ELECTRIC GRIDDLE
Commercial & Marine
124S, 124SHE, 124SCHE
136S, 136S-SC, 136SHE
148S, 148SHE, 148SR
160S, 160SHE, 160SR, 160S-SC
172S, 172SR, 172SC
Installation and
Operation
Instructions
2M-W353 Rev. I 1/07/2015
148S

2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
FOR YOUR SAFTEY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN
THE VICINTIY OF THIS OR ANY OTHER APPLIANCE.
POST IN PROMINENT LOCATION
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT USER SMELLS GAS. THIS
INFORMATION SHALL BE OBTAINED BY CONSULTING YOUR LOCAL GAS SUPPLIER.
AS A MINIMUM, TURN OFF THE GAS AND CALL YOUR GAS COMPANY AND YOUR
AUTHORIZED SERVICE AGENT. EVACUATE ALL PERSONNEL FROM THE AREA.
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION,
OPERATION & MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT.
WARNING
RISK OF FIRE OR ELECTRIC SHOCK
DO NOT OPEN
WARNING, TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE
CONTROL PANEL. NO USER-SERVICABLE PARTS INSIDE.
REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY.
NOTICE
Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all
liability.
Lang reserves the right to change specications and product design without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions or
replacements for previously purchased equipment.
Due to periodic changes in designs, methods, procedures, policies and regulations,
the specications contained in this sheet are subject to change without notice. While
Lang exercises good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions reached as a
result of using the specications. By using the information provided, the user assumes all risks
in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local dealer for service or required maintenance. Please record the model number, serial
number, voltage and purchase & Installation Information in the area below and have it ready when you
call to ensure a faster service.
SAFETY SYMBOL
Model No.:
Serial No.:
Voltage:
1-Phase or 3 Phase:
Purchased From:
Location:
Purchase Date:
Installed Date:

3
TABLE OF CONTENTS
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Equipment Description . . . . . . . . . . . . . . . . . . . . . . . . 6
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Installation
Leg Installation . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ventilation & Clearence . . . . . . . . . . . . . . . . . . . . . . 9
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . 9
Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Phasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Initial Start-Up
Pre-Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Seasoning Cooking Surface. . . . . . . . . . . . . . . . . . . . 10
Operation
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Suggested Times and Temperatures . . . . . . . . . . . . . . .11
Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting
Symptoms / Possible Causes . . . . . . . . . . . . . . . . . . . 13
Possible Causes / Test . . . . . . . . . . . . . . . . . . . . . .14
Wiring Diagram
208/240VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
480VAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
380VM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5’ 480V, w/CSE12 Hoods . . . . . . . . . . . . . . . . . . . . . 18
Exploded View & Parts List . . . . . . . . . . . . . . . . . . . . . 19-27
PROBLEMS, QUESTIONS or CONCERNS
Before you proceed consult you authorized Lang service agent directory
or
Call the Lang Technical Service & Parts Department at 314-678-6315.
NOTICE ServiceonthisoranyotherLangappliancemustbeperformedbyqualied
personnel only. Consult your Lang Authorized Service Agent Directory.
You can call our tech service number 314-678-6315 or visit our website
www.langworld.com for the service agent nearest you.

4
WD
H
4” (101.6mm)
2.5”
Elec. Connect.
6.8”
Elec. Connect.
36”
Elec. Connect.
(160 & 172 only)
IL1547

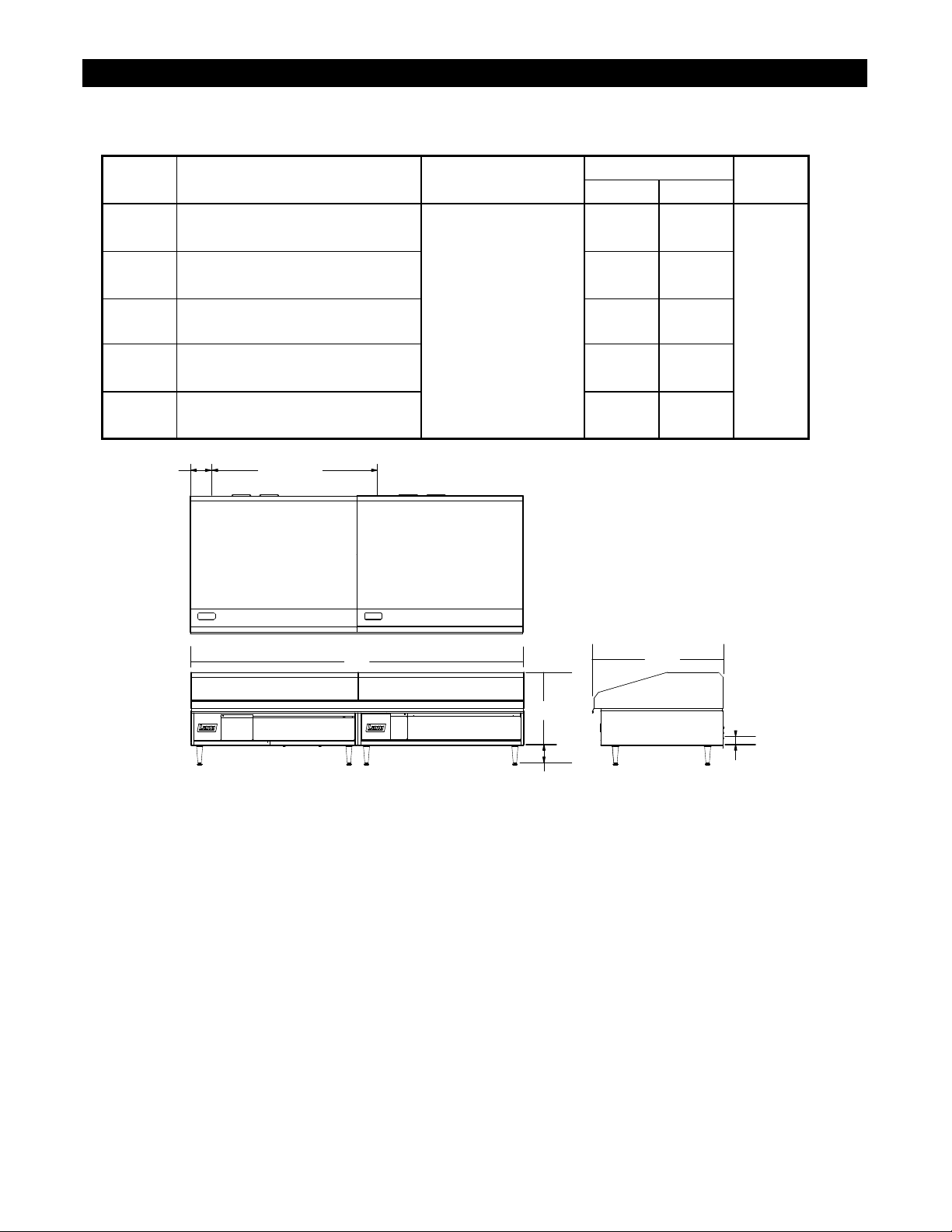

Model
Height x Width x Depth Clearance from Weight Freight
Class(Not including legs) combustible surface Actual Shipping
124 15.0" x 24.0" x 28.2" 243 lbs. 280 lbs.
85
381mm x 610mm x 717mm 110 kg 127 kg
136 15.0" x 36.0" x 28.2" 368 lbs. 410 lbs.
381mm x 914mm x 717mm 167 kg 186 kg
148 15.0" x 48.0" x 28.2" Sides: 2" 483 lbs. 515 lbs.
381mm x 1219mm x 717mm Back: 2" 220 kg 234 kg
160 15.0" x 60.0" x 28.2" 621 lbs. 665 lbs.
381mm x 1524mm x 717mm 282 kg 302 kg
172 15.0" x 72.0" x 28.2" 724 lbs. 800 lbs.
381mm x 1830mm x 717mm 329 kg 364 kg
EQUIPMENT SPECIFICATIONS

5
SPECIFICATIONS MARINE
MARINE EQUIPMENT IS APPROVED FOR INSTALLATION ONLY ON VESSELS GREATER THAN
65 FEET IN LENGTH, IN ACCORDANCE WITH USCG REGULATIONS IN TITLE 46 CFR 110-113.
ANY WIRING USED IN THE INSTALLATION OF THIS APPLIANCE MUST BE STRANDED COPPER.
EQUIPMENT SPECIFICATIONS
Current Model Volts AC Hz. Ph. Kw
TO T.
Amp
1PH
Supply
Wire
1 PH
Amp 3 Ph Supply
Wire
3 PH
Kw
TO T.
Amp
1PH
Supply
Wire
1 PH
Amp 3 Ph Supply
Wire
3 PH
L1 L2 L3 L1 L2 L3
124S-208VM 208/240 60 1/3 12 58 4 50 29 29 6
124S-440VM 440V 50/60 3 10.1 20 12 12 12
124S-480VM 480V 60 3 12 22 13 13 12
136SC-208VM 208/240V 60 1/3 18 87 2 50 50 50 6
136S-380VM 380V 60 3 18 27.3 27.3 27.3 10
136S-440VM 440V 60 3 18 23.6 23.6 23.6 12
136SC-440VM
136S-480VM 480V 60 3 18 22 22 22 12
148S-480VM 480V 60 3 24 33 33 22 8
160S-M 208/240V 60 1/3 12 58 2 50 29 29 6 18 87 2 50 50 50 6
172S-440VM 440V 60 3 18 23.6 23.6 23.6 12 18 23.6 23.6 23.6 12
172SM 208/240V 60 1/3 18 87 2 50 50 50 6 18 87 2 50 50 50 6
172S-480VM 480V 60 3 18 22 22 22 12 18 22 22 22 12
Current Model Volts AC Hz. PHASE Kw
TOT.
Amp
1PH.
Supply
Wire
1 PH
Amp 3 Ph Supply
Wire 3
PH
Kw
TOT.
Amp
1PH.
Supply
Wire
1 PH
Amp 3 Ph Supply
Wire
3 PH
L1 L2 L3 L1 L2 L3
124S 208/240 60 1/3 12 58 4 50 29 29 6
124SC 208/240 60 1/3 12 58 4 50 29 29 6
124S-480V 480 60 3 12 22 13 13 12
124SHE 208/240 60 1/3 12 58 4 50 29 29 6
124SHE-480F 480 60 3 12 22 13 13 12
124SCHE 208/240 60 1/3 12 58 4 50 29 29 6
136S 208/240 60 1/3 18 87 2 50 50 50 6
136S-380V 380 50/60 3 18 27.3 27.3 27.3 10
136S-480V 480 60 3 18 22 22 22 12
136SHE-480V 480 60 3 18 22 22 22 10
136SB-WB 208/240 60 1/3 18 87 2 50 50 50 6
136SHE 208/240 60 1/3 18 87 2 50 50 50 6
136SCHE 208/240 60 1/3 18 87 2 50 50 50 6
136SC 208/240 60 1/3 18 87 2 50 50 50 6
136S-SC 208/240 60 1/3 18 87 2 50 50 50 6
136SC 480V 60 3 18 21.6 21.6 21.6 10
148S 208/240 60 1/3 24 116 1 75 75 50 3
148S-380V 380 50/60 3 24 41 41 27 6
148S-480V 480 60 3 24 33 33 22 8
148SHE-480V 480 60 3 24 33 33 22 8
148S-SC 208/240 60 1/3 24 116 1 75 75 50 3
160S 208/240 60 1/3 1 58 2 50 29 29 6 18 87 2 50 50 50 6
160S-480V 480 60 3 12 22 13 13 12 18 22 22 22 12
160SC 208/240 60 1/3 12 58 4 50 29 29 6 18 87 2 50 50 50 6
160SHE 208/240 60 1/3 12 58 2 50 29 29 6 18 87 2 50 50 50 6
160SHE-480V 480 60 3 12 22 13 13 12 18 22 22 22 12
160SCHE-480V 480 60 3 12 22 13 13 12 18 22 22 22 12
160SR 208/240 60 1/3 12 58 2 50 29 29 6 18 87 2 50 50 50 6
160S-SC 208/240 60 1/3 12 58 2 50 29 29 6 18 87 2 50 50 50 6
160S-WB 208/240 60 1/3 12 58 2 50 29 29 6 18 87 2 50 50 50 6
172S 208/240 60 1/3 18 87 2 50 50 50 6 18 87 2 50 50 50 6
172S-480V 480 60 3 18 22 22 22 12 18 22 22 22 12
172SR 208/240 60 1/3 18 87 2 50 50 50 6 18 87 2 50 50 50 6
172S-SC 208/240 60 1/3 18 87 2 50 50 50 6 18 87 2 50 50 50 6

6
EQUIPMENT DESCRIPTION
Exterior Construction
The griddle dimensions are 17” (43.18cm) High, 30” (76.20cm) Deep, and width is dependent on the
actual model number.
The Sides, Bottom, and Rear wall are constructed of double wall stainless steel, which allows closer
installation to combustible surfaces.
The griddle surface is made of 1” thick, highly polished steel to reduce hot and cold spots, recovery
problems, warping, and ensure even heat to the edges of the griddle.
Controls
Each twelve-inch section has its own temperature selector switch that snaps into place to lock in any
temperature from 175°F to 450°F (79°C to 232°C) in 25° increments.
Each twelve-inch section of the griddle is controlled by an area sensitive RTD probe, which can sense
and react to a temperature change of +/- 4°F.
Each twelve-inch section has a set of 6 K.W. elements for high efciency, quick recovery and outstanding
performance
Technical
The 100 Series Selectronic griddle operates on either 208/240V or 480V, at either single or three phase.
Thismustbespeciedwhenordering.
Minimum clearances: 2” from side and back
NOTICE The data plate is on the right side of the griddle. The oven voltage,
wattage,serialnumber,wiresize,andclearancespecicationsare
on the data plate. This information should be carefully read and
understood before proceeding with the installation.
1” Griddle Surface
Gutter
Legs
Grease Pan
Section
Temp. Dial
Main Section
Power Switch Section
Power Switch
Rear Gutter
(certian models)
IL1548

7
UNPACKING
Receiving the Griddle
Upon receipt, check for freight damage, both visible and concealed.
Visible damage should be noted on the freight bill at the time of delivery and
signed by the carrier’s agent. Concealed loss or damage means it does not
become apparent until the merchandise has been unpacked. If concealed
loss or damage is discovered upon unpacking, make a written request for
inspection by the carrier’s agent within 15 days of delivery. All packing
material should be kept for inspection. Do not return damaged
merchandise to Star Manufacturing Company. File your claim with the
carrier.
Location
Prior to un-crating, move the oven as near to its intended location as practical. The crating will help
protect the unit from the physical damage normally associated with moving it through hallways and
doorways.
Un-crating
The griddle will arrive completely assembled inside a wood frame and strapped to a skid. Cut the
straps and remove the wood frame.
The oven can now be removed from the skid.
THE UNIT IS EXTREMELY HEAVY. FOR SAFE HANDLING, INSTALLER
SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS
HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK)
TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF
INSTALLATION.
ANY STAND, COUNTER OR OTHER DEVICE ON WHICH OVEN WILL BE
LOCATED MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE GRIDDLE.
SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
CAUTION

8
INSTALLATION

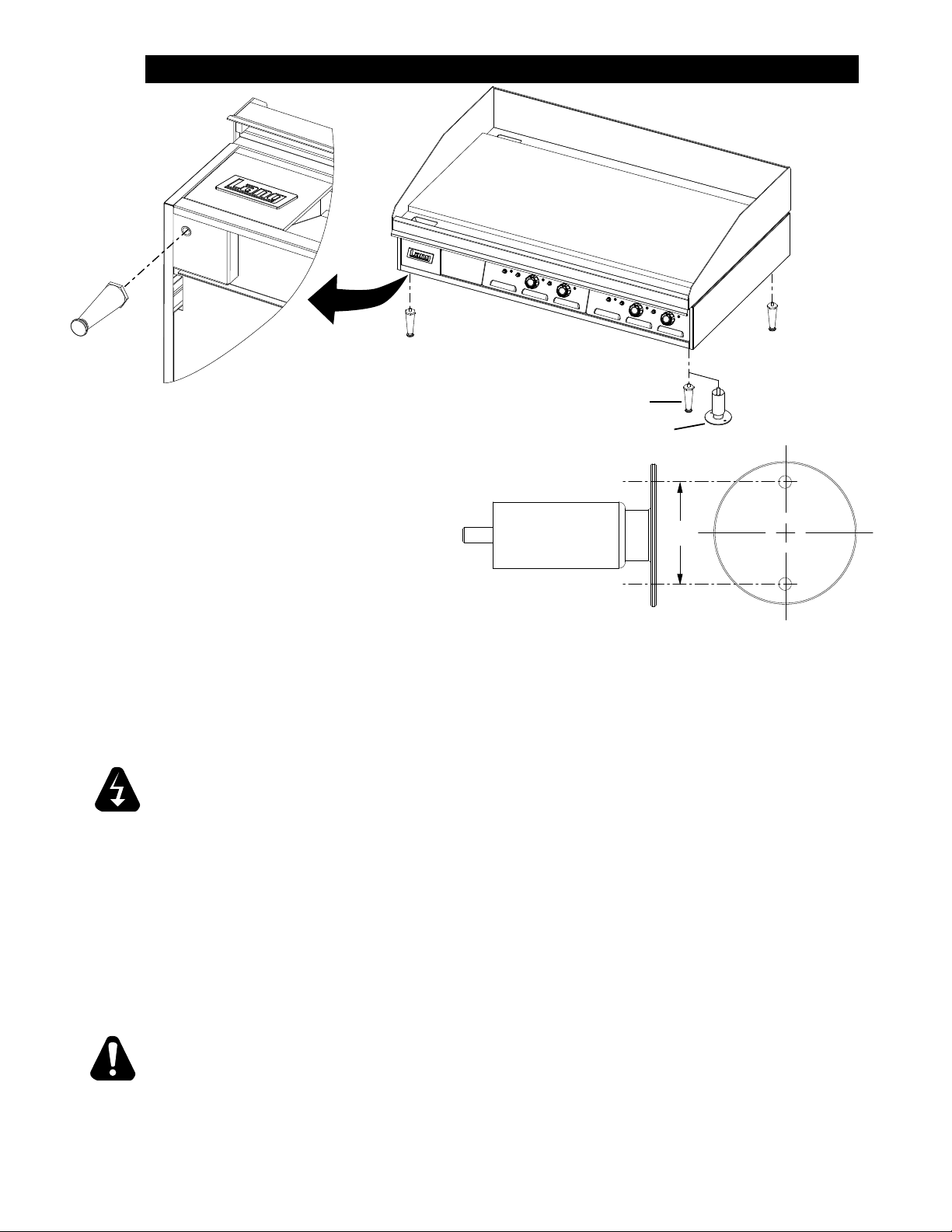

Leg Installation
There are four, 4” legs provided for 2, 3 and
4 foot griddles.
There are eight 4” legs provided for 5 and 6
foot griddles.
The legs are shipped in the grease drawers
of the griddle. Install them into the threaded
holes on the underside of the griddle body.
Leveling adjustment may be done by screwing the bottom portion of the leg in and out.
IL1549
Std Leg
Marine Bolt Down Leg
DANGER: THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED.
FAILURE TO GROUND THE APPLIANCE COULD RESULT IN ELECTROCUTION
AND DEATH.
INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED TO
WORK WITH ELECTRICITY AND PLUMBING. IMPROPER INSTALLATION CAN
CAUSE INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT. UNIT
MUST BE INSTALLED IN ACCORDANCE WITH ALL APPLICABLE CODES.
NOTICE: The data plate is located behind access panel between controls and grease
drawer. The grill voltage, wattage, serial number, wire size, and clearance
specicationsareonthedataplate.Thisinformationshouldbecarefully
read and understood before proceeding with the installation.
NOTICE: The installation of any components such as a vent hood, grease extractors,
reextinguishersystems,mustconformtotheirapplicableNational,State
and locally recognized installation standards.
ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM
COMBUSTIBLE MATERIALS.
KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS
OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR FALLS.
CAUTION
WARNING
Above: typical leg installation.
2.5”
IL1550
For bolt down legs see above illustration for dimensions.

9
INSTALLATION cont.
Ventilation and Clearances
Standard minimum clearance from combustible construction is as follows.
2” from side
2” from back
These griddles may be set directly, without legs, on a curbed base or non-combustible surface.
If the griddle is set without legs on a non-combustible oor or a curbed base, maintain a 4-inch
back clearance.
Do not install the griddle directly against a non-combustible back wall or surface.
Do not install the griddle closer than 12 inches from an uncontrolled heat source (char broiler etc.).
Keep the appliance area free and clear of combustible material and do not obstruct the ow of
combustion or ventilation air.
Electrical Connection
There is one power supply connection on the 2, 3, and 4-foot griddles. There are two power
supply connections on 5 and 6-foot griddles. Refer to the power supply chart in the Technical
Data portion of this manual, for proper power supply size.
There is (1) one 1 1/4-inch conduit knockout on 2, 3 and 4-foot griddles located at the rear of the
griddle, through the back and the bottom of the griddle body. There are (2) two 1 1/4-inch conduit
knockouts provided on the 5 and 6-foot griddles. Use a supply wire suitable for at least 90 degree
centigrade.
This Selectronic griddle is shipped from the factory, wired for 208/240 or 480 volts, the 208/240
griddle is a dual voltage design. Jumper wires on terminal strip next to the main power supply
connection determine the griddle voltage. For a 208-volt power supply, leave the jumpers in place.
For a 240-volt power supply disconnect the jumpers as indicated on the tag on the terminal strip.
The 480-volt griddle can be operated on 480 volts only and must be specied when ordering.
Technical Data
Phasing
All griddles are shipped from the
factory set up for a three-phase
service. Rearrange the wires in
the power supply terminal block to
convert the griddle to single phase.
Re-phasing the griddle is not
chargeable to Lang Manufacturing
Company as warranty. To convert
to single-phase have a Lang
Authorized Service Agent, follow
this chart.
MODEL
NUMBER
TOTAL
K.W.
NOMINAL AMPS PER LINE
SINGLE PHASETHREE PHASE
208 Volt 240 Volt 480 Volt
208V 240VL1 L2 L3 L1 L2 L3 L1 L2 L3
24” 12 50 28.8 28.8 43.3 25 25 21.7 12.5 12.5 57.7 50
36” 18 50 50 50 43.3 43.3 43.3 21.7 21.7 21.7 86.5 75
48” 24 75 75 50 65 65 43.3 32.5 32.5 21.7 115.5 100
60”
#1 18 50 50 50 43.3 43.3 43.3 21.7 21.7 21.7 86.5 75
#2 12 50 28.8 28.8 43.3 25 25 21.7 12.5 12.5 57.7 50
72”
#1 18 50 50 50 43.3 43.3 43.3 21.7 21.7 21.7 86.5 75
#2 18 50 50 50 43.3 43.3 43.3 21.7 21.7 21.7 86.5 75
PHASING BY WIRE NUMBER
MODEL
NUMBER
THREE PHASE SINGLE PHASE
LINE 1 LINE 2 LINE 3 LINE 1 LINE 2
124S 1,4 2 3 1,3 2,6
136S 1,4 2,5 3,6 1,3,5 2,4,6
148S 1,4,7 2,5,8 3,6,9 1,3,5,7 2,4,6,8
160S #1 1,4 2,5 3,6 1,3,5 2,4,6
160S #2 1,4 2 3 1,3 2,6
172S #1 1,4 2,5 3,6 1,3,5 2,4,6
172S #2 1,4 2,5 3,6 1,3,5 2,4,6

10
INITIAL START UP
Pre-Power On
Before starting the griddle for the rst time, clean the griddle body and cooking surface.
Use a mild soap and water solution, then rinse with clear water and dry.
Power On
Set the main power switch, located at the far left of the control panel, to the “ON” (up) position
(there are two “ON” switches on 5 and 6 foot griddles).
Set each cooking section’s power switch, located next to each temperature dial, to the “ON” (up)
position.
Set the temperature dials to 200°F.
Heat the griddle at 200°F (93°C) for 2 hours to evaporate any moisture that may be in the elements.
After 2 hours at 200°F (93°C), turn the temperature up to 350°F (176°C) for ½ hour.
After the griddle reaches 350°F (176°C) for ½ hour, turn the griddle up another 50°F (10°C) for another
½ hour and repeat this until it is at 450°F (232°C) for ½ hour.
The unit may emit a small amount of smoke as the cooking surface passes the 300°F (148°C) point.
Do not be alarmed as the smoke is caused by oils associated with the manufacturing process and will
stop when the griddle reaches 350°F (176°C).
Seasoning Cooking Surface (Non-Chrome Only)
The cooking surface must be “seasoned” in order to eliminate product sticking during cooking.
To season, heat the griddle to 250°F (121°C).
Once at 250°F (121°C), coat the cooking surface with non-salted vegetable oil.
Allow the griddle to stand at 250°F (121°C) until the cooking surface looks dry then coat it again.
Heat the griddle to 350°F (176°C) and repeat the procedure.
NOTICE: Duringtherstfewhoursofoperationyoumaynoticeasmall
amount of smoke coming off the griddle, and a faint odor from the
smoke. This is normal for a new griddle and will disappear after the
rstfewhoursofuse.

11
OPERATION
General
The suggested time and temperature chart (below) is provided as a guide for the products listed only.
If different temperature settings are to be used, select one side of the griddle and operate at the lowest
temperature. Adjoining sections should be set at progressively higher temperatures. Do not try to
operate the end sections hot and the center sections cool.
ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM
COMBUSTIBLE MATERIALS.
KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF
SPILLS OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF
SLIPS OR FALLS.
Operations
An understanding of how the griddle sections are controlled will be a valuable aid in loading product on
your unit.
Each 12-inch section of your griddle is independently controlled by a temperature controller. The
temperature control sensor is mounted in the center of each cooking section under the griddle plate.
If the product is loaded directly over the temperature sensor, that section will turn on and the burner will
heat the entire cooking section. If the product is loaded to the side, front or back of the temperature
sensor, the thermostat will react to the temperature change much slower.
During slow periods with minimal loads, do not load directly over the thermostat sensors as this will
unnecessarily turn the burners on and overheat the remainder of the section not being utilized.
Turn the product and continue cooking
until it has reached its desired degree
of doneness.
Remove the product from the griddle.
When reloading the griddle, rst
use the griddle surface on which a
previous load was not placed. This
will help insure the proper griddle
temperature.
SUGGESTED TIMES AND TEMPERATURES
PRODUCTS TEMPERATURE
F / C TIME (MIN)
HAMBURGER
350°F / 176°C
2 patties per LB 6 to 8
4 patties per LB 4 to 6
6 patties per LB 3 to 4
STEAKS
1/2 to 3/4 inch thick, cooked medium 375°F / 190°C 5 to 7
3/4 to 1 inch thick, cooked medium 8 to 10
Lamb Chops 350°F / 176°C 6 to 8
Pork Chops 6 to 8
Salmon 350°F / 176°C 6 to 8
Halibut 325°F / 162°C 6 to 8
Snapper 6 to 8
Hash Brown Potatoes 375°F / 190°C 3 to 4
Bacon 350°F / 176°C 3 to 4
Sausage Links or Patties 3 to 4
Ham (Pre-cooked) 375°F / 190°C 2
Eggs 275°F / 135°C 2 to 4
Note: The times and temperatures in this chart are intended as a general guide and starting
point. Your actual times and temperatures may vary from this chart.
CAUTION

12
WARNING
MAINTENANCE & CLEANING
Cleaning
• Always start with a cold griddle.
• The stainless exterior can easily be cleaned using a good non-abrasive cleaner.
• Always follow the cleaner manufacturer’s instructions when using any cleaner.
• Always apply these cleaners when the griddle is cold and rub in the direction of the metal’s grain.
Griddle Surface Care (non-chromium surfaces)
It takes very little time and effort to keep the griddle attractive and performing at top efciency. If grease
is permitted to accumulate, it will form a gummy cake and then carbonize into a hard substance which is
extremely difcult to remove. To prevent this condition, the following suggestions for cleanliness should be
followed:
• After each use, scrape the griddle with a scraper or exible spatula to remove excess grease and
food. A waste drawer is provided for the scrapings. If there is an accumulation of burned on grease
and food, the griddle should be thoroughly scoured and re-seasoned. Use pumice or griddle stone
while the griddle is warm.
Do not use steel wool because of the danger of steel slivers getting into the food.
Griddle Care (Chromium Surfaces)
It takes very little time and effort to keep this Industrial Chromium griddle surface sparkling clean and
performing at top efciency. DO NOT allow grease to accumulate as it will carbonize and become difcult to
remove. To prevent this condition the following cleaning suggestions should be followed:
1. Remove excess grease and food regularly with a 4” (100mm) wide Razor Sharp type scraper and
wipe surface with a damp cloth if desired.
2. Following the scraping, for end of the day cleaning, a damp cloth and a non-silicated, nonabrasive,
non-chlorinated cleaner such as Bon-Ami may be used to wipe surface clean, followed by wiping with
a clean wet cloth.
3. Follow steps 2 and 3 from Griddle Care (Non-Chromium Surfaces) above.
CAUTION
1. Never use pumice, griddle stones, or abrasives on a chromium surface.
2. Never strike a chromium griddle surface with a sharp instrument or spatula edge.
3. Never use steel wool.
4. Never use commercial liquid grill cleaner on the griddle surface.
5. Abusing surface voids the warranty.
KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY
OR HOSE CONTROL CONSOLE.
MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS
MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN
TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY READ THE WARNING AND
FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE
USED.
NOTICE: Never leave a chlorine sanitizer in contact with stainless steel surfaces
longer than 10 minutes. Longer contact can cause corrosion.
CAUTION

13
TROUBLESHOOTING
Symptoms
What follows is a chart of symptoms and possible causes to aid in diagnosing faults with the griddle.
Refer to the Symptoms column to locate the type of failure then to the possible cause for the items
to be checked.
To test for a possible causes refer to the TEST section and locate the possible cause then refer
to test to identify test procedures.
SYMPTOM POSSIBLE CAUSE
Whole Griddle will not heat
•No Power to Griddle
•Failed Power switch
•Failed Transformer.
One Section will not heat
•Failed Power switch (for that section)
•Failed Probe
•Failed Circuit board
•Failed 12-position switch
•Failed contactor
•Failed Element.
Product Burning
•Product left on griddle too long
•Failed Probe
•Failed Circuit board
•Failed 12-position switch
Product Under cooked
•Product removed too soon
•Failed Probe
•Failed Circuit board
•Failed 12-position switch

14
TROUBLESHOOTING continued
NOTICE: Serviceonthis,oranyother,LANGappliancemustbeperformedbyqualied
personnel only. Consult your Lang Authorized Service Agent Directory or call
the factory at 314-678-6315, or WWW.LANGWORLD.COM
For the service agent nearest you.
BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE
WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. BEFORE
REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC
POWER SUPPLY.
If an item on the list is followed by an asterisk (*), the work should be done by a factory authorized service
representative.
USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY
LANG OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE BODILY INJURY
TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL VOID ALL
WARRANTIES.
POSSIBLE
CAUSE
TEST
Product is cooked too long • No test available, operational condition
Failed Probe • Check probe for proper resistance*
Failed Circuit board •Conrm that Circuit board is getting correct
voltage and putting out correct voltage*
Failed Transformer •Check both Primary and Secondary coils for
correct voltage*
Failed Contactor
•Remove the wires from the contactor coil and
check for continuity across the contactor coil
connection*
•Ensure the contactor moveable points move
freely up and down*
Failed Element •Conrm that Elements are getting correct
voltage and have continuity*
WARNING
CAUTION

15
12-10-03
DWG. NO:
SHEET OF
DWN. DATE :
DWN. BY :
DESCRIPTION:
W/D GRIDDLE 208/240VAC
61114-14
REV:
1
B
1
CAD FILE :
FROM ACAD
DLG
SERVICE CONNECTIONS
MODEL K.W.
L1-L2 L2-L3 L3-L1 TOTAL
24
36
48 12.0
6.0
6.0
6.0
6.0
0.0
6.0
6.0
6.0
24.0
18.0
12.0
2,51,4
1,4,7 2,5,8
1,4
L2
2
2,4,61,3,53,6
3,6 1,3,5,7 2,4,6,8
L1L3
3 1,3 2,4
L2L1
THREE PHASE SINGLE PHASE
NOTE: 60” & 72” HAVE TWO POWER SUPPLY CONNECTIONS
60”: CONN # 1 USE LG36
CONN # 2 USE LG24
72”: CONN # 1 USE LG36
CONN # 2 USE LG36
10 PROBE
9 TRANSFORMER
8 TOGGLE SWITCH
7 12 POSITION SWITCH
6 TEMP. CONTROL BOARD
5 TERMINAL BLOCK
4 JUMPER
3 CONTACTOR
2 GRIDDLE PILOT LAMP
1 GRIDDLE ELEMENTS
5
L3L2L1
4 4
JUMPERJUMPER
INSTALL REMOVE
240V208V
ELEMENT HOOKUP
8888
3 2 6 5 4 7 8
10
9
6
7
2
1
4 5 3
12
SWITCH
POSITION
1 2 4 3
1
7
7 5 6 9
10
8
6
3 4 5
12
POSITION
SWITCH 2
1 2 4 3
1
7
7 5 6 9
10
8
6
3 4 5
12
POSITION
SWITCH 2
7
10
7 8 6 5 3 2 1 4
5 4 2 3
12
SWITCH
POSITION
1
9
“24
36”
48”
30
30
31 31
9
2
32 32
8
13
15
4
14
25
1
10
1616
3
2727
17
25
19
4
18
1
10
2020
3
6
28 28
6 5 34
9
25
11
4
12
1
10
1212
3
26 26
2 1
1
10
4
3
8 7
2929
22
25
21
23
2424
9
1
POSITION
SWITCH
12
3 2 4 5
4 1 2 3 5 6 8 7
10
2
SWITCH
POSITION
12 5
4 3
8
10
9 6 5 7
1
3 4 2 1
POSITION
SWITCH
12
3 5 4
1
2
9
10
8 7 4 5 6 2 3
2
30
30
3232
8
12
2626
3
12
10
1
9
4 356
2828
6
3
20
10
1
17
27 27
3
16
10
1
13
9
31
31
LG36
LG24
L1 L2 L3
5
1 GRIDDLE ELEMENTS
2 GRIDDLE PILOT LAMP
3 CONTACTOR
4 JUMPER
5 TERMINAL BLOCK
6 TEMP. CONTROL BOARD
7 12 POSITION SWITCH
8 TOGGLE SWITCH
9 TRANSFORMER
10 PROBE
7
6
77
6
8 8 8
24V
480V
NOTE: SOME 48” AND ALL 60” & 72” GRIDDLES HAVE
TWO POWER SUPPLY CONNECTIONS
48”: CONN # 1 USE LG24
CONN # 2 USE LG24
60”: CONN # 1 USE LG36
CONN # 2 USE LG24
72”: CONN # 1 USE LG36
CONN # 1 USE LG36
Note:
1. Add one more section for a single
connection “48
2. Add two more sections for a 60”
3. This wiring diagram shows 1/2 section
for a 72” model
4. Do not use more than 4 contactors to
one transformer
10-28-96
DWG. NO: SHEET OF
DWN. DATE :
DWN. BY :
DESCRIPTION:
LANG-GRIDDLE 480VAC SELECTRONIC
61114-17 REV:
1C
1
CAD FILE :FROM ACAD
SRC

16
DD
1
2
3
4
5
6
7
8
A
B
C
DJS 7/25/07
DWG. NO:
SHEET OF
DWN. DATE :
DWN. BY : CHK. BY :
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS ANGLES
.X = ± .05 ± .5°
.XXX =± .015
BLANK
DIMS. :
DESCRIPTION:
MATERIAL
PART # :
1
2
3
456
7
8
LANG-GRIDDLE 480VAC SELECTRONIC 2M-61114-W50
.XX =± .03 REV:
1
B
1
MATERIAL
TYPE :
BLANK
AREA:
X
CAD FILE :
sq
in
CHK. DATE :
REV. BY : REV. DATE :
A
B
C
9
1
POSITION
SWITCH
12
3 2 4 5
4 1 2 3 5 6 8 7
10
2
SWITCH
POSITION
12 5
4 3
8
10
9 6 5 7
1
3 4 2 1
POSITION
SWITCH
12
3 5 4
1
2
9
10
8 7 4 5 6 2 3
2
30
30
3232
8
12
2626
3
2
10
1
1
4 356
2828
6
3
6
10
1
5
27 27
3
4
10
1
3
9
31
31
LG36
or 136S LG24
or 124S
L1 L2 L3
5
1 GRIDDLE ELEMENTS
2 GRIDDLE PILOT LAMP
3 CONTACTOR
4 JUMPER
5 TERMINAL BLOCK
6 TEMP. CONTROL BOARD
7 12 POSITION SWITCH
8 TOGGLE SWITCH
9 TRANSFORMER, CLASS 2
10 PROBE
7
6
77
6
8 8 8
24V
480V
NOTE: SOME LG48 (148S) AND ALL LG60 (160S) & LG72 (172S) HAVE
TWO POWER SUPPLY CONNECTIONS
LG48 (148S): CONN # 1 USE LG24 (124S)
CONN # 2 USE LG24 (124S)
LG60 (160S): CONN # 1 USE LG36 (136S)
CONN # 2 USE LG24 (124S)
LG72 (172S): CONN # 1 USE LG36 (136S)
CONN # 1 USE LG36 (136S)
Note:
1. Add one more section for a single
connection LG-48 (148S)
2. Add two more sections for a LG-60 (160S)
3. This wiring diagram shows 1/2 section
for a LG-72 (172S) model
4. Do not use more than 4 contactors to
one transformer
BLU
YEL
Model L1 L2 L3 Model
24 22 13 1 3 L1 L2 L3
36 22 22 2 2 2 4 1,4 2 3
48 33 33 2 2 3 6 1,4 2,5 3,6
60 43 33 3 3 4 8 1, 4 ,7 2 , 5,8 3,6
72 43 43 4 3
AMP TOTAL
SERVICE CONNECTIONS
Th re e P has e
RE V DE S C RIP TIO N RE V B Y R E V D A TE CH K B Y C HK DA TE
- E C O 595 6, IN ITIA L RE L E A S E , R E P LA CE D 61 114 -17 D JS 7 /2 5/20 07
A
E CO 62 54 Re vis e wire num b ers to m atc h prod uc tio n,
add w ire nuts to m atc h produ ctio n
DJS 10/26/2007
B
E C O 1 06 47. R em oved O vert em p S t at s DJS 5/10/201 1
RE V IS IO NS

17
R
480V
TRANSFORMER
24V
231
541 23 6
24
13
231
480V
TRANSFORMER
24V
24
13
24
13
6
18 17
16 14 13
11
10
8
7 4
CLAMSHELL PILOT LAMP-250V HOOD TILT SWITCH HOOD ELEMENTS
TIMER PLUGS CONTACTOR - HOOD
FUSES HOOD OVERTEMP STAT #1
HOOD PILOT LAMP TERMINAL BLOCK
OVERTEMP STAT - GRID
PROBE TRANSFORMER, CL2 TOGGLE SWITCH
12 POSITION SWITCH TEMP CONTROL BOARD PWR CONNECT TERM BLK CONTACTOR - GRIDDLE GRIDDLE PILOT LAMP-480V
GRIDDLE ELEMENTS
15
12
9
5 3 2 1
19 HOOD OVERTEMP STAT #2
20 HOOD OVERTEMP STAT #3
21 22 GRIDDLE PILOT LAMP-28V
TITLE
MODEL NO.
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L
MATERIAL
REVISIONS
PART NO.
INC. NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED
TOLERANCE: UNLESS NOTED: .xxx ± .015 ANGLES 1
FINISH
10/12/2009CK. DATE
:DJSDR :
2M-61114-W65
W/D 5' SELECTRONIC ELECT GRID W/ CSE12 HOODS - 480V
STAR MANUFACTURING INTERNATIONAL INC.
# 10 SUNNEN DRIVE
ST. LOUIS, MO. 63143, USA
15
21
4
22
22
4
21
15
3
1
9
3
1
3
1
9
5
REV. DATE/ECO DESCRIPTION OF CHANGE DR
HOOD
WIRING NOTE:
GRIDDLE FIELD
REQURED ONLY WHEN 3 HOODS ARE
4.
THREE PHASE
2
22
32
30
#5
POSITIONPOSITION
CLAMSHELL VOLTAGE MAY BE PROPER VOLTAGE FOR CLAMSHELL.
9
12
26 26
2
TO 3RD HOOD TILT SWITCH
1
SEE CLAMSHELL NAMEPLATE FOR
TO 2ND HOOD TILT SWITCH
29
1414
28
TO CONNECTION POINT C
TO CONNECTION POINT B
ON 3RD HOOD CONTACTOR BOX ON 3RD HOOD CONTACTOR BOX
5.
DIFFERENT THAN GRIDDLE VOLTAGE.
2828
20 17
5
19
6
TO CONNECTION POINT C
ON 2ND HOOD CONTACTOR BOX ON 2ND HOOD CONTACTOR BOX
TO CONNECTION POINT B
ON 2ND & 3RD HOOD CONTACTOR BOX
7
1316
2727
4
27
TO CONNECTION POINT A
CLAMSHELL
12
THREE PHASE
L1 - 1,4
USED ON ONE POWER CONNECTION.
SEE NOTES 2 & 3
L2 - 2,5 L3 - 3,6
CLAMSHELL
HOOD BOX
CONTACTOR
GRIDDLE LEFT
18
17 17
16
14 14
13
8
3
32
31
7
31
30
GRIDDLE FIELD
30 30
31
31
32 7
32
11
3
7
------ DASHED COMPONENTS ARE
27
8
20
1414
16
17 17
18
GRIDDLE RIGHT
CONTACTOR
BOX
11
26
L1 - 27,29
L3 - 3
2627
4
5
27
L2 - 27,28
16 13
L2 - 2
11
TO CONNECTION POINT A
ON 2ND HOOD CONTACTOR BOX
L1 - 26
TO CONNECTION POINT B
ON 2ND HOOD CONTACTOR BOX
TO CONNECTION POINT C
CLAMSHELL FIELD
TO 2ND HOOD TILT SWITCH
12
2626
ON 2ND HOOD CONTACTOR BOX
12 9
10
10
15
16
4
6
5
3
9
A
B
11
C
9
7
8
10
9
6
WIRING NOTE:
7
3
4
2
6
L1 - 1,4
SEE NOTES 2 & 3
SWITCH 3
5
4
5
1
POSIT ION
2
10 7
6
5
3
1
12
SWITCH 2
5
4
3
1
9
10
8
7
4
5
6
1
2
POSIT ION
3
10
9
7
8
10
9
6
5
7
3
4
2
6
1
12
SWITCH 3
5
4
5
1
POSIT ION
2
10
9
7
8
10
9
6
5
7
3
4
2
6
1
12
SWITCH 3
5
4
5
1
POSIT ION
2
10 7
6
5
3
1
12
SWITCH 2
5
4
3
1
9
10
8
7
4
5
6
1
2
3
10
10
15
16
4
6
5
3
9
BLU/W
R/W
A
BC
R/W
POSIT ION
1
10
12
BLOCK
ONLY TO TERMINAL
BLU/W
THREE PHASE
L3 - 29
L2 - 26,28
GRIDDLE WIRES
4
HOOD
OVERTEMP STAT
22
L2 - 27 L1 - 26
ITEM #20
1 OR 3 PHASE
OVERTEMP STAT
BLOCK 4
WIRING NOTE
GRIDDLE WIRES
ONLY TO TERMINAL
FRONT OF GRIDDLE
OVERTEMP STAT
ITEM #13
HOOD
POSITION
#3
HOOD
#1
POSITION
#2
HOOD
POSITION
TOP VIEW OF GRIDDLE
#4
ITEM #19
HOOD
NOTES:
FUSE BLOCK PAIR REQUIED FOR EVERY 11. OR 2 CLAMSHELL COMBINATION ON EACH POWER CONNECTION. OVERTEMP STATS ARE LOCATED ON THE2. UNDERSIDE OF THE GRIDDLE PLATE. SEE TABLE 1 FOR ITEM 13,19 & 20 USAGE.3.
CLAMSHELL FIELD
WIRING NOTE
SINGLE PHASE
5
13,20
19
DOWN
UP
32
1
DOWN
UP
32
1,4,5
13,20
1,2,5
13,20
1,2,4
13,19
1,2,3
20
4,5
19,20
3,5
19,20
3,4
13,20
2,5
13,20
2,4
1
TABLE 1
HOOD POSITION # USE OVERTEMP
STAT ITEM #
113
213 319 420 520
1,2 13 1,3 13,19 1,4 13,20 1,5 13,20 2,3
TABLE 1
HOOD POSITION # USE OVERTEMP
STAT ITEM #
2,3,4 19,20
2,3,5 19,20 2,4,5 13,20 3,4,5 19,20
1,2,4,5 13,20 2,3,4,5 19,20
ALL OTHER
COMBINATIONS 13,19 & 20

18
SK2263 Rev. C 1/17/12
Model:
124S - 172S Selectronic Control Electric Griddle
LG Electric Griddle Accu-Temp Control
1
4
5
6
7
16
3
2
8
9
10
11
12
13
14
15

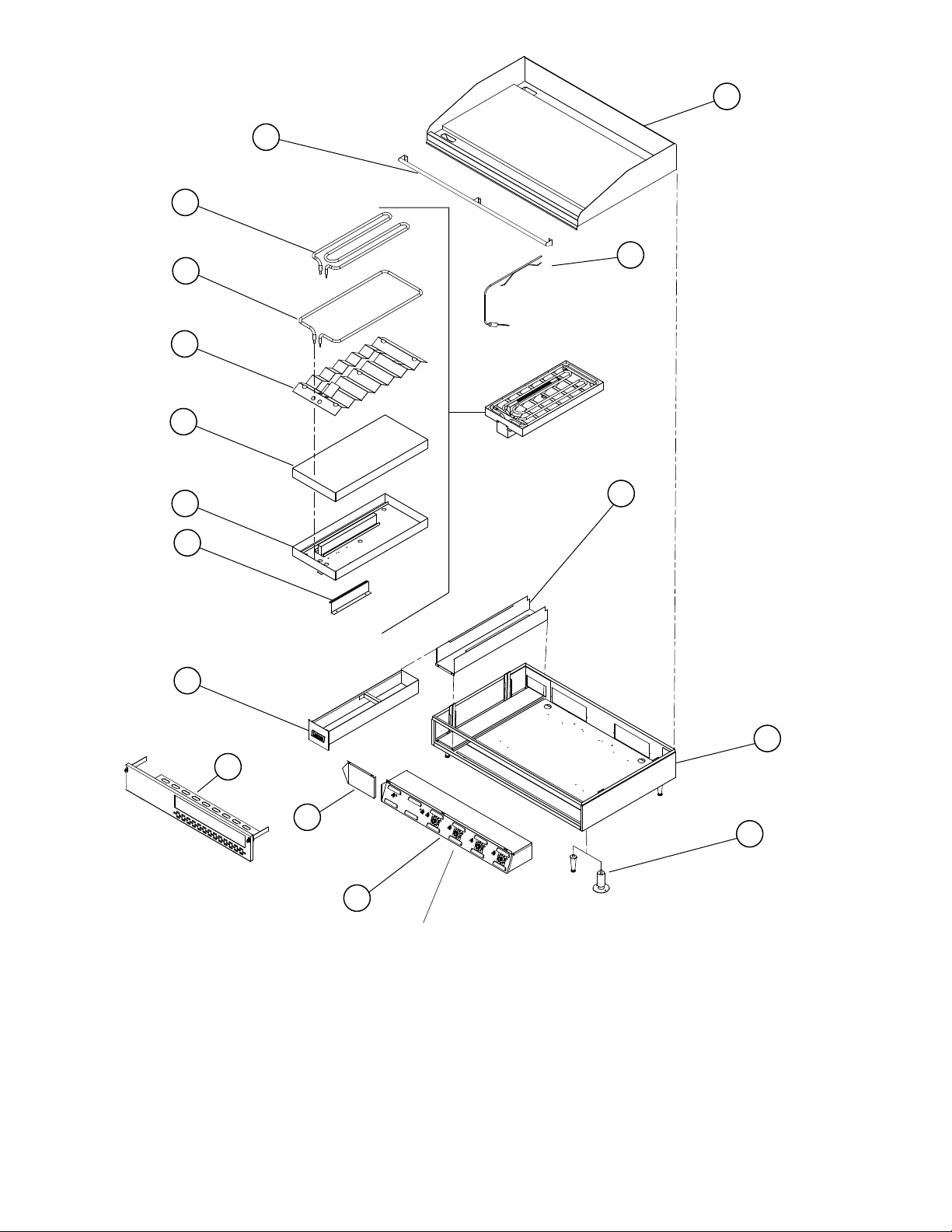

For individual parts
SEE DETAIL A
This drawing contains information confidential
to Star Manufacturing International, Inc.
No reproduction or disclosure of it's
CERTAIN INSTANCES MAY NOT BE AVAILABLE
ILLUSTRATIVE PURPOSES AND IN
SOME ITEMS ARE INCLUDED FOR
contents is permitted.

19
PARTS LIST July 24, 2012, Rev H
Model: 124S, 124S-480V, 124SHE, 124SCHE, Selectronic Electric Griddle
FIG NO. PART NO. QTY DESCRIPTION APPLICATION
1
K9-XL-722-15
1
PLATE ASY 2’ SEL .5 GRV 124S, 124S-480V
K9-XL-722-154 PLTEASY 2’ SEL.5GRVW/XLH12 124SHE
K9-XL-722-C154 PLT ASSY 2’ SEL .5” GRV CHR 124SCHE
K9-XL-722-W152 PLATE ASSY 2’ SEL. .5 GRV 124SC
22E-41100-17 2 TEMP PROBE SEL LG GRIDDLE 124S, 124S-480V, 124SHE
3 K9-XL-228 1 BUCKET SLIDE ASSY ALL
4 K9-LG-BODY-2 1 BLANK BODY LG & XL 2FT ALL
52A-Z0314 4FOOT, 4” DIE CAST 124S, 124S-480V, 124SHE
2A-72500-05 LEG 4 W/BOLT DOWN ADJ MARINE
6
K9-LGPS2-C
1
PNEL XL-LG SEL 2’ 208/240V 124S
K9-LGPS2-C-W1 PNEL SEL 2’ 208/240V W/CSE 124SHE
K9-LGPS2-U PNEL XL-LG SEL 2’ 480V 124S-480V
8K9-50302-07 1 GREASE DRAWER LG/XL ALL
9K9-XL-441 2 PROBE HOLDER SELECTRONIC ALL
10 K9-XL-434 2ELEMENT PAN ASSEMLBY ALL
11 2H-XL-424 2 ELEMENT PAN INSULATION ALL
12 K9-XL-439 2 ELEMENT PAN Z ASSEMBLY ALL
13
2N-11030-29
2
ELE GRD 208/240V4.5KW/6KW 124S, 124S-480V & VM, 124SHE, 124SCHE
2N-11030-31 ELMNT GRID 480V 5991W 124S-480V, 124SHE-480V
2N-11030-48 ELE GRD 440V 5991W XL/LG 124S-440VM
14 2N-11030-30 2 ELMNT GRID 208V 1257W 124S, 124S-208VM, 124S-480V, 124SHE, 124SCHE
NI K9-50302-14 1 2’ GRAB BARASSY XL-LG MARINE
NI 2E-30500-02 1 TRM STRP 4 POLE 30A 600V 124S, 124S-480V, 124SHE
NI 2E-30500-07 1 TRM BLOCK 3PLELRGE 125AMP 124S, 124S-480V, 124SHE
NI 2E-30501-03 1 TERM STRP 4 POLE W/PUSH 124S, 124S-480V, 124SHE
NI 2P-50100-05 GROOVED GRIDDLE CLEANING ALL
NI 2P-50100-051 GRVED GRDLE BRUSH REPL ALL
NI 2P-50100-052 GRVED GRDLE BRUSH REPL ALL
NI 2P-50100-15 1GRIDDLE SCRAPER 12” CROME UNITS
NI 2P-50100-15-1 -RE-FILL REPLACEMENTS CROME UNITS
NI 2P-50100-16 1BOM AMI CLEANER CROME UNITS
NI 2P-50100-17 120” PALMYRA BRUSH CROME UNITS
Some items are included for illustrative purposes only and in certain instances may not be available.
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1

20
PARTS LIST July 24, 2012, Rev H
Some items are included for illustrative purposes only and in certain instances may not be available.
Model No: 136S, 136S-SC, 136SHE, 136SCHE, 136S-380VM, 136S-480V
Selectronic Electric Griddle
FIG NO PART NO. QTY DESCRIPTION APPLICATION
1
K9-XL-722-16
1
PLATE ASY 3’ SEL .5 GRV 136S
K9-XL-722-W162 PLATE ASY 3’ SEL.5 GRV CHR 136SC
K9-XL-722-164 PLATE ASY 3’SEL .5 GRV 136SHE
K9-XL-722-C164 PLATE ASY 3’ SEL.5 GRV CHR 136SCHE
K9-XL-719-3 PLATE ASY 3’ SEL REAR 136SR
22E-41100-17 3 TEMP PROBE SEL LG GRIDDLE ALL
3K9-XL-228 1BUCKET SLIDE ASSY ALL
K9-XL-288-30 BKT SLIDE ASSY REAR GUTER 136SR
4K9-LG-BODY-3 1BLANK BODY LG & XL 3FT ALL
K9-LG-BODY-3WB BLANK BODY 3’ REAR GUTTER 136SR
5
2A-Z0314
4
FOOT, 4” DIE CAST 136S, 480V
2A-72500-05 LEG 4 W/BOLT DOWN ADJ MARINE
2A-200716 LEG, 2.5” METAL 136S-SC
6
K9-LGPS3-C
1
PANEL XL-LG SEL 3’ 208/240V 136S
K9-LGPS3-CWB PNELXL-LG SEL 2’ 208/240V 136SR
K9-LGPS3-K PANEL CL-LG SEL 3’ 380V 136S-380VM
K9-LGPS3-U PANEL XL-LG SEL 3’ 480V 136S-480V
7 K9-60102-13531 1 ACCESS PANEL ASSY 2’ 136S, 136SB, 136SC
8K9-XL-235-1 1GREASE BUCKET ASSY S/S ALL
K9-XL-235-30 GREASE BKT ASY REAR GUTER 136SR
9K9-XL-441 3 PROBE HOLDER SELECTRONIC ALL
10 K9-XL-434 3ELEMENT PAN ASSEMLBY ALL
11 2H-XL-424 3 ELEMENT PAN INSULATION ALL
12 K9-XL-439 3 ELEMENT PAN Z ASSEMBLY ALL
13
2N-11030-29
3
ELE GRD 208/240V4.5KW/6KW 136S
2N-11030-04 ELMNT GRID 380V 5991W 136S-380V, 380VM
2N-11030-31 ELMNT GRID 480V 5991W 136S-480V, 136SHE-480V
2N-11030-48 ELE GRD 440V 5991W XL/LG 136S-440VM
14 2N-11030-30 3 ELMNT GRID 208V 1257W 136S
15 K9-50302-15 1 3’ GRAB BARASSY XL-LG 136SR, MARINE
NI 2E-30500-03 1 TRM STRP 6 POLE 30A 300V 136S, 480V
NI 2E-30500-05 1 TRM STRP 8 POLE 30A 300V 136S, 480V
NI 2P-50100-05 GROOVED GRIDDLE CLEANING ALL
NI 2P-50100-051 GRVED GRDLE BRUSH REPL ALL
NI 2P-50100-052 GRVED GRDLE BRUSH REPL ALL
NI 2P-50100-15 1GRIDDLE SCRAPER 12” CROME UNITS
NI 2P-50100-15-1 -RE-FILL REPLACEMENTS CROME UNITS
NI 2P-50100-16 1BOM AMI CLEANER CROME UNITS
NI 2P-50100-17 120” PALMYRA BRUSH CROME UNITS
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE 1
INCLUDE MODEL AND SERIAL NUMBER OF 1
