Bobot NAVI908 User manual

MAKE THE WORLD CLEAN
BOBOT NAVI908
Robotic Vacuum
Cleaner
Instruction
Manual
please read the instructions carefully before using the product

CONTENTS BOBOT ROBOTICS INC.
1. Install Application And Log In
2. APP Functions Introduction
3. Instructions For Use
4. Packing List
5. Machine Introduction
6. Product Operation
7. Product Maintenance
8. Product Parameters
9. Trouble-shooting
10. FAQ
11. Safety Information
12. AS Service And Warranty
13. User Information
·····························································································1
································································································2
··········································································································6
················································································································4
·······················································································································5
············································································································8
············································································································12
··············································································································15
·············································································································17
·········································································································································19
···············································································································20
··································································································21
··················································································································22

1.Scan the QR code, install the robotic vacuum application
2.Register and log in.
3.Turn on the robotic vacuum，wait and till voice prompt "
Hello, Master, the machine is ready", press two buttons of the
machine for 3 seconds at the same time, until you hear " WiFi
has reset". Open "Tuya smart" APP and click "+" to add the
device. Click “Small home appliance”，select “Robot vacuum
(Wi-Fi)” .
4.Select WiFi and enter password, click "Next".
5.Tick "Confirm the indicator is blinking rapidly", click "Next".
6. Adding device, robot vacuum voice prompts " The appliance
is starting to bind the user information", and then "Network is
connected...", click "Done"
1
BOBOT ROBOTICS INC.Install application and log in

3.Click "Pose" to stop current task. Select the position on the
map you want to clean, click "Go Here" to start point cleaning,
click "Back" to stop it.
4.Select "Zone", click "Sweep area",drag the area on the map you
want to clean, click "Go Here" to start zone cleaning,click "Back"
to stop it.
Click " Forbidden Edit" and then " Add area" to create the area you
don't want to clean, save it.
1.Click "Smart" to start auto-cleaning (default setting), click
again to pause it. Click "Chargego" for recharging.
2. Click "Setting", select "Suction" to adjust suction level:
Strong, Normal,Gentle or Auto. Select "Water quantity" to
adjust water discharge level: High, Middle or Low.
2
BOBOT ROBOTICS INC.APP Functions Introduction

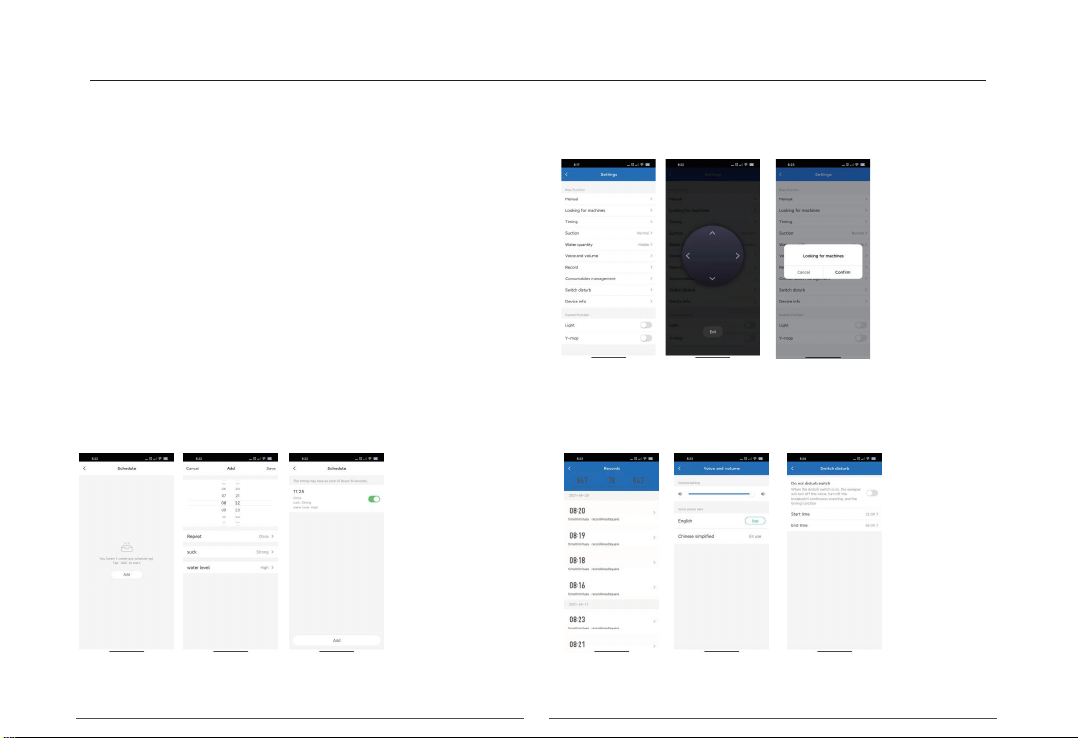

6. Click "Setting" in the lower right corner.
1) Timing: Click "Add" to set scheduled cleaning time and date
and Save the setting.
2) Click "Manual" to manually control robot vacuum movement.
3) Click "Looking for machines" to fine where the robot vacuum
is.
4) Click "Record" to check cleaning records.
5) Click "Voice and volume" to adjust voice volume and switch
voice language.
6) Click "Switch Disturb" to open non-disturb function.
5. Under mopping mode, click "Smart" to start auto-mopping,
back for recharging after mopping is finished.
3
BOBOT ROBOTICS INC.
APP Functions Introduction

01.The product is only for the cleaning of the floor in the home environment and do not use it outdoors (such as open balcony),
non-ground (such as sofa, coffee table, etc.), commercial or industrial environment.
02.Do not use the product in a suspended environment (such as duplex floors, home tops, etc. ) to avoid property damage and personal
injury caused by falling of the device.
03.Do not use the product in an environment above 40 0 C or below -10 0 C.
04.Do not use the product in a ground environment with liquid or sticky materials.
05.Please clean up the debris or scattered objects and cables on the ground before use to avoid the machine being blocked or entan-
gled during operation.
06.Please ensure that the items that are fragile, easy to fall, expensive or potentially dangerous are stored properly before use to avoid
personal injury or property damage caused by the robot vacuum cleaner during operation.
07.The people with physical, mental or cognitive impairments, including children are not allowed to use or operate the product.
08.P leas e properly keep the product, charging stand and product accessories to prevent children from touching to avoid personal and
property damage.
09.Do not allow children to use the robot vacuum cleaner as a toy. Keep the children and pets as far away as possible during its work-
ing and cleaning.
10.Do not place the hair, clothing, fingers, etc. of the human close to the suction port and operating parts of the product.
11.The products must not allowed to absorb any burning items such as cigarettes, matches, ash and other items that may cause fire.
12.The products must not allowed to absorb any items such as stones, was te paper, nails, broken glas s, etc. that may block the prod-
uct.
13.Do not move the machine by the lidar cover as the handle to avoid damage of the lidar.
14.Please clean and maintain the machine and the charging stand during shutdown or power off.
15.Please clean the charging stand and the product with a dry soft towel and do not wipe any part of the product with any damp cloth,
detergent or liquid.
16.During the initial use of the product, please always observe the work of the robot vacuum cleaner to help deal with some pos-sible
4
BOBOT ROBOTICS INC.Instructions for use
borne by the user.
problems, such as the wound cables, the uneven area and the area that may make the robot vacuum cleaner suspend-ing or stuck.
And these areas can be set in the APP once they are found to prevent the robot vacuum cleaner from entering these areas the next
time during work.
17.Please use the product strictly in accordance with the product instruction, and any loss or damage caused by improper use shall be
18.This product is equipped with UV light sterilization components. If equipped, the UV light components only work when the machine
is cleaned. When the machine fails or stops, the UV light components also stop working accordingly.

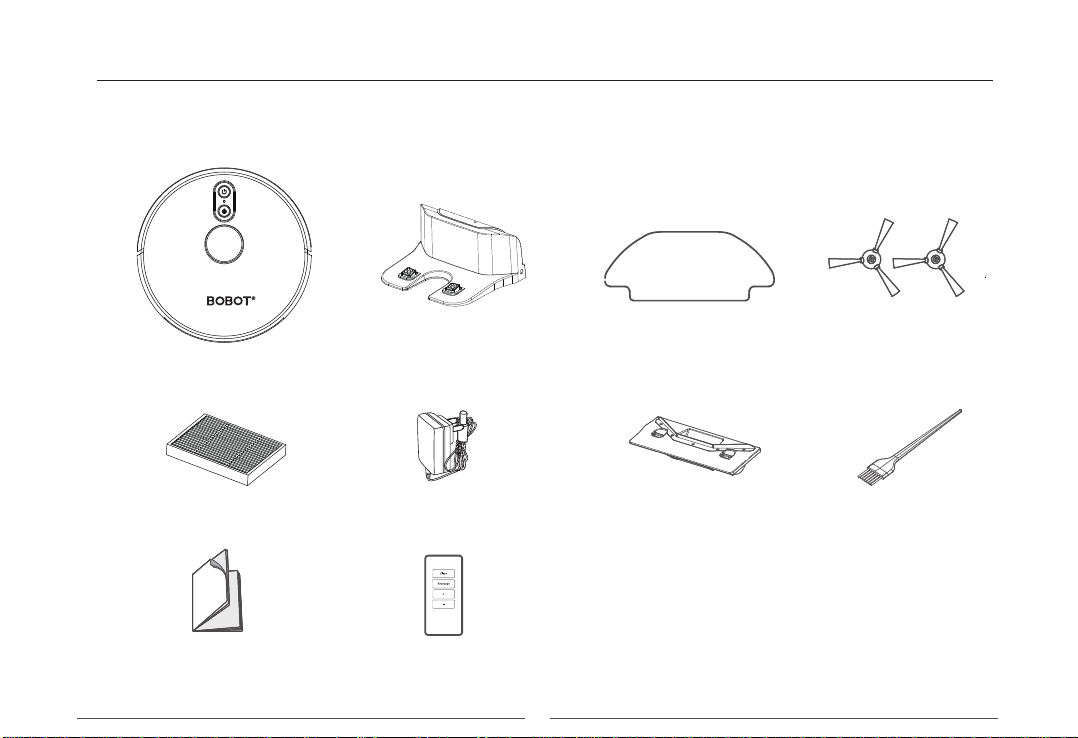

Machine Charging stand Extra Mop Side brush
Power adapter Single suction
port component
High efficiency filter Cleaning brush
Instruction Remote control
5
BOBOT ROBOTICS INC.Packing List

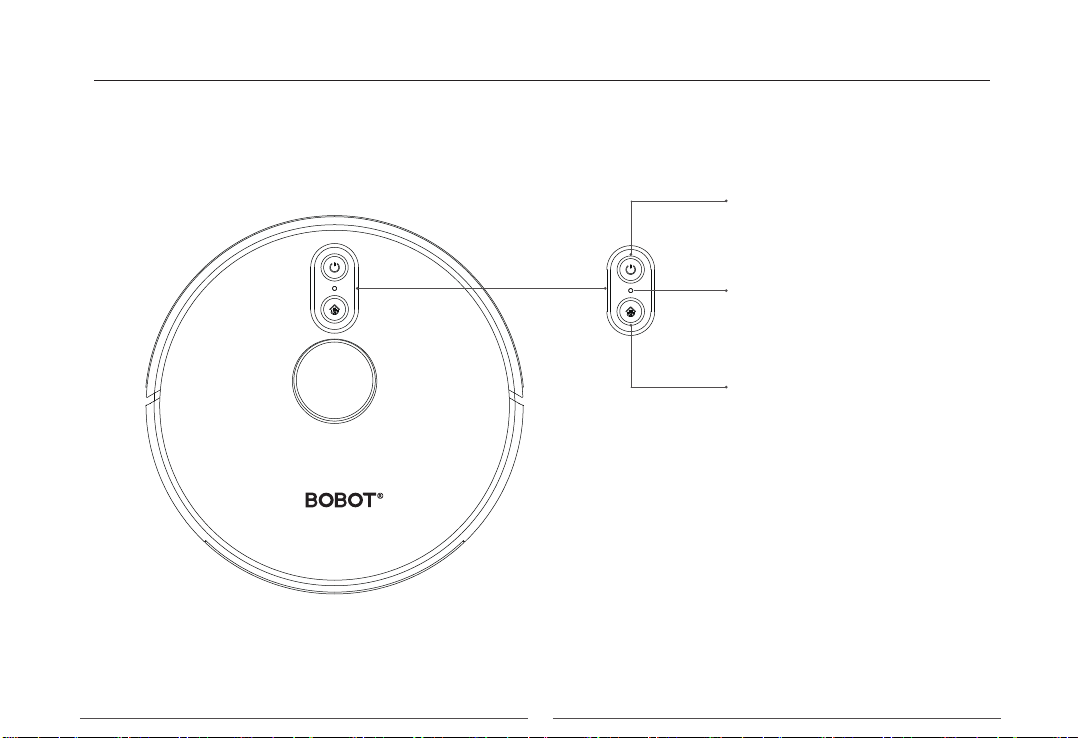

Blue LED: Charging
Red LED：Fault
LED Indication
Power key:
Short press: Sweep/pause
Long press: On/off the machine
WiFi indication light:
Slow flash: Waiting for connection
Normally on: WiFi is connected
Quick flash: WiFi connection failed
Recharge key:
Short press: recharge / pause
Long press: Timing cleaning
6
BOBOT ROBOTICS INC.Machine Introduction

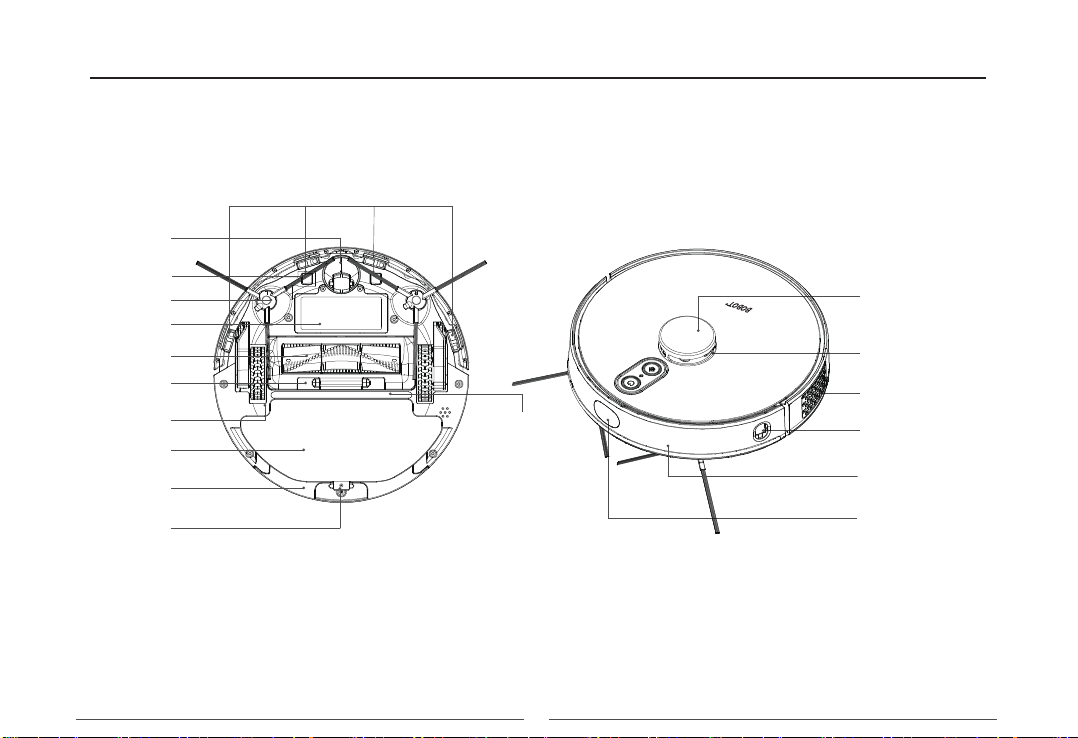

Anti-dropping sensor
UV light
Universal wheel
Charging pole piece
Side brush
Battery Cover
Rolling brush
Rolling brush cover
Driving wheel
Mop component
Mop buckle
Integrated Dust
Bin & Water Tank
Laser radar
Radar collision
senso
Exhaust pot
Infrared sensor
Collision sensor
Alignment sensor
Collision buffer
7
BOBOT ROBOTICS INC.Product Operation

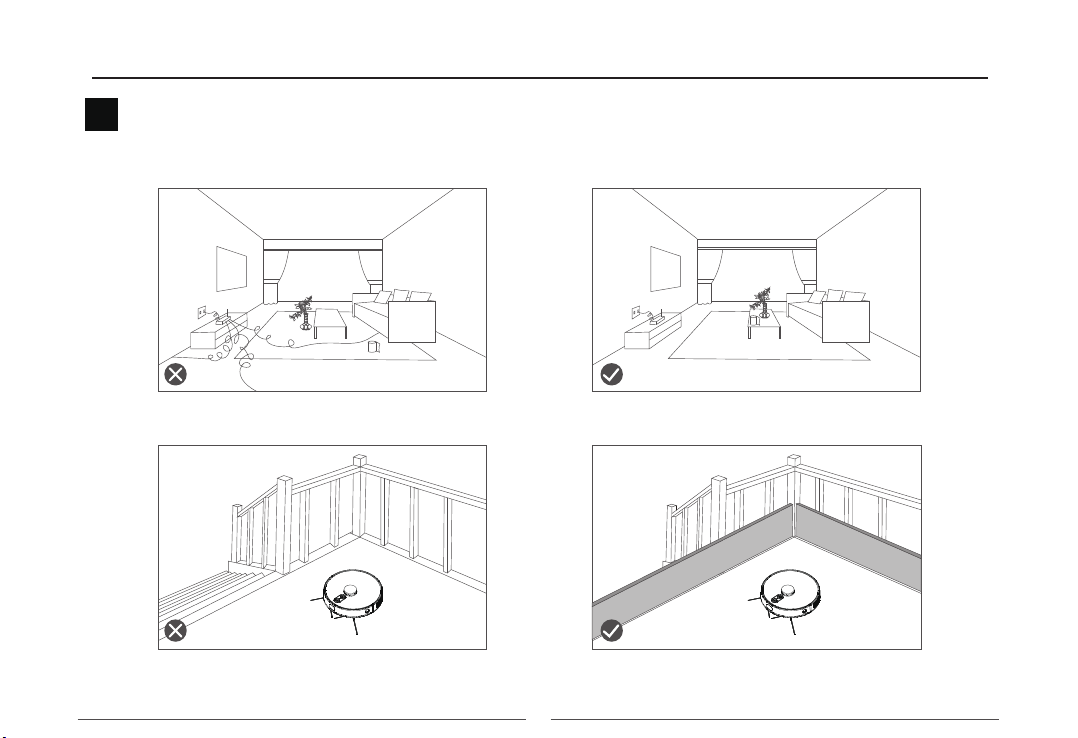

Indoor cleaning1
Please clean up small objects, fragile articles, cables, curtain ropes, etc. scattered on the ground before use to prevent entangle-
ment or damage of the property.
The users with a duplex structure such as stairs etc. in their homes shall specially note that it is strictly forbidden to use the prod-
uct in the fenceless suspending environment, which is higher than that of the family activities.
8
BOBOT ROBOTICS INC.Product Operation

Align the side brush with its bearing on the machine
and press firmly to install the left and right brushes.
Side Brush Installation2
Open the rubber cover on the water tank, fill in water
and then install back。
Water Tank Installation3
9
BOBOT ROBOTICS INC.Product Operation

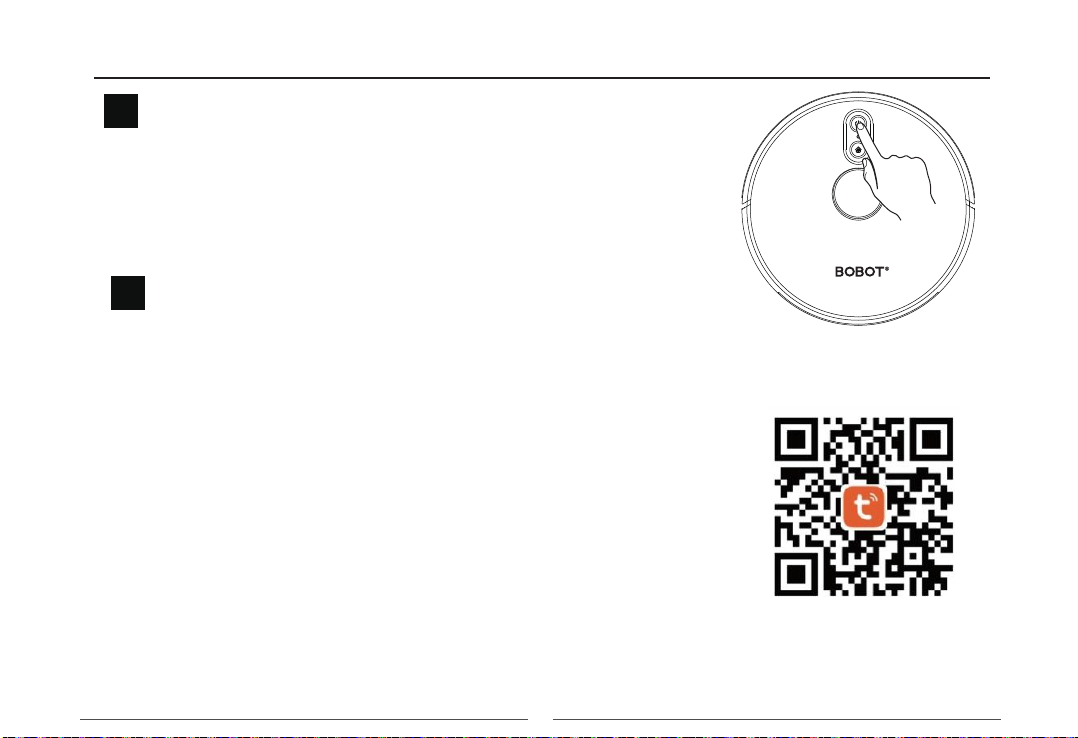

Press power button for 3 seconds and voice prompts powered on.
Power On
4
APP Install5
Connection network for the machine
Before connecting the network, please make sure that the mobile phone and the
machine are within the WiFi cover-age and as close as possible to the router.
In case the router configuration or the password is changed, or the mobile phone
cannot be connected to the device due to other reasons, reset the WiFi of the
machine for pairing.
Reset method:
After turning on the machine, press both the power key and the recharge key
simultaneously for 3 seconds until you hear the voice prompt and the WiFi indica-
tion light sl owly flashes, which indicate that the WiFi reset is suc-cessful.
Device pairing:
Open the APP to add device and operate by following APP prompts.
10
BOBOT ROBOTICS INC.Product Operation

Please make sure that no obstacles in the space of 1 m on both sides and 2m ahead of the charging stand.
Charge the robot vacuum cleaner on the charging stand,
Recharging6
>1m
>1m
>2m
11
BOBOT ROBOTICS INC.Product Operation

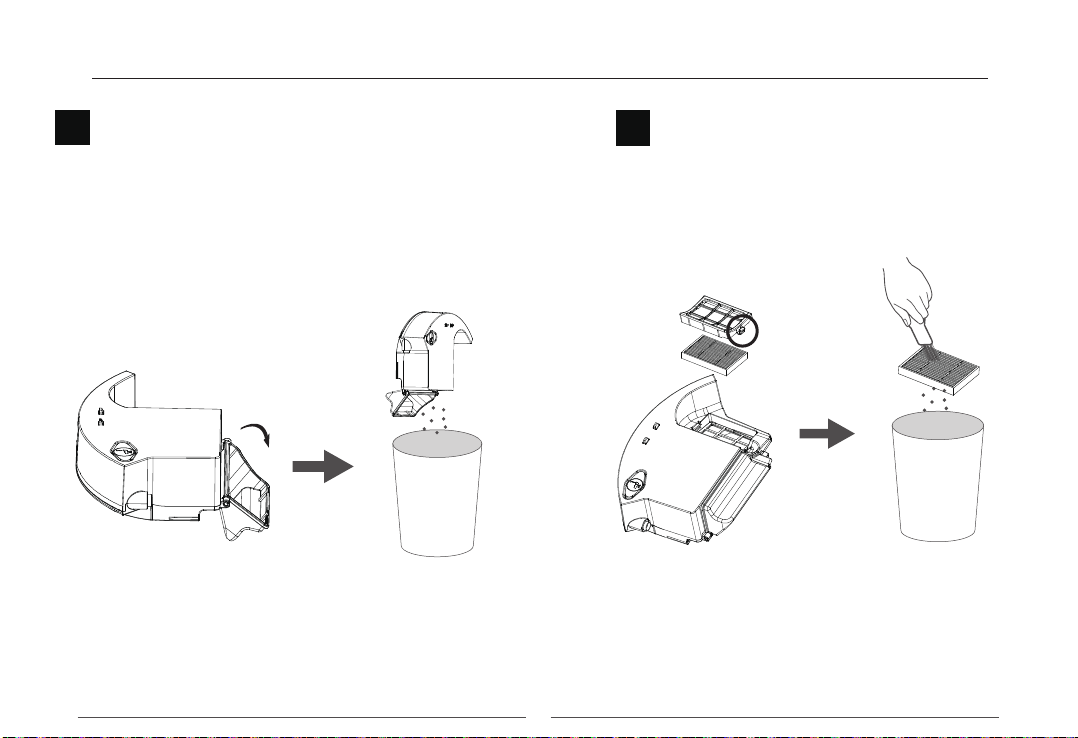

Pull out the dust bin,open the buckle and clean the dust.
Dust Bin Cleaning 1
Open the buckle of HEPA bracket,take out HEPA
and clean it.
HEPA Filter Cleaning 2
12
BOBOT ROBOTICS INC.Product Maintenance

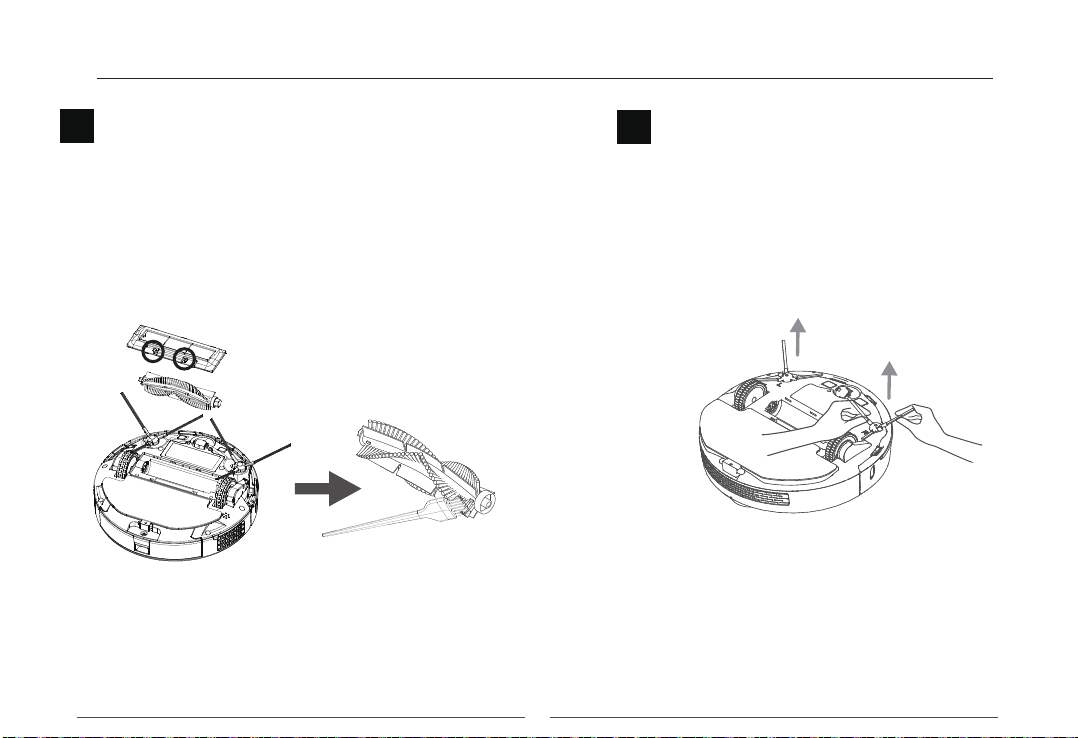

Cleaning Of Rolling Brush
3
Lift the left and right brushes up and pull them out,Clean
the windings on the left and right brushes and
their bearings.
Side Brush Cleaning4
Turn the machine and press the buckle on the rolling brush
cover from both ends to remove the rolling brush.Clean the
windings on the rolling brush with the matching cleaning brush.
After cleaning, install the rolling brush and fasten the cover.
13
BOBOT ROBOTICS INC.Product Maintenance

1. When replacing the battery, cut off the power and turn off the unit.
2. Remove the screw on the battery cover, pull out battery terminal and take out the lithium battery from the cabinet.
3. Connect the terminal of the new battery，put the battery into the cabinet and put battery cover back with screw.
Replace the battery5
WARNING
Do not discard used batteries at will and please give the professional recycling agency for treatment.
Connection terminal
Battery Cover
14
BOBOT ROBOTICS INC.Product Maintenance

Parameters of main machine
Parameters of charging stand
100-240V/0.6A,50/60Hz
L185*W140*H75mm
24.0V/1.0A
50/60Hz
Dimensions
Dimensions
Battery
Host Weight
Connection Method
Rated Voltage
Rated Power
Water Tank Capacity
Dust Box Capacity
L315*W315*H92mm
2.8±0.1KG
WiFi connection
5000mAh,LG Lithium battery
14.4V
40W
230ml
300ml
Rated input
Rated output
Rated power
15
BOBOT ROBOTICS INC.Product Parameters

The name and content of hazardous substances in the product
Lead/pb Hg Cd Cr (VI) PBB PBDE
Component
Hazardous substances
Plastic parts
Metal parts
Circuit board
Battery
Wire
Adapter
O indicates that the content of the hazardous substance in all homogeneous materials of the component is below
the limit requirement specified in GB/T 26572.
X indicates that the content of the hazardous substance in at least one of the homogeneous materials of the
component exceeds the limit requirement specified in GB/T26572.
16
BOBOT ROBOTICS INC.Product Parameters

Sn. Voice prompt
The dust box is missing.
AH OH, the radar on the top seems to
be covered.
I need to change a position to start to
work.
Pls wipe the bottom falling protecting
sensor, my master.
The anti-dropping sensor is blocked
or placed high
Collision sensor abnormal
Wall sensor is abnormal
The anti-collision sensor on radar
cover is abnormal.
The bumper or anti-collision sensor
is stuck.
The dust box is full or the filter needs
to be replaced.
Please check and clean the anti-dropping sensor and try
again.
Please check and clean the anti-collision sensor and try
again.
Please check and clean the wall sensor and try again.
Please check and clean the foreign objects around the
radar cover and try again.
Please check if the bumper or anti-collision sensor is stuck.
Please clean the dust box or replace it with a new one.
Pls wipe the crashing protecting
sensor right ahead, my master.
Pls wipe the wall sensor on the right
side, my master.
Pls wipe the radar cover on the top,
my master.
AH OH, the crash barrier is stucked.
Pls clean the dust box，my master.
AH OH, the main brush seems to be
stucked. Pls help me.
AH OH, the main wheel seems to be
stucked. Pls help me.
The device is picked up Move the machine to other place to restart cleaning.
The cleaning is triggered during
removing of the dust box.
The top radar is covered or be
placed in an open area
Please check and remove foreign objects around the Lidar
or move it to other place to restart.
Re-install the dust box or pause the cleaning task of the
machine.
Cause Trouble-shooting
1
2
3
4
5
6
7
8
9
10
11
The main brush is stuck or entangled. Please check if the main brush is entangled and clean it.
The main wheel is stuck or entangled. Please check if the main wheel is entangled and clean it.
17
BOBOT ROBOTICS INC.Trouble-shooting

Sn. Voice prompt
AH OH, the side brush seems to be
stucked. Pls help me.
I need battery charging, my master. The main battery is too low to return
to the charging stand Please take the host back to the charging stand
Recharging failed. Pls put me back to
the charging base, my master.
Something is wrong, need to be
power off and have a rest.
No charging stand is found, or the
charging stand is not connected with
the power supply.
A failure that requires a shutdown
occurs and it automatically shuts down
The shutdown operation is triggered
during the charging of the machine on
the charging stand.
Positioning failed, stop cleaning.
Positioning failed, stop charging.
Please check if the charging stand is energized and clean
the obstacles around the charging stand.
Please try to restart the machine.
The machine cannot be turned off while charging, please
avoid it.
Please make sure the machine is connected to the network
properly and try to relocate.
Please make sure the machine is connected to the network
properly and try to relocate.
Can't be power off when I'm on the
charging base.
Positioning failed, can't do the
cleaning.
Positioning failed, can't find the way
to charge.
The side brush is stuck or entangled. Please check if the side brush is entangled and clean it.
Cause Trouble-shooting
12
13
14
15
16
17
18
18
BOBOT ROBOTICS INC.Trouble-shooting
