BODEGA YC-408D User manual

WINE CELLAR
BRAND: BODEGACOOLER
MODEL: YC-408D

WINE CELLAR

IMPORTANT SAFETY INSTRUCTION
PARTS BREAKDOWN
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
TECHNICAL DATA
TROUBLESHOOTING
WARRANTY
1
5
6
10
14
14
17

Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
●Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an
adapter, and do not use an extension cord.
●Replace all panels before operating.
●It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
●Never clean appliance parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapour and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
●Before proceeding with cleaning and maintenance operations, make sure the power
line of the unit is disconnected.
●Do not connect or disconnect the electric plug when your hands are wet.
●Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so
can result in electrical shock or death.
●Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified
technician.
●Use two or more people to move and install appliance. Failure to do so can result in
back or other injury.
●To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 16°C (60°F) and
below 32°C (90°F). This unit must be installed in an area protected from the element,
such as wind, rain, water spray or drips.
IMPORTANT SAFETY INFORMATION
1

●The appliance should not be located next to ovens, grills or other sources of high heat.
●The appliance must be installed with all electrical, water and drain connections in
accordance with state and local codes. A standard electrical supply (115V/60Hz),
properly grounded in accordance with the National Electrical Code and local codes and
ordinances is required.
●Do not kink or pinch the power supply cord of appliance.
●The fuse (or circuit breaker) size should be 13 amperes.
●It is important for the appliance to be leveled in order to work properly. You may need
to make several adjustments to level it.
●Never allow children to operate, play with or crawl inside the appliance.
●Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners
may damage or discolour the interior.
●Do not use this apparatus for other than its intended purpose.
●When positioning the appliance, ensure the supply cord is not trapped or damaged.
●WARNING: Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
●Read all instructions before using the wine chiller.
●DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation
are not problems of the past. Junked or abandoned appliances are still dangerous.
●Before you throw away your old wine chiller, take off the door but leave the shelves in
place so that children may not easily climb inside.
●Never allow children to operate, play with, or crawl inside the appliance.
●Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
●Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
1.This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
2

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with
the instructions.
6. When positioning the appliance, ensure the supply cord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
8. Keep ventilation openings, in the appliance enclosure or in the built-in structure,clear of
obstruction.
9. Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
13. This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
14. To avoid contamination of drink, please respect the following instructions:
– Opening the door for long periods can cause a significant increase of the temperature in
the compartments of the appliance.
– Clean regularly surfaces that can come in contact with drink and accessible drainage
systems.
– Clean water tanks if they have not been used for 48 h, flush the water system connected
to a water supply if water has not been drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.
3

The symbol is a warning symbol for risk of fire/flammable material.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
4

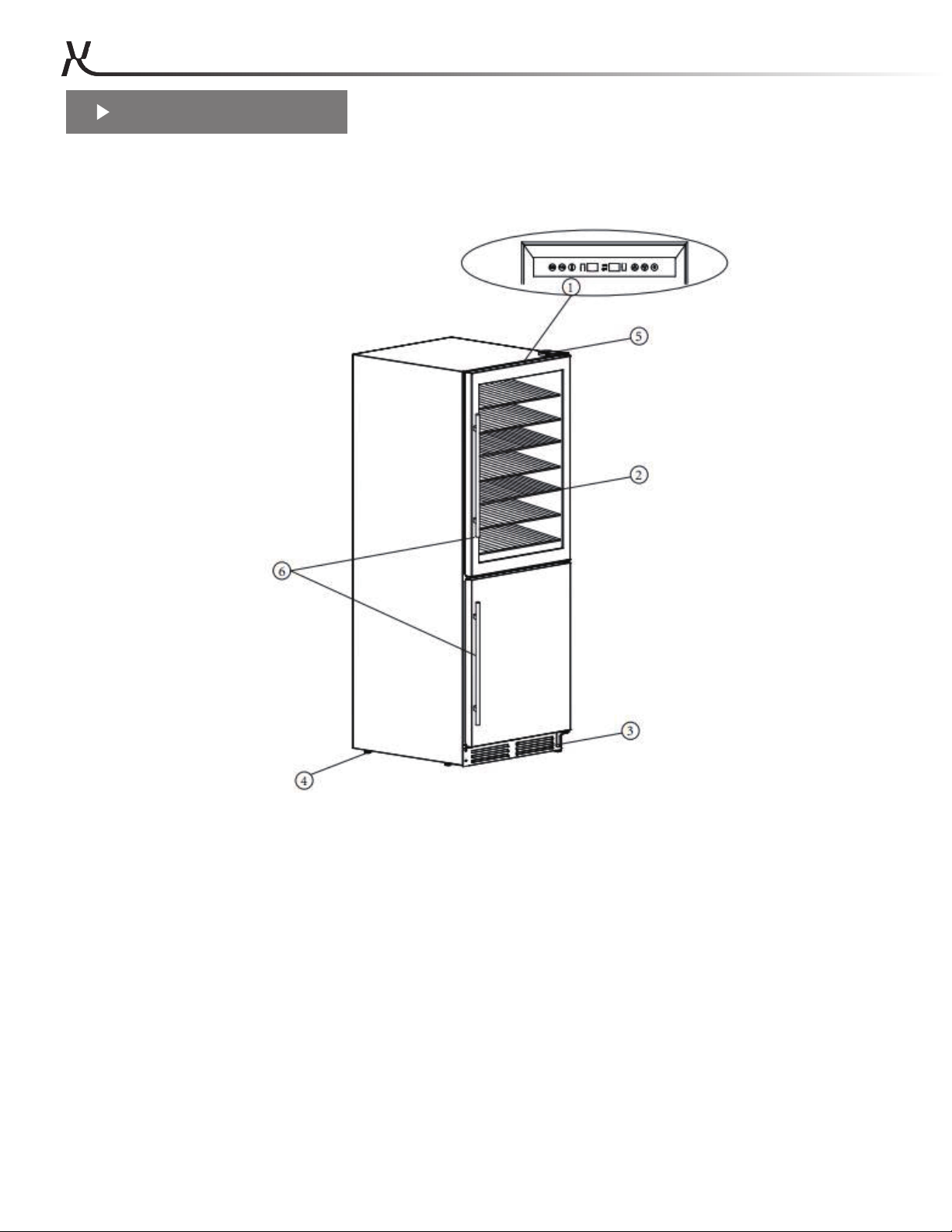

1Control Panel 4 Leveling Feet
2 Shelves 5 Top Hinge
3 Kick plate 6 Door with Handle
PARTS BREAKDOWN
5

Before the first use
-Remove the exterior and interior packing.
-Check to be sure you have all of the following parts:
oshelves
oStainless Steel Handle
oInstruction Manual
-Before you plug the beverage refrigerator into a power supply, be sure to let it stand
upright for at least 24 hours to allow the compressor’s oils to settle.
-Clean the interior surface with lukewarm water using a soft cloth.
-Install the handle on the left side of the door.
Installation of your wine cooler
-Place your wine cooler on a floor that is strong enough to support it when it is fully loaded.
To level your wine chiller, adjust the front leveling legs at the bottom of the wine chiller.
-Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
-Avoid locating the unit in moist areas.
-Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any
questions concerning power and/or grounding should be directed toward a certified
electrician or an authorized Products service center.
INSTALLATION INSTRUCTIONS
6

>685mm/27.0inch
>1720mm/67.7inch
605mm/23.8inch
1700mm/67.0inch
860mm/33.9inch 705mm/27.8inch
15.5mm/0.6inch
24.5mm/1.0inch
89mm/3.5inch
Electrical connection
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance
is equipped with a three-prong plug which mates with standard three prong wall outlets to
minimize the possibility of electrical shock.
-This appliance is designed to be for free standing installation or flush mounted.
7

Do not under any circumstances cut or remove the third ground prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115V/60Hz electrical ground outlet with three-prong. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and
obligation to have it replaced with a properly grounded
3-prong wall outlet. The cord should be secured behind the appliance and not left exposed or
dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a
voltage rating that matches the rating label on the appliance. This provides the best
performance and also prevent overloading house wiring circuits that could cause a fire hazard
from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug
firmly and pull straight out from the receptacle. Repair or replace immediately all power cords
that have become frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length or at either end. When moving the appliance, be careful not
to damage the power cord.
Extension cord
Because of potential safety hazards under certain conditions, it is strongly recommended that
you do not use an extension cord with this appliance. However, if you must use an extension
cord with this appliance, it must be operated by professionals.
Power bar with surge protection
Most electrical appliances use a series of electric control boards to operate. These boards are
very susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices /
appliances you use. The surge protector that you select must have a surge block high
enough to protect the appliance it is connected to. If you have any questions regarding the
type and size of surge protector needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void
your product warranty.
8

To Install Stainless Steel Handle
Illustration # 1 Illustration # 2
1 Gasket 3 Phillips Head Screw Driver
2 Phillips Head Screw 4 Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gasket is easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with
a screwdriver until the handles secure tightly. And flush against the door frame, as Illustra-
tion #2. (Do NOT over tighten as this will cause damage to the handle assembly).
3) Carefully press the door gasket into its original position.
If you choose not to use the handle supplied, simply follow step 1 to access the pre-installed
screws and remove them and then place 2 decorative plugs (NOT included) into the two holes
separately. Continue on to step 3 to replace the door gasket to its original position.
9

It is recommended you install the wine cooler in a place where the ambient temperature is
between 19ºC-24ºC (66ºF-75ºF), and humidity is under 60%. If the ambient temperature is
above or below recommended temperatures, the performance of the unit may be affected.
For example, placing your unit in extreme cold or hot conditions may cause interior
temperatures to fluctuate.
Recommended temperature settings
Wine conservation: 12°C-14ºC (53°F-57ºF)
Rose and sparkling wines: 5°C-8ºC (41°F-46ºF)
Dry/white wines: 9°C-12ºC (48°F-53ºF)
Red wines: 14°C-18ºC (59°F-65ºF)
*Temperature ºC may varies between < + 2 ºC
Temperature setting range：5-22℃(41-72℉)/3-18℃(37-64℉)

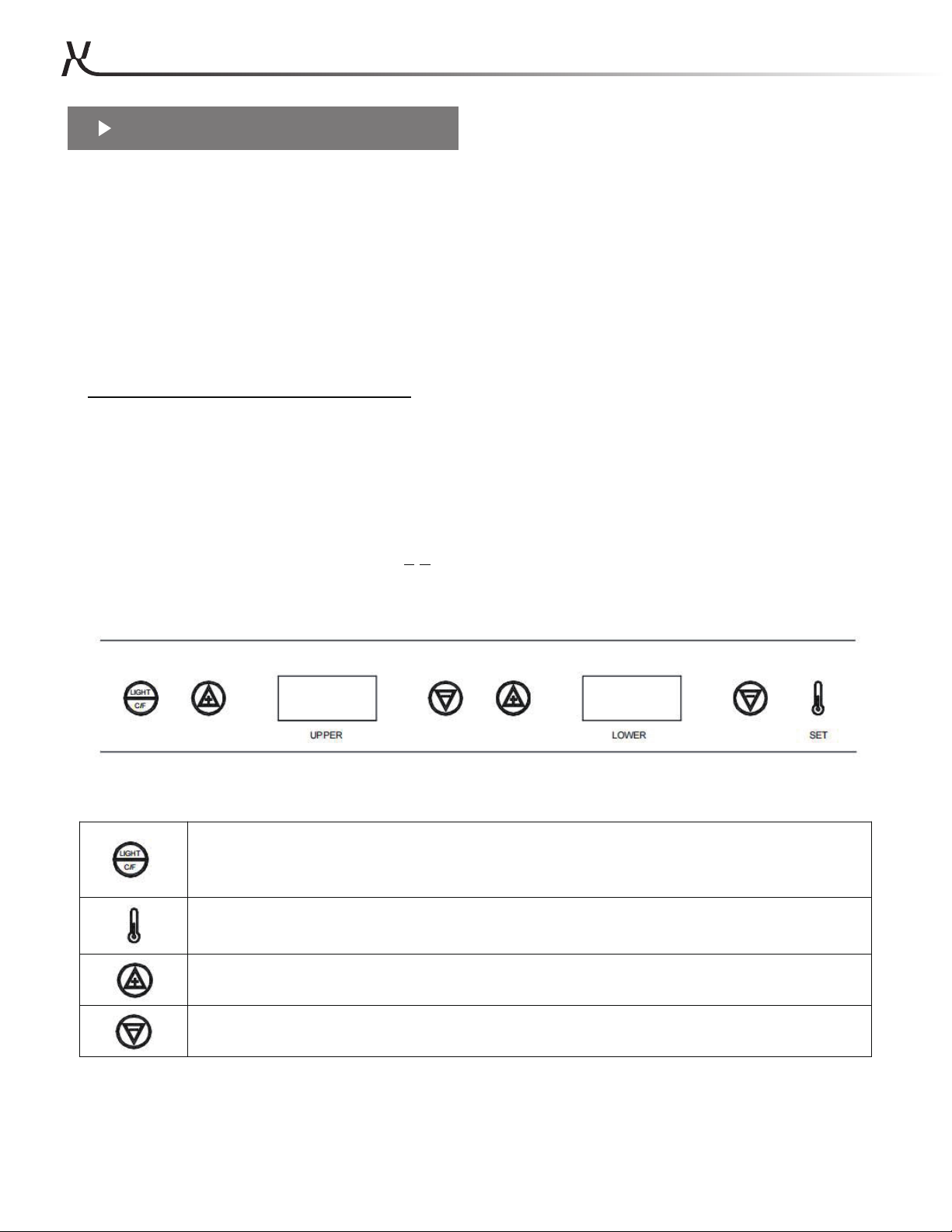

Turns the interior light on or off
Long press to switch the temperature display between Celsius and Fahrenheit
Press to begin adjusting the temperature for upper or lower zone
Adjusts the temperature in 1 degree increments
Adjusts the temperature in 1 degree decrements
OPERATING THE WINE COOLER
10

Storage

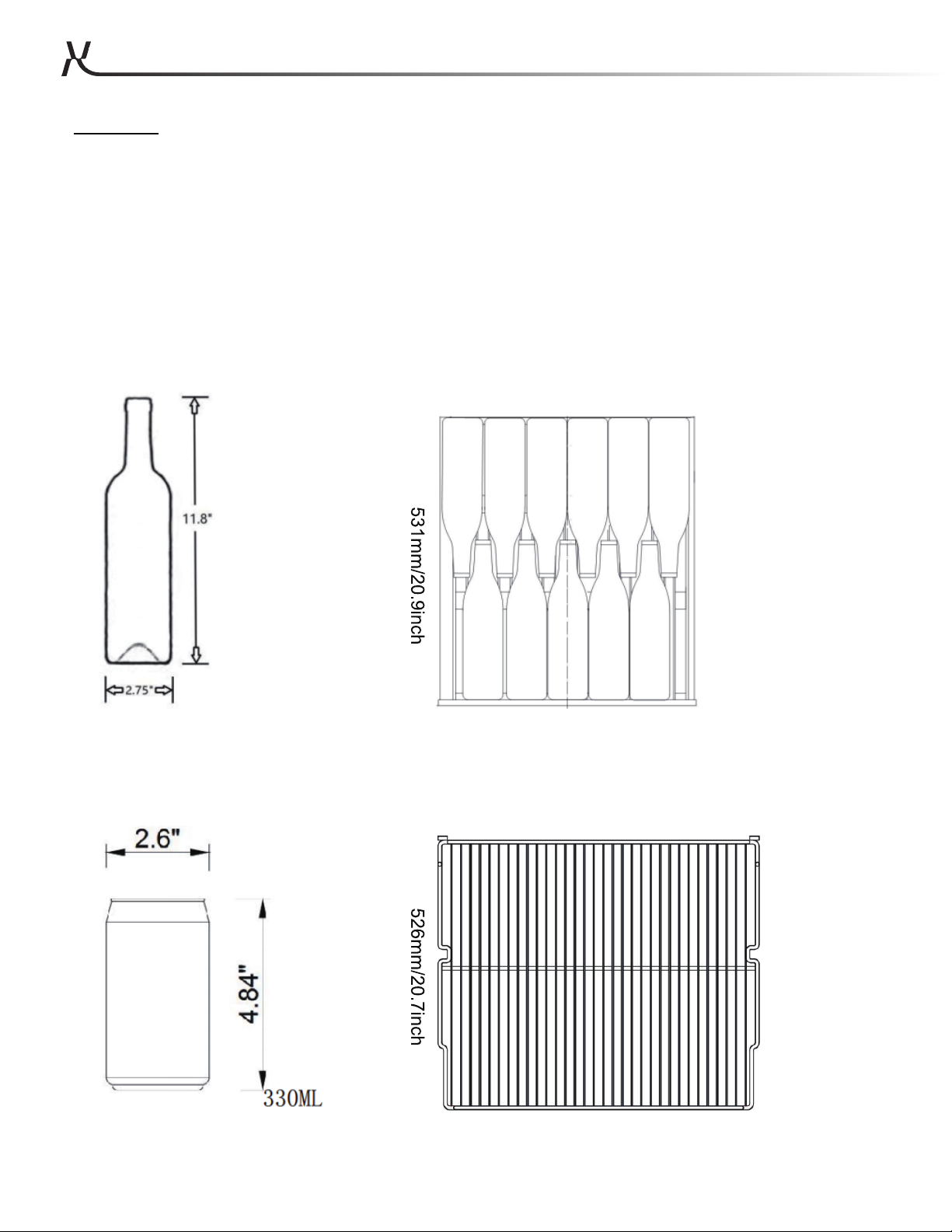

Many bottles may differ in size and dimensions. As such the actual number of bottles you may be
able to store may vary. The bottle capacity is based on standard Bordeaux bottles as shown
below.
The stated capacity is dependent on the size and shape of standard Bordeaux 750ml bottle with
diameter of 2.75".This model can store about 77 standard bottles.
When accommodating larger bottles,you can remove shelves.This will reduce the stated bottle
capacity.
The stated loading capacity is based on the standard-size soda drink with 2.6" in diameter and
4.84" in height.This model can store about 180 standard cans.
484mm/19.1inch
484mm/19.1inch
11

Door Lock
Your unit is provided with a lock and key. The keys are located inside the plastic bag that
contains the Instruction Manual. Insert the key into the lock and turn it counter clockwise to
unlock the door. To lock the door do the reverse operation making sure metal pin is engaged
completely. Remove the key and place it in a secure place for safekeeping.
Cleaning your wine cooler
Turn off the power, unplug the appliance, and remove all items including shelves. Wash the
inside surfaces with a warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to 1 cup of water.
Wash the shelves with a mild detergent solution. Wring excess water out of the sponge or cloth
when cleaning area of the controls, or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe
with a clean soft
cloth. Do not use steel wool or steel brush on the stainless steel. These will contaminate the
stainless steel with steel particles and rusting may occur.
Shelves
This appliance is equipped with a telescopic runner assembly (except for the bottom shelf) and
you can move the wooden shelves out and in smoothly.
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment. For easy access to the bottles, you must pull the
shelves approximately 1/3 out of the rail compartment.
To remove the shelves out of the rail pull each shelf approximately 1/3 out. Use a long flat
screwdriver to press down the right plastic notch as shown in Figure A and at the same time lift
the left plastic notch as shown in Figure B. Then proceed to pull out the shelf slowly.
Figure A
Figure B
12

Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to
be off for a longer period of time, you need to take the proper steps to protect your contents.
Moving your wine cooler
-Remove all items (bottles)
-Tape down securely all loose items (shelves) inside your appliance.
-Turn the adjustable leg up to the base to avoid damage.
-Tape the door shut.
-Be sure the appliance stays secure in the upright position during transportation. If you
absolutely need to transport the cooler horizontally, transport the cooler on its back (door on
top). Also protect outside of appliance with a blanket, or similar item.
Energy saving tips
The wine cooler should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
Charcoal filtration system
Your wine is a living object that breathes through the cork of its bottle. In order to preserve
the quality and taste of your fine wines, they must be stored at the ideal temperature and
ambient conditions. Your cellar is equipped with an active charcoal filtration system to ensure
air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine
wines. The filter assembly is located at the rear panel inside your cellar.
Keep in mind, that this filter must be changed every 12 months.
13

Model YC-408D
Total Volume 13.5Cu.Ft.
Power 115V 60Hz
Amps 1.6A
Start-Up Amps 10A
Power Input 150W
Pressure High Side 105 PSI
Pressure Low Side 55 PSI
Refrigerant R600a
Amount 2.45 oz.
Dimensions(HxWxD) 1670*598*690mm
65.74"×23.54"×27.17"
1 Remove the bottles of wine stored on the two (2) shelves in front of
the filter.
Turn Left to remove filter.
2 Remove the shelves and set aside to be replaced once you have
changed the filter
3 Hold the filter and turn it at 45 degrees in the counter-clockwise
direction and then pull it out.
4 Remove the existing filter and replace with a new one.
5 Put the new filter into the hole and then turn the filter at 45 degrees in
clockwise direction.
TROUBLESHOOTING
TECHNICAL DATA
MANUFACTURER:ZhongshanYEHOS ElectricalApplianceCo.,Ltd
No. 9, Yuan lin Rd, Nantou Town,Zhongshan city, Guangdong province，China
Contact：Mickey Tel： [phone] E-Mail：[email protected]
14

15

The fans turn on and off
frequently.
In order to circulate the air and maintain the set temperature inside the
cabinet the fans must cycle on and off even when the compressor is off. The
fans will cycle ON and OFF while the compressor is off approximately every
10 seconds, this is called “Semi-speed status”. This cycle is normal and
meant both to circulate the air as well as ensure the continued operational
status of the fans. If the fan stops completely and does not complete this
cycle the fan is non-operational.
16

17
WARRANTY
