OPERATION MANUAL
BMGE-520
Grinding & polishing Machine Owner’s Manual
PERFORMANCE • EFFICIENT • RELIABLE
Your Model #: ____________________
Your Serial # : ____________________

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 2
1. SAFETY
1.1 Organisational measures
The Operating Instructions are to be kept near the location where the machine is
Being operated, and must be within reach at all times
In addition to these Operating Instructions general and legal regulations regarding
accident prevention and environmental protection must be complied with as per local
regulations.
Such duties may, for example relate to the handling of hazardous substances, or to the
provision and wearing of personal protection equipment, as well as compliance with
traffic regulations.
The Operating Instructions must be supplemented by other instructions, including the
duty to supervise and report incidents relating to particular working practices, for
example work organization, work procedures and personnel safety.
Personnel entrusted with working with the machine must read the Operating
Instructions before starting work, in particular the Safety Instructions chapter. To read
these instructions after work as commenced is too late. This particularly applies to
incidental activities such as setting up the equipment, carrying out maintenance work
or training staff to work with the machine.
From time to time the working practices of the operators are to be checked by a
supervisor especially to the items regarding awareness of safety, and hazards.
Operators must tie back long hair, and not wear loose clothing or jewellery including
rings. There is a risk of injury through items getting caught, or being drawn into
moving machinery.
Use personnel protection equipment if necessary or required by local
regulations! Take notice of all safety and hazard notices on the machine!
All safety and hazard notices at or on the machine must be kept complete and legible!
If safety-critical changes occur to the machine or its working method, the machine
must be shut down immediately! The cause of the fault must be established, and
rectified.
This applies in particular to the fitting and adjustment of safety devices.

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 3
Spare parts must comply with the technical requirements specified by the
manufacturer. This is always guaranteed if original spare parts are used.
To perform maintenance work correctly it is imperative to be equipper with the proper
tools for the task in question.
The location and the operation of fire extinguishers must be made known on
each work site!
Take note of the facilities for reporting of, and fighting fires!
1.2 Personnel selection and qualification
Fundamental duties:
Work on the machine may only be undertaken by trained personnel.
Only trained personnel may be employed. Note the statutory minimum age! Specify clearly
the responsibilities of personnel for operation, setting up, servicing and maintenance work!
Make sure that only authorized personnel operate or work on the machine!
Define responsibilities of the machine operator, with regard to traffic safety regulations, and
inform him not to take instructions from third parties who may not be complying with the
local safety requirements!
Personnel who are being trained to operate equipment, may only use the machine under
constant supervision of an experienced person!
Work on electrical equipment, may only be undertaken by a skilled electrician or
by trained persons under the supervision of a skilled electrician, in according with
the local electrical engineering regulations .
1.3 Safety precautions applicable to some operating sequences
DO not allow any method of working that impairs safety!
Recognised official procedures have to be used, to ensure the machine is operated in a safe,
and best conditions.
Only operate the machine when all safety devices, and related safety equipment,
are present and operational!
Check the machine visually for any damage and defects at least once a day!

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 4
In the event of operational malfunctions the machine must be shut down immediately and
secured!
Secured the work area around the machine in public areas providing a safety
distance of at least 2 m from machine .
Faults must be immediately rectified!
Carry out the switch on, and switch off, operations in accordance with the operation
manual!
Before switching on the machine make sure that no-one can be endangered when the
machine starts up!
All persons in the proximity of the machine, must wear ear protectors and
safety shoes. In addition the machine operator, must wear close-fitting
protective clothing
Use only extension cables, that are used for extending the main cable, that are
sized and marked in according with the overall power consumption of the
machine and the valid VDE guidelines
1.4 Special work within the scope of use of the equipment and maintenance activities as
well as repairs during operation
Mechanical servicing work:
Put the machine in the Safety off position before carrying out any servicing work on the
machine.
Follow any special safety instructions in the chapters on servicing the machine.
Adjustment, servicing and inspection work on the period of time limits, specified in these
Operating Instructions as well as any information on the replacement of parts and
equipment must be undertaken and/or complied with!
These activities may only be undertaken by qualified personnel.
The operator must to be given information about maintenance and work procedures, before
starting the cleaning process!

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 5
Procedures that are related to normal operation. Methods of tools adjustment on the machine,
and its safety devices, all “ON and OFF” functions that have to be carried out according to
the operation manual, and methods for maintenance and repair.
If the equipment is switched off in order to carry out maintenance, repair, or adjustment it
must be secured against unintended restart.
Switch OFF and disconnect it from the power supply.
Always dispose the contends of the dust bin or of a connected dust collector before loading
the machine onto a vehicle.
Observe the local waste disposal regulations, in uncertain situations ask the next higher
authority.
Do not use any aggressive cleaning materials!
Use lint-free cleaning cloths!
Always make sure to tighten any screw connections that are loosened during servicing and
maintenance work!
If safety devices need to be taken off or dismantled during service and repair, these safety
devices must be reinstalled, and inspected immediately after completion of the servicing and
repair work.
Make sure that process materials and replaced parts are disposed of safely and in an
environmentally friendly manner!
Work on electrical equipment, may only be undertaken by a skilled electrician or
by trained persons under the supervision of a skilled electrician, as well as in
according with the local electrical engineering regulations
Make sure that electrical components used for replacement purposes comply with original
parts and are correctly adjusted if necessary.
1.5 Definition of the Safety off position
Definition:
The machine is in a safe condition where it cannot be of any hazard.
Putting the equipment in the Safety off position involves:
*Switch off the machine.
* Switch off the dust collector (if being used).
* Wait for all drives to stop.
*Pull out mains plug.
*Secure against unintended restart.

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 6
1.6 Particular dangerous aspects of the equipment
Any machine, if it is not used according the regulations, may be hazardous for
operating, setting-up, and service personnel. The operating authority is
responsible for compliance with the safety regulations during operation and
maintenance, and for the use of safety devices supplied with the machine, as well
as the provision of appropriate additional safety devices!
1.7 Electrical engineering regulations
Work on electrical equipment, may only be undertaken by skilled electrician or
by trained persons under the supervision of a skilled electrician, as well as in
accordance with the local electrical engineering regulations.
Use only extension cables, that are used for extending the main cable, that are
sized and marked in accordance with the overall power consumption of the
machine and the valid VDE guidelines
The electrical equipment for the plant must be inspected regularly. Defects such as loose
connections or scorched cables must be rectified immediately. Call a skilled electrician or
our Customer Services.
A second person must be in attendance whilst the electrical engineer is working on the
equipment.
The work area must be secured against any third party entering the work area, by means of a
red and white safety chain and a danger sign. Use only tools that insulated against
electricity.
Only start work after you are familiar with the electrical engineering regulations that apply
to the local area.
Only use voltage seekers that comply with the regulations when troubleshooting. From time
to time check voltage seekers to ensure that they are operationally efficient.

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 7
2. OPERATING RANGEAND CORRECT USAGE
BM-GE-520 grinding & polishing machine is exclusively design to grind and polish for horizontal
surface. It is not design for other purpose. The manufacture will not be liable for damage or
injury resulting from such kind of incorrect usage. In these case the user assumes all risks
3. BEFORE SWITCH ON THE MACHINE
3.1 Range of the application
* To remove undulated concrete surface
* To prepare the surface for coating
* To polish the surface
* To remove the coating defects
* To remove glue residue
* To remove the coating from wood floors
* To renovate wood floor for new coating

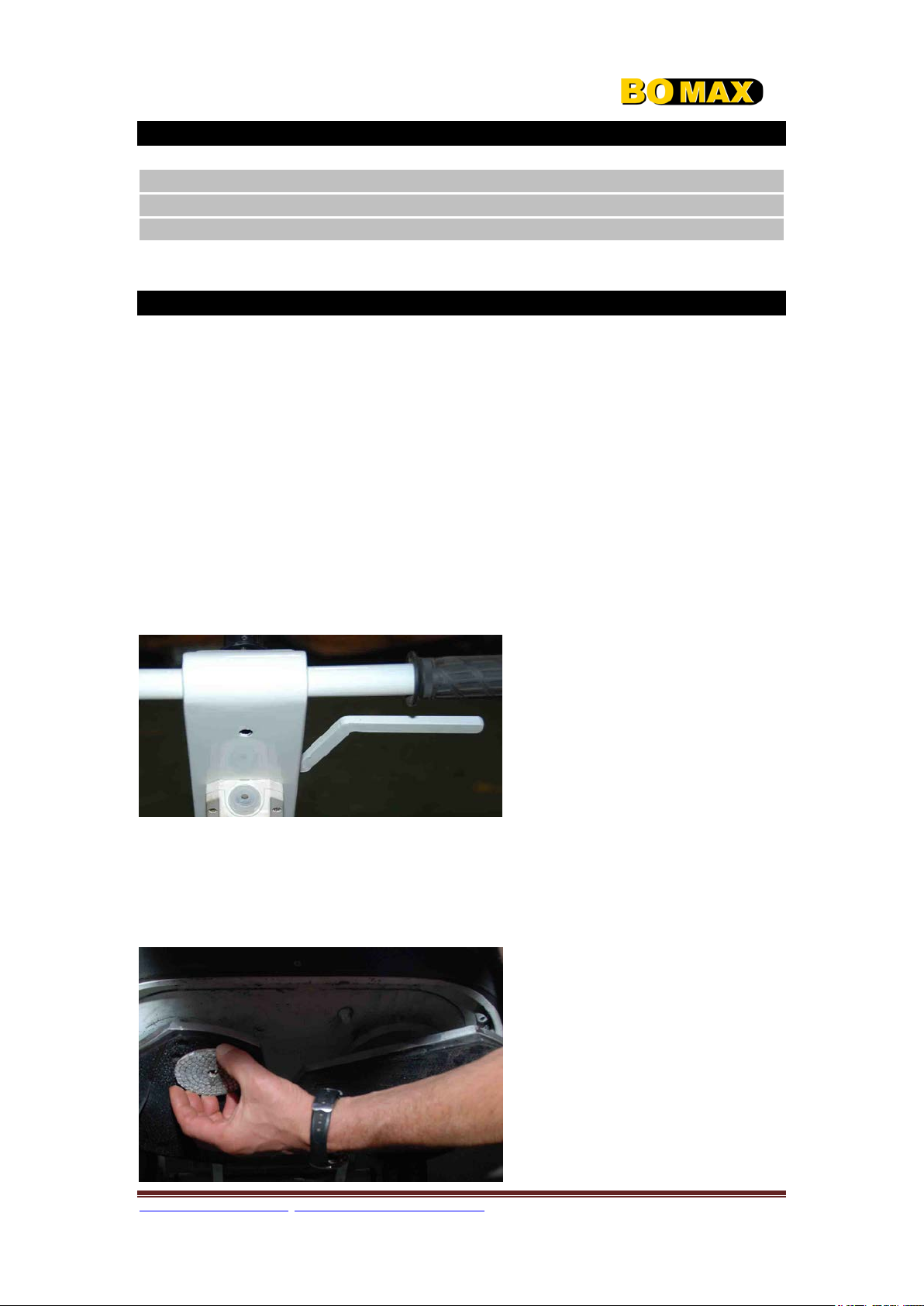

3.2 Handle adjust
Before switch on the BM-GE-520 machine the operator should adjust the handle. The user can
press the bar to adjust the handle on a comfortable operation level. Please see the figure:
3.3 Polish pad or grind wheel install
According to the request operator should install the polish pad or diamond grinding wheel on the
machine. Polishing pad just be easy stick on the adaptor. Diamond wheel should use bolt & nut
to tighten on the adaptor.

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 8
3.4 Electrical wire connect
Before switch on the machine operator should connect the electrical wire to plug.
The plug locates on the back of the control panel.
3.5 Add water and check water release valve
Operator should add the water in the machine water tank before working
Operator should check the water release valve which on the handle bar work properly

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 9

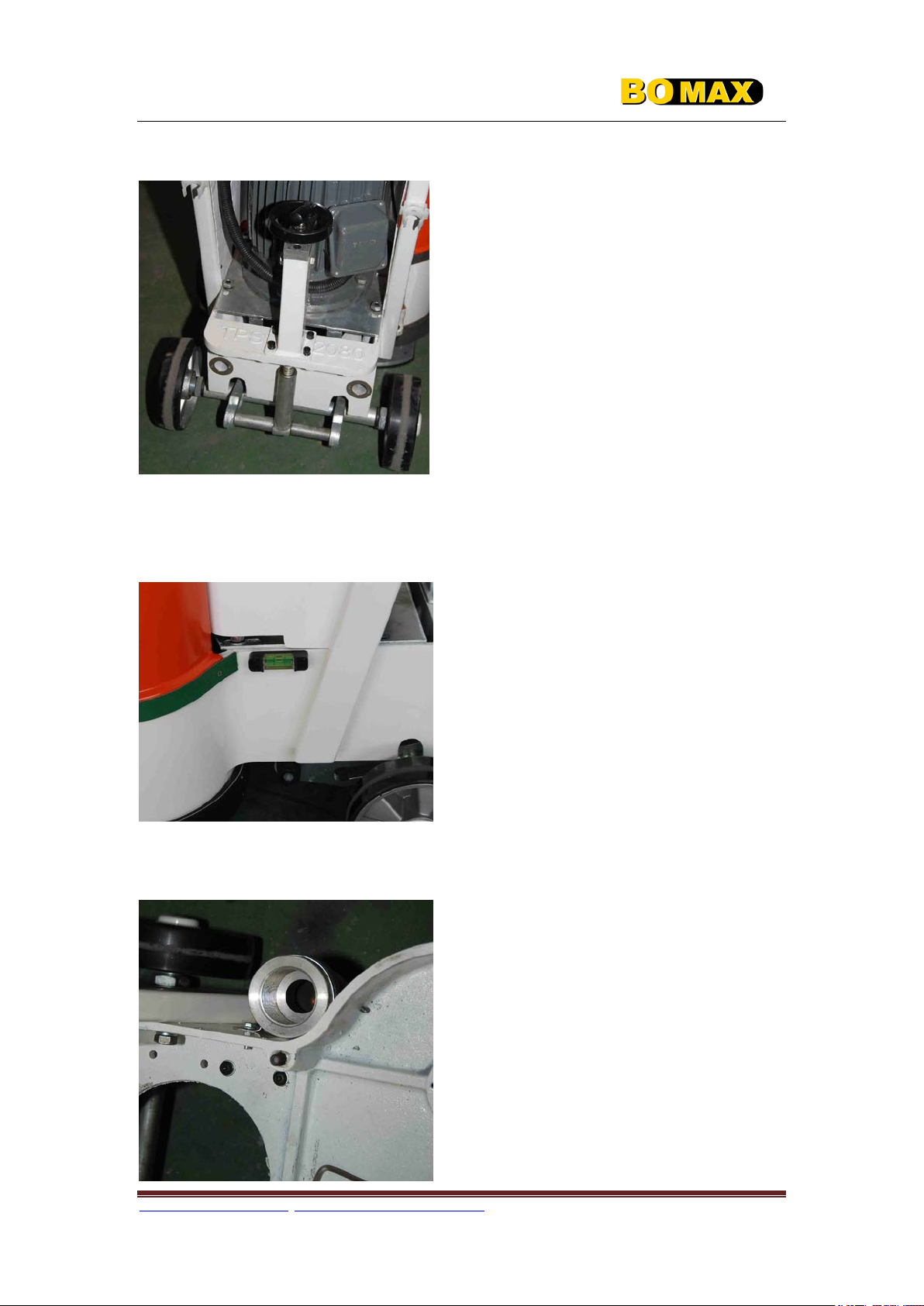

3.6 Working height adjust
Operator can rotate the wheel to adjust the working height to meet the running request
3.7 Check horizontal level
Operator must check the machine horizontal level before running the machine to gurrante the
grinding result.
3.8 Dust collector connect
If BM-GE-520 machine with a dust collector, operator should connect the pipe to the machine.

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 10
4.INITIAL OPERATION
4.1 Preparation for initial operation
* Put BM-GE-520 machine and filter units on to the surface to be processed
* Fit the appropriate diamond grinding cap wheel or polishing pad that is required for this
particulate process.
* Using correct cable wire, connect the machine and the dust connect to the power supply
Point, these electric supply points should be protected and equipped with a FL-switch.
(Residual current operated device).
* Check the extension cable for external damages
* Check the dust hose damages
* Connect the grinding machine and dust collector units with the flexible hose. Use hose
clamps at the connectors.
* Make sure the dust bin of the dust collector units is empty
If problem with the current supply arise during the assembly or the start up, call
a qualified person for help. Work on electrical equipment may only be undertaken
by a qualified personnel.

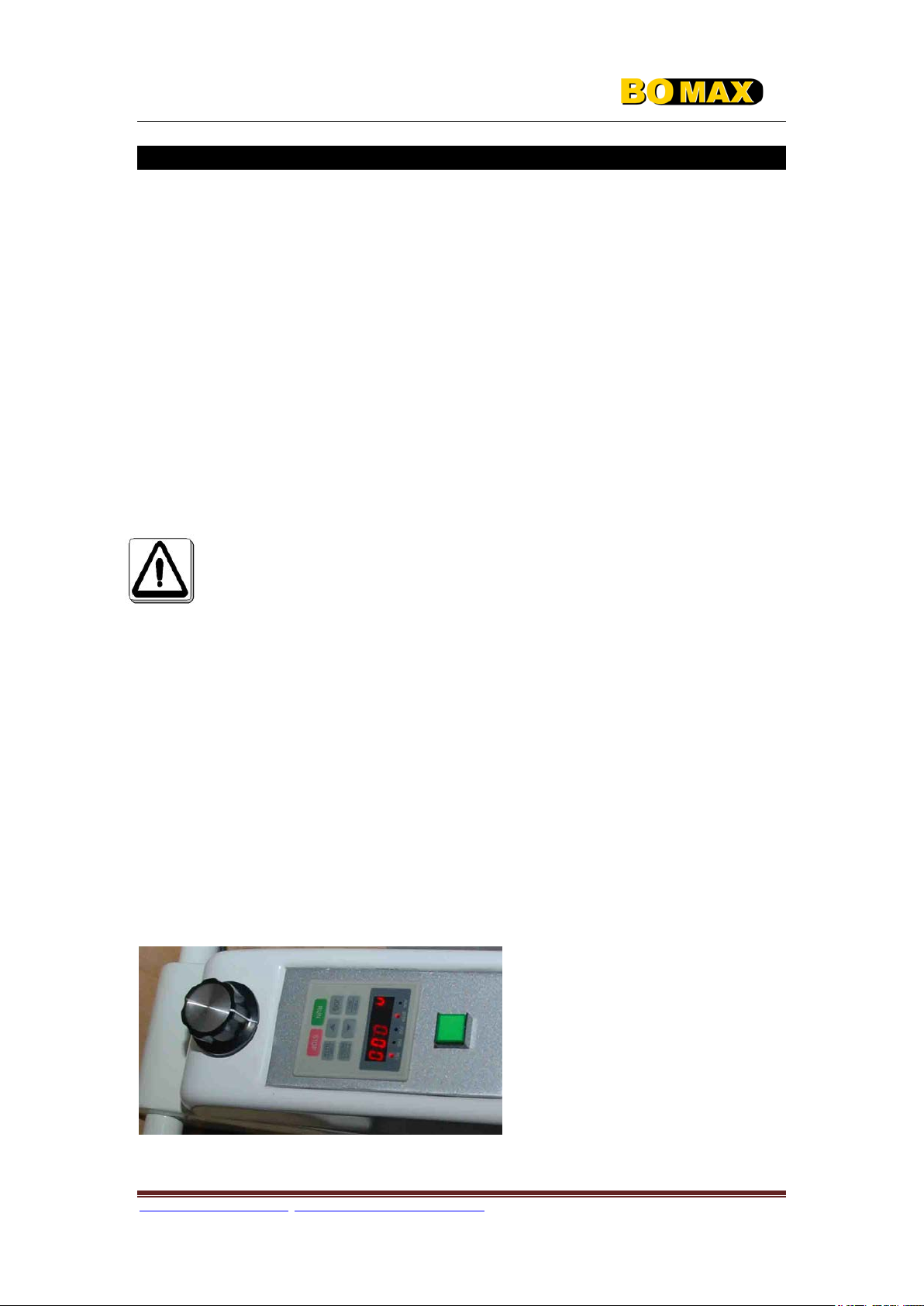

4.2 Switched on the machine
* Connect the machine to the electric inlet with a extension cable
* Press down the handle until the polishing pad or diamond cup wheel rises approximately
10 cm from the ground.
* Rotate the speed adjust bottom to right speed
* Then let down the grinding disc on the surface and begin the work. Move the machine
forwarder or reverse dependent on the work.
4.3 Speed adjust
Operator can adjust the speed with the speed the adjust wheel, on the control panel will display the
blades rotate speed. Maximum blades speed is 600RPM

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 11
BM-GE-520 machine has been setup the motor and control panel in factory
already. the operator not allow to setup by himself. The damage or injury cause from the
operator setup the control panel by themselves will be assumed by the operator
4.4 Switched off the machine
Rotate the speed adjust button to decrease the speed to 0 RPM, then press the stop switch button.
In case of emergency or operating trouble, like vibrations or strong noises, switch
the machine off immediately by hitting on the OFF- button.
The machine has to be into “SAFETY OFF POSITON” before starting repair
works or carry out some inspection and some maintenance.
Operator should pay attention on the grind horizontal result and water
lubrication when running BM-GE-520 machine.

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 12
5. TRANSPORTAND STROAGE

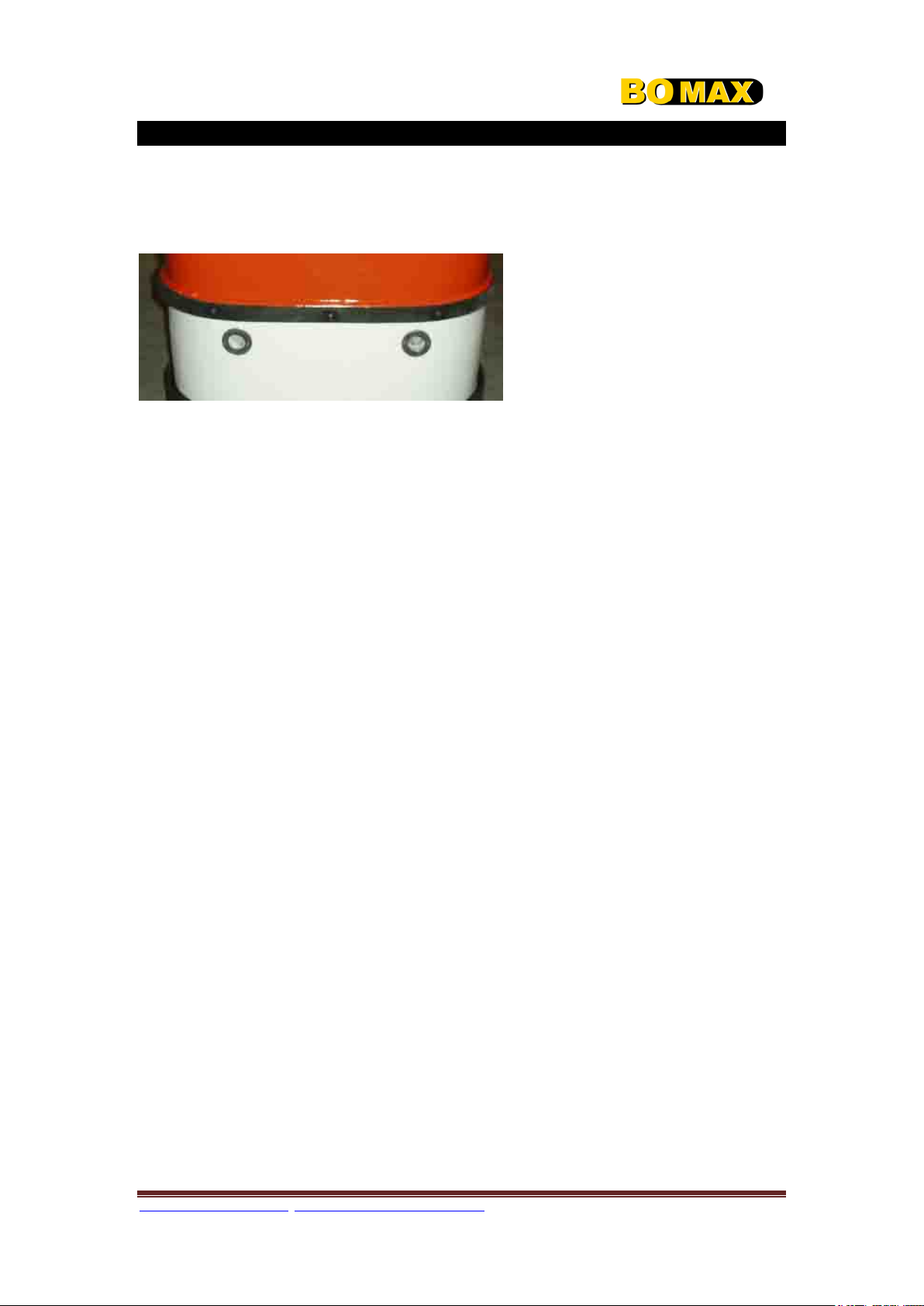

5.1 Carry bar
There are 4 carry bars with BM-GE-520 machine, it is tighten on the handle. If you need lift the
machine just put the bar in the hole on the machine.
5.2 Before storage
* Clean the machine and cover it with a plastic foil
* Protect the electric motor from moisture, heat, dust and shocks
* Drain the oil from the gear-box and refill when use again.

www.bomaxengineering.com /[e-mail] / BM-GE-520 Owner’s Manual Ver.01-2009 Page 13
6. TROUBLE SHOOTING
Fault
Possible cause
Way to solve
excessive
Vibration
imbalance due to worn or
broken grinding tools
replace all worn or
broken parts
belt is too tight release the tension of
the belt
unusual noise
defective bearing
Check & replace the
bearing
wrong tension of the belt
check the tension of the
V belt, replace if
necessary
debris deposit on coupling clean the coupling
worn or broken the gear
in gear-box
check the gear, replace
the gear if necessary
reduced or no
grinding
performance
grinding tools have
reached maximum wear replace the worn parts
wrong grinding tool for
the application
replace the tools with
appropriate grinding
tools
too low tension of the belt re-tension the belt
motor didn't
work
missed power phase
check the inlet power
then start again
control system wrong setup
re-setup the control
system
defective component find the defect parts
then replace it
motor triggers
while running
motor protections switch
triggered because of
overload
reduce the load
motor have a defect check the motor
