Bomberg BOLT-68 - Bayonet system User manual

WARRANTY & WATCH CARE

WARRANTY & WATCH CARE

2 3
INTERNATIONAL WARRANTY
Limited 2 years warranty:
Your Bomberg watch is warranted for a 2 years period under the terms and
conditions of this warranty.
The international Bomberg warranty covers material and manufacturing
defects existing at the time of the delivery of the purchased Bomberg
watch. The warranty only comes into force if the warranty certicate is dated,
fully and correctly completed and stamped by an ofcial Bomberg retailer.
During the warranty period and by presenting the valid warranty certicate,
you will have the right to have any defect repaired free of charge.
This manufacturer’s warranty does not cover:
- The life of the battery;
- Normal wear and tear and aging (scratched crystal, alteration of the
colour and/or material of nonmetallic straps and chains, such as leather,
textile, rubber; peeling of the plating);
CONTENT
WARRANTY & USER INSTRUCTIONS
International warranty Page 3-4
Special recommendation Page 5-7
Instructions Model - BOLT-68 - 3 Hands & GMT Pages 9-11
Instructions Model - BOLT-68 - 3 Hands Automatic Pages 13-15
Instructions Model - BOLT-68 - Chronograph Pages 17-21
Instructions Model - BOLT-68 - Chronograph Automatic Pages 23-26
BOLT-68 - Bayonet system Pages 29-32

4 5
- Any damage on any part of the watch resulting from abnormal / abusive
use, lack of care, negligence accidents (knocks, dents, crushing, broken
crystal, etc.), incorrect use of the watch and non-observance of the use
directions provided by Bomberg;
- The Bomberg watch handled by non-authorized persons (for battery
replacement, services or repairs) or which has been altered in this
original conditions beyond Bomberg.
SPECIAL RECOMMENDATIONS
How often should my watch be checked?
We recommend a yearly water resistancy check (partial service with
movement check).
How often should my watch be serviced?
Like any other precision instrument a watch should be serviced regularly
to ensure perfect runwaring. We cannot say how often you should have
your watch serviced as this depends on the model, the climate where you
live and how you look after the watch yourself. As a rule, a watch should be
serviced every 4 or 5 years, depending on the conditions in which it is worn.
Where should I go to get my watch serviced or for a new battery?
We recommend that you go to an ofcial Bomberg agent or retailer. They
are the only people who have the necessary tools and devices to work on
your watch and to carry out the necessary checks at specialized level.
Furthermore, only specialists can guarantee that their work meets the
stringent quality standards set by Bomberg.

6 7
What can I do to ensure that my watch functions perfectly for many years?
Magnetic elds: avoid putting your watch on a loud-speaker or a refrige-
rator because these machines create magnetic elds that may damage it.
Salt-Water: always rinse your watch in fresh water after swimming in the sea.
Shocks: avoid subjecting your watch to shocks, including sudden changes
in temperatures.
Screwed crown: always make sure you have screwed the crown properly to
avoid any humidity getting into the mechanism.
Cleaning: use a toothbrush and soapy water to clean bracelet and water
resistancy cases and a soft cloth to dry off afterwards.
Chemical products: avoid all direct contact with solvents detergents,
perfume, cosmetics, etc. which may damage the bracelet or strap, the
case or the gaskets .
Temperatures: avoid exposing your watch to extreme temperatures (over
60°C or 140°F and under 0°C or 32°F) and to sudden uctuations in tem-
perature.
Water-resistance: we cannot guarantee that your watch will be permanently
water-resistant. The gaskets may be affected by wear or by an accidental
shock to the crown. As recommended in our service instructions, you
should have the water resitancy gaskets of your watch tested once a year
by an approved Bomberg agent.
Chronograph pushers: do not adjust the pushers under water as this
could cause wetness in the mechanism.

BOLT-68 - 3 HANDS & GMT

10 11
BOLT-68 - 3 Hands & GMT
Normal crown position
2nd click position
1st click position
Crown
Second time zone
Minute hand
Second hand
Date*
Hour hand
BOMBERG MODEL - BOLT-68 - 3 Hands & GMT
Setting the time:
1. Unscrew and pull the crown out to the 2nd click position so that the
second hand stops.
2. Turn the crown to set the hour and minute hands.
3. After the time has been set, push the crown back to the normal position
and small second hand begins to run again. Screw it in back now.
Setting the date:
1. Unscrew and pull the crown out to the 1st click position.
2. Turn the crown anti-clockwise to set the date.*
3. After the date has been set, push the crown back to the normal position
and screw it in.
Setting the second time zone:
1. Unscrew and pull the crown out to the 1st click position.
2. Turn the crown clockwise to set the second time.
3. After the second time has been set, push the crown back to the normal
position and screw it in.
*Important: It is not possible to adjust the date between 10.30 pm and 0.00 am.
It is necessary to adjust the date after each month with less than 31 days.

BOLT-68 - 3 HANDS AUTOMATIC

14 15
BOMBERG MODEL - BOLT-68 - 3 Hands Automatic
Manual winding:
1. Unscrew and pull the crown out to the 1st click position.
2. Turn the crown anti-clockwise to wind the watch..
3. After winding, push the crown back to the normal position and screw it in.
Setting the date:
1. Unscrew and pull the crown out to the intermediate 2nd click position.
2. Turn the crown anti-clockwise to set the date.*
3. After the date has been set, push the crown back to the normal position
and screw it in.
Setting the time:
1. Unscrew and pull the crown out to the 3rd click position so that the
second hand stops.
2. Turn the crown to set the hour and minute hands.
3. After the time has been set, push the crown back to the normal position
and small second hand begins to run again. Screw it in back now.
*Important: It is not possible to adjust the date between 8.00 pm and 3.00 am.
It is necessary to adjust the date after each month with less than 31 days.
BOLT-68 - 3 Hands Automatic
Normal crown position
3rd click position
1st click position
Crown
Minute hand
Second hand
Date*
Hour hand
2nd click position

BOLT-68 - CHRONOGRAPH

18 19
BOMBERG MODEL - BOLT-68 - Chronograph
Setting the time:
1. Unscrew and pull the crown out to the 2nd click position so that the sec-
ond hand stops.
2. Turn the crown to set the hour and minute hands.
3. After the time has been set, push the crown back to the normal position
and small second hand begins to run again. Screw it in back now.
Setting the date:
1. Unscrew and pull the crown out to the 1st click position.
2. Turn the crown anti-clockwise to set the date.*
3. After the date has been set, push the crown back to the normal position
and screw it in.
*Important: It is not possible to adjust the date between 8.30 pm and 0.00 am.
It is necessary to adjust the date after each month with less than 31 days.
BOLT-68 - Chronograph
Normal crown position
2nd click position
1st click position
Crown
Pusher B
Minute hand
Second hand
Date* Chronograph
second hand
Chronograph display:
-1/10 seconds
-10 hours
Hour hand
Pusher A
Chronograph
minute hand

20 21
BOMBERG MODEL - BOLT-68 - Chronograph
Chronograph reset (INCL. AFTER REPLACING BATTERY):
This procedure should be performed when the chronograph second hand
does not return to zero position after the chronograph has been reset, and
including after the battery has been replaced.
1. Unscrew and pull the crown out to the 2nd click position.
2. Keep “A” and “B” pushed simultaneously for at least 2 seconds; the
chronograph second hand rotates by 360°->corrective mode activated.
3. Press “A” to set the chronograph hand to the zero position. The
chronograph hand can be advanced rapidly by continuously pressing “A”.
4. Press “B” to set the next chronograph hand and repeat step 3.
5. Once the hand have been zeroed, return the crown to the normal position
and screw it in.
BOMBERG MODEL - BOLT-68 - Chronograph
Measuring time with the chronograph:
1. The chronograph can be started and stopped each time pusher “A” is
pressed.
2. Pressing pusher “B” resets the chronograph and the hands return to
zero position.
Measuring intermediate time with the chronograph:
1. Press the “A” to start the chronograph.
2. Press the “B” to display an intermediate time. Timing continues in
background.
3. Press the “B” again to restart the chronograph. The 3 chronograph hands
are quickly advanced to the ongoing measured time.
4. Press the “A” to stop the chronograph.
5. When the chronograph is stopped, pressing “B” resets every function
and the hands return to zero position.
BOLT-68 - Chronograph

BOLT-68 - CHRONOGRAPH AUTOMATIC

24 25
BOMBERG MODEL - BOLT-68 - Chronograph automatic
Manual winding:
1. Unscrew and pull the crown out to the 1st click position.
2. Turn the crown anti-clockwise to wind the watch.
3. After winding, push the crown back to the normal position and screw it in.
Setting the date:
1. Unscrew and pull the crown out to the intermediate 2nd click position.
2. Turn the crown anti-clockwise to set the date.*
3. After the date has been set, push the crown back to the normal position
and screw it in.
Setting the time:
1. Unscrew and pull the crown out to the 3rd click position so that the
second hand stops.
2. Turn the crown to set the hour and minute hands.
3. After the time has been set, push the crown back to the normal position
and small second hand begins to run again. Screw it in back now.
*Important: It is not possible to adjust the date between 8.00 pm and 2.00 am.
It is necessary to adjust the date after each month with less than 31 days.
BOLT-68 - Chronograph Automatic
Normal crown position
3rd click position
1st click position
Crown
Pusher B
Minute hand
Chronograph hour
display: 12 hours
Date* Chronograph
second hand
Chronograph minute
display: 30 minutes
Hour hand
Pusher A
Second hand
2nd click position

26 27
BOMBERG MODEL - BOLT-68 - Chronograph automatic
Measuring time with the chronograph:
1. Press the pusher “A” to start the chronograph and press the pusher “B”
to stop the chronograph.
2. Press “B” again to reset the chronograph. The hands return to zero.
It is possible to restart and stop the chronograph as you want, without
doing a reset.
BOLT-68 - Chronograph Automatic

BOLT-68 - BAYONET SYSTEM

30 31

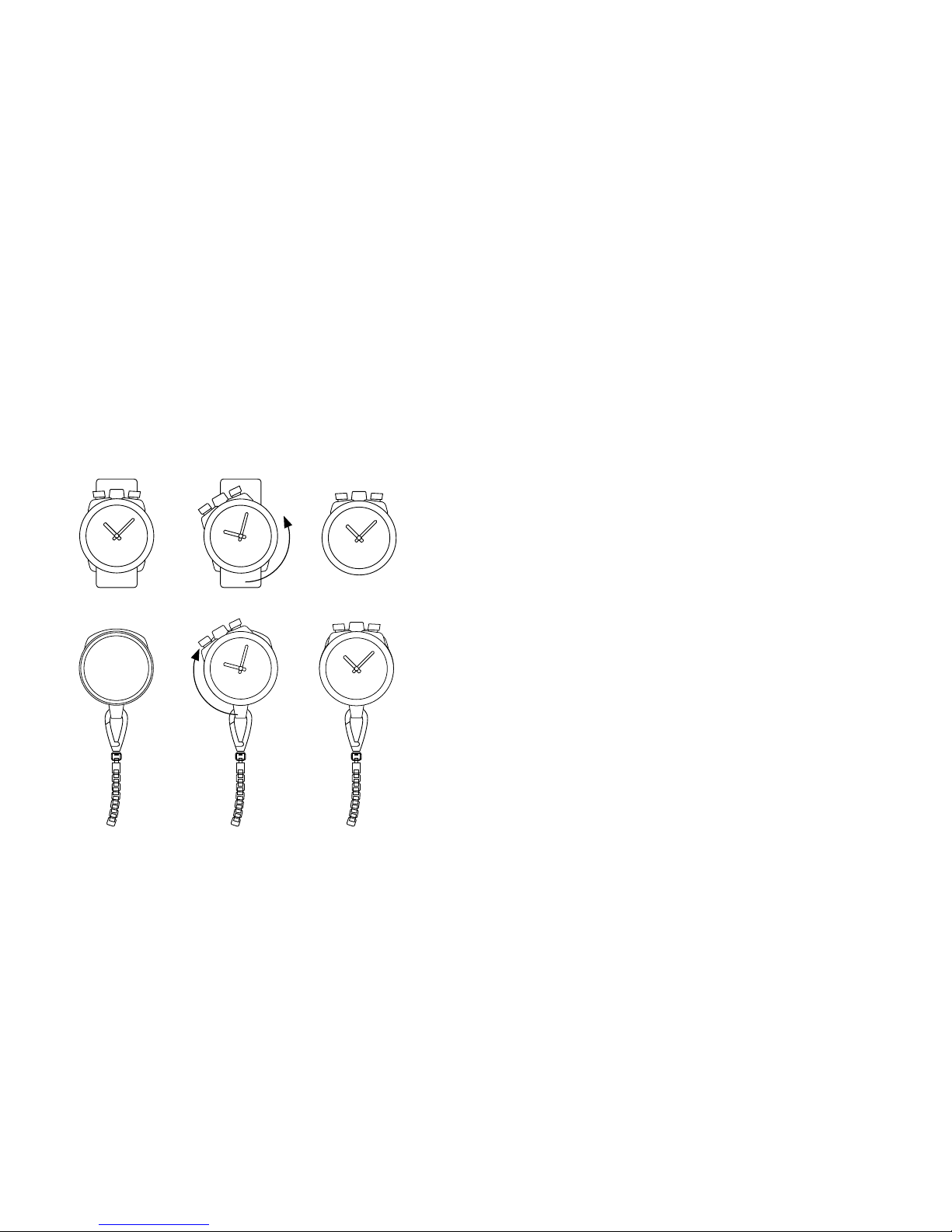

To remove the watch case from the band:
1. Rotate the watch case anti-clockwise at 10.
2. After two clicks, the watch case is released.
3. Lift the watch case from the attachment to remove it from the band.
To place the watch case on the chain:
1. Hold medallion with chain pending down and BB logo facing your hand.
2. Place the watch case in release position with the crown at 10 and rotate
clockwise.
3. After two clicks, the case will lock into place.
To put back the watch case to the band:
1. Hold the band with buckle up.
2. Place the watch case in release position with the crown at 10 and rotate
clockwise.
3. After two clicks, the case will lock into place.
Bayonet system
A watch? NO! Two watches, two ways of being? An object of desire? YES!
Certainly for men whose masculinity is not open to question.
Using an ingenious bayonet system with a trigger guard – an exclusive system
patented by BOMBERG – the time-keeping module can be detached from its
base and attached to a metal chain.
The new conguration is now a pocket watch. But be warned, the chain
differs quite a bit from the ne chains on the pocket watches of yesteryear.
As you will no doubt have realized, this tool is more for a pocket on a pair of
jeans than that of a gentleman’s waistcoat.
From a technical point of view, this dual usage – pocket and wrist – has meant
new developments in three areas: size, engineering and security.
BOLT-68 - Bayonet system

32
B CA
E FD
Disassembly
Assembly
Rotate
to unlock
Rotate
to lock
BOLT-68 - Bayonet system

Bomberg
A division of Park Lane Partners SA
Rue de la Gare 4
2034 Peseux/NE
Switzerland
Website: www.bomberg.ch
Information: [email protected]

Bomberg SA
A division of Park Lane Partners SA
Rue de la Gare 4
2034 Peseux/NE
Switzerland
Website: www.bomberg.ch
Information: [e-mail]
