Bona OptiSpread 100 Battery User manual

Operating Instructions
Bona OptiSpread 100
Battery
Valid as of October 2014

1
Table of Contents
1. Foreword................................................................................................. 2
2. Important Information.............................................................................. 3
2.1. EC Declaration of Conformity ........................................................... 3
2.2. What you must know about these Operating Instructions................. 5
2.3. Signs and Symbols used in the Operating Instructions..................... 5
3. Scope of Application and Product Description........................................ 6
3.1. Appropriate Use................................................................................ 6
3.2. Technical Data Bona OptiSpread 100 Battery.................................. 6
3.3. Technical Data Battery...................................................................... 6
4. Product Safety Notes.............................................................................. 7
4.1. Device Safety.................................................................................... 7
4.2. General Safety Notes........................................................................ 7
4.3. Safety Notes for handling battery-operated Tools............................. 8
5. Scope of Delivery and Operation............................................................ 9

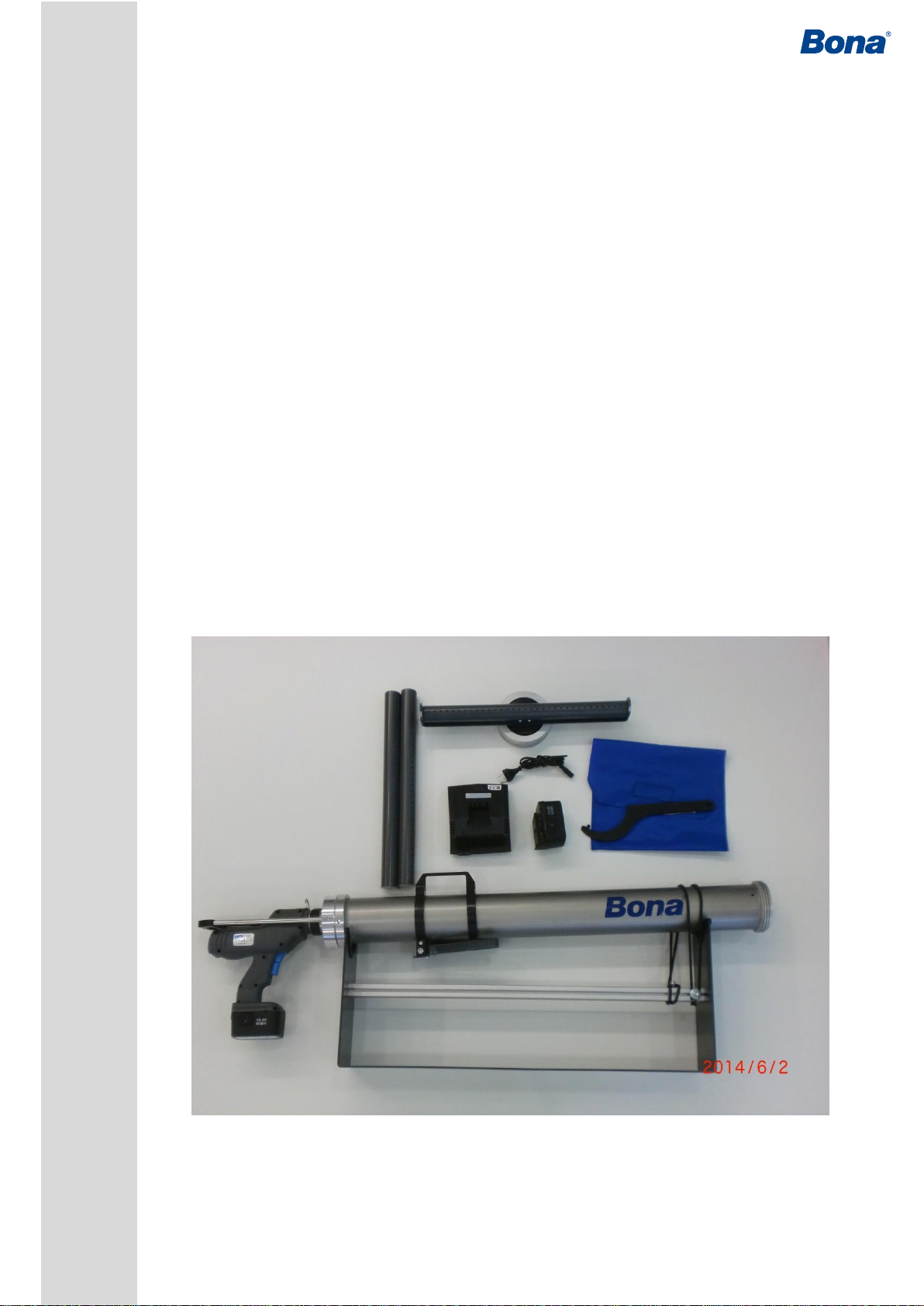

5.1. Scope of Delivery.............................................................................. 9
5.2. Operation........................................................................................ 10
5.2.1. Charging the Battery ................................................................ 10
5.2.2. Filling/Replacing Tubular Bag .................................................. 11
5.2.3. Applying adhesive.................................................................... 12
5.2.4. Replacing the Nozzle ............................................................... 13
5.2.5. Undersurface Quality................................................................ 13
6. Maintenance and Cleaning................................................................... 14
6.1. Maintenance................................................................................... 14
6.2. Cleaning.......................................................................................... 14
6.3. Cleaning the Adhesive Nozzle........................................................ 14
7. Storage and Transport.......................................................................... 14
7.1. Correct Storage .............................................................................. 15
7.2. Transport ........................................................................................ 15
8. Troubleshooting.................................................................................... 16

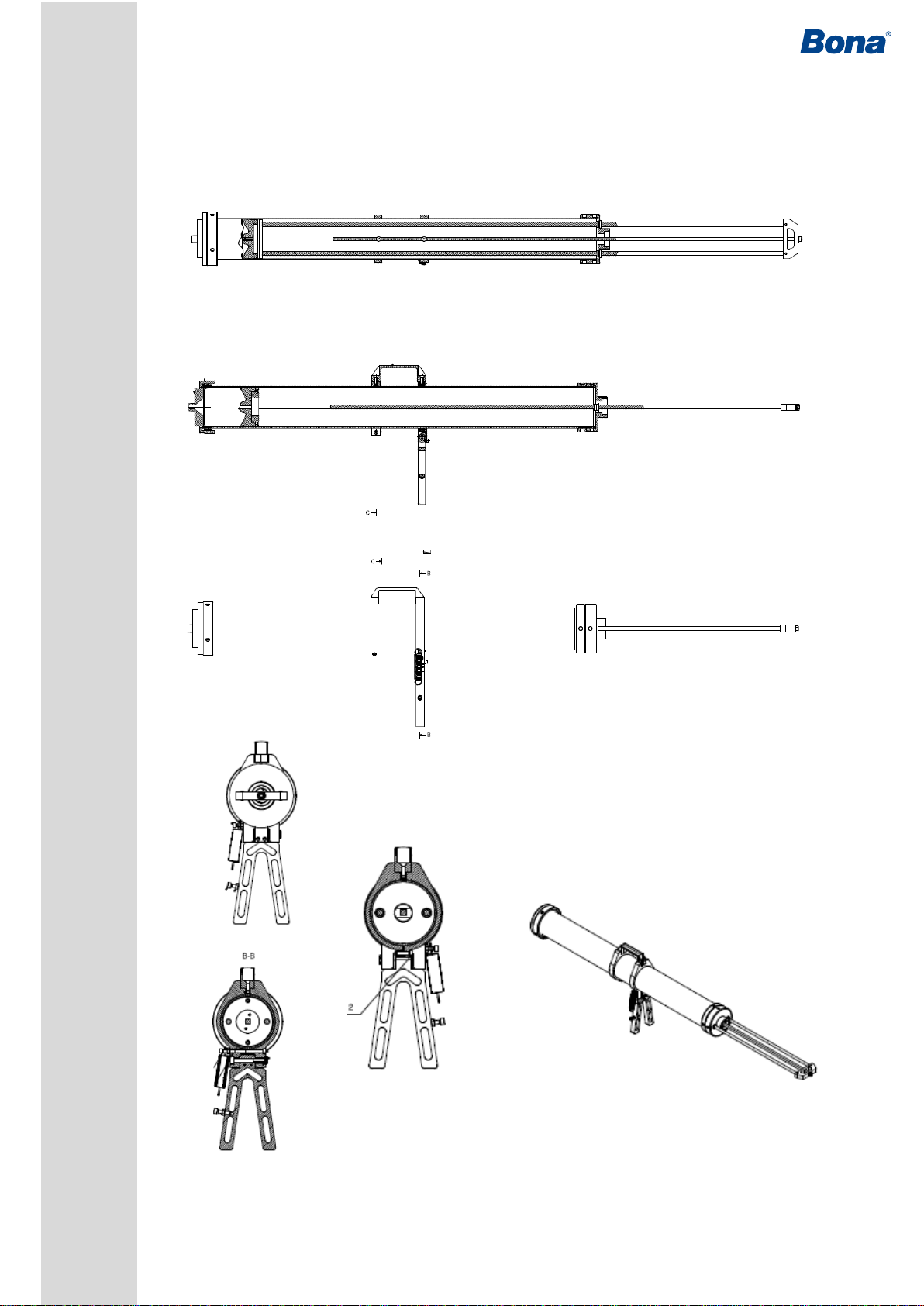

9. Technical Drawing ................................................................................ 17
10. Service address ................................................................................. 18
11. Disposal............................................................................................. 19

2
1. Foreword
Congratulations on purchasing our Bona OptiSpread 100 Battery. The Bona
OptiSpread System will enable you to apply Bona parquet adhesives in 5400
ml tubular bags in a simple and ergonomic manner.
And the Bona OptiSpread 100 Battery is now even more user-friendly. In
addition to the large filling tube and the wide coating nozzle, application of
Bona adhesives is no longer dependent on compressed air due to the new
battery drive, which means transport and connection of a separate
compressor is no longer required. By using the two batteries enclosed, you
can now execute your work on site without delay.
Please read these Operating Instructions carefully and thoroughly before
using your new Bona OptiSpread100 Battery for the first time to ensure ideal,
safe use. Please keep these operating instructions in a safe place, ideally
together with the purchase receipt.
We hope you enjoy using your new Bona OptiSpread 100 Battery.
These operating instructions have been prepared very carefully and thoroughly. However,
we reserve the right to optimize and technically upgrade the instructions at any time.
Illustrations may deviate from the original. Status: May 2014

3
2. Important Information
2.1. EC Declaration of Conformity
We herewith declare that the machine described in the following complies
with the fundamental safety and health requirements of the EC Directive
2006/42/EC in terms of design and construction as well as the model we
have launched on the market. The validity of this declaration expires if any
alteration is made to the machine which has not been agreed to by us. EC
Manufacturer Declaration pursuant to Machinery Directive 2006/42/EC,
Annex II A.
Manufacturer/Distributor:
Bona GmbH Deutschland
Jahnstraße 12
65549 Limburg
Description an Identification of Machine:
Product names: Bona OptiSpread 100 Battery
Year of construction: From May 2014
Article number: AT32046046
Series/Type name: Bona OptiSpread 100 Battery
The following harmonized norms have been applied:
EN 61310-2:1995 Safety of Machines –Displays, Labeling and Operating –
Part 2: Requirements concerning Labels (IEC 1310-2:1995)
EN 61310-3:1999 Safety of Machines –Displays, Labeling and Operating -
Part 3: Requirements concerning the organization and operation of Control
Units (actuators) (IEC 61310-3:1999)
EN 614-2:2000 Safety of Machines –Ergonomic Design Principles –Part 2:
Interaction between Design of Machines and Work Tasks
EN 55014-1: Electromagnetic Compatibility –Requirements concerning
household devices, power tools and similar electric devices –Part 1: Emitted
interference
EN 55014-2: Electromagnetic Compatibility –Requirements concerning
household devices, power tools and similar electric devices –Part 2:
Interference immunity
EN60745: Hand-operated motor-driven power tools –Safety –Part 1:
General requirements
Dr. Thomas Brokamp Torben Schuy
VP & Director Div. Fastening Product Management

4
Warranty
Bona GmbH Deutschland grants a warranty of 24 months for this product.
Material or production errors identified on this device will be rectified by Bona
during this period free of charge.
The warranty does not cover errors and faults which are not caused by
material and production errors, e.g.
Transport damage of any kind
Faults due to incorrect installation
Faults caused by inappropriate use of the device
Faults resulting from improper handling
Faults resulting from improper execution of repair work or repair
attempts made by persons and/or companies not authorized by
Bona
Normal operational wear and tear e.g. adhesive nozzles)
Incorrect cleaning of components
Our warranty does not cover devices whose serial number has been
falsified, changed or removed.
The warranty claim expires if components which have not been approved by
Bona GmbH are installed into the device. Claims exceeding free rectification
of faults and errors, e.g. claims for damages, are not included in the scope of
this warranty.
Please make a note of the serial number of your Bona OptiSpread 100
Battery, which is located on the bottom lid of the device:
Purchase date _________________________________________________
Serial number (please enter)___________________________________
Please specify this serial number, together with the purchase date and
invoice number, if you have any questions, ideas or complaints.

5
2.2. What you must know about these Operating Instructions
Please pay special attention to the notes printed in bold lettering in these
operating instructions. These are very important for ensuring correct use of
the Bona OptiSpread 100 Battery. Information provided in brackets is of a
general nature and for better understanding of the respective instruction.
Importance of the Operating Instructions
The operating instructions are part of the product. Before using the device for
the first time, read the instructions carefully, as well as the brief instructions,
to ensure you are familiar with the Bona OptiSpread 100 Battery and will be
able to use the tool efficiently. The operating instructions must be kept for the
entire service life of the Bona OptiSpread 100 Battery and passed on to
subsequent owners and users.
Working instructions
Some parts of these operating instructions comply with working instructions.
This especially applies to instructions concerning how to use the device and
concerning protection measures, described in items 5 –9.
2.3. Signs and Symbols used in the Operating Instructions
Caution: Danger! Safety instructions marked with this symbol must be
observed. Non-observance can lead to serious damage to health and
extensive material damage.
Information. Under this sign you will find useful tips and information.

6
3. Scope of Application and Product Description
3.1. Appropriate Use
Bona OptiSpread 100 Battery is a parquet adhesive application unit which
has also been developed for the application of the highly viscous adhesive,
Bona R850T. Other adhesives made by Bona GmbH Deutschland can also
be squeezed from the 5400 ml foil bag. This device will help you carry out
your work faster, easier and, above all, more ergonomically.
By actuating the On/Off switch, the adhesive is pressed out of the nozzle and
can be applied quickly and evenly onto the respective undersurface.
The adhesive is pressed simply and evenly out of the adhesive nozzle via the
ElektraFlow drive. The amount of adhesive applied can be adjusted
individually for each work process via the various toothing, the speed of
application and/or the feed rate.
3.2. Technical Data Bona OptiSpread 100 Battery
Length: 1378 mm [toothed rack retracted)
2398 mm [toothed rack extended]
Weight (empty): 12 Kg [filled approx. 20 Kg]
Inside diameter
Filler tube: 100 mm
Tubular bag size: 5400 ml
Nozzle: PVC adhesive nozzle with toothing 1250 G
(TKB B12) (optionally available 1500 F/G)
Application width: 500 mm
Adhesive: Bona silane adhesive e.g. Bona R850T, R848 or
Bona R870
3.3. Technical Data Battery
Type: Battery NiMH
Voltage: 14.4 Volt
Supply voltage: 110-230 V
Charging time: approx. 60 minutes
Range: approx. 60-80 m²

7
4. Product Safety Notes
4.1. Device Safety
Incorrect use of the device, accessories and electrical components can
cause health damage, material damage and can lead to malfunctions and
damage to the device. The device must only be used for the appropriate
purpose specified.
Before using the tool for the first time, please read the operating instructions
carefully and familiarize yourself with the product. This is essential to ensure
safe and perfect operation of the device.
4.2. General Safety Notes
General safety and accident prevention regulations must be observed! In addition
to instructions specified in these operating instructions, the general safety and accident
prevention regulations specified by law must be observed. Keep your work area tidy!
Untidiness in the work area can cause accidents.
Pass the operating instructions on to third parties. Makes sure third parties only use this
device after receiving the instructions required.
Handle and operate your Bona OptiSpread 100 battery with care at all times.
The Bona OptiSpread 100 Battery must only be used by specialists or specifically trained
staff. If it is used by unqualified staff, this may result in serious operating errors and personal
injury.
Keep the device out of reach of children and ensure prevention of unauthorized use.
Never leave the operative or used device unsupervised. Do not allow any children
near to the device. It is forbidden for children to use this device. Ensure the product
cannot be used by unauthorized persons.
Look out for any damage to the device. Before use, check the device for any damage. If
damage to the device is identified, it must not be used.
Do not use any sharp items. Never insert any sharp and/or metallic items into the inside of
the device.
The Bona OptiSpread 100 Battery must only be filled with Bona saline adhesive in a foil bag
5400 ml. The machine must not process any non-system adhesives. This will result in the
exclusion of all warranty claims. Make sure the temperature of the adhesives corresponds
approximately to room temperature. Cold adhesives are more viscous which results in higher
battery consumption and strain for the feeding unit. Therefore, always acclimatize the
adhesive sufficiently before processing.

8
CAUTION! When not using the Bona OptiSpread 100 Battery, store it in the holder provided.
Select a location where there is no risk of tripping or falling.
Only use the Bona OptiSpread 100 Battery when the nozzle is unscrewed and secured!
Avoid injury by ensuring your hands do not come close to the piston or feed unit. Never use
grease or other lubricants such as e.g. fats or oils for the working piston!
Only us original accessories! Do not execute any repair work. If repair work is required,
contact your Bona system engineer or our Service Hotline.
Do not use inappropriately: the machine has been designed exclusively for the application of
Bona parquet adhesives from foil bags!
When folding the stand from the parking position, avoid any risk of crushing of fingers and
hands! Wear appropriate clothing. Do not wear any loose clothing or jewelry. If you have
long hair, bind it together. Keep your hair, clothes and movable items away from the device.
Loose clothing, jewelry and long hair may get caught up in the moveable parts.
Only apply the adhesive to the respective work positions! Avoid contact to sensitive and
finished surfaces.
4.3. Safety Notes for handling battery-operated Tools
Power tools must NOT be exposed to rain or wetness. There is increased risk of
electrocution if water penetrates into an electrical device.
Keep your power tools in a safe place! Unused power tools and battery packs should be
stored in a dry, elevated or closed location, outside the reach of children.
Check the connector and cable of the power tool regularly, and have it replaced by a
qualified electrician in case of damage. Check the extension cable regularly and replace it if
damaged. Keep the handle dry and free of oil and grease.
Have your power tool repaired by a qualified electrician! This power tool complies with
relevant safety regulations. Repair must only be carried out by a qualified electrician. Only
original spare parts must be used, otherwise the user may be subject to accidents.
The battery must only be charged using the charger provided. Make sure the power supply is
suitable for the charger provided. Make sure the battery is correctly aligned and correctly
inserted in the charger. Do not try to open batteries or the charger. They do not contain any
repairable items.

9
5. Scope of Delivery and Operation
5.1. Scope of Delivery
Check completeness of delivery in accordance with the scope of delivery
before using the device for the first time. If any parts are unexpectedly
missing, please report this immediately to your respective Bona system
consultant or contact our Service Hotline on [phone]
Scope of Delivery Bona OptiSpread 100 Battery
Quantity Part
1 Bona OptiSpread 100 Battery
1 Battery charger (mains connection)
2 14.4 NiMH battery packs
3 Nozzles 1250 G (optional: 1500 G)
1 Nozzle head
1 Support block
1 Hook wrench
1 Transport bag
We recommend the use of pincers to open the tubular bag. These are not
included in the scope of delivery.

10
5.2. Operation
5.2.1. Charging the Battery
The battery packs supplied are delivered with a low level of charging ex-
works to avoid possible problems. They must be charged before using, until
the green LED on the front side of the charger lights continuously.
When the charger is connected to the mains, the red LED lights up. On
inserting the battery, the green LED flashes to show that the battery is now
being charged. When the green LED lights continuously, the charging
process has been completed.
A red flashing LED indicates that the battery is defective. The cause of this
could be that the battery is hot, cold or damaged. Separate the respective
battery from the charger and wait 30 minutes before trying to charge the
battery again.
Note: If the charger does not charge the battery under normal conditions,
please contact the Bona Service number provided.
Note: When being charged the first time, batteries do not charge up
completely. Several cycles are required to achieve complete charging.
The battery must only be charged using the charger provided.
Make sure the power supply is appropriate for the charger provided. Make
sure the battery is correctly aligned and has been correctly inserted in the
charger.
Do not try to open batteries or the charger. They do not contain any
repairable parts.
RED LIGHT –CHARGER SUPPLIED WITH POWER
FLASHING RED LIGHT –BATTERY IS HOT, COLD OR DAMAGED
GREEN LIGHT –BATTERY IS FULLY CHARGED
FLASHING GREEN LIGHT –BATTERY IS BEING CHARGED
As soon as the battery has been completely charged, the Bona
OptiSpread 100 battery can be used.

11
5.2.2. Filling/Replacing Tubular Bag
Place the machine on the support block provided if you need to fill the Bona
OptiSpread 100 Battery or to replace an empty tubular bag. Secure the
machine at the head end using the clamping rubber.
NEVER PUT THE BONA OPTISPREAD 100 BATTERY DOWN ON THE
RACK. THIS MAY LEAD TO MALFUNCTIONS!!
1. Twist off the nozzle head fastened to the filler tube with a lock nut, and
place to one side.
2. Remove the empty tubular bag
3. Unlock the toothed rack and pull out completely using the hook grip
4. Insert a new tubular bag horizontally and remove the clip. Make sure the
bag does not bend when you insert it.
5. Screw the nozzle head back on, release the clamping rubber and remove
the machine from the support block. When putting on the nozzles, make
sure the sharp end of the toothing is pointed upwards.
(1) (3)
Unlock
(4) (4)

12
5.2.3. Applying adhesive
Place the full Bona OptiSpread 100 Battery on the nozzle head, press the
starter and step back.
Starter
The amount of adhesive applied depends mainly on your speed of motion,
the nozzle size and the feed which can be adjusted continuously from 1-9.
Note:
When squeezing from a new nozzle for the first time, it takes a little time
before the adhesive comes out of the openings.
If you let go of the starter, application of adhesive is stopped immediately.
The piston is slightly retracted (audible). Exact and dosed application of
adhesive is possible.
Tubular bag
If possible, try to ensure that the adhesive bag is completely emptied. If this
is not possible, the partially used tubular bag can remain in the machine for
up to 12 hours. The machine must be stored horizontally.
If work is interrupted for a longer period, the partially used bag should be
removed and closed using a cable tie. When required, this closed bag can
then be used again.
Depending on the age of the foil bag, gas pressure may develop inside the
bag which results in a swelling of the foil. This may make insertion more
difficult. We recommend that the foil be pricked with a needle close to the
clip. Surplus pressure can then escape. However, this has no effect on the
respective adhesive.
Nozzle
If work is interrupted for a longer period (up to 12 hours), adhesive which has
come out on the nozzle toothing will harden. We recommend that such
surplus adhesive be removed using Bona Tool Cleaner and that the outlets
be covered with adhesive tape.
In case of longer interruptions, the nozzle has to be cleaned or, if required,
replaced with a new one. Hardened adhesive must not be pressed out by
squeezing new adhesive behind it. This may cause damage to the drive or
serious fouling.

13
5.2.4. Replacing the Nozzle
1. Unscrew the fastening screws on the underside, remove the nozzle and
dispose of the nozzle.
2. Place on a new nozzle and fasten using the fastening screws.
3. If there is any hardened adhesive in the feed channel and the inside of
the nozzle base, this must be removed manually.
4. Liquid adhesive need not be removed
5.2.5. Undersurface Quality
To ensure ideal application and functioning of the adhesive, the undersurface
must be ready for use and comply with the requirements of DIN 18356. If
necessary, appropriate action must be taken to prepare the undersurface to
ensure it is suitable for use. Respective Bona products can be found in our
extensive product portfolio.

14
6. Maintenance and Cleaning
6.1. Maintenance
When used correctly and with care in accordance with the operating
instructions, the Bona OptiSpread100 battery is maintenance-free.
6.2. Cleaning
The Bona OptiSpread 100 Battery has been factory-fitted with a PTFE
working piston. It is not permitted to use any lubricants, greases, oils or any
other similar products. The inside of the tube must only be cleaned with
compressed air or with a clean, lint-free cotton cloth or with Bona Tool
Cleaner.
The upper side of the filler tube and the outer thread are usually subjected to
most fouling as a result of fresh adhesive which deposits in small amounts on
the thread and the inside of the filler tube when replacing the tubular bag.
Such fresh adhesive fouling should be removed immediately using Bona Tool
Cleaner, since accumulation of adhesive in the thread turns or the inside of
the tube may lead to accidental adhesive bleed.
Regular cleaning of respective parts of the machine ensure enduring
functioning of the Bona OptiSpread 100 Battery and les cleaning required
when you have completed your work!
6.3. Cleaning the Adhesive Nozzle
The adhesive nozzle is designed as a non-return nozzle which can be
disposed of after you have completed your respective project. However, the
nozzle can also be used repeatedly. No specific range can be specified,
since the nozzle has a long service life on account of the hard-wearing
material and in the case of regular cleaning and correct handling.
After thorough cleaning, the nozzle can be used repeatedly. Cleaning should
be carried out as follows:
oDismantle the nozzle as described in item 5.2.4.
oRemove the side caps of the nozzle and remove any unhardened, fresh
adhesive. This can be carried out easily by using a rod or cloth pulled
through the tube.
oClean the inside using several Bona Tool Cleaner cloths by pulling them
through the nozzle.
oIt is easiest to remove residual adhesive in the toothing when the
adhesive has hardened. Make sure you do not damage the toothing form
by using sharp and pointed items so as to ensure lasting, even adhesive
bleed.
oThe adhesive outlet at the nozzle shoe should also be cleaned using
Bona Tool Cleaner.
7. Storage and Transport

15
7.1. Correct Storage
Always store the device in a horizontal position in the original packaging.
In the case of a longer period of interruption from work of up to 12 hours, the
nozzle of the Bona OptiSpread 100 Battery can remain on the machine.
Partially used adhesive foil bags can also remain in the machine. The nozzle
must be cleaned on the outside with Bona Tool Cleaner. The section where
adhesive comes out must be cleaned thoroughly. Toothing must then be
covered with adhesive tape or the entire nozzle must be closed air-tight.
The machine can be stored horizontally or transported in this condition for up
to 24 hours without risk of drying.
In the case of longer storage (> 24 hours) the nozzle must be removed from
the tube. If a foil bag is still in the machine, it must be pressed empty or
removed. The adhesive nozzle is designed as a non-return nozzle and can
be disposed of on completion of the respective project. If required, the nozzle
can be used repeatedly.
Avoid lengthy storage in damp or continuously wet and dusty places.
If the machine has been stored continuously or overnight at a temperature of
under +10°C, the machine first has to be acclimatized to room temperature (≥
+ 15°C) to ensure safe functioning of the piston.
7.2. Transport
Always transport the OptiSpread 100 Battery in the original packaging
provided.
When transporting the machine, make sure it is not damaged and score and
fasten it to avoid any damage during transport.

16
8. Troubleshooting
Malfunctions are not to be expected, if the Bona OptiSpread 100 Battery is
used and operated correctly and properly in accordance with the instructions
and notes contained in these operating instructions.
However, if malfunctions do occur, you should examine possible sources of
such errors:
Battery
Is the battery fully charged? Partially charged batteries may lead to automatic
shut-down of the feed due to incorrect identification of a malfunction. Always
charge the battery completely! This also prevents a memory effect.
Toothed rack
Is it bent or damaged?
Never put the device down on the rack.
Residual adhesive
Is there any residual hardened adhesive in the machine/nozzle? If yes,
remove it or replace the nozzle. Observe the notes specified in Chapter 5
and 6.

17
9. Technical Drawing

18
10. Service address
Sales of spare parts and any repairs required are executed on behalf of and
for the account of the company
ARNOLD GmbH & Co. KG
Post Box 1220
35772 Weilburg
[phone].
If you have any questions, ideas or unexpected complaints, please contact
your Bona system consultant.
Please explain your issue in detail to him/her and provide the serial number
which is on the lid of the Bona OptiSpread 100 Battery and the purchase
date.

19
11. Disposal
Adhesive guns, batteries and chargers must be disposed of in compliance
with the respective regulations of your local waste management company.
