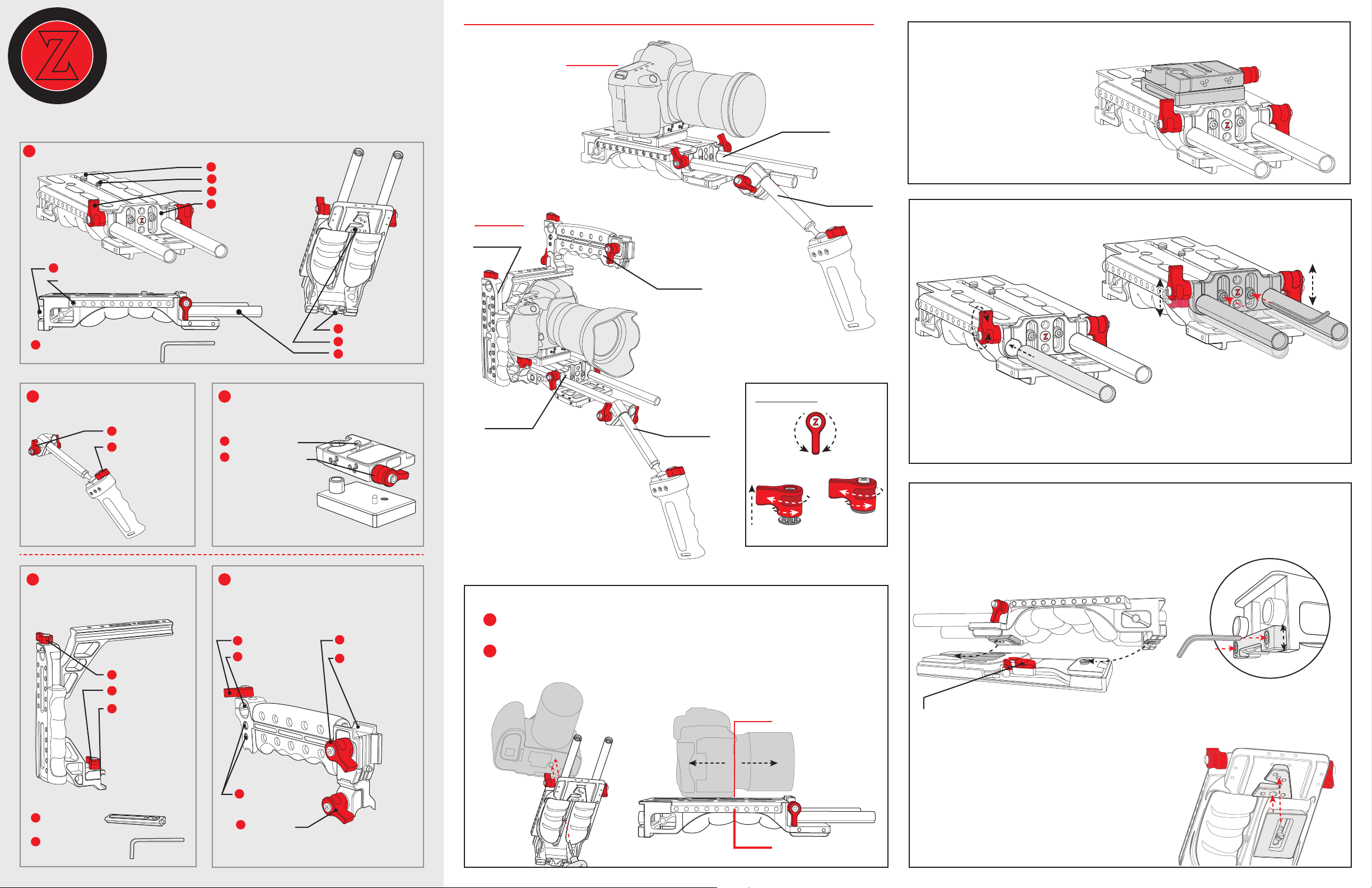

Zacuto DSLR Series User manual

Z
A
C
U
T
O
P
R
O
D
U
C
T
I
N
S
T
R
U
C
T
I
O
N
S
Z
Parts & Features
Docu Kit
Indie Kit
DSLR Docu and Indie Recoil Kits
The DSLR Kit is a professional solution for opperating your
DSLR Camera no matter the brand or size. Centered around the
Universal VCT Baseplate, this kit allows you to transfer your rig
from tripod to shoulder in seconds. This quick releasable Recoil Handle
gives you a secure grip and provides numerous options to mount
a variety of accessories.
Left Loose
Right Tight
Pull knob out
to reposition.
Tightening Lever
Rod Port 15mm
Tightening Lever
Z-Rail Jaws
Racheting Lever
1/4”-20 & 3/8”-16
mounting holes.
Racheting Lever
Cold Shoe
Accessory Jaws
5/32 Allen Wrench
For additional assembly and individual component features, see numerical figures.
Figure 1:c Adjusting Rods
Attach rods to VCT Plate by loosening
racheting levers, sliding rods into place
and then re-tighten levers.
Figure 1:d Mounting VCT Plate to VCT-14 Tripod Quick Release Plate
(VCT-14 Sold Seperatly)
If needed the tail hook position can be raised or lowered.
Loosen both allen screws equally, raise or lower tail hook
and relock both allen screws when in desired position.
Pull red lever on VCT-14 to release
your Universal VCT Plate.
Mount VCT Plate to VCT-14 by sliding the front wedge into front slot
of VCT-14 and the tail hook around the rear knob of VCT-14.
The VCT-14 will click when the VCT Plate is locked into place.
LEFT LOOSE RIGHT TIGHT
An alternative mounting method when using a tripod
without a VCT14, is to mount your tripod’s quick release
wedge plate to the wedge on the bottom of the
Universal VCT Plate.
Adjust rod height by loosening both front
allen screws equally. Slide rods up or down
for desired position and relock allen screws.
From the bottom of the VCT Plate, screw the 1/4”-20 and 3/8”-16
mounting screws into the bottom your camera.
Before securing in place, add on accessories to be used to help find the true
balance of your camera. Align both the VCT and camera’s center of balance
and secure mounting screw in place.
Figure 1:a Mounting Camera
VCT Universal Baseplate Center of Balance
Camera Center of Balance
1
2
Tail Hook
VCT Wedge Plate
15mm Rods
3/8”-16 Mounting Screw
1/4”-20 Mounting Screw
Racheting Levers
Rod Clamp Riser
Rear Rod Ports
Side 1/4”-20 Mounting Holes
2
1
1
1
1
1
2
1
2
Universal VCT Baseplate
1Recoil Handle
1Halfcage Rail
1 1
Z Grip Z Mount Zwivel
(Docu & Indie Kit)
(Docu & Indie Kit)
(Indie Kit) (Indie Kit)
(Docu & Indie Kit)
(Docu & Indie Kit)
(Docu & Indie Kit)
(Docu & Indie Kit)
1
1
1
1
1
1
1
1/4”-20 Screw
Racheting Lever
1
1
Racheting Lever
Tightening Lever
2
1
5” Z Rail
1
1
5/32 & 9/64 Allen Wrench
1
QR Riser
1
2
Lever Usage
*
Z-Rail Jaws
Figure 1:a
Figure 1:a
Figure 2:a
Figure 2:a
Figure 3:a
Figure 4:a
Figure 1:b Adjusting Rods (Docu & Indie Kit)
For DSLR Cameras a QR Riser
will be needed to raise camera
to matte box compatible height.

Figure 3:a Adjusting your Half Cage
Figure 3:b Mounting Half Cage
Figure 3:c Operating Half Cage
Figure 4:a Mounting your Recoil Handle Additional Recoil Options Sold Separately
Figure 4:b Operating your Recoil Handle
The jaws can be moved to either end of the handle or rotated 90 degrees
to help position the handle and/or accessories in a balanced position.
Rod lock for Zamerican
Arms, EVF Mounts,
or 15 mm rods
Coldshoe Jaws for
shoe accessories.
Threaded
Accessories
Remove allen screw and
jaws connected to handle.
Align jaws with rear mount,
and tighten allen screw in place.
12
(Docu & Indie Kit) (Indie Kit)
(Indie Kit)
(Indie Kit)
(Indie Kit)
(Indie Kit)
?See front figure for full correct Assembly
Check out our tutorial videos at zacuto.com
For additional accessories visit store.zacuto.com
NEED
MORE
HELP
To change the angle of the Zwivel 2, loosen
levers and rotate. To lock, tighten lever until
pins lock into center wheel. Both halves can
be independently rotated a full 365 degrees.
Loosen tightening lever on the top of the grip
to adjust the grip’s position. Re-tighten lever
when in desired position.
Figure 2:a Operating Z-Grip Z-Mount Zwivel
Tall
Short
Medium
1
2
Loosen top tightening lever and insert
Zamerican arm into 15mm rod port.
Adjust the height of the your Half Cage
on the handle side with the
5/32 allen wrench.
Loosen allen screws and slide top rail
or Z-Rail jaws to desired position and
retighten allen screws.
For a more extended configuration the
bottom allen screws will need to be
removed and relocated.
(See figure to the right labeled Tall.)
1
Mount the Half Cage to the side mounted
Z-Rail on your VCT Universal Plate
Loosen Racheting Lever and slide
Half Cage jaws onto Z-Rail.
Retighten racheting lever when
in desired place.
1
2
The rod port on the side of the half cage can be used for Zamerican Arms.
Retighten lever when in place.
Mounting Axis Mini to Recoil Handle.
Mounting Z-Drive and Tornado
to VCT Rods
