Bona DCS25 User manual

USER MANUAL
(Original)
BONADCS25
Handy Industrial Vacuum Cleaner for Floor Grinding etc. with
Fine Dust and Dust Hazardous to Health
IMPORTANT!
Read this manual before you start using the machine.
BONA AB
A0800195

Manual
BONA DCS25 Vacuum Cleaner 3 BONA AB

Manual
BONA DCS25 Vacuum Cleaner 4 BONA AB
Table of Contents
General Description ............................................................................................................................................5
Safety Precautions ..............................................................................................................................................6
Technical Data ..................................................................................................................................................10
Standard Accessories .......................................................................................................................................11
Applications.......................................................................................................................................................12
Description of the Main Parts ............................................................................................................................12
Motor Top with Suction Motor and HEPA-filter........................................................................................12
Motor Top with Alarm and Shock Valve ..................................................................................................13
Collection Container and Collection Bag.................................................................................................14

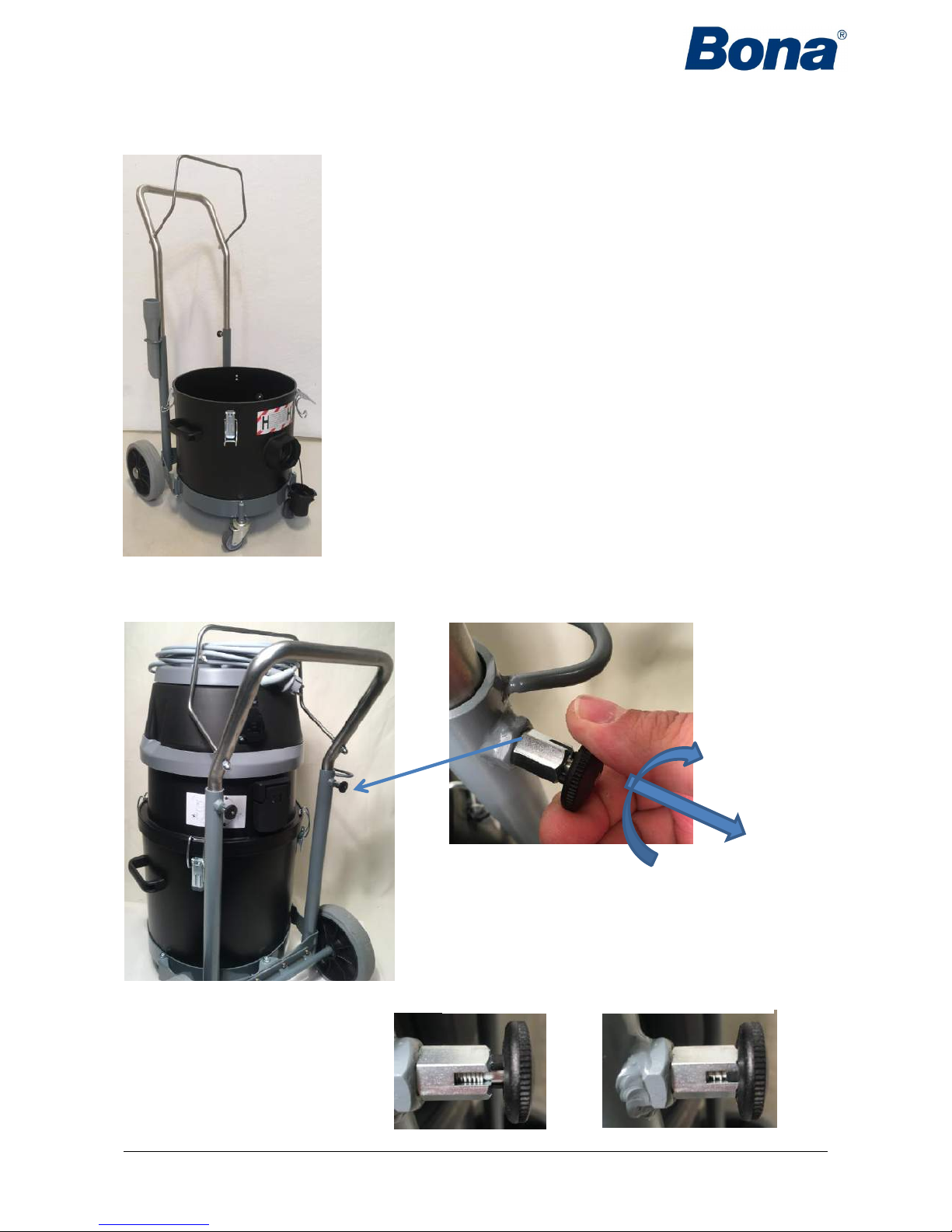

Adjustment of the Telescopic handle………………………………………………………………………...………….14
Mounting the Collection Bag .............................................................................................................................15
Mode of Operation ............................................................................................................................................16
Assembling........................................................................................................................................................17
Starting the BONA DCS25 and Collecting Dry Dust..........................................................................................17
Electrical Outlet with Automatic Start/Stop..............................................................................................17
Cleaning the Pre-Filter / Membrane Filter during Operation (as needed or when the alarm beeps) .......19
Emptying ...........................................................................................................................................................20
Asbestos and Dust Hazardous to Health ................................................................................................21
Cleaning and Maintenance................................................................................................................................22
Maintenance of the Motor Top ................................................................................................................22
Change of Filters
Check and Replacement of the Membrane Filter....................................................................................23
Replacing the HEPA-filter (item no. 84.67.5006) ....................................................................................23
Disposal of Used Filters ..........................................................................................................................23
Troubleshooting ................................................................................................................................................26
Declaration of Conformity..................................................................................................................................27

Manual
BONA DCS25 Vacuum Cleaner 5 BONA AB
BONA DCS25
General Description
BONA DCS25 is an industrial vacuum cleaner developed for the collection of very fine and health hazardous dust.
BONA DCS25 meets the requirements for vacuum cleaners within the industry and the construction industry
today. The machine is ideal for the collection of fine and health hazardous dust, such as wood dust or dust from
grinding/sanding machines. The machine is also ideal for use in connection with hand tools.
•Teflon-coated pre-filter (BIA dust class “M”)
•Filter cleaning during operation with back flush valve
•HEPA-filter (BIA/IFA dust class ”H”
•Protection level IPX4 (IEC 60 529)
•Satisfies the demands of EN 60 335-2-69 Annex AA, for collection of
health hazardous dust in dust class ”H”
•Electrical outlet with automatic start/stop
•Beeper alarm in case of too low air flow
•Soft start of motor
•Post-suction when using automatic
Before using the machine, please read this manual.
This user manual must be kept available for the operator at all times.

Manual
BONA DCS25 Vacuum Cleaner 6 BONA AB
The user manual is to ensure a secure operation of the vacuum cleaner, and to secure that the user is in no way
uncertain as to the use. The manual must be stored near the vacuum cleaner. Does any uncertainty arise as to
the use of the vacuum cleaner or the material collected, the work should be stopped until all questions have been
cleared.
Pictures and drawings are for illustrative purpose and will make the understanding of the manual easier. The
pictures shown may therefore be different from the actual product.
Safety Precautions
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
•The appliance is NOT approved for collection of flammable, explosive, poisonous or extremely health
hazardous dust, fluids or gasses.
•DO NOT USE THE VACUUM CLEANER WITHOUT A PROPER GROUND CONNECTION. This vacuum
cleaner is designed to be used with a grounding connection, in an installation with HFI or HPFI. The user
is responsible for ensuring that the wall outlet is grounded. The ground connection of the plug must NOT
be removed.
•BONA DCS25 must be connected to 230 V power supply. Make sure that the voltage and safety fuse of
the power supply correspond with the data of the data plate and the information given in this manual.
•BONA DCS25 may be used for collection of dust hazardous to health according to CEI/IEC 60335-2-69
Annex AA, dust class H.
•The appliance must be emptied after use.
•The user must ensure that the appliance is adjusted to the task and that regulatory requirements are met.
•When collecting dust hazardous to health you must use a collection bag, and disposal must comply with
the legal requirements for material (closed container, plastic bag etc.).
•Avoid damaging the supply cord. When replacing the supply cord, only use an original supply cord (see
the spare parts list). The replacement must be carried out by an authorized dealer or an equally qualified
person in order to avoid danger. Regularly check the mains connection for damage, such as fissures or
ageing. If damage is found, the supply cord must be replaced before further use.
•The plug must be removed from the power supply before repair and maintenance or cleaning operations.
•The mains socket of the machine is to be used only for the purposes specified in the user manual.
•This machine is intended for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices
and rental businesses.
•Before use, operators should be provided with information, instruction and training for the use of the
appliance and the substances for which it is to be used, including the safe method of removal and
disposal of the material collected.
•For user servicing, the appliance must be dismantled, cleaned and serviced, as far as is reasonably
practicable, without causing risk to the maintenance staff and others. Suitable precautions include
decontamination before dismantling, provision for local filtered exhaust ventilation where the appliance is

Manual
BONA DCS25 Vacuum Cleaner 7 BONA AB
dismantled, cleaning of the maintenance area and suitable personal protection.
•In the case of class H appliances the outside of the appliance should be decontaminated by vacuum
cleaning methods and wiped clean or treated with sealant before being taken out of a hazardous area. All
the appliance parts shall be regarded as contaminated when removed from the hazardous area and
appropriate action taken to prevent dust dispersal.
•The manufacturer, or an instructed person, shall perform a technical inspection at least annually,
consisting of, for example, inspection of filters for damage, air tightness of the appliance and proper
function of the control mechanism. On class H appliances the appliance filtration efficiency should be
tested at least annually, or more often, according to national requirements. The test method that may be
used for the verification of the appliance filtration efficiency is given in AA.22.201.2. If the test is not
passed, it must be repeated with a new essential filter.
•When carrying out service or repair operations, all contaminated items, which cannot be satisfactorily
cleaned, are to be disposed of. Such items shall be disposed of in impervious bags in accordance with
any current regulation of the disposal of such waste.
•The upper part of the motor top is not a dust proof compartment, and when cleaning, the covers of this
compartment are removed by loosening the screws fixing the covers.
IMPORTANT! The vacuum cleaner must not be started with covers removed.
When the automatic start/stop is activated in connection with electrical hand tools, you must ALWAYS
turn off the hand tools before you turn off the machine.
IMPORTANT! The motor top must not be covered when the vacuum cleaner is in use.
Guidelines in Connection with Disposal of the Machine
Does the safe use or maintenance of the appliance raise any questions; do not hesitate to contact either your
dealer or BONA AB.
The product you have purchased is subject to Directive 2002/96/EC of the European
Parliament and the Council of the European Union on waste electrical and electronic
equipment (WEEE) and should not be disposed of as unsorted municipal waste. Please
utilize your local WEEE collection facilities in the disposition of this product and otherwise
observe all applicable national requirements.

Manual
BONA DCS25 Vacuum Cleaner 8 BONA AB
General Safety Instructions
1. Keep the working area clean. Slippery and greasy surfaces increase the risk of accidents.
2. Be aware of the surroundings.
Do not expose the vacuum cleaner to rain. Do not use the vacuum cleaner in moist or wet
surroundings. Do not use the vacuum cleaner near flammable gasses or liquids.
3. Protect against electrical shock.
Avoid bodily contact with earthed building parts, such as radiator, water pipes and the like and
also electrical appliances with their own earth connection.
4. Keep children and unauthorized persons away from the workplace.
Do not let unauthorized persons touch the vacuum cleaner or the supply cord. All unauthorized
persons should be kept at a distance.
5. Put the vacuum cleaner away, or make it ready for transport after use.
Keep the vacuum cleaner in a dry place and inaccessible to children.
6. Do not use force.
Do not use force when operating the vacuum cleaner.
Do not step on the hose, or the electrical cord.
7. Choose the correct tool, accessories for the task.
Do not use badly proportioned or light tools for heavy tasks.
Do not use tools for anything they are not intended for.
8. Choose suitable working clothes.
9. Personal protective equipment.
Put on eye and/or ear protection, if necessary. Put on respirator in dusty environments.
10. Protect the electrical cord.
Never carry the vacuum cleaner in the electrical cord. Do not remove the plug from the socket by
pulling the electrical cord. Keep the electrical cord away from heating sources, oil and sharp
edges.
11. Choose a safe working position so that there will be no risk of falling in the hose and cord.
When using electrical equipment the necessary safety precautions must
be taken in order to avoid the risk of fire, electrical shock and damage to
persons. The below safety instructions are to be read and followed when
the vacuum cleaner is being used.

Manual
BONA DCS25 Vacuum Cleaner 9 BONA AB
12. Keep the machine and equipment in good repair.
Keep the vacuum cleaner clean and dry and follow the instructions of the chapter about
maintenance.
13. Cut off the electricity supply when the vacuum cleaner is not in use.
Remove the plug from the socket before maintenance, repair and when the vacuum cleaner is
not in use.
14. If extension cords are used outdoors, they must be approved for this.
If extension cords are used, the following guidelines must be observed:
15. Show attention and be rested.
The vacuum cleaner must not be used, if the user is tired, sleepy or sick or under the influence of
alcohol or drugs / medicine.
16. Check for damage.
Check the vacuum cleaner for damage. Check that the shields etc. have been properly fastened.
Check the electrical switches, and have an authorized service mechanic replace them, if they are
damaged. Do not use the vacuum cleaner, if it cannot be started and/or stopped at the switch.
BONA DCS25 is H-classified in accordance with the demands of EN 60335-2-69 Annex AA for collection of dust
hazardous to health.
BONA DCS25 is furthermore in accordance with the Machinery Directive (2006/42/EC).
Three labels are enclosed. One in Danish, one in English and one in French.
The standard language of the label on the machine is German. Therefore the label with the language of the
country in question is to be placed on the H-label, with the text as shown above.
Length of cord in
metres
Cross section
<16A
<25A
Up to 20 m
Ø1,5mm²
Ø2,5mm²
20-50 m
Ø2,5mm²
Ø4,0mm²
WARNING: This appliance contains dust hazardous to
health. Emptying and maintenance operations, including
removal of the dust collecting means, must only be
carried out by authorized personnel wearing suitable
personal protection. Operate only after the full filtration
system has been fitted and checked.
H
H

Manual
BONA DCS25 Vacuum Cleaner 10 BONA AB
Make sure that the voltage and fuse of the power
supply correspond with the data of the data plate of the
machine and the data of this manual.
Technical Data
The machine is connected to 230 V power
supply.
The survey below shows the technical data of
BONA DCS25.
*Data of the machine with 4 metres ø 38 hose
EU
Voltage
Suction motor
Power outlet, max.
Vacuum
Air volume, max.(nom.)
*Suction power, max. ((P2)based on IEC 60312)
Filter area, membrane filter
Filter area, HEPA
Collection capacity (bag)
Height (max/min)
Length
Width
Weight without accessories
Container coupling
Length of supply cable
Noise
Based on ISO 11201
Machine pressure level : uncertainty KpA=3dB
(Measured only as machine)
Based on EN 60704-1:2010 and EN60704-2-1:2001
Max. Sound Power Level LWA=
uncertainty KWA=3dB
(Measured with hose, pipes and floor accessory)
Vibrations
230
1450
2000
3000
29,5
54 (43)
194 (155)
415
0.12
1.1
16
1070/830
550
500
20,5
Ø 50
8
<70
<85
≤ 2,5
Volt
Watt
Watt
mmWc
kPa
l/sec.
m3/h
W
m2
m²
l
mm
mm
mm
kg
mm
m
dB(A)
dB
m/s2
In connection with extraction from tools (dust extractor) it is
necessary to ensure a sufficient rate of air renewal (L) in the
room.
According to the instructions from The Danish Working
Environment Service, recirculation of extracted air is forbidden.
Please refer to national regulations.

Manual
BONA DCS25 Vacuum Cleaner 11 BONA AB
Standard Accessories
BONA DCS25 is delivered with a complete set of accessories including tubes, hose and all the necessary
nozzles.
You can reorder the accessories using the following product numbers:
1. Plastic hose - 7,5 m.......................................................................84.54.3876
2. Crevice nozzle...............................................................................80.34.4007
3. Floor nozzle B-370 ........................................................................84.38.3620
4. Straight tube ..................................................................................80.52.3651
5. Bent tube.......................................................................................80.52.2150
3
4
5
1
2

Manual
BONA DCS25 Vacuum Cleaner 12 BONA AB
Applications
BONA DCS25 is a vacuum cleaner in accordance with DS/EN 60335-2-2 and CEI/IEC 60335-2-69 Annex AA
class H and may only be used as such.
BONA DCS25 may be used for collection of dust hazardous to health according to CEI/IEC 60335-2-69 Annex AA
dust class H.
BONA DCS25 may not be used for collection of fluids or moist dust.
BONA DCS25 may not be used for collection of flammable, explosive, poisonous or other dust, fluids or gasses
hazardous to health.
BONA DCS25 may only be used in dry environments and may not be used or stored outdoors or indoors under
wet conditions.
The capacity of a vacuum cleaner to suck vacuum depends on the air. Theoretically, the suction capacity will fall
when the vacuum cleaner is used at altitudes. The suction capacity of the vacuum cleaner will be constant from 0
to approx. 800 m above sea level. From 800 to 2000 m the suction capacity will theoretically fall to approx. 75%. It
is not recommended to use the vacuum cleaner at more than 2000 m above sea level, as the cooling and the
suction capacity will be considerably reduced.
Description of the Main Parts
BONA DCS25 is designed as a handy and compact industrial vacuum cleaner for collection of fine dust and dust
hazardous to health.
Motor Top with Suction Motor and HEPA Filter
The motor top is equipped with suction motor, an integrated handle, switches for the
suction motor and the built-in automatic start-/stop.
The powerful suction motor of BONA DCS25 is placed in the motor top.

Manual
BONA DCS25 Vacuum Cleaner 13 BONA AB
The motor top is fitted with a HEPA filter in dust class ”H”.
The filter blocks the fine and smallest dust particles, which have not been held back
by the membrane filter. The filter holds back the particles larger than 0.3 m (0.0003
mm). Filter surface : 1.1 m².
To get to the HEPA filter, the pre-filter / membrane filter must be removed.
Motor Top with Alarm and Shock Valve
The motor top is equipped with a shock valve for cleaning the pre-filter, and
an acoustic alarm, which will beep when the air flow is too low (<20 m/sec).
Furthermore, the control panel has a red LED lamp which will visually indicate
when the alarm sounds.
Electrical hand tools can be connected directly to the BONA DCS25.
(MAX 2000 W)

Manual
BONA DCS25 Vacuum Cleaner 14 BONA AB
Collection Container and Collection Bag

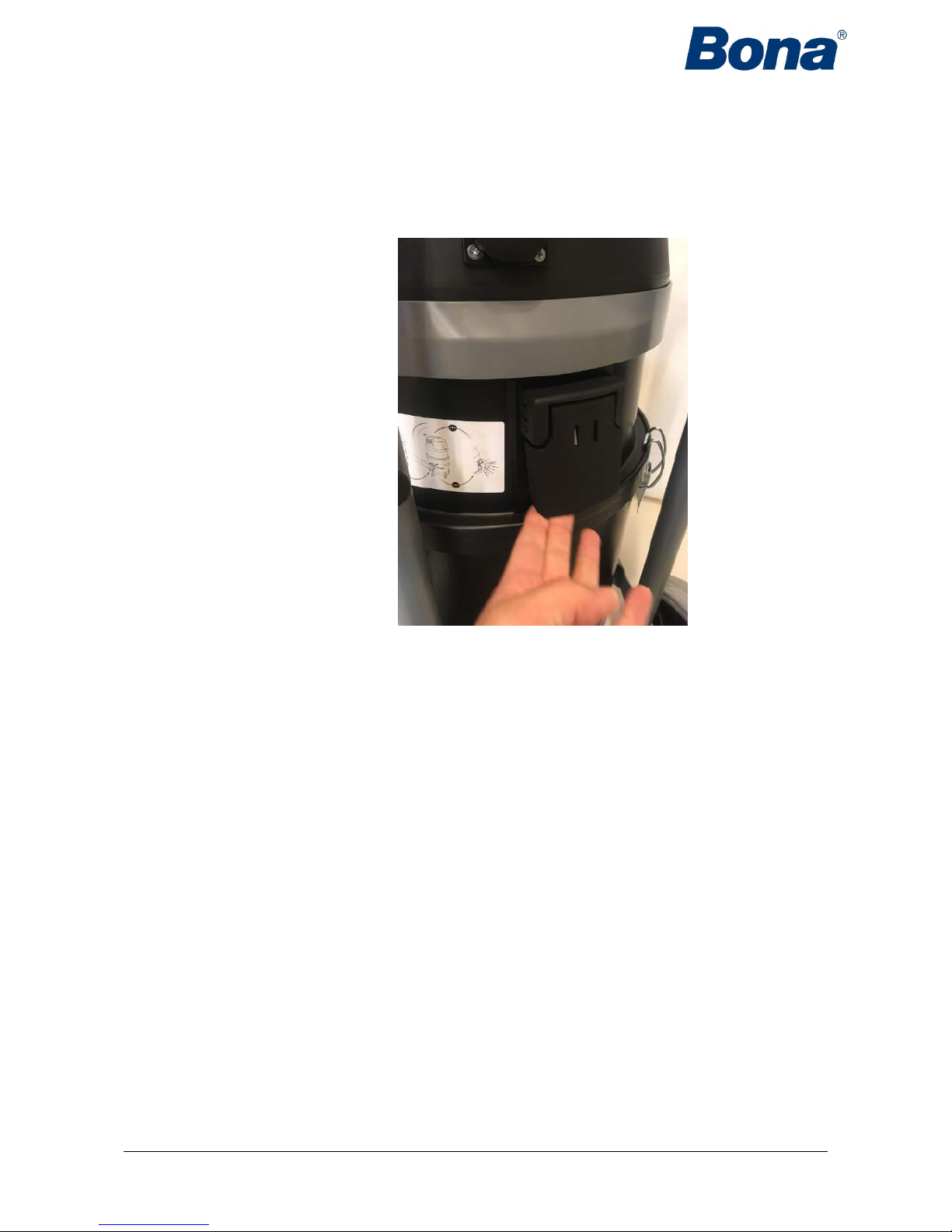

The collection container is equipped with a telescopic steering handle and 2
swivel wheels.
The collection container contains the collection bag where the material is
collected, which facilitates the emptying and disposal of the material collected.
The collection bag cannot be filled entirely when very fine dust is collected (eg.
cement, stone grinding etc.).
When collecting dust hazardous to health you must pay attention to the
requirements as to disposal of the collected material. (Closed container; plastic
bag or container). The demands as to packing of the material collected may vary.
Adjustment of the Telescopic handle
To use the telescopic handle –pull and turn to release the position
bolts on the rear side of the frame. The handle can be adjusted –
pulling up-wards or pushing down-wards.
To lock the position bolt, and lever –turn the bolt-head until it “clicks”
into locked position, then adjust the handle until it “clicks”
Open Locked

Manual
BONA DCS25 Vacuum Cleaner 15 BONA AB
Mounting the Collection Bag

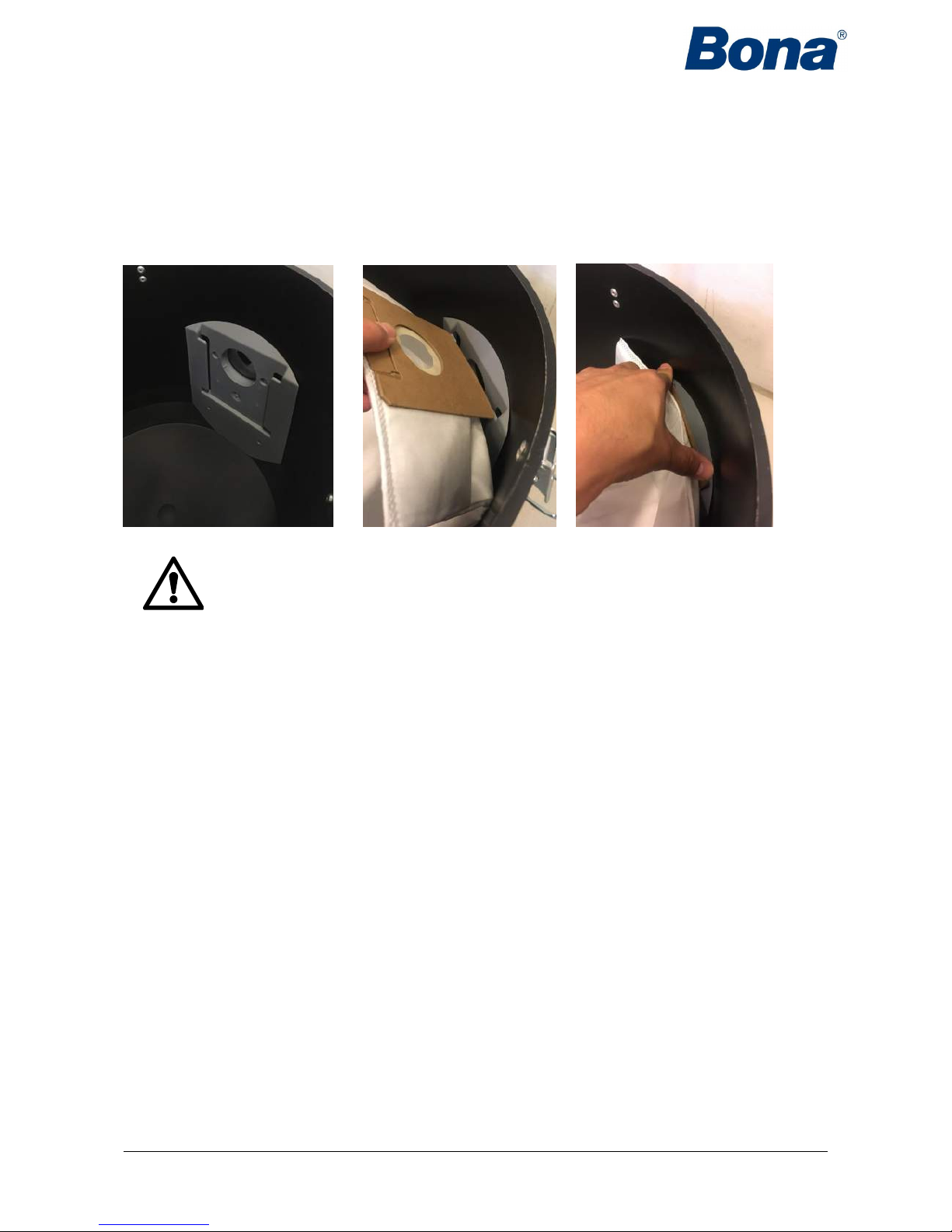

The collection bag is easily mounted into the bag holder by pushing the flange of the collection bag into the slot of
the bag holder.
IMPORTANT!
DO NOT USE THE VACUUM CLEANER WITHOUT COLLECTION BAG

Manual
BONA DCS25 Vacuum Cleaner 16 BONA AB
Mode of Operation

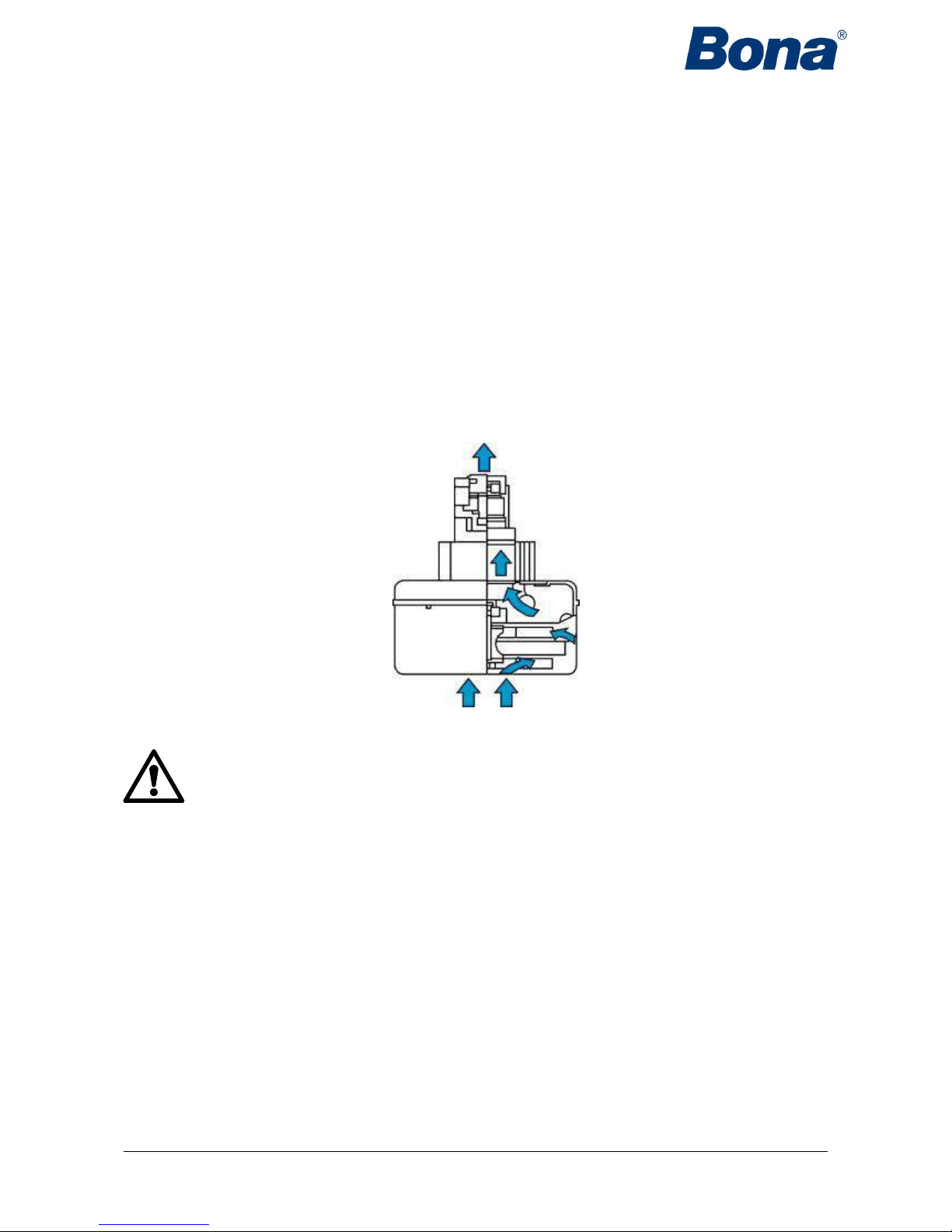

When the suction motor of the machine is on, the air will be led through the machine and will collect the dust
particles near the nozzle mounted.
The dust particles will be sucked through the hose into the collection container, where the majority of the particles
will be held back in the collection bag and/or the pre-filter / membrane filter.
The air flow and the remaining particles, which have not been held back inside the collection bag or the pre-filter /
membrane filter, will be carried forward to the HEPA filter.
From the HEPA filter the purified air flow will continue through the suction pump (blow through) and will be led out
of the vacuum cleaner through the exhaust and noise reduction filters.
IMPORTANT! As the motor leads the cooling air through the machine,
all filters MUST be mounted and intact.
IMPORTANT! Never cover up the motor top when the machine is in use.
IMPORTANT! Never collect warm or glowing materials.
IMPORTANT! Never extract from processes producing sparks.

Manual
BONA DCS25 Vacuum Cleaner 17 BONA AB
Assembling
•Check that the packing is intact and has no sign of damage from handling and transport.
•Unpack BONA DCS25 and check that all the ordered parts are there.
•Make sure that the collection container is empty, and that the pre-filter / membrane filter is correctly fitted
into the motor top. Check that the filters of the machine are intact and undamaged (see the chapter:
“Change of Filter”)
•Check that a collection bag is mounted in the container.
•Before the plug is connected to the electrical main supply you must make sure that the plug and the cord
are undamaged. If the cord or the plug is damaged, a professional must replace the parts. Only an
original cord may be mounted.
•Connect the machine to 230 V power supply with a reliable earth connection.
•Remember to place the label onto the H-label, if the language of the user is not German.
•BONA DCS25 is now ready for use. The collection is described in details in the following chapter.
Starting the BONA DCS25 and Collecting Dry Dust
When the machine has been correctly assembled and connected, it can be switched on and off at the red
start/stop switch of the motor top. The machine has been equipped with an acoustic and a visual alarm indicating
when the air flow is too low for collection.
This alarm has to be checked before use: Block the intake at the end of the hose, and the machine will start
beeping, and the LED will flash. Unblock, and the alarm will stop.
Electrical Outlet with Automatic Start/Stop
BONA DCS25 is equipped with an automatic start/stop and electrical outlet.
If you connect electrical hand tools directly to the power outlet of the motor
top, the BONA DCS25 will automatically be switched on and off when the
hand tools are switched on and off.
The automatic start/stop is programmed with a post-suction cycle.
Therefore, the suction will continue for some seconds after the tool has
been switched off.
The electrical tool is connected to the electrical outlet at the back of the
motor top.
BONA DCS25 can be used with tools with a power consumption of 2000 W
(Country code EU). 1450 W corresponds to a current consumption of
approx. 6,3A.
Information can be found on the data plate of the machine

Manual
BONA DCS25 Vacuum Cleaner 18 BONA AB
NOTE:
If hand tool with a power consumption of more than 1500 W
is connected, the total current consumption will exceed
approx. 13 A, which is often the normal fuse size.
The automatic start/stop is activated with the black switch on the motor top.
When the automatic start/stop is activated, the machine will not start when
you push the red switch. The machine will not start until the connected hand
tool is started.
Set the red switch on “I” to start the vacuum cleaner (when “Automatic” is not
needed or no tool connected).
Automatic start/stop “I”= the automatic start/stop is activated. The vacuum cleaner will start when you use the
hand tool.
Automatic start/stop “O”= the automatic start/stop is not activated. The vacuum cleaner will start when you set the
main switch (red) on “I”.
When the automatic start/stop is activated “I” and a hand tool is connected to the electrical outlet, the machine will
start when the hand tool is started.
ALWAYS turn off the hand tool before you turn off the machine on the switch.

Manual
BONA DCS25 Vacuum Cleaner 19 BONA AB
Cleaning the Membrane Filter during Operation (as needed, or when the alarm beeps)
Block the intake / hose so that full vacuum is made in the machine.
Repeat the steps 1-3 approx. 2-3 times when cleaning.
The difference in pressure / the shock effect will clean the surface of the filter, when air is drawn through the valve
in order to equalize the negative pressure in the collection container and the hose, and will reject possible
deposits from the pre-filter and release collected media from the inside surface of the collection bag.
This method gives an effective cleaning of the pre-filter / membrane filter.
We recommend to always leave the machine for a few minutes before emptying it. The dust will fall to the bottom
of the collection bag, and the risk of swirling dust into the surroundings during the emptying is reduced.
If –by mistake –the machine has been used without collection bag, use PPE when emptying the machine.
NOTE: Do not ”tap” on the intake as this will swirl up the dust in the container and result in blocking of the pre-
filter and damaging the collection bag.
1.
Block the intake / Block the
hose.
Take hold of the flap of the
shock valve.
2.
While the machine is blocked
and running, pull the flap of the
shock valve (do not tug the
valve).
3.
When the power grows bigger
than the influence from the
vacuum, the valve will
automatically open with a
“puff”. Let go of the valve.

Manual
BONA DCS25 Vacuum Cleaner 20 BONA AB
Emptying
The BONA DCS25 collects the material in a collection bag (if collecting dust hazardous to health, a collection bag
with a plastic sack must be used)
•Loosen the four container clips attaching the motor top to the collection container and remove the motor
top.
•Place the motor top upon a dry and clean surface.
•Close the collection bag.
•Now you can dispose of the collection bag.
REMEMBER: Disposal of dust hazardous to health must take place in accordance with the national regulations.
REMEMBER: Always empty the machine after use.
You must make sure that the dust and material collected cannot fall out of the machine during transport.
Has the machine been used for dust hazardous to health you MUST wear personal protection equipment
(PPE) when emptying and handling the machine.
Always empty the machine after use.

Manual
BONA DCS25 Vacuum Cleaner 21 BONA AB
Asbestos and Dust Hazardous to Health
Always check up on the local/national regulations in the area where the work is performed.
Always examine how the disposal is to be packed/wrapped up.
It might be different from place to place. Usually the following is mentioned:
Close-fitting packing, Drum/vat with cover
Plastic bag min. 100 μm.
Collection of dust hazardous to health must always take place in collection bag. The collection bag must be
removed from the machine and disposed of in accordance with the national regulations.
Always mark the materials and waste according to the national regulations.
If the machine has been used for asbestos, the machine must be disassembled and cleaned before it is used in a
clean environment.
The machine must be emptied, cleaned and packed before transport. Mark the packing according to the national
regulations.
The machine must be transported in a min. 120 μm plastic bag or other tight-fitting packing.
