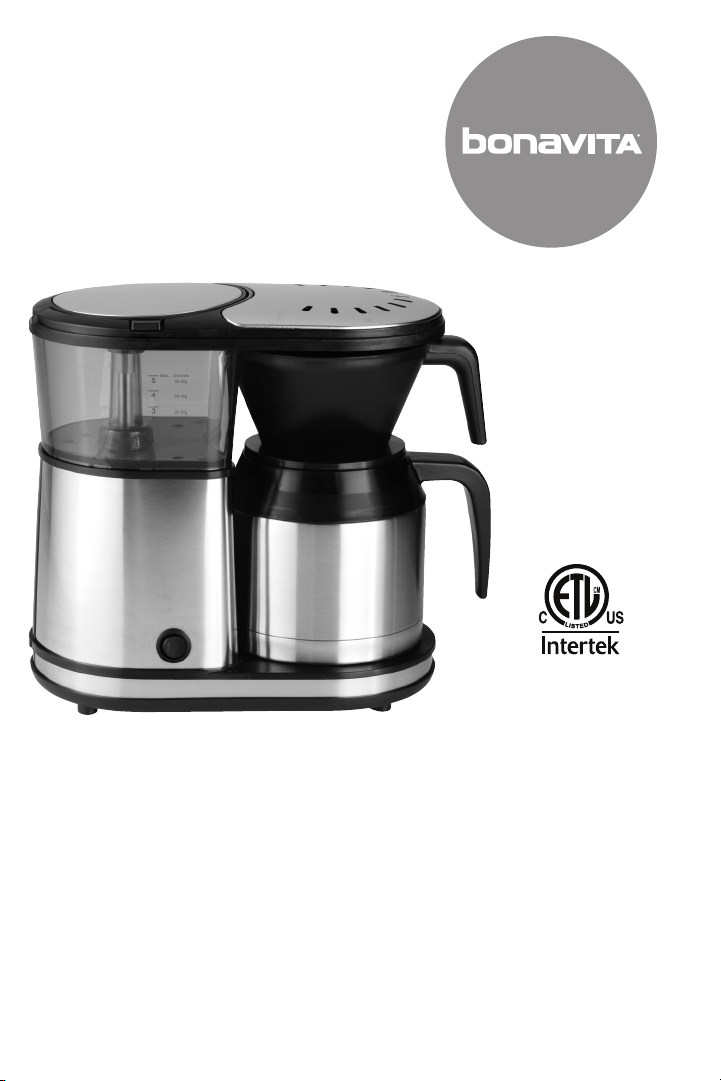

Bonavita BV1500TS User manual

BV1500TS
PERFORMANCE COFFEE BREWER
5-CUP | STAINLESS STEEL CARAFE
Customer Service:
USA 1-855-664-1252
[e-mail]
2-year limited warranty
BonavitaWorld.com
Technical Data:
Rated voltage: AC 220-240 V,
50/60 Hz
Rated power input: 1100 W
Model: BV1500TS
HOUSEHOLD
USE ONLY

2

3
TABLE OF CONTENTS
SAFEGUARDS
Important Safeguards ........................................................................4
WARRANTY
Limited Warranty ...............................................................................6
INSTRUCTIONS
Product Features...............................................................................7
Brewer Set-Up ..................................................................................8
Brewing Instructions ..........................................................................8
Optional Instructions for Pre-Infusion Mode .......................................10
Brewing a Better Cup ........................................................................10
PRODUCT CARE & TROUBLESHOOTING
Cleaning & Maintenance ....................................................................12
Brewer Troubleshooting.....................................................................14

4
IMPORTANT SAFEGUARDS
This appliance is for household use only. When using electrical appliances,
basic safety precautions should always be followed to avoid fires, electric
shocks, burns, or other injuries and damage. Read these operating and
safety instructions carefully. Call our toll-free customer service number for
information on examination, repair, and adjustments; do not attempt to
repair the appliance yourself.
Read all instructions.
• Do not touch hot surfaces - use the handles or knobs.
• Do not immerse cord, plugs or the appliance in water or other liquids.
• Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts, and before cleaning the appliance.
• If children are present while the appliance is in use, keep them
a safe distance away.
• Do not operate the appliance if its cord, plug, or various parts
have been damaged.
• The use of accessory attachments is not recommended by the appliance
manufacturer and may result in fire, electrical shock or personal injury.
• Do not use outdoors or in damp areas.
• Do not let the cord hang over the edge of a table or counter.
• Do not place appliance on or near a hot electric or gas burner,
or in a heated oven.
• To disconnect the appliance, first turn the power switch off, then remove
plug from the wall outlet.
• Fully insert filter basket until it snaps into place and the indicator on the filter
basket handle is fully covered.
• Remove the carafe’s lid before brewing.
• Do not use this appliance for anything other than its intended use.
• Place the appliance on a flat level surface.
• Do not attempt to operate the appliance without putting water in the tank.
Only fresh, cold water should be used in the tank. Do not use hot water.
• Never remove the carafe or filter basket during brewing cycle.

5
• Never move the coffee brewer during brewing cycle.
• Do not use a carafe with a loose or damaged handle.
• Do not set a hot container on a wet or cold surface.
• If carafe sustains an impact it may be damaged. Check for cracks,
damage or signs of leakage before using.
• Do not clean carafe with abrasive cleansers, steel wool pads, or other
abrasive material.
• Do not remove the bottom cover from the appliance. There are no
user-serviceable parts inside.
• The carafe is designed for use with this appliance. It must never be used
on a range top.
• Make sure that the voltage in your home corresponds with the voltage
indicated on the bottom of the appliance.
• Do not attempt to operate the appliance if it only works intermittently,
or stops working altogether.
SAVE THESE INSTRUCTIONS!
EXTENSION CORDS
A short power-supply cord is provided to reduce the risk of tangling and
tripping. Longer detachable power-supply cords or extension cords may be
used if care is exercised. If a detachable power-supply cord or extension cord is
used:
• The electrical rating of the extension cord should be appropriate for the
electrical rating of the appliance.
• The longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be tripped over, snagged, or pulled on,
especially if children are present.
POLARIZED PLUG
This appliance has a polarized plug, which means that one blade is wider than
the other. To reduce the risk of electric shock, this plug is designed to fit into a
polarized outlet only one way. If plug does not fully fit into the outlet, reverse it.
If it still does not fit, contact a qualified electrician. Do not attempt to modify
the plug.

6
Limited Warranty
2 year limited warranty from the date of original purchase.
1. This warranty extends only to the original retail purchaser or gift recipient.
Keep the original sales receipt, as proof of purchase is required to make
a warranty claim.
2. Defects that occurred due to improper connection, improper handling,
or repair attempts by non-authorized persons are not covered by the
warranty. The same applies for failure to comply with the use of
consumables (e.g. cleaning and decalcifying agents) that do not
correspond to the original specifications.
3. This device was designed and built for household use only. It is not suited
for other uses.
4. Damages which are not the responsibility of the manufacturer are not covered
by the warranty. This is valid especially for claims arising from improper use
(e.g. operation with insufficient current or improper voltage).
5. The guarantee becomes void if repairs are carried out by third parties not
authorized by the manufacturer and/or if spare parts are used other than
the original ones.
Please call 1-855-664-1252 or email
[e-mail] for warranty claims.

7
TECHNICAL DATA
Rated voltage: AC 220-240V,
50/60 Hz
Rated power input: 1100 W

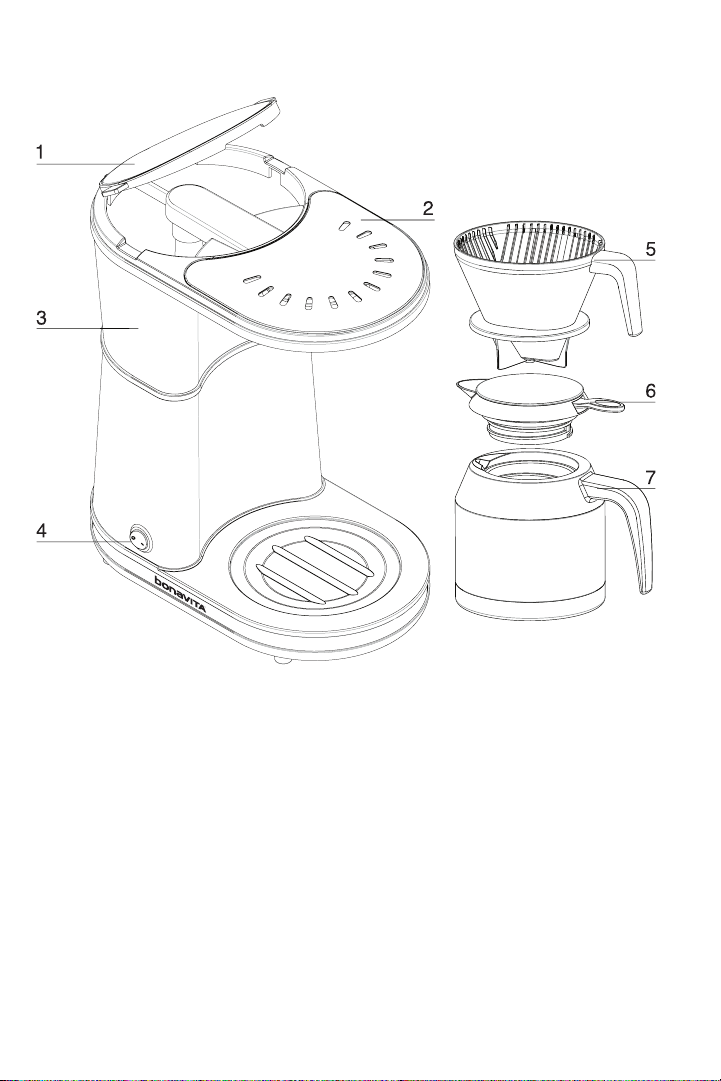

1. Water tank lid
2. Brewer lid
3. Water level indicator
4. On/off switch
5. Filter basket
6. Carafe lid
7. Stainless steel thermal carafe
Product Features

8
Brewer Set-Up
BEFORE FIRST USE
1. Remove packaging materials, labels, and stickers from the coffee brewer.
2. Clean the appliance by filling the water tank with clear, cold water to
the maximum level mark. Place the carafe with the lid removed and filter
basket under showerhead. Turn the coffee brewer on to allow the water
to run through.
3. Let the appliance cool down for 5 minutes before repeating the process.
Brew only water through the coffee brewer at least 2 times before brewing
any coffee.
Brewing Instructions

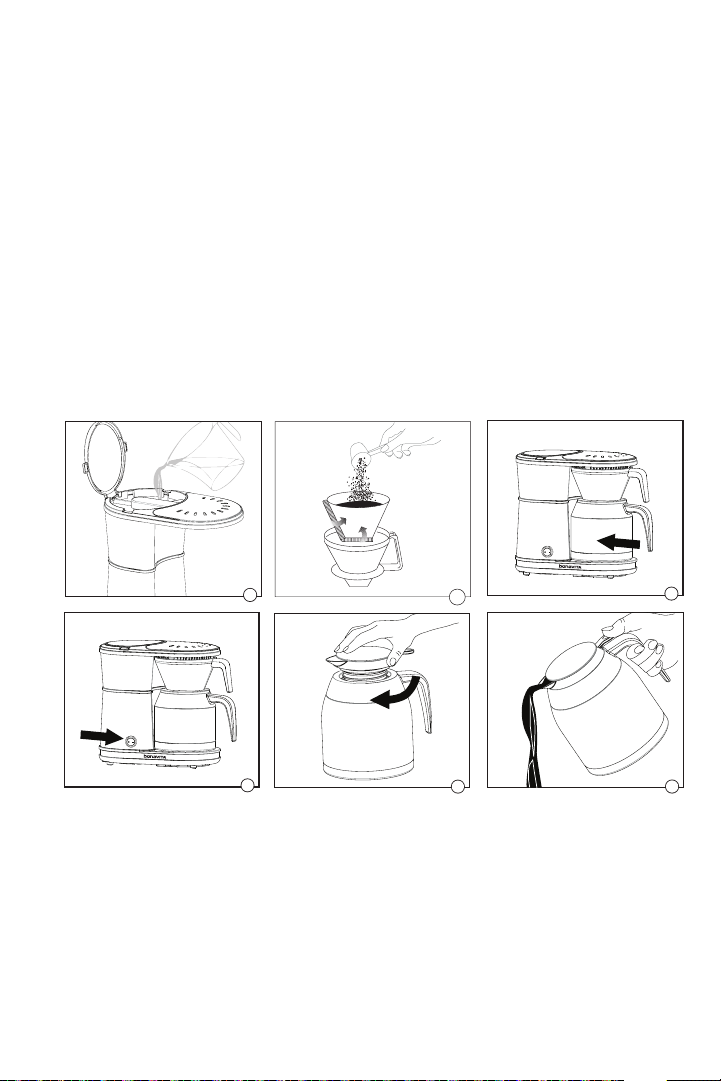

ABC
DEF
1. Set the brewer on a flat and steady surface.
2. Remove the carafe and filter basket from the brewer.
3. Raise the lid of the water tank and pour in the required volume of fresh,
filtered, cold water to the desired batch size. Do not fill above the MAX line.
(Fig. A).
4. Place a V style filter in filter basket. We recommend a #4 paper filter.
5. Scoop ground coffee into the filter (Fig. B), using 10 grams of coffee per cup.

9
6. If you measure coffee by volume, begin with two level tablespoons, and
adjust according to your taste. This amount will vary depending upon your
preferred roast. For example, two tablespoons of ground coffee can weigh
between 6 grams of dark roast coffee to 11 grams of light roast coffee.
7. Place the filter basket on the carafe (without lid) and put both back into the
brewer (Fig. C).
8. Turn the brewer on. The on/off switch will stay lit during the brewing process
(Fig. D). The brewer will automatically shut off when the brewing cycle is
complete. It can also be switched off manually at any time by pressing the
on/off switch.
9. After the brewing process ends, remove the coffee-filled carafe and the filter
basket from the brewer.
10.For maximum heat retention place the lid on the carafe shortly after the brew
cycle is complete. (Fig. E).
11.To dispose of the used filter, dump it from the filter basket, rinse out filter
basket, and set aside to dry.
12.To pour coffee from the carafe, depress the lever on the carafe lid. The lid
must be tightened firmly to allow for one-handed pouring (Fig. F).

10
Optional Instructions for
Pre-Infusion Mode:
Freshly roasted coffee has more CO2trapped in the bean. If you are brewing
with freshly roasted coffee, or you would like to pre-infuse the coffee, press and
hold the power switch for 5 seconds. At that point the power switch light will
flash indicating that you’ve enabled the pre-infusion mode. Press and release
the power switch a second time to begin brewing. You can disable the pre-
infusion mode by pressing the power switch until the light blinks (5 sec.). The
brewer will remain in this mode until the mode is turned off or the brewer is
unplugged.
Brewing a Better Cup
Bonavita brewers are expertly engineered to take the guesswork out of brewing
the perfect cup of coffee and produce exceptional, consistent results with every
use. Our easy-to-use brewers keep things simple, with great coffee at the push
of a single button.
Following are a few tips to help you brew an amazing cup of coffee with your
new Bonavita brewer:
COFFEE QUALITY, FRESHNESS AND GRIND
The quality of the coffee has a great impact on brewed coffee’s flavor. Using
freshly roasted coffee and grinding the beans just before brewing are important
considerations. We recommend using coffee that was roasted in the last 30
days for the best flavor. In addition, we encourage use of an air tight container or
sealed bag stored in a dark cabinet to help extend your coffee’s lifespan.
Grinding coffee significantly speeds up the time in which coffee starts to lose
its’ flavor. Once coffee is ground the air begins to attack essential oils and other
volatile flavor components. It’s only a matter of hours before most of the ground
coffee’s aroma has evaporated. While we encourage grinding your coffee
immediately before brewing whenever possible, we know that there are times
when pre-grinding can’t be avoided.
Whether you are purchasing pre-ground coffee or grinding it just before you
brew, we recommend using coffee that is ground to a medium / course setting,
similar to course ground salt.

11
COFFEE TO WATER RATIO
Applying the same ratio of water to coffee grounds each time you brew will
result in a more consistent cup of coffee. Using a scale to weigh your coffee
is the best way to stay consistent, but we understand that might not always be
possible. In the case of Bonavita brewers, 1 cup is equal to 5oz.
Using the tools that you have at your disposal, here is what we recommend
for your Bonavita brewer:
Batch Size Water Volume Coffee Weight Coffee Scoops
(ground)
5-Cup batch 1000ml 55 grams 12 tbsp.
Brewing time is approximately 6 minutes for 5 cups of coffee. This will allow for
proper water flow and saturation time of the coffee grounds.
BREWING WATER AND TEMPERATURE
An average cup of coffee is over 98% water. Simply put, the water you use to
brew your coffee will affect the flavor of your coffee. So, we highly recommend
brewing with fresh, filtered water whenever possible.
Additionally, tap water and its mineral content varies by region of the country.
Using filtered water will help to minimize the scale build-up in your brewer, which
will help your brewer perform at its best.
The coffee industry’s standard for the temperature of the brewing water is 198°-
205°F (92°-96°C). This coffee brewer is specially engineered to heat the water
to precisely this range.

12
Cleaning and Maintenance
This manual includes some helpful guidance for maintaining your brewer over
time to ensure consistent performance and flavorful beverages. The brewer
contains no internal user serviceable parts, and it’s best to leave servicing and
repairs to the experts at [e-mail]
Proper care will ensure years of service from this coffee brewer. Aside from
keeping the brewer clean and descaling when necessary, there is no user
maintenance required.
This appliance contains no internal user serviceable parts. Leave servicing and
repairs to qualified personnel.
Use a soft, damp cloth and a mild dish cleaning liquid for cleaning the carafe
and the housing. Make sure to rinse thoroughly.
The filter basket, brewer lid and glass carafe and carafe lid may be cleaned
on the top rack of the dishwasher.
We recommend periodically using a coffee machine cleaning product
to clean your filter basket and carafe. A coffee machine cleaning product helps
remove residual coffee oils, but should not be confused with descaler which
removes mineral build up inside your brewer. See our descaling section on the
following page for detailed information on this important maintenance process.
Please follow the instructions included with your product purchase.

13
32 oz
(1L)
Mix 1 packet descaler with
1 Liter of lukewarm water
1Pour into
water tank
2Brew 3Brew two more times
with fresh, cold water
4
CLEANING THE BREWER LID AND SHOWER HEAD:
Always unplug the coffee brewer before
cleaning. The brewer lid with built in shower
head is removable and can be cleaned
on the top rack of the dishwasher.
1. Carefully pull the front edge of the
brewer lid to remove.
2. Clean.
3. Re-install lid.
DESCALING
In hard-water areas, scale from limestone content in the water may build up
in your machine. Scaling can lead to extended preparation time and possible
damage to your coffee brewer. We suggest that you descale your brewer after
every 60 brew cycles, or once every two months. However, if the appliance
makes an unusually loud noise, delays brew time, or fails to achieve the proper
water temperature of 198º-205ºF (92°-96°C), you may need to descale more
often. We recommend periodically using a good quality biodegradable and
phosphate-free coffee machine descaler. One designed to break down mineral
build-up inside your brewer to ensure great coffee and consistent functionality.
Vinegar may not effectively descale your brewer, and can be difficult to rinse
thoroughly. Vinegar may also leave behind an odor that can impact the flavor of
your coffee.
Brewer lid and
shower head
Follow instructions
on coffee machine
descaler
Pour into Bonavita
water reservoir
Brew Rinse twice with
fresh, cold water

14
Brewer Troubleshooting
PROBLEM SOLUTION
Brewer stops mid-cycle Descale your brewer
Brewing takes longer
than usual
Descale your brewer
Grounds in coffee Use a taller filter to keep the grounds in the filter
basket, also try using a coarser grind as a fine grind
may cause water and grounds to overflow
Water leaking from
bottom of brewer
Please visit BonavitaWorld.com/Warranty and
complete our warranty claim form
Water is not flowing into
filter or carafe
Please visit BonavitaWorld.com/Warranty and
complete our warranty claim form
For other tips and answers to frequently asked questions, please visit
BonavitaWorld.com/Brewer-FAQ
Part # BV16017US-00
Printed in China
Bonavita is a trademark of Smartco International.
© 2018 Smartco International (Asia) Limited. All rights reserved.

15

16
