USER GUIDE

1. BOOMBOT ANATOMY
2. GETTING STARTED
4. AUDIO CONTROLS
3. BLUETOOTH PAIRING
5. SPEAKERPHONE
6. FLASH MEMORY
7. SPECIFICATIONS
8. TROUBLESHOOTING
9. WARRANTY
CONTENTS

VOLUME +VOLUME -
PL AY/ PAUS E
COMMAND
2 x 40mm DRIVERS
MICROPHONEPOWER BUTTON
HIP CLIP
REMOVABLE
GRILL
WATERPROOF
DOOR
INDICATOR
LED

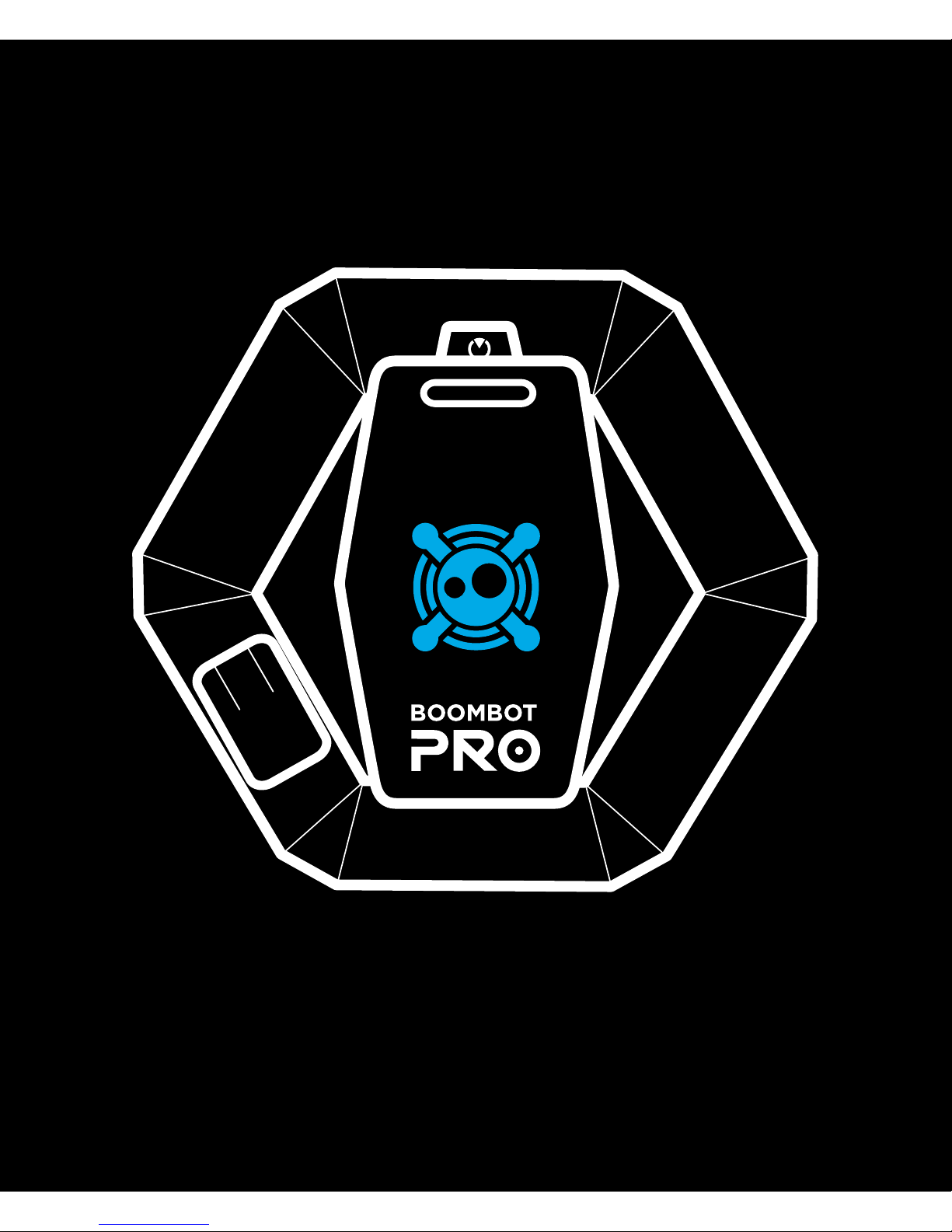

BOOMBOT ANATOMY

GETTING STARTED
FULLY CHARGE YOUR BOOMBOT PRO
BEFORE USE WITH INCLUDED MICRO
USB CABLE
PULSING ORANGE - CHARGING
SOLID ORANGE - FULLY CHARGED
BLINKING RED - LOW BATTERY
FULL CHARGE IS REACHED IN
1.5 - 3 HOURS
BATTERY LIFE TYPICALLY RANGES
FROM 2.5 - 16 HOURS, 8 HOURS
OF PLAYBACK AT 70% VOLUME
YOUR BOOMBOT PRO IS NOT
WATERPROOF WHILE CHARGING,
IT IS ONLY WATERPROOF WITH THE
REAR DOOR CLOSED
INDICATOR LED
CHARGING PORT

BLUETOOTH PAIRING
YOUR BOOMBOT PRO CONNECTS EASILY
WITH YOUR BLUETOOTH DEVICE
1. POWER ON BOOMBOT PRO INDICATED
BY A BLINKING BLUE LED
2. SELECT BOOMBOT PRO ON YOUR
BLUETOOTH DEVICE’S DISCOVERABLE
DEVICE LIST
3. BOOMBOT PRO WILL CHIME WITH A
PAIRING ALERT AND A SOLID BLUE LED
YOUR BOOMBOT PRO WILL AUTOMATICALLY
BE PAIRED TO THE MOST RECENTLY
CONNECTED DEVICE
TO DISCONNECT YOUR BOOMBOT PRO,
HOLD BOTH VOLUME BUTTONS (+ AND -)
SIMULTANEOUSLY FOR 2 SECONDS
TO RESET BLUETOOTH CONNECTION,
HOLD BOTH VOLUME BUTTONS (+ AND -)
SIMULTANEOUSLY FOR 2 SECONDS
HOLD (2 SECONDS)
HOLD
HOLD

AUDIO CONTROLS
YOUR BOOMBOT PRO IS BUILT FOR
OPTIMAL AUDIO QUALITY WITH
THE SPEAKER CLIPPED ON OR SEATED
WITH BUTTONS FACING UPWARD
PLAY - PRESS COMMAND
PAUSE - PRESS COMMAND
PREVIOUS TRACK - PRESS COMMAND X 3
NEXT TRACK - PRESS COMMAND X 2
VOLUME DOWN - PRESS VOLUME DOWN
VOLUME UP - PRESS VOLUME UP
VOLUME CONTROLS RAMP IN SPEED
WHEN HELD DOWN
-OR-HOLD HOLD

SPEAKERPHONE
THE BUILT IN MICROPHONE TURNS
YOUR BOOMBOT PRO INTO A
WIRELESS SPEAKERPHONE
FOR BEST RESULTS, SPEAK WITHIN
3 FEET OF THE FRONT OF THE SPEAKER
ANSWER CALL - PRESS COMMAND
END CALL - HOLD COMMAND
IGNORE CALL - PRESS A VOLUME BUTTON
SPEAKERPHONE CONTROLS ARE ENABLED
WHEN RECEIVING A CALL
-OR-
SIRI / GOOGLE VOICE
YOUR BOOMBOT PRO CAN UTILIZE SIRI
OR GOOGLE VOICE ASSISTANT WHILE
CONNECTED TO A BLUETOOTH DEVICE
OR SMARTPHONE
HOLD
OPEN ASSISTANT - HOLD COMMAND
HOLD
CLOSE ASSISTANT - HOLD COMMAND
HOLD

FLASH MEMORY
YOUR BOOMBOT PRO INCLUDES AN
ON-BOARD, 2GB OF FLASH MEMORY,
CAPABLE OF STORING UP TO 250 TRACKS
FOR FLASH MEMORY PLAYBACK, DOUBLE
TAP POWER BUTTON WHEN DEVICE IS IN
STANDARD BLUETOOTH MODE - THIS WILL
BE INDICATED BY A SOLID PURPLE LED
POWER BUTTON
ONCE IN FLASH MEMORY PLAYBACK MODE,
REFER TO AUDIO CONTROLS FOR PLAYBACK
FOR FLASH MEMORY SHUFFLE PLAYBACK,
SINGLE TAP POWER BUTTON WHILE IN
FLASH MEMORY MODE - THIS WILL BE
INDICATED BY A SOLID GREEN LED
MODIFY FLASH MEMORY
TO CHANGE CONTENT STORED ON YOUR
BOOMBOT PRO, CONNECT TO A LAPTOP
OR COMPUTER WITH INCLUDED USB CABLE
1. POWER ON BOOMBOT PRO, THEN DOUBLE
TAP POWER BUTTON
2. BOOMBOT PRO WILL MOUNT AS A DRIVE,
INDICATED BY A SOLID WHITE LED
3. DRAG AND DROP MP3 OR MP4 AUDIO
FILES ON TO BOOMBOT DRIVE
NOTE: ON MAC OSX, AFTER REMOVING
THE CONTENT FROM THE BOOMBOT DRIVE
IT IS NECESSARY TO EMPTY TRASH
TO REMOVE THE FILES

SPECIFICATIONS
8 HOURS OF CONTINUOUS PLAYPLAY TIME
2GB (UP TO 250 TRACKS), STANDARD
PLAYBACK OR SHUFFLE
FLASH DRIVE
PRO-TUNED 40mm 4W DUAL COIL
ACOUSTIC DRIVERS WITH PROGRESSIVE
DSP TUNING
AUDIO
UP TO 14 DAYSSTANDBY TIME
232g/ 8.2ozWEIGHT
105mm L x 49mm W x 95mm HDIMENSIONS
INPUT: BLUETOOTH WIRELESS
OUTPUT: N/A
STEREO INFORMATION
BLUETOOTH-ENABLED DEVICES INCLUDING
iPHONE, iPAD, iPOD TOUCH, ANDROID
SMARTPHONES AND TABLETS, AND MOST
MAC OR PC COMPUTERS
DEVICE COMPATIBILITY
IPX7 WATER RESISTANT TO
3 METERS SUBMERSION
INGRESS PROTECTION
ACCEPT CALLS WHILE IN PLAY MODEMULTI-POINT TECHNOLOGY
PROFILES:
ADVANCED AUDIO DISTRIBUTION
PROFILE(A2DP) 1.2,
HANDS-FREE PROFILE(HFP) 1.5,
HEADSET PROFILE(HSP) 1.1,
100-FOOT RANGE
BLUETOOTH 4.0
SIRI AND GOOGLE VOICE COMPATIBLEMIC CONTROL FUNCTIONS
RECHARGEABLE, NON-REPLACEABLE
LITHIUM POLYMER
BATTERY TYPE/CAPACITY
DISPLAYED ON HANDSET, AUTOMATICALLY
SHUTS DOWN AFTER 5 MINUTES OF
INACTIVITY OR UNPAIRED
BATTERY STATUS
MICRO USB (CABLE INCLUDED)CHARGE CONNECTOR PORT
LESS THAN 100 MINUTES FOR FULL CHARGECHARGE TIME (MAXIMUM)
1-YEAR LIMITED WARRANTY
BARRING SALT WATER
WARRANTY AND SERVICE

TROUBLESHOOTING
DOUBLE TAP THE POWER BUTTON
(WHITE LED) AND MAKE SURE THE
USB CABLE IS SECURELY CONNECTED
TO YOUR DEVICE
BOOMBOT DRIVE NOT SHOWING
UP ON COMPUTER
TURN UNIT ON AND OFF AND RESET
BLUETOOTH BY HOLDING + AND -
DELETE ADDITIONAL BLUETOOTH
DEVICES FROM BLUETOOTH SETTINGS
DEVICE NOT PAIRING
CHECK MUSIC SOURCE AND INTERNET/DATAMUSIC NOT PLAYING
MAKE SURE FILE FORMAT IS MP3 OR MP4
AND LESS THAN 2GB IN SIZE
MUSIC NOT LOADING ONTO
FLASH STORAGE
CONFIRM MICRO USB CABLE IS SEATED
PROPERLY IN PORT AND DEVICE HAS
APPROPRIATE POWER INPUT
DEVICE NOT CHARGING
FOR ADDITIONAL SUPPORT HEAD OVER TO
BOOMBOTIX.COM/SUPPORT
BE SURE USER VOICE INPUT IS WITHIN
3 FEET OF THE FRONT OF PRO SPEAKER
MICROPHONE INPUT UNCLEAR

WARRANTY
Boombotix warrants to the original retail purchaser
of this Boombotix portable speaker that should this
product or any part thereof during normal consumer
usage and conditions, be proven defective in material
or workmanship that results in product failure within
the first twelve (12) month period from the date of
purchase, such defect(s) will be repaired or replaced
(with new or rebuilt parts) at the Company’s option,
without charge for parts or labor directly related
to the defect(s). The antenna, keypad, display,
rechargeable battery and battery charger, if included,
are similarly warranted for twelve (12) months from
date of purchase. This Warranty is not transferable or
assignable. This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions,
accident, mishandling, neglect, unauthorized
alteration, misuse, improper installation or repair
or improper storage;
(b) Product whose mechanical serial number or
electronic serial number has been removed,
altered or defaced;
(c) Damage from excessive exposure to moisture,
humidity, excessive temperatures or extreme
environmental conditions;
(d) Damage resulting from connection to, or use of any
accessory or other product not approved or
authorized by the Company;
(e) Defects in appearance, cosmetic, decorative
or structural items such as framing and
nonoperative parts;
(f) Product damaged from external causes such
as fire, flooding, dirt, sand, weather conditions,
blown fuse, theft or improper usage of any
electrical source.
(g) Product taken apart without written permission
by Boombotix. This includes and is not limited
to removing the metal clip or removing the
screws holding the casing together.
Boombotix reserves the right to inspect any
Product subject to a warranty claim to determine,
at its sole discretion, whether the claimed defect
is a Manufacturing Defect or otherwise. Note that
Boombotix regularly changes the models, colorways,
and styles of its Products and cannot guarantee the
availability of an exact replacement for any Product.
BOOMBOTIX DOES NOT ASSUME ANY LIABILITY FOR
ANY INCIDENTAL, CONSEQUENTIAL OR INDIRECT
DAMAGES UNDER THIS LIMITED WARRANTY.

FCC Statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with FCC radiation exposure limits
set forth for an uncontrolled environment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Caution!
Any changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
