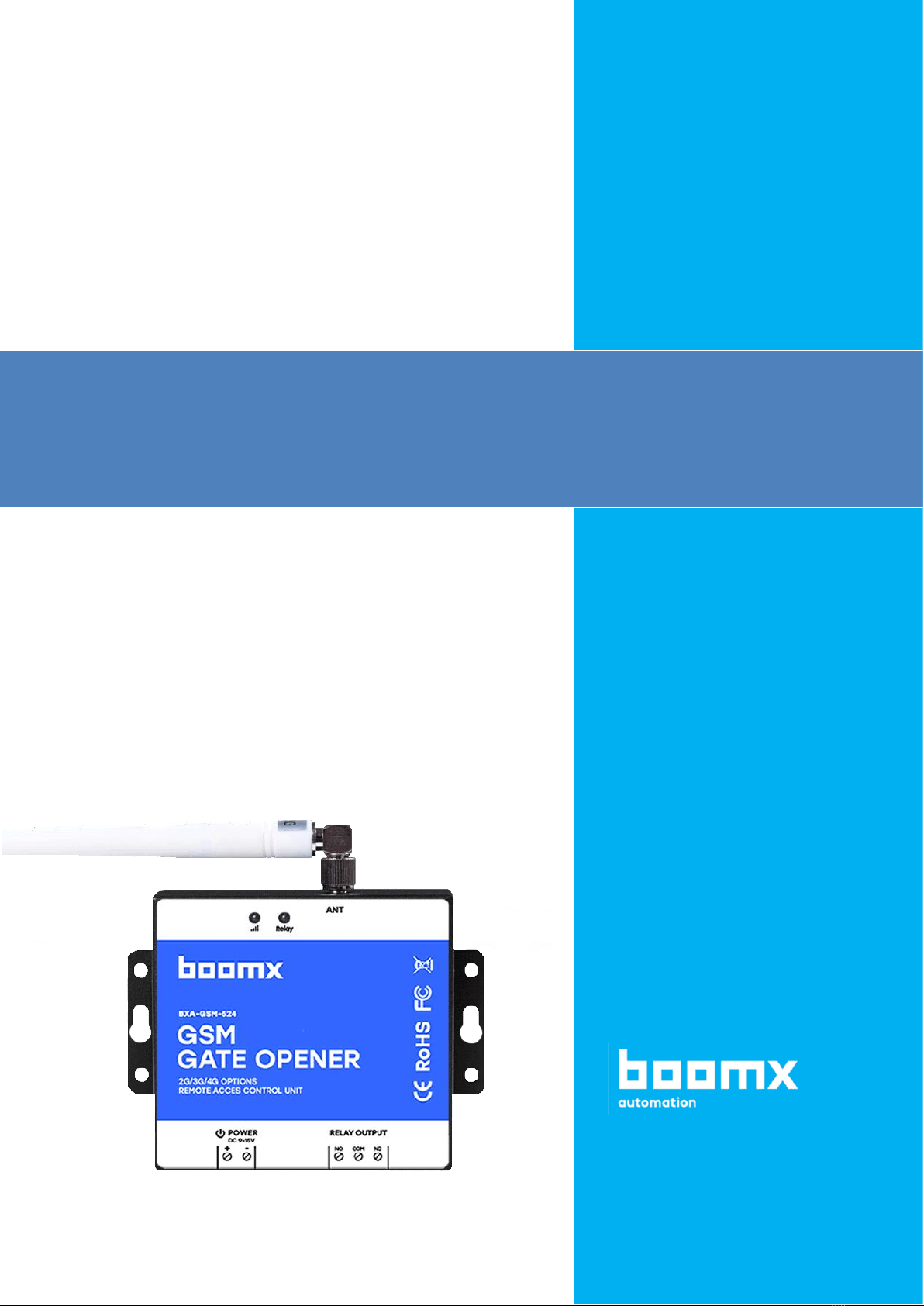

BOOMX BXA-GSM-534-2G User manual

1/1
Kép
Leírás
BXA-GSM-534-2G
GSM vezérlő modul
A BXA-GSM-534-2G egy távvezérlő modul GSM 2G hálózaton
keresztül, relével. Könnyen kezelhető telefonhívással
és konfigurálható SMS parancsokkal. A készülék 200
felhasználót támogat állandó vagy egyénileg korlátozott
hozzáféréssel egy dátum / idő intervallum alatt. A
berendezés használható a kapuk, garázskapuk, autókorlátok,
kikötőbakok, villanymotorok, utcai világítás vagy más
érintkező által működtethető elektromos készülékek
automatizálásának vezérlésére. A műveletet költségmentes
hanghívással hajtják végre, a modul a hívó azonosítása után
elutasítja a hívást.
Tulajdonságok
• Akár 200 felhasználó, állandó vagy egyénileg korlátozott
hozzáféréssel egy dátum / idõtartomány között
• Csak engedélyezett számokról vagy bármely számról
(állítható) mûködik
• A modul ellenőrizheti a hívó személyazonosságát, az
ismeretlen hívókat figyelmen kívül hagyják
• Távoli működtetés telefonhívással vagy SMS parancsokkal
• Felhasználók hozzáadása vagy törlése SMS parancsokkal
• Távolítsa el a távirányítók használatának szükségességét
• Száraz érintkező relé NO / NC max. 3A @ 240V AC
• Időzített vezérlés 0,5-998 másodperc vagy állandó
• Több alkalmazás (kapu automatizálás, kikötők, korlátok,
garázskapuk és egyéb elektromos készülékek)
Specifikáció
• Tápegység: 9 ~ 24V DC @ 2A
• Áramfelvétel: 12V DC esetén max. 50mA
• GSM frekvencia: 850/900/1800/1900MHz
• Relékimenet: NO/NC szárac kontaktusos
• Relé terhelhetősége: 240V AC @ 3A
• SIM-kártya: Támogatja a 3V-ot
(normál méret)
• Antenna: 50Ω SMA
• Anyag: Műanyag
• Működési hőmérséklet: -20°C ~ 60°C
• Relatív páratartalom: <90%
• Méretek: 90 x 70 x 27 mm
• Nettó súly: 180g
Méret rajz
Felhasználási területek
•Lakossági: Kapu automatizálás, garázskapuk,
légkondicionáló, stb. távvezérlése
• Ipari: Napelemek, villanymotorok, elektromos
ventilátorok, PLC stb. távvezérlése
• Mezőgazdaság: öntözőszivattyúk stb. távvezérlése
• Vállalkozás: óriásplakátok, építészeti világítás stb.
távvezérlése

GSM Gate, Barrier, Shutter, Garage
Door and Door opener
Open gate or garage door with a FREE
call from your mobile phone!
Remote switching machines with a
FREE call from your mobile phone!
User Manual
Ver 1.7
BXA-GSM-524
Date Issued: 2016-02-24
GSM Gate Opener
Remote Relay Switch

Page 2 of 12 Ver 1.7 File No.: BXA-GSM-524_103
INDEX
1.Product details --------------------------------------------------------------------------3
1.1 Features--------------------------------------------------------------------------------------------------------------- 3
1.2 Specifications---------------------------------------------------------------------------------------------------------- 3
1.3 Dimensions------------------------------------------------------------------------------------------------------------ 3
1.4 Standard Packing List----------------------------------------------------------------------------------------------------4
1.5 Applications------------------------------------------------------------------------------------------------------------- 4
2 . S a f e t y D i r e c t i o n s -----------------------------------------------------------------------4
3 . D i a g r a m ------------------------------------------------------------------------------- - - - - 5
4 . Ty p i c a l W i r i n g C o n n e c t i o n - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
5 . I n s t a l l a t i o n a n d S M S c o m m a n d s e t t i n g s ----------------------------------------------6
5.0 Start(Verify date & time)--------------------------------------------------------------------------------------------------------7
5.1 Change password--------------------------------------------------------------------------------------------------- 7
5.2 Authorized user management----------------------------------------------------------------------------------- 7
5.3 Relay control parameters--------------------------------------------------------------------------------------------------8
5.4 Self-check report/inquiry status/IMEI code and firmware version/RESET----------------------------------9
6 . I m p o r t a n t i n f o r m a t i o n --- - - - - - - - - - - - - --- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 0
7 . M a i n t e n a n c e - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 0
8 . W a r r a n t y --------------------------------------------------------------------------------1 0
9 . A u t h o r i z e d u s e r s l i s t p a p e r - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Caution!
Please read this user manual carefully before install/operate the Gate Opener,
basic electronic acknowledges required.
This handbook has been designed as a guide to the installation and operation of BXA-GSM-524 Gate Opener.
Statements contained in the handbook are general guidelines only and in no way are designed to supersede the
instructions contained with other products.
We recommend that the advice of a registered electrician be sought before any Installation work commences.
Manufacturer, its employees, and distributors, accept no liability for any loss or damage including consequential
damage due to reliance on any material contained in this handbook.
Manufacturer company, its employees, and distributors, accept no liability for GSM Network upgrading or SIM Card
upgrading due to the technology specifications contained in this handbook.

Page 3 of 12 Ver 1.7 File No.: BXA-GSM-524_103
1. Product details
The BXA-GSM-524 is a powerful remote relay controller, it is a very simple device which can be used for authorized door access, controlling gates,
switching of remote equipment, car parking systems. The BXA-GSM-524 can be used in places which require to turn ON/OFF your system,
machines, equipment remotely with a FREE call from your mobile phone.
Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or off by the BXA-
GSM-524. There are no call costs, the BXA-GSM-524 rejects the call from authorized number then carries out the turn ON/OFF action.
Moreover, the user can be authorized at the specified time to operate it, after timeout, will automatically change to unauthorized type.
1.1 Features:
Advantages
➢ Quad-band, can work in the worldwide GSM Networks
➢ No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF
action on the first 'ring'
➢ Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines)
➢ Secure - Using caller-ID for identification, unknown callers are ignored
➢ Can be operated from anywhere, no distance limit
➢ Add or remove users by SMS Text command
➢ No need to provide a remote control or keys for different users
➢ Up to 200 authorized phone numbers can be configured at the specified time
➢ One output with relay rating 3A/240VAC for connecting the switch of the door or machines
➢ The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user
➢ The relay close or open time is programmable
➢ Multiple applications (gates, bollards, barriers, garage doors, shutters and access doors or machines)
Setting
➢ SMS command
➢ Operate from anywhere anytime, no distance limitation

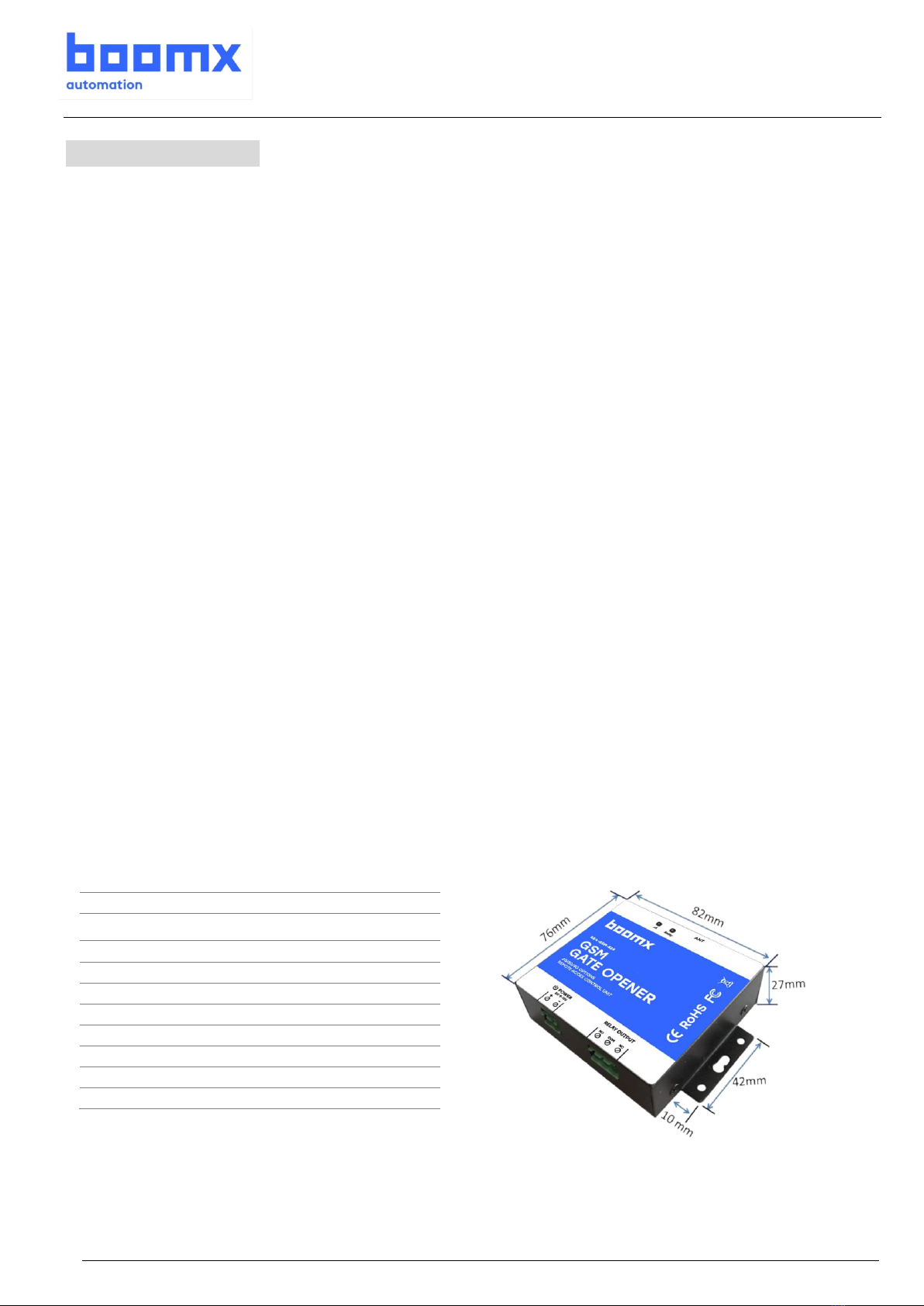

1.2 Specifications 1.3 Dimensions
GSM Frequency
Quad-band 850/900/1800/1900MHz
Digital Output
NC/NO dry contact, 3A/240VAC
DC Power supply
9~24VDC/2A
Power consumption
12V input Max. 50mA/Average 25mA
SIM Card
Support 3V SIM Card
Antenna
50Ω SMA Antenna interface
Temperature range
-20~+60 °C
Humidity range
Relative humidity 90%
Exterior dimension
W102mm*D76mm*H27mm
Net Weight
180 g

Page 4 of 12 Ver 1.7 File No.: BXA-GSM-524_103
1.4. Standard Packing List
✓ Gate Opener * 1
✓ Antenna * 1
✓ User Manual *1
✓ Packing size: 17*9.5*4 cm
✓ Gross Weight: 0.32kg
1.5 Applications:
➢ Remote open/close swing/sliding gates, doors, shutters, garage doors, locks with a free call!
➢ Residential: Door, gate, garage access control, electronic fan, microwave, air-conditioner control.
➢ Industry: Remote switch equipment, for example: streetlights, solar power, motor, inverter, PLC, pumps, fans, etc.
➢ Agriculture: Remote control pumps, etc.
➢ Business: Remote control electronic boxes, bright billboards, LED signs, etc.
2.Safety Directions
Safe Startup
Do not use Gate Opener when using GSM equipment is prohibited or might bring disturbance or
danger.
Interference
All wireless equipment might interfere network signals of Gate Opener and influence its
performance.
Avoid Use at Gas Station
Do not use Gate Opener at a gas station. Power off Gate Opener when it near fuels or chemicals.
Power it off near Blasting Places
Please follow relevant restrictive regulations. Avoid using the device in blasting places.
Reasonable Use
Please install the product at suitable places as described in the product documentation. Avoid
signal shielded by covering the mainframe.
Use Qualified Maintenance Service
Maintenance can be carried out only by qualified maintainer.

Page 5 of 12 Ver 1.7 File No.: BXA-GSM-524_103
3. Diagram
4. Typical wiring connection:
INDICATORS
Relay
ON: Relay closed (ON). OFF: Relay open (OFF)
IIII
Flash per 0.8 second(quickly): registering to cellular network.
Flash per 2 seconds: Normal status.
OFF: cannot connect to SIM card or unregistered to the cellular network
Connection Terminals
Power
+
Power supply input, Positive wire (Red).
_
Power supply input, Negative wire (Black).
Relay
Output
NO
Normally Open port
COM
Common port
NC
Normally Close port
ANT
Connect to GSM antenna.
1. BXA-GSM-524 for Gate opener:
Power up the BXA-GSM-524 and electronic lock by same DC source,
the lock switched ON/OFF by phone call.
2. BXA-GSM-524 for remote switch:
The pump switched ON/OFF by phone call. Pump power up by the
grid/electricity, and BXA-GSM-524 power up by AC/DC adaptor.

Page 6 of 12 Ver 1.7 File No.: BXA-GSM-524_103
5. Installation and Settings
Notice:
1. The default Password is 1234.
2. You can program the BXA-GSM-524 with SMS commands using your phone. It is safe to do so
because in addition to the fact that other people may not know the number of the SIM inserted in it, we
also use a Password that makes it impossible for others who doesn't know it, to access the system by
chance, and all the action will be recorded.
3. The relay output will change the close or open status by every call in, please note it. Means the first
time call it, it will close the relay to switch on the lock, if the second call in is in the setting time, then the
unit will ignore the setting time, and open the relay, to switch off the lock.
4. Remember that commands must be CAPITAL LETTERS. It is AA not aa, EE not Ee etc. Don't add
spaces or any other character on the SMS commands.
5. The pwd in the command means the password, like 1234 or 5678 if you changed.
6. If the BXA-GSM-524 used for gate access only, all you need to do is to change the default password
and add the authorized numbers.
7. If you cannot call to control the BXA-GSM-524 or cannot send or receive any SMS message from it.
please try to add + in front of the country code or the phone numbers:
8. For security purpose, the BXA-GSM-524 will NOT return any SMS if command error, so please make
sure and check the SMS Commands, or add the country code before the telephone number or check
the input is in ENGLISH INPUT METHOD and CAPS LOCK, and no space on the command content.
9. The SMS commands that you will certainly use in the BXA-GSM-524 are the following:
For example:
In China, the country code is 0086The user cell phone number is 13570810254 and has been assigned as
the SMS Alert number, the SIM Card number in the panel is 13512345678.
Problem 1: Alarm but the user hasn’t received the SMS Alert.
Solution: Please plus the country code while you setup the 13570810254 as SMS Alert number, means
setup 008613570810254 instead of the 13570810254.
Problem 2: The user number can receive the SMS Alert message from alarm panel, but the alarm panel can
not receive the commands from the user number.
Solution: Please add country code to the SIM Card number in the alarm panel. Means send SMS commands
to 008613512345678 instead of 13512345678.
Solution 3: Use mobile phone A to call mobile phone B, the number displayed on B is which you should set
as the dial number; Use mobile phone A send SMS to mobile phone B, the number displayed on B is which
you should set as the SMS alert number; sometimes you may need to use the 00 to replace the + or use the
+ to replace the 00 on front of the country code.

Page 7 of 12 Ver 1.7 File No.: BXA-GSM-524_103

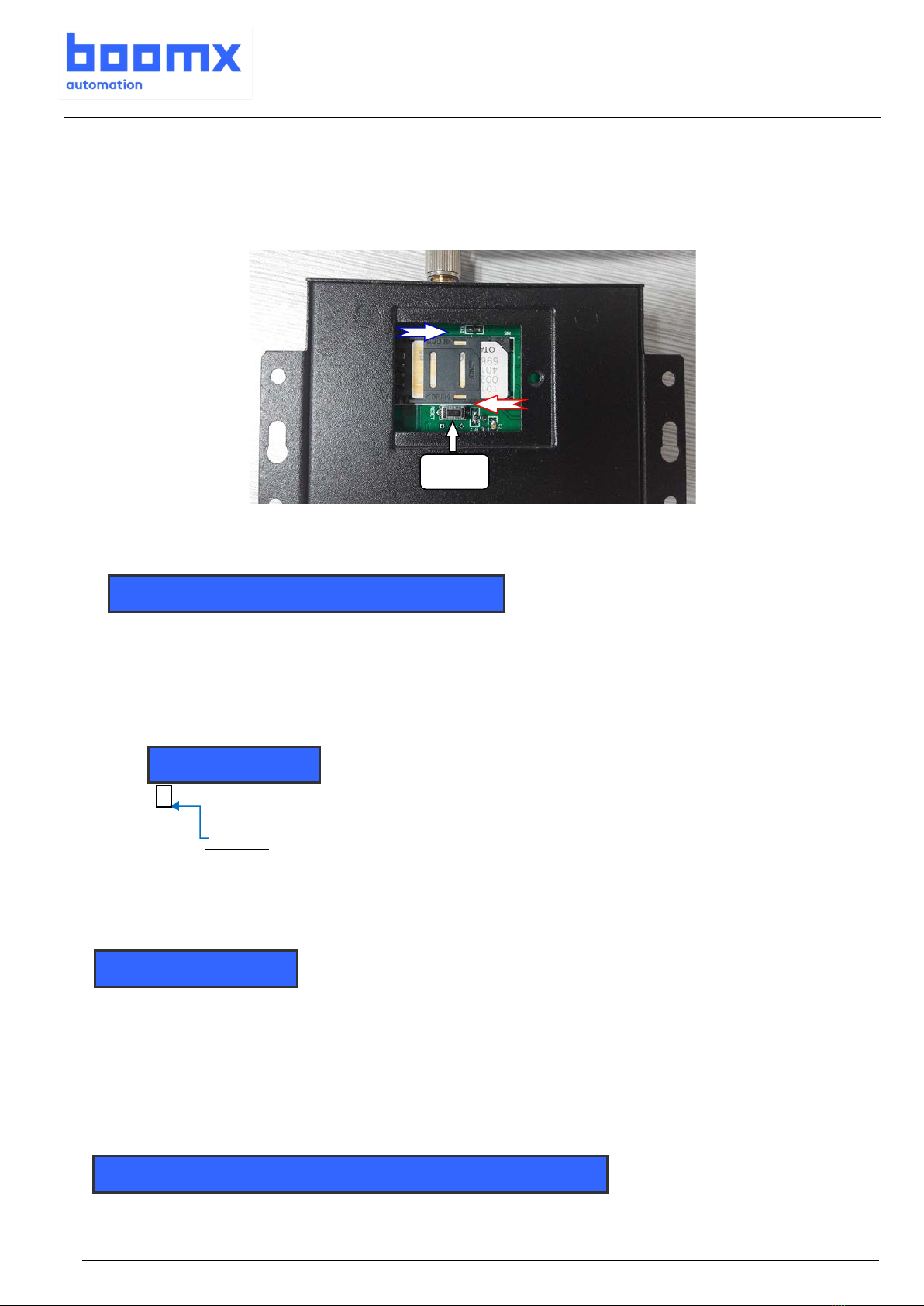

Installation: Open the SIM card cover on the back side of BXA-GSM-524, insert your SIM Card.
Reset: Press and hold the RESET button (closed to the SIM card holder), then power ON, after 6 seconds later,
the BXA-GSM-524 will restart, then release the RESET button.
This operation will reset the password to default 1234 and other parameters, but the authorized user numbers
will remain on the memory.
5.0 Start ( this step is MUST):
Send to the BXA-GSM-524 for adjust the time.
E.g.: 1234TEL[phone]# “00861351015” is the SIM card number which inside of the BXA-GSM-524.
Return: Set Success!
Notice：
If the BXA-GSM-524 cannot work well at the exact time, then send the SMS command to adjust time
manually as below:
Send to the BXA-GSM-524 for adjust the time manually.
E.g.: 1234T 1601131300#
T: Command Code.
Current Time: yy(year)mm(month)dd(day)hh(hour)mm(minute).
Return: Set Time OK!
5.1 Change Password
E.g.: 1234P6666 for change the new password to 6666.
Return: “Password changed to 6666, please remember it carefully.” if password changed successfully.
5.2 Authorized User number managerment
5.2.0 Add authorized user:
A: command code.
serial number: the authorized user’s position, from 001~200.
1234Pnew password
pwdA serial number # phone number # start time # end time #
pwdTELphone number of the BXA-GSM-524#
RESET
pwd Tcurrent time

Page 8 of 12 Ver 1.7 File No.: BXA-GSM-524_103
start time:yy(year)mm(month)dd(day)hh(hour)mm(minute).The start time of this number can call in to control.
end time: yy(year)mm(month)dd(day)hh(hour)mm(minute).The end time of this number can call in to control.
Without start time and end time means: Always can call in to control.
E.g.: 1234A003#123456# to set the phone no.123456 at the 3rd position and always can call in to control.
E.g.: 1234A016#123456#1502050800#1502051000# to set the phone number 123456 at the 16th position,
this number can call in to control during Feb 5th 8:00am (1502050800) to Feb 5th 10:00a.m.(1502051000).
Note: 1. The authorized number means the one who can dial the BXA-GSM-524 to control the relay.
2. The Serial Number is the position to store the authorized users, from 001~200.
5.2.1 Inquiry the Authorized user’s position(serial):
E.g.: 1234A002# to check the number on the 2nd position(serial number2).
5.2.2 Inquiry batch user numbers
E.g.: 1234AL002#050# to inquiry the authorized numbers from the 2nd to the 50th, BXA-GSM-524 return
several SMS with the numbers list (10 numbers on each SMS).
5.2.3 Delete the Authorized User’s Number (or you can overwrite this position with another number).
E.g.: 1234A002## to delete the 2nd authorized number.
5.3 Relay Control setting
5.3.1 Allow all numbers can call in to control:
5.3.2 Allow only the authorized numbers can call in to control (Caller-ID for security, default):
5.3.3 How long time the relay keeps close (ON) after phone call in (unit: second)
close time=000~999. Unit: Second
close time=000: relay close 0.5 second then open (use the relay as Latch).
close time=999: relay will always keep close (ON) after calling in until the next call in.
E.g.: 1234GOT030# to set relay close 30 seconds (ON) and then open (OFF) after call in.
pwdAserial number##
!
pwdAserial number#
pwdALL#
pwdAUT#
pwdGOTclose time#
pwdALserial number start#serial number end#
!

Page 9 of 12 Ver 1.7 File No.: BXA-GSM-524_103
5.3.4 Who will receive the confirmation SMS when the relay is ON/OFF
for relay ON, for relay OFF.
ab: the ID code of the 1st number(a) and the caller number(b), =0 means disable, =1 means enable.
content: confirmation SMS content.
ID code
BXA-GSM-524 send notify SMS to
a
b
The 1st number
Caller number
0
0
0
1
√
1
0
√
1
1
√
√
E.g.: 1234GON11#Door Open#
The 1st number & the caller number receive confirmation SMS when relay is ON (door opened).
E.g.: 1234GOFF00#Door Close#
The 1st number & the caller number will not receive confirmation SMS when relay is OFF (door closed).
5.3.5 No need confirmation SMS when the relay is ON/OFF.
5.3.6 Control the relay ON/OFF by SMS command
Return SMS: Relay ON (or the SMS confirmation content which you modified before)
Return SMS: Relay OFF (or the SMS confirmation content which you modified before)
The relay close timer according to the before setting 5.3.3:
5.4 Others:
5.4.1 Self-check auto report SMS to the 1st number. (unit: hour)
xxx=000~999 (xxx=000, default, no self-check auto report)
Auto report SMS including:
Relay status
GSM signal value (full is 31, cellular signal is weak if lower than 14)
Inquiry the self-check and auto-report time
pwdGONab#content#
pwdGON##
pwdGOFFab#content#
pwdGOFF##
pwdCC
pwdDD
pwdGOTclose time#
pwdT#
pwdT#xxx#

Page 10 of 12 Ver 1.7 File No.: BXA-GSM-524_103
5.4.2 Inquiry status
5.4.3 Inquiry the GSM modules’ IMEI code and firmware version
5.4.4 RESET
Press and hold the RESET button (closed to the SIM card holder), switch ON, after 6 seconds later, the
BXA-GSM-524 will restart, then release the RESET button.
This operation will reset the password to default 1234 and other parameters, but the authorized user numbers
will remain on the memory.
6. Important information
1) Please read the User Manual carefully before you install and control the BXA-GSM-524.
2) Install the BXA-GSM-524 in a hidden place.
3) Avoid getting water into the BXA-GSM-524.
4) Have a secure connection to the main power supply.
7. Maintenance
1) In case of failure, please contact the distributor or manufacturer.
2) If the BXA-GSM-524 works but fail to send SMS texts, switch the power off and on again after one minute.
Test it after few minutes later or ensure and check the settings are correct and the cellular signal strong
enough.
3) If the BXA-GSM-524 works well with sensors but cannot send SMS texts, please change a SIM Card from
another Mobile Operator’s, and then testing again.
4) Please contact the distributor or manufacturer if the problem cannot be solved.
8. Warranty
1) The BXA-GSM-524 is warranted to be free of defects in material and workmanship for one year from the
date of purchase.
2) This warranty does not extend to any defect, malfunction or failure caused by abuse or misuse by the
Operating Instructions. In no event shall the manufacturer be liable for any alarm system altered by
purchasers.
pwdEE
pwdIMEI#

Page 11 of 12 Ver 1.7 File No.: BXA-GSM-524_103
9. Authorized users list (print this page and fill in for record)
Position
User Phone number
User’s name
Always
Specific time access
1
2
3
4
…
200
