4|User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
Safety Precautions
For safety, read, under-
stand and follow all
safety messages and
instruction in manual be-
fore operating the Pock-
etScan™ Code Reader.
Always refer to and follow safety
messages and test procedures
provided by manufacturer of vehicle
and PocketScan Code Reader.
Signal Words and Symbols
DANGER!
Indicates a possible haz-
ardous situation that, if
not avoided, will result in
death or serious injury to
operator or bystanders.
WARNING!
Indicates a possible haz-
ardous situation that, if
not avoided, could result
in death or serious injury
to operator or bystanders.
CAUTION!
Indicates a possible haz-
ardous situation that, if
not avoided, may result in
moderate or minor injury
to operator or bystanders.
IMPORTANT
Indicates a condition that
may result in damage to
test equipment or vehicle
or lost information.

| OBD 1000 | User guide | 5
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
Important Safety Messages
Always wear ANSI-ap-
proved goggles for eye
protection.
• Always operate vehicle in a
well-ventilated area.
• Always keep people, tools, and
test equipment away from all
moving or hot engine parts.
• Before testing a vehicle, make
sure the transmission is in PARK
(automatic transmission) or
NEUTRAL (manual transmission)
and the parking brake is set.
• Always block drive wheels and
never leave vehicle unattended
while testing.
• Always keep a fire extinguisher
suitable for gasoline/electrical/
chemical fires redily available.
• Never lay tools on the vehicle
battery.
• Always use caution when work-
ing around ignition coil, distribu-
tor cap, ignition wires, and spark
plugs. Components can produce
a High Voltage while engine is
running.
• Battery acid is caustic. If con-
tacted, rinse with water or neu-
tralize with a mild base (i.e.
baking soda). If in eyes, flush
with water and call a physician
immediately.
• Never smoke or have open
flames near vehicle. Vapors from
gasoline and battery during
charge are explosive.
• Never use the PocketScanTM
Code Reader if internal circuitry
has been exposed to moisture.
Internal shorts could cause a fire
and damage.
• Always turn ignition key OFF
when connecting or disconnect-
ing electrical components,
unless otherwise instructed.
Some vehicles are equipped with
safety air bags. Follow vehicle ser-
vice manual cautions when working
around air bag components or
wiring.
WARNING!
A vehicle airbag can open
for several minutes after
the ignition has been
turned off.
• Always follow vehicle manufac-
turer’s warnings, cautions, and
service procedures.

6|User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
Tool Parts
1
2
3
4
Part Description
1LCD
display Single-line display with 8 char- acters.
2ERASE
Used to Erase Trouble Codes and
I/M Monitor status from Vehicle’s
Computer Modules and scroll up
through screens. (I/M Monitors
are currently used for state emis-
sions tests.)
3READ
Used to view Read Codes, MIL
Status, I/M Readiness Status and
scroll down through screens.
4OBD II
Connector Used to communicate with OBD II compliant vehicles.
PocketScan™ Code Reader
Features
Read Codes
Reading Diagnostic Trouble Codes
allows the PocketScan
Code Reader to read the codes
from the vehicle’s computer
modules.
• Diagnostic Trouble Codes:
Diagnostic Trouble Codes are
used to help determine the
cause of a problem or problems
with a vehicle. Diagnostic Trou-
ble Codes are set when a fault is
present for a sufficient amount
of time.
• Pending Codes:
Pending Codes are also referred
to as “continuous monitor
codes” and “maturing codes.”
Pending Codes occurs when the
code has not occurred a specific
number of times (depending on
vehicle,) causing the code to
mature.
MIL Conditions
MIL (Malfunction Indicator Lamp)
Status displays the
state of the vehicles computer
module(s).
• MIL ON:
Indicates that the Malfunction
Indicator Lamp on vehicle should
be ON indicating a possible
emissions problem.
9If the MIL Status is ON and the
MIL is not illuminated with the
engine running, then a problem
exists in the MIL circuit.
• MIL OFF:

| OBD 1000 | User guide | 7
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
Indicates the Malfunction Indica-
tor Lamp should be off and there
should be no emission problems.
9Some manufacturers will turn
the MIL off if a certain number
of drive cycles occur without the
same fault being detected.
9Diagnostic Trouble Codes
related to a MIL are erased from
the computer’s memory after 40
warm-up cycles if the same fault
is not detected.
Inspection/Maintenance Monitors
(I/M Monitors
The I/M Monitors (Inspection /
Maintenance) function displays a
SNAPSHOT of the operations for the
Emission System.
9After a specific amount of drive
time (each monitor has specific
driving conditions and time
required), the computer’s “moni-
tors” will decide if the vehicles
emission system is working
correctly.
9Some states MAY NOT require all
monitors listed to be “Ready” to
pass the emissions test. Check
with state testing site for exact
requirements. All states will fail
a vehicle that has the “MIL
Light” lit at time of test.
• Monitors Viewed:
Monitor Expanded Name
Misfire Misfire monitor
Fuel Fuel system monitor
Comp Comprehensive components monitor
Catlyst Catalyst monitor
Htd Cat Heated catalyst monitor
Evap Evaporative system monitor
Sec Air Secondary air system monitor
A/C Air conditioning refrigerant monitor
O2 Snsr Oxygen sensor monitor
O2 Htr Oxygen sensor heater monitor
EGR Exhaust gas recirculation
• Monitor Status:
Status Description
Ready Vehicle was driven enough under proper
conditions to complete the monitor.
Inc (Incomplete) Vehicle was not driven enough under proper conditions to com-
plete the monitor.
• Monitors may be cleared by:
• Using the erase codes func-
tion.
• Disconnected or discharged
battery (on some vehicles.)
• Computer module losing
power (on some vehicles.)
Reading Diagnostic Trouble
Codes and Data
WARNING!
Avoid cooling fan. Fan
may turn on during test.

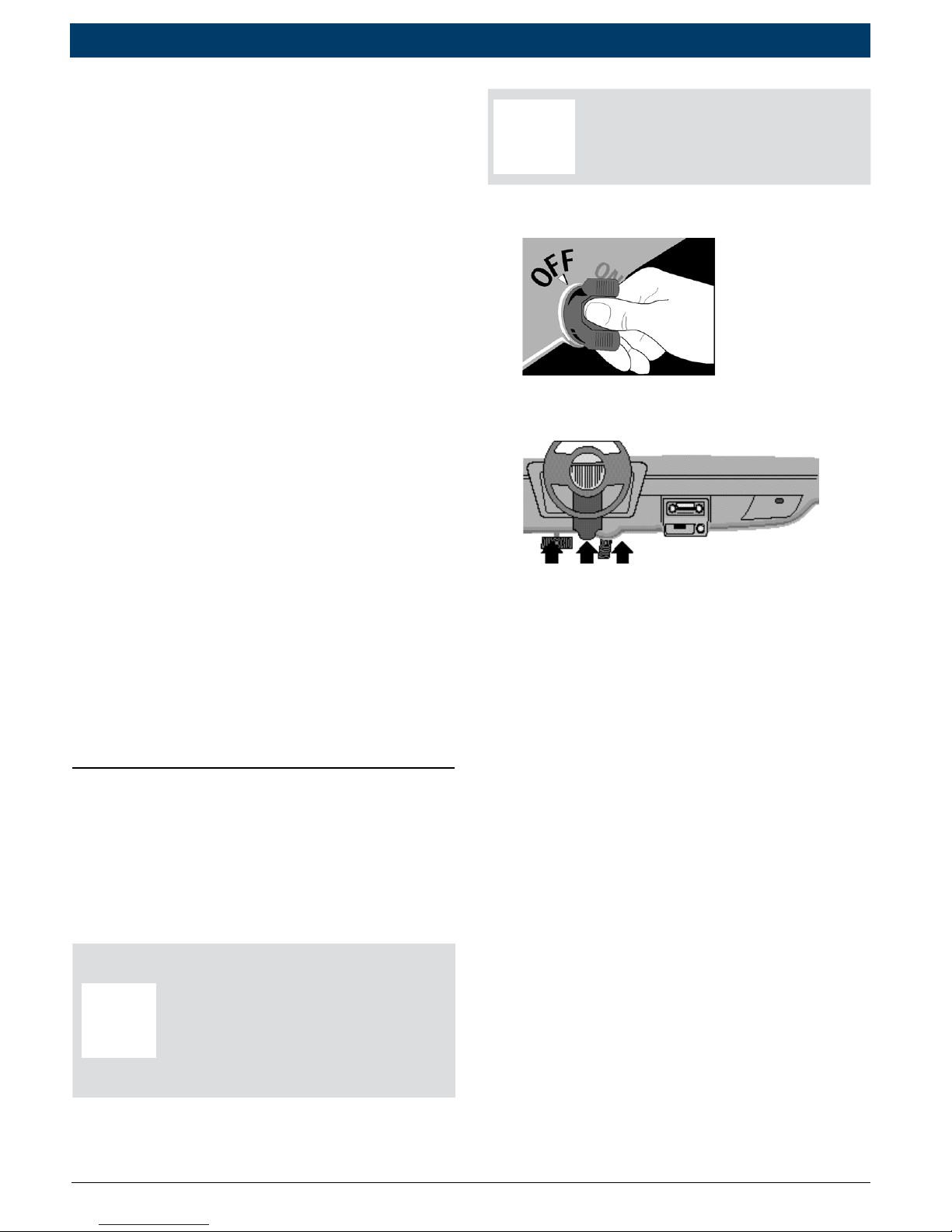

1. Turn ignition key to the OFF
position.

8|User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
2. Locate and plug in data link
connector (DLC).
NOTE: The data link connector
should be located under the
dashboard on the driverside of
the vehicle. If the data link con-
nector is not located under the
dashboard as stated, a label
describing the location of the
data link connector should be
there.
3. Observe display toggles between
“Pocket” and “Scan”.

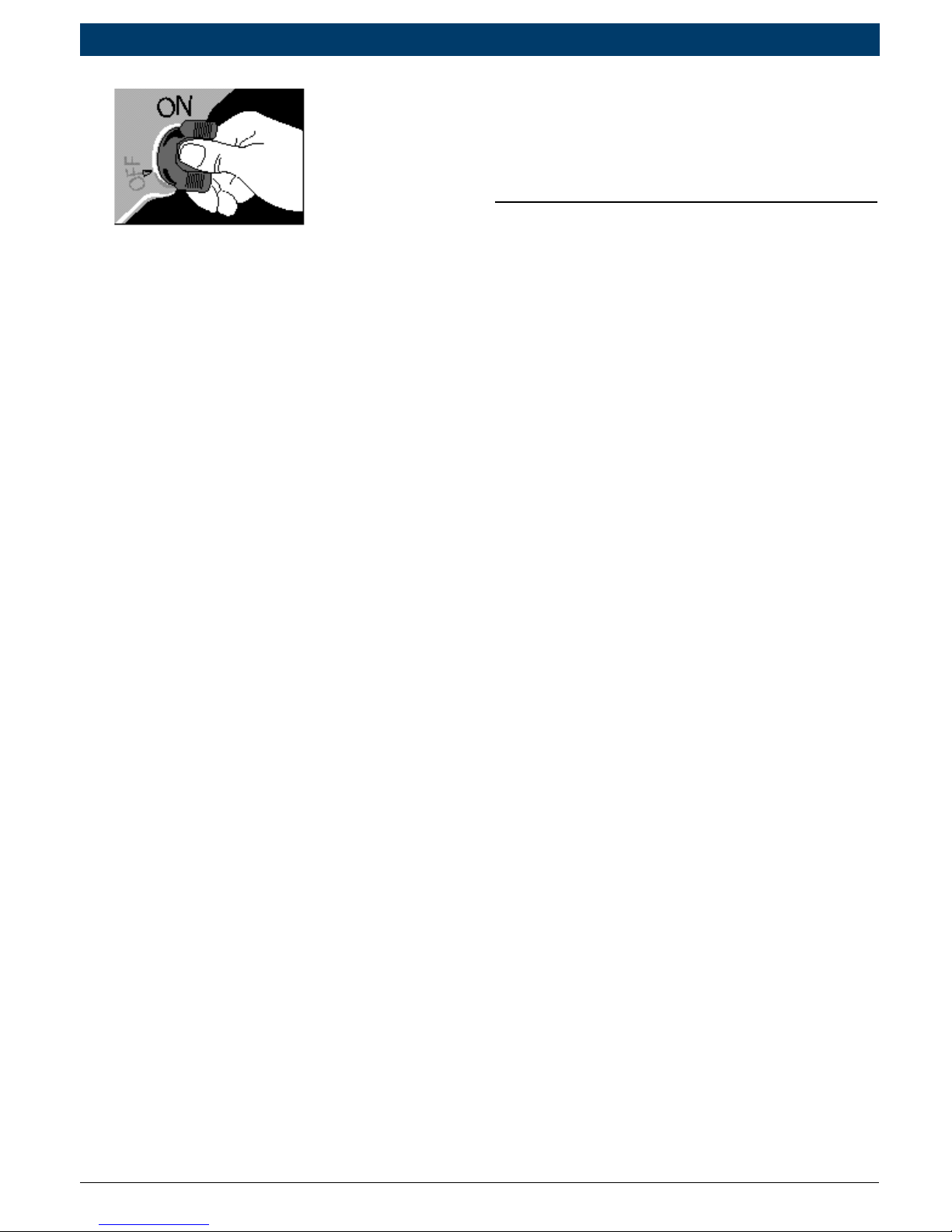

NOTE: For a correct reading for
diagnostic trouble codes and I/M
monitor status, ignition key must
be in the ON position and engine
does not require starting. To get
a correct reading for MIL status,
engine must be started.
4. Start engine.
5. Press and release key.
NOTE: If diagnostice trouble
codes (DTCs) are already being
displayed from a previous read
operation, press and hold
for 3 seconds and release.
6. Observe a moving * on display.
NOTE: If “No Link” message
displays, cycle ignition key to the
OFF position for 10 seconds,
then back ON and repeat “Read-
ing Diagnostic Data” procedure.
7. View codes on display.
NOTE: If
there are no codes present, the
tool will display “0 Codes” and
proceed to display MIL Status
when is pressed.
• To view codes, press and
release .
• If the code is a pending code,
pd will be displayed.
8. View MIL status:
• Press and release .
9. View I/M monitors that are
incomplete.
• Press and release .

| OBD 1000 | User guide | 9
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
NOTE: If there are no more
I/M monitors that are incom-
plete, the tool will then
display ready monitors when
is pressed.
10.View I/M monitors that are
ready.
• Press and release .
NOTE: Pressing will
scroll up to review diagnostic
trouble codes and data.
Holding down for 3
seconds will read diagnostic
trouble codes and data again.
Erasing Diagnostic Trouble
Codes and Data
Erasing allows the PocketScan™
code reader to delete the codes and
IM monitor status from the vehicle’s
computer modules.
NOTICE
Only erase diagnostic data
after checking
system completely and
writing down results.
WARNING!
Avoid cooling fan. Fan
may turn on during test.
1. Turn ignition key to the OFF
position.
2. Locate and plug in data link
connector (DLC).
NOTE: The data link connector
should be located under the
dashboard on the driverside of
the vehicle. If the data link
connector is not located under
the dashboard as stated, a label
describing the location of the
data link connector should be
there.
3. Observe display toggles between
“Pocket” and “Scan”.
4. Turn ignition key to the ON
position leaving engine off.
NOTE: Make sure that the igni-
tion key is ON and NOT in the
accessory position.

10 |User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
5. Press and hold for 3 sec-
onds and release.
6. Observe “ERASE?” displays.
7. Press and hold for 3 sec-
onds and release.
8. Observe a moving — on display.
NOTE: If a “NO LINK” message
displays, cycle ignition key to the
OFF position for 10 seconds,
then back ON, and repeat “Eras-
ing Diagnostic Data” procedure.
9. Observe “DONE” displays.
NOTE: If the problem causing
diagnostic trouble code(s) still
exists, the code will return. The
diagnostic trouble code may
return immediately or may
return after vehicle has been
driven.
NOTE: Pressing will read
diagnostic trouble codes and
data and holding will erase
results again.
Diagnostic Trouble Codes
This section contains the J2012
Diagnostic Trouble Codes (DTCs) as
defined by the Society of Automotive
Engineers (SAE).
DTCs are recommendations not a
requirement. Manufacturers may not
follow these, but most do.
Check vehicle’s service manual for
DTC meaning if the code(s) you are
getting does not make sense.
DTC definitions have been assigned
or reserved by the Society of Automo-
tive Engineers (SAE) to direct to
proper service area(s).
Codes not assigned or reserved by
the SAE are reserved for the manu-
facturer and referred to as Manufac-
turer Specific DTCs.
Remember:
• Visual inspections are important!
• Problems with wiring and connec-
tors are common, especially for
intermittent faults.
• Mechanical problems (vacuum
leaks, binding or sticking linkages,
etc.) can make a good sensor look
bad to the computer.
• Incorrect information from a
sensor may cause the computer
to control the engine in the
wrong way. Faulty engine opera-
tion might even make the com-

| OBD 1000 | User guide | 11
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
puter show a known good sen-
sor as being bad!
Code Structure
1. Bx = Body
Cx = Chassis
Px = Powertrain
Ux = Network comm.
x - 0, 1, 2, or 3
2. Vehicle specific system
3. Specific fault designation
Example:
P0101 - Mass or volume air flow
circuit range/performance problem
Powertrain Codes
Code Type
P0xxx Generic (SAE)
P1xxx Manufacturer specific
P2xxx Generic (SAE)
P30xx–P33xx Manufacturer specific
P34xx–P39xx Generic (SAE)
Chassis Codes
Code Type
C0xxx Generic (SAE)
C1xxx Manufacturer specific
C2xxx Manufacturer specific
C3xxx Generic (SAE)
Body Codes
Code Type
B0xxx Generic (SAE)
B1xxx Manufacturer specific
B2xxx Manufacturer specific
B3xxx Generic (SAE)
Network Communication Codes
Code Type
U0xxx Generic (SAE)
U1xxx Manufacturer specific
U2xxx Manufacturer specific
U3xxx Generic (SAE)
Code Descriptions
Code Description
P0001 Fuel Volume Regulator Control Circuit/
Open
P0002 Fuel Volume Regulator Control CKT
Range/Perf
P0003 Fuel Volume Regulator Control Circuit
Low
P0004 Fuel Volume Regulator Control Circuit
High
P0005 Fuel Shutoff Vlv. A Control Circuit/Open
P0006 Fuel Shutoff Vlv. A Control Circuit Low
P0007 Fuel Shutoff Vlv. A Control Circuit High
P0008 Engine Position System Performance
(Bank 1)
P0009 Engine Position System Performance
(Bank 2)
P0010 Camshaft Position Actuator A - Bank 1
Circuit Malfunction
P0011 Camshaft Position Actuator A - Bank 1
Timing Over-Advan.
P0012 Camshaft Position Actuator A - Bank 1
Timing Over-Retard
P0013 Camshaft Position Actuator B - Bank 1
Circuit Malfunction
P0014 Camshaft Position Actuator B - Bank 1
Timing Over-Advan.
P0015 Camshaft Position Actuator B - Bank 1
Timing Over-Retard
P0016 Cam/Crankshaft Pos. Correlation Sensor
A - Bank 1
P0017 Cam/Crankshaft Pos. Correlation Sensor
B - Bank 1
P0018 Cam/Crankshaft Pos. Correlation Sensor
A - Bank 2
P0019 Cam/Crankshaft Pos. Correlation Sensor
B - Bank 2
P0020 Camshaft Position Actuator A - Bank 2
Circuit Malfunction
P0021 Camshaft Position Actuator A - Bank 2
Timing Over-Advan.

12 |User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
P0022 Camshaft Position Actuator A - Bank 2
Timing Over-Retard
P0023 Camshaft Position Actuator B - Bank 2
Circuit Malfunction
P0024 Camshaft Position Actuator B - Bank 2
Timing Over-Advan.
P0025 Camshaft Position Actuator B - Bank 2
Timing Over-Retard
P0026 Intake Valve-Bank 1 Control Solenoid CKT
Range/Perf
P0027 Exhaust Valve-Bank1 Control Solenoid
CKT Range/Perf
P0028 Intake Valve-Bank 2 Control Solenoid CKT
Range/Perf
P0029 Exhaust Valve-Bank2 Control Solenoid
CKT Range/Perf
P0030 HO2S Bank 1 Sen 1 Heater Circuit
P0031 HO2S Bank 1 Sen 1 Heater Circuit Low
P0032 HO2S Bank 1 Sen 1 Heater Circuit High
P0033 Turbo/Sup Wastegate Control Circuit
P0034 Turbo/Sup Wastegate Control Circuit Low
P0035 Turbo/Sup Wastegate Control Circuit
High
P0036 HO2S Bank 1 Sen 2 Heater Circuit
P0037 HO2S Bank 1 Sen 2 Heater Circuit Low
P0038 HO2S Bank 1 Sen 2 Heater Circuit High
P0039 Turbo/Super Charger Bypass Cntrl CKT
Performance
P0040 O2 Bank 1 Sensor 1 Signals Swapped w/
O2 Bank 2 Sensor 1
P0041 O2 Bank 1 Sensor 2 Signals Swapped w/
O2 Bank 2 Sensor 2
P0042 HO2S Bank 1 Sen 3 Heater Circuit
P0043 HO2S Bank 1 Sen 3 Heater Circuit Low
P0044 HO2S Bank 1 Sen 3 Heater Circuit High
P0045 Turbo/Super Boost Ctrl Solenoid A Cir-
cuit/Open
P0046 Turbo/Super Boost Ctrl Solenoid A CKT
Range/Perf
P0047 Turbo/Super Boost Ctrl Solenoid A Cir-
cuit Low
P0048 Turbo/Super Boost Ctrl Solenoid A Cir-
cuit High
P0049 Turbo/Super Boost Input/Turbine Speed
Overspeed
P0050 HO2S Bank 2 Sen 1 Heater Circuit
P0051 HO2S Bank 2 Sen 1 Heater Circuit Low
P0052 HO2S Bank 2 Sen 1 Heater Circuit High
P0053 HO2S Bank 1 Sen 1 Heater Resistance
P0054 HO2S Bank 1 Sen 2 Heater Resistance
P0055 HO2S Bank 1 Sen 3 Heater Resistance
P0056 HO2S Bank 2 Sen 2 Heater Circuit
P0057 HO2S Bank 2 Sen 2 Heater Circuit Low
P0058 HO2S Bank 2 Sen 2 Heater Circuit High
P0059 HO2S Bank 2 Sen 1 Heater Resistance
P0060 HO2S Bank 2 Sen 2 Heater Resistance
P0061 HO2S Bank 2 Sen 3 Heater Resistance
P0062 HO2S Bank 2 Sen 3 Heater Circuit
P0063 HO2S Bank 2 Sen 3 Heater Circuit Low
P0064 HO2S Bank 2 Sen 3 Heater Circuit High
P0065 Air Assisted Injec. Control Range/Per-
formance
P0066 Air Assisted Injec. Control Circuit Low
P0067 Air Assisted Injec. Control Circuit High
P0068 MAF/MAP Sensor Throttle Position Cor-
relation
P0069 MAP/BARO Correlation
P0070 Ambient Air Temp. Sensor Circuit
P0071 Ambient Air Temp. Sensor Range/Per-
formance
P0072 Ambient Air Temp. Sensor Circuit Low
P0073 Ambient Air Temp. Sensor Circuit High
P0074 Ambient Air Temp. Sensor CKT Inter-
mittent
P0075 Intake Valve-Bank 1 Control Circuit
P0076 Intake Valve-Bank 1 Control Circuit Low
P0077 Intake Valve-Bank 1 Control Circuit High
P0078 Exhaust Valve-Bank1 Control Circuit
P0079 Exhaust Valve-Bank1 Control Circuit Low
P0080 Exhaust Valve-Bank1 Control Circuit High
P0081 Intake Valve-Bank 2 Control Circuit
P0082 Intake Valve-Bank 2 Control Circuit Low
P0083 Intake Valve-Bank 2 Control Circuit High
P0084 Exhaust Valve-Bank2 Control Circuit
P0085 Exhaust Valve-Bank2 Control Circuit Low
P0086 Exhaust Valve-Bank2 Control Circuit High
P0087 Fuel Rail Pressure Too Low
P0088 Fuel Rail Pressure Too High
P0089 Fuel Pressure Reg 1 Performance
P0090 Fuel Pressure Reg 1 Control Circuit
P0091 Fuel Pressure Reg 1 Control Circuit Low

| OBD 1000 | User guide | 13
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
P0092 Fuel Pressure Reg 1 Control Circuit High
P0093 Fuel System Leak (Large)
P0094 Fuel System Leak (Small)
P0095 IAT Sensor 2 Circuit
P0096 IAT Sensor 2 CKT Range/Perf
P0097 IAT Sensor 2 Circuit Low
P0098 IAT Sensor 2 Circuit High
P0099 IAT Sensor 2 CKT Intermittent
P0100 MAF or VAF A Circuit Malfunction
P0101 MAF or VAF A CKT Range/Perf
P0102 MAF or VAF A Circuit Low Input
P0103 MAF or VAF A Circuit High Input
P0104 MAF or VAF A CKT Intermittent
P0105 MAP/BARO Circuit Malfunction
P0106 MAP/BARO CKT Range/Perf
P0107 MAP/BARO Circuit Low Input
P0108 MAP/BARO Circuit High Input
P0109 MAP/BARO CKT Intermittent
P0110 IAT Sensor Circuit Malfunction
P0111 IAT Sensor 1 CKT Range/Perf
P0112 IAT Sensor 1 Circuit Low Input
P0113 IAT Sensor 1 Circuit High Input
P0114 IAT Sensor 1 CKT Intermittent
P0115 Engine Coolant Temp Circuit Malfunction
P0116 Engine Coolant Temp CKT Range/Perf
P0117 Engine Coolant Temp Circuit Low Input
P0118 Engine Coolant Temp Circuit High Input
P0119 Engine Coolant Temp CKT Intermittent
P0120 TPS/Pedal Position Sensor A Circuit Mal-
function
P0121 TPS/Pedal Position Sensor A CKT Range/
Perf
P0122 TPS/Pedal Position Sensor A Circuit Low
Input
P0123 TPS/Pedal Position Sensor A Circuit High
Input
P0124 TPS/Pedal Position Sensor A CKT Inter-
mittent
P0125 Clsd Loop Fuel Ctrl Insufficient Cool-
ant Temp
P0126 Coolant Temp Insufficient Stable Op-
eration
P0127 IAT Sensor Too High
P0128 Coolant Temp Below Thermostat Regu-
lating Temp
P0129 Barometric Pressure Too Low
P0130 O2 Sensor Circuit Malfunction (Bank 1
Sensor 1)
P0131 O2 Sensor Circuit Low Volts (Bank 1 Sen-
sor 1)
P0132 O2 Sensor Circuit High Volts (Bank 1
Sensor 1)
P0133 O2 Sensor CKT Slow Response (Bank 1
Sensor 1)
P0134 O2 Sensor CKT No Activity (Bank 1 Sen-
sor 1)
P0135 O2 Sensor Heater Circuit Malfunction
(Bank 1 Sensor 1)
P0136 O2 Sensor Circuit Malfunction (Bank 1
Sensor 2)
P0137 O2 Sensor Circuit Low Volts (Bank 1 Sen-
sor 2)
P0138 O2 Sensor Circuit High Volts (Bank 1
Sensor 2)
P0139 O2 Sensor CKT Slow Response (Bank 1
Sensor 2)
P0140 O2 Sensor CKT No Activity (Bank 1 Sen-
sor 2)
P0141 O2 Sensor Heater Circuit Malfunction
(Bank 1 Sensor 2)
P0142 O2 Sensor Circuit Malfunction (Bank 1
Sensor 3)
P0143 O2 Sensor Circuit Low Volts (Bank 1 Sen-
sor 3)
P0144 O2 Sensor Circuit High Volts (Bank 1
Sensor 3)
P0145 O2 Sensor CKT Slow Response (Bank 1
Sensor 3)
P0146 O2 Sensor CKT No Activity (Bank 1 Sen-
sor 3)
P0147 O2 Sensor Heater Circuit Malfunction
(Bank 1 Sensor 3)
P0148 Fuel Delivery Malfunction
P0149 Fuel Timing Malfunction
P0150 O2 Sensor Circuit Malfunction (Bank 2
Sensor 1)
P0151 O2 Sensor Circuit Low Volts (Bank 2 Sen-
sor 1)
P0152 O2 Sensor Circuit High Volts (Bank 2
Sensor 1)
P0153 O2 Sensor CKT Slow Response (Bank 2
Sensor 1)

14 |User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
P0154 O2 Sensor CKT No Activity (Bank 2 Sen-
sor 1)
P0155 O2 Sensor Heater Circuit Malfunction
(Bank 2 Sensor 1)
P0156 O2 Sensor Circuit Malfunction (Bank 2
Sensor 2)
P0157 O2 Sensor Circuit Low Volts (Bank 2 Sen-
sor 2)
P0158 O2 Sensor Circuit High Volts (Bank 2
Sensor 2)
P0159 O2 Sensor CKT Slow Response (Bank 2
Sensor 2)
P0160 O2 Sensor CKT No Activity (Bank 2 Sen-
sor 2)
P0161 O2 Sensor Heater Circuit Malfunction
(Bank 2 Sensor 2)
P0162 O2 Sensor Circuit Malfunction (Bank 2
Sensor 3)
P0163 O2 Sensor Circuit Low Volts (Bank 2 Sen-
sor 3)
P0164 O2 Sensor Circuit High Volts (Bank 2
Sensor 3)
P0165 O2 Sensor CKT Slow Response (Bank 2
Sensor 3)
P0166 O2 Sensor CKT No Activity (Bank 2 Sen-
sor 3)
P0167 O2 Sensor Heater Circuit Malfunction
(Bank 2 Sensor 3)
P0168 Engine Fuel Temperature Too High
P0169 Fuel Composition Incorrect
P0170 Fuel Trim Malfunction (Bank 1)
P0171 System Too Lean (Bank 1)
P0172 System Too Rich (Bank 1)
P0173 Fuel Trim Malfunction (Bank 2)
P0174 System Too Lean (Bank 2)
P0175 System Too Rich (Bank 2)
P0176 Fuel Compensation Sensor Circuit Mal-
function
P0177 Fuel Compensation Sensor CKT Range/
Perf
P0178 Fuel Compensation Sensor Circuit Low
Input
P0179 Fuel Compensation Sensor Circuit High
Input
P0180 Fuel Temperature Sensor A Circuit Mal-
function
P0181 Fuel Temperature Sensor A CKT Range/
Perf
P0182 Fuel Temperature Sensor A Circuit Low
Input
P0183 Fuel Temperature Sensor A Circuit High
Input
P0184 Fuel Temperature Sensor A CKT Inter-
mittent
P0185 Fuel Temperature Sensor B Circuit Mal-
function
P0186 Fuel Temperature Sensor B CKT Range/
Perf
P0187 Fuel Temperature Sensor B Circuit Low
Input
P0188 Fuel Temperature Sensor B Circuit High
Input
P0189 Fuel Temperature Sensor B CKT Inter-
mittent
P0190 Fuel Rail Pressure Sensor Circuit Mal-
function
P0191 Fuel Rail Pressure Sensor CKT Range/
Perf
P0192 Fuel Rail Pressure Sensor Circuit Low In-
put
P0193 Fuel Rail Pressure Sensor Circuit High
Input
P0194 Fuel Rail Pressure Sensor CKT Intermit-
tent
P0195 Engine Oil Temp Sensor Circuit Malfunc-
tion
P0196 Engine Oil Temp Sensor CKT Range/Perf
P0197 Engine Oil Temp Sensor Circuit Low In-
put
P0198 Engine Oil Temp Sensor Circuit High In-
put
P0199 Engine Oil Temp Sensor CKT Intermittent
P0200 Injector Circuit Open
P0201 Injector Circuit Open Cylinder 1
P0202 Injector Circuit Open Cylinder 2
P0203 Injector Circuit Open Cylinder 3
P0204 Injector Circuit Open Cylinder 4
P0205 Injector Circuit Open Cylinder 5
P0206 Injector Circuit Open Cylinder 6
P0207 Injector Circuit Open Cylinder 7
P0208 Injector Circuit Open Cylinder 8
P0209 Injector Circuit Open Cylinder 9
P0210 Injector Circuit Open Cylinder 10
P0211 Injector Circuit Open Cylinder 11
P0212 Injector Circuit Open Cylinder 12

| OBD 1000 | User guide | 15
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
P0213 Cold Start Injector 1 Malfunction
P0214 Cold Start Injector 2 Malfunction
P0215 Engine Shutoff Solenoid Malfunction
P0216 Injection Timing Control Circuit Mal-
function
P0217 Engine Overtemp Condition
P0218 Trans Overtemp Condition
P0219 Engine Overspeed Condition
P0220 TPS/Pedal Position Sensor/Switch B Cir-
cuit Malfunction
P0221 TPS/Pedal Position Sensor/Switch B CKT
Range/Perf
P0222 TPS/Pedal Position Sensor/Switch B Cir-
cuit Low Input
P0223 TPS/Pedal Position Sensor/Switch B Cir-
cuit High Input
P0224 TPS/Pedal Position Sensor/Switch B CKT
Intermittent
P0225 TPS/Pedal Position Sensor/Switch C Cir-
cuit Malfunction
P0226 TPS/Pedal Position Sensor/Switch C CKT
Range/Perf
P0227 TPS/Pedal Position Sensor/Switch C Cir-
cuit Low Input
P0228 TPS/Pedal Position Sensor/Switch C Cir-
cuit High Input
P0229 TPS/Pedal Position Sensor/Switch C CKT
Intermittent
P0230 Fuel Pump Primary Circuit Malfunction
P0231 Fuel Pump Secondary Circuit Low
P0232 Fuel Pump Secondary Circuit High
P0233 Fuel Pump Secondary Circuit Intermit-
tent Ckt
P0234 Engine Overboost Condition
P0235 Turbo/Super Boost Sensor A Circuit Mal-
function
P0236 Turbo/Super Boost Sensor A CKT Range/
Perf
P0237 Turbo/Super Boost Sensor A Circuit Low
Input
P0238 Turbo/Super Boost Sensor A Circuit High
Input
P0239 Turbo/Super Boost Sensor B Circuit Mal-
function
P0240 Turbo/Super Boost Sensor B CKT Range/
Perf
P0241 Turbo/Super Boost Sensor B Circuit Low
Input
P0242 Turbo/Super Boost Sensor B Circuit High
Input
P0243 Turbo/Sup Wastegate Solenoid A Mal-
function
P0244 Turbo/Sup Wastegate Solenoid A Range/
Performance
P0245 Turbo/Sup Wastegate Solenoid A Low
P0246 Turbo/Sup Wastegate Solenoid A High
P0247 Turbo/Sup Wastegate Solenoid B Mal-
function
P0248 Turbo/Sup Wastegate Solenoid B Range/
Performance
P0249 Turbo/Sup Wastegate Solenoid B Low
P0250 Turbo/Sup Wastegate Solenoid B High
P0251 Injection Pump Metering Control A
P0252 Injection Pump Metering Control A
Range/Performance
P0253 Injection Pump Metering Control A Low
P0254 Injection Pump Metering Control A High
P0255 Injection Pump Metering Control A Inter-
mittent Ckt
P0256 Injection Pump Metering Control B Mal-
function
P0257 Injection Pump Metering Control B
Range/Performance
P0258 Injection Pump Metering Control B Low
P0259 Injection Pump Metering Control B High
P0260 Injection Pump Metering Control B Inter-
mittent Ckt
P0261 Cylinder 1 Injector Control Circuit Low
P0262 Cylinder 1 Injector Control Circuit High
P0263 Cylinder 1 Contribution Balance Fault
P0264 Cylinder 2 Injector Control Circuit Low
P0265 Cylinder 2 Injector Control Circuit High
P0266 Cylinder 2 Contribution Balance Fault
P0267 Cylinder 3 Injector Control Circuit Low
P0268 Cylinder 3 Injector Control Circuit High
P0269 Cylinder 3 Contribution Balance Fault
P0270 Cylinder 4 Injector Control Circuit Low
P0271 Cylinder 4 Injector Control Circuit High
P0272 Cylinder 4 Contribution Balance Fault
P0273 Cylinder 5 Injector Control Circuit Low
P0274 Cylinder 5 Injector Control Circuit High
P0275 Cylinder 5 Contribution Balance Fault
P0276 Cylinder 6 Injector Control Circuit Low

16 |User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
P0277 Cylinder 6 Injector Control Circuit High
P0278 Cylinder 6 Contribution Balance Fault
P0279 Cylinder 7 Injector Control Circuit Low
P0280 Cylinder 7 Injector Control Circuit High
P0281 Cylinder 7 Contribution Balance Fault
P0282 Cylinder 8 Injector Control Circuit Low
P0283 Cylinder 8 Injector Control Circuit High
P0284 Cylinder 8 Contribution Balance Fault
P0285 Cylinder 9 Injector Control Circuit Low
P0286 Cylinder 9 Injector Control Circuit High
P0287 Cylinder 9 Contribution Balance Fault
P0288 Cylinder 10 Injector Control Circuit Low
P0289 Cylinder 10 Injector Control Circuit High
P0290 Cylinder 10 Contribution Balance Fault
P0291 Cylinder 11 Injector Control Circuit Low
P0292 Cylinder 11 Injector Control Circuit High
P0293 Cylinder 11 Contribution Balance Fault
P0294 Cylinder 12 Injector Control Circuit Low
P0295 Cylinder 12 Injector Control Circuit High
P0296 Cylinder 12 Contribution Balance Fault
P0297 Vehicle Overspeed Error
P0298 Engine Oil Temperature Too High
P0299 Turbo/Super Charger UnderBoost
P0300 Random/Multiple Cylinder Misfire De-
tected
P0301 Cylinder 1 Misfire Detected
P0302 Cylinder 2 Misfire Detected
P0303 Cylinder 3 Misfire Detected
P0304 Cylinder 4 Misfire Detected
P0305 Cylinder 5 Misfire Detected
P0306 Cylinder 6 Misfire Detected
P0307 Cylinder 7 Misfire Detected
P0308 Cylinder 8 Misfire Detected
P0309 Cylinder 9 Misfire Detected
P0310 Cylinder 10 Misfire Detected
P0311 Cylinder 11 Misfire Detected
P0312 Cylinder 12 Misfire Detected
P0313 Misfire Detected Low Fuel Level
P0314 Misfire Detected Cyl. not Specific
P0315 Crankshaft Position System Variation Not
Learned
P0316 Misfire Detected 1st 1000 Revs.
P0317 Rough Road Hardware Not Present
P0318 Rough Road Sensor A Signal Circuit
P0319 Rough Road Sensor B
P0320 Ignition/Dist Engine Speed Input Circuit
Malfunction
P0321 Ignition/Dist Engine Speed Input CKT
Range/Perf
P0322 Ignition/Dist Engine Speed Input Circuit
No Signal
P0323 Ignition/Dist Engine Speed Input CKT In-
termittent
P0324 Knock Control System Malfunction
P0325 Knock Sensor 1 Circuit Malfunction Bank
1 or 1 Sensor
P0326 Knock Sensor 1 CKT Range/Perf Bank 1
or 1 Sensor
P0327 Knock Sensor 1 Circuit Low Input Bank 1
or 1 Sensor
P0328 Knock Sensor 1 Circuit High Input Bank
1 or 1 Sensor
P0329 Knock Sensor 1 CKT Intermittent Bank 1
or 1 Sensor
P0330 Knock Sensor 2 Circuit Malfunction
(Bank 2)
P0331 Knock Sensor 2 CKT Range/Perf (Bank 2)
P0332 Knock Sensor 2 Circuit Low Input (Bank
2)
P0333 Knock Sensor 2 Circuit High Input (Bank
2)
P0334 Knock Sensor 2 CKT Intermittent (Bank
2)
P0335 Crankshaft Position Sensor A Circuit Mal-
function
P0336 Crankshaft Position Sensor A CKT Range/
Perf
P0337 Crankshaft Position Sensor A Circuit
Low Input
P0338 Crankshaft Position Sensor A Circuit
High Input
P0339 Crankshaft Position Sensor A CKT Inter-
mittent
P0340 Camshaft Position Sensor A - Bank 1 Cir-
cuit Malfunction
P0341 Camshaft Position Sensor A - Bank 1 CKT
Range/Perf
P0342 Camshaft Position Sensor A - Bank 1 Cir-
cuit Low Input
P0343 Camshaft Position Sensor A - Bank 1 Cir-
cuit High Input

| OBD 1000 | User guide | 17
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
P0344 Camshaft Position Sensor A - Bank 1 CKT
Intermittent
P0345 Camshaft Position Sensor A - Bank 2 Cir-
cuit Malfunction
P0346 Camshaft Position Sensor A - Bank 2 CKT
Range/Perf
P0347 Camshaft Position Sensor A - Bank 2 Cir-
cuit Low Input
P0348 Camshaft Position Sensor A - Bank 2 Cir-
cuit High Input
P0349 Camshaft Position Sensor A - Bank 2 CKT
Intermittent
P0350 Ignition Coil Primary/Secondary Circuit
Malfunction
P0351 Ignition Coil A Primary/Secondary Circuit
Malfunction
P0352 Ignition Coil B Primary/Secondary Circuit
Malfunction
P0353 Ignition Coil C Primary/Secondary Circuit
Malfunction
P0354 Ignition Coil D Primary/Secondary Circuit
Malfunction
P0355 Ignition Coil E Primary/Secondary Circuit
Malfunction
P0356 Ignition Coil F Primary/Secondary Circuit
Malfunction
P0357 Ignition Coil G Primary/Secondary Circuit
Malfunction
P0358 Ignition Coil H Primary/Secondary Circuit
Malfunction
P0359 Ignition Coil I Primary/Secondary Circuit
Malfunction
P0360 Ignition Coil J Primary/Secondary Circuit
Malfunction
P0361 Ignition Coil K Primary/Secondary Circuit
Malfunction
P0362 Ignition Coil L Primary/Secondary Circuit
Malfunction
P0363 Misfire Detected Fueling Disabled
P0365 Camshaft Position Sensor B - Bank 1 Cir-
cuit Malfunction
P0366 Camshaft Position Sensor B - Bank 1 CKT
Range/Perf
P0367 Camshaft Position Sensor B - Bank 1 Cir-
cuit Low Input
P0368 Camshaft Position Sensor B - Bank 1 Cir-
cuit High Input
P0369 Camshaft Position Sensor B - Bank 1 CKT
Intermittent
P0370 Timing Reference High Res Signal A Mal-
function
P0371 Timing Reference High Res Signal A Too
Many Pulses
P0372 Timing Reference High Res Signal A Too
Few Pulses
P0373 Timing Reference High Res Signal A Er-
ratic Pulses
P0374 Timing Reference High Res Signal A No
Pulses
P0375 Timing Reference High Res Signal B Mal-
function
P0376 Timing Reference High Res Signal B Too
Many Pulses
P0377 Timing Reference High Res Signal B Too
Few Pulses
P0378 Timing Reference High Res Signal B Er-
ratic Pulses
P0379 Timing Reference High Res Signal B No
Pulses
P0380 Glow Plug/Heater CKT A Malfunction
P0381 Glow Plug/Heater Indicator Circuit Mal-
function
P0382 Glow Plug/Heater CKT B Malfunction
P0383 Glow Plug Module Control Circuit Low
P0384 Glow Plug Module Control Circuit High
P0385 Crankshaft Position Sensor B Circuit Mal-
function
P0386 Crankshaft Position Sensor B CKT Range/
Perf
P0387 Crankshaft Position Sensor B Circuit
Low Input
P0388 Crankshaft Position Sensor B Circuit
High Input
P0389 Crankshaft Position Sensor B CKT Inter-
mittent
P0390 Camshaft Position Sensor B - Bank 2 Cir-
cuit Malfunction
P0391 Camshaft Position Sensor B - Bank 2 CKT
Range/Perf
P0392 Camshaft Position Sensor B - Bank 2 Cir-
cuit Low Input
P0393 Camshaft Position Sensor B - Bank 2 Cir-
cuit High Input
P0394 Camshaft Position Sensor B - Bank 2 CKT
Intermittent
P0400 EGR Flow Malfunction
P0401 EGR Flow Insufficient
P0402 EGR Flow Excessive
P0403 EGR Flow Circuit Malfunction
P0404 EGR Flow CKT Range/Perf

18 |User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
P0405 EGR Flow Sensor A Circuit Low Input
P0406 EGR Flow Sensor A Circuit High Input
P0407 EGR Flow Sensor B Circuit Low Input
P0408 EGR Flow Sensor B Circuit High Input
P0409 EGR Flow Sensor A Circuit
P0410 Secondary Air Injection System Malfunc-
tion
P0411 Secondary Air Injection System Incor-
rect Flow
P0412 Secondary Air Injection System Valve A
Malfunction
P0413 Secondary Air Injection System Valve A
CKT Open
P0414 Secondary Air Injection System Valve A
CKT Short
P0415 Secondary Air Injection System Valve B
Malfunction
P0416 Secondary Air Injection System Valve B
CKT Open
P0417 Secondary Air Injection System Valve B
CKT Short
P0418 Secondary Air Injection System Relay A
Malfunction
P0419 Secondary Air Injection System Relay B
Malfunction
P0420 Catalyst Efficiency Below Threshold
(Bank 1)
P0421 Warm Up Catalyst Below Threshold
(Bank 1)
P0422 Main Catalyst Below Threshold (Bank 1)
P0423 Heated Catalyst Below Threshold (Bank
1)
P0424 Htd Catalyst Temp Below Threshold
(Bank 1)
P0425 Catalyst Temp. Sensor (Bank 1 Sensor 1)
P0426 Catalyst Temp. Sensor Performance
(Bank 1 Sensor 1)
P0427 Catalyst Temp. Sensor Circuit Low (Bank
1 Sensor 1)
P0428 Catalyst Temp. Sensor Circuit High (Bank
1 Sensor 1)
P0429 Catalyst Heater Control (Bank 1)
P0430 Catalyst Efficiency Below Threshold
(Bank 2)
P0431 Warm Up Catalyst Below Threshold
(Bank 2)
P0432 Main Catalyst Below Threshold (Bank 2)
P0433 Heated Catalyst Below Threshold (Bank
2)
P0434 Htd Catalyst Temp Below Threshold
(Bank 2)
P0435 Catalyst Temp. Sensor (Bank 2)
P0436 Catalyst Temp. Sensor Performance
(Bank 2)
P0437 Catalyst Temp. Sensor Circuit Low (Bank
2)
P0438 Catalyst Temp. Sensor Circuit High (Bank
2)
P0439 Catalyst Heater Control (Bank 2)
P0440 EVAP Emission Control System Malfunc-
tion
P0441 EVAP Emission Control System Purge
Flow Fault
P0442 EVAP Emission Control System Leak
(Small)
P0443 EVAP Emission Control System Purge
Valve C Fault
P0444 EVAP Emission Control System Purge
Valve C Open
P0445 EVAP Emission Control System Purge
Valve C Short
P0446 EVAP Emission Control System Vent Cir-
cuit Malf
P0447 EVAP Emission Control System Vent Cir-
cuit Open
P0448 EVAP Emission Control System Vent Cir-
cuit Short
P0449 EVAP Emission Control System Vent Vlv/
Sol Malf
P0450 EVAP Emission Control System Pres Sen-
sor Fault
P0451 EVAP Emission Control System Pres Sen-
sor Range
P0452 EVAP Emission Control System Pres Sen-
sor Low
P0453 EVAP Emission Control System Pres Sen-
sor High
P0454 EVAP Emission Control System Pres Sen-
sor Erratic
P0455 EVAP Emission Control System Leak
(Large)
P0456 EVAP Emission Control System Leak Very
Small
P0457 EVAP Emission Control System Leak Cap
Loose/Off
P0458 EVAP System Canister Purge Sol Cir-
cuit Low
P0459 EVAP System Canister Purge Sol Cir-
cuit High

| OBD 1000 | User guide | 19
en
574694 REV A | 11.2014Bosch Automotive Service Solutions
P0460 Fuel Level Sensor A Circuit Malfunction
P0461 Fuel Level Sensor A CKT Range/Perf
P0462 Fuel Level Sensor A Circuit Low Input
P0463 Fuel Level Sensor A Circuit High Input
P0464 Fuel Level Sensor A CKT Intermittent
P0465 EVAP Emission Purge Flow Sensor Circuit
Malfunction
P0466 EVAP Emission Purge Flow Sensor CKT
Range/Perf
P0467 EVAP Emission Purge Flow Sensor Cir-
cuit Low Input
P0468 EVAP Emission Purge Flow Sensor Circuit
High Input
P0469 EVAP Emission Purge Flow Sensor CKT
Intermittent
P0470 Exhaust Pressure Sensor Circuit Mal-
function
P0471 Exhaust Pressure Sensor CKT Range/Perf
P0472 Exhaust Pressure Sensor Circuit Low In-
put
P0473 Exhaust Pressure Sensor Circuit High In-
put
P0474 Exhaust Pressure Sensor CKT Intermit-
tent
P0475 Exhaust Pressure Control Valve Circuit
Malfunction
P0476 Exhaust Pressure Control Valve CKT
Range/Perf
P0477 Exhaust Pressure Control Valve Circuit
Low Input
P0478 Exhaust Pressure Control Valve Circuit
High Input
P0479 Exhaust Pressure Control Valve CKT In-
termittent
P0480 Cooling Fan 1 Control Circuit
P0481 Cooling Fan 2 Control Circuit
P0482 Cooling Fan 3 Control Circuit
P0483 Control Fan Rationality Check Malfunc-
tion
P0484 Control Fan CKT Over Current
P0485 Control Fan Power/Ground Circuit Mal-
function
P0486 EGR System Sensor B Circuit
P0487 EGR TPS Control Circuit
P0488 EGR TPS Control CKT Range/Perf
P0489 EGR Control Circuit Low
P0490 EGR Control Circuit High
P0491 Secondary Air System (Bank 1)
P0492 Secondary Air System (Bank 2)
P0493 Fan Speed Overspeed
P0494 Fan Speed Low
P0495 Fan Speed High
P0496 EVAP Emission High Purge Flow Fault
P0497 EVAP Emission Low Purge Flow Fault
P0498 EVAP Emission Vent Vlv/Sol Malf Cir-
cuit Low
P0499 EVAP Emission Vent Vlv/Sol Malf Cir-
cuit High
P0500 Veh Speed Sensor A Malfunction
P0501 Veh Speed Sensor A Range/Performance
P0502 Veh Speed Sensor A Circuit Low Input
P0503 Veh Speed Sensor A Erratic/High
P0504 Brake Switch A Brake Switch B Corre-
lation
P0505 Idle Control System Malfunction
P0506 Idle Control System RPM Low
P0507 Idle Control System RPM High
P0508 Idle Control System Circuit Low
P0509 Idle Control System Circuit High
P0510 Closed Throttle Position Switch
P0511 Idle Air Control Circuit
P0512 Starter Signal Circuit
P0513 Immobilizer Incorrect
P0514 Battery Temperature Sensor CKT Range/
Perf
P0515 Battery Temperature Sensor Circuit
P0516 Battery Temperature Circuit Low
P0517 Battery Temperature Circuit High
P0518 Idle Air Control CKT Intermittent
P0519 Idle Air Control System Performance
P0520 Engine Oil Pressure Sensor/Switch Cir-
cuit Malfunction
P0521 Engine Oil Pressure Sensor/Switch
Range/Performance
P0522 Engine Oil Pressure Sensor/Switch Low
Voltage
P0523 Engine Oil Pressure Sensor/Switch High
Voltage
P0524 Engine Oil Pressure Too Low
P0525 Cruise Servo CKT Range/Perf
P0526 Fan Speed Sensor Circuit

20 |User guide | OBD 1000 |en
574694 REV A | 11.2014 Bosch Automotive Service Solutions
P0527 Fan Speed Sensor CKT Range/Perf
P0528 Fan Speed Sensor Circuit No Signal
P0529 Fan Speed Sensor CKT Intermittent
P0530 A/C Refrigerant Pressure Sensor A Circuit
Malfunction
P0531 A/C Refrigerant Pressure Sensor A CKT
Range/Perf
P0532 A/C Refrigerant Pressure Sensor A Cir-
cuit Low Input
P0533 A/C Refrigerant Pressure Sensor A Cir-
cuit High Input
P0534 A/C Refrigerant Charge Loss
P0535 A/C Evaporator Temperature Sensor Cir-
cuit
P0536 A/C Evaporator Temperature Sensor CKT
Range/Perf
P0537 A/C Evaporator Temperature Sensor Cir-
cuit Low
P0538 A/C Evaporator Temperature Sensor Cir-
cuit High
P0539 A/C Evaporator Temperature Sensor CKT
Intermittent
P0540 Intake Air Heater A Circuit
P0541 Intake Air Heater A Circuit Low
P0542 Intake Air Heater A Circuit High
P0543 Intake Air Heater A Circuit Open
P0544 Exhaust Gas Temp. Sensor Circuit (Bank
1 Sensor 1)
P0545 Exhaust Gas Temp. Sensor Circuit Low
(Bank 1 Sensor 1)
P0546 Exhaust Gas Temp. Sensor Circuit High
(Bank 1 Sensor 1)
P0547 Exhaust Gas Temp. Sensor Circuit (Bank
2 Sensor 1)
P0548 Exhaust Gas Temp. Sensor Circuit Low
(Bank 2 Sensor 1)
P0549 Exhaust Gas Temp. Sensor Circuit High
(Bank 2 Sensor 1)
P0550 Power Steering Pres Sensor Circuit Mal-
function
P0551 Power Steering Pres Sensor CKT Range/
Perf
P0552 Power Steering Pres Sensor Circuit Low
Input
P0553 Power Steering Pres Sensor Circuit High
Input
P0554 Power Steering Pres Sensor CKT Inter-
mittent
P0555 Brake Booster Pressure Sensor Circuit
P0556 Brake Booster Pressure Sensor CKT
Range/Perf
P0557 Brake Booster Pressure Sensor Circuit
Low Input
P0558 Brake Booster Pressure Sensor Circuit
High Input
P0559 Brake Booster Pressure Sensor CKT In-
termittent
P0560 System Voltage Malfunction
P0561 System Voltage Unstable
P0562 System Voltage Low
P0563 System Voltage High
P0564 Cruise Control Multi-Func. Input A Sig-
nal Error
P0565 Cruise Control On Signal Malfunction
P0566 Cruise Control Off Signal Malfunction
P0567 Cruise Control Resume Signal Malfunc-
tion
P0568 Cruise Control Set Signal Malfunction
P0569 Cruise Control Coast Signal Malfunction
P0570 Cruise Control Acceleration Signal Error
P0571 Brake Switch A Circuit Malfunction
P0572 Brake Switch A Circuit Low Input
P0573 Brake Switch A Circuit High Input
P0574 Cruise Control Vehicle Speed Too High
P0575 Cruise Control Circuit Malfunction
P0576 Cruise Control Circuit Low Input
P0577 Cruise Control Circuit High Input
P0578 Cruise Control Multi-Func. Input A Cir-
cuit Stuck
P0579 Cruise Control Multi-Func. Input A CKT
Range/Perf
P0580 Cruise Control Multi-Func. Input A Cir-
cuit Low
P0581 Cruise Control Multi-Func. Input A Cir-
cuit High
P0582 Cruise Control Vacuum Control Circuit/
Open
P0583 Cruise Control Vacuum Control Circuit
Low
P0584 Cruise Control Vacuum Control Circuit
High
P0585 Cruise Control Multi-Func. Input Corre-
lation
P0586 Cruise Control Vent Control Circuit/Open
P0587 Cruise Control Vent Control Circuit Low
