Installation Instructions
Notice d’installation
Instrucciones de instalación
9000 787 688 Rev A (9302)

To avoid possible injury or property damage, OBSERVE ALL WARNINGS
AND CAUTIONS.
These instructions are intended for use by qualied installers only. The
dishwasher must be installed by a qualied service technician or installer.
• In addition to these instructions, the dishwasher shall be installed to
meet all electrical and plumbing codes and ordinances (both national
and local).
Read these installation instructions completely and follow them
carefully. They will save you time and effort and help to ensure safety and
optimum dishwasher performance.
IMPORTANT
• The dishwasher drain hose must be installed with a portion of it at least
20″ (508mm) off the cabinet oor; otherwise the dishwasher may not
drain properly.
• This dishwasher is intended for indoor residential use only, and should
not be used in commercial food service establishments.
• NEW INSTALLATION - If the dishwasher is a new installation, ensure
all connections are properly made before the dishwasher is moved into
place.
• REPLACEMENT - If the dishwasher is replacing another dishwasher,
check the existing dishwasher connections for compatibility with the
new dishwasher, and replace parts as necessary.
• This appliance has been found to be in compliance with CAN/CSA-C22.2
No. 167/UL 749. It is the responsibility of the owner and the installer
to determine if additional requirements and standards apply in specic
installations.
• Not for outdoor use.
Inspect the Dishwasher
After unpacking the dishwasher and prior to installation, thoroughly inspect
the dishwasher for possible freight or cosmetic damage. Report any
damage immediately. Cosmetic defects must be reported within 30 days
of installation.
NOTE: Do not discard any bags or items that come with the original package
until after the entire installation has been completed.
1
Important Safety Instructions:
Please READ and SAVE this information

2
Avoiding General Hazards
Do not use the dishwasher until it is completely installed. When opening
the door on an uninstalled dishwasher, carefully open the door while
supporting the rear of the unit. Failure to follow this warning can cause the
dishwasher to tip over and result in serious injury.
Before installing the supplied counter top mounting brackets, decide which
method will be used to secure the dishwasher into its opening. Once these
mounting brackets are installed on the dishwasher, removing them is dif-
cult and will damage the mounting brackets and the dishwasher.
In some conditions, hydrogen gas can form in a hot water system that
has not been used for weeks. Hydrogen gas is explosive. Before lling a
dishwasher from a system that has been off for weeks, run the water from
a nearby faucet in a well ventilated area until there is no sound or evidence
of gas.
Temperatures required for soldering and sweating will damage the dish-
washer’s base and water inlet valve. If plumbing lines are to be soldered
or sweated, keep the heat source at least 6″ (152.4 mm) away from the
dishwasher.
Removing any cover or pulling the dishwasher from the cabinet can
expose hot water connections, electrical power and sharp edges or points.
Handle with care.
Avoiding Electrical Shock/Fire Hazards
Do not work on an energized circuit. Doing so could result in serious
injury or death. Only qualied electricians should perform electrical work.
Do not attempt any work on the dishwasher electric supply circuit until
you are certain the circuit is de-energized.
Make sure electrical work is properly installed. There should be no loose
electrical connections. Ensure all electrical connections are properly
made.
The customer has the responsibility of ensuring that the dishwasher
electrical installation is in compliance with all national and local electrical
codes and ordinances. The dishwasher is designed for an electrical
supply of 120V, 60 Hz, AC, connected to a dishwasher-dedicated, properly
grounded electrical circuit with a fuse or breaker rated for 15 amps.
Electrical supply conductors shall be a minimum #14 AWG copper only
wire rated at 75°C (167°F) or higher.
WARNING

This appliance must be connected to a grounded metal, permanent wiring
system, or an equipment-grounding conductor must be run with the circuit
conductors and connected to the equipment-grounding terminal or lead on
the appliance. Do not use extension cords.
Avoiding Plumbing/Scalding Hazards
Do not perform any work on a charged hot water line. Serious injury could
result. Only qualied plumber should perform plumbing work. Do not
attempt any work on the dishwasher hot water supply plumbing until you
are certain the hot water supply is shut off.
Properly tighten all water connections. Not doing so could result in a leak.
Check local plumbing codes for approved plumbing procedures and ac-
cessories. All plumbing should be done in accordance with national and
local codes.
If using copper tubing or other material not depicted in this manual for
water supply, defer to a licensed plumber for proper installation.
3

Electrical Supply Cable - Minimum #14 AWG, 2 conductor,
1 ground, insulated copper conductors rated 75°C or higher
Only needed if house electrical line is not adequate.
Hot Water Supply Line - Minimum 3/8″ O.D. copper tubing
or metal braided dishwasher supply line
Only needed if house water supply line is not sufcient.
Shut-off valve and ttings appropriate for hot water supply
line (copper tubing/compression tting, or braided hose)
UL listed conduit connector or strain relief is required if you
attach the eld wiring directly to the terminal block
Tools and Materials Needed
Adjustable Wrench

Tape Measure
Wire Cutter Needle Nose Pliers
Pliers
Slot Screwdriver Level
Wire Stripper
Drill



Hole Saw
Phillips Screwdriver
4

Materials supplied (all models)
Screw Clamp (for drain hose)
Junction Box
Edge Protector
Mounting Brackets
Mounting Bracket Screws Ø 4x13mm
D
E
B
A
C
5

Materials supplied (model dependent)
Slotted Toe Panel (model dependent)
Installation Guide for Fully Integrated
Door Panel (model dependent)
Slotted Toe Panel Screws Ø 4x16mm
(model dependent)
Non-Slotted Toe Panel (model dependent)
Non-Slotted Toe Panel Screws (model
dependent) - Black or silver depending on
toe panel color
Toe Panel Mounting Brackets
(model dependent)
F
G
H
I
J
6

Enclosure Requirements
Avoid Scalding or Electrical Shock Hazard!
Make sure the water supply and electrical supply are shut off before
installation or service.
WARNING
Note: This dishwasher is designed to be enclosed on the top, back and
both sides by standard residential kitchen cabinetry.
Select a location as close to the sink as possible for easy access to water
supply and drain lines.
For proper dishwasher operation and appearance, ensure that the
enclosure is square and has the dimensions shown.
If the dishwasher is to be installed in a corner, ensure that there is
adequate clearance to open the door as shown.











1





2
7

After locating the proper place for your dishwasher, create required
openings in your cabinets in order to allow for water, drain and electrical
lines on the appropriate side. The holes should be cut within the 4x2.5”
area shown.








3
8
If the opening is made through wood, sand it smooth. If the opening is
made through metal, use the provided edge protector (B) or other approved
method to protect wiring from damage.
4
B

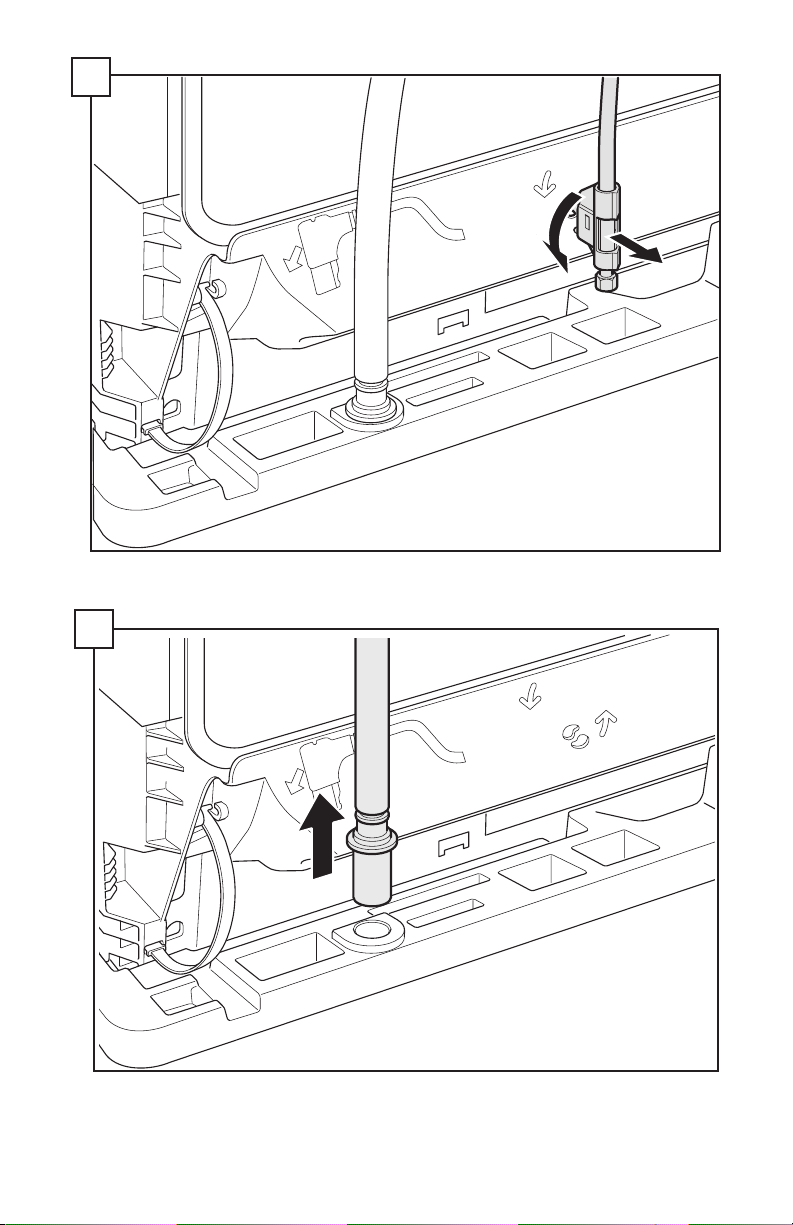

Twist the end of the water supply line to detach from the dishwasher
base as shown.
Pull the drain hose out of the packaging base as shown.
Set toe panel aside for later use.
5
6
9
1
2

Remove the hose clip at the back of the dishwasher as shown. The hose
clip may be used later to hold the drain hose inside your cabinet.
7
10
Electrical Preparation
WARNING
Avoid Electrical Shock Hazard
Do not work on an energized circuit. Doing so could result in serious
injury or death. Only qualied electricians should perform electrical
work. Do not attempt any work on the dishwasher electric supply
circuit until you are certain the circuit is de-energized.
To avoid possible injury or property damage, care should be exer-
cised when the dishwasher is installed or removed to reduce the
likelihood of damage to the power cord.
Avoid Fire Hazard
Make sure electrical work is properly installed. Only qualied
electricians should perform electrical work.
Make sure there are no loose electrical connections. Make sure all
electrical connections are properly made.
Electrical Supply
The customer has the responsibility of ensuring that the dishwasher
electrical installation is in compliance with all national and local electrical
codes and ordinances. The dishwasher is designed for an electrical sup-
ply of 120V, 60 Hz, AC, connected to a dishwasher-dedicated, properly
grounded electrical circuit with a fuse or breaker rated for 15 amps. Elec-
trical supply conductors shall be a minimum #14 AWG copper wire
rated at 75°C (167°F) or higher.

Note: Installations employing a Receptacle
The accessory cord kit (Model # SMZPC002UC) designed for connection to
a receptacle is not provided, but can be ordered through Customer Service
by calling 1-800-944-2904. Make sure the household receptacle meets the
electrical supply requirements as well as national and local codes. If you
choose to permanently connect to hardwiring, follow the next steps.
Turn off any electricity to installation area.
Remove screws and cover from junction box (A) and set aside for later use .

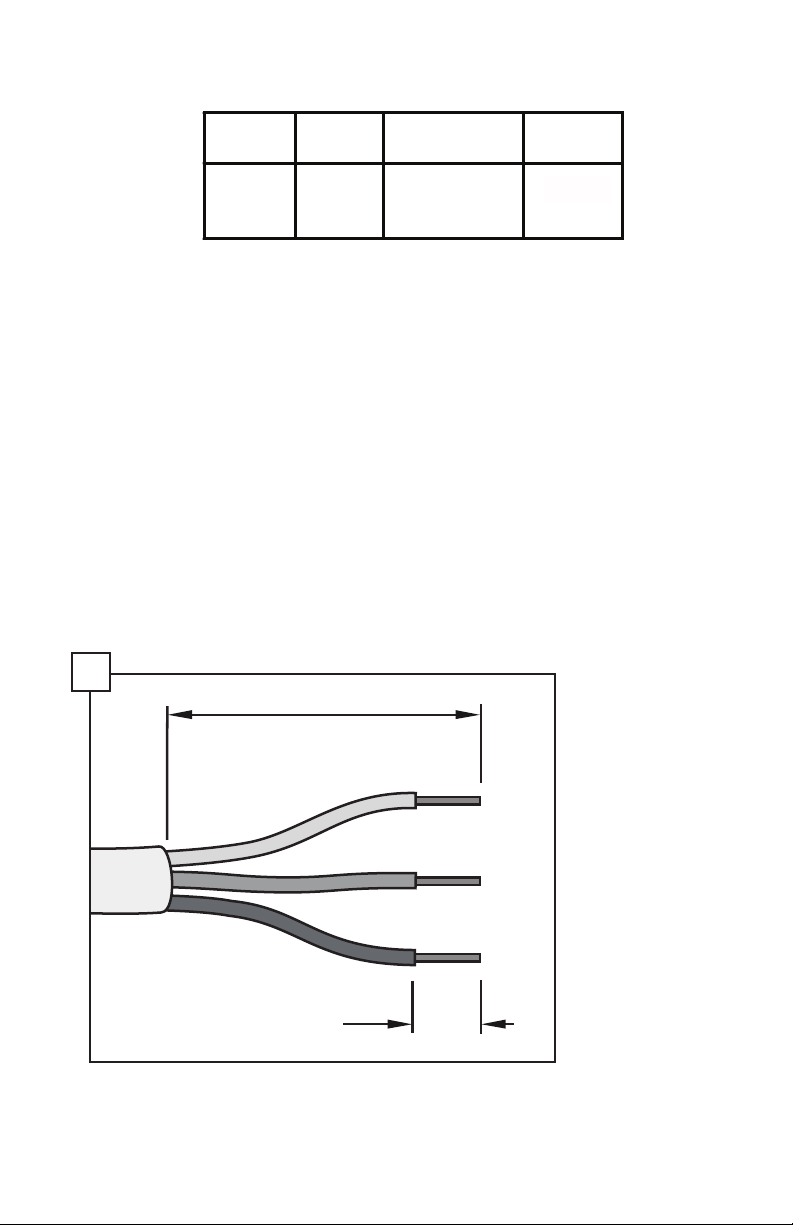

Remove outer casing and insulation of the hardwiring/power cord as
shown.




8
Dishwasher Electrical Rating
Volts Hertz Amperes Watts
120 60 15 1,450
(max)
12 1,440
Grounding Instructions
The dishwasher must be properly grounded before operating. This appli-
ance must be connected to a grounded metal permanent wiring system or
an equipment grounding conductor must be run with the circuit conductors
and connected to the equipment grounding terminal or lead on the dish-
washer. Make sure that the dishwasher is connected to a suitable ground
in compliance with all local codes or, in the absence of a local code, with
the NATIONAL ELECTRICAL CODE in the United States or the CANA-
DIAN ELECTRIC CODE C22.1-latest edition in Canada as well as any
provincial/state or municipal or local codes that apply.
11

12

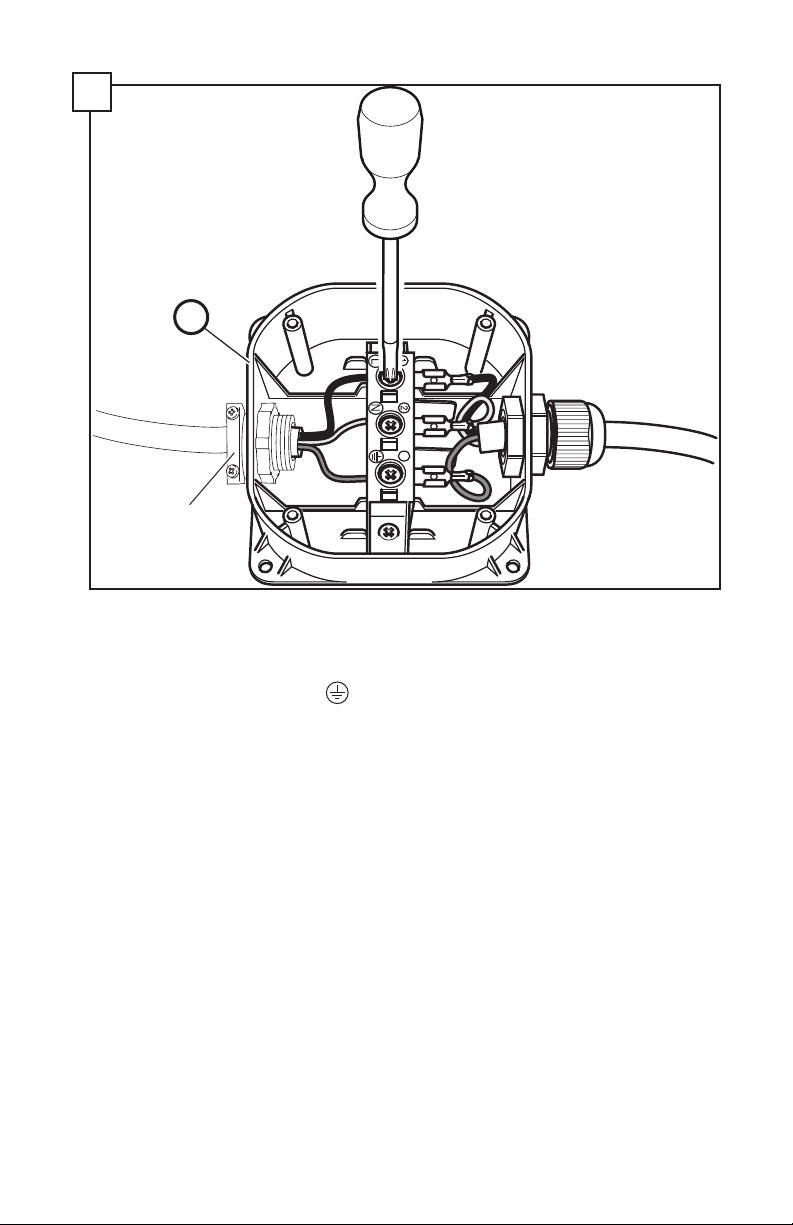

Attach strain relief (not provided) to opposite side of junction box.
Insert the bare copper or green wire (ground) from the eld supply wiring
into the ground connection “ ” of the terminal block and securely tighten
the terminal block screw as shown.
Insert the white (neutral) wire to the “N” connection of the terminal block
and securely tighten the terminal block screw.
Insert the black (hot) wire to the “L” connection of the terminal block and
securely tighten the terminal block screw.
Tighten strain relief.

strain relief
(not provided)
A
9

Check all electrical connections to make sure they are secure and then
reattach the junction box cover.
Plug the end of the supply cord into the back of the dishwasher as shown
until it clicks.

11
10
Mount the dishwasher electrical supply junction box (A) and dedicated
receptacle in an accessible cabinet adjacent to the dishwasher (do not
mount the junction box or receptacle behind the dishwasher).
Note: screws are not provided for mounting electrical supply junction
box.
A
13

14
Installation of Mounting Brackets
NOTICE
Before installing the supplied counter top mounting brackets, decide
which method of securing the dishwasher into its enclosure will be
used. Once the mounting brackets are installed on the dishwasher,
removing them is difcult and will damage the mounting brackets
and the dishwasher.
If you have a Fully Integrated Panel, do not attach mounting brackets
until after attaching the panel to the door.
If insulation is covering the area in 12a, fold it back.
Orient the mounting brackets (D) as shown. Please note the position-
ing of the bracket in illustration 12b.
Using pliers, bend down as shown in 12c such that the bracket will not
slip out of slot in frame. Do not attach to cabinet yet.
Top Mount is used for counter tops made of wood or other materials
that can be easily drilled. If you have solid surface, marble, granite,
or other very hard countertops, skip to step 13 now.
12
WARNING
Avoid Tip Over Hazard
Do not use the dishwasher until it is completely installed. When
opening the door on an uninstalled dishwasher, carefully open the
door while supporting the rear of the unit. Failure to follow this
warning can result in serious injury.



Grasp mounting bracket (D) with pliers at perforation and bend until
rounded end breaks free. Discard end.

 

13
Side Mount is used for counter tops made of marble, granite, or other
very hard materials that cannot be easily drilled.
15
Slip bracket ange through side slots in frame as shown. Using pliers,
bend ange such that the bracket will not slip out of slot. Do not attach to
cabinet yet.

16
If your sink is to the right side of where you are installing the dishwasher,
you will need to reposition the hoses behind the dishwasher before installing.
To do so, unhook the strap that the hoses are running through on the
back of the dishwasher base and position them per your requirements.
If your sink is to the left side, leave the hoses as they came and skip to
step 16.
Positioning the Dishwasher
14

Reposition the hoses such that they run through the strap on the other
side.
Be sure to snap the strap back in place to secure the hoses as shown.
15
17
To avoid scratching the oor, use oor protection and caution when sliding
the dishwasher into the cabinet. Use hands on both sides of dishwasher
to push evenly.
Pull water inlet and drain hoses through the hole in cabinet as shown.
16

18
Push the unit 2/3 of the way into the opening and stop.
17
Reach into adjacent cabinet and pull hoses and excess power cord
completely out so they do not get kinked.
Push the unit in until ush with cabinet door.
18

Adjust the legs as shown to raise the unit so it is ush with the counter.
Use a level to check that your dishwasher is level.
Level side to side by turning feet clockwise to raise or counter-clockwise
to lower front of the unit as shown.
Level front to back by turning center screw clockwise to raise or counter-
clockwise to lower the back.




11/16
19
19
Center the dishwasher in the opening before securing it to your cabinet
or counter top as shown.


20
