Bosch SHS5AV52UC Installation guide

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Applicable product warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish) of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH. 06/15
Technical Details
Watts (W) 1300
Current (A) 12
Volts (V) 120
Frequency (Hz) 60
Power cord length N/A
Minimum water pressure
(lb/sin)
15
Length inlet hose (in) N/A
Length outlet hose (in) 90.5
Dimensions & Weight
Overall appliance
dimensions (HxWxD)
(in)
33 7/8" x 23 9/16"
x 22 9/16"
Required cutout size
(HxWxD) (in)
33 7/8" x 23 5/8"
x 24"
Adjustable feet Yes
Net weight (lbs) 69
Accessories—Optional
Dishwasher Supply and
Drainage Hose Extension
76 3/4"
SGZ1010UC
Dishwasher 3-Prong
Power Cord
SGZPC001UC
Dishwasher Accessory
Kit
SGZ1052UC
DoubleFlex Silverware
Basket
SMZ4000UC
General Properties
Number of wash cycles 6
Number of options 2
dBA 46
Third rack N/A
Rack adjustability RackMatic®
Tub material Stainless Steel
with Polypropylene
Control type Buttons
Concealed heating
element
Yes
Leak protection system 24/7 Overflow
Protection
Water softener No
Five-level wash Yes
ChildLock No
Special features InfoLight®
Efficiency
Water usage per cycle 3.2
Energy efficiency class Tier 1
ENERGY STAR® qualified Yes
Total annual energy
consumption (kWh)
269
Total annual water
consumption (g)
688
Capacity
Number of place settings 14
SHS5AV52UC
White
Bosch dishwashers are
so quiet, you may forget
they’re on. InfoLight®
projects a red light onto
the floor to let you know
it's on.
Features & Benefits
46 dBA: Quietest
dishwasher brand.
InfoLight®shines on the
floor so you know the
dishwasher's running.
RackMatic®offers an
adjustable upper rack.
Lower to fit tall glasses
above. Raise to fit tall
pots below.
Detergent tray optimizes
detergent dissolving.
24/7 Overflow Protection
System®helps prevent
water leaks.
Also available in:
Stainless Steel SHS5AV55UC
Black SHS5AV56UC
Ascenta®Series – White SHS5AV52UC
24" Scoop Handle Dishwasher

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Applicable product warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish) of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH. 06/15

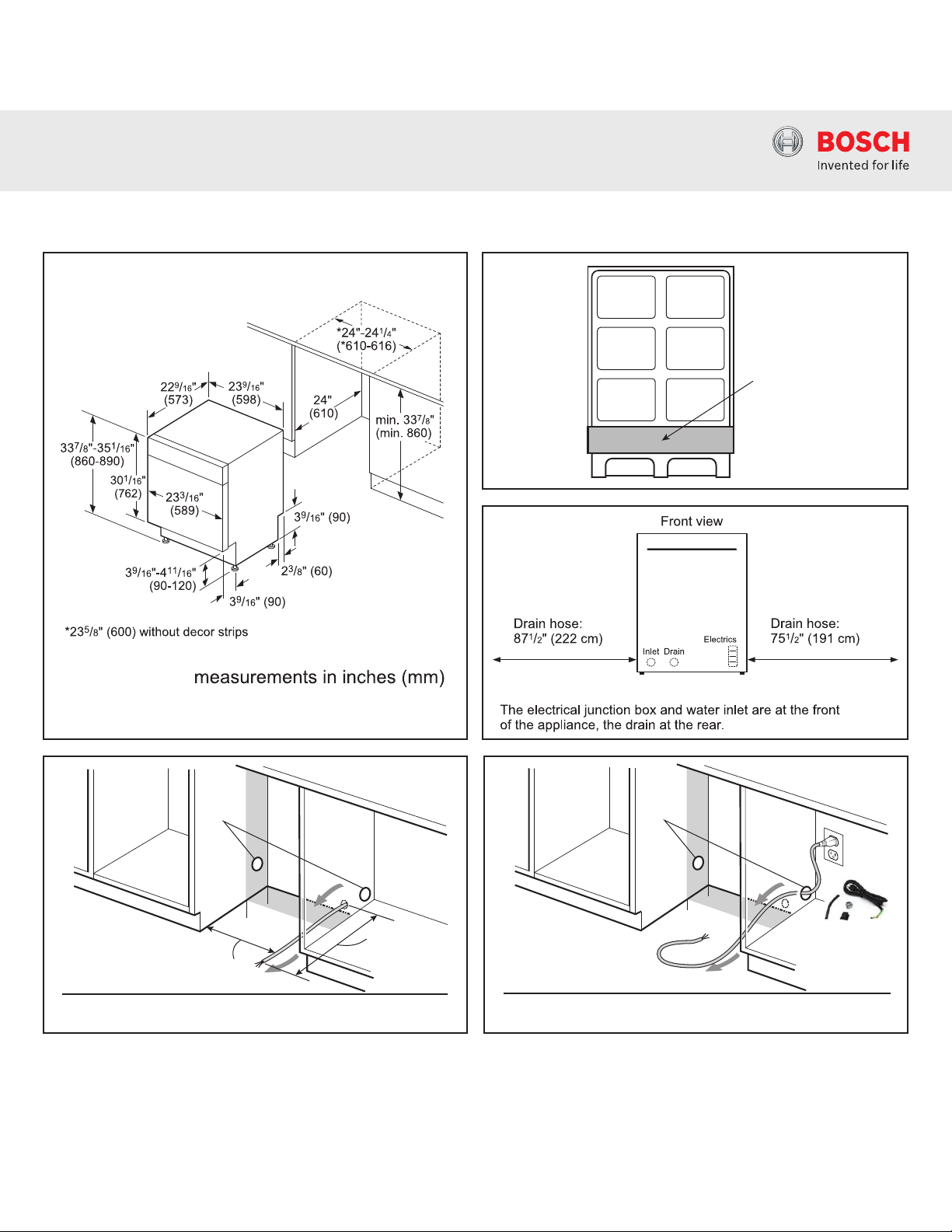

Installation Details
Drain hose
Toe-kick
Included:
Image 2: Ascenta
Ø 2"
(51 mm)
2"
(51 mm)
21"
(54 cm)
Example of Hardwire Installation
30"
(77 cm)
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Image 3a: Ascenta
Ø 2"
(51 mm)
2"
(51 mm)
Example of an Electrical Receptacle Installation
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Accessory power
cord for receptacle
connection
SGZPC001UC
(not included).
Image 3b: Ascenta
Ascenta®Series – White SHS5AV52UC
24" Scoop Handle Dishwasher

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Applicable product warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish) of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH. 06/15
Installation Details
Note: Plumbing installations will vary - refer to local codes.
Drain hose included is 91 3/4" (233 cm) and can be
extended to a maximum of 168 1/2" (428 cm).
Always use the approved drain hose extension kit
(SGZ1010UC).
Ensure a portion of the drain hose is raised between min.
20" (50 cm) and max. 43" (110 cm) above the cabinet floor.
Non-metallic tie
min 20" (50 mm) max 43" (110 mm) min 20" (50 mm) max 43" (110 mm)
Non-metallic tie
Remove
plug
Image 5: Ascenta
Ascenta®Series – White SHS5AV52UC
24" Scoop Handle Dishwasher
