Safety Definitions en-us
5
(Safety Definitions
SafetyDefinitions
9WARNING
This indicates that death or
serious injuries may occur as a
result of non-observance of this
warning.
9CAUTION
This indicates that minor or
moderate injuries may occur as
a result of non-observance of
this warning.
NOTICE
This indicates that damage to the
appliance or property may occur as a
result of non-compliance with this
advisory.
Note: This alerts you to important
information and/or tips.

9 IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
6
(IMPORTANT SAFETY INSTRUCTIONS IMPORTANTSAFETYINSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS
This dishwasher is provided with
Installation Instructions and this Use
and Care Manual. Read and
understand all instructions before
using the dishwasher.
This dishwasher is intended for use
up to a maximum altitude of
13,000 ft (4,000 meters) above sea
level.
To reduce the risk of fire, electrical
shock, or serious injury, observe the
following:
Riskoffire,electricalshock,orseriousinjury
9WARNING
RISK OF INJURY OR DEATH!
Misuse of the dishwasher can
result in serious injury or death.
Do not use the dishwasher in
any way not covered in this
manual or for any purpose other
than those explained in the
following pages.
9WARNING
RISK OF INJURY!
Severe injury and/or product
damage could result from the
use of unauthorized service
technicians or non-original
replacement parts. All repairs
must be performed by an
authorized service technician
using only original equipment
factory replacement parts.
9WARNING
RISK OF ELECTRICAL SHOCK
OR FIRE!
Electrical shock or fire could
result if the electrical supply for
the dishwasher covered in this
manual is incorrectly installed or
if the dishwasher has been
improperly grounded. Do not
use the dishwasher covered in
this manual unless you are
certain the electrical supply has
been correctly installed and the
dishwasher has been properly
grounded.
9WARNING
HEALTH HAZARD!
Never use harsh chemicals to
clean your dishwasher. Some
chloride-containing products
can damage your dishwasher
and may present health
hazards!

9 IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
7
GROUNDING INSTRUCTIONS
This appliance must be grounded to
a metal, permanent wiring system or
an equipment grounding conductor
must be run with the circuit
conductors and connected to the
equipment grounding terminal or
lead on the dishwasher. See the
Installation Instructions included with
this dishwasher for more information
on electrical requirements.
9WARNING
RISK OF ELECTRIC SHOCK!
This appliance must be
grounded. In the event of a
malfunction or breakdown,
grounding will reduce the risk of
electric shock by providing a
path of least resistance for
electric current. This appliance
is equipped with a cord having
an equipment-grounding
conductor.
Improper connection of the
equipment-grounding conductor
can result in risk of electric
shock. Check with a qualified
electrician if you are in doubt
whether the appliance is
properly grounded.
Safe Operation
Use this dishwasher only for its
intended function, which is the
washing of household dishware and
kitchenware rated as dishwasher
safe.
Use only detergents or rinsing agents
recommended for use in a
dishwasher, and keep them out of
the reach of children.
9CAUTION
When loading items to be
washed:
■Locate sharp items so they
are not likely to damage the
door seal.
■Load knives and other sharp
utensils with their HANDLES
UP to reduce the risk of
cut-type injuries.
■Do not wash plastic items
unless they are marked
“dishwasher safe” or the
equivalent. For plastic items
not so marked, check the
manufacturer’s
recommendations.
■Do not operate your
dishwasher unless all
enclosure panels are in
place.
■Do not tamper with or
override controls and
interlocks.
Do not abuse, sit or stand on the
door or dish racks of the dishwasher.
9WARNING
RISK OF INJURY!
To avoid risk of injury, always
use caution when opening the
door during or following a wash
cycle as hot water or steam
may escape. Do not fully open
the door until water noises have
stopped and steam has
subsided.
NSF/ANSI 184 Certified residential
dishwashers are not intended for
licensed food establishments.

9 IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
8
Child Safety
To reduce risk of injury, do not allow
children to play in or on the
dishwasher.
When children become old enough
to operate the appliance, it is the
responsibility of the parents/legal
guardians to ensure the children are
instructed in safe practices by
qualified persons.
Proper Care and Maintenance
9WARNING
RISK OF EXPLOSION!
Under certain conditions,
hydrogen gas may be produced
in a hot water system that has
not been used for two weeks or
more. Hydrogen gas is
explosive. Before using a
dishwasher that is connected to
a hot water system that has
been unused for two weeks or
longer, turn on all hot water
faucets and let the water flow
from each for several minutes.
This will release any
accumulated hydrogen gas. As
the gas is explosive, do not
smoke or use an open flame
during this time.
Remove the dishwasher door to the
washing compartment when
removing an old dishwasher for
service or discarding.
To avoid floor damage and possible
mold growth, do not allow wet areas
to remain around or under the
dishwasher.
To avoid dishwasher damage, do not
allow water to remain in your
dishwasher systems through
extended periods of freezing
temperatures. Freezing temperatures
can damage the water fill valve and
potentially other components of your
dishwasher.
NOTICE
It is highly recommended for the end
user to become familiar with the
procedure to shut off the incoming
water supply and the procedure to
shut off the incoming power supply.
See the Installation Instructions or
contact your installer for more
information.
9WARNING
STATE OF CALIFORNIA
PROPOSITION 65 WARNINGS!
This product contains one or
more chemicals known to the
State of California to cause
cancer, birth defects, or other
reproductive harm.

Causes of Damage en-us
9
ƒCauses of Damage
CausesofDamage NOTICES
■Never use steam cleaning
products to clean your
dishwasher. The manufacturer will
not be liable for the possible
damages or consequences.
■Bleach-based wipes can cause
stainless-steel doors and tubs to
rust.
■Using harsh chemicals
(e.g. bleach), abrasive cleaners,
scouring pads (metal or plastic),
or abrasive cloths/paper towels
can damage your dishwasher’s
exterior door panel, fascia panel
and buttons.
■To avoid dishwasher damage, do
not load the dishwasher with
paper products, plastic bags,
packing materials or anything
other than normal, dishwasher
safe dishware and kitchenware.

en-us Getting Started
10
*Getting Started
GettingStarted Appliance overview
0QUJPOT
$ZDMFT
*OGP0O0GG %FMBZ 4UBSU






5HVHWVHF

6HWXSVHF
















Getting Started en-us
11
The numbers stated below refer to
the overview images on the previous
page of this manual.
Operating panel
Dishwasher interior
components
Display indicators
Info button
Infobutton The Info button 8can be used to
display additional wash cycle
information.
1. Press the Info button 8.
2. Press the wash cycle button.
Information on the selected wash
cycle is indicated on the display
window at the top @.
3. To leave, press Info button 8.
Time setting
Timesetting When the appliance is switched on
for the first time, the time starts at
12:00 o’clock.
Set the time as follows:
1. Open the door.
2. Switch on On/Off switch (.
3. Press Info button 8for
3 seconds until the following text
is indicated on the display window
at the top @:
Scroll with < >
Set with - +
Leave with Setup 3 sec.
4. Keep pressing button >)* until
the time setting is indicated on the
display window at the top @.
5. Make the setting with setting
buttons + - X. If the selection
buttons + - Xare held down,
the set values are changed in
10-minute increments.
6. Press and hold the Info button
8for 3 seconds.
The selected setting has now been
stored.
Note: If the appliance was
disconnected from the power supply
for a prolonged period, the time
starts at 12:00 o’clock. Set the time.
(On/Off button
0Wash cycles
8Info button
@Digital display
HRinse aid refill indicator
PSalt refill indicator
XSelection buttons
`Delay start button
hWash cycle options
)" Start button
)* < > button
1" Interior light
1* Third rack
12 Upper rack
1: Upper spray arm
1B Detergent tab tray
1J Vent hole
1R Lower spray arm
1Z Dispenser for special salt
1b Filters
1j Silverware basket
9" Lower rack
9* Rinse aid dispenser
92 Detergent dispenser
9: Lock for detergent dispenser
9B Rating plate
‹:‹‹ Cycle time remaining
%Refill rinse aid indicator
Lights up when rinse aid is
low
$Refill salt indicator
Lights up when salt is low

en-us Getting Started
12
Switching on the appliance
for the first time
When the dishwasher is switched on
for the first time, you are taken
directly to the settings for switching
on the appliance for the first time.
The following text is indicated on the
display window at the top @:
Scroll with < >
Set with + -
Leave with Setup 3 sec.
The required settings for switching on
the appliance for the first time are
listed in the table below.
Change the setting as follows:
1. Keep pressing button >)* until
the required setting is displayed.
2. Make the selection with setting
buttons + - X.
3. Press and hold the Info button
8for 3 seconds.
The selected setting has now been
stored.
Settings
The dishwasher has been preset with
certain settings for your convenience.
You can change these factory
settings.
Change the setting as follows:
1. Open the door.
2. Switch on On/Off switch (.
3. Press Info button 8for
3 seconds until the following text
is indicated on the display window
at the top @:
Scroll with < >
Set with - +
Leave with Setup 3 sec.
4. Keep pressing button >)* until
the required setting is displayed.
5. Make the selection with setting
buttons + - X.
6. Press and hold the Info button
8for 3 seconds.
The chosen setting has now been
stored.
You have the option of resetting all
changed settings back to the original
factory settings.
Note: When you reset your
dishwasher to the factory settings,
you are taken directly to the settings
for switching on the dishwasher for
the first time.
Settings
Switching on the
appliance for the first
time
Factory setting Infotext
by pressing Info button
Language American English Language selection.
Time format 24h 12h or 24h.
Time setting 12:00 Set the current time.
Water hardness °E0-8 Soft Setting water hardness. When using Multitabs,
select the lowest setting.
Rinse aid dispenser Level 5 Amount of rinse aid affects drying. When using
Multitabs, select setting 0.

Getting Started en-us
13
Setting Factory setting Infotext
by pressing Info button
Time setting 12:00 Set the current time.
Time format 24h 12h or 24h.
Time display Time Show end of wash cycle with display "Time" or "In
hours".
Language American English Language selection.
Water hardness °E0-8 Soft Setting water hardness. When using Multitabs, select
the lowest setting.
Rinse aid dispenser Level 5 Amount of rinse aid affects drying. When using
Multitabs, select setting 0.
Sensor setting Standard Adjusting water clarity detection for best cleaning
results.
Extra dry Off Improved drying for glasses and plasticware.
Eco forecast Off Show the water and energy consumption.
Auto Power Off Off Appliance automatically switches off at end of rinsing
process.
EmotionLight On Emotion light can be switched on and off.
Infolight On Light is projected to signal an active wash cycle.
Start Program Auto When switching on, the last selected wash cycle
appears.
Tone volume Level 2 Volume of signal at end of wash cycle.
Button volume Level 2 Volume when using buttons.
Greeting On When switching on the appliance, the brand logo can
be deselected.
Factory setting Reset Resetting to the factory setting.

en-us Water softening system / special salt
14
+Water softening
system / special salt
Watersofteningsystem/specialsalt To ensure good rinsing results, the
dishwasher requires soft water, i.e.
water which is low in lime, otherwise
limescale will be deposited on the
utensils and interior container. Tap
water above 7° dH (1.2 mmol/l)
must be softened. The water
is softened with special salt
(regeneration salt) in the water
softening system of the dishwasher.
The setting and therefore the
required amount of salt depends on
the degree of hardness of your tap
water (see following water hardness
table).
Instructions for use of
included “Water Hardness
Test Strip”
Only use salt designed for automatic
dishwashers. Never use household
water softener salt or table salt.
Follow the instructions below for the
included test strip. (If purchasing a
different test strip, follow
manufacturers instructions).
1. Run the water at the kitchen sink
for 5 minutes.
2. Dip the end of the test strip with
the colored squares into the tap
water for 1 second and shake off
excess water.
3. After one minute, compare the
test strip to the chart below and
determine the Dishwasher Water
Softener setting.
4. Adjust the dishwasher Water
Softener setting.
5. If required, add salt to the
dishwasher salt chamber as
shown. ~"Using special
dishwasher salt" on page 15

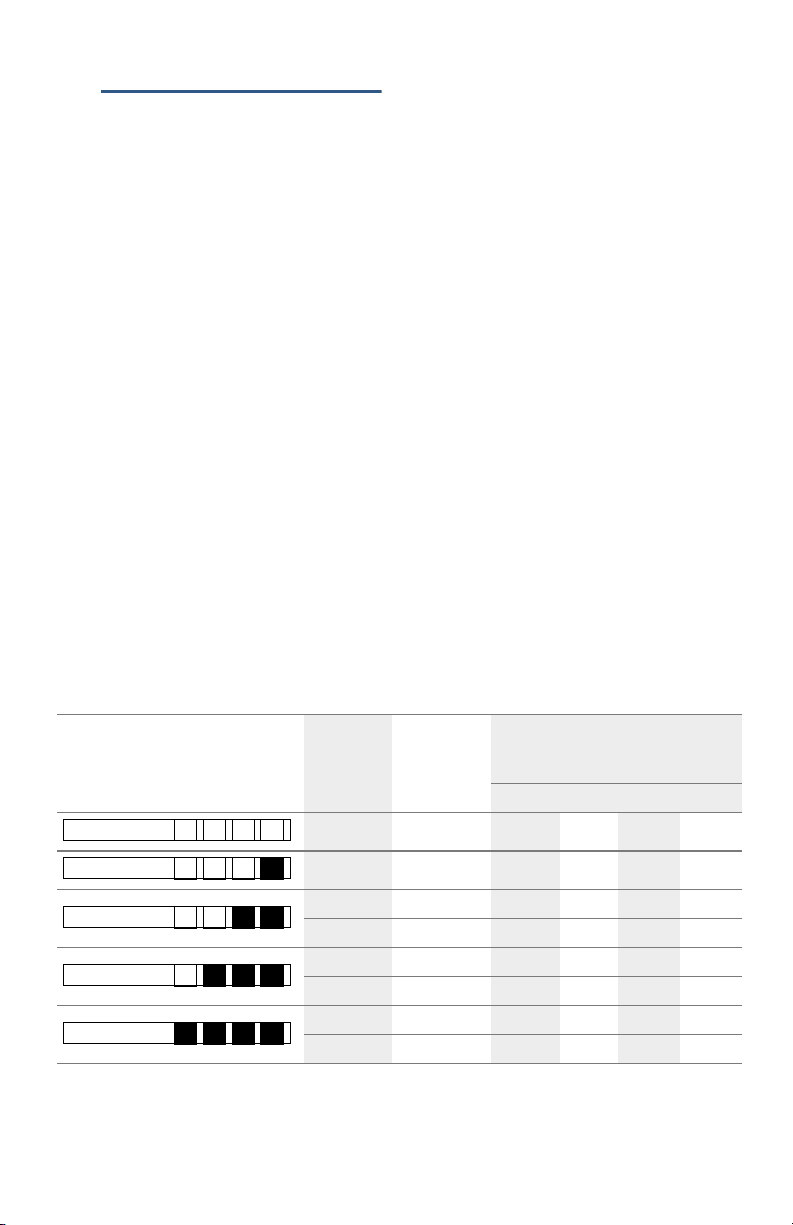

Adjusting the water softener settings
Using the test strip included with
your dishwasher
(Purchased test strips may have a
different scale)
Water
softener
setting
Add salt to
salt
dispenser
Water hardness onversion chart
(only necessary if you purchase a
different test strip)
ppm gpg/°dH
•:‹‹ No 0 116 0 6
•:‹‚ Yes 117 152 7 8
•:‹ƒ Yes 153 188 9 10
•:‹„ Yes 189 223 11 13
•:‹… Yes 224 294 14 17
•:‹† Yes 295 383 18 22
•:‹‡ Yes 384 544 23 31
•:‹ˆ Yes 545 890 32 52

Water softening system / special salt en-us
15
Adjusting the water
softening system
The amount of salt dispensed can be
set from 0to 62°E. Salt is not
required at the set value 0-8.
Set the softening system as follows:
1. Ask your local water utility
company for the water hardness
value of your tap water.
2. Required setting can be found in
the water hardness table.
3. Open the door.
4. Switch on On/Off switch (.
5. Press Info button 8for
3 seconds until the following text
is indicated on the display window
at the top @:
Scroll with < >
Set with - +
Leave with Setup 3 sec.
6. Keep pressing button >)* until
the water hardness is indicated
on the display window at the top
@.
7. Make the selection with setting
buttons + - X.
8. Press and hold the Info button
8for 3 seconds.
The chosen setting has now been
stored.
Using special dishwasher
salt
As soon as the low salt indicator
lights up on the digital display @,
salt should be topped off. Always
refill with special salt immediately
before switching on the appliance.
This ensures that overrun special salt
solution is immediately washed out
and does not corrode the rinsing tub.
NOTICE
Detergent will destroy the water
softening system! Never pour
detergent into the salt dispenser.
Top off the salt as follows:
1. Undo the screw plug on the
dispenser 1Z.
2. Fill the dispenser with water
(required only when switching on
the appliance for the first time).

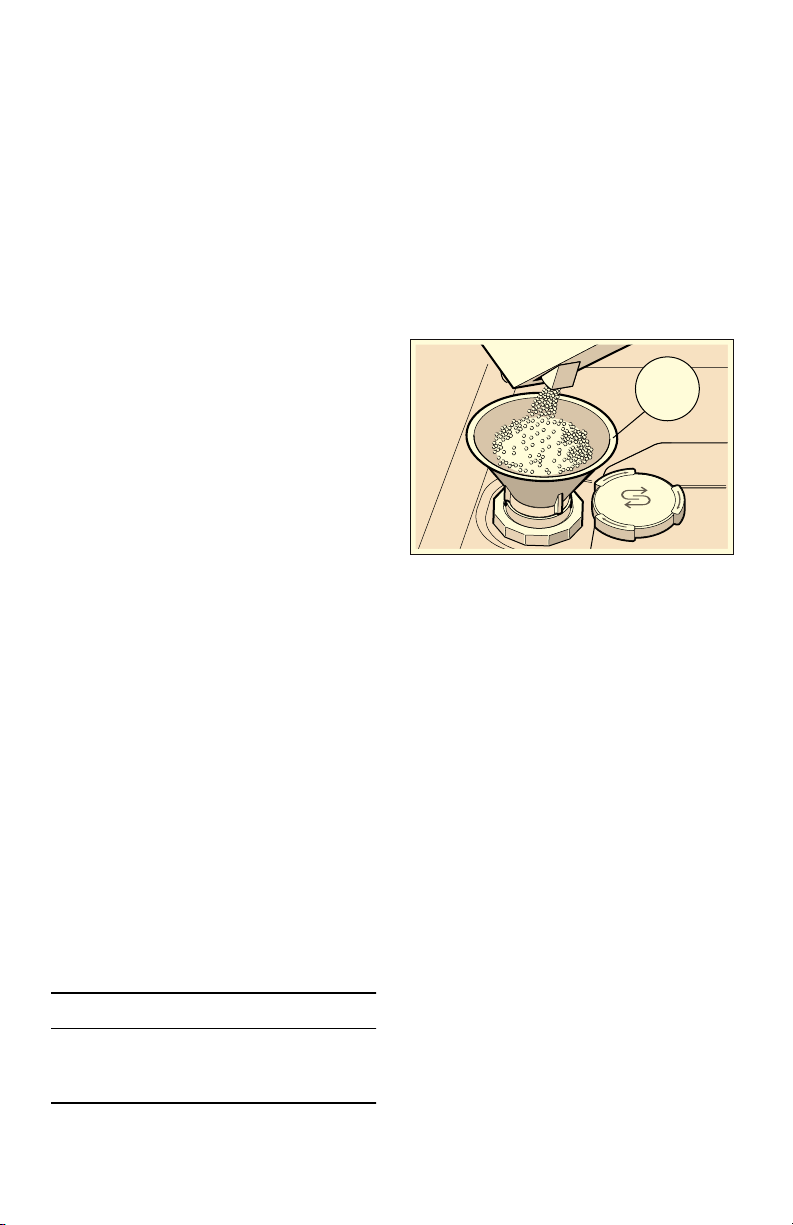

3. Add salt as illustrated (do not use
table salt, salt tablets or salt for
use with whole house water
softeners).
The water is displaced and runs
out.
For more information about buying
dishwasher salt, please contact
customer service (1-800-944-2904).
Using detergents with salt
component
Detergentwithasaltcomponent If combined detergents with a salt
component are used, special salt can
usually be omitted up to a water
hardness of 21° dH (37° fH,
26° Clarke, 3.7 mmol/l). If the water
hardness is over 21° dH, salt must
be used.


en-us Rinse Aid
16
Switching off low salt
indicator / water softening
system
Switchingoffwatersofteningsystem If the use of combined detergents
with a salt component impairs the
low salt indicator Pon the control
panel or the text on the display
window at the top @(enough salt
for x rinse cycles), the displays can
be switched off.
Proceed as described under “Setting
water softening system” and set the
value to 0-8. The water softening
system and salt refill indicator
are now switched off.
,Rinse Aid
RinseAid To achieve proper drying, always use
a liquid rinse aid, even if your
detergent contains a rinse aid or
drying additive.
Note: The dishwasher indicates low
rinse aid by turning on the Rinse Aid
indicator on the display @. If this
indicator lights up, you need to refill
the rinse aid dispenser 9* by
following the directions below.
Adding rinse aid
NOTICE
To avoid oversudsing or clogging, do
not overfill the rinse aid
dispenser 9*. Wipe up any spills
with a damp cloth.

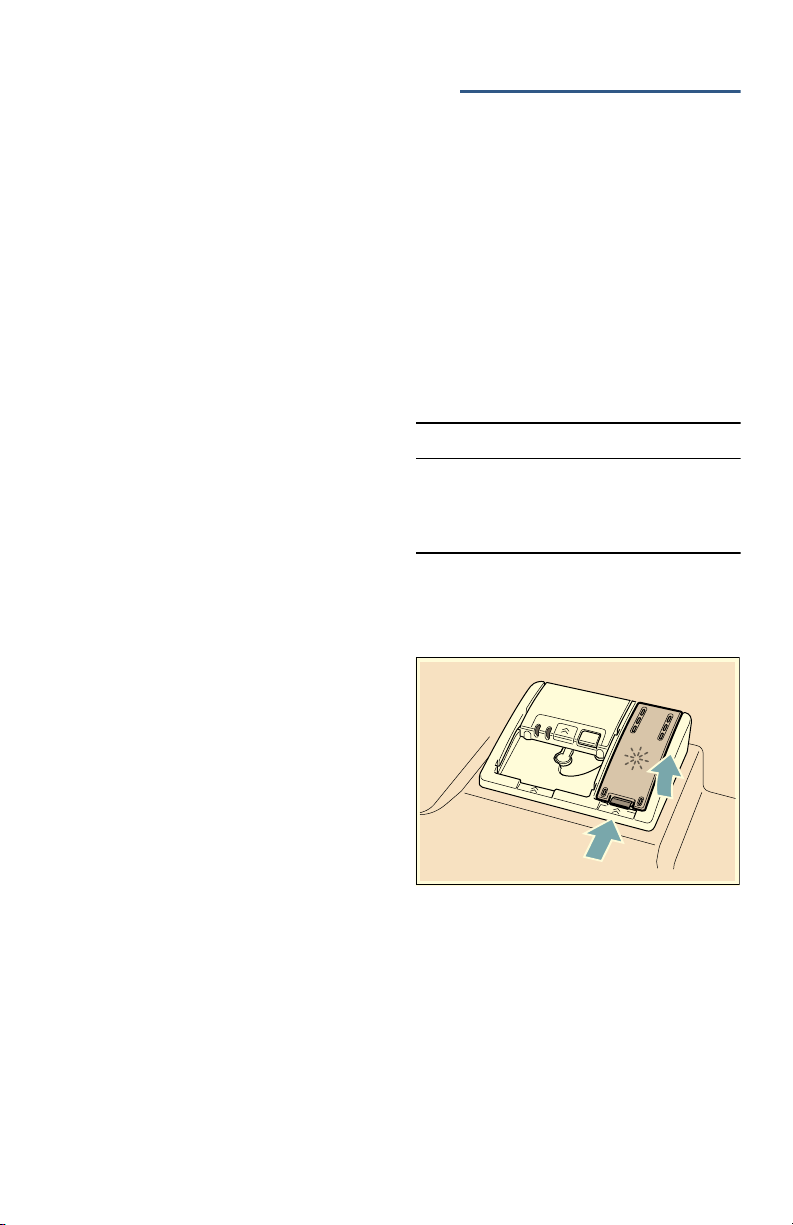

1. Open the rinse aid dispenser 9*
by pressing on the latch of the lid
and pull it open.



Rinse Aid en-us
17
2. Add liquid rinse aid to the
dispenser 9* until it is full. Do
not overfill.
3. Close the lid. Lid must be fully
closed until it clicks in order to
seal.
4. Wipe up any excess rinse aid that
may have puddled when the
dispenser reservoir is full.
The indicator light will go out a few
moments after the dishwasher door
is shut.
NOTICE
Do not fill the rinse aid dispenser 9*
with detergent. Doing so will damage
the dishwasher.
Setting the amount of rinse
aid used
The amount of rinse aid dispensed
can be set from 0 to 6. Set the
amount of rinse aid to be dispensed
to 5to obtain a very good drying
result.
You should only change the setting if
streaks remain on the dishes (lower
the amount), or if dishes are not
getting dry enough (increase the
amount).
Set the amount of rinse aid as
follows:
1. Open the door.
2. Switch on On/Off button (.
3. Press Info button 8for
3 seconds until the following text
is indicated on the display window
at the top @:
Scroll with < >
Set with - +
Leave with Setup 3 sec.
4. Keep pressing button >)* until
the rinse aid dispenser is
indicated on the display window
at the top @.
5. Make the selection with setting
buttons + - X.
6. Press and hold the Info button
8for 3 seconds.
The chosen setting has now been
stored.
Turning off rinse aid
indicator
Proceed as described in the section
“Setting the amount of rinse aid
used” and set value to 0. The rinse
aid indicator is now turned off.
NOTICE
Using no rinse aid or setting the
dispenser to 0may result in longer
cycle times consuming more energy
and water. The higher temperatures
and longer cycle times can damage
fine china or glassware.
PD[

en-us Loading the Dishwasher
18
-Loading the
Dishwasher
LoadingtheDishwasher Dishware material
Note: Before using your dishwasher
for the first time, check the
information in this section. Some
items are not dishwasher-safe and
should be hand washed; others
require special loading.
Loading the racks
For best dishwashing results,
observe the following when loading
the dishwasher:
■Do not pre-wash items with
loosely attached food soil.
■Remove all food particles, bones,
toothpicks and excessive grease.
■Pre-treat items having burned-on,
baked-on or starchy soils.
■Load dishes in the dishwasher
racks so the insides of bowls,
pots and pans are facing the
spray arms.
■Avoid nesting and contact points
between dishes.
■Separate items of dissimilar
metals. Use care to not block
movement of the spray arms.
Recommended
Aluminum Colored anodized aluminum
may fade over time.
Minerals in your water may
cause the aluminum to
darken or spot. This can
usually be removed with a
soap-filled steel wool pad.
China, Crystal,
Stoneware Some hand-painted utensils may discolor, fade or spot.
Hand wash these utensils.
Positionfragile glassware so
that it will not topple over or
come in contact with other
utensils during the wash
cycle.
Glass Milk glass may discolor or
become yellow.
Non-stick
Coatings Apply a light coating of vegetable oil to non-stick
surfaces after drying.
Plastics Make sure the plasticware is
dishwasher-safe.
Stainless Steel,
Sterling Silver
and Silver
Plates
Load these so they do not
come in contact with other
metals, stainless steel
dishwasher tub walls or the
inner door.
Not Recommended
Acrylic Crazing or small cracks
throughout the acrylic, may
occur.
Adhesive-
Joined Pieces Adhesives that join materials such as plastic,
wood, bone, steel, copper,
tin, etc. may loosen.
Bone-Handled
Utensils Handles may separate.
Iron Iron will rust. Hand wash
and dry immediately.
Non-Dishware
Items Your dishwasher is intended for use in cleaning ONLY
standard household
dishware and kitchenware.
Pewter, Brass,
Bronze These items will tarnish. Hand wash and dry
immediately.
Tin Tin will stain. Hand wash
and dry immediately.
Wood Wooden bowls, wooden
utensils and utensils with
wooden handles can crack,
warp and lose their finish.

Loading the Dishwasher en-us
19
■Only wash household dishware
and kitchenware rated as
dishwasher-safe.
Refer to the Dishware Materials
section for more information
about dishware suitability.
NOTICE
To avoid dishwasher damage, do not
load the dishwasher with paper
products, plastic bags, packing
materials or anything other than
normal, dishwasher safe dishware
and kitchenware.
Loading the upper rack
Ensure items do not protrude through
the bottom of the racks and block the
spray arms.
Note: When pushing the upper
rack 12 into the dishwasher, push it
until it stops against the back of the
tub so the upper rack spray
arm 1: connects to the water
supply at the back of the tub. Do not
push racks in using the door.
Loading the lower rack
Place large items in the lower
rack 9". Load pots, pans and bowls
upside down. Do not block the vent
hole 1J with tall baking sheets.
Load these items on the right side of
the dishwasher.
Loading the third level rack
The third level rack 1* offers extra
space for items like dessert bowls,
serving spoons or pasta forks.
In order to achieve optimal cleaning,
avoid placing heavily soiled items or
items with burned in food soils in the
third level rack.
Overloading the upper rack 12 may
reduce performance in the third level
rack.
When loading items in the third level
rack that have concaved bottoms or
cavities, water may collect in the
cavities.
Recommended loading
pattern
For daily, regular or typical use
12 place setting
Lower rack 9"
Upper rack 12
Note: Folding the cup shelves down
will allow the cups to sit at an
increased angle and reduce water
pooling on cup bottoms.

en-us Loading the Dishwasher
20
Third rack 1*
Additional loading pattern
10 place setting
Lower rack 9"
Upper rack 12
Note: Folding the cup shelves down
will allow the cups to sit at an
increased angle and reduce water
pooling on cup bottoms.
Third rack 1*
