Bosch WTA4107 User manual

Dryer
en Usage and
Installation Instructions
ROBERT BOSCH
HAUSGERÄTE GMBH
697050
141693/en (02-05)

2
Table of contents
Usage Instruction
Your new dryer ...................................................... 4
Notes on disposal .................................................. 5
Disposing of packaging .................................... 5
Disposing of old dryers.................................... 5
Safety notes........................................................... 6
Using the dryer correctly ..................................6
Before using the dryer..................................... 6
Drying your laundry .......................................... 7
Observe at the end of the program ................7
Notes on protecting the dryer.......................... 7
Environmental protection/ notes on economy....... 8
Drying in an economical and environmentally-
aware manner................................................... 8
Dryer description.................................................... 9
Brief instructions............................................... 9
Door operation.................................................. 9
Appliance design............................................ 10
Control panel.................................................. 11
Notes on laundry.................................................. 12
Labelling of fabrics......................................... 12
Tips on drying................................................. 13
First use............................................................... 14
Drying ............................................................. 14

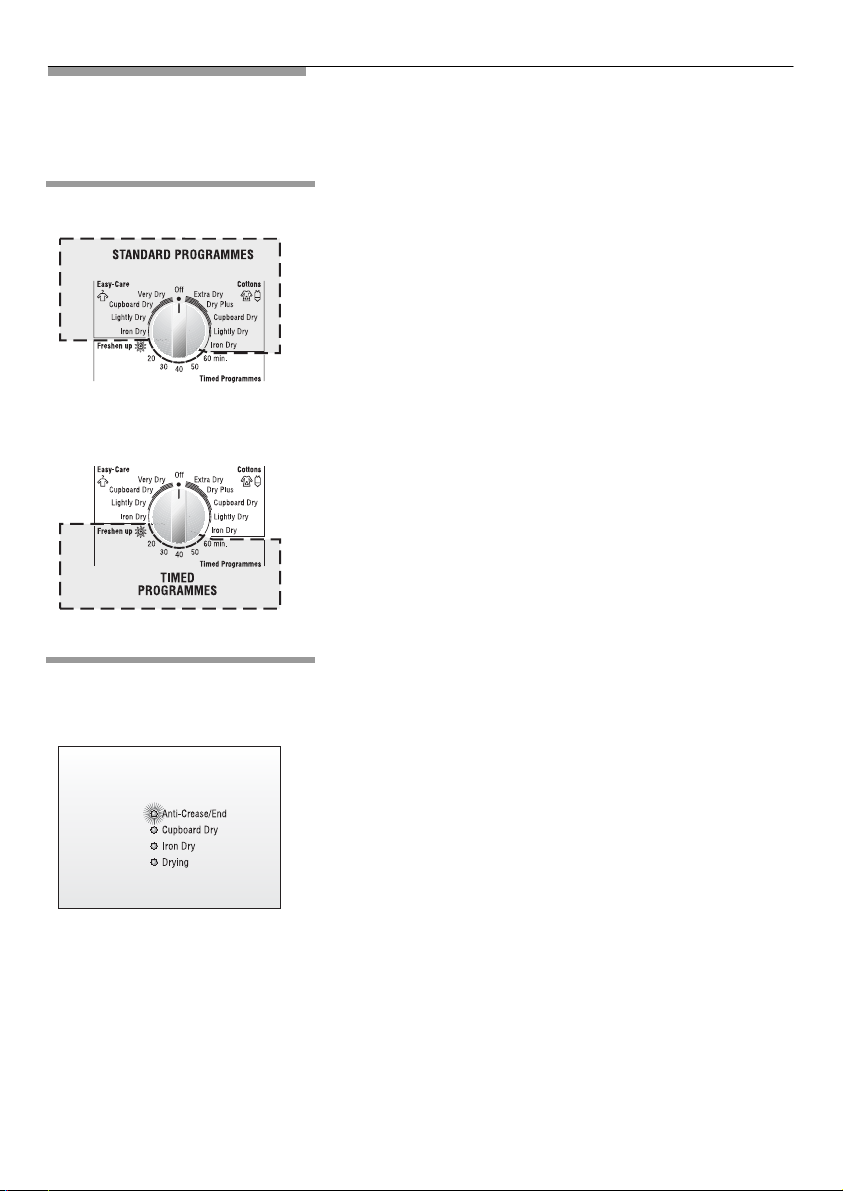

Selecting a program ............................................ 15
Selecting......................................................... 15

3
Programme sequence.................................... 15
Standard programmes.................................... 16
Timed programme.......................................... 17
Additional function ............................................... 17
Low Heat button ............................................. 17
Buzzer button ................................................. 17
Cleaning and care................................................ 18
Cleaning the dryer......................................... 18
Fluff filter......................................................... 18
Troubleshooting................................................... 19
After-sales service............................................... 21
Technical data ..................................................... 22
Installation Instruction
Setting up and connecting................................... 23
Safety notes.................................................... 23
Setting up the dryer....................................... 24
Washer-dryer stack connection set................ 25
Assembling the exhaust air hose ...................25
Electrical connection....................................... 26

4
Your new dryer
With the purchase of your new dryer, you have
chosen a modern, high-quality domestic appliance.
A distinctive feature of your dryer is its low energy
consumption.
Every dryer which leaves our factory is carefully
checked to ensure that it functions correctly and
is in perfect condition. Our after-sales service is
available should you have any questions,
particularly on how to set up your dryer.
You will find further information and a selection of
our products on our website:
http://www.bosch-hausgeraete.de
Read this instruction manual and all other
accompanying information for your dryer and
follow the advice you find there.
Keep all the documents in a safe place for future
reference or to pass on to the next owner.

5
Notes on disposal
Disposing of
packaging
!Risk of suffocation
There is a risk of suffocation from the cardboard
box and plastic film.
Do not allow children to play with the packaging.
All our packaging materials are environmentally
friendly and recyclable. Please dispose of the
packaging in an environmentally-responsible
manner.
Any retailer or your local authority will be able to
advise you on the disposal methods currently
available.
Disposing of
old dryers
!Danger of death
Danger of death from electrocution or suffocation.
Your old dryer:
 Disconnect it from the mains.
 Cut through the mains cable and discard along
with the plug.
 Break the door lock. This prevents children
from locking themselves in the dryer.
Environmentally-friendly disposal conserves
valuable raw materials.
Any retailer or your local authority will be able to
advise you on the disposal methods currently
available.
!This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
This guideline is the frame of a European-wide
validity of return and recycling on Waste
Electrical and Electronic Equipment.

6
Safety notes
Using the dryer
correctly
 Only for domestic use.
 Only for drying fabrics which have been
washed in water.
 Do not leave children unsupervised near the
dryer –
!Risk of explosion/fire
Solvent hazard.
Do not use the dryer if:
 the laundry has been treated with a solvent or
has been colour-treated (e.g. stain remover,
petroleum ether).
Dust hazard.
Do not use the dryer if:
 the laundry contains dust, e.g. coal dust or flour.
 the laundry contains foam/rubber.
 the laundry contains traces of hairspray, nail
varnish remover or similar substances.
Before using
the dryer
 Install the dryer in accordance with the
installation instructions (see page 23).
 Do not connect the dryer if it has visible signs of
damage. If in doubt, contact a specialist retailer.

7
Drying your
laundry
 Do not leave children unsupervised near the
dryer.
 Keep pets away from the dryer.
 Remove all objects from pockets. Look out for
lighters in particular –
!Risk of explosion.
Observe at
the end of
the program
 Switch off the dryer when the program has
ended.
Notes on
protecting
the dryer
 Do not climb onto the dryer.
 Do not lean or sit on the door –
!Risk of tipping
 Do not lift the dryer by any protruding
components.
!Risk of breakage and injury
 Do not use detergent boosters containing
solvents or dirt and stain removers in the dryer.
These substances may damage the dryer.
 Empty the dryer completely when it is to be
transported or stored.
iDo not set up your dryer in a room that is
exposed to frost.

8
Environmental protection/
notes on economy
Drying in an
economical and
environmentally-
aware manner
 Spin the laundry thoroughly before drying.
Spin the laundry thoroughly in the washing
machine before drying. The higher the spin
speed, the shorter the drying time and the lower
the energy consumption. You should also spin
easy-care laundry.
 Fill to full capacity
Fill the dryer to its maximum recommended
capacities. Do not exceed the capacities:
White and coloureds max. 5.0 kg
Easy-care fabrics max. 2.5 kg
 Ensure sufficient room ventilation
Open a window or door while drying laundry.
 Clean the fluff filter
Clean the filter after each drying cycle (see
page 18).
 Do not obstruct the cooling air supply
Do not position or affix anything over the cool
air inlet on the rear of the dryer.

9
Dryer description
Brief
instructions
Before drying
 Open the door.
 Place the laundry in the drum.
 Close the door.
 Select a programme using the programme
selector (see the table of programmes from
page 16 onwards).
 Set additional functions if required (see page 17).
 Press the Start button.
Adding laundry
 Open the door.
The drying cycle is halted.
 Add or remove laundry.
 Close the door.
 Select another programme if necessary using
the programme selector (see the table of
programmes from page 16 onwards).
 Press the Start button.
After drying
 Open the door.
 Remove the laundry.
 Turn the programme selector to Off.
 Clean the fluff filter (see page 18).
Door operation

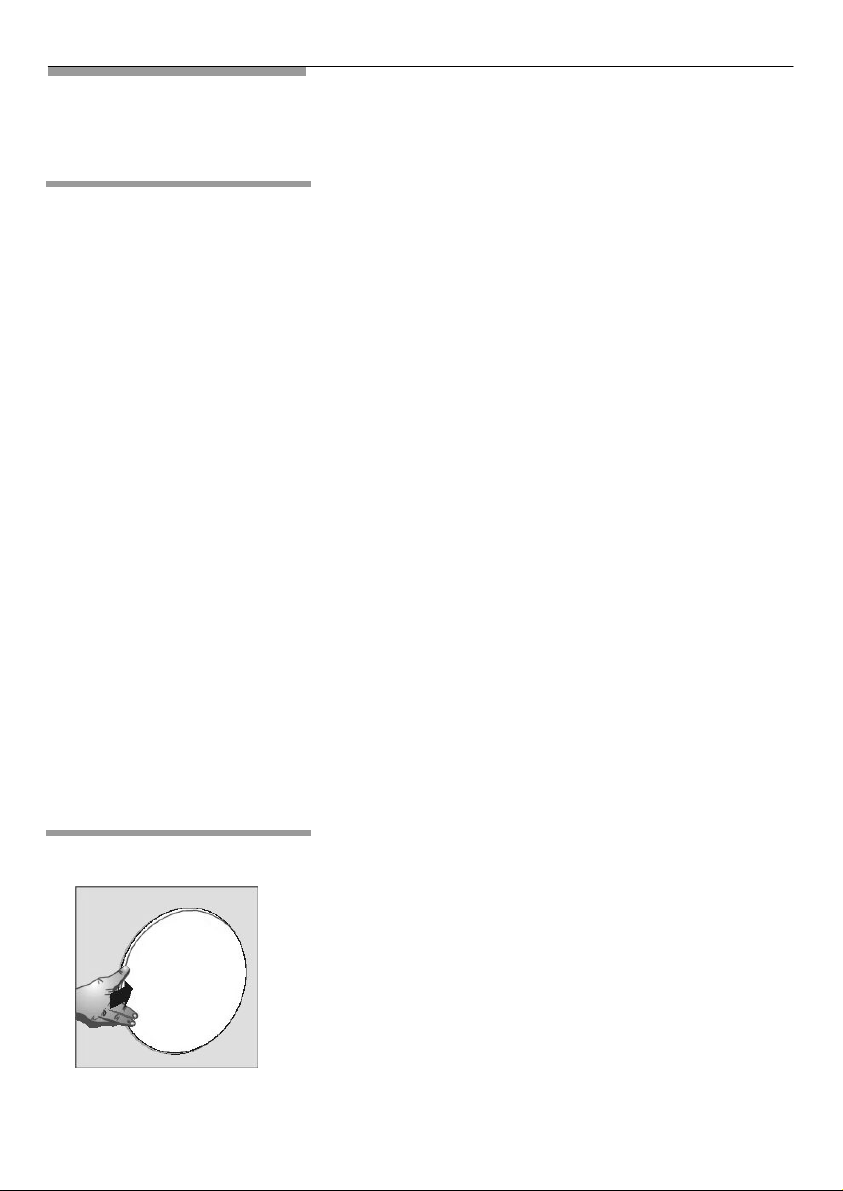

 Press the door to open.
 Close the door (you will hear a clicking noise).

10
Appliance design
1 Control panel
2 Door with internal filter
3 Adjustable feet
1
2
3

11
Control panel
The indicator lamp
lights up when the
dryer is switched on
Status display
Indicator lamp (LED)
to show programme
status
Programme/time selectorswitch
To switch on and off and to select
a programme or drying time
Can be turned in both directions
Buttons for additional functions
(if required in addition to the
programme)
Low heat
For drying delicate fabrics
Buzzer
The buzzer is switched off by
pressing the button
Start button
To start the
program

12
Notes on laundry
Labelling
of fabrics

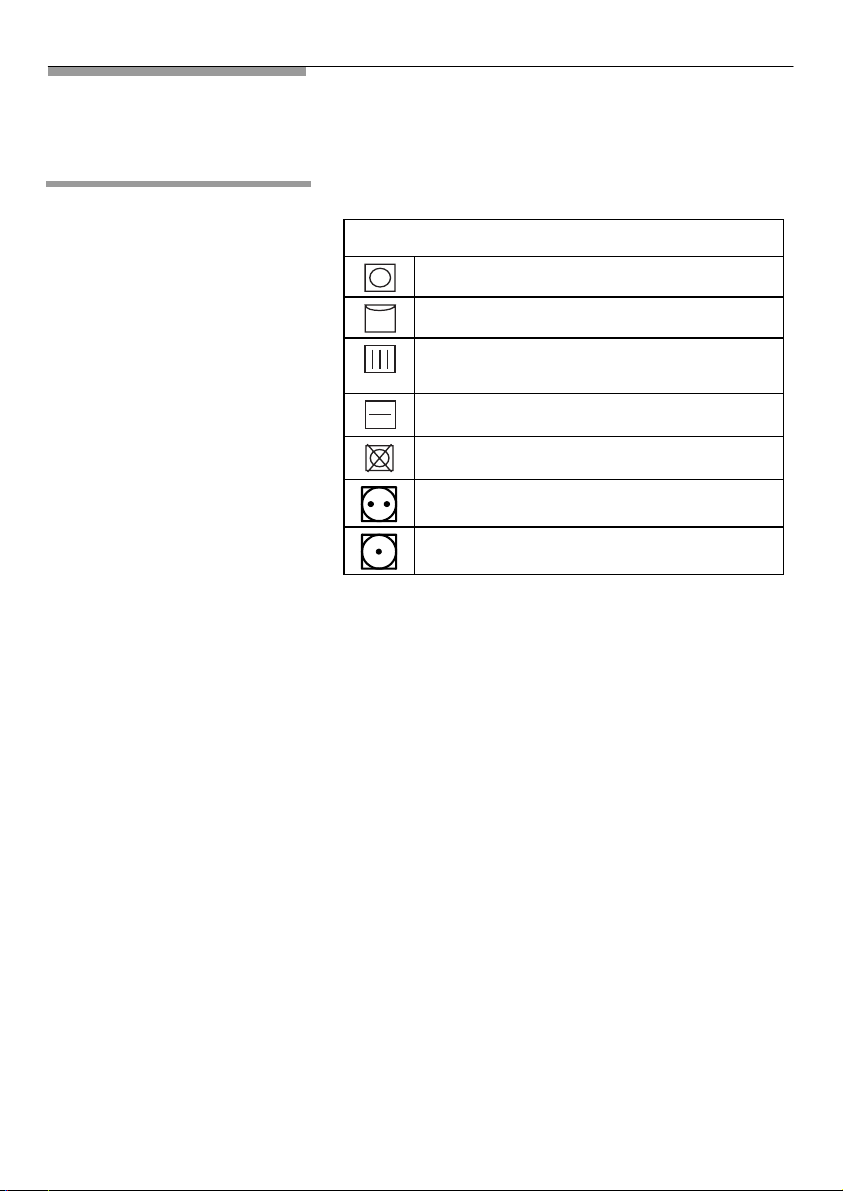

Observe the following fabric symbols:
Do not tumble-dry the following fabrics:
 Impermeable fabrics (e.g. rubber-coated
fabrics).
 Delicate materials (silk, curtains made from
synthetic material) – they may crease
 Dripping-wet laundry – high energy
consumption
 Wool or fabrics containing wool.
 Observe the manufacturer's instructions.
DRYING
Drying in a tumble dryer permitted
Wring, hang on a washing line to dry
Do not wring, hang up wet and allow
to drip dry
Wring, lay on a flat surface to dry
Do not tumble dry
Dry at normal temperature
Dry at low temperature

13
Tips on drying
Important for all drying cycles:
 To obtain a uniform drying result: sort the
laundry by fabric type and drying program.
 Fasten zips, hooks and eyes. Tie loose belts,
apron strings etc., together.
 Do not over-dry easy-care laundry: Risk of
creasing. Allow laundry to finish drying in the air.
 Do not over-dry laundry.
 Do not iron laundry immediately after drying.
Leave laundry folded up for a short while. This
helps the residual moisture to distribute evenly.
 Knitted fabrics (e.g. T-shirts, jerseys) often
shrink slightly the first time they are tumble-
dried. Do not use the Extra Dry programme.

14
First use
Drying
Please read this instruction manual before using the
dryer for the first time:
1. Open the door.
2. Place the laundry into the empty drum.
Ensure that the drum contains only laundry.
3. Close the door.
4. Select a programme using the programme
selector.
5. Set additional functions if required (see page 17).
6. Press the Start button.
Note
You can interrupt the drying program by opening
the door.
 Close the door.
 Press the Start button.
It is possible to change the drying programme
during drying.
1. Turn programme selector to Off (cancels the
programme).
2. Select the new programme you require using
the programme selector.
3. Press the Start button.
i

15
Selecting a program
Selecting
Your dryer offers different programmes and the
additional Low Heat function for optimum drying
(see page 17).
Our drying programs are designed to protect your
laundry with minimum energy consumption. Your
laundry will feel damper than it really is because of
the residual warmth after drying.
If the degree of laundry drying still does not meet
your expectations after the laundry has cooled
down, please use the next-higher drying program
or the timer program.
Programme
sequence
During the Standard programmes, the dryer uses
an electronic sensor system which constantly
monitors how wet the laundry is. The drying
cycle automatically stops as soon as the level
of dryness set has been reached. The indicator
lamps (LEDs) display the programme status.

16
Standard programmes
Cottons, coloured and linens 3-5 kg.
Press the Low Heat button when drying heat-sensitive fabrics.
Standard
programme
Cottons/
linens
Bed linen, table linen and towels
For laundry:
which needs to be
pressed Iron dry
Bed linen, table linen, towels, T-shirts,
polo shirts, work clothes which needs to be ironed Iron dry
T-shirts, polo shirts, dresses, trousers,
work clothes, underwear which should only be
lightly ironed or not at
all
Cupboard dry
Terry towels, tea towels and hand
towels, bed linen, underwear, cotton
socks
which do not need to be
ironed with thick or
multi-layered parts
Dry plus
Towelling dressing gowns and bed
linen
No underwear or socks
which is particularly
thick or multi-layered Extra dry
Easy-care (no-iron) laundry made from synthetic and mixed
fibres, cotton e.g. viscose, cupro, modal, polyester, up to 2.5 kg Timed
programme
Easy-care
Trousers, dresses, skirts and shirts For laundry: which needs to be
ironed
Iron dry
Trousers, dresses, skirts, shirts,
blouses, corsetry, leggings,
sportswear with a high synthetic
content
which should only be
lightly ironed or not at
all
Lightly dry
Shirts, blouses and sportswear which does not need to
be ironed Cupboard dry
Bed linen and table linen, tracksuits,
anoraks, blankets, cotton socks which does not need to
be ironed – thick,
quilted fabrics
Very dry

17
Timed programme
Additional function
Low Heat button
Press the Low Heat button for temperature
sensitive fabrics (e.g. acrylics).
Observe the fabric care instructions .
The temperature is reduced and the drying time
increased.
The function remains active until the button
is pressed again.
Buzzer button
The buzzer is switched off by pressing the button.
Fabrics which have already been pre-dried and are slightly
damp, individual laundry items such as bath towels, swim wear,
dishcloths and quilted fabrics made of acrylic.
Press the Low Heat button when drying heat-sensitive fabrics.
Warm
(adjustable in 10
minute increments
up to 60 minutes)
For freshening and airing items of clothing which are not worn
very often.
For all types of fabrics.
Cold
(adjustable to
10 minutes)
i

18
Cleaning and care
Cleaning
the dryer
!Risk of explosion
There is a risk of explosion from solvents.
Never use solvents for cleaning.
The dryer may be damaged if it is not cleaned
correctly. Do not spray the dryer with a water jet.
Do not use abrasive agents or general-purpose
cleaners.
 Clean the housing and the control panel with a
mild detergent and a soft cloth.
Fluff filter
Clean the fluff filter after each drying cycle.
Bobbling (fluff) occurs when fabrics become worn.
These bobbles come off during the drying cycle and
collect in the fluff filter.
A clogged filter results in longer drying times and
higher energy consumption.
1. Open the door.
2. Pull the filter out towards the top.
3. Remove the fluff (by drawing your hand across
the filter).
4. Replace the filter (it can only be inserted one
way round).
5. Close the door.

19
Troubleshooting...
Troubleshooting... Cause Solution
The dryer is not plugged
in. Plug in the dryer.
No drying programme
has been set. Select the programme you require using the
programme selector.
The On indicator
lamp does not light
up.
The circuit breaker has
tripped. Reset/replace the fuse.
Start button has not
been pressed. Press the button.
No drying programme
has been set. Select the programme you require using the
programme selector.
The door is not shut. Close the door.
The dryer does not
start.
The ambient tempera-
ture is below 5 °C. Warm up the room.
The humidity in
the room has
increased
significantly.
The room is not
sufficiently ventilated. Ensure sufficient ventilation.
The door opens by
itself. The locking pin is not engaged. Push the door closed until you hear the locking
pin click into place.
Drying is not
satisfactory or the
drying time is too
long.
The filter is blocked. Clean the filter
(page 18).

20
!Risk of electrocution
Repairs must only be carried out by the after-
sales service or an authorised expert.
If you cannot rectify a fault yourself or a repair is
necessary:
 Turn the programme selector to Off.
 Remove the plug from the socket.
 Contact the aftersales service (see page 21).
Troubleshooting..
.
Cause Solution
Ambient temperature is
above 30 °C. Ensure that there is sufficient ventilation.
The wrong programme
was selected. Set the drying programme using the programme information
(from page 16).
Power cut for more than
two hours. Restart the program by pressing the Start button again.
Drying is not
satisfactory
The laundry feels damper
than it really is. Reset the drying time if the laundry is not sufficiently dry
after cooling down.
Laundry is not
dried evenly There was - too much laundry.
- only large items of
laundry.
- items of laundry
with different fibre
constructions.
Dry - small amounts of
laundry.
- large and small items
together.
- items according to their
fibre construction.
Condensation in
the exhaust air
hose.
The exhaust air hose is
too long. Arrange the dryer so that the exhaust air hose is no more
than 2 m long.
