Bosch WTW84360SN User manual

1 2 3 4 5 6
Contents Page
ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2
ʋSetting the programmes . . . . . . . . . . . . . 2
ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . 3/4
ʋNotes on laundry . . . . . . . . . . . . . . . . . . 5
ʋImportant Information . . . . . . . . . . . . . . . 6
ʋOverview of programmes . . . . . . . . . . . . 7
ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . 8
ʋFrost protection / Transport . . . . . . . . . . . 8
ʋCare and cleaning . . . . . . . . . . . . . . . . . . 9
ʋTechnical data . . . . . . . . . . . . . . . . . . . 10
ʋOptional accessories . . . . . . . . . . . . . . .10
ʋNormal noises . . . . . . . . . . . . . . . . . . . . 11
ʋWhat to do if ... / After-sales service . . .12
ʋSafety instructions . . . . . . . . . . . . . . . . 13
... and adapt to individual requirements
Never start the dryer if it is damaged.
Inform your after-sales service. Inspecting the
dryer
Sorting and loading laundry
Remove all items from pockets.
Check for cigarette lighters.
The drum must be empty prior to loading.
See programme overview on page 7.
Your new dryer Intended use Preparation Installation apage 8

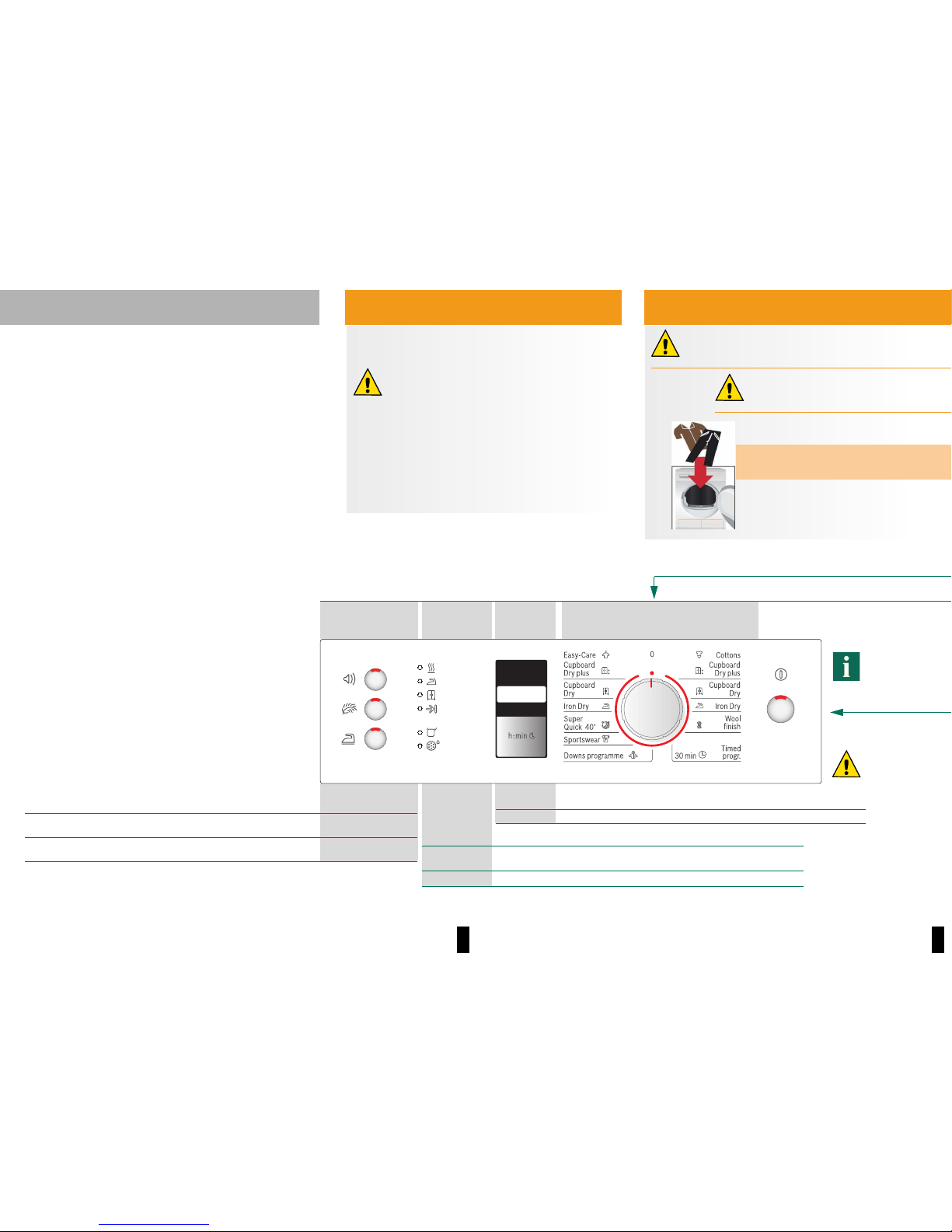

Selecting and adjusting the programme
Select the drying programme ...
Press the (start) button
Make sure your hands are dry.
Hold the plug only. Connecting the
mains plug
All buttons are sensitive and only
need to be touched lightly.
ʋFor domestic use only.
ʋOnly to be used for drying fabrics that h ave been
washed with water.
.
Do not leave children unsupervised nea r the dryer.
Keep pets away from the dryer.
3
2
1

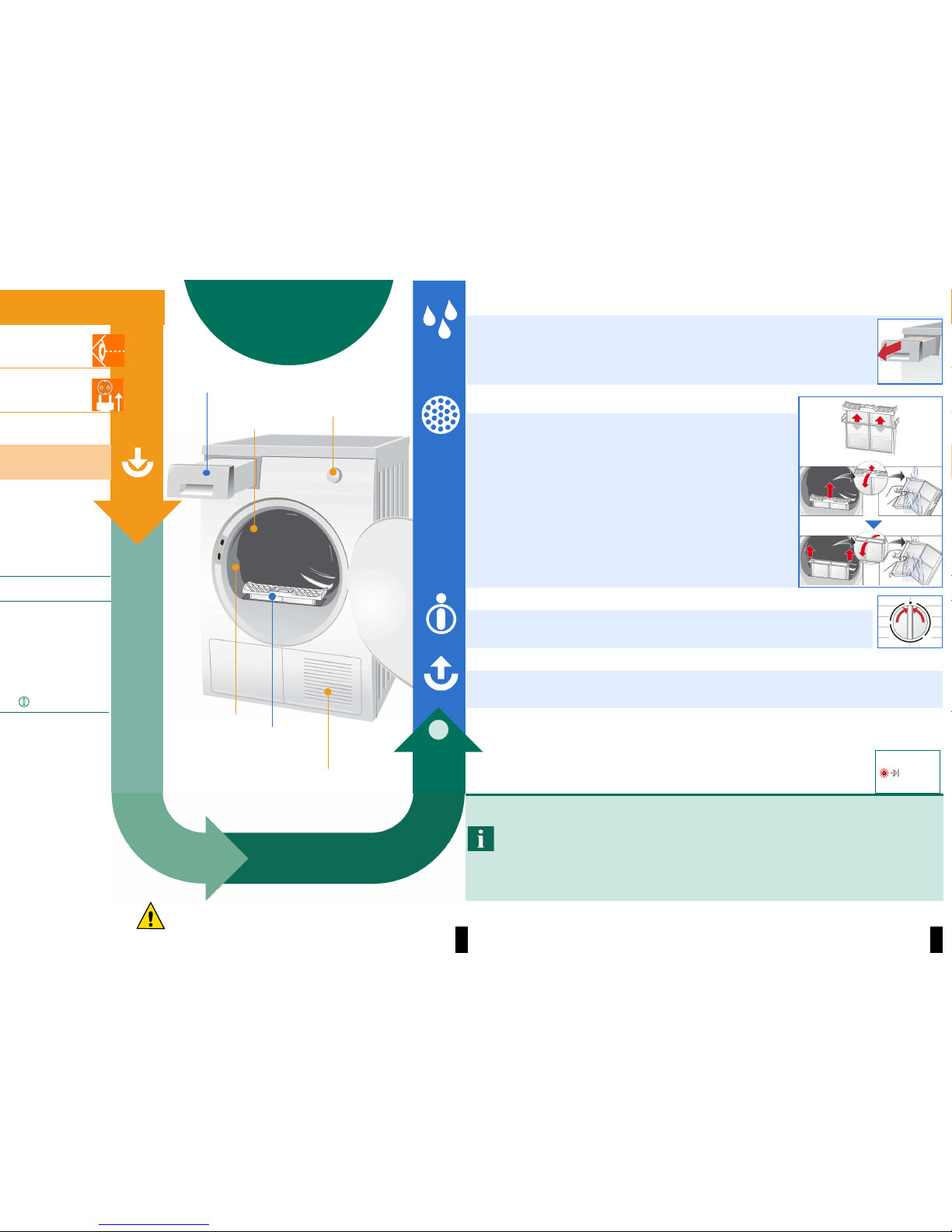

Drying
Drying
Condensation container with filter
Control panel
Air inlet
Two-part
fluff filter
Drum
End of programme as soon as t he "(AntiCrease/End) indicator lamp
lights up.
Interrupt programme Adding or remov ing laundry.
The drying operation can be interrupted briefly to add o r remove laundry. However, it must then be
continued until it has finished.
1. Open the door. The drying process is interrupted.
2. Add or remove laundry then close the door.
3. If required, select a new programme a nd additional functions.
4. Press the (start) button. The remaining time is updated after a few minutes.
Only use the dryer with the fluff filter
inserted.
Emptying condensation
Empty the container after each drying cycle, not during drying.
1. Remove the condensation container and h old it level.
2. Pour out the condensation.
3. Always push container in fully until it clicks into place.
If the nü(Container) indicator lamp flashes desp ite the container having
been emptied aFilter in condensation conta iner, page 9.
Cleaning the fluff filter
The fluff filter consists of two parts.
Clean the inner fluff filter after every drying cycle.
1. Open the door. Remove fluff from the door/door area.
2. Pull out the inner fluff filter and op en it out.
3. Remove the fluff (by wiping the filter with your hand).
If the fluff filter is heavily soiled or b locked, rinse it under
running water and dry thoroughly.
Clean the outer fluff filter after every 5 drying cycles:
4. Remove the outer fluff filter.
5. Open it and remove any fluff.
Rinse under running water and dry t horoughly.
6. Close and re-insert the fluff filter.
Switching off the dryer
Turn the programme selector to 0 (Off).
Do not leave laundry in the dryer.
Removing the laundry
Your dryer is equipped with an automatic reduced ironi ng function. The drum is moved at specific time
intervals for 60 minutes once the programm e has ended. The laundry stays loose and fluffy (or
120 minutes if the additional S(Less iron ing) function is selected).
Congratulations - you have chosen to buy a modern, h igh-quality Bosch
domestic appliance.
The condensation dryer with heat exchanger and automatic cleaning
function is outstanding in terms of efficient en ergy consumption and low
maintenance requirements apage 6.
Every dryer which leaves our factory is car efully checked to ensure that
it functions correctly and is in perfect condition.
Should you have any questions, our after-sa les service will be pleased to
help.
Environmentally-responsible disposal
Dispose of packaging in an environm entally-responsible manner.
This appliance is designated according to Eur opean directive 2002/96/EC which governs waste elect rical and electronic
equipment - WEEE).
The directive provides an EU-wide framework for the retu rn and recycling
of used appliances.
For further information about our products , accessories, spare parts and
services, please visit: www.bosch-home.com
Do not pull out/empty the
condensation container when drying is in progress.
Drum interior
light (depending
on model)
Important Information
Your dryer is designed to be particularly energy efficien t. Its technical features include a
refrigeration circuit, which uses energy ef ficiently in a similar way to a refrigerator.
The dryer's heat exchanger is cleaned automatic ally during drying.
The fluff filters and filter in the condensation container must be cleaned regularly.
Never operate the dryer without the fluff filters and/or condensation container with filter.
ʑFluff filters
During drying, fluff and hair from the laundry is t rapped by the fluff filter. Blocked fluff filters
may impair the heat exchange process.
The fluff filters must therefore be cleaned after every drying cycle. Rinse regularly under
running water apage 4.
ʑFilter in the condensation container
The filter in the condensation container cleans the condensation. This conde nsation is
required for the automatic cleaning process. The fi lter should be cleaned regularly under
running water. Empty the condensat ion container before cleaning the filter apage 4/9.
ʑFabrics
Do not dry any fabrics that have come into contact with solvents , oil, wax, grease or paint:
e.g. hair styling products, nail varnish remover, st ain remover, cleaning solvent. etc.
Empty all pockets.
Do not dry non-breathable fabrics.
Avoid drying items that produce a lot of f luff.
Woollens should be refreshed only, using t he woollens programme.
Information on laundry ...
Labelling of fabrics
Follow the manufacturer's care information.
(Dry at normal temperature.
'cDry at low temperature ain addition, select V(Low heat) .
)cDo not machine dry.
Always observe the safety instructions on page 13.
Do not tumble-dry the following fabrics, for examp le:
– Non-breathable fabrics (e.g. r ubber-coated).
– Delicate materials (silk, curtains m ade from synthetic material) athese may crease.
– Oil-stained laundry.
Drying tips
– To ensure an even re sult, sort the laundry by fabric type and drying programme.
– Always dry very small fabrics (e.g. baby sock s) together with
large items of laundry (e.g. towels) .
– Close zips, hooks and eyelets, and b utton up covers.
Tie fabric belts, apron strings, etc. togethe r
– Do not over-dry easy- care laundry aRisk of creasing.
Allow laundry to finish drying in the air.
– Do not dry woollens in the d ryer. They may, however, be refreshed apage 7
OWooll finish programme.
– Do not iron laundry immedi ately after drying; fold items up and leave for a while aresidual
moisture will then be distributed ev enly.
– K nitted fabrics (e.g. T-shirts, jerseys) often shrink slightly the first time they are tumble-dried.
aDo not use the +: Cupboard Dry plu s programme.
– The drying of starched laundry should be limited. aS tarch leaves behind a coating that
impairs drying.
– When washing laundry that is to be tumble-dried afterwards, use the correct amount of
fabric softener as specified in the manufacture r's instructions.
– For pre-dried, multi-layered fabr ics or small, individual items of laundry, use the Timed
programme. Also suitable for subsequent drying.
Environmental protection/energy-saving tips
– Before drying, spin the laundry thorou ghly in the washing machine athe higher the spin
speed, the shorter the drying time wi ll be, thus less energy is consumed. Also spin ea sy-
care laundry.
– Use the maximum recommend ed capacity, but do not exceed it
aProgramme overview page 7.
– Make sure the room is w ell ventilated during drying.
– Do not cover or seal the air inlet.
Select On/Off for buzzer at the end of the programme. ˎ&(Signal)
Reduced temperature for delicate fabrics 'that require a l onger
drying time; e.g. polyacrylics, polyamide, el astane, acetate silk.
ˎV(Low heat)
Reduces creasing and prolongs the 'reduce d ironing' phase after
the programme has finished.
ˎS(Less ironing) H+"drying, iron dry, cupboard dry, anti-cre ase /end
n(Container) Empty the condensation container.
Clean the filter in the condensation container if necessary apag e 9.
.(Filter) Rinse the fluff filters under running w ater apage 4.
Display
status/
service
Programme selector
Display/
Remaining
time
h:min End of programme after 1-24 hours (bu tton may need to be pressed
several times) can always be set t o the nearest full hour.
Cln Automatic cleaning of the heat e xchanger.
Additional functions
7

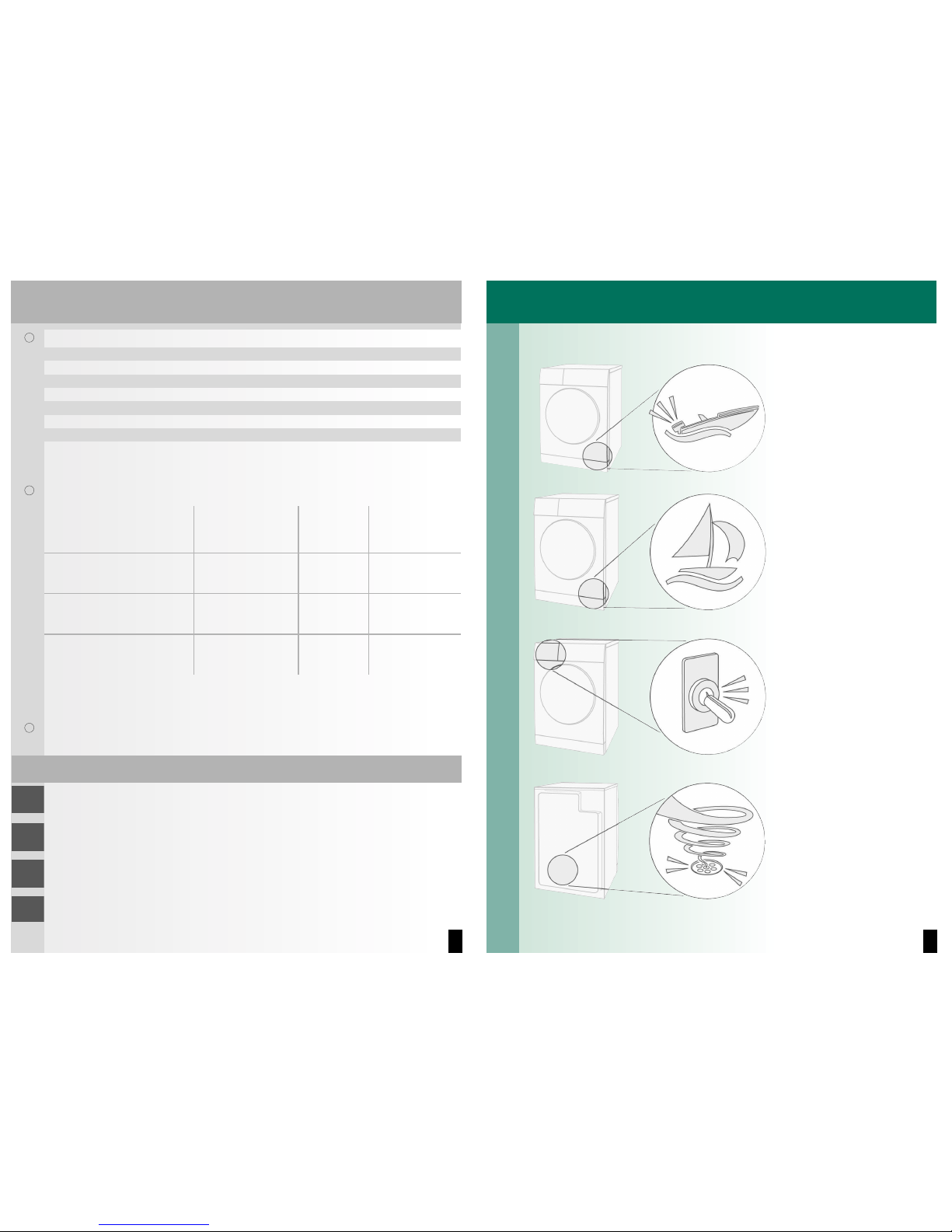

Programme overview see also page 5 .
After drying, laundry is to be ...
T-shirt
Shirts
Trousers
Skirts/dresses
Sportswear
Work clothing
Anoraks
Towelling
dressing gowns
Underwear
Socks
Bed linen
Table linen
Terry towels
Tea towels/
towels
c
ironed

lightly ironed
@c
not ironed
c
mangled
FCottons max. 7 kg Suitable for cottons, coloureds and linens.
Iron Dry ø@ ********+Cupboard Dry @*****+:Cupboard Dry plus @******IEasy-Care max. 3.5 kg For non-iron laundry made of synthetic f ibres and mixed fabric, cotton.
Iron Dry cø@c ******+Cupboard Dry @**+:Cupboard Dry plus @***ASuper Quick 40’ max. 2 kg
For laundry made of synthetic fibres, cotton or blended fabrics (for exa mple) that needs to be dried quickly. The values may dif- fer from the those specified depending on th e type of fabric, composition of the laundry to be dried, residual moisture in the fabric and size of the load.
ZSportswear max. 1.5 kg For fabrics with a membrane coating, water-repellent fabrics, functional clothing, fleece fabrics (d ry removable internal lining
from jackets/trousers separately).
WDowns programme max. 2 kg Garments with down feather fillings, pillo wsan db lankets. By non quilt loads-please add just 1 piece per drying.
OWool finish max. 3 kg For woollen fabrics suitable for washing machines. Fabrics bec omef luffier but not dry.
Remove fabrics once the programme has ended and allow to dry.
Timed progr. 30 min max. 3 kg For pre-dried, multi-layered fabrics or small, in dividual items of laundry.
Also for subsequent drying.
0610/ 9000555642 *555642* Robert Bosch Hausgeräte GmbH
Carl-Wery-Str. 34
81739 München, Germany
WTW84360SN

8

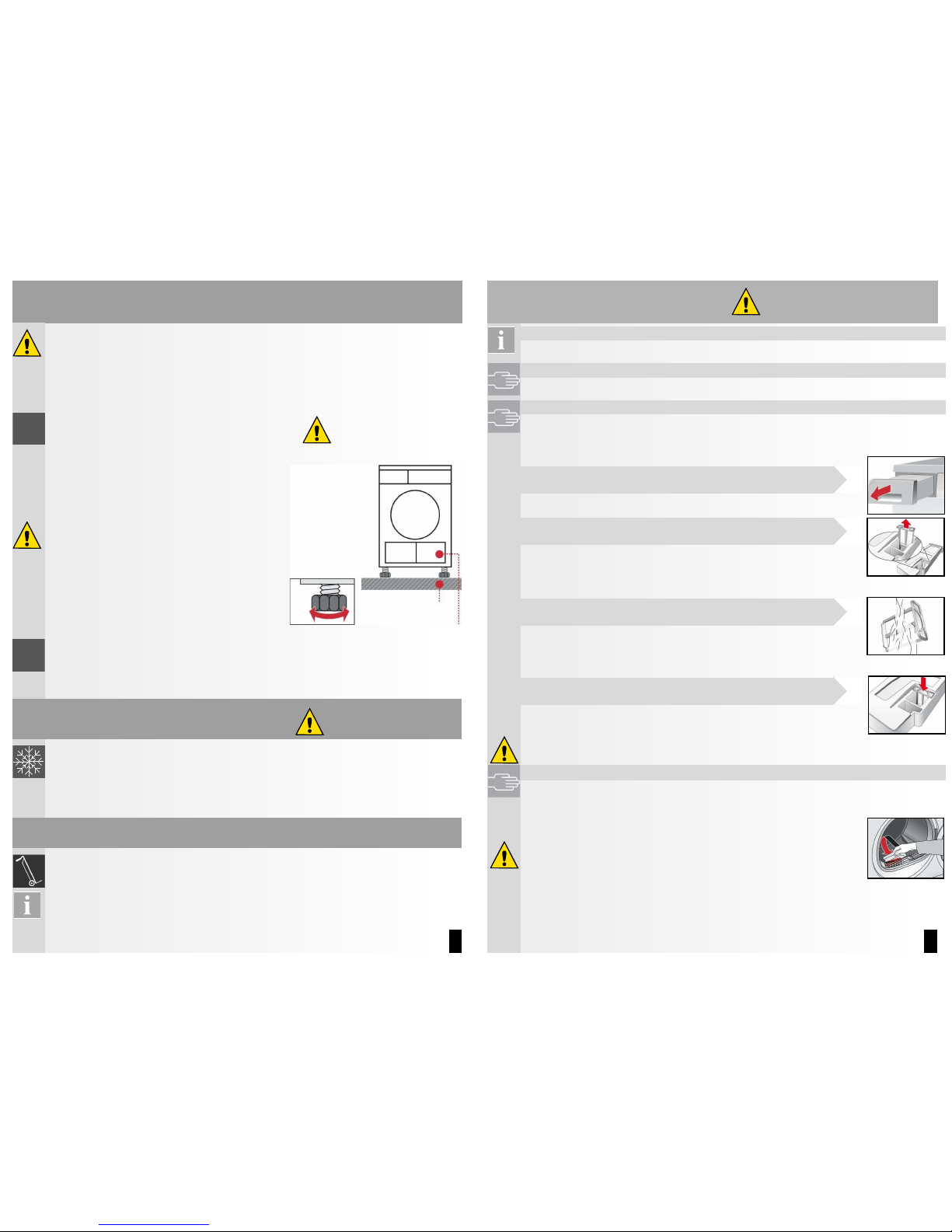

Installation
– Scope of delivery: dryer, insta llation and operating instructions.
– Check dryer for transport damage.
– The dryer is very h eavy. Do not attempt to lift it on your o wn.
– Be careful to avoid sha rp edges.
– Do not set up in a room that i s susceptible to frost. Freezing water may cause damage .
– If in doubt, have the appliance connected by a specialist.
– Do not lift the dryer b y protruding parts (e.g. the door) - risk of breaka ge.
Setting up the dryer
– The appliance plug must always be accessible.
– Ensure that t he appliance is installed on a clean, level
and firm surface.
– Do not obstruct the air inle t on the front of the
dryer.
– Keep the area around the dryer clean.
– Make the dryer level using the threaded fe et
and a spirit level.
– Do not remove the th readed feet under any
circumstances.
Mains connection see Safety instructions apage 13.
– Connect to an AC earthed socket. If in doubt ha ve the socket checked by a specialist.
– The mains voltage and the voltage shown on the rating plate (apage 10) must be t he
same.
– The connected load and necessa ry fuse protection are specified on the rating plate.
Frost protection
Preparation
1. Empty the condensation container apage 4.
2. Select any programme using t he programme selector.
3. Press the (start) button acondensed water is pumped into the c ontainer
4. Wait 5 minutes and then empty the c ondensation container again.
5. Turn the programme selector to 0 (Off).
Transport
– Prepare the dryer asee Frost protection.
– Transport the dryer in a vertical upright position.
– Following transportation, do no t use the dryer for two hours.
The dryer contains residual water;
this can flow out if the dryer is tilted.
1.
Take all accessory parts out
of the drum.
The drum must be empty.
Make sure that the air inlet
remains unobstructed
Clean and level
Do not set up the dryer behind a door or sliding
door, as this may obstruct the dryer door or prevent
it from opening. This will prevent a potent ially fatal
danger to children from locking them selves in.
2.
Do not operate the dryer if
there is a danger of frost.
9
Care and cleaning
Heat exchanger
The dryer's heat exchanger is clea ned automatically during drying. Cln appears in the display
panel. Do not pull out the condensation container during the cleaning process .
Dryer housing, control panel, air intake
Remove detergent residues immed iately.
Wipe with a soft, damp cloth.
Filter in the condensation container
The filter is cleaned automatically when the condensation container is emptied.
However, the filter should still be cleaned regularly un der running water aThis prevents
stubborn deposits/dirt from building up.
1. Pull out the condensation conta iner.
2. Pull the filter out of its snap-in lock.
3. Clean the filter under running water o r in the dishwasher.
4. Refit the filter.
5. Insert the condensation container so that it locks into place.
Only operate the dryer with the filter inserted.
Moisture sensor
The dryer is equipped with stainless steel moisture sensors. Moisture sensors measure how
damp the laundry is. A thin layer of limescale may build up on the moisture sensors after
prolonged use.
1. Open the door.
2. Clean the moisture sensors using a d amp sponge with a rough surface.
Do not use steel wool or abras ive materials.
Appliance must be switched off.
10
Technical data
ʠDimensions (DxWxH) 60 x 60 x 85 cm (height adjustable)
Weight approximately 51 kg
Max. capacity 7 kg
Condensation container 4.0 l
Connection voltage 220-240 V
Connected load max. 1000 W
Fuse protection 10 A
Ambient temperature 5 - 35 °C
Product number
Production number under the door
The rating plate can be found on the back of the dryer.
ʠConsumption rates These are guide values determined u nder standard
conditions.
Spin speed
in rpm
(residual moisture)
Drying time
in min.**
Energy
consumption
in kWh**
FCottons 7 kg
+Cupboard Dry* 1400 (approx. 50 %) 128 1.62
1000 (approx. 60 %) 149 1.90
800 (approx. 7 0 %) 169 2.19
Iron Dry* 1400 (approx. 50 %) 92 1 .13
1000 (approx. 60 %) 113 1.42
800 (approx. 7 0 %) 133 1.70
Easy-Care 3.5 kg
+Cupboard Dry* 800 (approx. 4 0 %) 54 0.57
600 (approx. 5 0 %) 68 0.72
*Test programs according to DIN EN 61121
**The values may differ from those gi ven, depending on overvoltage and undervoltage, the
type of fabric, composition of the laundry to be dried, the resid ual moisture in the fabric and
the size of the load.
ʠDrum interior light (depending on model) (bulb E14, 25 W)
The drum lights up after the door is opened or closed, a nd after the programme starts, and
switches off automatically . Changing the bulb apage 12.
Optional accessories (from after-sales s ervice using order number)
Platform
For easier loading and unloading. The bask et contained in the drawer can be used to carry
the laundry.
Washer-dryer stack connection set
The dryer can be placed on top of a suitable washing machine with the sam e width and depth
to save space. The drye r mustbe fastened to the washing machine using this connection set.
Same as WTZ 11310, but with pull-out worktop.
Installation underneath the worktop
Instead of the appliance covering plate , you must have a metal cover fitted by a spec ialist.
WMZ
20460
WTZ
11310
WTZ
11300
WTZ
10290
11
Normal noises
During drying, the compressor and the pump generate some noise which is entirely normal.
The compressor in the dryer may occasion-
ally generate a humming noise.
The compressor in the dryer is ventilated
from time to time, which creates a whir ring
sound.
The automatic cleaning process causes a
clicking noise.
The process of pumping the condensation
into the condensation container generates
pumping noises.
12
What to do if...
If you cannot rectify a fa ult yourself, please contact our afte r-sales service. We will always find
an appropriate solution and wi ll avoid unnecessary visits by engineers. Tru st the expertise of
the manufacturer and rest assured that th e repair will be carried out by trained service
technicians using original spare p arts. The contact details of your local after-sale s service can
be found in the enclosed after-sale s service directory, or by calling one of these numbers :
–GB 0844 8928979 (Calls from a BT la ndline will be charged at up to 3 pence per minute.
A call set-up fee of up to 6 pence may apply.)
–IE 01450 2655
When contacting the after-sales serv ice, please quote the appliance's product number (E n o.)
and production number (FD ) (see under the loading door).
Turn the programme se lector to 0 (Off) and unplug the ma ins plug from the socket.
ʠThe (start) indicator lamp
does not light up.
Mains plug plugged in?
Programme selected?
ʠThe n(Container) indicator
lamp and the (start) button
are flashing.
Empty the condensation container ap age 4.
Clean the condensation contain er filter if necessary
apage 9.
Dryer transported? aWait 2 ho urs and start again.
ʠThe .(Filter) indicator lamp and
(start) button are flashing.
Rinse the fluff filter under running water apage 4.
ʠCln appears in the display panel. Not an error. Automatic cleaning of th e heat exchanger. Do
not empty the condensati on container.
ʠDryer does not start. (start) button selected?
Door closed?
Programme set?
Ambient temperature grea ter than 5 °C?
ʠWater is leaking out. Make sure the dryer is level.
ʠThe door opens by itself. Push the door closed until you hear it click into place .
ʠThe required degree of dryness
was not achieved or the drying
time was too long.
Rinse the fluff filters under runnin g water apage 4.
Empty the condensation container .
Check the water drainage (if appl icable).
Ambient temperature gr eater than 35 °C? aVentilate the
room.
Air inlet may be blocked aK eep clear.
Was an unsuitable programm e selected? apage 7.
Has the dryer been insta lled with sufficient space on all
sides? Ensure that air can c irculate.
Power failure aRestart dryer.
Fine layer of limescale on the mois ture sensors aClean
the sensors apage 6.
ʠLaundry damp. Select the next drying programme up or use the Tim ed
programme as a suppleme nt apage 7.
Warm laundry feels damp er than it really is.
ʠThe humidity in the room
increases significantly.
Make sure the room is sufficiently ve ntilated.
Air inlet blocked? aKeep clear.
ʠPower failure. Remove laundry from the dryer i mmediately and spread out.
This allows the heat to dissipate.
ʠOther intermittent noises and
vibrations.
Not an error.
Normal noises apage 11.
ʠLoud humming noise for sever al
seconds.
Has the condensation co ntainer been properly inserted?
aPush the condensation containe r all the way in.
Not an error. Normal no ises apage 11.
ʠThe interior light is not working
(depending on model).
Pull out the appliance plug, remo ve the cover cap in the
interior above the door (use T orx 20 screwdriver) and
replace the bulb apage 10. Close th e cover cap. Never
operate the dryer without a cover cap.
13
Safety instructions
Emergency – Pull the appliance plug out of the socket immediately or disconnect the fuse.
ONLY use the
dryer...
– In rooms inside the house.
– To dry fabrics.
Thedryer must
NEVER...
– Be used for purposes other than those described above.
– Be modified in terms of its technology or properties.
Hazards – The dryer must not be used by children or persons who have not been
instructed in its use.
– Do not leave children unsupervised near the dryer.
– Keep pets away from the dryer.
– Remove all objects from pockets, and lighters in particular aRisk of
explosion.
– Do not lean or sit on the door aRisk of tipping.
Installation – Secure loose cables aRisk of tripping.
– Do not operate a dryer if there is a risk of frost.
Mains
connection
– Connect the dryer to an AC earthed socket according to specifications,
otherwise it cannot be guaranteed that the appliance is completely safe.
– The cable cross-section must be sufficient.
– Only use earth-leakage circuit breakers with the following symbol:
– The appliance plug and socket must be compatible.
– Do not use multiple plugs/connectors and/or extension cables.
– Do not touch or hold the appliance plug with wet hands
aRisk of electric shock.
– Never pull the appliance plug out of the socket by its cable.
– Do not damage the mains lead aRisk of electric shock.
Operation – Only load the drum with laundry.
Check the contents before you switch the dryer on.
– Do not use the dryer if the laundry has been in contact with solvents, oil, wax,
grease or paint (e.g. hair styling products, nail varnish remover, stain
remover, cleaning solvent, etc.) aRisk of fire/explosion.
– Dust (e.g. coal dust, flour) poses a danger: Do not use the dryer
aRisk of explosion
– Do not put laundry containing foamed material/rubber in the dryer aelastic
material may be destroyed and the dryer be damaged due to possible
deformation of the foamed material.
– When cleaning the fluff filter, make sure that no foreign material (down or
filling material) gets into the air duct opening. If necessary, clean the drum
beforehand with a vacuum cleaner. If foreign material should still get into the
air duct acall the after-sales service aRisk of fire/explosion.
– Switch off the dryer once the programme has ended.
– The water f romc ondensation is not drinking water and may be contaminated
with fluff.
Defect – Do not use the dryer if it is defective or if you suspect that it is.
Repairs must only be carried out by the after-sales service.
– Do not use the dryer if the mains cable is defective. To avoid danger, only
have the defective mains cable replaced by the after-sales service.
– Always pull the mains plug out of the socket before changing the bulb for
the interior light aRisk of electric shock.
Spare parts – Only use genuine spare parts and accessories for safety reasons.
Disposal – Pull out the appliance plug, then cut off the mains cable from the appliance.
Dispose of at a municipal waste disposal facility.
– Heat exchangers contain a fluorinated greenhouse gas covered by the
Kyoto protocol (R134a) adispose of in a proper manner. Capacity: 0.22
kg.
– Packaging: Keep all packaging out of reach of babies and children
aRisk of suffocation.
– All materials are environmentally sound and can be reused.
Dispose of in an environmentally-responsible manner.
Installation
and operating instructions
Tumble dryer
en
Read these instructions before operating the dryer.
Observe the safety instructions on page 13.

1 2
Contents Page
ʋPreparation . . . . . . . . . . . . . . . . . . . . . . 2
ʋSetting the programmes . . . . . . . . . . . . . 2
ʋDrying . . . . . . . . . . . . . . . . . . . . . . . . 3/4
ʋNotes on laundry . . . . . . . . . . . . . . . . . . 5
ʋImportant Information . . . . . . . . . . . . . . . 6
ʋOverview of programmes . . . . . . . . . . . . 7
ʋInstallation . . . . . . . . . . . . . . . . . . . . . . . 8
ʋFrost protection / Transport . . . . . . . . . . . 8
ʋCare and cleaning . . . . . . . . . . . . . . . . . . 9
ʋTechnical data . . . . . . . . . . . . . . . . . . . 10
ʋOptional accessories . . . . . . . . . . . . . . . 10
ʋNormal noises . . . . . . . . . . . . . . . . . . . . 11
ʋWhat to do if ... / After-sales service . . . 12
ʋSafety instructions . . . . . . . . . . . . . . . . 13
... and adapt to individual requirements
Never start the dryer if it is damaged.
Inform your after-sales service. Inspecting the
Sorting and loading laundry
Remove all items from pockets.
Check for cigarette lighters.
The drum must be empty prior to loading.
See programme overview on page 7.
Your new dryer Intended use Preparation Installation apage 8
Selecting and adjusting the programme
Select the drying programme ...
Press the Make sure your hands are dry.
Hold the plug only. Connecting the
mains plug
All buttons are sensitive and only
need to be touched lightly.
ʋFor domestic use only.
ʋOnly to be used for drying fabrics that have been
washed with water.
.
Do not leave children unsupervised near the dryer.
Keep pets away from the dryer. "Only use the dryer with the fluff filter
inserted. nüaS
Congratulations - you have chosen to buy a modern, high-quality Bosch
domestic appliance.
The condensation dryer with heat exchanger and automatic cleaning
function is outstanding in terms of efficient energy consumption and low
maintenance requirements apage 6.
Every dryer which leaves our factory is carefully checked to ensure that
it functions correctly and is in perfect condition.
Should you have any questions, our after-sales service will be pleased to
help.
Environmentally-responsible disposal
Dispose of packaging in an environmentally-responsible manner.
This appliance is designated according to European directive 2002/96/EC which governs waste electrical and electronic
equipment - WEEE).
The directive provides an EU-wide framework for the return and recycling
of used appliances.
For further information about our products, accessories, spare parts and
services, please visit: www.bosch-home.com
ʑaʑaʑ('caV)caaaOaa+aaa
Select On/Off for buzzer at the end of the programme. ˎ&(Signal)
Reduced temperature for delicate fabrics 'that require a longer
drying time; e.g. polyacrylics, polyamide, elastane, acetate silk.
ˎV(Low heat)
Reduces creasing and prolongs the 'reduced ironing' phase after
the programme has finished.
ˎS(Less ironing) H+"drying, iron dry, cupboard dry, anti-crease /end
n(Container) Empty the condensation container.
Clean the filter in the condensation container if necessary apage 9.
.(Filter) Rinse the fluff filters under running water apage 4.
Display
status/
service
Programme selector
Display/
Remaining
time
h:min End of programme after 1-24 hours (button may need to be pressed
several times) can always be set to the nearest full hour.
Cln Automatic cleaning of the heat exchanger.
Additional functions
c@c c
Fø@ ********+@*****+@******Icø@c ******+@**+@***AZWO

3 4
ʋʋʋʋʋʋʋʋʋʋʋʋʋʋ... and adapt to individual requirements
Inspecting the
dryer
Sorting and loading laundry
a
Selecting and adjusting the programme
Select the drying programme ...
Press the (start) button
Connecting the
mains plug
All buttons are sensitive and only
need to be touched lightly.
ʋʋ
3
2
1
Drying
Drying
Condensation container with filter
Control panel
Air inlet
Two-part
fluff filter
Drum
End of programme as soon as the "(AntiCrease/End) indicator lamp
lights up.
Interrupt programme Adding or removing laundry.
The drying operation can be interrupted briefly to add or remove laundry. However, it must then be
continued until it has finished.
1. Open the door. The drying process is interrupted.
2. Add or remove laundry then close the door.
3. If required, select a new programme and additional functions.
4. Press the (start) button. The remaining time is updated after a few minutes.
Only use the dryer with the fluff filter
Emptying condensation
Empty the container after each drying cycle, not during drying.
1. Remove the condensation container and hold it level.
2. Pour out the condensation.
3. Always push container in fully until it clicks into place.
If the nü(Container) indicator lamp flashes despite the container having
been emptied aFilter in condensation container, page 9.
Cleaning the fluff filter
The fluff filter consists of two parts.
Clean the inner fluff filter after every drying cycle.
1. Open the door. Remove fluff from the door/door area.
2. Pull out the inner fluff filter and open it out.
3. Remove the fluff (by wiping the filter with your hand).
If the fluff filter is heavily soiled or blocked, rinse it under
running water and dry thoroughly.
Clean the outer fluff filter after every 5 drying cycles:
4. Remove the outer fluff filter.
5. Open it and remove any fluff.
Rinse under running water and dry thoroughly.
6. Close and re-insert the fluff filter.
Switching off the dryer
Turn the programme selector to 0 (Off).
Do not leave laundry in the dryer.
Removing the laundry
Your dryer is equipped with an automatic reduced ironing function. The drum is moved at specific time
intervals for 60 minutes once the programme has ended. The laundry stays loose and fluffy (or
120 minutes if the additional S(Less ironing) function is selected).
aDo not pull out/empty the
condensation container when drying is in progress.
Drum interior
light (depending
on model) ʑaʑaʑ('caV)caaaOaa+aaa
ˎ&'ˎVˎSH+"na.a
c@c c
Fø@ ********+@*****+@******Icø@c ******+@**+@***AZWO

56
ʋʋʋʋʋʋʋʋʋʋʋʋʋʋaʋʋ
3
2
1
"nüaS
aImportant Information
Your dryer is designed to be particularly energy efficient. Its technical features include a
refrigeration circuit, which uses energy efficiently in a similar way to a refrigerator.
The dryer's heat exchanger is cleaned automatically during drying.
The fluff filters and filter in the condensation container must be cleaned regularly.
Never operate the dryer without the fluff filters and/or condensation container with filter.
ʑFluff filters
During drying, fluff and hair from the laundry is trapped by the fluff filter. Blocked fluff filters
may impair the heat exchange process.
The fluff filters must therefore be cleaned after every drying cycle. Rinse regularly under
running water apage 4.
ʑFilter in the condensation container
The filter in the condensation container cleans the condensation. This condensation is
required for the automatic cleaning process. The filter should be cleaned regularly under
running water. Empty the condensation container before cleaning the filter apage 4/9.
ʑFabrics
Do not dry any fabrics that have come into contact with solvents, oil, wax, grease or paint:
e.g. hair styling products, nail varnish remover, stain remover, cleaning solvent. etc.
Empty all pockets.
Do not dry non-breathable fabrics.
Avoid drying items that produce a lot of fluff.
Woollens should be refreshed only, using the woollens programme.
Information on laundry ...
Labelling of fabrics
Follow the manufacturer's care information.
(Dry at normal temperature.
'cDry at low temperature ain addition, select V(Low heat).
)cDo not machine dry.
Always observe the safety instructions on page 13.
Do not tumble-dry the following fabrics, for example:
– Non-breathable fabrics (e.g. rubber-coated).
– Delicate materials (silk, curtains made from synthetic material) athese may crease.
– Oil-stained laundry.
Drying tips
– To ensure an even result, sort the laundry by fabric type and drying programme.
– Always dry very small fabrics (e.g. baby socks) together with
large items of laundry (e.g. towels).
– Close zips, hooks and eyelets, and button up covers.
Tie fabric belts, apron strings, etc. together
– Do not over-dry easy-care laundry aRisk of creasing.
Allow laundry to finish drying in the air.
– Do not dry woollens in the dryer. They may, however, be refreshed apage 7
OWooll finish programme.
– Do not iron laundry immediately after drying; fold items up and leave for a while aresidual
moisture will then be distributed evenly.
– Knitted fabrics (e.g. T-shirts, jerseys) often shrink slightly the first time they are tumble-dried.
aDo not use the +: Cupboard Dry plus programme.
– The drying of starched laundry should be limited. aStarch leaves behind a coating that
impairs drying.
– When washing laundry that is to be tumble-dried afterwards, use the correct amount of
fabric softener as specified in the manufacturer's instructions.
– For pre-dried, multi-layered fabrics or small, individual items of laundry, use the Timed
programme. Also suitable for subsequent drying.
Environmental protection/energy-saving tips
– Before drying, spin the laundry thoroughly in the washing machine athe higher the spin
speed, the shorter the drying time will be, thus less energy is consumed. Also spin easy-
care laundry.
– Use the maximum recommended capacity, but do not exceed it
aProgramme overview page 7.
– Make sure the room is well ventilated during drying.
– Do not cover or seal the air inlet.
ˎ&'ˎVˎSH+"na.a
c@c c
Fø@ ********+@*****+@******Icø@c ******+@**+@***AZWO

ʋʋʋʋʋʋʋʋʋʋʋʋʋʋaʋʋ
3
2
1"nüaS
aʑaʑaʑ('caV)caaaOaa+aaa
ˎ&'ˎVˎSH+"na.a
7
Programme overview see also page 5 .
After drying, laundry is to be ...
T-shirt
Shirts
Trousers
Skirts/dresses
Sportswear
Work clothing
Anoraks
Towelling
dressing gowns
Underwear
Socks
Bed linen
Table linen
Terry towels
Tea towels/
towels
c
ironed

lightly ironed
@c
not ironed
c
mangled
FCottons max. 7 kg Suitable for cottons, coloureds and linens.
Iron Dry ø@ ********+Cupboard Dry @*****+:Cupboard Dry plus @******IEasy-Care max. 3.5 kg For non-iron laundry made of synthetic fibres and mixed fabric, cotton.
Iron Dry cø@c ******+Cupboard Dry @**+:Cupboard Dry plus @***ASuper Quick 40’ max. 2 kg
For laundry made of synthetic fibres, cotton or blended fabrics (for example) that needs to be dried quickly. The values may dif- fer from the those specified depending on the type of fabric, composition of the laundry to be dried, residual moisture in the fabric and size of the load.
ZSportswear max. 1.5 kg For fabrics with a membrane coating, water-repellent fabrics, functional clothing, fleece fabrics (dry removable internal lining
from jackets/trousers separately).
WDowns programme max. 2 kg Garments with down feather fillings, pillows and blankets. By non quilt loads-please add just 1 piece per drying.
OWool finish max. 3 kg For woollen fabrics suitable for washing machines. Fabrics become fluffier but not dry.
Remove fabrics once the programme has ended and allow to dry.
Timed progr. 30 min max. 3 kg For pre-dried, multi-layered fabrics or small, individual items of laundry.
Also for subsequent drying.
0610/ 9000555642 *555642* Robert Bosch Hausgeräte GmbH
Carl-Wery-Str. 34
81739 München, Germany
WTW84360SN

8
Installation
– Scope of delivery: dryer, installation and operating instructions.
– Check dryer for transport damage.
– The dryer is very heavy. Do not attempt to lift it on your own.
– Be careful to avoid sharp edges.
– Do not set up in a room that is susceptible to frost. Freezing water may cause damage.
– If in doubt, have the appliance connected by a specialist.
– Do not lift the dryer by protruding parts (e.g. the door) - risk of breakage.
Setting up the dryer
– The appliance plug must always be accessible.
– Ensure that the appliance is installed on a clean, level
and firm surface.
– Do not obstruct the air inlet on the front of the
dryer.
– Keep the area around the dryer clean.
– Make the dryer level using the threaded feet
and a spirit level.
– Do not remove the threaded feet under any
circumstances.
Mains connection see Safety instructions apage 13.
– Connect to an AC earthed socket. If in doubt have the socket checked by a specialist.
– The mains voltage and the voltage shown on the rating plate (apage 10) must be the
same.
– The connected load and necessary fuse protection are specified on the rating plate.
Frost protection
Preparation
1. Empty the condensation container apage 4.
2. Select any programme using the programme selector.
3. Press the (start) button acondensed water is pumped into the container
4. Wait 5 minutes and then empty the condensation container again.
5. Turn the programme selector to 0 (Off).
Transport
– Prepare the dryer asee Frost protection.
– Transport the dryer in a vertical upright position.
– Following transportation, do not use the dryer for two hours.
The dryer contains residual water;
this can flow out if the dryer is tilted.
1.
Take all accessory parts out
of the drum.
The drum must be empty.
Make sure that the air inlet
remains unobstructed
Clean and level
Do not set up the dryer behind a door or sliding
door, as this may obstruct the dryer door or prevent
it from opening. This will prevent a potentially fatal
danger to children from locking themselves in.
2.
Do not operate the dryer if
there is a danger of frost.
9
Care and cleaning
Heat exchanger
The dryer's heat exchanger is cleaned automatically during drying. Cln appears in the display
panel. Do not pull out the condensation container during the cleaning process.
Dryer housing, control panel, air intake
Remove detergent residues immediately.
Wipe with a soft, damp cloth.
Filter in the condensation container
The filter is cleaned automatically when the condensation container is emptied.
However, the filter should still be cleaned regularly under running water aThis prevents
stubborn deposits/dirt from building up.
1. Pull out the condensation container.
2. Pull the filter out of its snap-in lock.
3. Clean the filter under running water or in the dishwasher.
4. Refit the filter.
5. Insert the condensation container so that it locks into place.
Only operate the dryer with the filter inserted.
Moisture sensor
The dryer is equipped with stainless steel moisture sensors. Moisture sensors measure how
damp the laundry is. A thin layer of limescale may build up on the moisture sensors after
prolonged use.
1. Open the door.
2. Clean the moisture sensors using a damp sponge with a rough surface.
Do not use steel wool or abrasive materials.
Appliance must be switched off.
ʠʠF++ʠa
ʠʠnaaaʠ.aʠʠʠʠʠaaaaaaaʠaʠaʠʠaʠaaʠaaaaaaaaaaaaaa

aaaaa1. Take all accessory parts out
2.
a
10
Technical data
ʠDimensions (DxWxH) 60 x 60 x 85 cm (height adjustable)
Weight approximately 51 kg
Max. capacity 7 kg
Condensation container 4.0 l
Connection voltage 220-240 V
Connected load max. 1000 W
Fuse protection 10 A
Ambient temperature 5 - 35 °C
Product number
Production number under the door
The rating plate can be found on the back of the dryer.
ʠConsumption rates These are guide values determined under standard
conditions.
Spin speed
in rpm
(residual moisture)
Drying time
in min.**
Energy
consumption
in kWh**
FCottons 7 kg
+Cupboard Dry* 1400 (approx. 50 %) 128 1.62
1000 (approx. 60 %) 149 1.90
800 (approx. 70 %) 169 2.19
Iron Dry* 1400 (approx. 50 %) 92 1.13
1000 (approx. 60 %) 113 1.42
800 (approx. 70 %) 133 1.70
Easy-Care 3.5 kg
+Cupboard Dry* 800 (approx. 40 %) 54 0.57
600 (approx. 50 %) 68 0.72
*Test programs according to DIN EN 61121
**The values may differ from those given, depending on overvoltage and undervoltage, the
type of fabric, composition of the laundry to be dried, the residual moisture in the fabric and
the size of the load.
ʠDrum interior light (depending on model) (bulb E14, 25 W)
The drum lights up after the door is opened or closed, and after the programme starts, and
switches off automatically. Changing the bulb apage 12.
Optional accessories (from after-sales service using order number)
Platform
For easier loading and unloading. The basket contained in the drawer can be used to carry
the laundry.
Washer-dryer stack connection set
The dryer can be placed on top of a suitable washing machine with the same width and depth
to save space. The dryer must be fastened to the washing machine using this connection set.
Same as WTZ 11310, but with pull-out worktop.
Installation underneath the worktop
Instead of the appliance covering plate, you must have a metal cover fitted by a specialist.
WMZ
20460
WTZ
11310
WTZ
11300
WTZ
10290
11
Normal noises
During drying, the compressor and the pump generate some noise which is entirely normal.
The compressor in the dryer may occasion-
ally generate a humming noise.
The compressor in the dryer is ventilated
from time to time, which creates a whirring
sound.
The automatic cleaning process causes a
clicking noise.
The process of pumping the condensation
into the condensation container generates
pumping noises.
ʠʠnaaaʠ.aʠʠʠʠʠaaaaaaaʠaʠaʠʠaʠaaʠa
aaaaaaaaaaaaa

aaaaa1. Take all accessory parts out
2.
aʠʠF++ʠa
12
What to do if...
If you cannot rectify a fault yourself, please contact our after-sales service. We will always find
an appropriate solution and will avoid unnecessary visits by engineers. Trust the expertise of
the manufacturer and rest assured that the repair will be carried out by trained service
technicians using original spare parts. The contact details of your local after-sales service can
be found in the enclosed after-sales service directory, or by calling one of these numbers:
–GB 0844 8928979 (Calls from a BT landline will be charged at up to 3 pence per minute.
A call set-up fee of up to 6 pence may apply.)
–IE 01450 2655
When contacting the after-sales service, please quote the appliance's product number (E no.)
and production number (FD) (see under the loading door).
Turn the programme selector to 0 (Off) and unplug the mains plug from the socket.
ʠThe (start) indicator lamp
does not light up.
Mains plug plugged in?
Programme selected?
ʠThe n(Container) indicator
lamp and the (start) button
are flashing.
Empty the condensation container apage 4.
Clean the condensation container filter if necessary
apage 9.
Dryer transported? aWait 2 hours and start again.
ʠThe .(Filter) indicator lamp and
(start) button are flashing.
Rinse the fluff filter under running water apage 4.
ʠCln appears in the display panel. Not an error. Automatic cleaning of the heat exchanger. Do
not empty the condensation container.
ʠDryer does not start. (start) button selected?
Door closed?
Programme set?
Ambient temperature greater than 5 °C?
ʠWater is leaking out. Make sure the dryer is level.
ʠThe door opens by itself. Push the door closed until you hear it click into place.
ʠThe required degree of dryness
was not achieved or the drying
time was too long.
Rinse the fluff filters under running water apage 4.
Empty the condensation container.
Check the water drainage (if applicable).
Ambient temperature greater than 35 °C? aVentilate the
room.
Air inlet may be blocked aKeep clear.
Was an unsuitable programme selected? apage 7.
Has the dryer been installed with sufficient space on all
sides? Ensure that air can circulate.
Power failure aRestart dryer.
Fine layer of limescale on the moisture sensors aClean
the sensors apage 6.
ʠLaundry damp. Select the next drying programme up or use the Timed
programme as a supplement apage 7.
Warm laundry feels damper than it really is.
ʠThe humidity in the room
increases significantly.
Make sure the room is sufficiently ventilated.
Air inlet blocked? aKeep clear.
ʠPower failure. Remove laundry from the dryer immediately and spread out.
This allows the heat to dissipate.
ʠOther intermittent noises and
vibrations.
Not an error.
Normal noises apage 11.
ʠLoud humming noise for several
seconds.
Has the condensation container been properly inserted?
aPush the condensation container all the way in.
Not an error. Normal noises apage 11.
ʠThe interior light is not working
(depending on model).
Pull out the appliance plug, remove the cover cap in the
interior above the door (use Torx 20 screwdriver) and
replace the bulb apage 10. Close the cover cap. Never
operate the dryer without a cover cap.
13
Safety instructions
Emergency – Pull the appliance plug out of the socket immediately or disconnect the fuse.
ONLY use the
dryer...
– In rooms inside the house.
– To dry fabrics.
Thedryermust
NEVER...
– Be used for purposes other than those described above.
– Be modified in terms of its technology or properties.
Hazards – The dryer must not be used by children or persons who have not been
instructed in its use.
– Do not leave children unsupervised near the dryer.
– Keep pets away from the dryer.
– Remove all objects from pockets, and lighters in particular aRisk of
explosion.
– Do not lean or sit on the door aRisk of tipping.
Installation – Secure loose cables aRisk of tripping.
– Do not operate a dryer if there is a risk of frost.
Mains
connection
– Connect the dryer to an AC earthed socket according to specifications,
otherwise it cannot be guaranteed that the appliance is completely safe.
– The cable cross-section must be sufficient.
– Only use earth-leakage circuit breakers with the following symbol:
– The appliance plug and socket must be compatible.
– Do not use multiple plugs/connectors and/or extension cables.
– Do not touch or hold the appliance plug with wet hands
aRisk of electric shock.
– Never pull the appliance plug out of the socket by its cable.
– Do not damage the mains lead aRisk of electric shock.
Operation – Only load the drum with laundry.
Check the contents before you switch the dryer on.
– Do not use the dryer if the laundry has been in contact with solvents, oil, wax,
grease or paint (e.g. hair styling products, nail varnish remover, stain
remover, cleaning solvent, etc.) aRisk of fire/explosion.
– Dust (e.g. coal dust, flour) poses a danger: Do not use the dryer
aRisk of explosion
– Do not put laundry containing foamed material/rubber in the dryer aelastic
material may be destroyed and the dryer be damaged due to possible
deformation of the foamed material.
– When cleaning the fluff filter, make sure that no foreign material (down or
filling material) gets into the air duct opening. If necessary, clean the drum
beforehand with a vacuum cleaner. If foreign material should still get into the
air duct acall the after-sales service aRisk of fire/explosion.
– Switch off the dryer once the programme has ended.
– The water from condensation is not drinking water and may be contaminated
with fluff.
Defect – Do not use the dryer if it is defective or if you suspect that it is.
Repairs must only be carried out by the after-sales service.
– Do not use the dryer if the mains cable is defective. To avoid danger, only
have the defective mains cable replaced by the after-sales service.
– Always pull the mains plug out of the socket before changing the bulb for
the interior light aRisk of electric shock.
Spare parts – Only use genuine spare parts and accessories for safety reasons.
Disposal – Pull out the appliance plug, then cut off the mains cable from the appliance.
Dispose of at a municipal waste disposal facility.
– Heat exchangers contain a fluorinated greenhouse gas covered by the
Kyoto protocol (R134a) adispose of in a proper manner. Capacity: 0.22
kg.
– Packaging: Keep all packaging out of reach of babies and children
aRisk of suffocation.
– All materials are environmentally sound and can be reused.
Dispose of in an environmentally-responsible manner.

aaaaa1. Take all accessory parts out
2.
aʠʠF++ʠaʠʠnaaaʠ.aʠʠʠʠʠaaaaaaaʠaʠaʠʠaʠaaʠaaaaaaaaaaaaaa
Installation
and operating instructions
Tumble dryer
en
Read these instructions before operating the dryer.
Observe the safety instructions on page 13.
