Bosch GSN36VL30U User manual

en Instructions for use Freezer 3
Freezer
GSN..

en Table of contents
Safety and warning information ........... 3
Information concerning disposal ......... 6
Scope of delivery ................................... 6
Installation location ................................ 7
Ambient temperature and ventilation . 7
Connecting the appliance .................... 8
Getting to know your appliance .......... 9
Switching the appliance on .................. 9
Setting the temperature ...................... 10
Alarm functions .................................... 10
Usable capacity .................................... 11
Freezer compartment .......................... 11
Max. freezing capacity ........................ 11
Freezing and storing food .................. 12
Freezing fresh food ............................. 12
Super freezing ...................................... 13
Thawing frozen food ............................ 14
Interior fittings ....................................... 14
Switching off and disconnecting the
appliance ............................................... 15
Defrosting .............................................. 15
Cleaning the appliance ....................... 16
Tips for saving energy ........................ 17
Operating noises ................................. 17
Eliminating minor faults yourself ....... 18
Appliance self-test ............................... 20
Customer service ................................. 20

en
3
enTable of contents enInstructions for useFreezer
Safety and warning
information
Before you switch ON the
appliance
Please read the operating and
installation instructions carefully!
They contain important
information on how to install,
use and maintain the appliance.
The manufacturer is not liable if
you fail to comply with the
instructions and warnings.
Retain all documents for
subsequent use or for the next
owner.
Technical safety
Fire hazard
The tubes of the
refrigeration circuit convey a
small quantity of an
environmentally friendly but
flammable refrigerant (R600a). It
does not damage the ozone
layer and does not increase the
greenhouse effect. If refrigerant
escapes, it may injure your eyes
or ignite.
If damage has occurred
■Keep naked flames and/or
ignition sources away from the
appliance,
■thoroughly ventilate the room
for several minutes,
■switch off the appliance and
pull out the mains plug,
■inform customer service.
The more refrigerant an
appliance contains, the larger
the room must be in which the
appliance is situated. Leaking
refrigerant can form a
flammable gas-air mixture in
rooms which are too small.
The room must be at least 1 m³
per 8 g of refrigerant. The
amount of refrigerant in your
appliance is indicated on the
rating plate inside the appliance.
When installing the appliance,
ensure that the mains cable is
not trapped or damaged.
If the power cord of this
appliance is damaged, it must
be replaced by the
manufacturer, Customer Service
or a similarly qualified person.
Improper installations and
repairs may put the user at
considerable risk.
Repairs may be performed by
the manufacturer, customer
service or a similarly qualified
person only.
Only original parts supplied by
the manufacturer may be used.
The manufacturer guarantees
that only these parts satisfy the
safety requirements.
Do not use multiple sockets,
extension leads or adapters.

en
4
Fire hazard
Portable multiple outlets or
power supplies may overheat,
causing a fire.
Never leave portable multiple
outlets or portable power
supplies behind the appliance.
Important information when
using the appliance
■Never use electrical
appliances inside the
appliance (e.g. heaters,
electric ice makers, etc.). Risk
of explosion!
■Never defrost or clean the
appliance with a steam
cleaner! The steam may
penetrate electrical parts and
cause a short-circuit. Risk of
electric shock!
■Do not use additional means
to accelerate the defrosting
process other than those
recommended by the
manufacturer. Risk of
explosion!
■Do not use pointed or sharp-
edged implements to remove
frost or layers of ice. You
might damage the refrigerant
tubes.Leaking refrigerant may
cause eye injuries or ignite.
■Do not store products which
contain flammable propellant
(e.g. spray cans) or explosive
substances in the appliance.
Risk of explosion!
■Do not stand on or lean
heavily against the base of the
appliance, drawers, doors,
etc.
■For defrosting and cleaning,
pull out the mains plug or
switch off the fuse. Do not pull
out the mains plug by tugging
on the power cord.
■Store high-percentage alcohol
tightly sealed and in an
upright position.
■Keep plastic parts and the
door seal free of oil and
grease. Otherwise, plastic
parts and the door seal will
become porous.
■Never cover or block the
ventilation openings of the
appliance.
■Avoiding placing children
and vulnerable people at
risk:
At risk here are children,
people who have limited
physical, mental or sensory
abilities, as well as people
who have inadequate
knowledge concerning safe
operation of the appliance.
Check that children and
vulnerable people have
understood the hazards.

en
5
A person responsible for
safety must supervise or
instruct children and
vulnerable people who are
using the appliance.
Only children aged 8 years
and above may use the
appliance.
Supervise children while the
appliance is being cleaned or
maintained.
Never allow children to play
with the appliance.
■Do not store bottled or
canned liquids (especially
carbonated drinks) in the
freezer compartment.Bottles
and cans may burst!
■Never put frozen food straight
from the freezer compartment
in your mouth.
Risk of low-temperature burns!
■Avoid prolonged touching of
frozen food, ice or the
evaporator pipes, etc.
Risk of low-temperature burns!
Children in the household
■Keep children away from
packaging and its parts.
Danger of suffocation from
folding cartons and plastic
film!
■Do not allow children to play
with the appliance!
■If the appliance features a
lock:
keep the key out of the reach
of children!
General regulations
The appliance is suitable
■for freezing food,
■for making ice.
This appliance is intended for
use in the home and the home
environment.
The refrigeration circuit has
been checked for leaks.
This appliance complies with the
relevant safety regulations for
electrical appliances and is
fitted with noise suppression.
This appliance is intended for
use up to a maximum height of
2000 metres above sea level.

en
6
Information concerning
disposal
*Disposal of packaging
The packaging protects your appliance
from damage during transit. All utilised
materials are environmentally safe and
recyclable. Please help us by disposing
of the packaging in an environmentally
friendly manner.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
*Disposal of your old
appliance
Old appliances are not worthless
rubbish! Valuable raw materials can be
reclaimed by recycling old appliances.
m Warning
Redundant appliances
1. Pull out the mains plug.
2. Cut off the power cord and discard
with the mains plug.
3. Do not take out the trays
and receptacles: children are
therefore prevented from climbing in!
4. Do not allow children to play with
the appliance once it has spent its
useful life. Danger of suffocation!
Refrigerators contain refrigerant
and gases in the insulation. Refrigerant
and gases must be disposed
of professionally. Ensure that tubing
of the refrigerant circuit is not damaged
prior to proper disposal.
Scope of delivery
After unpacking all parts, check for any
damage in transit.
If you have any complaints, please
contact the dealer from whom you
purchased the appliance or our
customer service.
The delivery consists of the following
parts:
■Free-standing appliance
■Interior fittings (depending on model)
■Bag containing installation materials
■Operating instructions
■Installation manual
■Customer service booklet
■Warranty enclosure
■Information on the energy
consumption and noises
This appliance is labelled in
accordance with European
Directive 2012/19/EU concerning
used electrical and electronic
appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances as
applicable throughout the EU.


en
7
Installation location
A dry, well ventilated room is suitable as
an installation location. The installation
location should not be exposed to direct
sunlight and not placed near a heat
source, e.g. a cooker, radiator, etc. If
installation next to a heat source is
unavoidable, use a suitable insulating
plate or observe the following minimum
distances from the heat source:
■3 cm to electric or gas cookers.
■30 cm to an oil or coal-fired cooker.
The floor of the installation location must
not give way; if required, reinforce floor. If
the floor is uneven, compensate with
supports.
Distance from wall
Fig. #
A gap is not required between the
appliance and side wall. The containers
and shelves are still fully extendable.
Reversing the door
(if required)
If required, we recommend that you have
the door hinges changed over by our
customer service. You can find out the
costs for changing over the door hinges
from your appropriate customer service.
m Warning
While changing over the door hinges,
ensure that the appliance is not
connected to the power supply. Pull out
the mains plug beforehand. To prevent
damaging the back of the appliance,
place adequate padding underneath.
Carefully place the appliance on its
back.
Note
If the appliance is placed on its back,
ensure that the wall spacer is not fitted.
Ambient temperature
and ventilation
Ambient temperature
The appliance is designed for a specific
climate class. Depending on the climate
class, the appliance can be operated at
the following temperatures.
The climate class can be found on
the rating plate. Fig. +
Note
The appliance is fully functional within
the room temperature limits
of the indicated climatic class. If
an appliance of climatic class SN
is operated at colder room temperatures,
the appliance will not be damaged up to
a temperature of +5 °C.
Ventilation
Fig. $
The air on the rear
panel of the appliance heats up.
Conduction of the heated air must
not be obstructed. Otherwise,
the refrigerating unit must work harder.
This increases power consumption.
Therefore: Never cover or block
the ventilation openings!
Climate class Permitted ambient
temperature
SN +10 °C to 32 °C
N+16 °C to 32 °C
ST +16 °C to 38 °C
T+16 °C to 43 °C

en
8
Connecting
the appliance
After installing the appliance, wait at least
1 hour until the appliance is switched on.
During transportation the oil in
the compressor may have flowed into
the refrigeration system.
Before switching on the appliance for
the first time, clean the interior of
the appliance (see chapter “Cleaning
the appliance”).
Electrical connection
The socket must be near the appliance
and also freely accessible following
installation of the appliance.
m Warning
Risk of electric shock!
If the length of the mains cable is
inadequate, never use multiple sockets
or extension leads. Instead, please
contact Customer Service for
alternatives.
The appliance complies with protection
class I. Connect the appliance to 220–
240 V/50 Hz alternating current via a
correctly installed socket with protective
conductor. The socket must be protected
by a 10 A to 16 A fuse.
For appliances operated in non-
European countries, check whether the
indicated voltage and current type match
the values of your electricity supply. This
information can be found on the rating
plate, Fig. +.
m Warning
Never connect the appliance
to electronic energy saver plugs.
Our appliances can be used with mains
and sine-controlled inverters. Mains-
controlled inverters are used
for photovoltaic systems which
are connected directly to the national
grid. Sine-controlled inverters must be
used for isolated applications (e.g. on
ships or in mountain lodges) which are
not connected directly to the national
grid.

en
9
Getting to know your
appliance

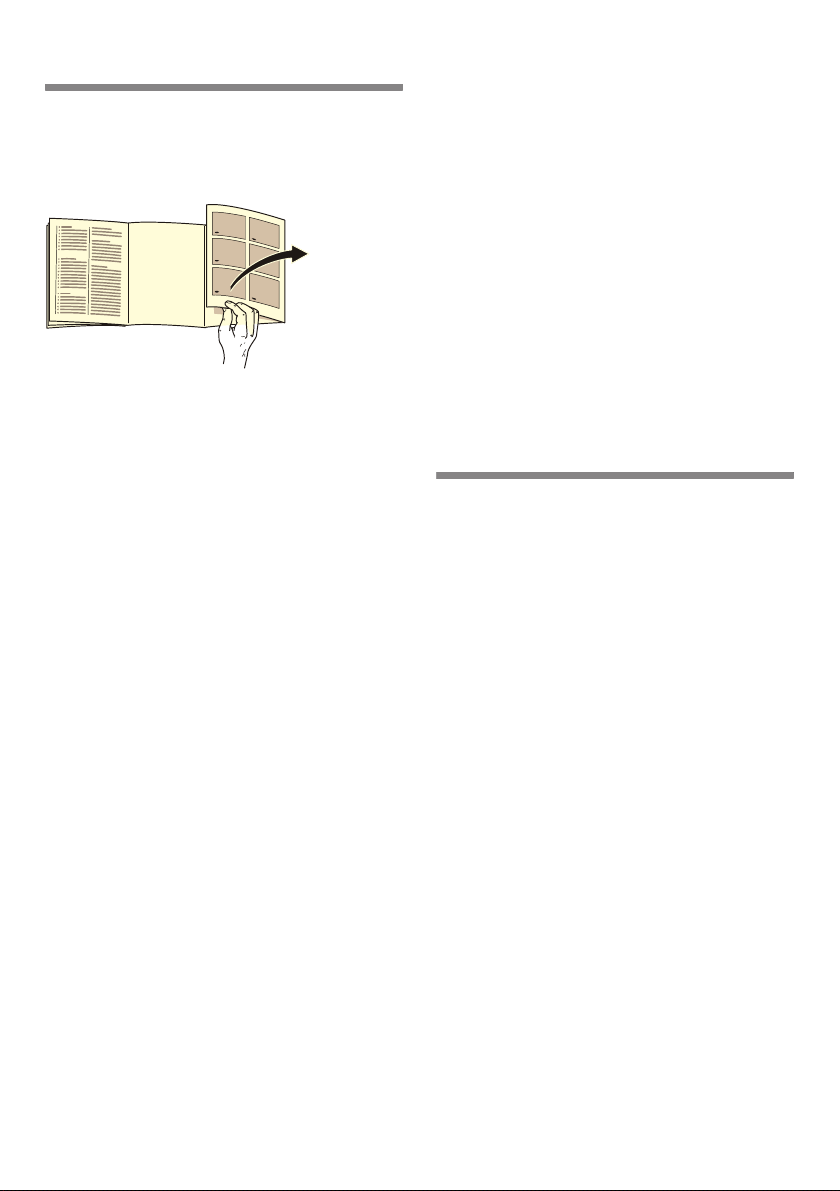

Please fold out the illustrated last page.
These operating instructions refer
to several models.
The features of the models may vary.
The diagrams may differ.
Fig. !
* Not all models.
Controls
Fig. "
Switching the
appliance on
Fig. "
Switch on the appliance with the On/Off
button 1.
A warning signal sounds. Temperature
display 2 is flashing.
Press the temperature setting button 4.
The warning signal switches off.
When the freezer compartment has
reached the set temperature, the
temperature display 2 is lit.
We recommend a factory setting of -18
°C in the freezer compartment.
1-4 Controls
5 NoFrost System
6* Freezer compartment flap
7 Glass shelf
8* Ice maker/Ice cube container
9 Frozen food container (small)
10 Frozen food container (large)
11 Height-adjustable feet
12 Door ventilation
1On/Off button
Serves to switch the whole
appliance on and off.
2Temperature display
Indicates the set temperature of
the freezer compartment.
3Display super freezing
Illuminates when super freezing is
on.
4Temperature selection button
The required temperature is set
with this button.

en
10
Operating tips
■After the appliance has been switched
on, it may take several hours until
the set temperature has been
reached. Do not put any food
in the appliance beforehand.
■The fully automatic NoFrost system
ensures that the freezer compartment
remains free of ice. Defrosting is not
required.
■The sides of the housing are
sometimes heated slightly. This
prevents condensation in the area
of the door seal.
■If the freezer compartment door
cannot be immediately re-opened after
it has been closed, wait until
the resulting low pressure has
equalised.
Setting
the temperature
Fig. "
Freezer
The temperature can be set from -16 °C
to -26 °C.
Keep pressing temperature setting
button 4 until the required freezer
compartment temperature is set.
The value last selected is saved. The set
temperature is indicated on temperature
display 2.
Alarm functions
Fig. "
Door alarm
A warning signal is switched on if the
appliance door is left open for a while.
Close the door to switch off the warning
signal.
Temperature alarm
The temperature alarm switches on if the
freezer compartment is too warm and the
frozen food is at risk of thawing.
Temperature display, Fig. "/2, is
flashing.
The alarm may switch on without any risk
to the frozen food:
■when the appliance is switched on,
■when large quantities of fresh food are
placed in the appliance,
■if the freezer compartment door is
open too long.
Note
Do not refreeze thawing or thawed food.
Only ready meals (boiled or fried) may
be refrozen.
No longer store the frozen produce for
the max. storage period.
Switching off the alarm
Fig. "
Press the temperature setting button 4 to
switch off the warning signal.

en
11
Usable capacity
Information on the usable capacity can
be found inside your appliance on
the rating plate. Fig. +
Fully utilising the freezer
volume
The maximum amount of food can be
placed in the freezer by removing all
fittings. The food can be stacked directly
on the shelves and in the bottom
of the freezer compartment.
Note
Valid only for the types KG GSUU37A,
KG GSUU39A and KG GSUU41A (see
rating plate field “Type”):
To comply with the values indicated on
the rating plate, the fitting at the very top
must remain in the appliance.
Removing the fittings
■Pull out the frozen food container all
the way, lift at the front and remove.
Fig. %
■If appliances feature an ice maker,
the latter can be taken out. Fig. &
■Freezer compartment flap
Fig. '
1. Open freezer compartment flap
halfway,
2. detach holder from one side
of the appliance,
3. pull freezer compartment flap
forwards and remove from
the holder,
4. detach holder from the other side
of the appliance.
Freezer compartment
Use the freezer compartment
■To store deep-frozen food.
■To make ice cubes.
■To freeze food.
Note
Ensure that the freezer compartment
door has been closed properly. If
the door is open, the frozen food will
thaw. The freezer compartment will
become covered in thick ice. Also: waste
of energy due to high power
consumption!
Max. freezing capacity
Information about the max. freezing
capacity within 24 hours can be found
on the rating plate. Fig. +
Prerequisites for max. freezing
capacity
■Switch on super freezing before
placing fresh products
in the compartment (see chapter
entitled “Super freezing”).
■Removing the fittings
■The food can be stacked directly on
the shelves and in the bottom of the
freezer compartment.
Note
Do not cover the ventilation slots on
the rear panel with frozen food.
■Freeze large quantities of food
preferably in the very top
compartment where food freezes
particularly quickly and therefore also
gently.

en
12
Freezing and storing
food
Purchasing frozen food
■Packaging must not be damaged.
■Use by the “use by” date.
■Temperature in the supermarket
freezer must be -18 °C or lower.
■If possible, transport deep-frozen food
in an insulated bag and place quickly
in the freezer compartment.
Note when loading products
■Preferably freeze large quantities
of food in the top compartment, where
food freezes particularly quickly
and therefore also gently.
■Do not cover the ventilation slots on
the rear panel with frozen food.
■Place the food over the whole area
of the compartments or the frozen
food containers.
Note
Food which is already frozen must not
come into contact with the food which
is to be frozen. If required, move
the frozen food to the frozen food
container.
■To ensure air circulation in the
appliance, insert frozen food container
all the way.
Freezing smaller amounts of
food
How you freeze smaller amounts of food,
so that they are frozen solid extremely
quickly, can be found in the section
Automatic super freezing.
Freezing fresh food
Freeze fresh and undamaged food only.
To retain the best possible nutritional
value, flavour and colour, vegetables
should be blanched before freezing.
Aubergines, peppers, zucchini and
asparagus do not require blanching.
Literature on freezing and blanching
can be found in bookshops.
Note
Keep food which is to be frozen away
from food which is already frozen.
■The following foods are suitable for
freezing:
Cakes and pastries, fish and seafood,
meat, game, poultry, vegetables, fruit,
herbs, eggs without shells, dairy
products such as cheese, butter and
quark, ready meals and leftovers such
as soups, stews, cooked meat and
fish, potato dishes, soufflés and
desserts.
■The following foods are not suitable
for freezing:
Types of vegetables, which are usually
consumed raw, such as lettuce or
radishes, eggs in shells, grapes,
whole apples, pears and peaches,
hard-boiled eggs, yoghurt, soured
milk, sour cream, crème fraîche and
mayonnaise.
Packing frozen food
To prevent food from losing its flavour
or drying out, place in airtight containers.
1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents
and date of freezing.

en
13
Suitable packaging:
Cling wrap, tubular film made of
polyethylene, aluminium foil, freezer
containers.
These products are available from
specialist outlets.
Unsuitable packaging:
Wrapping paper, greaseproof paper,
cellophane, bin liners and used shopping
bags.
Items suitable for sealing packaged
food:
Rubber bands, plastic clips, string, cold-
resistant adhesive tape, etc.
Bags and tubular film made of
polyethylene (PE) can be sealed with a
film heat sealer.
Shelf life of frozen food
Storage duration depends on the type
of food.
At a temperature of -18 °C:
■Fish, sausage, ready meals and cakes
and pastries:
up to 6 months
■Cheese, poultry and meat:
up to 8 months
■Vegetables and fruit:
up to 12 months
Super freezing
Food should be frozen solid as quickly
as possible in order to retain vitamins,
nutritional value, appearance and flavour.
The appliance runs constantly when
super freezing has been switched on.
The freezer compartment temperatures
are much lower than in normal operation.
Switching on super freezing
Depending on the amounts of food to be
frozen, you can use super freezing in
different ways.
Note
When super freezing is switched on,
increased operating noises may occur
and the super display is lit, Fig. "/3.
Automatic super freezing
Smaller amounts of food are frozen solid
extremely quickly if you freeze them as
follows:
■in the second frozen food container
from below
■from the outer right
■over a large area
Automatic super freezing automatically
switches on when warm food items are
placed inside the freezer.
Manual super freezing
Freeze larger quantities of food
preferably in the top compartment. This
is where food freezes particularly quickly
and therefore also gently.
Several hours before placing fresh food
in the freezer compartment, switch on
super freezing to prevent an unwanted
temperature rise.
If the max. freezing capacity is to be
used, super freezing must be switched
on for 24 hours before the fresh
products are placed in the freezer
compartment.
Keep pressing 4 temperature setting
button until 3 super display is lit.

en
14
Switching off super freezing
Fig. "
Keep pressing 4 temperature setting
button until the required temperature is
displayed.
3 super display goes out.
When super freezing has finished, the
appliance automatically switches to
normal mode.
■With automatic super freezing: As
soon as the smaller amounts of food
to be frozen have frozen solid.
■With manual super freezing: After
approx. 2½ days.
Thawing frozen food
Depending on the type and application,
select one of the following options:
■at room temperature
■in the refrigerator
■in an electric oven, with/without fan
assisted hot-air
■in the microwave
m Caution
Do not refreeze thawing or thawed food.
Only ready meals (boiled or fried) may
be refrozen.
No longer store the frozen produce for
the max. storage period.
Interior fittings
(not all models)
Frozen food container (large)
Fig. !/10
For the storage of large frozen items,
e.g. turkey, duck and goose.
Ice maker
Fig. (
Use only drinking water to make ice
cubes.
1. Take out water container and fill with
drinking water up to the mark.
Note
If too much drinking water is added,
the function of the ice maker may be
impaired. The ice cubes cannot
be removed individually from the ice
tray. Too much drinking water was
added and is running into the storage
container, causing any ice cubes
to freeze together.
2. Pour drinking water into the filler
opening.
3. Re-insert water container.
4. When the ice cubes are frozen, press
lever down and release.
The ice cubes loosen and fall into
the storage container.
5. Pull out storage container and remove
ice cubes.

en
15
Freezer calendar
To prevent the quality of the frozen food
from deteriorating, do not exceed the
storage duration.The storage period
depends on the type of produce.
The figures next to the symbols indicate
the permitted storage period
of the produce in months. In the case
of commercially available frozen food
observe the date of manufacture or use-
by date.
Ice pack
If a power failure or malfunction occurs,
the ice packs can be used to slow down
the thawing process. The longest storage
time is obtained by placing the ice pack
on the food in the top compartment.
To save space, the ice pack can be
stored in the door compartment.
The ice pack can also be used to cool
food temporarily, e.g. in a cold bag.
Ice cube tray
Fig. )
1. Fill the ice cube tray ¾ full of drinking
water and place in the freezer
compartment.
2. If the ice tray is stuck to the freezer
compartment, loosen with a blunt
implement only (spoon-handle).
3. To loosen the ice cubes, twist the ice
tray slightly or hold briefly under
flowing water.
Switching off and
disconnecting the
appliance
Turn off appliance
Fig. "
Press the On/Off button 1.
Temperature display 2 goes out,
refrigeration unit switches off.
Disconnecting the appliance
If you do not use the appliance
for a prolonged period:
1. Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance.
4. Leave the appliance door open.
Defrosting
Freezer compartment
The fully automatic NoFrost system
ensures that the freezer compartment
remains free of ice. Defrosting is no
longer required.

en
16
Cleaning the appliance
m Caution
■Do not use abrasive, chloride or acidic
cleaning agents or solvents.
■Do not use scouring or abrasive
sponges.
The metallic surfaces could corrode.
■Never clean shelves and containers
in the dishwasher.
The parts may become deformed!
Note
Approx. 4 hours before cleaning
the appliance, switch on super freezing
so that the food drops to a very low
temperature and can therefore be stored
at room temperature for a longer period.
Proceed as follows:
1. Before cleaning: Switch off the
appliance.
2. Pull out mains plug or switch off fuse.
3. Take out the frozen food and store
in a cool location. Place the ice pack
(if enclosed) on the food.
4. Wait until the layer of frost has thawed.
5. Clean the appliance with a soft cloth,
lukewarm water and a little pH neutral
washing-up liquid. The rinsing water
must not run into the light.
6. Wipe the door seal with clear water
only and then wipe dry thoroughly.
7. After cleaning reconnect and switch
the appliance back on.
8. Put the frozen food back into
the appliance.
Interior fittings
All variable parts of the appliance can be
taken out for cleaning (see chapter
Interior fittings).
Cleaning the ice maker
Clean the ice maker regularly. This will
prevent ice cubes, which were made
quite a long time ago, from shrinking,
having a stale taste or sticking together.
1. Take out the ice maker. Fig. &
2. Remove and empty the storage
container.
3. Remove cover from the ice maker.
4. Clean all parts of the ice maker with
warm water.
5. Leave parts to dry completely.
6. Assemble ice maker and insert.

en
17
Tips for saving energy
■Install the appliance in a dry, well
ventilated room! The appliance should
not be installed in direct sunlight
or near a heat source (e.g. radiator,
cooker).
If required, use an insulating plate.
■Do not block the ventilation openings
in the appliance.
■Allow warm food and drinks to cool
down before placing in the appliance.
■Thaw frozen food in the refrigerator
compartment and use the low
temperature of the frozen food to cool
refrigerated food.
■Open the appliance as briefly as
possible.
■Ensure that the freezer compartment
door is always closed properly.
■To avoid increased power
consumption, occasionally clean the
back of the appliance.
■If available:
Fit wall spacers to obtain the indicated
energy rating of the appliance (see
Installation instructions). A reduced
wall gap will not restrict the function
of the appliance. The energy rating
may then increase slightly. The gap
of 75 mm must not be exceeded.
■The arrangement of the fittings does
not affect the energy rating of the
appliance.
Operating noises
Quite normal noises
Note
When super freezing is switched on,
increased operating noises may occur.
Droning
Motors are running (e.g. refrigerating
units, fan).
Bubbling, humming or gurgling noises
Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are
switching on/off.
Cracking
Automatic defrosting is running.
Preventing noises
The appliance is not level
Please align the appliance with a spirit
level. Use the height-adjustable feet
or place packing underneath them.
The appliance is not free-standing
Please move the appliance away
from adjacent units or appliances.
Containers or storage areas wobble
or stick
Please check the removable parts
and re-insert them correctly if required.
Bottles or receptacles are touching
each other
Move the bottles or receptacles slightly
away from each other.

en
18
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following
information.
Customer service will charge you for advice – even if the appliance is still under
guarantee!
Fault Possible cause Remedial action
Temperature differs greatly
from the set value.
In some cases it is adequate to switch off
the appliance for 5 minutes.
If the temperature is too high wait a few hours
and check whether the temperature has
approached the set value.
If the temperature is too low check
the temperature again the next day.
Displays do not illuminate. Power failure; the fuse has
been switched off; the mains
plug has not been inserted
properly.
Connect mains plug. Check whether the power
is on, check the fuses.
Warning signal sounds.
Temperature display flashes.
Fig. "/2
Fault - the freezer
compartment is too warm!
Frozen food is at risk.
To switch off the warning signal, press the
temperature setting button, Fig. "/4.
Appliance is open. Close the appliance.
Ventilation openings have
been covered.
Ensure that there is adequate ventilation.
Too much food was placed in
the freezer at once.
Do not exceed max. freezing capacity.
When the fault has been rectified, the
temperature display stops flashing.

en
19
Fault Possible cause Remedial action
Freezer compartment door
was open for a long time;
temperature is no longer
reached.
The evaporator (refrigeration
generator) in the NoFrost
system is covered in thick ice
and can no
longer be defrosted fully
automatically.
To defrost the evaporator, remove the frozen
food with the compartments, insulate well
and store in a cool location.
Switch off the appliance and move it away
from the wall. Leave the appliance door open.
After approx. 20 min. the condensation begins
to run into the evaporation pan,
at the rear of the appliance. Fig. *
To prevent the evaporation pan
from overflowing in this case,
mop up the condensation with a sponge.
The evaporator is defrosted when the water
stops running into the evaporation pan. Clean
the interior. Switch the appliance
back on again.
Appliance is not cooling,
temperature display and light
are lit.
Showroom mode is
switched on.
Start appliance self-test (see chapter
“Appliance self-test”).
When the programme has ended,
the appliance switches over to normal
operation.
Automatic super freezing
does not switch on.
The appliance decides independently whether
automatic Super freezing is required and
automatically switches it on or off.

en
20
Appliance self-test
Your appliance features an automatic
self-test program which shows you
sources of faults which may be repaired
by customer service only.
Starting the appliance self-test
1. Switch off the appliance and wait 5
minutes.
2. Switch on the appliance and hold
down the temperature selection
button, Fig. "/4, for 3-5 seconds
within the first 10 seconds until -26 °C
is lit on the temperature display.
The self-test programme starts, when
the temperature displays lit up
in succession.
When after a short time the appliance
displays the set temperature prior
to the self-test, everything is ok.
If the super display flashes for
10 seconds, an error has occurred.
Inform customer service.
Ending the appliance self-test
When the programme has ended, the
appliance switches over to normal
operation.
Customer service
Your local customer service can be
found in the telephone directory or in
the customer-service index. Please
provide customer service with the
appliance product number (E-Nr.) and
production number (FD-Nr.).
This information can be found on the
rating plate. Fig. +
To prevent unnecessary call-outs, please
assist customer service by quoting
the product and production numbers.
This will save you additional costs.
Repair order and advice
on faults
Contact information for all countries can
be found on the enclosed customer
service list.
GB 0344 892 8979 Calls charged at
local or mobile rate.
IE 01450 2655 0.03 € per minute
at peak. Off peak
0.0088 € per
minute.
US 800 944 2904 toll-free
