Bosch Laundry Appliances Manual

Laundry Appliances
2011/2012

Technologies that not only
improve our everyday life,
but our future too.
Green technology is the Bosch
roadmap for sustainability,
efficiency, and transparency,
especially when it comes to
using resources and energy. At
Bosch our aim is to be guided by
this principle to achieve ground-
breaking technology and top
efficiency, paired with extremely
low consumption rates in energy
water and all natural resources.

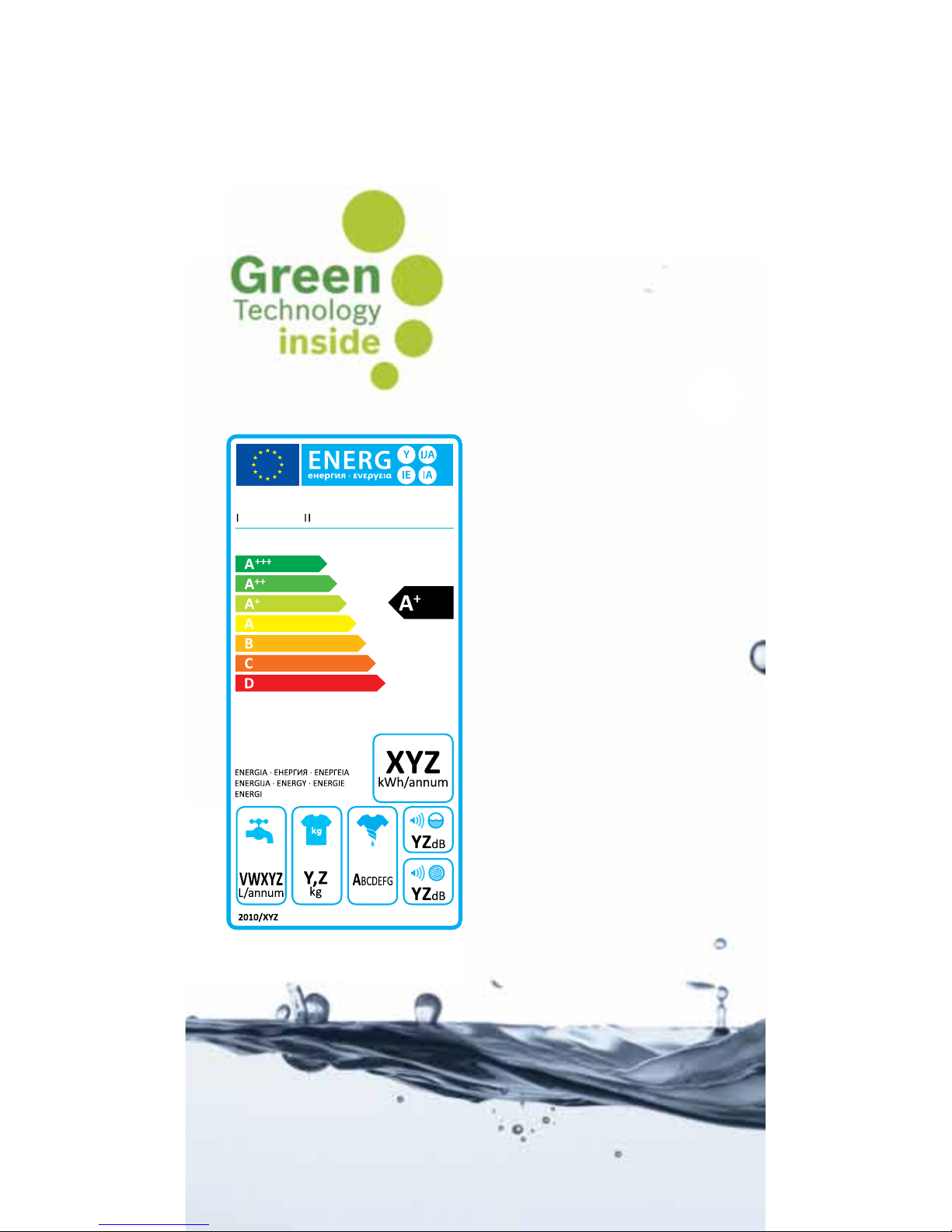

Energy efficiency ratings
Energy efficiency ratings Energy
efficiency labels are informative
labels affiliated to manufactured
products. These labels are able
to indicate a products energy
performance in order to provide
consumers with the necessary
data for making informed
purchase decisions.
The more efficient a product
is the less energy it requires
and the more you get for your
money. Not only is this saving
of electricity good for your
wallet, but it is good for the
environment too; between 1995
and 2000 there has been a
saving of three-quarter million-
tons of CO2 alone in Europe,
by improving the technique of
large household appliances.

energy efficiency, washing
performance and spin-drying
performance levels are rated.
The energy label for washing
machines compromises 3
classifications (ranging from “A”
to “G” rating) namely:
• Energy efficiency
• Washing performance
• Spin-drying performance
The values are determined
according to the reformulated
norm EN60456.
Tumble dryers energy
labelling
There is a difference between
condensation and vented dryers,
with condensation dryers having
a lower energy efficiency than
vented dryers.
The energy label ranks the
appliance’s efficiency from
“A+++” to “D”.
These are categorised as
follows:
Class A+++ to A+ excellent
Class A to B good
Class C to D average
Washing machines
energy labelling
The aim of the energy efficiency
label is to offer consumers
a standardised method of
choosing the most energy
efficient appliance, while at the
same time offering you the best
possible washing results.
Washing machines use the
Cotton 60°C program as its
standard program upon which

Washing machines.
varioPerfect.
Others compromise. We clean. Always.
It’s your choice: super-fast or super-saving, but always super-clean.
ecoPerfect saves up to 20% or 30% energy consumption with
best washing performance.
speedPerfect saves up to 60% with best washing performance.
Take advantage of the fastest wash programme
on the market
Superfast washing in record time! Fast washing of 2 kg of washing
in only 15 minutes – with main wash, rinsing and spinning.
Treating delicate garments with the care they deserve
A particularly gentle wash programme that can be trusted with silks,
delicate viscose and synthetic items without worry. Check the care
label first to ensure that the silk is machine washable.
Convenient: dialogue with TouchControl buttons
For every programme selected, the dialogue display suggest the
best temperature to spin speed ratio. This ratio may be changed
individually according to wash instructions or one’s own experience.

WAS24444ME
Product
Description
TOTAL TEXTILE MANAGEMENT AUTOMATIC WASHING MACHINE,
12000 RPM
Programmes
Special Programmes: Sensitive, Sportswear, Super Quick 15, Quick/mixture,
Hand wash wool, Delicates / Silk
Comfort and
Safety
Spin Speed: 400 – 1200rpm
Touch control buttons: Reload function, Reduced Ironing, Rinse Plus,
EcoPerfect, SpeedPerfect
Fully electronic control dial for all washing programmes
Large LCD Display for program progress indication, temperature, spin speed,
remaining time and start time delay
VarioSoft drum system
AquaTronic wash system
AntiVibration design
Automatic load adjustment and foam suppression feature
Multiple water protection
32cm door in silver grey with 165° door opening angle
Buzzer for end of program
Product Specs
Capacity: 8kg
Consumption rates: 56l / 1.03kWh / 135min
Rating: 2300 W
Unit dimensions: (H x W x D) 84.2 x 60.0 x 59.0 cm
Height for building under: 82.0 cm
Colour: White/Door frame silver grey

WAS24425GC WAE244S1ZA
WAE244S0ZA (While stocks last)
Product
Description
TOTAL TEXTILE MANAGEMENT
AUTOMATIC WASHING MACHINE
1200RPM
MAXX 7 WASHING MACHINE
VARIOPERFECT, 400-1200RPM
Programmes
Special Programmes: Shirts/Blouses,
PowerWash 60, Differing program
description, Wool, Delicates/silk
Special Programmes: Super Quick
15min, Mixed Load, Handwash
Woollens, Sensitive, Sports
ecoPerfect –saves up to 20% or 30%
of energy consumption with best
washing performance
speedPerfect –saves up to 60% of
time with best washing performance
Comfort and
Safety
Spin Speed: 400 – 1200rpm
Touch control buttons: Start/Pause
with reload function, Spin speed
reduction, Reduced Ironing, Start
Delay
Fully electronic control dial for all
washing programmes
Large LCD Display for program
progress indication, temperature,
spin speed, remaining time and start
time delay
VarioSoft drum system
3D AquaSpa
Automatic load adjustment and foam
suppression feature
Multiple water protection
32cm door silver-black grey with 165°
door opening angle
Buzzer for end of program
AquaStop
Spin Speed:400-1200 rpm
Buttons: Start / Reload, Spin Speed
reduction, Easy Ironing, Extra Rinse,
Time delay, Temperature Selection,
SpeedPerfect, EcoPerfect
Fully electronic dial for all washing
programmes and special programmes
Large LCD display for programe
progress, temperature, spin speed,
remaining time and start time dealy
Aqua Spar wash system
Automatic load adjustment and foam
supression feature
Multiple water protection
30cm door with 180°door
opening angle
Buzzer
Product Specs
Capacity: 8kg
Rating: 2300 W
Unit dimensions:
(H x W x D) 84.2 x 60.0 x 62.0 cm
Capacity: 7kg
Consumption rates: 47L / 0.95kWh
Rating: 2300 W
Unit dimensions (incl wall distance):
(H x W x D) 84.7 x 60.0 x 59.0 cm
Height for building under: 82.0 cm
Colour: Silver

WAE24467ME WAE201S3ZA
WAE201S1ZA (While stocks last)
Product
Description
MAXX 7 WASHING MACHINE
VARIOPERFECT
SOCCER EDITION, 400-1200RPM
MAXX 7 WASHING MACHINE
VARIOPERFECT, 600-1000RPM
Programmes
Special Programmes: Super Quick
15min, Mixed Load, Handwash Wool-
lens, Sensitive, Sports
ecoPerfect –saves up to 20% or 30%
of energy consumption with best
washing performance
speedPerfect –saves up to 60% of
time with best washing performance
Special Programmes: Super Quick
15min, Mixed Load, Handwash
Woollens
ecoPerfect –saves up to 20% or 30%
of energy consumption with best
washing performance
speedPerfect –saves up to 60% of
time with best washing performance
Comfort and
Safety
Spin Speed:400-1200 rpm
Buttons: Start / Reload, Spin Speed
reduction, Easy Ironing, Extra Rinse,
Time delay, Temperature Selection,
SpeedPerfect, EcoPerfect
Fully electronic dial for all washing
programmes and special programmes
Large LCD display for programe
progress, temperature, spin speed,
remaining time and start time dealy
Aqua Spar wash system
Automatic load adjustment and foam
supression feature
Multiple water protection
30cm door with 180°door opening
angle
Buzzer
Spin Speed:600 -1000 rpm
Buttons: Start / Pause, Spin Speed
reduction, Easy Ironing, Extra Rinse,
SpeedPerfect, EcoPerfect
Fully electronic dial for all washing
programmes, temperature and special
programmes
LED indication of program status
Aqua Spar wash system
Automatic load adjustment and foam
supression feature
Multiple water protection
30cm door with 180°door
opening angle
Buzzer
Product Specs
Capacity: 7kg
Consumption rates: 47L / 1.05kWh
Rating: 2300 W
Unit dimensions (incl wall distance):
(H x W x D) 84.7 x 60.0 x 59.0 cm
Height for building under: 82.0 cm
Colour: White
Capacity: 7kg
Consumption rates: 47L / 0.95kWh
Rating: 2300 W
Unit dimensions (incl wall distance):
(H x W x D) 84.7 x 60.0 x 59.0 cm
Height for building under: 82.0 cm
Colour: Silver

WAE201S0ZA (While stocks last) WAE20164ME (While stocks last)
Product
Description
MAXX 6 WASHING MACHINE
VARIOPERFECT, 600-1000RPM
MAXX 7 WASHING MACHINE
VARIOPERFECT, 600-1000RPM
Programmes
Special Programmes: Super Quick
15min, Mixed Load, Handwash
Woollens
ecoPerfect –saves up to 20% or 30%
of energy consumption with best
washing performance
speedPerfect –saves up to 60% of
time with best washing performance
Special Programmes: Super Quick
15min, Mixed Load, Handwash
Woollens
ecoPerfect –saves up to 20% or 30%
of energy consumption with best
washing performance
speedPerfect –saves up to 60% of
time with best washing performance
Comfort and
Safety
Spin Speed:600 -1000 rpm
Buttons: Start / Pause, Spin Speed
reduction, Easy Ironing, Extra Rinse,
SpeedPerfect, EcoPerfect
Fully electronic dial for all washing
programmes, temperature and special
programmes
LED indication of program status
Aqua Spar wash system
Automatic load adjustment and foam
supression feature
Multiple water protection
30cm door with 180°door
opening angle
Buzzer
Spin Speed:600 -1000 rpm
Buttons: Start / Pause, Spin Speed
reduction, Easy Ironing, Extra Rinse,
SpeedPerfect, EcoPerfect
Fully electronic dial for all washing
programmes, temperature and special
programmes
LED indication of program status
Aqua Spar wash system
Automatic load adjustment and foam
supression feature
Multiple water protection
30cm door with 180°door
opening angle
Buzzer
Product Specs
Capacity: 6kg
Consumption rates: 47L / 1.05kWh
Unit dimensions (incl wall distance):
(H x W x D) 84.7 x 60.0 x 59.0 cm
Height for building under: 82.0 cm
Rating: 2300W
Colour: Silver
Capacity: 7kg
Consumption rates: 47L / 1.05kWh
Rating: 2300 W
Unit dimensions (incl wall distance):
(H x W x D) 84.7 x 60.0 x 59.0 cm
Height for building under: 82.0 cm
Colour: White

WAE20165ME
WAE16164ME (While stocks last)
Product
Description
MAXX 7 WASHING MACHINE VARIOPERFECT, 400-800RPM
Programmes
Special Programmes: Super Quick 15min, Mixed Load, Handwash Woollens
ecoPerfect –saves up to 20% or 30% of energy consumption with best
washing performance
speedPerfect –saves up to 60% of time with best washing performance
Comfort and
Safety
Spin Speed:400-800 rpm
Buttons: Start / Pause, Spin Speed reduction, Easy Ironing, Extra Rinse,
SpeedPerfect, EcoPerfect
Fully electronic dial for all washing programmes, temperature and special
programmes
LED indication of program status
Aqua Spar wash system
Automatic load adjustment and foam supression feature
Multiple water protection
30cm door with 180°door opening angle
Buzzer
Product Specs
Capacity: 7kg
Consumption rates: 47L / 0.96kWh
Rating: 2300 W
Unit dimensions (incl wall distance): (H x W x D) 84.7 x 60.0 x 59.0 cm
Height for building under: 82.0 cm
Colour: White

Washer dryers.
A perfect space-saving solution
If you want a washer and a dryer but you’re short of space, this is
the perfect solution.
With the non-stop programme, our washer dryer can launder a half
load of easy-care fabrics in just 90 minutes.
With Bosch you do not have to think about the technology.
WVD245S3GB WVD24520EU
Product
Description
ELECTRONIC WASHER DRYER
1200 RPM
ELECTRONIC WASHER DRYER
1200 RPM
Comfort and
Safety
Maximum wash load 5kg – Drying
load 2.5kg
User-friendly operation with a range
of programmes in text and symbol
LCD Display – for programme
indication and drying time
Non-stop washing and drying
programme for 2.5kg
Maximum wash load 5kg – Drying
load 2.5kg
User-friendly operation with a range
of programmes in text and symbol
Large LCD Display – for programme
indication and drying time
Non-stop washing and drying
programme for 2.5kg
Washing
Machine
Spin Speed: 400 – 1200rpm
Special Programmes: Dark Wash,
Mixed Load, Sensitive,
Sportswear, Super Quick 15, Wool,
Delicates / Silk
Touch Control Buttons: Start / Pause,
Rinse Plus, Intensive,
Reduced Ironing, Prewash
Fully Electronic controlled
Multiple water protection
Spin Speed: 400 – 1200rpm
Special Programmes: Dark Wash,
Mixed Load, Sensitive,
Sportswear, Super Quick 15, Wool,
Delicates / Silk
Touch Control Buttons: Start / Pause,
Rinse Plus, Intensive,
Reduced Ironing, Prewash
Fully Electronic controlled
Multiple water protection
Condensation
Dryer
2 programmes: delicate drying and
normal drying
Timed programmes
2 programmes: delicate drying and
normal drying
Timed programmes
Product Specs
Capacity: 5kg / 2.5kg drying
Consumption: 49L / 190kWh / 135min
Rating: 2200W
Unit dimensions:
(H x W x D) 85 x 60 x 56 cm
Height for building under: 82.0cm
Colour: Silver
Capacity: 5kg / 2.5kg drying
Consumption: 45L / 4.56kWh / 130min
Rating: 2200W
Unit dimensions:
(H x W x D) 85.0 x 60.0 x 65.0cm
Height for building under: 82.0cm
Colour: White

We have taken care of it so you can be confident that each and
every time you use your Bosch washer dryer you will get outstanding
performance.
At Bosch our aim is to take the chore out of laundry. We will give you
the best results and save you time, so you can get on with the more
important things in life. An integrated solution is also available.
WVH28420E
Product
Description
ELECTRONIC WASHER DRYER
1400RPM – 400RPM
Comfort and
Safety
Maximum wash load 7kg – drying load 4kg
User-friendly operation with a range of programmes in text and symbol
LCD display – for programme indication and drying time
Non-stop washing and drying programme for 4kg
Washing
Machine
Spin Speed: 700 – 1200rpm
Fully electronic controlled
Special Programmes: PowerWash 60, mixed load, quick 15, wool, delicates/silk
3D Aquaspa wash system
Push buttons
Condensation
Dryer
Air Condensation Technology:
No water consumption during drying
2 Programmes: delicate drying and normal drying
Timed Programmes
Product Specs
Capacity: 7kg / 4kg drying
Coloured 60°C / 57l / 5.67kWh wash and dry
Rating: 2200W
Unit dimensions (H x W x D):
85.0 x 60.0 x 63.0cm
Height for building under: 85.0cm

Tumble dryers.
There are two drying systems to choose from – condensor drying
and vented drying:
Vented Tumble Dryers
Vented tumble dryers can be located in a room which is either well
ventilated or has the facility for a venting hose.
Condensor Tumble Dryers
With condensor dryers there is no problem with warm, damp air
since all the moisture from laundry condenses and is collected inside
the appliance.
WTE8430SGB WTE86305BY
WTE86304BY (While stocks last)
Product
Description
ELECTRONIC CONDENSOR
TUMBLE DRYER
MAXX 7 SENSITIVE
CONDENSOR DRYER
Programmes
Humidity and time controlled
programmes
Special Programmes: Woollen finish,
Low heat drying, Super Quick 40
Fully electronic controlled humidity,
time and special programmes
Wool basket program, for drying
without creasing, pressure marks and
shrinking
Special programmes: Sportswear,
Down wear
Timed programmes: 20min warm,
Super 40
Comfort and
Safety
Fully electronic control dial for sensor
drying programmes, timed and
special programmes
LCD display for remaining time and
preselection of program end times
Touch control buttons: Start / Stop,
Low Heat, Signal, Reduced Ironing
LED program status indicator, fluff filter
and condensed water container full
Anti-wrinkle cycle (120min) at the end
of the program
Sensitive drying system: Big stainless
steel drum with textile care structure,
soft design paddles
Very quiet
Door hinged on right (not reversible)
LCD Display for remaining time and
time delay (24hrs)
Touch control buttons: Start / Stop,
Low Heat, Reduced Ironing
Anti-wrinkle cycle (120min) at the end
of the program
Sensitive drying system: Big stainless
steel drum with textile care structure,
soft design paddles
Duo Tronic
Glass door hinged on right (not
reversible)
Product Specs
Capacity: 7kg
Unit dimensions (H x W x D):
84.2 x 59.8 x 62.5 cm
Height for building under: 81.9cm
Rating: 2800W
Colour: Silver
Capacity: 7kg
Unit dimensions (H x W x D):
84.2 x 59.8 x 62.5 cm
Height for building under: 81.9cm
Rating: 2800W
Colour: White

Sensor Drying Facility
Independent electronic sensors monitor the contents of the dryer
constantly, preventing any possibility of over-heating.
Delicate Drying
Low heat button for drying delicate items.
Anti-Crease Phase
A gentle drying action fluffs up garments automatically at the end of
a programme.8
WTE84123BY WTV7410SZA
Product
Description
MAXX ELECTRONIC CONDENSOR
TUMBLE DRYER
SIDE AND REAR
VENTED TUMBLE DRYER
Programmes
Humidity and time controlled
programmes
2 buttons for “start / stop” and “low
heat”
Humidity and time controlled
programmes
2 buttons for “start / stop” and
“gentle”
Comfort and
Safety
One-button operation for easy
programme selection
Fully electronic fuzzy logic controlled
LED displays for programme status
“empty condensation tank” and
“fluff filter”
Anti-wrinkle cycle (60min) at the end
of the program
Big stainless steel drum with textile
care structure, soft design paddles
Door hinged on right (not reversible)
One-button operation for easy
programme selection
Fully electronic controlled
LED displays for programme status
Anti-wrinkle cycle (60min) at the end
of the program
Big galvanized drum with textile care
structure, soft design paddles
Door hinged on right (not reversible)
Product Specs
Capacity: 7 kg
Unit dimensions:
(H x W x D) 84.2 x 59.8 x 62.5 cm
Height for building under: 81.9 cm
Rating: 2800W
Colour: White
Capacity: 7kg
Unit dimensions:
(H x W x D) 84.2 x 59.8 x 62.5 cm
Height for building under: 81.9cm
Rating: 2800W
Colour: Silver

WTV74100ME WTA74100ZA
Product
Description
SIDE AND REAR VENTED
TUMBLE DRYER
SIDE AND REAR VENTED
TUMBLE DRYER
Programmes
Humidity and time controlled
programmes
2 buttons for “start / stop” and
“gentle”
Humidity and timed controlled
programmes
3 buttons: Start / Gentle / Anti Crease
Comfort and
Safety
One-button operation for easy
programme selection
Fully electronic controlled
LED displays for programme status
Anti-wrinkle cycle (60min) at the end
of the program
Big stainless steel drum with textile
care structure, soft design paddles
Door hinged on right (not reversible)
One-button operation for easy
programme selection
Fully electronic controlled
Anti-wrinkle cycle (90min) at the end
of the programme
Galvanised drum
Easily accessible fluff filter
Door hinged on right (not reversible)
Product Specs
Capacity: 7kg
Unit dimensions:
(H x W x D) 84.2 x 59.8 x 62.5 cm
Height for building under: 81.9cm
Rating: 2800W
Colour: White
Capacity: 6kg
Unit dimensions:
(H x W x D) 84.2 x 59.9 x 63.5cm
Height for building under: 81.8
Rating: 2300W
Colour: White

The Bosch 3 year guarantee.
The world around us has become a myriad of change and confusion.
We are constantly being cluttered with contradictions and
complications that we somehow have to sort through on a daily
basis. Certain traits have however managed to stand out above the
rest and rise out from the clutter.
Quality and style happen to be two of these most sought after traits
in today’s society. Traits that are truly worth searching for, worth
waiting for, and unfortunately far too rare in a world that all to often
manages to confuse what is really important to us in our daily lives.
It is this often-illusive search for true quality and style that leads us
to something special. The Bosch 3 Year Guarantee is truly something
special. The name Bosch epitomises true quality and guarantees that
you can move into the future with style and confidence.
3
YEAR
GUARANTEE
FREESTANDING APPLIANCES

Bosch Domestic Appliances
Midrand
Private Bag X36
Randjespark
Halfway House 1685
Rep. of South Africa
Visitors:
Fifteenth Road
Randjespark
Midrand
Tel: [phone]
Fax: [phone]
Cape Town
Bosch Domestic Appliances
Post Net Suite #248
Private Bag X19,
Milnerton 7435
Rep. of South Africa
Visitors:
Shop No. 1, Marconi Centre
460 Koeberg Road,
Milnerton 7441
Tel: [phone]
Fax: [phone]
BSH Service Centre
Tel: [phone]
Fax: [phone]
E-mail: applianceser[email protected]
E-mail: [e-mail]
Spare Parts
Tel: [phone]
Fax: [phone]
www.boschappliances.co.za
Please note that certain features apply to particular product. Bosch
appliances are guaranteed for 3 years from date of purchase against
faulty workmanship and/or material. No responsibility is accepted for
printing errors. E&OE.
TOPS 0861 10 22 10/JB10589
