This Bosch Appliance is made by
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
Questions?
1-800-944-2904
www.bosch-home.com/us
We look forward to hearing from you!

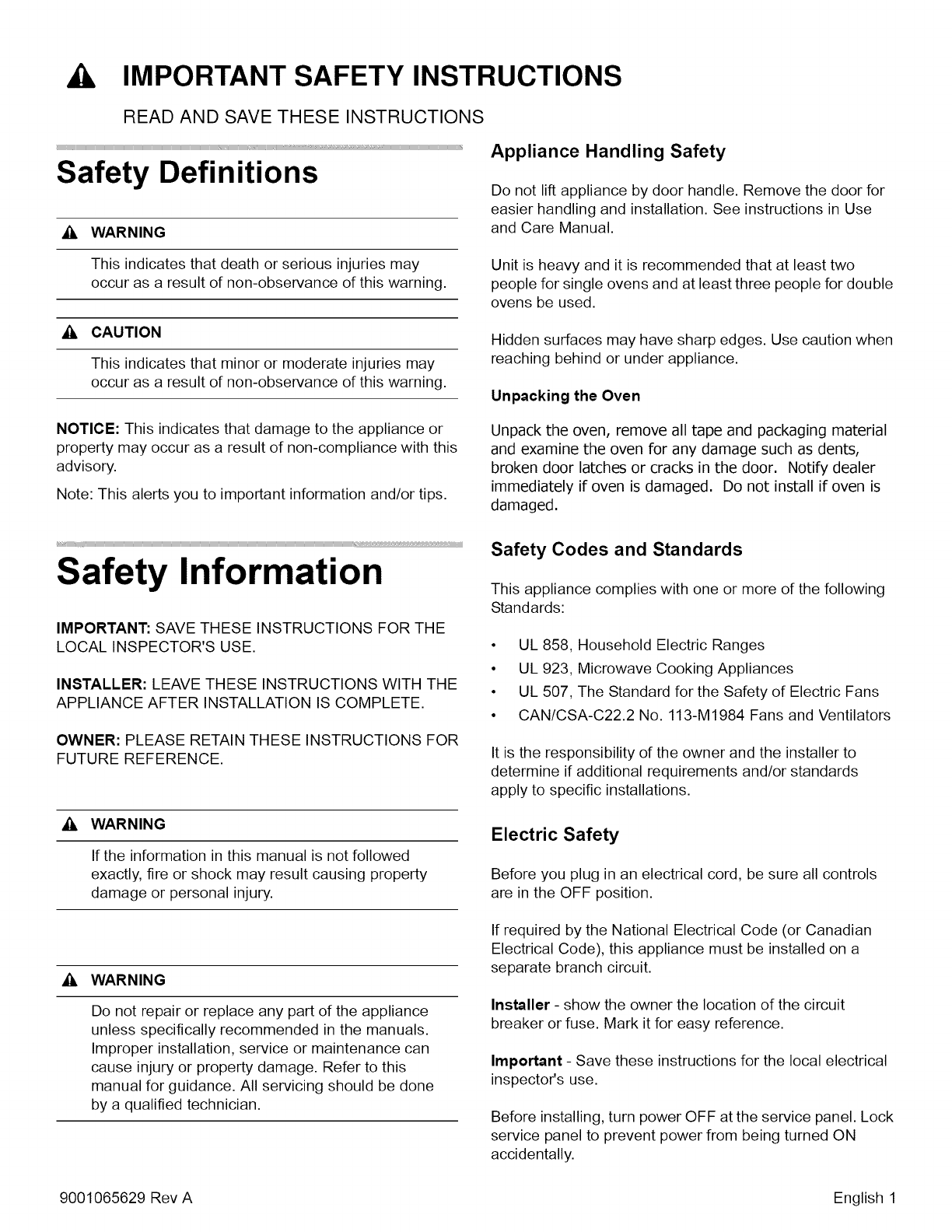

IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Safety Definitions
WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this warning.
CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this warning.
Appliance Handling Safety
Do not lift appliance by door handle. Remove the door for
easier handling and installation. See instructions in Use
and Care Manual.
Unit is heavy and it is recommended that at least two
people for single ovens and at least three people for double
ovens be used.
Hidden surfaces may have sharp edges. Use caution when
reaching behind or under appliance.
Unpacking the Oven
NOTICE: This indicates that damage to the appliance or
property may occur as a result of non-compliance with this
advisory.
Note: This alerts you to important information and/or tips.
Unpack the oven, remove all tape and packaging material
and examine the oven for any damage such as dents,
broken door latches or cracks in the door. Notify dealer
immediately if oven is damaged. Do not install if oven is
damaged.
Safety Information
IMPORTANT: SAVE THESE INSTRUCTIONS FOR THE
LOCAL INSPECTOR'S USE.
INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE
APPLIANCE AFTER INSTALLATION IS COMPLETE.
OWNER: PLEASE RETAIN THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
_, WARNING
If the information in this manual is not followed
exactly, fire or shock may result causing property
damage or personal injury.
WARNING
Do not repair or replace any part of the appliance
unless specifically recommended in the manuals.
Improper installation, service or maintenance can
cause injury or property damage. Refer to this
manual for guidance. All servicing should be done
by a qualified technician.
Safety Codes and Standards
This appliance complies with one or more of the following
Standards:
• UL 858, Household Electric Ranges
• UL 923, Microwave Cooking Appliances
• UL 507, The Standard for the Safety of Electric Fans
• CAN/CSA-C22.2 No. 113-M1984 Fans and Ventilators
It is the responsibility of the owner and the installer to
determine if additional requirements and/or standards
apply to specific installations.
Electric Safety
Before you plug in an electrical cord, be sure all controls
are in the OFF position.
If required by the National Electrical Code (or Canadian
Electrical Code), this appliance must be installed on a
separate branch circuit.
Installer - show the owner the location of the circuit
breaker or fuse. Mark it for easy reference.
Important - Save these instructions for the local electrical
inspector's use.
Before installing, turn power OFF at the service panel. Lock
service panel to prevent power from being turned ON
accidentally.
9001065629 Rev A English 1

IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Refer to data plate for more information. See "Data Plate"
under "Service" for data plate location.
Be sure your appliance is properly installed and grounded
by a qualified technician. Installation, electrical connections
and grounding must comply with all applicable codes.
Related Equipment Safety
Remove all tape and packaging before using the appliance.
Destroy the packaging after unpacking the appliance.
Never allow children to play with packaging material.
Never modify or alter the construction of the appliance. For
example, do not remove leveling legs, panels, wire covers
or anti-tip brackets/screws.

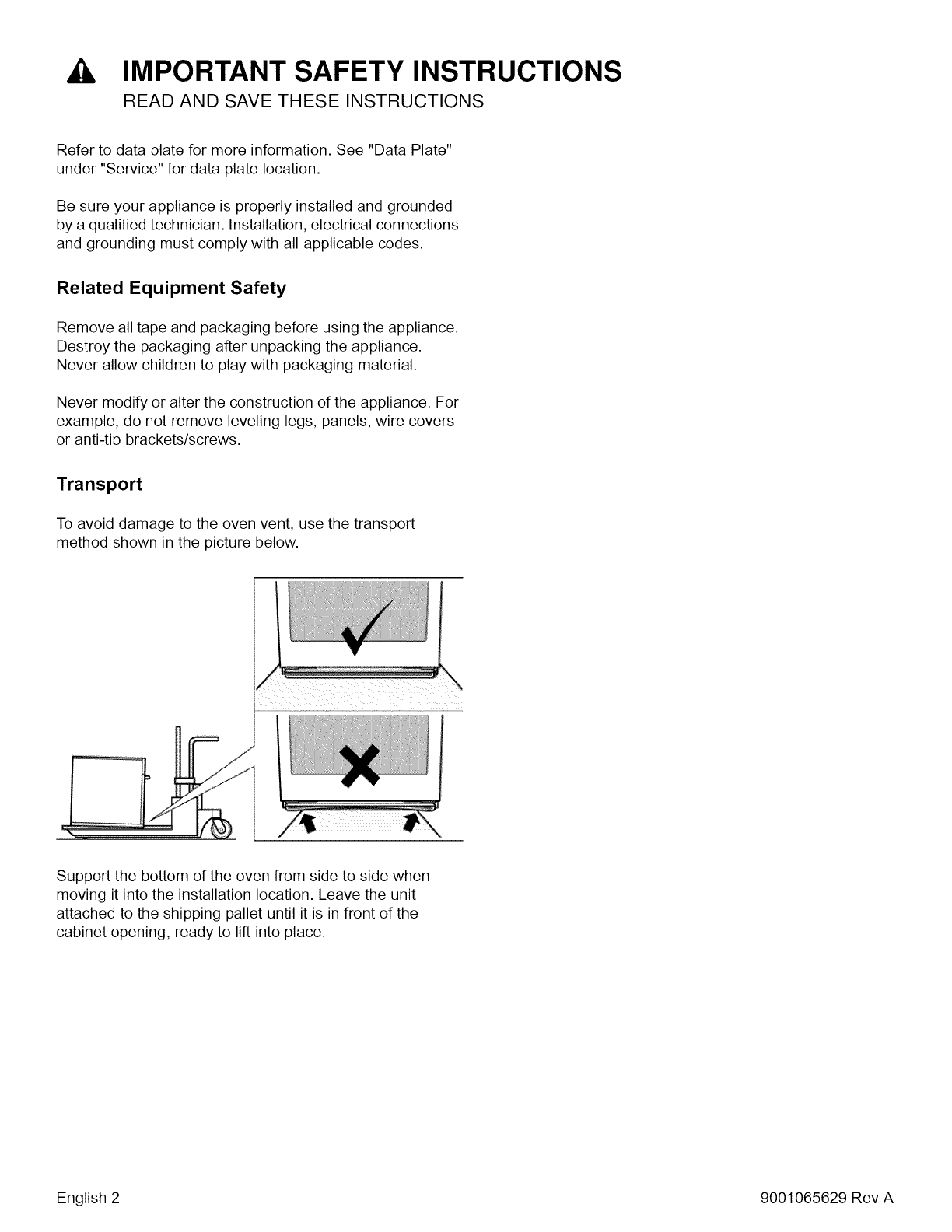

Transport
To avoid damage to the oven vent, use the transport
method shown in the picture below.
Support the bottom of the oven from side to side when
moving it into the installation location. Leave the unit
attached to the shipping pallet until it is in front of the
cabinet opening, ready to lift into place.
English 2 9001065629 Rev A

Preparation
Before You Begin
Tools and Parts Needed
•Phillips head screwdriver
• Star-head screwdriver (T20)
• Measuring tape
• Drill with bit (1/8")
• Gloves
Parts Included
• Phillips head screws (6)
General Information
Power Requirements
The outlet must be properly grounded in accordance with
all applicable codes.
For Best Installation
The oven can be difficult to handle during installation. It is
recommended to have three or more people available to
assist with lifting the unit into place.
Removal of the bottom hinge oven door during installation
(to provide the necessary handholds and to significantly
reduce the unit weight) can be cumbersome unless the
detailed door removal instructions are followed carefully.
Note: Do not attempt to remove the side hinge door (some
models).
Please take time to read and follow the instructions
provided for an improved installation experience.
Use this checklist to verify that you have completed each
step of the installation process. This can help you avoid
mistakes.
__ 1. Before installing the oven, be sure to verify the
cabinet dimensions are correct for your unit and
the required electrical connections are present.
,Refer to the installation manual for content
regarding Safety, Cabinet Dimensions, Removing
Packaging, Electrical Installation, Testing the
Installation and Customer Service.
__ 3. Remove bottom hinged oven door(s) (not side
swing doors) to reduce the unit weight and to
provide access to handholds for lifting.
__ 4. Move the oven unit into place in front of the cabinet
opening, leaving the bottom packaging on the unit
to avoid damaging flooring.
__ 5. Remove the torx head (T-20 size) screws holding
the unit to the base of the carton (using Star-head
screwdriver).
,Team lift the unit directly into the cabinet cutout
taking care not to pinch fingers or scratch hands or
arms. Make sure the electrical conduit reaches to
the connection point properly.
__ 7. Slide the unit all the way into place, making sure to
route the electrical conduit correctly.
__ 8. Fasten the oven unit to the cabinetry opening with
the screws supplied (using Philips screwdriver).
__ 9. Reinstall the oven door(s) removed in step 3
above.
__ 10. Consult the complete installation instructions and
follow the remainder of the procedures listed,
including performing an operation test.
__ 11. All product literature and accessories (may be
wrapped or boxed) with the oven.
__ 12. INSTALLER - Leave the literature pack and the
accessories with the customer.
9001065629 Rev A English 3

Dimensions and Cabinet Requirements
Cabinet requirements vary depending on the model to be
installed. Please consult the "Cabinet Dimension
Requirements" section at the back of this installation
manual for the details pertaining to your particular model.
All models require:
1/4" (6.4 mm) space between the side of the oven and
an adjacent wall or cabinet door when installed at the
end of a cabinet run.
Installation of 2x4's extending front to back flush with
the bottom and side of the opening to provide oven
support. This supporting base must be well secured to
the floor/cabinet and must be level.
The electrical conduit box must be located above the
unit to facilitate connecting and servicing the unit.
The cabinet base must be flat and capable of
supporting the weight of your oven when in use (varies
by model up to 390 Ibs. (177 kg)). See the appropriate
weight for your model in the "Cabinet Dimensions
Requirements" section at the back of this installation
manual.
Removing Packaging
• Cut straps on the outside of the box.
• Remove the cardboard box by lifting it up and off the
unit.
• Remove all top and side cardboard and Styrofoam
braces.
• Place the oven (leaving it on the shipping base) in front
of the cabinet where it is to be installed.
Remove all accessories, racks, packing materials and
literature from the oven cavity (for double ovens,
remove such items, if present, from both cavities).
Unscrew unit from packaging brackets as shown below
in "Packaging Bracket Removal."
Note: The screws near the base mounting bracket are
all torx head (T-20 size). Only the one screw that goes
through the slotted hole in the mounting bracket on the
left and right sides of the unit needs to be removed in
order to lift the unit from the mounting base (the screw
circled and shown as "A" in the following illustration.)
NOTICE
Remove one screw only from each bracket. This
will release the oven from the shipping base. Do
not remove any additional screws from the oven.
Packaging Bracket Removal (left and right
sides)
Note:
Different models use different packaging materials. Actual
brackets may look differently. The bracket remains in the
packaging base. The unit should stay on the packaging
base until ready to be lifted into cabinet cutout.
Preparing Oven
Place oven in front of the cabinet where it is to be installed
so that it is in line with the cabinet cutout.
Check to be sure all packing materials have been removed
from the unit. Also remove the accessories, oven racks,
literature pack and any shipping materials from inside the
oven cavity (remove from both cavities for a double oven or
combination oven).
English 4 9001065629 Rev A

Installation
This installation manual provides instructions for the
installation of single ovens and double ovens.
Electrical Installation
All model ovens on the front cover of this installation
instruction manual are dual rated, designed to be
connected to either 208 or 240V AC, 60 Hz, 4 wire, single-
phase power supply.
Model Circuit Required
208V, 60 Hz 240V, 60 Hz
HBN54, HBN84,
HBL53, HBL54, 30 AMP
HBL84, HBLP4
HBL55 30 AMP / 40 AMP
£
HBN56, HBL56,
HBN86, HBL86, 40 AMP
HBLP6
The electrical supply should be a 4-wire single-phase AC.
Install a suitable conduit box (not furnished). An
appropriately-sized, UL-listed conduit connector must be
used to correctly attach the conduit to the junction box.
Important: Local Codes may vary; installation, electrical
connections and grounding must comply with all applicable
local codes.
If local codes permit grounding through the electrical
supply neutral, connect both the white neutral wire and the
green ground wire from the oven to the white neutral
electrical supply wire.
Electrical Connection to Main Power Supply
The four-wire connection is preferred, but where local
codes permit, the three wire connection is also acceptable.
Four-wire Connection
Ungrounded Neutral
power supply
junction box
red wires
green or bare
wire
black wires
green wire white wires
UL listed -"................ cable from
connector oven
• Connect the red oven wire to the red electrical supply
wire (hot wire).
• Connect the black oven wire to the black electrical
supply wire (hot wire).
• Connect the white neutral oven wire to the white
neutral (not bare or green ground) electrical supply
wire.
• Connect the green ground oven wire to the bare or
green ground electrical supply wire.
Three-wire Connection
Grounded Neutral
power supply t.
junction box .
red wires ---__._
white, bare, or
green wire
white wire
green wire -i
black wires
UL listed
connector
cable from
oven
• Connect red wire from oven to red wire in junction box.
• Connect black wire from oven to black wire in junction
box.
Connect both green ground wire and white wire from
oven to white, green or bare neutral wire in junction
box.
The conduit cable, where connected at the oven, swivels.
Rotate conduit cable upward (or downward) and direct
through hole prepared in cabinet to attach to the junction
box.
To maintain serviceability, the flex conduit must not be
shortened and should be routed to permit temporary
removal of the oven.
9001065629 Rev A English 5

Installing the Oven Unit into
the Wall Cabinet
NOTICES
Before installing the oven, be sure to verify the
cabinet dimensions and electrical connections.
Check that the cabinet opening is level and plumb
for correct installation.
For Best Installation
It is recommended to remove the oven door (bottom hinge
models only) to help reduce the unit weight and provide
easier access to the handholds located inside the oven.
Caution
It is recommended to wear gloves and long sleeves to
protect hands and forearms from abrasion and potential
scratches during the lifting process. It is also recommended
to take off watches and jewelry and to wear work shoes
during installation for foot protection.
Correct Inside Oven Lift Point
Notice: DO NOT attempt to lift the unit by holding the oven
upper element.
There is a ridge across the top front of the oven cavity. Lift
by grasping this ridge with one hand while placing the other
hand on the back of the unit (for helpers lifting from the
sides of the unit). If a third helper is lifting from the front,
both hands should lift by holding this ridge area.
English 6 9001065629 Rev A

Lifting Recommendations Vary Dependent Upon Oven Door Type
Bottom Hinge Door
Lift Locations (with door(s) removed)
Lift points (1) on the front of the unit are for lifting from the
sides of the unit. Lift point (3) on the front of the unit is for a
third person to help lift the unit.
Lift point (2) on the back of the unit shows the location of
the opposite hand for the helpers lifting from the sides of
the unit. Adjust the location as needed to facilitate the lift.
Wear gloves, a long sleeved shirt, and avoid sharp edges
to reduce the risk of cuts or abrasions to the arms or hands.
Single Oven Double Oven
I
[_ J
O
Side Hinge Door
Lift Locations (with lower door opened to 90°-110 °)
Lift points (1) on the front of the unit are for lifting from the
sides of the unit. Lift point (3) on the front of the unit is for a
third person to help lift the unit.
Lift point (2) on the back of the unit shows the location of
the opposite hand for the helpers lifting from the sides of
the unit. Adjust the location as needed to facilitate the lift.
Wear gloves, a long sleeved shirt, and avoid sharp edges
to reduce the risk of cuts or abrasions to the arms or hands.
Single Oven - Side Swing Double Oven Side Swing
9001065629 Rev A English 7

Installing the Oven
WARNING
•Make sure oven is cool and power to the oven
has been turned off before removing the door.
Failure to do so could result in burns.
• The oven door is heavy and fragile. Use both
hands to remove the oven door. The door front
is glass. Handle carefully to avoid breaking.
• Grasp only the sides of the oven door. Do not
grasp the handle as it may swing in your hand
and cause damage or injury.
• Failure to grasp the oven door firmly and
properly could result in personal injury or
product damage.
• To avoid injury from hinge bracket snapping
closed, be sure that both levers are securely in
place before removing the door. Also, do not
force door open or closed - the hinge could be
damaged and injury could result.
• Do not lay removed door on sharp or pointed
objects as this could break the glass. Lay on a
flat, smooth surface, positioned so that the
door cannot fall over.
Bottom Hinge Doors Only - Remove
Prior to Install
Important: Do not attempt to remove the side hinge
door (side hinge doors are found only on select models).
Ovens with bottom hinge doors permit the oven door(s) to
be removed prior to lifting the unit into place. Each door
weighs approximately 40 pounds (18.1 kg). Removing and
replacing the door are routinely simple procedures.
Removing the door lightens the unit significantly and
provides easier access to the recommended handhold
inside the oven cavity. See instructions below.
,Be sure to read all
warnings and cautions
in the installation
manual regarding the
door removal before
attempting to remove
the door.
2. Open the door
completely.
3. Flip latch levers on
hinges toward you.
,Holding the door firmly
on both sides and
using both hands,
close the door gently
until it stops against
the latch levers, about
30° from the closed
position.
,Carefully lift the door
up and out of the
hinge slots. Hold
firmly; the door is
heavy.
,Place the door in a
convenient and stable
location until you are
ready to reinstall it.
Lay the door on a
towel or section of
protective foam
padding to avoid
damage to the door or
the floor.
Placing the Oven Unit Into the Cabinet
Opening
CAUTION
To avoid damage to the door do not lift, pull or push
the unit during installation by using the oven door
handle as a gripping point.
It is recommended to wear gloves and long sleeves
to protect hands and forearms from abrasion and
potential scratches during the lifting process. It is
also recommended to take off watches and jewelry
and to wear work shoes during installation for foot
protection.
When lifting the unit into place avoid grasping the upper
element to avoid damaging it. See the illustration following
for the correct lifting point for a bottom hinge double oven
with the lower door removed. This illustration shows a
detailed view of the oven cavity. Note the location of the
ridge inside the top of the cavity. This is the area to grip
from the front when lifting the oven.
For your particular oven type, see the preceeding section
"Lifting Recommendations Vary Dependent Upon Oven
Door Type" for lift points.
English 8 9001065629 Rev A

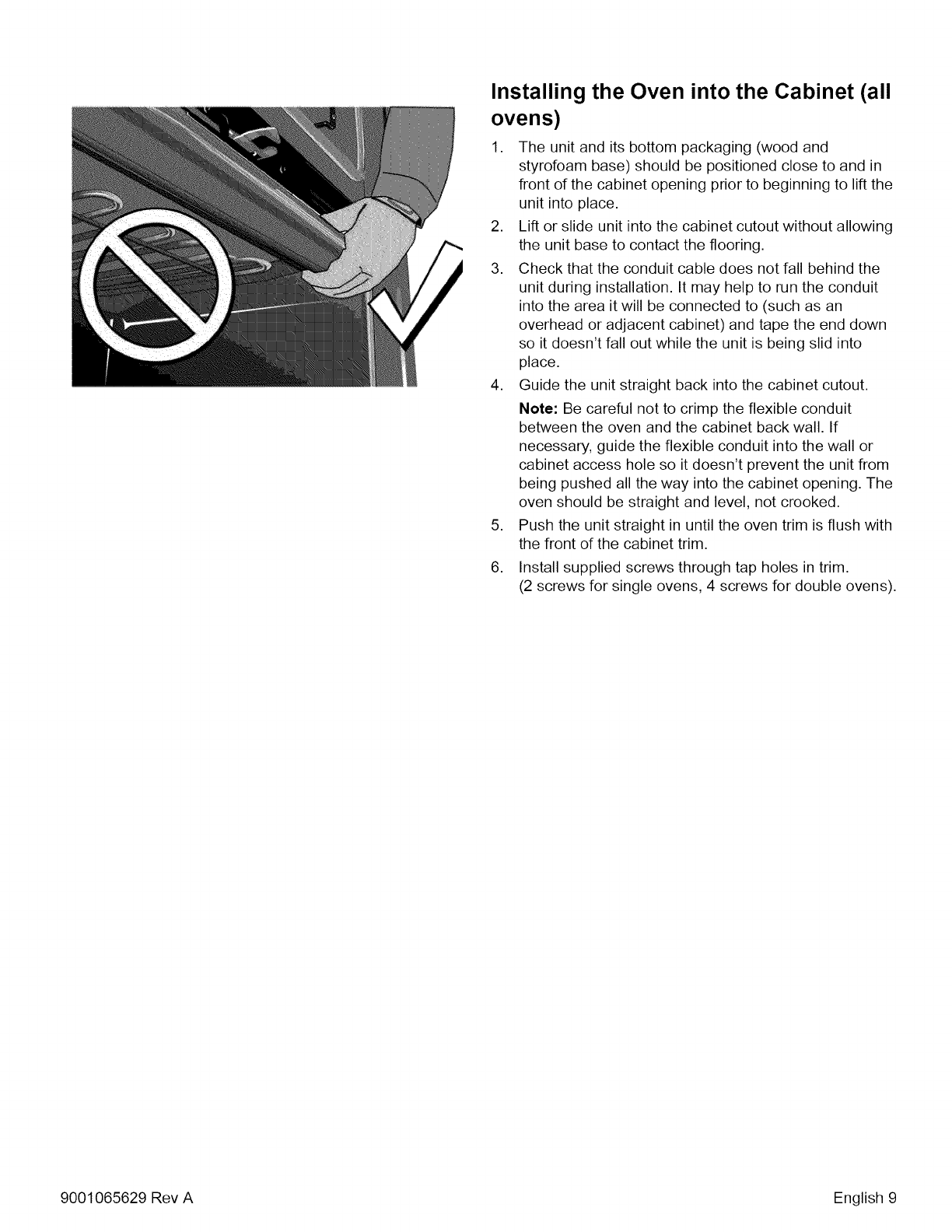

Installing the Oven into the Cabinet (all
ovens)
1. The unit and its bottom packaging (wood and
styrofoam base) should be positioned close to and in
front of the cabinet opening prior to beginning to lift the
unit into place.
2. Lift or slide unit into the cabinet cutout without allowing
the unit base to contact the flooring.
3. Check that the conduit cable does not fall behind the
unit during installation. It may help to run the conduit
into the area it will be connected to (such as an
overhead or adjacent cabinet) and tape the end down
so it doesn't fall out while the unit is being slid into
place.
4. Guide the unit straight back into the cabinet cutout.
Note: Be careful not to crimp the flexible conduit
between the oven and the cabinet back wall. If
necessary, guide the flexible conduit into the wall or
cabinet access hole so it doesn't prevent the unit from
being pushed all the way into the cabinet opening. The
oven should be straight and level, not crooked.
5. Push the unit straight in until the oven trim is flush with
the front of the cabinet trim.
6. Install supplied screws through tap holes in trim.
(2 screws for single ovens, 4 screws for double ovens).
9001065629 Rev A English 9

Ovens with Bottom Hinge Doors Only Ovens with Side Hinge Doors Only
Re-Install the oven doors:
" 'iii
1. Hold the door firmly in
both hands.
,Hold the door at a 30°
angle from the closed
position and insert
hinges into the slots.
You may need to rock
the door forward and
backward slightly to
seat the hinge feet.
,The door may need to
be removed and re-
inserted until the
hinges sit correctly in
the slots.
4. Open door all the way
to expose hinges,
latch levers, and slots.
5. Push latch levers
forward and down until
seated on the bracket.
,Close and open door
slowly to be sure it is
correctly and securely
in place. Door must be
straight, not crooked.

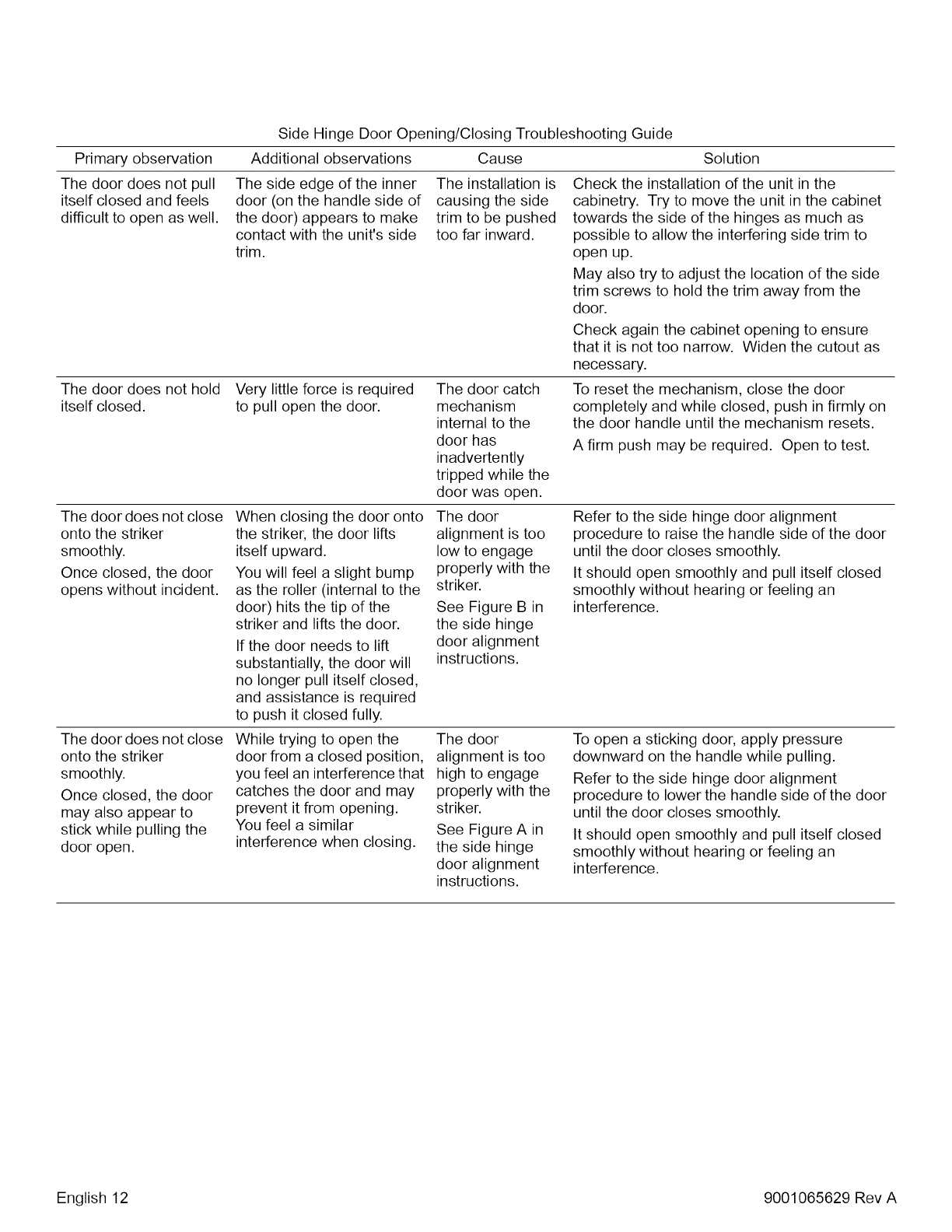

Side Hinge Door Aligment
Note: Only align the side hinge oven doors after the unit is
fully installed into the cabinet.
Fig. A
Fig. B
,
,
,
Check to see if the
side hinge oven doors
are properly aligned.
The door should pull
itself closed smoothly
when the striker
engages the roller as
the door is closed.
Too high (Fig. A - door
needs to move down
on latch side) you will
feel interference
between the striker
and the catch receiver.
Too low (Fig. B - door
needs to move up on
latch side) you will feel
a bump when the
striker comes into
contact with the re-
alignment roller.
Hint: The gap between
the top of the closed
oven door and the
control panel (or upper
door for lower cavities
in double ovens)
should be fairly
uniform from side to
side.
English 10 9001065629 Rev A

Side Hinge Door Alignment Procedure
Open the door to
approximately 135°.
Using a Torx T-20 star-
head screwdriver,
loosen the 3 screws
(A) on the lower hinge
by 1 to 2 full turns.
Note: All adjustment is
made with the lower
hinge only. The upper
hinge is fixed in place
and cannot be
adjusted.
,Using a #2 philips
head screwdriver, turn
the cam (B) right or left
to adjust the hinge
position in the desired
direction.
Note: lmm of hinge
movement (left or
right) will move the
door up or down
approximately 1.5mm
at the door catch.
4. Re-tighten the screws
before closing the
door to test. Be careful
not to overtighten.
5. Check for proper door
alignment. Repeat
adjustment procedure
as necessary.
9001065629 Rev A English 11

Primaryobservation
Thedoordoesnotpull
itselfclosedandfeels
difficulttoopenaswell.
Thedoordoesnothold
itselfclosed.
Thedoordoesnotclose
ontothestriker
smoothly.
Onceclosed,thedoor
openswithoutincident.
Thedoordoesnotclose
ontothestriker
smoothly.
Onceclosed,thedoor
mayalsoappearto
stickwhilepullingthe
dooropen.
SideHingeDoorOpening/ClosingTroubleshootingGuide
Additionalobservations Cause Solution
Thesideedgeoftheinner
door(onthehandlesideof
thedoor)appearstomake
contactwiththeunit'sside
trim.
Verylittleforceisrequired
topullopenthedoor.
Whenclosingthedooronto
thestriker,thedoorlifts
itselfupward.
Youwillfeelaslightbump
astheroller(internaltothe
door)hitsthetipofthe
strikerandliftsthedoor.
Ifthedoorneedstolift
substantially,thedoorwill
nolongerpullitselfclosed,
andassistanceisrequired
topushitclosedfully.
Whiletryingtoopenthe
doorfromaclosedposition,
youfeelaninterferencethat
catchesthedoorandmay
preventitfromopening.
Youfeelasimilar
interferencewhenclosing.
Theinstallationis
causingtheside
trimtobepushed
toofarinward.
Thedoorcatch
mechanism
internaltothe
doorhas
inadvertently
trippedwhilethe
doorwasopen.
Thedoor
alignmentistoo
lowtoengage
properlywiththe
striker.
SeeFigureBin
thesidehinge
dooralignment
instructions.
Thedoor
alignmentistoo
hightoengage
properlywiththe
striker.
SeeFigureA in
thesidehinge
dooralignment
instructions.
Checktheinstallationoftheunitinthe
cabinetry.Trytomovetheunitinthecabinet
towardsthesideofthehingesasmuchas
possibletoallowtheinterferingsidetrimto
openup.
Mayalsotrytoadjustthelocationoftheside
trimscrewstoholdthetrimawayfromthe
door.
Checkagainthecabinetopeningtoensure
thatitisnottoonarrow.Widenthecutoutas
necessary.
Toresetthemechanism,closethedoor
completelyandwhileclosed,pushinfirmlyon
thedoorhandleuntilthemechanismresets.
Afirmpushmayberequired.Opentotest.
Refertothesidehingedooralignment
proceduretoraisethehandlesideofthedoor
untilthedoorclosessmoothly.
Itshouldopensmoothlyandpullitselfclosed
smoothlywithouthearingorfeelingan
interference.
Toopenastickingdoor,applypressure
downwardonthehandlewhilepulling.
Refertothesidehingedooralignment
proceduretolowerthehandlesideofthedoor
untilthedoorclosessmoothly.
Itshouldopensmoothlyandpullitselfclosed
smoothlywithouthearingorfeelingan
interference.
English12 9001065629RevA

Testing Operation Data Plate
1. Turn on power at the breaker.
2. Test the oven mode.
Select the BAKE mode. See the Use and Care Manual
for detailed operation instructions.
3. Verify that the oven light comes on and the oven begins
to preheat.
4. Test the door lock.
Set the SELF CLEAN mode. Confirm that the door
locks when the lock icon appears in the display.
5. If installing a double oven, test the second oven as
well.
6. If any of the tests do not result as explained above,
contact Bosch service for assistance. Otherwise, the
installation is complete at this time.
Before Calling Service
See the Use and Care Manual for troubleshooting
information. Refer to the Statement of Limited Warranty in
the Use and Care Manual.
To reach a service representative, see the contact
information at the front of the Use and Care Manual.
Please be prepared with the information printed on your
product data plate when calling.
The data plate shows the model and serial number. Refer
to the data plate on the appliance when requesting service.
The data plate location varies based on the oven model
and door hinge type.
Double Ovens, Bottom Hinge
Note: The rating plates (A) are at the left hand side of
the door trim of the lower oven cavity.
Single Ovens, Bottom Hinge
Note: The rating plates (A) are at the left hand side of
the door trim.
9001065629 Rev A English 13

Single Ovens, Side Hinge
Note: The rating plates (A) are opposite the door hinge.
For left hinge doors, the rating plates will be on the door
trim on the right hand side of the door. For right hinge
doors, the rating plates will be on the door trim on the
left hand side of the door.
Double Ovens, Side Hinge
Note: The rating plates are opposite the door hinge in
the lower oven cavity.
English 14 9001065629 Rev A

Cabinet Dimension Requirements
It is good practice, when an oven is installed at the end of a
cabinet run, adjacent to a perpendicular wall, or cabinet
door, to allow at least 1/4" (6 mm) space between the side
of the oven and the wall/door.
For oven support, install 2x4's extending front to back flush
with the bottom and the side of the opening. The supporting
base must be well secured to the floor/cabinet and level.
Junction boxes can be located anywhere within reach of
the oven's power cable, but be aware that the unit should
able to be moved for service.
Dimensions for 27" Single
Oven Units
The cabinet opening must be plumb and the base must be
flat and level and capable of supporting a weight of at least
193 Ibs (87 kg).
Single Oven 27" Traditional Installation,
Cabinet and Undercounter
36"
(915)
measurementS ininches (mm)
Single Oven 27" Flush Mount
Installation
Flush installation (wall mount and undercounter) requires
two side cleats to be attached inside the cabinet or counter
frame, recessed from the front.
Flush I#s_ll Top V_-_ Sde View
24_z"
{622}
flush }n_
deptf_
lZ
(625)
(25)
(622)
measuremer_s iI_inches (ram)
Dimensions for 27" Double
Oven Units
The cabinet opening must be plumb and the base must be
flat and level and capable of supporting a weight of at least
361 Ibs (164 kg).
Double Oven 27" Traditional
Installation
50"
_(1270) 493/4"-511/2"
(1264-1308)
521116" 495/8. min.
(1323) (1260) (121
9001065629 Rev A English 15

Double Oven 27" Flush Mount
Installation
Flush installation requires two side cleats to be attached
inside the cabinet frame, recessed from the front.
F_us_'_ia_ Top Vmw
.........._7_®8_ ..........
f
24 _
$_e v_w 1°
_ht
(_22}
me_emen_,s ia _nch_/ram}

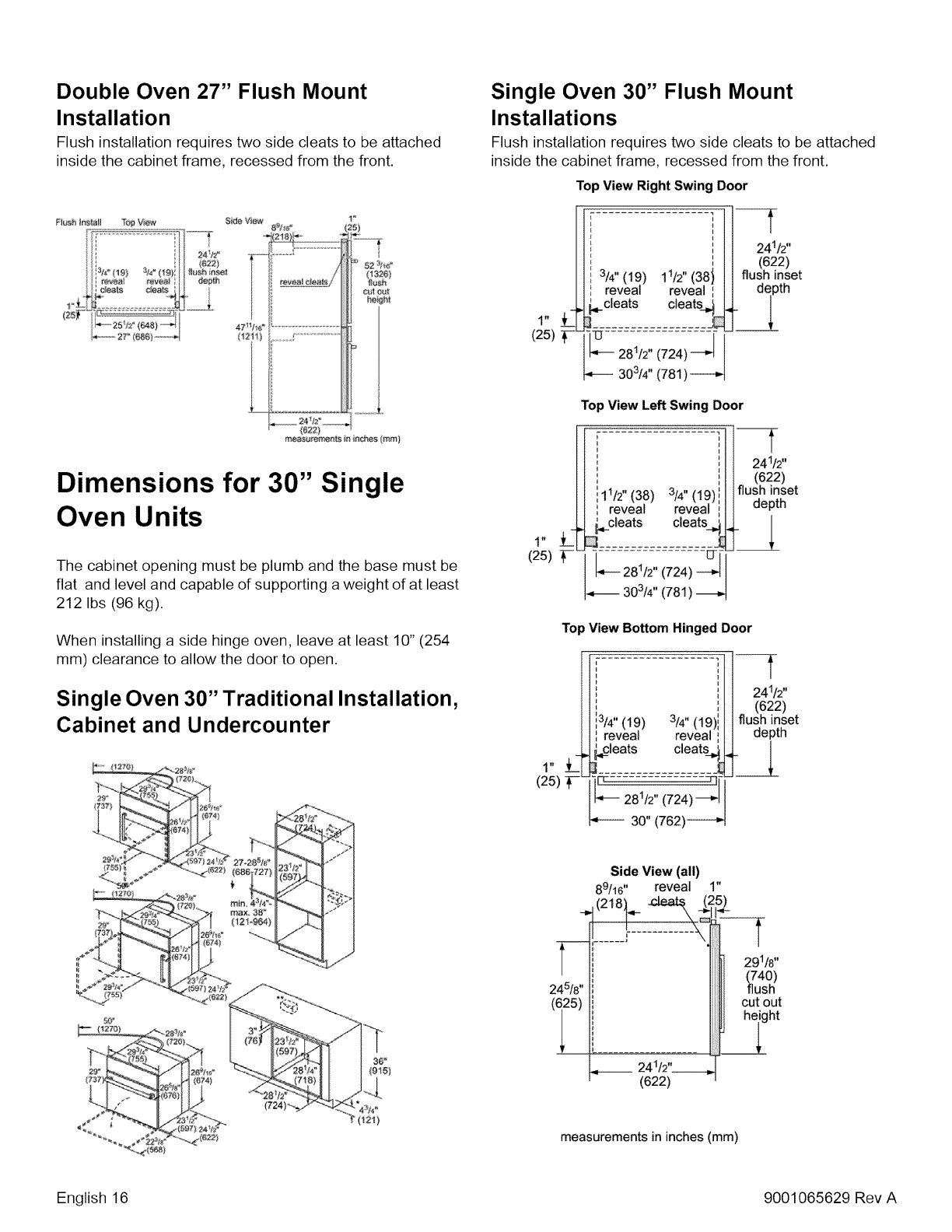

Dimensions for 30" Single
Oven Units
The cabinet opening must be plumb and the base must be
flat and level and capable of supporting a weight of at least
212 Ibs (96 kg).
When installing a side hinge oven, leave at least 10" (254
mm) clearance to allow the door to open.
Single Oven 30" Traditional Installation,
Cabinet and Undercounter
Single Oven 30" Flush Mount
Installations
Flush installation requires two side cleats to be attached
inside the cabinet frame, recessed from the front.
TopViewRightSwingDoor
314"(19) 11/2" (38t flush inset
reveal reveal I II depth
1" _cleats cleats
(25) _ ____ 28t/2: (724) -_
303/4 (781)
Top View Left Swing Door
,!11/2" (38) 3/4"(19)'
I reveal reveal
' cleats cleats_,
.................. [J
_ 303/4" (781) _
24_/2"
(622)
flush inset
depth
Top View Bottom Hinged Door
(25) ][-
3/4"(19) 3/4"(19)
reveal reveal,,
_leats cleats I
281/2 (724)--_1
*---- 30" (762) -------4-
241/2"
(622)
flush inset
depth
245t8"
(i25)
SideView(all)
89/16" reveal
-_ (218},_
__ 241/2"
(622)
measurements in inches (mm)
291/8"
740)
ush
cut out
English 16 9001065629 Rev A

Dimensions for 30" Double
Oven Units
The cabinet opening must be plumb and the base must be
flat and level and capable of supporting a weight of at least
390 Ibs (177 kg).
Double Oven 30" Traditional
Installation
50"
(t270)
521/16" i
(1323) i 495/8" (1260) I
493/4"_511/2"
1264-1308)
495/8"
(1260)
min.
max. 147/8"
(121[t379)
50"
(1270)
52_'16
(1323) 49}' 8 (1260)
Double Oven 30" Flush Mount
Installion
Double Oven 30" Flush installation requires two side cleats
to be attached inside the cabinet frame, recessed from the
front.
Top View Right Swing Door
! 241/2"
13/4"(19) 11/2"(38t flu_6522_et
reveal reveal , I L depth
cleats cleats
_i 30/4" (78i)------_
Top View Left Swing Door
',11/2" (38) /4"(19) -
241/2"
(622)
3 _ flush inset
I I _ reveal reveal 11 depth
_,,cleats1" ___-L_-==- .... cteatL_._
(25) _ ...... _-
_,_28 t2" (724) _
I_---- 303/4" (781)
Top View Bottom Hinged Door
3/4"(19_ 3/4" (19)_ [ I flush inset
reveal" reveal I I I depth
30" (762)---_'_
Side View (all)
89!1d ' 1"
218) (25)
(1326)
flush
cut out
height
47_11W, ......
(1211)
T _
24112"
(622)-------"
measurements in inches (mm)
9001065629 Rev A English 17

English18 9001065629RevA
