Bosch HBL8661UC User manual

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Oven Performance
Bake Element Wattages -
upper cavity
2,400 W
Broil Element Wattages -
upper cavity
3,800 W
Convection Element
Wattages - upper cavity
2,000 W
Bake Element Wattages -
lower cavity
2,400 W
Broil Element Wattages -
lower cavity
3,800 W
Convection Element
Wattages - lower cavity
N/A
Technical Details
Watts (W) 8,495 W
Circuit Breaker (A) 40 A
Volts (V) 240/208 V
Frequency (Hz) 60 Hz
Power Cord Length (in) 50"
Plug Type Fixed Connection,
No Plug
Energy Source Electric
Dimensions & Weight
Overall Appliance
Dimensions (HxWxD)(in)
52 1/16'' x 29 3/4''
x 23 1/2''
Required Cutout Size
(HxWxD) (in)
49 3/4'' - 51 1/2'' x
28 1/2'' x 23 1/2''
Net Weight (lbs) 261 lbs
Accessories—Included
Included Upper Oven: 3
x Oven Racks,
Temperature Probe
Lower Oven: 2 x
Oven Racks
Accessories—Optional
HEZTR301
30" Telescopic Rack
General Properties
Cooking Modes - upper
cavity
Bake, Variable Broil
(hi & low), Roast,
Warm, Sabbath,
Proof Dough,
Convection Bake,
Convection Broil,
Convection Roast,
Pizza, Multi Rack
Genuine European
Convection,
Convection
Conversion,
Temperature
Probe, Fast
Preheat
Cooking Modes - lower
cavity
Bake, Variable Broil
(hi & low), Roast,
Warm, Sabbath
Cleaning Type - upper
cavity
Self-Clean
Cleaning Type - lower
cavity
Self-Clean
Telescopic Rack 1
Illumination Type - upper
cavity
Incandescent
Illumination Type - lower
cavity
Incandescent
Interior Lights - upper
cavity
2
Interior Lights - lower
cavity
1
The Bosch wall oven
installs flush and features
a SmoothClose door.
Features & Benefits
Dampened hinges softly
and quietly guide the
SmoothClose door shut.
A full-extension telescopic
rack offers safe access to
the oven cavity.
The wall oven is designed
to be installed flush with
cabinetry.
Bosch wall ovens are
compatible with most
competitors’ cutouts.
Also available in:
Stainless Steel HBL8651UC
HBL8661UC
Black
800 Series - Black HBL8661UC
30" Double Wall Oven

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Installation Details
Example Flush Install
Single wall oven shown.
800 Series - Black HBL8661UC
30" Double Wall Oven

For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. Please refer to installation instructions prior to making cutout. BSH reserves the absolute and unrestricted right
to change product materials and specifications, at any time, without notice. Consult the product’s installation instructions for final dimensional data and other details. Applicable product
warranty can be found in accompanying product literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
Installation Details

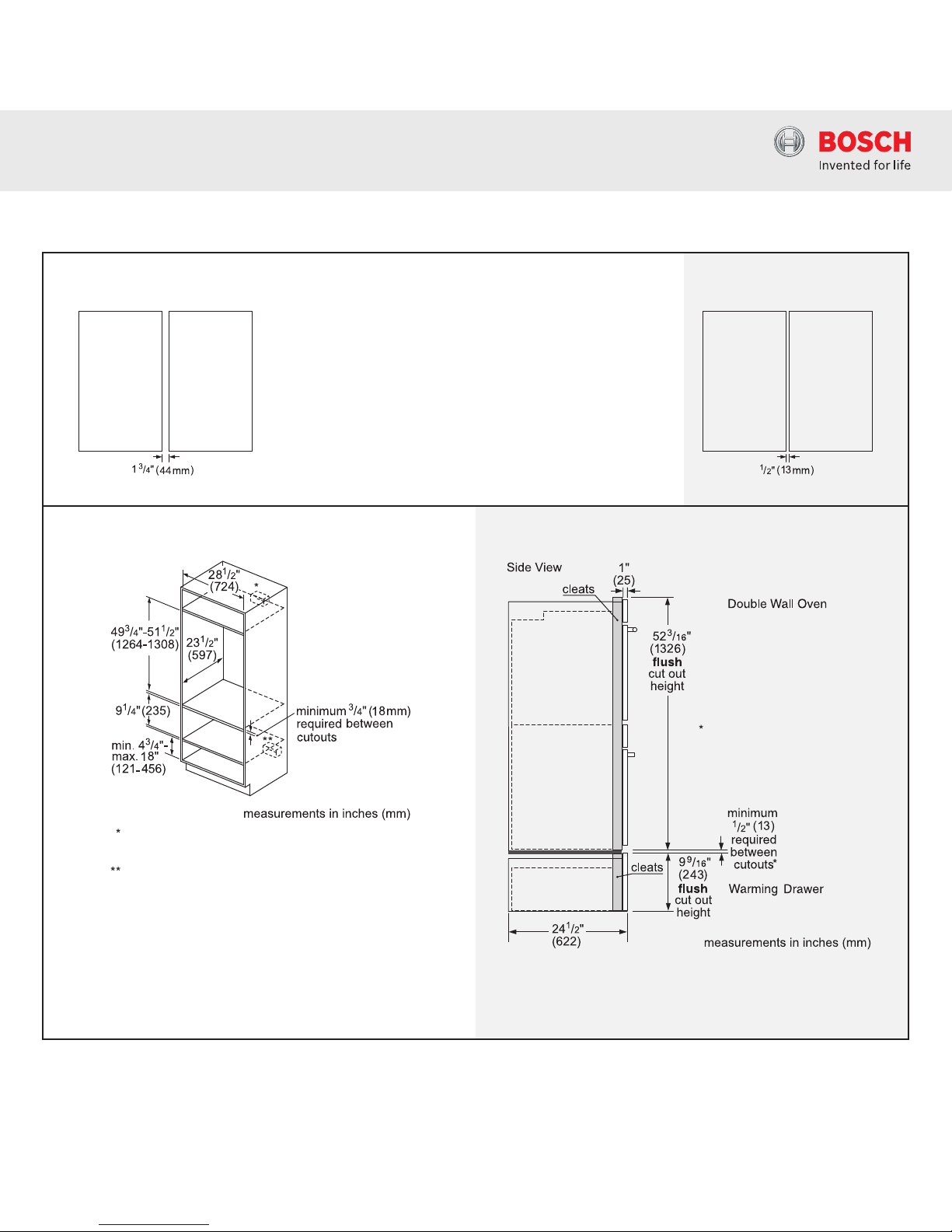

Flush Installation
Double Oven over Storage or Warming Drawer
IMPORTANT: base has to be
able to support oven weight.
Please check oven manual for
minimum weight requirements.
Standard Flush
Cutout 1
The ovens will overlap the cutout resulting in
a 1/2" (13mm) spacing between the products
IMPORTANT: The spacing between cutouts applies when installing any Bosch 30" or
27" single, double, combination and 27"/30" compact oven in a side-by-side installation.
Side-by-Side Installation
Cutout 2 Cutout 1 Cutout 2
800 Series - Black HBL8661UC
30" Double Wall Oven
Standard Installation
30" Double Oven over Storage or Warming Drawer
Wall oven junction box may be located above or right
or left of the unit within reach of the power conduit.
Electrical hook up may be located below
(depending on space) or next to the drawer
within the reach of the power cord.
