en Table of Contents
Safety and warning information ............ 3
Information concerning disposal .......... 6
Scope of delivery .................................... 6
Ambient temperature and ventilation .. 7
Connecting the appliance ..................... 7
Getting to know your appliance ........... 8
Switching the appliance on ................... 9
Setting the temperature ...................... 10
Special functions .................................. 10
Alarm function ...................................... 12
Usable capacity .................................... 12
Refrigerator compartment .................. 13
Super cooling ....................................... 14
Freezer compartment .......................... 14
Max. freezing capacity ........................ 15
Freezing and storing food .................. 15
Freezing fresh food ............................. 16
Super freezing ...................................... 17
Thawing frozen food ............................ 17
Interior fittings ....................................... 17
Sticker “OK” .......................................... 18
Switching off and disconnecting
the appliance ........................................ 19
Defrosting .............................................. 19
Cleaning the appliance ....................... 19
Light (LED) ............................................ 20
Tips for saving energy ........................ 20
Operating noises ................................. 21
Eliminating minor faults yourself ....... 22
Customer service ................................. 24
ru Coдepжaниe
Укaзaния пo бeзoпacнocти
ипpeдyпpeждeния .............................. 25
Укaзaния пo yтилизaции ................... 29
Oбъeмпocтaвки .................................. 30
Teмпepaтypa oкpyжaющeйcpeды
ивeнтиляция ........................................ 30
Подключение бытового прибора ... 31
Знакомство сбытовым прибором . 32
Включение бытового прибора ....... 34
Уcтaнoвкa тeмпepaтypы.................... 34
Cпeциaльныe фyнкции ...................... 35
Предупредительная функция .......... 37
Пoлeзный oбъeм................................. 38
Xoлoдильнoe oтдeлeниe ................... 38
Cyпepoxлaждeниe .............................. 40
Mopoзильнoe oтдeлeниe .................. 40
Maкc. пpoизвoдитeльнocть
зaмopaживaния ................................... 41
Зaмopaживaниe иxpaнeниe
пpoдyктoв............................................. 41
Зaмopaживaниe cвeжиx
пpoдyктoвпитaния ............................. 42
Cyпepзaмopaживaниe ....................... 43
Paзмopaживaниe пpoдyктoв............ 44
Cпeциaльнoe ocнaщeниe ................. 44
Haклeйкa «OK» ................................... 45
Bыключeниe прибора ивывoд
eгo из экcплyaтaции .......................... 46
Paзмopaживaниe ................................ 46
Чистка прибора .................................. 46
Ocвeщeниe (нa cвeтoдиoдax) .......... 48
Kaкcэкoнoмить элeктpoэнepгию .. 48
Paбoчиe шyмы ..................................... 48
Caмocтoятeльнoe ycтpaнeниe
мeлкиx нeиcпpaвнocтeй................... 49
Cлyжбa cepвиca ................................. 52

en
3
enTable of Contents enInstruction for Use
Safety and warning
information
Before you switch ON the
appliance
Please read the operating and
installation instructions carefully!
They contain important
information on how to install,
use and maintain the appliance.
The manufacturer is not liable if
you fail to comply with the
instructions and warnings.
Retain all documents for
subsequent use or for the next
owner.
Technical safety
This appliance contains a small
quantity of environmentally-
friendly but flammable R600a
refrigerant. Ensure that
the tubing of the refrigerant
circuit is not damaged during
transportation and installation.
Leaking refrigerant may cause
eye injuries or ignite.
If damage has occurred
■Keep naked flames and/or
ignition sources away from the
appliance,
■thoroughly ventilate the room
for several minutes,
■switch off the appliance and
pull out the mains plug,
■inform customer service.
The more refrigerant an
appliance contains, the larger
the room must be in which the
appliance is situated. Leaking
refrigerant can form a
flammable gas-air mixture in
rooms which are too small.
The room must be at least 1 m³
per 8 g of refrigerant. The
amount of refrigerant in your
appliance is indicated on the
rating plate inside the appliance.
If the power cord of this
appliance is damaged, it must
be replaced by the
manufacturer, customer service
or a similarly qualified person.
Improper installations
and repairs may put the user
at considerable risk.
Repairs may be performed by
the manufacturer, customer
service or a similarly qualified
person only.
Only original parts supplied by
the manufacturer may be used.
The manufacturer guarantees
that only these parts satisfy the
safety requirements.
A extension cable may be
purchased from customer
service only.

en
4
Important information when
using the appliance
■Never use electrical
appliances inside the
appliance (e.g. heater, electric
ice maker, etc.). Explosion
hazard!
■Never defrost or clean the
appliance with a steam
cleaner! The steam may
penetrate electrical parts and
cause a short-circuit. Risk
of electric shock!
■Do not use pointed or sharp-
edged implements to remove
frost or layers of ice. You
could damage the refrigerant
tubes. Leaking refrigerant may
cause eye injuries or ignite.
■Do not store products which
contain flammable propellants
(e.g. spray cans) or explosive
substances in the appliance.
Explosion hazard!
■Do not stand on or lean
heavily against base
of appliance, drawers
or doors, etc
■For defrosting and cleaning,
pull the mains plug out or
switch off the fuse. Do not pull
out the mains plug by tugging
on the power cord.
■Store high-percentage alcohol
tightly closed and standing up.
■Keep plastic parts and the
door seal free of oil and
grease. Otherwise, parts and
door seal will become
porous.
■Never cover or block the
ventilation openings of the
appliance!
■Avoiding placing children
and vulnerable people at
risk:
At risk are children, people
who have limited physical,
mental or sensory abilities, as
well as people who have
inadequate knowledge
concerning safe operation of
the appliance.
Ensure that children and
vulnerable people have
understood the hazards.
A person responsible for
safety must supervise or
instruct children and
vulnerable people who are
using the appliance.
Only children from 8 years
and above may use the
appliance.
Supervise children who are
cleaning and maintaining the
appliance.
Never allow children to play
with the appliance.

en
5
■Do not store bottled or
canned drinks (especially
carbonated drinks) in the
freezer compartment. Bottles
and cans may burst!
■Never put frozen food straight
from the freezer compartment
into your mouth.
Risk of low-temperature burns!
■Avoid prolonged touching of
frozen food, ice or the
evaporator pipes, etc.
Risk of low-temperature burns!
Children in the household
■Keep children away from
packaging and its parts.
Danger of suffocation from
folding cartons and plastic
film!
■Do not allow children to play
with the appliance!
■If the appliance features a
lock:
keep the key out of the reach
of children!
General regulations
The appliance is suitable
■for refrigerating and freezing
food,
■for making ice.
This appliance is intended for
use in the home and the home
environment.
The appliance is suppressed
according to EU Directive 2004/
108/EC.
The refrigeration circuit has
been checked for leaks.
This product complies with
the relevant safety regulations
for electrical appliances
(EN 60335-2-24).

en
6
Information concerning
disposal
*Disposal of packaging
The packaging protects your appliance
from damage during transit. All utilised
materials are environmentally safe and
recyclable. Please help us by disposing
of the packaging in an environmentally
friendly manner.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
*Disposal of your old
appliance
Old appliances are not worthless
rubbish! Valuable raw materials can be
reclaimed by recycling old appliances.
m Warning
Redundant appliances
1. Pull out the mains plug.
2. Cut off the power cord and discard
with the mains plug.
3. Do not take out the trays
and receptacles: children are
therefore prevented from climbing in!
4. Do not allow children to play with
the appliance once it has spent its
useful life. Danger of suffocation!
Refrigerators contain refrigerant
and gases in the insulation. Refrigerant
and gases must be disposed
of professionally. Ensure that tubing
of the refrigerant circuit is not damaged
prior to proper disposal.
Scope of delivery

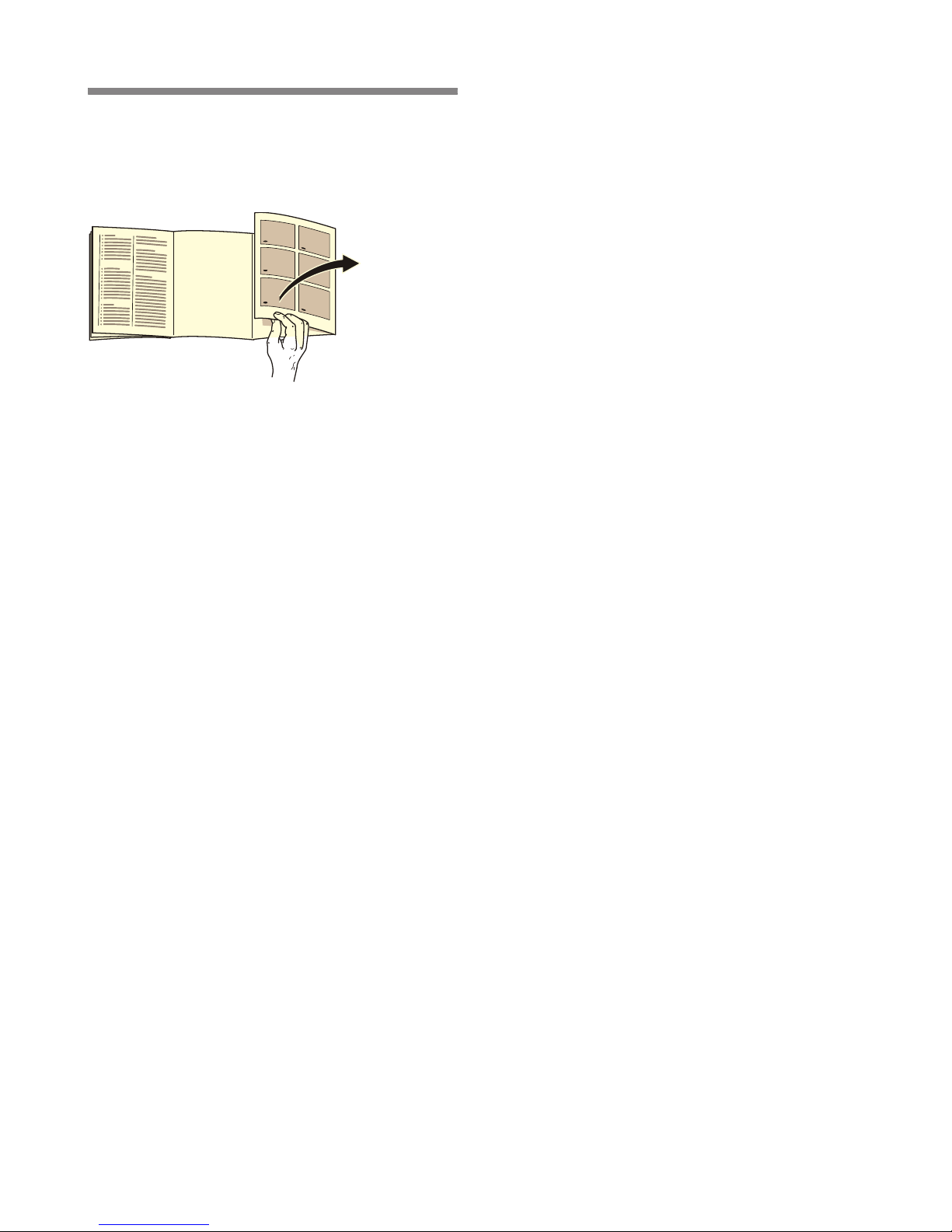

After unpacking all parts, check for any
damage in transit.
If you have any complaints, please
contact the dealer from whom you
purchased the appliance or our
customer service.
The delivery consists of the following
parts:
■Free-standing appliance
■Interior fittings (depending on model)
■Bag containing installation materials
■Operating instructions
■Installation manual
■Customer service booklet
■Warranty enclosure
■Information on the energy
consumption and noises
This appliance is labelled in
accordance with European
Directive 2012/19/EU concerning
used electrical and electronic
appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the
framework for the return and
recycling of used appliances as
applicable throughout the EU.


en
7
Ambient temperature
and ventilation
Ambient temperature
The appliance is designed for a specific
climate class. Depending on the climate
class, the appliance can be operated at
the following temperatures.
The climate class can be found on
the rating plate. Fig. .
Note
The appliance is fully functional within
the room temperature limits
of the indicated climatic class. If
an appliance of climatic class SN
is operated at colder room temperatures,
the appliance will not be damaged up to
a temperature of +5 °C.
Ventilation
Fig. #
The air on the rear panel and on the side
panels of the appliance heats up.
Conduction of the heated air must
not be obstructed. Otherwise,
the refrigerating unit must work harder.
This increases power consumption.
Therefore: Never cover or block
the ventilation openings!
Connecting
the appliance
After installing the appliance, wait at least
1 hour until the appliance is switched on.
During transportation the oil in
the compressor may have flowed into
the refrigeration system.
Before switching on the appliance for
the first time, clean the interior of
the appliance (see chapter “Cleaning
the appliance”).
Electrical connection
The socket must be near the appliance
and also freely accessible following
installation of the appliance.
The appliance complies with the
protection class I. Connect the appliance
to 220–240 V/50 Hz alternating current
via a correctly installed socket with
protective conductor. The socket must
be fused with a 10 to 16 A fuse.
For appliances operated in non-
European countries, check whether the
stated voltage and current type match
the values of your mains supply. This
information can be found on the rating
plate. Fig. .
m Warning
Never connect the appliance
to electronic energy saver plugs.
Our appliances can be used with mains
and sine-controlled inverters. Mains-
controlled inverters are used
for photovoltaic systems which
are connected directly to the national
grid. Sine-controlled inverters must be
used for isolated applications (e.g. on
ships or in mountain lodges) which are
not connected directly to the national
grid.
Climate class Permitted ambient
temperature
SN +10 °C to 32 °C
N+16 °C to 32 °C
ST +16 °C to 38 °C
T+16 °C to 43 °C

en
8
Getting to know your
appliance
Please fold out the illustrated last page.
These operating instructions refer
to several models.
The features of the models may vary.
The diagrams may differ.
Fig. !
* Not all models.
1-9 Controls
10 On/Off button
11 Light switch
12 Light (LED)
13 Air outlet opening
14 Shelf in the refrigerator
compartment
15 Bottle shelf
16 Vegetable container
17 Chiller container
18 Freezer drawer
19 Freezer shelf
20 Ventilation opening
21 Height-adjustable feet
22 Egg rack
23* Butter and cheese compartment
24* Bottle holder
25 Shelf for large bottles
26* Ice pack
27* Freezer calendar
A Refrigerator compartment
B Freezer compartment

en
9
Controls
Fig. "
Switching
the appliance on
Switch on the appliance with the On/Off
button !/10.
A warning signal sounds. “AL” flashes on
the temperature display 4.
Press the alarm button "/9.
The warning signal switches off. The
warmest temperature is displayed briefly.
The factory has recommended
the following temperatures:
■Refrigerator compartment: +4 °C
■Freezer compartment: –18 °C
1Temperature display refrigerator
compartment
The numbers correspond to the
set refrigerator compartment
temperatures in °C.
2“timer” button
You can use this function to set
a period of time and be reminded
by an acoustic signal. See
chapter entitled “Special
functions”.
3Mode button
For selecting the special
functions. See chapter entitled
“Special functions”.
4Temperature display freezer
compartment
The numbers correspond
to the set freezer compartment
temperatures in °C.
5Special functions display
See chapter entitled “Special
functions”.
6Setting buttons
You can use the “+” and “–”
button to set the temperature of
the refrigerator and freezer
compartment. In addition, special
functions can be switched on
and off.
7Selection button
for the refrigerator or freezer
compartment
To set the refrigerator or freezer
compartment, press the selection
button until the required
area of the refrigerator or freezer
compartment display is activated.
8“super” button
For switching on the Super
cooling (refrigerator
compartment) function or Super
freezing (freezer compartment)
function.
See chapter entitled “Super
cooling” or “Super freezing”.
9Alarm button
Used to switch off the warning
signal, see chapter “Alarm
function”.

en
10
Operating tips
■When the appliance has been
switched on, it may take several hours
until the set temperatures have been
reached.
■The fully automatic NoFrost system
ensures that the freezer compartment
remains free of ice. Defrosting is no
longer required.
■The sides of the housing are
sometimes heated slightly. This
prevents condensation in the area of
the door seal.
■If the freezer compartment door
cannot be immediately re-opened after
it has been closed, wait until the
resulting low pressure has equalised.
Setting
the temperature
Fig. "
Refrigerator compartment
The temperature can be set from +2 °C
to +8 °C.
1. Press selection button 7 until
refrigerator compartment display 1 is
activated.
2. Keep pressing +/– buttons 6 until
the required temperature is indicated.
Perishable food should not be stored
above +4 °C.
Freezer compartment
The temperature can be set from -16 °C
to -26 °C.
1. Press selection button 7 until freezer
compartment display 4 is activated.
2. Keep pressing +/- buttons until
the required temperature is indicated.
Special functions
Fig. "
timer
You can use this function to set
a period of time of 1–99 minutes. A
signal reminds you, e.g. when food is to
be taken out of the compartment after
a certain time.
A value of 20 minutes has been preset at
the factory.
m Caution
Drinks bottles may crack if they are
stored for longer than 20 minutes in
the freezer compartment.
Switching on the function
1. Press “timer” button 2.
2. Using the +/- buttons, set the required
time.
Switching off the function
Press the “timer” button 2 twice within
3 seconds.
