WFMC WASHER TRAINING MANUAL

1st Edition/Revision 6 (2/2/04)
WFMC Washer Training Program
WFMC Washer Training Program
•
•Features and Benefits Features and Benefits
•
•Product Description Product Description
•
•Warranty Warranty
•
•Installation Installation
•
•Operation Operation
•
•Disassembly Disassembly
•
•Reassembly Reassembly
•
•Wiring Diagram Wiring Diagram
•
•Service Tips Service Tips
2

1st Edition/Revision 6 (2/2/04)
Features and Benefits
Features and Benefits
•
•True American sized drum & tub True American sized drum & tub
•
•Full sized opening Full sized opening (easier loading and unloading)
(easier loading and unloading)
•
•Tilted tub to facilitate door seal draining Tilted tub to facilitate door seal draining
•
•Very energy efficient Very energy efficient - -Energy Star rated Energy Star rated
•
•Stainless steel drum Stainless steel drum - -won’t rust & is gentle to won’t rust & is gentle to
clothes
clothes
•
•Uses little water Uses little water
•
•3 3- -Tier water fill for fast & equal water fill Tier water fill for fast & equal water fill
•
•180° door opening 180° door opening
•
•Up to 5 rinses Up to 5 rinses
•
•Suds sensing Suds sensing - -rinses out suds leaving no soap film rinses out suds leaving no soap film
•
•Unbalanced load sensor Unbalanced load sensor - -adjusts spin to balance adjusts spin to balance
load
load
•
•UL listed (U.S. & Canada) UL listed (U.S. & Canada)
3

1st Edition/Revision 6 (2/2/04)
Extra Features and Benefits
Extra Features and Benefits --
-- WFMC6400 WFMC6400
•
•Continuous cycle notification Continuous cycle notification - -digital display digital display
•
•Electronic control Electronic control
•
•Accurate water level control independent of water Accurate water level control independent of water
pressure
pressure
•
•Digital clock (am/pm format) Digital clock (am/pm format)
•
•Real time cycle finish Real time cycle finish (displays actual time of day cycle
(displays actual time of day cycle
stops)
stops)
•
•Real time delay Real time delay (enter actual time of day for wash to end)
(enter actual time of day for wash to end)
•
•Reduced ironing Reduced ironing
•
•Interactive language display Interactive language display - -choose desired language choose desired language
(English, French, Spanish)
(English, French, Spanish)
•
•Continuous suds sensing Continuous suds sensing
•
•Child lockout Child lockout
4

1st Edition/Revision 6 (2/2/04)
Energy
Star rated
Electronic
controls Adjustable
spin speeds
Safety
door lock
Accessible drain trap
(for servicers only)
•
•Electronic controls Electronic controls
•
•Large capacity Large capacity & door opening
& door opening
•
•Detergent & softener dispenser Detergent & softener dispenser
•
•Regular/Cotton Regular/Cotton, , Permanent Press Permanent Press, ,
Delicates
Delicates & & Hand Wash Hand Wash settings settings
•
•180º door opening 180º door opening
•
•Stainless steel inner drum Stainless steel inner drum
•
•Durable Durable Polinox Polinox outer drum outer drum
•
•Power Wash ( Power Wash (WFMC32
WFMC32)
), , Bleach Bleach, ,
Rinse Plus
Rinse Plus & & Reduced Ironing Reduced Ironing
(
(WFMC64
WFMC64)
)buttons buttons
•
•Adjustable spin speeds Adjustable spin speeds
Product Description
Product Description
5
•
•Guaranteed temperatures Guaranteed temperatures
•
•UL listed (U.S. & Canada) UL listed (U.S. & Canada)
•
•Drain hose & cord holder Drain hose & cord holder

1st Edition/Revision 6 (2/2/04)
Bosch Washers Limited Lifetime Warranty
Statement of Limited Warranty
The warranties provided by BSH Home Appliances ("Bosch") in this Statement of
Warranties apply only to Bosch clothes washers sold to the first using purchaser by
Bosch or its authorized dealers, retailers or service centers in the United States or
Canada. The Warranties provided herein are not transferable, and take place from date
of installation or ten business days after delivery date, whichever comes first.
1 Year Full Limited Warranty
Bosch will repair or replace, free of charge, any component part that proves defective
under conditions of normal home use, labor and shipping costs included. Warranty
repair service must be performed by an authorized Bosch Service Center.
2 Year Limited Warranty
Bosch will provide replacement parts, free of charge, for any component part that
proves defective under conditions of normal home use, shipping costs included, labor
charges excluded.
For location of nearest repair depot call 1
For location of nearest repair depot call 1- -800 800- -944 944- -2904 from 5:00 AM 2904 from 5:00 AM - -5:00 PM M 5:00 PM M- -F F
(Pacific time)
(Pacific time)
Warranty
Warranty
6

1st Edition/Revision 6 (2/2/04)
Serial #
label
Warranty
Warranty -- -- Serial # Label
Serial # Label
The serial # label, located on the front of the washer next to the
door hinge, shows necessary warranty information.
7
Factory serial # - Can convert
factory serial # to FD # for
warranty use. 1st 2 digits show
factory # (85 = New Bern), 3rd digit
shows year (1 = 2003), 4th & 5th
digits show month built (08 =
August). So, serial # starting with
“85308…400126” = washer built
@ New Bern with FD 8308
000126.
•Model # - “WFMC6400UC/01”.
•Serial # - “FD 8308”. To find when the product type
was built, add 20 to the 1st two digits to get the year
(83 + 20 = 103 product type was built in 2003). The
last two digits show the month (08 = August).

1st Edition/Revision 6 (2/2/04)

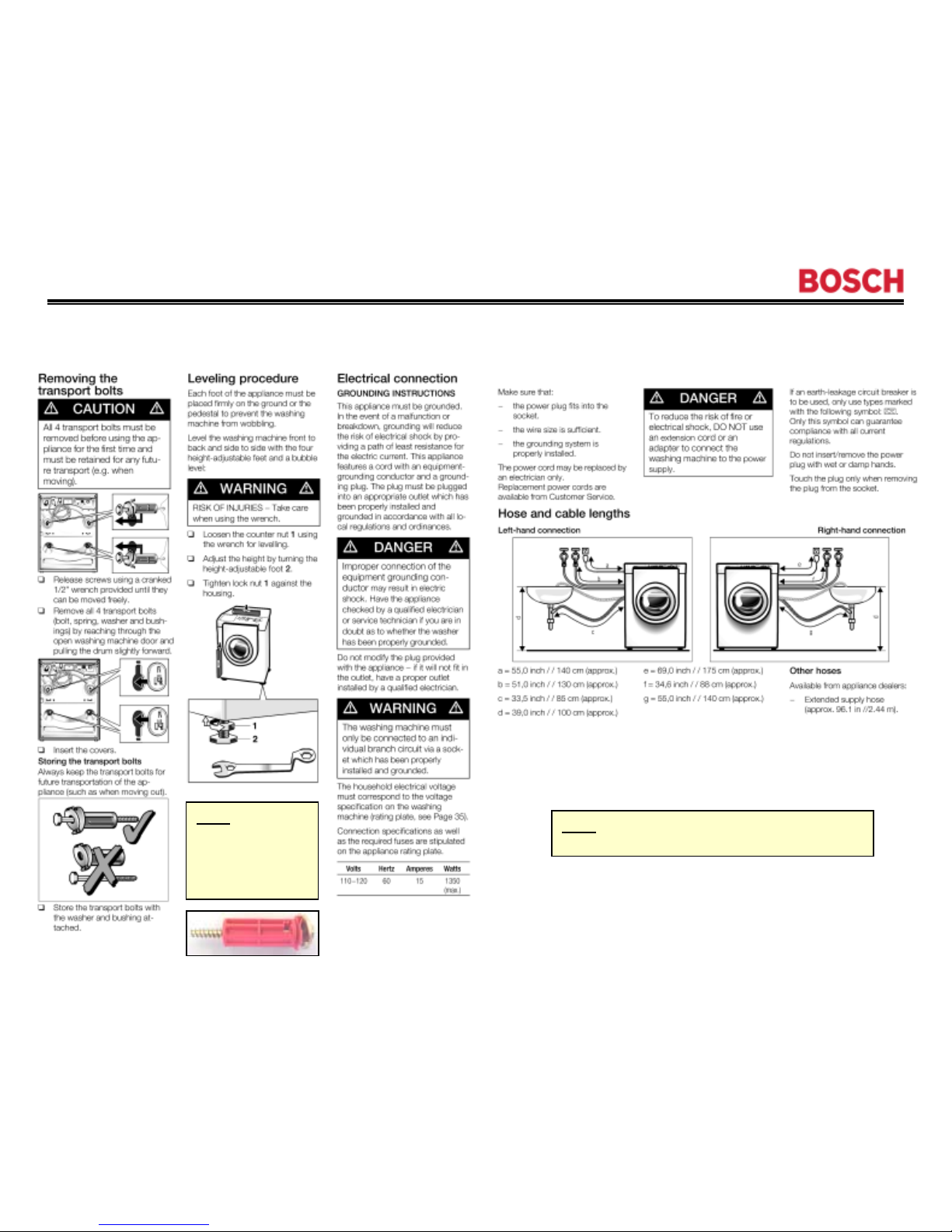

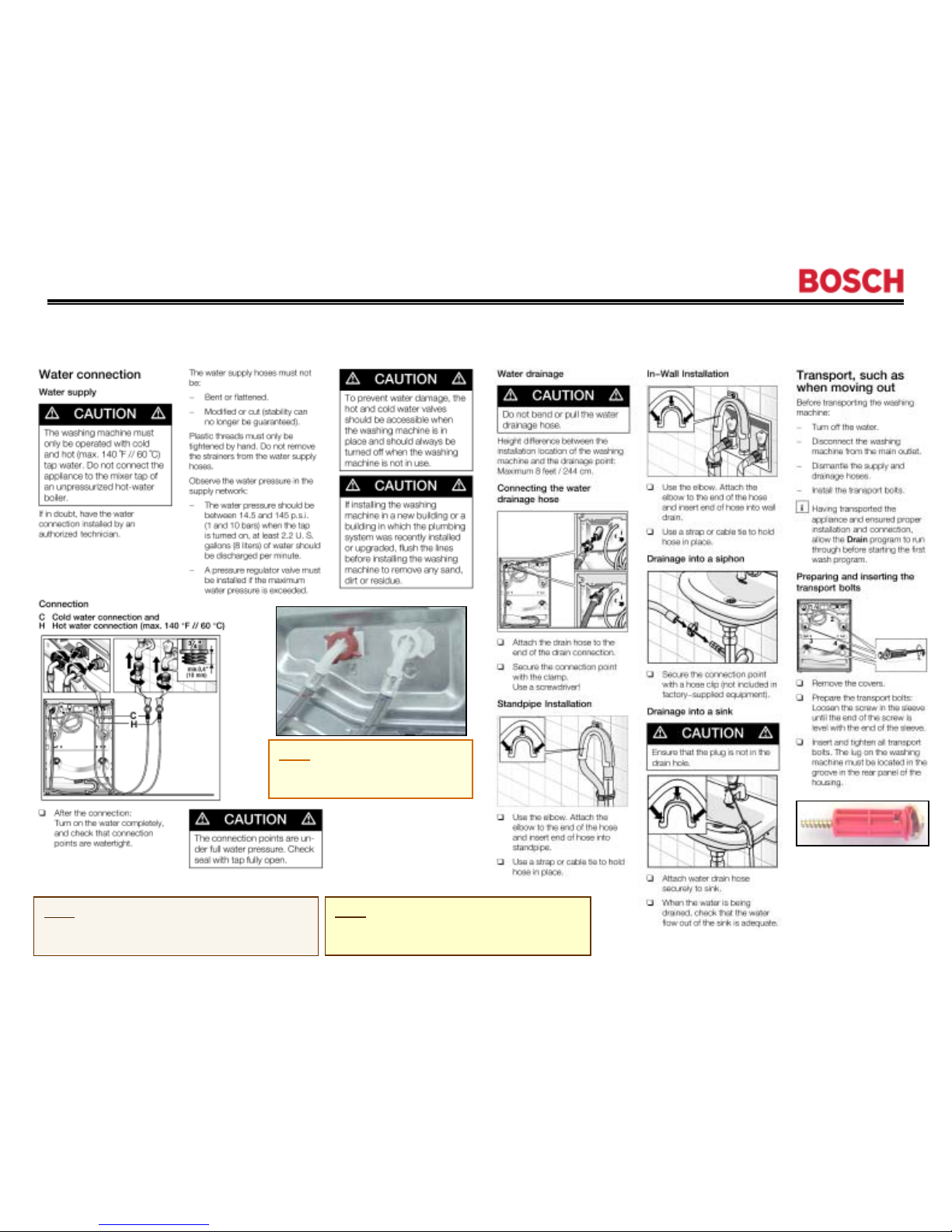

Installation
Installation -- -- Reprint of Installation Instructions (1)
Reprint of Installation Instructions (1)
8
NOTE:Be sure to follow all
national & local codes.

1st Edition/Revision 6 (2/2/04)
9
Installation
Installation -- -- Reprint of Installation Instructions (2)
Reprint of Installation Instructions (2)
HINT:To quickly
remove shipping
(transport) bolts,
use a 13mm
socket wrench.
HINT:To avoid damaging washer, don’t move
it while the feet (leveling legs) are extended.

1st Edition/Revision 6 (2/2/04)
10
HINT:Be sure to remove the transport
(shipping) bolts & keep them near the
washer (for future shipment).
Installation
Installation -- -- Reprint of Installation Instructions (3)
Reprint of Installation Instructions (3)
HINT:Cold & hot water
connections are clearly marked
on the rear of the washers.
HINT:To eliminate possibility of leaking,
don’t overtighten fittings. Teflon tape
can also be used on all threads.

1st Edition/Revision 6 (2/2/04)
WFMC3200UC
WFMC6400UC

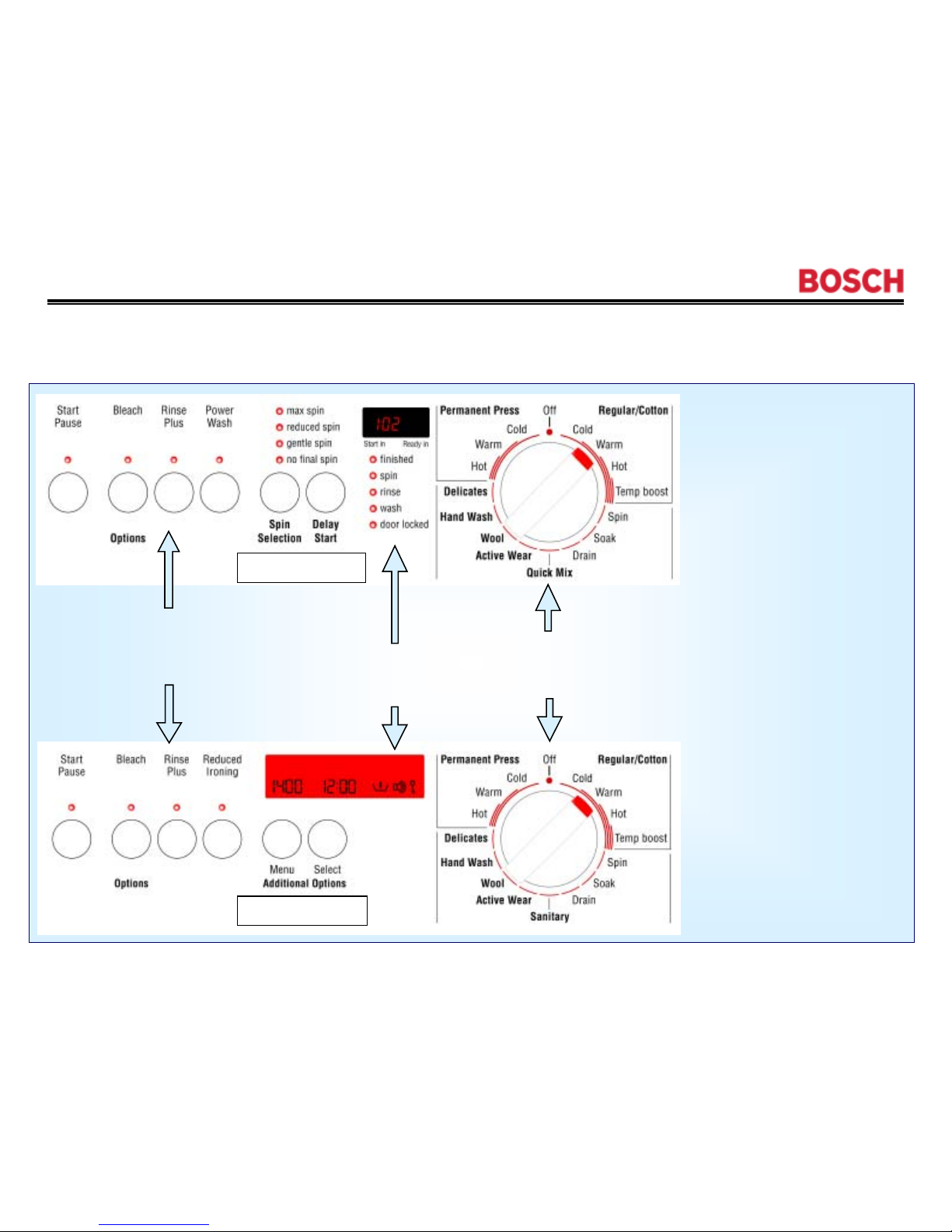

Operation
Operation -- -- Fascia Panels
Fascia Panels
11

1st Edition/Revision 6 (2/2/04)
Both have Regular/
Cotton, Permanent
Press, Delicates, Hand
Wash, Temperature
Boost, Rinse Plus &
Bleach settings.
WFMC6400UC
WFMC3200UC
Cycle Selector
Knob
Digital
Display
Special Wash
Buttons
Operation
Operation -- -- Controls
Controls
12

1st Edition/Revision 6 (2/2/04)
Operation
Operation -- -- Sensors (1)
Sensors (1)
13
1A. Load Sensor (WFMC3200UC)
At a predefined points during the initial fill, the washer determines if it needs more water using a pressure switch. This is due
to differences in the absorption of the laundry and the size of the loads.
1B. Dynamic Load Sensor (WFMC6400UC)
During the entire fill the washer continually adjusts for the size of the load and determines if more water is needed using an
analog pressure switch and a flow meter.
2. Digital Temperature Sensor (WFMC3200UC & WFMC6400UC)
The thermostat monitors the temperature of the water and controls the length of time the heating element is on, ensuring the
proper temperature for the chosen cycle.
3A. Suds Sensor (WFMC3200UC)
During the beginning of the1st rinse/spin phase, the washer determines if there are excessive suds and automatically adds 2
rinses (if necessary). This is accomplished via the pressure switch and the motor synchronization system.
3B. Continuous Suds Sensor (WFMC6400UC)
Checking the pumping out phase of the main wash, the beginning of the 1st rinse/spin phase and the actual spin speed vs.
the programmed spin speed, the washer determines if there are excessive suds and automatically adds up to 2 rinses (if
necessary). This is accomplished via the pressure switch, analog pressure switch and the motor synchronization system.
4. Unbalanced Load Sensor (WFMC3200UC & WFMC6400UC)
During the final spin cycle the washer monitors the positioning and balance of the load. If the load unbalanced, the washer
stops and adjusts the load up to 15 times and reduces the spin speed to finish the cycle. This is accomplished via the motor
synchronization system.

1st Edition/Revision 6 (2/2/04)
Mechanical Pressure Switch -(WFMC3200UC & WFMC6400 UC) measures the water
level after the first fill. If the water level is high (like for smaller loads), the pressure increases and the
pressure switch does not provide more water.
Analog Pressure Switch -(WFMC6400UC)
• Precise measuring of actual water level
• Accurate load detection
• Control of the pump - noise reduction
• Time reduction - no pumping when empty
BENEFITS: Continuous adjustment of wash times
Water and energy consumed varies according to load size
1A/1B. Load & Dynamic Load Sensors
Mechanical
Pressure
Switch
Analog
Pressure
Switch
Operation
Operation -- -- Sensors (2)
Sensors (2)
14

1st Edition/Revision 6 (2/2/04)
15
Operation
Operation -- -- Sensors (3)
Sensors (3)
1A/1B. Flow Meter
Exact monitoring of water inflow.
Ensures exact control of water inlet valves so that there is always the right amount of water for wash and
rinse cycles.
Together with the pressure switch, there is a continuous adjustment of wash time, water and energy in
relation to the load size.
The flow meter works independently of water pressure.
BENEFITS: Minimizes water consumption
Exact Load Detection
Superior Cleaning Performance
•An internal water clock monitors water inflow via soak compartment.
•Ensures exact control of water inlet valves - always right amount of water.
•Independent from water pressure.

1st Edition/Revision 6 (2/2/04)
Operation
Operation -- -- Sensors (4)
Sensors (4)
16
2. Digital Temperature Sensor
Both models are equipped with an Electric Heater and Temperature Sensor (NTC)
to deliver guaranteed wash temperatures.
NOTE:Compare with competition
washers which only have heaters in top
of the line models.
Heater
Thermostat (NTC)

1st Edition/Revision 6 (2/2/04)
NOTE:Suds build-up usually occur only when way too
much detergent is used with lightly soiled loads.
3A/3B. Suds & Continuous Suds Sensors
Detection during draining out after main wash
immediate additional rinse & cancelling of 1st rinse spin
Detection during 1st rinse spin
immediate interuption of spin
insertion of one or two additional rinses
reduced agition during additional anti foam rinse
Detection during any other rinse spin
immediate interuption of spin
reduced agitiation in following rinse cycle
All subsequent rinse spin cycles are always rechecked for suds
WFMC6400
WFMC6400
WFMC3200
WFMC6400
Operation
Operation -- -- Sensors (5)
Sensors (5)
17

1st Edition/Revision 6 (2/2/04)
4. Unbalanced Load Sensor
•Accurate measuring of unbalance by deviation of spin speed and slow down
time of drum
•Infinite adapting of spin speeds
•Compensates reducing of spin speeds by prolonging spinning times
•Will attempt up to 15 times to redistribute a load
Advantages:
•Reduction of noise
•Better stability of machine
•Good spinning results with big unbalances
2-step detection
Operation
Operation -- -- Sensors (6)
Sensors (6)
18

1st Edition/Revision 6 (2/2/04)
4. Unbalanced Load Sensor
Spin speed [rpm]
0
200
400
600
800
1000
1200
max. 15 trials
III
IV
II
I
load distribution unbalance Spin speed (rpm) spinning profile
good small 1200 (max.) I
uneven medium 1000 (reduced) II
bad big 800 (low) III
none dangerous no spinning IV
After 4 attempts
After 7 attempts
After 14 attempts
2-step detection
Operation
Operation -- -- Sensors (7)
Sensors (7)
19

1st Edition/Revision 6 (2/2/04)
Operation
Operation -- -- Cleaning Drain Pump Trap
Cleaning Drain Pump Trap
20
Unlike WFK, WFL & WFR washers,
drain pumps are maintenance-free.
So, larger objects such as coins
and paper clips are no longer
collected in the drain pump trap.
The drain pump trap is only meant
to be cleared by servicers.
NOTE:There’s no provision to drain
water manually from drain pumps like
earlier models.
HINT: To remove the drain pump
access cover, insert a pointed object
(or tool) into the hole, push in to
release the latch and rotate the cover
clockwise.
Current production pumps are beige
color – earlier pumps were black.
