Bosch Programme Table User manual

1 2 3 4 5 6
Programme has ended when...
... ÷Start flashes and the End indicator light comes on.
Interrupting the programme
Programmes at high temper atures:
– Cool washing: Select 2Rin se/Spin.
– Sele ct ÷Start.
Programmes at lower tempera tures:
–2Rinse/cSpin (deactivate =Aqua Plu s button) or
select >Drain.
– Sele ct ÷Start.
Changing the programme, if ...
... you have selected the wrong progra mme by mistake:
– Reselect the programme.
– Sele ct ÷Start. The new programme s tarts from the
beginning.
Correct installation according to the
separate Installation instructions.
Check the machine
– Never use a damaged machine.
– Inform the after-sa les services.
Connect the mains plug
Make sure your hands are dry .
Take hold of the plug only.
Turn the tap on
Compartment II: detergent for the main wash, water softener,
bleach, stain remover
Sorting and loading laundry
Follow the manufacturer's c are information.
According to the informatio n on the care labels.
According to type, colour, soiling and temperature.
Do not exceed the max imum load apage 7.
Observe the important information apage 6.
Insert large and small items of laund ry.
Close the washing machine door. Ta ke care not to trap items of laundr y
between the washing machine doo r and the rubber seal.
Add detergent and care products
Measure accordingly:
Amount of laundry, soiling, water har dness (ask your water supply
company) and manufacture r's instructions.
Pour liquid detergent into the appropriate dispenser and place in the drum.
Your washing machine
Congratulations äyou have o pted for a modern, high- quality
domestic appliance manufacture d by Bosch. This washing machine
is distinguished by its ec onomical water and energy c onsumption.
Each machine that leav es our factory has been inspected thorough ly
to ensure that it functio ns properly and is in p erfect condition.
Further information: www.bosch-hom e.com
You can find the contact details for your nearest after-sale s service
here or in the after-sales service di rectory (depending on model).
GB 0844 8928979
Calls from a BT landline will be charged at up t o 3 pence per
minute. A call set-up fee of up to 6 pence may apply.
IE 01450 2655
Environmentally friendly waste dispos al All packaging must be disposed of in accordance with
environmental guidelines.
This appliance is certified in accordance with European Directive
2002/96/EEC on waste electrical and electronic equipmen t
(WEEE).
This directive provides the framework for the EU-wide collection and
reuse of used appliances.
Intended use
Contents Page
ʋIntended use ................................................................................ .......1
ʋProgrammes ...................................................................................... .1
ʋSetting and adjusting the programme ................... ........................3
ʋWashing ........................................................................................... 3/4
ʋAfter washing ...................................................................................... 4
ʋIndividual settings .................................... ......................................5/6
ʋImportant information ........................ ............................................... 6
ʋOverview of programmes ........................................ ........................7
ʋSafety instructions ....................... ...................................................... 8
ʋConsumption values . ........................................................................ 8
ʋCare ................................................................................................. ....9
ʋInformation on the indicator lights .................................................. 9
ʋMaintenance ............................................. ....................................... 10
ʋWhat to do if.... ................................................................................. 11
Protection of the environment/Conservation tips
– Always fill the washing machine with a maximum amount of
laundry for the relevant pr ogramme.
– Wash normally s oiled laundry without a prewas h.
– Instead of LCottons 90 °C, choose the programme
LCottons 60 °C with the additional func tion ćEcoPerfect.
Comparable cleaning resu lt with significantly lower e nergy
consumption.
– Measure the d etergent according to the manufacturer's
instructions and water hardness .
– If the laundry is the n dried in the tumble dryer, select the spin
speed according to t he instructions of the dryer manufacturer.
Preparation Before washing for the first time
Wash once without any laundry ap age 9.
Setting and adjusting a programme
Spin
speed*
Programme selectorStart/
Pause
Programme selector for
switching the machine on
and off and for selecting
the programme. Can be
turned in either direction.
Programmes
Detailed overview of programmes apa ge 7.
The spin speed can be selected i ndividually, irrespective of
the selected programme and p rogramme progress.
LCottons Hard-wearing fabrics
+7Prewash Hard-wearing fabrics, prewash a t
30 °C
/Mixed Load Different types of laundry
@SuperQuick 15’ Short programme
2Rinse/Spin Laundry washed by hand,
=Aqua Plus button activated ; if only
using the spin cycle, deactiv ate the
button
>Drain Drain rinsing water for Rinse Hold
(without final spin)
:/ Wool Hand/machine-washable wool
cDelicate/Silk Delicate washable f abrics
IEasy-Care Easy-care fabrics
Additional functions and sp in
speeds aIndividual settings,
page 5.
Select Start
Washing
1
2
Washing
Detergent drawer with
compartments I,II,~
Washing machine
door
Compartment ~: fabric softener, starch
Compartment I: detergent for prewash
ʋFor domestic use only
ʋFor washing machine-wash able fabrics and hand-wash-
able wool in detergent solution
ʋTo be operated with cold drinking water and commer-
cially available detergents and ca re products which are
suitable for use in washing m achines
.
– Do not leave children un attended near the
washing machine
– T he washing machine is not to be used by
children or persons n ot familiar with the
operating instructions
– Ke ep pets away from th e washing machine
Read these instructions and th e separate
installation instructions before op erating the
washing machine.
Dilute viscous fabric softener and fabric co nditioner with water.
This prevents blockages.
Individual settings
ʑSpin speed / without final spin amodel-dependent
Before and while the selected programme is running, the spin speed or Rinse Hold (without
final rinse, laundry soaks in th e last rinsing water) can be set. The effects depend on the
programme progress.
The maximum selectable spin s peed depends on the model a nd on which programme is
currently selected.
ʑAdditional functions aand overview of programmes, see page 7
ĈSpeedPerfect For washing in a shorter time with a washing outcome compa rable to
that of the standard p rogramme. Maximum load aO verview of
programmes, page 7.
ćEcoPerfect For saving energy with a washing performance comparable to that of
the standard programme.
SReduced Ironing Special spin sequence with subs equent fluffing. More gentle final spin
- residual moisture in th e laundry slightly increased.
=Aqua Plus Increased water level and addi tional rinse cycle, extended washing
time. For areas with very soft wa ter or for further enhancing the spin
result.
ʑStart
For starting or interrupting the programme.
ʑSignal
2. Setting the
volume for ...
1. Activate the
setting mode for
signal volume
Set to •1 step Pr ess and
hold +Release
Button signals Information signals
Set to •
Setting the
volume**
Setting the
volume**
1 step
direct
** you may n eed to select the function several times.
1200
1000
800
600
Rinse
Hold
1 step
Visually
impaired mode*
ON-OFF
Optional:
ON-OFF Set to •
*Short signal - function on.
Lon g signal - function o ff.
1 step
1200
1000
800
600
Rinse
Hold
1200
1000
800
600
Rinse
Hold
1200
1000
800
600
Rinse
Hold
Important information
Protecting the laundr y and the machine
– When dete rmining the dosage of all washing powders, additives and c leaning agents, you
must follow the manufacturer's instructions.
– Empty pockets.
– Look out for metal ite ms (paperclips, etc.).
– Wash delica tes in a laundry bag (tig hts, curtains, underwired br as).
– Fasten zips, do up any buttons.
– Brush sand o ut of pockets and collars.
– Remove curtain fi ttings or place in the laundry bag.
Laundry with varying degrees of soiling
Wash new items of c lothing separately.
light Do not prewash. If required, choose t he additional function
ĈSpeedPerfect.
Pretreat any stains as nec essary.
intense Do not load as much laundry.
Choose a programme with prewash.
Soaking Load laundry of the same colour
Pour soaking agent/deterge nt into compartment II in accordance w ith the manufacturer's
instructions. Turn the p rogramme selector to LCottons 30 °C a nd select ÷Start. After approx.
10 minutes, press ÷Start, to pause the programme. Once the required soaking time has
elapsed, press ÷Start, again to c ontinue the programme, or select a diffe rent programme.
Starching Laundry mu st not be treated with fabric softener
Starching is possible in all wash programmes if liquid starch is used. Pour starch into the
fabric softener compartmen t in accordance with the ma nufacturer's instructions ~(rinse first
if necessary).
Dyeing/bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel.
Always follow the dye ma nufacturer's instructions. Do not u se the washing machine for
bleaching clothes.
All buttons are sensitive and n eed
only to be touched lightl y.
If you press and hold the spin
speed button, the appliance
automatically cycles through th e
setting options.
Additional
functions
3
Drum
Control panel
Service flap
Status
indicator
Removing the washing
Open the washing machine door and remove the washing.
If Rinse Hold (withou t final spin) is active: Turn the
programme selector to >Drain or select the spin speed.
Select Start.
– Remove any f oreign objects -
risk of rusting.
– Leave the washing machine door and detergent
drawer open so that any residu al water can
evaporate.
Turning the tap off
Not required for Aqua-Stop models arefer t o installation
instructions
Switching off
Turn the programme selector to Off.
(*model-dependent)

7
Overview of programmes arefer to the table of consu mption values on page 8 and notes on page 6.
Programmes °C max. Type of laundry Additional functions; information
LCottons 30, 40, 60, 90 °C 6 kg/
4 kg*
Hard-wearing fabrics, heat-resista nt fabrics made of cotton or linen
Ĉ÷Speed Perfect*, ćEco Perfect, SReduced Ironing,
=Aqua Plus
+7Prewash 40 °C IEasy-Care 30, 40, 60 °C
3 kg
Easy-care fabrics made of cotton , linen, synthetic fibres or blended fabrics
Ĉ÷Speed Perfect, ćEco Perfect, SReduced Ironing , =Aqua Plus
/Mixed Load 40 °C Fabrics made of cotton or easy- care fabrics
Ĉ÷Speed Perfect, ćEco Perfect, SReduced Ironing , =Aqua Plus; different types of laundry can be wa shed together
Delicate/Silk 30 °C
2 kg
For delicate, washable fabrics, e.g. made o fsil k,s atin, synthetic fibres or blended fabrics (e.g. curtains)
Ĉ÷Speed Perfect, ćEco Perfect, SReduced Ironing , =Aqua Plus; No spin between rinse cy cles
:/ Wool cold, 30 °C Handäor machine-washable fabrics ma de of wool or
containing wool
Particularly gentle wash pr ogramme to prevent shrinkage of laundry. Longer programme brea ks (fabrics rest in the detergent solution)
@SuperQuick 15’ 30 °C Easy-care fabrics made of cotton , linen, synthetic
fibres or blended fabrics
Short programme, approx. 15 minut es, suitable for lightly soiled laundry
Additional programmes 2Rinse/Spin, >Drain
*Reduced load for additional Ĉ÷SpeedPerfect function
As a short programme,/Mixed Load 4 0 °C,with a maximum spin speed, is ideal.
Programmes without prewash - add detergent to compartmen t II, programmes with prewash - distribute the detergent between compartments Iand II.
9209 / 9000777144 *777144* WAE24166UK ...
Robert Bosch Hausgeräte Gm bH
Carl-Wery-Str. 34
81739 München / Deutschland
8
Safety instructions
– Read the instr uction manual and installation instructions and all other inform ation enclosed
with the washing machin e and act accordingly.
– Retain the documents for subsequent use.
Risk of electric shock – Never pull the cable to disconnect the mains plug.
– Never insert/disconnect the ma ins plug with damp hands.
Danger to life For worn-out appliances:
– Disconnect the m ains plug.
– Sever the m ains cable and discard along with the plug.
– Destroy the lock on the washing m achine door. This w ill prevent
children from locking themsel ves in and risking their lives.
Danger of suffocation – Keep packaging, film and packaging parts out of the reach of
children.
Risk of poisoning – Keep detergents and care products ou t of the reach of childr en.
Risk of explosion – Items of laundry pretreated with cleaning agents containing
solvents, e.g. stain remover/cleaning s olvent may cause an
explosion after being loaded into the washing m achine.
Rinse items of laundry th oroughly by hand beforeha nd.
Risk of injury – The wa shing machine door can become v ery hot.
– Be careful when dra ining hot detergent solution.
– Do no t climb onto the washing machine.
– Do not lean on the open washing machine door.
– Do no t reach into the d rum if it is s till rotating.
– B e careful when opening the deterge nt drawer while the machine
is in operation.
Consumption values dep ending on model
Programme Load Electricity*** Water*** Programme
duration***
LCottons 30 °C* 6 kg 0,51 kWh 55 l 02:22 h
LCottons 40 °C* 6 kg 0,63 kWh 55 l 02:22 h
LCottons60 °C* 6 kg 1,26 kWh 55l 02:31 h
LCottons 90 °C 6 kg 1,98 kWh 59 l 02:35 h
Easy-Care 40 °C* 3 kg 0,55 kWh 55 l 01:37 h
/Mixed Load 40 °C 3 kg 0,48 kWh 32 l 01:03 h
cDelicate/Silk 30 °C 2 kg 0,21 kWh 31 l 00: 41 h
:ü/Wool 30 °C 2 kg 0,19 kWh 3 9 l 00:40 h
* Programme setting for testing in accordance with valid standard EN60456.
Note on comparative tests: For testing the test programmes, wash the specified load using the maximum spin speed.
Programme Additional function Load Annual energy
consumption
Annual water
consumption
LCottons40/60 °C ćEcoPerfect** 6/3kg 196 kWh 1 0120 l
** Pro grammes etting for testing and energy labelling in accordance with EU directive 2010/30/EU with cold wa ter (15ºC) .
*** The values deviate from the indicated values d epending on water pressure, hardness, and inlet temperature, a mbient tem-
perature, type, amount and soiling o f the laundry, detergent used, fluctuations in the powe r supply and selected additional
functions.
9
Care
Before washing for the first time
Do not load any laundry i nto the machine. Turn on th e tap.
Add the following to compar tment II:
– approx. 1 litr e water
– detergent ( dosage according to the m anufacturer's instructions for light soiling and the
appropriate degree of water hardnes s)
Set the programme selector to IEasy-Care 60 °C an d select ÷Start.At the end of the
programme, turn the program me selector to Off.
Machine housing, control panel
– Wipe with a soft, damp cloth.
– Do not use any abrasive cloths, scoure rs or cleaning agents (stainles s steel cleaners).
– Remove detergent and cleaning agent residue immedia tely.
– Do not clean with a jet of water.
Cleaning the detergent drawer and hou sing...
... if it contains detergent or fabric softener res idues.
1. Pull the drawer out, pre ss down the insert and fully remov e the drawer
from the housing.
2. To remove the insert: pre ss the insert upwards from below with your
finger.
3. Clean the detergent dispens er tray and insert with water and a brush and
dry it. Also remove any detergent or fabric softener re sidues in the
housing.
4. Attach the insert and engage (connect the cylinder to the guide pin).
5. Push in the deterge nt drawer.
Leave the detergent drawer op en so that any residual water can
evaporate.
Washing drum and rubber seal
Wipe the inside of the rubber seal dry with a cloth. Leave the washing machine door open so
that the drum can dry out. Rust stains - use chlorine-fr ee cleaning agent, not steel wool.
Descaling Ensure t here is no laundry in the machine
Descale the appliance according to th e descaler manufacturer's instructions. This shoul d not
be necessary if the correct dosag e of detergent is used.
Information on the indicator lights model-dependent
A signal sounds and indicator lights for the spin sp eed flash:
¤
¤
¤
¤
¤
Close the washing
machine door properly;
laundry may be caught.
¤
¤
¤
¤
¤
Detergent solution pum p
blocked; Clean the
detergent solution pump
apage 10.
Drainage hose/waste pipe
blocked; Clean the drain age
hose at the siphon
apage 10.
¤
¤
¤
¤
¤
Open the tap compl etely,
supply hose kinked or
trapped;
Clean the filter
apage 10,
Water pressure too low.
¤
¤
¤
¤
¤
Motor fault. Call the after-
sales service. ¤
¤
¤
¤
¤
Water in the base tub,
appliance leaking. Call the
after-sales service.
–Risk of electric shock .Disconnect the mains plug.
–Risk of explosion. No solvents .
10
Maintenance
Detergent solution pump
Turn the programme selector to Off a nd disconnect the mains plug.
1. Open and remove the servi ce flap.
2. For models with a draina ge hose: Remove the drainage hose from the retainer and pull it
from the housing. Remove the c ontainer.
Remove the sealing cap, allow the detergent solution to flow o ut.
Replace the sealing cap and p lace the drainage hose in the retainer.
2* For models without a drainage hose: Caref ully unscrew the pump cover until the
detergent solution begins to flow out. When the service flap is half full, close the pump cover
and empty the service flap. Repea t the above steps until all the detergent solution has
completely drained out.
3. Carefully unscrew the pump cover (residual water).
4. Clean the interior, pump cover threa d and pump housing (the impeller in the detergent
solution pump must r otate).
5. Replace the pump co vera nd screw it tightly in place.
6. Place the service flap back on and close.
To prevent unused detergent from flowi ng straight into the drain during the next wash: pour 1 litre of water into
compartment II and start the >Drain programme.
Drainage hose at the siphon
Turn the programme selector to Off a nd disconnect the mains plug.
1. Loosen the hose clam p, carefully remove the drainage hose (residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainage h ose and secure the connection with the hose clamp.
Filter in the water supply
Risk of electric shock.
Do not immerse the HydroSafe safety device in water (it contains an elec tric valve).
Reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any p rogramme (except for 2Rinse/Spin // >Drain).
3. Select ÷Start. Let the programme run fo r approximately 40 seconds.
4. Turn the programm e selector to Off. Disconnect the mains p lug.
Clean the filter:
1. Depending on model:
Disconnect the hose from the tap.
Clean the filter using a small b rush.
and/or for Standard and Aqua-Secur e models:
Remove the hose on the rear of the appliance.
Remove the filter with pliers and clean.
2. Connect the hose an d check for leaks.
–Risk of scalding.
Allow the detergent s olution to cool down.
– Turn off the tap.
11
What to do if ...
ʑWater is leaking out. – Attach/replace the drain age hose correctly.
– Tighten the screw con nection of the supply hose.
ʑNo water supply.
Detergent not dispensed.
–÷Start not selected?
– Tap not tu rned on?
– Filter blocked? Clean the filter apage 10.
– Supply hose kinked or trapped?
ʑWashing machine door
cannot be opened.
– Safety function active . Wait approx. 2 minutes.
– Is Rinse Hold (without final spin) selected? apage 3, 4.
ʑProgramme does not
start.
–÷Start selected?
– Washing machine door clo sed?
ʑDetergent solution is not
drained.
– Is Rinse Hold (without final spin) selected? apage 3, 4.
– Clean the detergent solution pump apage 10.
– Clean the waste pipe an d/or drainage hose.
ʑWater not visible in the
drum.
– Not a fault - w ater below the visible area.
ʑUnsatisfactory spin
result.
Laundry wet/too damp.
– Not a fault - the unbalanced-loa d detection system has cancelled
the spin cycle because of uneven distribution of the laundry.
Distribute small and large items of laundry evenly inside the
drum.
–SReduced Ironing selected? apage 5 .
– Selected speed too low? apage 5.
ʑSpin cycle performed
several times.
– Not a fault - unbalanced load detectio n system adjusts the
imbalance.
ʑResidual water in the
compartment for care
products.
– Not a fault - the action of th e care product is not affected.
– Clean the inser t if necessary apage 9.
ʑOdour formation in the
washing machine.
– Run programme LCottons 90 °C without laundry . Use
standard detergent.
ʑWash display lamp
flashes. Foam may be
coming out of the
detergent drawer.
– Too much detergent used? Mix 1 tablespoon of fabric softener
with ½ litre of water and pour into dispenser II (not for outdoor
and down-filled textiles!).
– Reduce the detergent d osage for the next wash cycle.
ʑIntense noise formation,
vibrations and “walking”
during the spin cycle .
– Are the appliance feet fixed?
Secure the appliance feet aInstallatio n instructions.
– Transportation safety d evices removed?
Remove the transpor tation safety devices aIn stallation
instructions.
ʑNoises during spin an d
drain cycles.
– Clean detergent-solution pump apage 10.
ʑThe indicator lights do
not function during
operation.
– Power cut?
– Fuses tripped? Res et/change the fuse.
– If the fault occu rs repeatedly, call the aft er-sales service.
ʑProgramme sequence
longer than usual.
– Not a fault - unbalanced load detectio n system adjusts
imbalance by repeatedly dist ributing the laundry.
– Not a fault - foam detection system active - add s an additional
rinse cycle.
ʑDetergent residues on
the laundry.
– Occasionally, phos phate-free detergents contain water-insoluble
residues.
– Select 2Rin se/Spin or brush out the la undry after washing.
If you cannot correct a fault y ourself (switching on/off) or a repa ir is required:
– Turn the programme s elector to Off and remove the mains plu g from the socket.
– Turn off the water supply a nd call the after-sales service aInstal lation instructions.
Washing machine
en Instruction manu al

1 2
÷2÷2c=>÷÷Correct installation according to the
separate Installation instructions.
Check the machine
– Never use a damaged machine.
– Inform the after-sales services.
Connect the mains plug
Make sure your hands are dry.
Take hold of the plug only.
Turn the tap on
Compartment II: detergent for the main wash, water softener,
bleach, stain remover
aa
Close the washing machine door. Take care not to trap
Pour liquid detergent into the appropriate dispense
Your washing machine
Congratulations äyou have opted for a modern, high-quality
domestic appliance manufactured by Bosch. This washing machine
is distinguished by its economical water and energy consumption.
Each machine that leaves our factory has been inspected thoroughly
to ensure that it functions properly and is in perfect condition.
Further information: www.bosch-home.com
You can find the contact details for your nearest after-sales service
here or in the after-sales service directory (depending on model).
GB 0844 8928979
Calls from a BT landline will be charged at up to 3 pence per
minute. A call set-up fee of up to 6 pence may apply.
IE 01450 2655
Environmentally friendly waste disposal All packaging must be disposed of in accordance with
environmental guidelines.
This appliance is certified in accordance with European Directive
2002/96/EEC on waste electrical and electronic equipment
(WEEE).
This directive provides the framework for the EU-wide collection and
reuse of used appliances.
Intended use
Contents Page
ʋIntended use .......................................................................................1
ʋProgrammes .......................................................................................1
ʋSetting and adjusting the programme ...........................................3
ʋWashing ...........................................................................................3/4
ʋAfter washing ......................................................................................4
ʋIndividual settings ..........................................................................5/6
ʋImportant information ....................................................................... 6
ʋOverview of programmes ................................................................ 7
ʋSafety instructions .............................................................................8
ʋConsumption values .........................................................................8
ʋCare .....................................................................................................9
ʋInformation on the indicator lights ..................................................9
ʋMaintenance .................................................................................... 10
ʋWhat to do if... .................................................................................. 11
Protection of the environment/Conservation tips
– Always fill the washing machine with a maximum amount of
laundry for the relevant programme.
– Wash normally soiled laundry without a prewash.
– Instead of LCottons 90 °C, choose the programme
LCottons 60 °C with the additional function ćEcoPerfect.
Comparable cleaning result with significantly lower energy
consumption.
– Measure the detergent according to the manufacturer's
instructions and water hardness.
– If the laundry is then dried in the tumble dryer, select the spin
speed according to the instructions of the dryer manufacturer.
Preparation a
Spin
speed*
Programme selectorStart/
Pause
Programme selector for
switching the machine on
and off and for selecting
the programme. Can be
turned in either direction.
Programmes
Detailed overview of programmes apage 7.
The spin speed can be selected individually, irrespective of
the selected programme and programme progress.
LCottons Hard-wearing fabrics
+7Prewash Hard-wearing fabrics, prewash at
30 °C
/Mixed Load Different types of laundry
@SuperQuick 15’ Short programme
2Rinse/Spin Laundry washed by hand,
=Aqua Plus button activated; if only
using the spin cycle, deactivate the
button
>Drain Drain rinsing water for Rinse Hold
(without final spin)
:/ Wool Hand/machine-washable wool
cDelicate/Silk Delicate washable fabrics
IEasy-Care Easy-care fabrics
a~
Compartment ~: fabric softener, starch
Compartment I: detergent for prewash
ʋFor domestic use only
ʋFor washing machine-washable fabrics and hand-wash-
able wool in detergent solution
ʋTo be operated with cold drinking water and commer-
cially available detergents and care products which are
suitable for use in washing machines
.
– Do not leave children unattended near the
washing machine
– The washing machine is not to be used by
children or persons not familiar with the
operating instructions
– Keep pets away from the washing machine
Read these instructions and the separate
installation instructions before operating the
washing machine.
ʑaʑaĈaćS=ʑʑĈL÷÷÷~
All buttons are sensitive and need
only to be touched lightly.
If you press and hold the spin
speed button, the appliance
automatically cycles through the
setting options.
Additional
functions
Status
indicator >a
(*model-dependent)

3 4
Programme has ended when...
... ÷Start flashes and the End indicator light comes on.
Interrupting the programme
Programmes at high temperatures:
– Cool washing: Select 2Rinse/Spin.
– Select ÷Start.
Programmes at lower temperatures:
–2Rinse/cSpin (deactivate =Aqua Plus button) or
select >Drain.
– Select ÷Start.
Changing the programme, if ...
... you have selected the wrong programme by mistake:
– Reselect the programme.
– Select ÷Start. The new programme starts from the
beginning.
Sorting and loading laundry
Follow the manufacturer's care information.
According to the information on the care labels.
According to type, colour, soiling and temperature.
Do not exceed the maximum load apage 7.
Observe the important information apage 6.
Insert large and small items of laundry.
Close the washing machine door. Take care not to trap items of laundry
between the washing machine door and the rubber seal.
Add detergent and care products
Measure accordingly:
Amount of laundry, soiling, water hardness (ask your water supply
company) and manufacturer's instructions.
Pour liquid detergent into the appropriate dispenser and place in the drum.
äʋʋʋʋʋʋʋʋʋʋʋʋʋʋLLćBefore washing for the first time
Wash once without any laundry apage 9.
Setting and adjusting a programme
Programme selector
Programme selector for
switching the machine on
and off and for selecting
the programme. Can be
turned in either direction.
aL7/@2=>:cIAdditional functions and spin
speeds aIndividual settings,
page 5.
Select Start
Washing
1
2
Washing
Detergent drawer with
compartments I,II,~
Washing machine
door
~ʋʋʋ
Dilute viscous fabric softener and fabric conditioner with water.
This prevents blockages.
ʑaʑaĈaćS=ʑʑĈL÷÷÷~
3
Drum
Control panel
Service flap
Removing the washing
Open the washing machine door and remove the washing.
If Rinse Hold (without final spin) is active: Turn the
programme selector to >Drain or select the spin speed.
Select Start.
– Remove any foreign objects -
risk of rusting.
– Leave the washing machine door and detergent
drawer open so that any residual water can
evaporate.
Turning the tap off
Not required for Aqua-Stop models arefer to installation
instructions
Switching off
Turn the programme selector to Off.

56
÷2÷2c=>÷÷aa
äʋʋʋʋʋʋʋʋʋʋʋʋʋʋLLćaaL7/@2=>:cIa~~ʋʋʋIndividual settings
ʑSpin speed / without final spin amodel-dependent
Before and while the selected programme is running, the spin speed or Rinse Hold (without
final rinse, laundry soaks in the last rinsing water) can be set. The effects depend on the
programme progress.
The maximum selectable spin speed depends on the model and on which programme is
currently selected.
ʑAdditional functions aand overview of programmes, see page 7
ĈSpeedPerfect For washing in a shorter time with a washing outcome comparable to
that of the standard programme. Maximum load aOverview of
programmes, page 7.
ćEcoPerfect For saving energy with a washing performance comparable to that of
the standard programme.
SReduced Ironing Special spin sequence with subsequent fluffing. More gentle final spin
- residual moisture in the laundry slightly increased.
=Aqua Plus Increased water level and additional rinse cycle, extended washing
time. For areas with very soft water or for further enhancing the spin
result.
ʑStart
For starting or interrupting the programme.
ʑSignal
2. Setting the
volume for ...
1. Activate the
setting mode for
signal volume
Set to •1 step Press and
hold +Release
Button signals Information signals
Set to •
Setting the
volume**
Setting the
volume**
1 step
direct
** you may need to select the function several times.
1200
1000
800
600
Rinse
Hold
1 step
Visually
impaired mode*
ON-OFF
Optional:
ON-OFF Set to •
*Short signal - function on.
Long signal - function off.
1 step
1200
1000
800
600
Rinse
Hold
1200
1000
800
600
Rinse
Hold
1200
1000
800
600
Rinse
Hold
Important information
Protecting the laundry and the machine
– When determining the dosage of all washing powders, additives and cleaning agents, you
must follow the manufacturer's instructions.
– Empty pockets.
– Look out for metal items (paperclips, etc.).
– Wash delicates in a laundry bag (tights, curtains, underwired bras).
– Fasten zips, do up any buttons.
– Brush sand out of pockets and collars.
– Remove curtain fittings or place in the laundry bag.
Laundry with varying degrees of soiling
Wash new items of clothing separately.
light Do not prewash. If required, choose the additional function
ĈSpeedPerfect.
Pretreat any stains as necessary.
intense Do not load as much laundry.
Choose a programme with prewash.
Soaking Load laundry of the same colour
Pour soaking agent/detergent into compartment II in accordance with the manufacturer's
instructions. Turn the programme selector to LCottons 30 °C and select ÷Start. After approx.
10 minutes, press ÷Start, to pause the programme. Once the required soaking time has
elapsed, press ÷Start, again to continue the programme, or select a different programme.
Starching Laundry must not be treated with fabric softener
Starching is possible in all wash programmes if liquid starch is used. Pour starch into the
fabric softener compartment in accordance with the manufacturer's instructions ~(rinse first
if necessary).
Dyeing/bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel.
Always follow the dye manufacturer's instructions. Do not use the washing machine for
bleaching clothes.
g.
>or select the spin speed.

– Leave the washing machine door and detergent
arefer to installation

7
Overview of programmes arefer to the table of consumption values on page 8 and notes on page 6.
Programmes °C max. Type of laundry Additional functions; information
LCottons 30, 40, 60, 90 °C 6 kg/
4 kg*
Hard-wearing fabrics, heat-resistant fabrics made of cotton or linen
Ĉ÷Speed Perfect*, ćEco Perfect, SReduced Ironing,
=Aqua Plus
+7Prewash 40 °C IEasy-Care 30, 40, 60 °C
3 kg
Easy-care fabrics made of cotton, linen, synthetic fibres or blended fabrics
Ĉ÷Speed Perfect, ćEco Perfect, SReduced Ironing,
=Aqua Plus
/Mixed Load 40 °C Fabrics made of cotton or easy-care fabrics
Ĉ÷Speed Perfect, ćEco Perfect, SReduced Ironing,
=Aqua Plus; different types of laundry can be washed together
Delicate/Silk 30 °C
2 kg
For delicate, washable fabrics, e.g. made of silk, satin, synthetic fibres or blended fabrics (e.g. curtains)
Ĉ÷Speed Perfect, ćEco Perfect, SReduced Ironing,
=Aqua Plus; No spin between rinse cycles
:/ Wool cold, 30 °C Handäor machine-washable fabrics made of wool or
containing wool
Particularly gentle wash programme to prevent shrinkage of laundry. Longer programme breaks (fabrics rest in the detergent solution)
@SuperQuick 15’ 30 °C Easy-care fabrics made of cotton, linen, synthetic
fibres or blended fabrics
Short programme, approx. 15 minutes, suitable for lightly soiled laundry
Additional programmes 2Rinse/Spin, >Drain
*Reduced load for additional Ĉ÷SpeedPerfect function
As a short programme,/Mixed Load 40 °C,with a maximum spin speed, is ideal.
Programmes without prewash - add detergent to compartment II, programmes with prewash - distribute the detergent between compartments Iand II.
9209 / 9000777144 *777144* WAE24166UK ...
Robert Bosch Hausgeräte GmbH
Carl-Wery-Str. 34
81739 München / Deutschland
8
Safety instructions
– Read the instruction manual and installation instructions and all other information enclosed
with the washing machine and act accordingly.
– Retain the documents for subsequent use.
Risk of electric shock – Never pull the cable to disconnect the mains plug.
– Never insert/disconnect the mains plug with damp hands.
Danger to life For worn-out appliances:
– Disconnect the mains plug.
– Sever the mains cable and discard along with the plug.
– Destroy the lock on the washing machine door. This will prevent
children from locking themselves in and risking their lives.
Danger of suffocation – Keep packaging, film and packaging parts out of the reach of
children.
Risk of poisoning – Keep detergents and care products out of the reach of children.
Risk of explosion – Items of laundry pretreated with cleaning agents containing
solvents, e.g. stain remover/cleaning solvent may cause an
explosion after being loaded into the washing machine.
Rinse items of laundry thoroughly by hand beforehand.
Risk of injury – The washing machine door can become very hot.
– Be careful when draining hot detergent solution.
– Do not climb onto the washing machine.
– Do not lean on the open washing machine door.
– Do not reach into the drum if it is still rotating.
– Be careful when opening the detergent drawer while the machine
is in operation.
Consumption values depending on model
Programme Load Electricity*** Water*** Programme
duration***
LCottons 30 °C* 6 kg 0,51 kWh 55 l 02:22 h
LCottons 40 °C* 6 kg 0,63 kWh 55 l 02:22 h
LCottons60 °C* 6 kg 1,26 kWh 55 l 02:31 h
LCottons 90 °C 6 kg 1,98 kWh 59 l 02:35 h
Easy-Care 40 °C* 3 kg 0,55 kWh 55 l 01:37 h
/Mixed Load 40 °C 3 kg 0,48 kWh 32 l 01:03 h
cDelicate/Silk 30 °C 2 kg 0,21 kWh 31 l 00:41 h
:ü/Wool 30 °C 2 kg 0,19 kWh 39 l 00:40 h
* Programme setting for testing in accordance with valid standard EN60456.
Note on comparative tests: For testing the test programmes, wash the specified load using the maximum spin speed.
Programme Additional function Load Annual energy
consumption
Annual water
consumption
LCottons40/60 °C ćEcoPerfect** 6/3kg 196 kWh 10120 l
** Programme setting for testing and energy labelling in accordance with EU directive 2010/30/EU with cold water (15 ºC).
*** The values deviate from the indicated values depending on water pressure, hardness, and inlet temperature, ambient tem-
perature, type, amount and soiling of the laundry, detergent used, fluctuations in the power supply and selected additional
functions.
I÷aaa
>2>÷ʑʑ÷aʑaʑ÷ʑaaʑʑSaaʑʑaʑLʑʑaaʑaʑʑʑ2a

aLĈ÷ćS=7IĈ÷ćS=/Ĉ÷ćS=Ĉ÷ćS=:ä@2>Ĉ÷/
LLLL/c:ü
Lć
9
Care
Before washing for the first time
Do not load any laundry into the machine. Turn on the tap.
Add the following to compartment II:
– approx. 1 litre water
– detergent (dosage according to the manufacturer's instructions for light soiling and the
appropriate degree of water hardness)
Set the programme selector to IEasy-Care 60 °C and select ÷Start.At the end of the
programme, turn the programme selector to Off.
Machine housing, control panel
– Wipe with a soft, damp cloth.
– Do not use any abrasive cloths, scourers or cleaning agents (stainless steel cleaners).
– Remove detergent and cleaning agent residue immediately.
– Do not clean with a jet of water.
Cleaning the detergent drawer and housing...
... if it contains detergent or fabric softener residues.
1. Pull the drawer out, press down the insert and fully remove the drawer
from the housing.
2. To remove the insert: press the insert upwards from below with your
finger.
3. Clean the detergent dispenser tray and insert with water and a brush and
dry it. Also remove any detergent or fabric softener residues in the
housing.
4. Attach the insert and engage (connect the cylinder to the guide pin).
5. Push in the detergent drawer.
Leave the detergent drawer open so that any residual water can
evaporate.
Washing drum and rubber seal
Wipe the inside of the rubber seal dry with a cloth. Leave the washing machine door open so
that the drum can dry out. Rust stains - use chlorine-free cleaning agent, not steel wool.
Descaling Ensure there is no laundry in the machine
Descale the appliance according to the descaler manufacturer's instructions. This should not
be necessary if the correct dosage of detergent is used.
Information on the indicator lights model-dependent
A signal sounds and indicator lights for the spin speed flash:
¤
¤
¤
¤
¤
Close the washing
machine door properly;
laundry may be caught.
¤
¤
¤
¤
¤
Detergent solution pump
blocked; Clean the
detergent solution pump
apage 10.
Drainage hose/waste pipe
blocked; Clean the drainage
hose at the siphon
apage 10.
¤
¤
¤
¤
¤
Open the tap completely,
supply hose kinked or
trapped;
Clean the filter
apage 10,
Water pressure too low.
¤
¤
¤
¤
¤
Motor fault. Call the after-
sales service. ¤
¤
¤
¤
¤
Water in the base tub,
appliance leaking. Call the
after-sales service.
–Risk of electric shock.Disconnect the mains plug.
–Risk of explosion. No solvents.
10
Maintenance
Detergent solution pump
Turn the programme selector to Off and disconnect the mains plug.
1. Open and remove the service flap.
2. For models with a drainage hose: Remove the drainage hose from the retainer and pull it
from the housing. Remove the container.
Remove the sealing cap, allow the detergent solution to flow out.
Replace the sealing cap and place the drainage hose in the retainer.
2* For models without a drainage hose: Carefully unscrew the pump cover until the
detergent solution begins to flow out. When the service flap is half full, close the pump cover
and empty the service flap. Repeat the above steps until all the detergent solution has
completely drained out.
3. Carefully unscrew the pump cover (residual water).
4. Clean the interior, pump cover thread and pump housing (the impeller in the detergent
solution pump must rotate).
5. Replace the pump cover and screw it tightly in place.
6. Place the service flap back on and close.
To prevent unused detergent from flowing straight into the drain during the next wash: pour 1 litre of water into
compartment II and start the >Drain programme.
Drainage hose at the siphon
Turn the programme selector to Off and disconnect the mains plug.
1. Loosen the hose clamp, carefully remove the drainage hose (residual water).
2. Clean the drainage hose and siphon connecting piece.
3. Reattach the drainage hose and secure the connection with the hose clamp.
Filter in the water supply
Risk of electric shock.
Do not immerse the HydroSafe safety device in water (it contains an electric valve).
Reduce the water pressure in the supply hose:
1. Turn off the tap.
2. Select any programme (except for 2Rinse/Spin // >Drain).
3. Select ÷Start. Let the programme run for approximately 40 seconds.
4. Turn the programme selector to Off. Disconnect the mains plug.
Clean the filter:
1. Depending on model:
Disconnect the hose from the tap.
Clean the filter using a small brush.
and/or for Standard and Aqua-Secure models:
Remove the hose on the rear of the appliance.
Remove the filter with pliers and clean.
2. Connect the hose and check for leaks.
–Risk of scalding.
Allow the detergent solution to cool down.
– Turn off the tap.
ʑʑ÷aʑaʑ÷ʑaaʑʑSaaʑʑaʑLʑʑaaʑaʑʑʑ2a

aLĈ÷ćS=7IĈ÷ćS=/Ĉ÷ćS=Ĉ÷ćS=:ä@2>Ĉ÷/
LLLL/c:ü
LćI÷aaa>2>÷
11
What to do if ...
ʑWater is leaking out. – Attach/replace the drainage hose correctly.
– Tighten the screw connection of the supply hose.
ʑNo water supply.
Detergent not dispensed.
–÷Start not selected?
– Tap not turned on?
– Filter blocked? Clean the filter apage 10.
– Supply hose kinked or trapped?
ʑWashing machine door
cannot be opened.
– Safety function active. Wait approx. 2 minutes.
– Is Rinse Hold (without final spin) selected? apage 3, 4.
ʑProgramme does not
start.
–÷Start selected?
– Washing machine door closed?
ʑDetergent solution is not
drained.
– Is Rinse Hold (without final spin) selected? apage 3, 4.
– Clean the detergent solution pump apage 10.
– Clean the waste pipe and/or drainage hose.
ʑWater not visible in the
drum.
– Not a fault - water below the visible area.
ʑUnsatisfactory spin
result.
Laundry wet/too damp.
– Not a fault - the unbalanced-load detection system has cancelled
the spin cycle because of uneven distribution of the laundry.
Distribute small and large items of laundry evenly inside the
drum.
–SReduced Ironing selected? apage 5.
– Selected speed too low? apage 5.
ʑSpin cycle performed
several times.
– Not a fault - unbalanced load detection system adjusts the
imbalance.
ʑResidual water in the
compartment for care
products.
– Not a fault - the action of the care product is not affected.
– Clean the insert if necessary apage 9.
ʑOdour formation in the
washing machine.
– Run programme LCottons 90 °C without laundry. Use
standard detergent.
ʑWash display lamp
flashes. Foam may be
coming out of the
detergent drawer.
– Too much detergent used? Mix 1 tablespoon of fabric softener
with ½ litre of water and pour into dispenser II (not for outdoor
and down-filled textiles!).
– Reduce the detergent dosage for the next wash cycle.
ʑIntense noise formation,
vibrations and “walking”
during the spin cycle.
– Are the appliance feet fixed?
Secure the appliance feet aInstallation instructions.
– Transportation safety devices removed?
Remove the transportation safety devices aInstallation
instructions.
ʑNoises during spin and
drain cycles.
– Clean detergent-solution pump apage 10.
ʑThe indicator lights do
not function during
operation.
– Power cut?
– Fuses tripped? Reset/change the fuse.
– If the fault occurs repeatedly, call the after-sales service.
ʑProgramme sequence
longer than usual.
– Not a fault - unbalanced load detection system adjusts
imbalance by repeatedly distributing the laundry.
– Not a fault - foam detection system active - adds an additional
rinse cycle.
ʑDetergent residues on
the laundry.
– Occasionally, phosphate-free detergents contain water-insoluble
residues.
– Select 2Rinse/Spin or brush out the laundry after washing.
If you cannot correct a fault yourself (switching on/off) or a repair is required:
– Turn the programme selector to Off and remove the mains plug from the socket.
– Turn off the water supply and call the after-sales service aInstallation instructions.

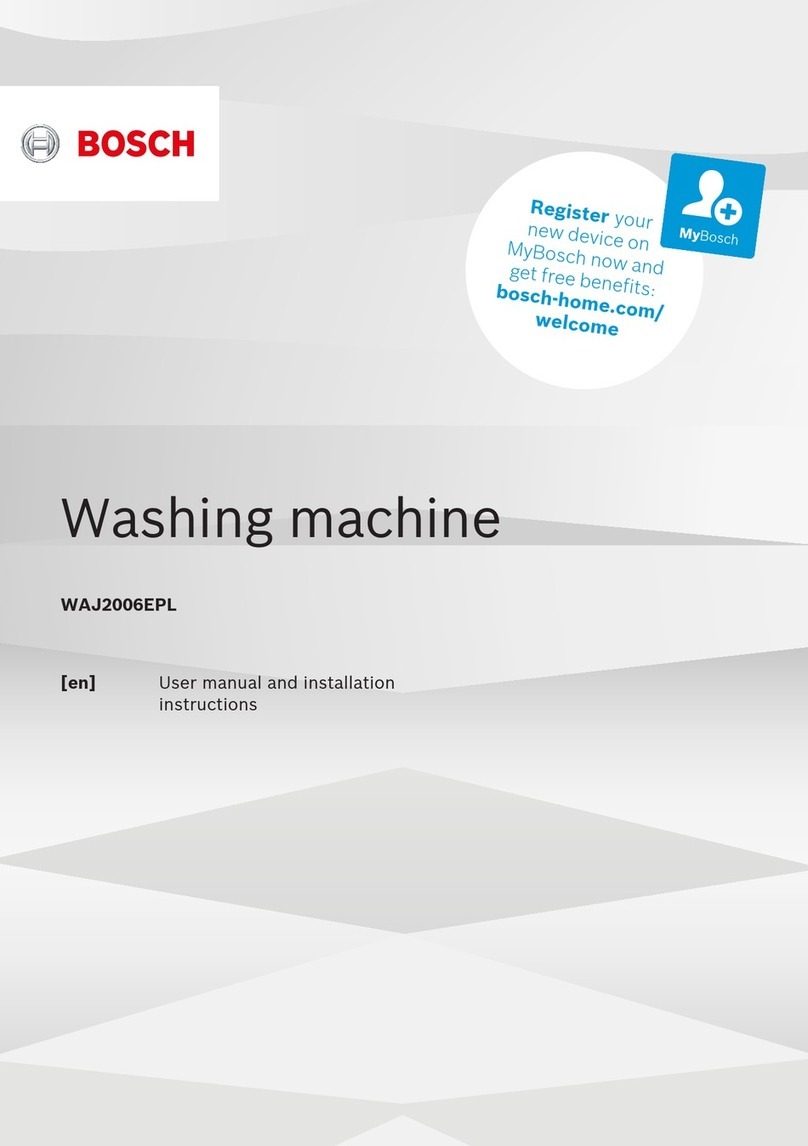

Washing machine
en Instruction manual
