Bosch WGB2560FFG User manual

Washing machine
WGB2560FFG
[NL] User manual and
installation instructions
Translated from Dutch to English - www.onlinedoctranslator.com

NL
Refer to the Digital User's Guide for more
information.
Table of contents
1 Safety..................................... 4
1.1 General instructions ..................... 4
6 Before first use ..................... 21
6.1 Starting a wash cycle without
laundry .............................................. 21
1.2 Destination of the
device .............................................. 4 7 Display ....................................... 22
8 Keys ..................................... 24
9 Programs .............................. 27
10 Accessories.............................. 31
1.3 Restriction of Users ..... 4
1.4 Secure Installation.............................. 5
1.5 Safer use ..................................... 7
1.6 Safe cleaning and
maintenance .............................................. 9
2 Avoiding Property Damage ..... 11 11 Laundry ............................... 31
11.1 Preparing laundry......... 31
3 Environmental protection and
washer............................................. 12 12 Detergent and fabric care
cleaning agent.............................. 32
3.1 Disposing of the packaging ... 12
3.2 Conserve energy and
resources ................................................... 12 13 Essentials of the Operation....................... 32
13.1 Switching on the device.............. 32
13.2 Set program ..................... 32
3.3 Energy Saving Mode ....... 12
4 Set up and connection ..................... 13
4.1 Unpacking the device ..................... 13
4.2 Package Contents....... 13
13.3 Adjusting program
settings .............................. 33
13.4 Saving program
settings .............................................. 33
4.3 Installation site
requirements .............................................. 13 13.5 Loading the drum with
laundry ................................... 33
4.4 Removing transport
protections .............................................. 14 13.6 Inserting the dosing aid for liquid
detergent ..................... 33
4.5 Connecting the device .............. 15
4.6 Adjusting the appliance ..................... 16 13.7 Using the dosing aid for liquid
detergent ..................... 34
4.7 Connecting the device
electrically................................................ 17 13.8 Dosing detergent and fabric care
product ..................... 34
5 Getting to know your device........ 18
5.1 Device ....................................... 18
5.2 Detergent drawer ..................... 18
5.3 Control panel ..................... 19
5.4 Operating logic ..................... 19
13.9 Starting the program .. 34
13.10 Soaking laundry ............... 34
13.11 Adding laundry ............... 35
13.12 Progr. cancel ..................... 35
13.13 Resuming program on rinse
hold..................................... 35
2

NL
13.14 Taking out laundry .............. 35 20.2 Installing transport
protections ............................................... 55
13.15 Putting the device to sleep
(standby mode) ..................... 35 20.3 Restarting the
device .................................. 55
14 Child Lock ................................ 35
14.1 Switching on the child lock ..................... 35
14.2 Deactivating the child lock .............. 36
20.4 Disposal of your old
appliance .............................................. 56
21 After-sales service......................... 56
15 Home Connect ..................... 36 21.1 Product number (E-Nr.), production
number (FD) and serial number (Z-
Nr.) ............... 57
15.1 Setting up the Home Connect
app......................................... 36
15.2 Setting up Home Connect .............. 36
15.3 Home Connect Menu .............. 37 22 Consumption values ..................... 58
15.4 Activating Wi-Fi on the
device.................................................. 37 23 Technical data ..................... 58
23.1 Information on Free Software and
Open Source Software .... 59
15.5 Deactivating Wi-Fi on the
device ................................... 37
15.6 Resetting the machine's network
settings ..................... 37
24 Declaration of Conformity......... 60
15.7 Remote Start ..................... 37
15.8 Remote Diagnosis....................... 38
15.9 Protection of personal
data ................................... 38
16 Basic Settings ..................... 39
16.1 Overview of the basic
settings .............................. 39
16.2 Change basic settings...... 40
17 Program counter ..................... 40
17.1 Call up program counter ... 40
18 Cleaning and maintenance .............. 40
18.1 Cleaning drum ..................... 40
18.2 Cleaning the detergent
drawer..................................... 40
18.3 Cleaning the drain pump.............. 41
18.4 Cleaning the inlet opening in the
rubber sleeve....................... 44
19 Troubleshooting ..................... 45
19.1 Emergency release .............. 55
20 Transporting, storing and
disposal .............................. 55
20.1 Disassembling the device .............. 55
3

NLSafety
1 Safety
Please observe the following safety instructions.
1.1 General instructions
¡Read this manual carefully.
¡Keep the operating instructions and product information for future reference
for use or for subsequent owners.
¡Do not connect the device in case of transport damage.
1.2 Destination of the device
Only use the device:
¡to wash machine washable textiles and woollens for hand washing
according to the care label.
¡with tap water and standard, suitable for the washing machine
detergents and maintenance products.
¡for domestic use and in enclosed spaces within the home
sable environment.
¡up to an altitude of 4000 m above sea level.
1.3 Restriction of Users
This appliance can be operated by children aged from 8 years and
above and by persons with reduced physical, sensory or mental
capabilities or lack of experience and/or knowledge if they are
supervised or have been instructed in the safe use of the appliance
and understand the resulting hazards. understood. Children must
not play with the appliance.
Cleaning and user maintenance must not be made by children
unless they are supervised.
Make sure that children up to the age of 3 and pets cannot reach
the device.
4

SafetyNL
1.4 Secure installation
WARNING ‒ Risk of electric shock! Improper
installations are dangerous.
▶Only connect and operate the device in accordance with the
information on the rating plate.
▶Only connect the device to an alternating current mains via a
properly installed socket with earthing contact.
▶The protective earthing system of the domestic electrical installation
must be installed in accordance with the electrotechnical regulations.
The installation must have a sufficiently large conductor diameter.
▶When using an earth leakage circuit breaker, only use a type
with the mark.
▶Never power the device through an external switching device,
e.g. a time switch or remote control.
▶When the device is installed, the mains plug of the mains connection
cable must be freely accessible, or if free access is not possible, an
all-pole disconnection device must be installed in the permanently
installed electrical installation in accordance with the installation
instructions.
▶When setting up the device, make sure that the mains cable is
not pinched or damaged.
Damaged insulation of the power cord is dangerous.
▶Never bring the power cord into contact with hot device parts or
heat sources.
▶Never bring the power cord into contact with sharp points or
edges.
▶Never kink, crush or modify the power cord.
WARNING ‒ Risk of fire!
Using an extended power cord and unauthorized adapters is
dangerous.
▶Do not use extension cords or multiple sockets.
▶Only use adapters and power cords approved by the
manufacturer.
5

NLSafety
▶If the power cord is too short and a longer power cord is not
available, contact an electrical retailer to adjust the home
installation.
WARNING ‒ Risk of injury!
The heavy weight of the device can cause injuries when lifting it.
▶Do not lift the device alone.
If this appliance is improperly installed in a washer-dryer stack,
the installed appliance may fall down.
▶Stacking the dryer on top of a washing machine only with the
dryer manufacturer's connection kit. Any other placement
method is not allowed.
▶Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection set.
▶Do not install appliances from different manufacturers and with
different depths and widths in a washer-dryer stack.
▶Do not set up a washer-dryer stack on a platform, the appliances
could tip over.
WARNING ‒ Risk of suffocation!
Children can pull packaging material over their heads and become
entangled and suffocated.
▶Keep packaging material away from children.
▶Do not let children play with packaging material.
CAUTION ‒ Risk of injury!
The device may vibrate or move during operation.
▶Set up the device on a clean, flat and firm surface.
▶Level the device using the device feet and a spirit level.
There is a tripping hazard if hoses and mains connection cables are
laid incorrectly.
▶Lay the hoses and connecting cables in such a way that they cannot
be tripped over.
6

SafetyNL
If the appliance is moved by protruding parts, such as the loading
door, the parts may break off.
▶Do not move the device by protruding parts.
CAUTION ‒ Risk of cutting!
Sharp edges on the device can lead to cuts when touched.
▶Do not touch the device on sharp edges.
▶Use protective gloves when installing and transporting the
device.
1.5 Safer Use
WARNING ‒ Risk of electric shock!
A damaged device or power cord is dangerous.
▶Never use a damaged device.
▶Never pull on the power cord to disconnect the device from the
power supply. Always pull the plug on the power cord.
▶If the appliance or the power cord is damaged, immediately
unplug the power cord or switch off the fuse in the fuse box and
close the tap.
▶Contact the service department. → Page 56 Penetrating
moisture can cause an electric shock.
▶Only use the device in closed rooms.
▶Never expose the device to excessive heat and humidity.
▶Do not use a steam cleaner, high-pressure cleaner, hoses or
sprayers to clean the appliance.
WARNING ‒ Risk of health hazard! Children can lock
themselves in the appliance and endanger their lives.
▶Do not install the device behind a door that blocks or prevents
the opening of the device door.
7

NLSafety
▶In the case of discarded appliances, unplug the mains cable, then
cut the mains cable and damage the appliance door lock to such
an extent that the appliance door no longer closes.
WARNING ‒ Risk of suffocation!
Children can inhale or swallow small parts and suffocate.
▶Keep small parts away from children.
▶Do not let children play with small parts.
WARNING ‒ Risk of poisoning!
Washing and care products can lead to poisoning if ingested.
▶In case of accidental ingestion, consult a doctor.
▶Keep detergents and care products out of the reach of children.
WARNING ‒ Risk of explosion!
If laundry has been pre-treated with cleaning agents containing
solvents, this can lead to an explosion in the appliance.
▶Rinse pre-treated laundry thoroughly with water before
washing.
CAUTION ‒ Risk of injury!
The cover plate may break when climbing or scrambling on the
device.
▶Do not climb or scramble on the device.
The appliance can tip over when sitting or leaning on the open
door.
▶Do not sit or lean on the appliance door.
▶Do not place any objects on the appliance door.
Reaching into the rotating drum can lead to hand injuries.
▶Wait until the drum has come to a complete stop before reaching into the
drum with your hand.
8

SafetyNL
CAUTION ‒ Risk of burns!
The suds become hot when washing at high temperatures.
▶Do not touch the hot soapy water.
CAUTION ‒ Risk of chemical burns! When opening the
detergent drawer, detergent and care products may splash out of
the appliance. Contact with eyes or skin may cause irritation.
▶In case of contact with detergents or care products, rinse eyes
or skin thoroughly with clean water.
▶In case of accidental ingestion, consult a doctor.
▶Keep detergents and care products out of the reach of children.
1.6 Safe cleaning and maintenance
WARNING ‒ Risk of electric shock! Improper
repairs are dangerous.
▶Only trained specialist personnel may carry out repairs on the
device.
▶Only original spare parts may be used for repairing the device.
▶If the power cord of this appliance becomes damaged, it must
be replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard. Penetrating
moisture can cause a shock.
▶Do not use a steam cleaner, high-pressure cleaner, hoses or
sprayers to clean the appliance.
WARNING ‒ Risk of injury!
The use of non-original spare parts and accessories is dangerous.
▶Only use original spare parts and original accessories from the
manufacturer.
9

NLSafety
WARNING ‒ Risk of poisoning!
Toxic fumes may be produced when using cleaning agents
containing solvents.
▶Do not use cleaning agents containing solvents.
10

Avoid material damageNL
A water pressure that is too low or too high can
hinder the function of the device.
▶Make sure that the water pressure
on the water supply installation is at
least 100 kPa (1 bar) and at most
1000 kPa (10 bar).
▶If the water pressure exceeds the
specified maximum value, a
pressure reducing valve must be
installed between the drinking
water connection and the hose set
of the device.
▶Do not connect the appliance to the mixer
tap of an unpressurised water heater or
water heater.
Modified or damaged water hoses can
lead to material damage and damage
to the device.
▶Never kink, pinch, alter or cut
water hoses.
▶Only use the supplied water hoses
or original replacement hoses.
▶Reuse never used water hoses.
Operation with polluted or too hot
water can cause material damage and
damage to the device.
▶Only use the appliance with cold
tap water.
Unsuitable cleaning agents can
damage the surfaces of the device.
▶Do not use harsh or abrasive
cleaning agents.
▶Do not use cleaning agents
containing strong alcohol.
▶Do not use hard scouring or
washing-up sponges.
▶Only clean the device with water
and a soft, damp cloth.
▶In case of contact with the device,
immediately remove all detergent
residues, spray mist residues or residues.
2 Material damage
avoid
NB!
An incorrect dosage of fabric
softeners, detergents, care products
and cleaning agents can affect the
operation of the appliance.
▶Follow the manufacturer's dosing
recommendations.
Exceeding the maximum load
quantity affects the operation of the
device.
▶Observe and do not exceed the
maximum load for each
programme.
→ "Programs", page 27
The device is secured for transport with
transport protection devices. Transport
protection devices that are not
removed can lead to material damage
and damage to the device.
▶Before commissioning, completely
remove and store all transport
protection devices.
▶Before each transport, fully install
all transport protection devices to
avoid transport damage.
Improper connection of the water
supply hose can lead to material
damage.
▶Tighten the screw connections on
the water supply by hand.
▶It is best to connect the water supply
hose directly to the water tap
without any additional connecting
elements, such as adapters,
extensions, valves or the like.
▶Make sure that the inner diameter
of the tap is at least 17 mm.
▶Make sure that the length of the
thread on the connection to the
water tap is at least 10 mm.
11

NLEnvironmental protection and saving
3 Environmental protection and
saving
Set the maximum spin speed if the
laundry is to be dried in the tumble
dryer afterwards.
aDryer laundry shortens the pro-
gram length when drying and
reduces energy consumption. With
a higher spin speed, the residual
moisture in the laundry decreases
and the noise volume of the spin
increases.
3.1 Disposal of the packaging
The packaging materials are
environmentally friendly and can be
reused.
▶Dispose of the individual
components separately by type. Wash laundry without prewash.
aWashing with prewash extends
the program duration and increases
energy and water consumption.
3.2 Conserve energy and
resources The device has automatic load
balancing.
If you follow these instructions, your
appliance will use less electricity and
water. aThe automatic charge matching
ming optimally adjusts water
consumption and program duration
to the type of fabric and load
capacity.
Use programs with low temperatures
and longer washing times and use
the maximum load capacity.
aThe energy consumption and water
consumption are the most efficient.
3.3 Energy Saving Mode
If you do not operate the device for a
longer period of time, it
automatically switches to energy
saving mode.
The energy-saving mode is exited
when you operate the device again.
If you do not operate the device
further, it switches to standby mode.
Dose detergent according to the
degree of soiling of the laundry.
aFor a light to normal degree
of contamination, a small amount
of detergent is sufficient. Follow the
dosage advice of the detergent
manufacturer.
Reduce washing temperature for
lightly and normally soiled laundry.
aAt low temperatures, it consumes
device less energy. Lower
temperatures than stated on the
care label are also sufficient for
light to normal soiling.
12

Set up and connectNL
remain on the device. The stains
disappear after the first wash.
4 Set up and connect
4.1 Unpack the device The delivery consists of: ¡
Washing machine
¡Accompanying documents ¡
Transport protections
→ "Remove transport protection",
page 14
¡Cover caps
¡Water supply hose
→ "Connect the water supply hose",
page 15
NB!
Objects left in the drum that are not
intended for the use of the appliance
can lead to material and appliance
damage.
▶Remove all these objects and the
supplied accessories from the drum
before use.
4.3 Installation site
requirements
1.Completely remove packaging
material and protection from the
device.
→ "Disposing of the packaging",
page 12
WARNING
Risk of electric shock!
The device contains live parts.
Touching live parts is dangerous.
▶Do not use the device without a
cover plate.
2.Check the device for visible
damage.
3.Open the door.
4.Remove the accessories from the
drum.
5.Close the door. WARNING
Risk of injury!
When used on a plinth, the device can
tip over.
▶The device feet for commissioning
on a plinth must always be fitted
with the fixings
→ Page 31 confirmation from the
manufacturer.
4.2 Package Contents
After unpacking, check all parts for
transport damage and the
completeness of the delivery.
NB!
Use with incomplete or defective
accessories may impair the operation
of the device or cause material
damage and damage to the device.
▶Do not use the device with
incomplete or defective accessories.
▶Replace accessories before using
the device.
→ "Accessories", page 31
NB!
Freezing residual water in the device
can damage the device.
▶Do not place and use the device in
frost-sensitive places or outdoors.
If the device is tilted more than 40°,
residual water can escape from the
device and cause material damage.
▶Carefully tilt the device.
Remark:The device has been checked
at the factory for correct operation.
Water stains can enter
13

NLSet up and connect
▶Transport the device upright. 1.Pull the hoses out of the holders.
Place of installation
Holder
Requirements
The device with
locking tabs
→ Page 31
to confirm.
Floor with wooden
beams
Place the device
count on a
resistant
wooden plate (thick
too minimal
30mm) which
screwed firmly
to the floor.
2.Loosen and remove all bolts of the 4
transport protection devices with
an open-end wrench SW13
.
Kitchenette The device al-
borrow under one
continuous work
place sheet,
that with the
adjacent
cabinet is connected
Pine tree. Required
niche width:
60 cm.
On a wall No mains connection
cable and none
snakes in between
wall and equipment
wedge in.
3.Remove the mains connection cable from
the holder.
4.4 Remove transport
protection devices
The device is secured for transport
with transport locks on the back of the
device.
Remark:Keep the bolts of d
e tra
and voo
s
so
portb ee
la
v il
there
igin
tra
gene and the auxiliary
nsport.
install protections",
z r
5
een t
→ "T
Pg
ran p rt
a ina 5
14

Set up and connectNL
4.Remove the 4 sleeves. 4.5 Connecting the device

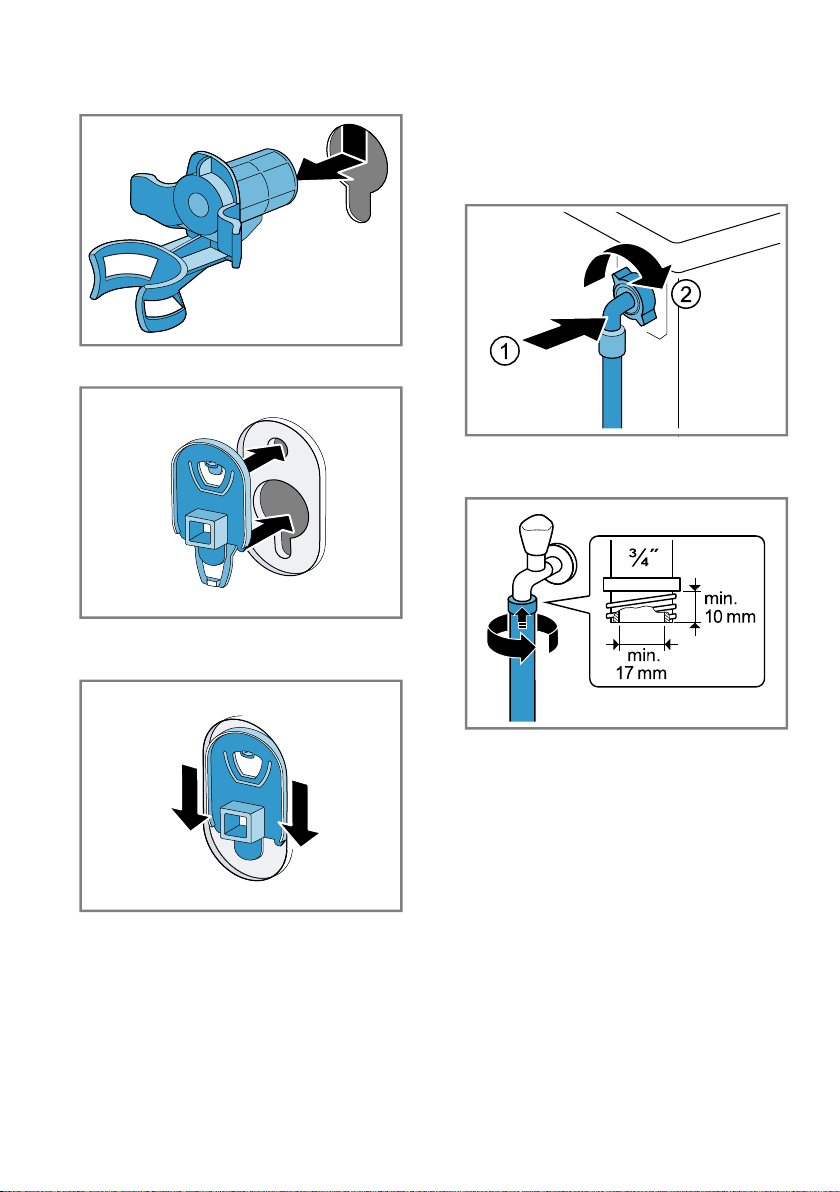

Connect water supply hose
1.Connect the water supply hose to the
appliance.
5.Install the 4 covers.
2.Connect the water inlet hose to the
tap (26.4 mm = 3/4").
6.Slide the 4 cover caps downwards.
3.Carefully open the tap and check
that the connections are tight.
Water outlet connection types
The information will help you connect this
appliance to the water outlet.
NB!
When draining, the water drain hose is
under pressure and can become detached
from the installed connection position.
▶Secure the water drain hose against
unintentional loosening.
Remark:Prepare the transport
protection devices for transport in
the device
steps in reverse
the sequence.
15

NLSet up and connect
Remark:Observe the pumping
heights.
The maximum pumping height is
100 cm.
4.6 Adjusting the device
To reduce noise and vibrations and
avoid the device walking, set the
device horizontally.
1.Loosen the lock nuts with a SW17
open-end wrench.
Siphon The connection position
tie with one
hose clamp
(24-40 mm) Bore
gene.
Washbasin The water
feeding hose with
a bend
→ Page 31
fix and bor-
gene.
plastic stand
pipe with rubber
run muff or one
floor drain
The water
feeding hose with
a bend
→ Page 31
fix and bor-
gene.
2.To adjust the device, turn the device
feet. Check the horizontal
adjustment of the device with a
spirit level.
All device feet must be firmly on the
floor.
16

Set up and connectNL
3.Tighten the lock nuts against the
housing hand-tight using a SW17
open-end wrench.
Hold the appliance foot firmly
and do not adjust the height.
4.7 Connecting the device
electrically
Remark:Your domestic electrical
installation for this appliance must
comply with local legal and safety
regulations and must include an
earth leakage circuit breaker.
1.Insert the mains plug of the
appliance's connecting cable into
a socket in the vicinity of the
appliance.
The connection data for the device
can be found in the technical data
→ Page 58 .
2.Check the mains plug for tightness.
17

NLGet to know your device
5 Get to know your device
5.1 Device
Here you will find an overview of the components of your device.
3 4 5 6
277
1

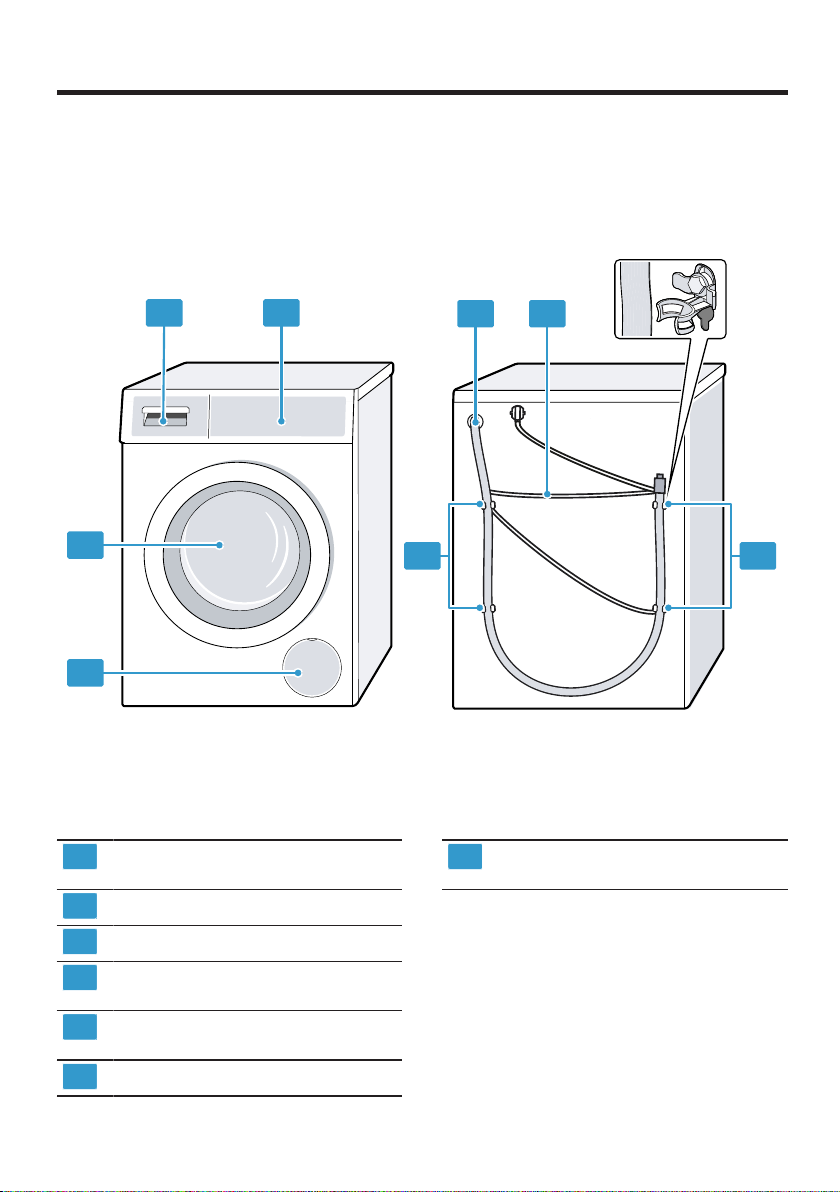

Depending on the device type, details on the image may differ, e.g. the color
and m.the vor
1Service valve n pump
→ Page 41
e7Transport protections
→ Page 14
2Door
Detergent drawer → Page 18
5.2 Detergent drawer
3dRemark:Please observe the
manufacturer's information on the
use and dosage of detergents and
care products as well as the
information in the program
descriptions.
→ "Programs", page 27
4Control point n
→ Page 19
a eel
ash
5Water drainage ag
→ Page 15
l n
6Mains connection abel →
Page 17
18

Get to know your deviceNL
1Dosing aid for liquid
detergent
→ "Insert dosing aid for liquid
detergent",
Page 33
4
32Detergent compartment II:
detergent for the main wash
3Detergent dispenser : fabric
softener
4Detergent compartment I:
detergent for the prewash
1 2
5.3 Control panel
You can use the control panel to set all the functions of your device and obtain
information about the operating status.
1 1
23
1Programs →
Page 27
5.4 Operating logic
2Program selector
→ Page 32
Some areas of the display are keys
and respond to touch. They activate,
deactivate or change settings by
pressing the keys
3Keys and display y
19

NLGet to know your device
to push; The activated settings are
clearly highlighted on the display.
2.To hide the extra keys, short press
againMoreto press.
Display additional keys
to adjust
NB!
Violent impact on the display can
cause damage.
▶Do not exert strong pressure on
the display.
▶Do not press on the display with
pointed or sharp objects.
You can customize the additionally
displayed keys according to your wishes
and permanently display your frequently
used settings.
1.Approx. up for 3 secondsMoreto press.
Show or hide additional keys
Some keys are hidden from a reduced
display view. If you show these
additional keys on the display, you can
activate or deactivate the relevant
settings.
1.To display the additional keys,
short pressMoreto press.
aThe extra flashes on the display
tests.
2.Briefly press the various keys.
aThe display shows all additional keys.
aThe custom keys light up
permanently.
3.To adopt the change, short press
Moreto press.
aThe display shows the
paste keys permanently displayed.
20
