Bosch WAU28PH5NL User manual

Washing machine
WAU28PH5NL
[NL] User manual and
installation instructions
Translated from Dutch to English - www.onlinedoctranslator.com

NL
Refer to the Digital User's Guide for more
information.
Index
1 Safety................................................ 4
1.1 General instructions .................. 4
6 Before using for the first time ............... 20
6.1 Starting a wash cycle without
laundry................................... 20
1.2 Destination of the device
rate .................................. 4 7 Display .................................. 22
8 Buttons .................................. 25
9 Programs ................................ 28
10 Accessories................................ 32
1.3 Restriction of users ...... 4
1.4 Secure installation................................. 5
1.5 Safer use ......................... 7
1.6 Safe cleaning and
maintenance ......................................... 9
2 Avoiding material damage ...... 11 11 Laundry................................. 32
11.1 Preparing the laundry.......... 32
3 Environmental protection and saving
ring................................................. 12 12 Detergent and care
ginger.................................. 33
3.1 Disposing of the packaging .... 12
3.2 Saving on energy and
resources ................................... 12 13 The Ministry in Essentials.......... 33
13.1 Switching on the appliance .... 33
13.2 Set program ................ 33
3.3 Energy Saving Mode ........ 13
4 Set up and connection .................. 13
4.1 Unpacking the device .................. 13
4.2 Package contents.......... 13
13.3 Adjust program
settings ................................ 33
13.4 Saving program
settings ................................................ 34
4.3 Installation site
requirements ................................ 14 13.5 Loading the drum with
laundry ....................................... 34
4.4 Removing transport
locks ................................... 14 13.6 Dosing detergent and care
agent ........... 34

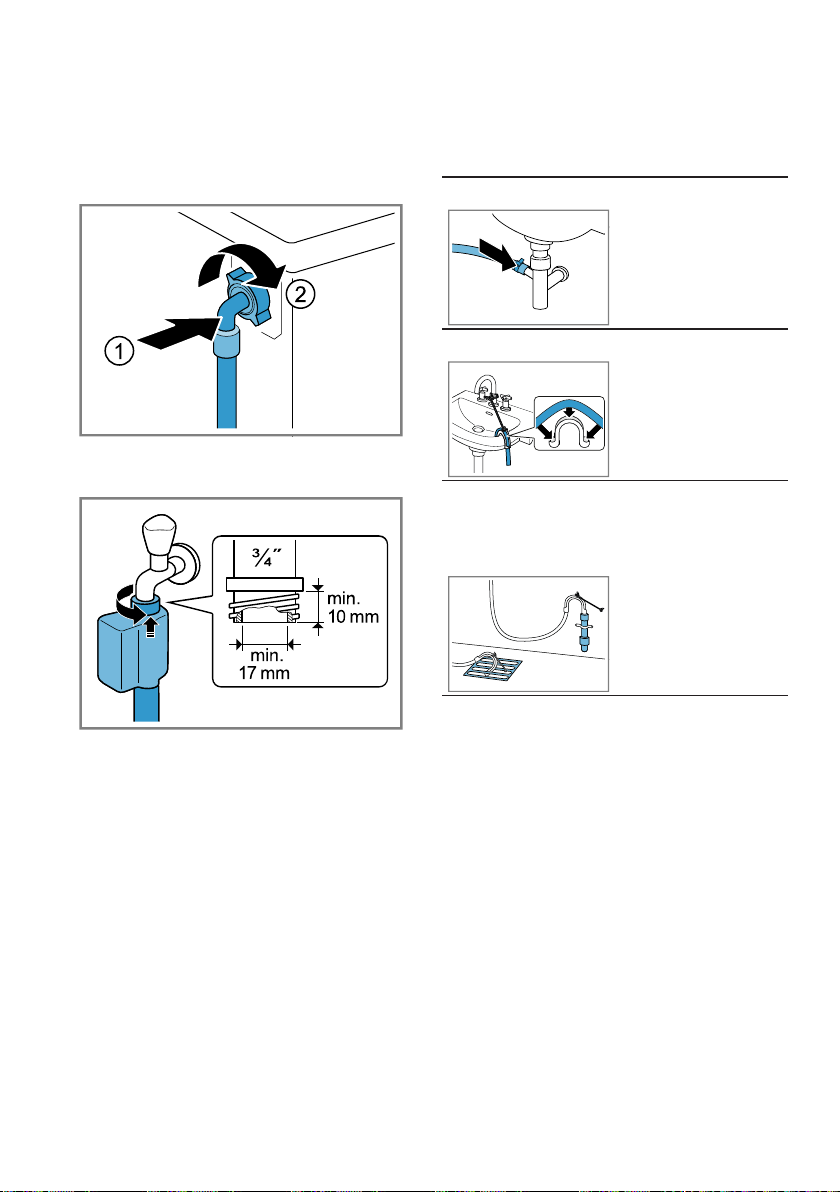

4.5 Connecting the device .................. 16

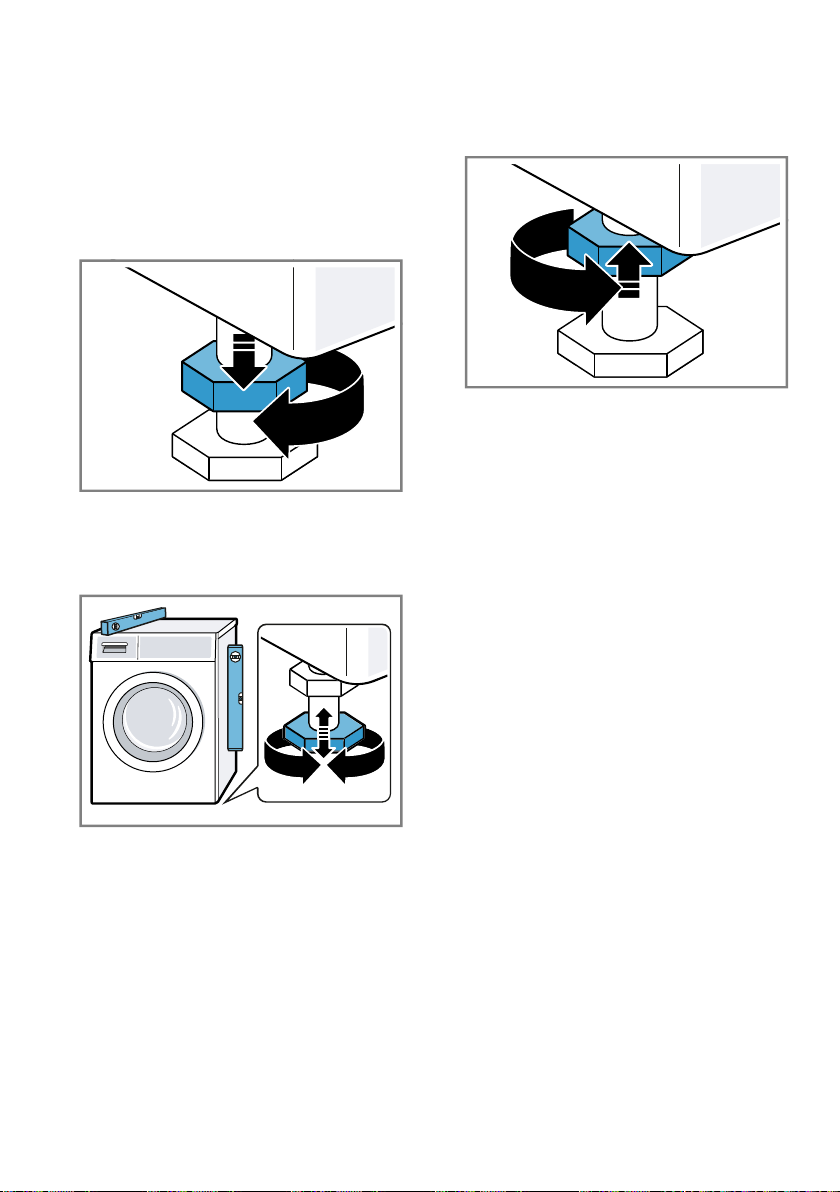

4.6 Adjusting the device .......... 17 13.7 Starting the program ... 34
13.8 Loading the laundry .................. 35
13.9 Program cancel.................. 35
13.10 Taking out the laundry ............... 35
13.11 Switching off the device ........ 35
4.7 Connecting the appliance
electrically................................................. 17
5 Getting to know your device.......... 18

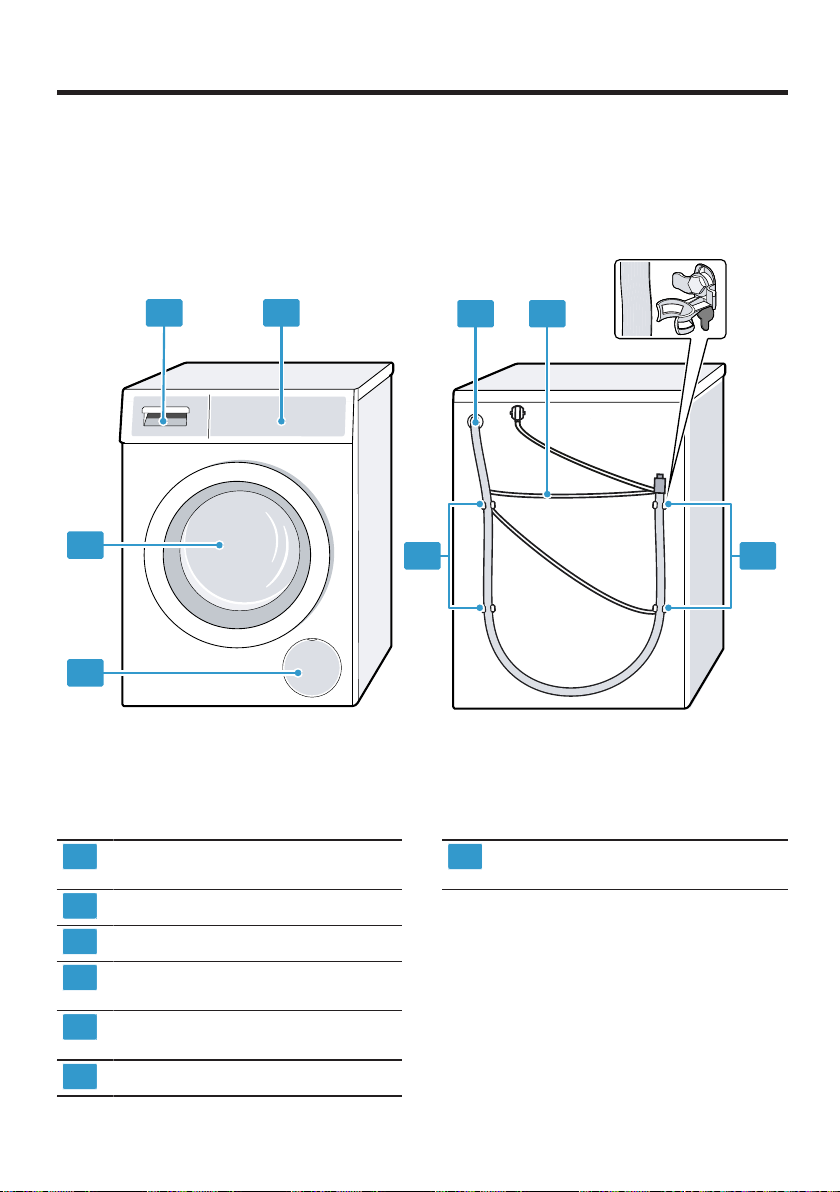

5.1 Device ................................... 18

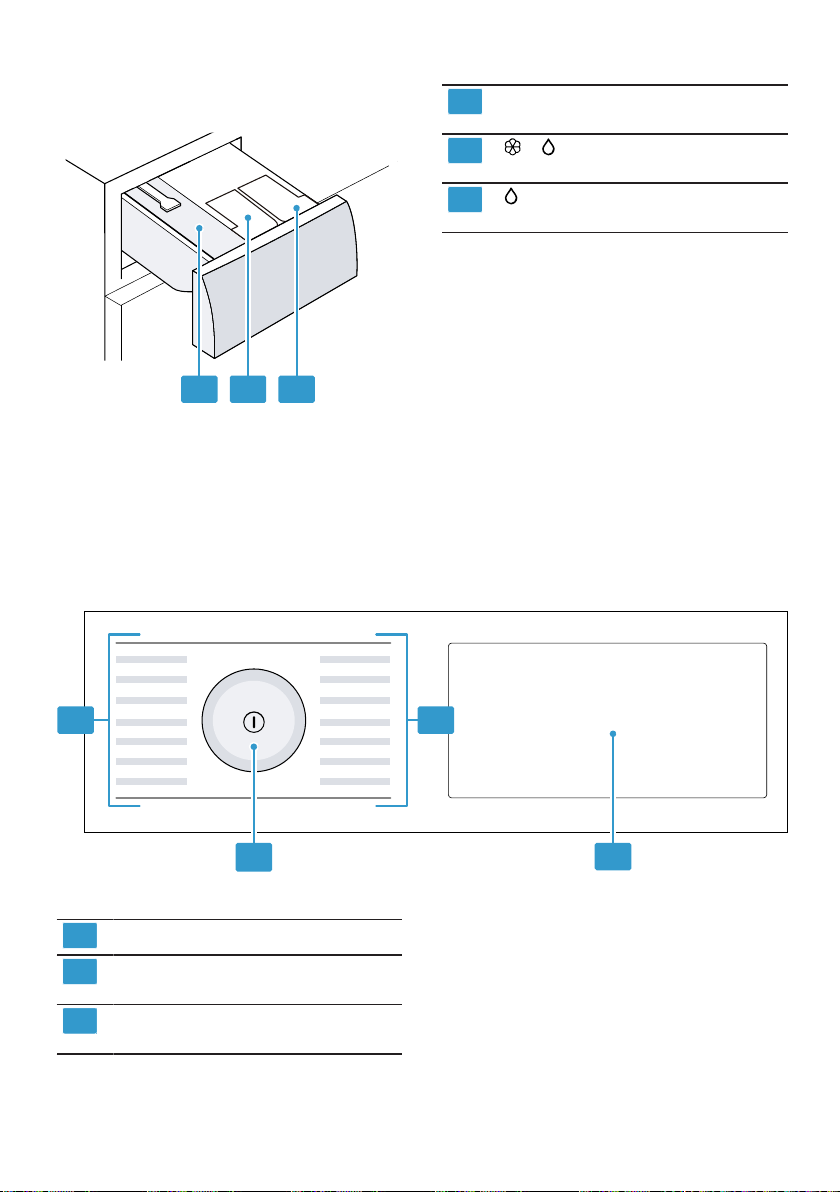

5.2 Detergent drawer................................. 19
5.3 Control panel..................... 19
5.4 Operating logic................................ 19
14 Child Lock .................................. 35
14.1 Switching on child lock ........... 35
14.2 Deactivating the child lock........... 35
2

NL
15 Intelligent dosing system ....... 36 21 Customer Service............................ 60
15.1 Starting the program with the
intelligent dosing system ........... 36
21.1 Product number (E no.) and
production number (FD) ........... 61
15.2 Filling the dosing container .......... 36 22 Consumption values .................. 62
23 Technical data.............. 63
24 Declaration of Conformity.......... 63
15.3 Contents of the dosing
reservoir..................................... 37
15.4 Basic dosing amount ........ 38
16 Home Connect ......................... 38
16.1 Device with WLAN home
network (WiFi) with WPS
connect function.................. 38
16.2 Connecting the device to a WLAN
home network (WiFi) without WPS
function........................... 39
16.3 Device with the Ho-
connect me Connect app ... 40
16.4 Activating WiFi on the
device................................................ 40
16.5 Deactivating WiFi on the
device ................................... 40
16.6 Resetting the device's network
settings ......................... 41
16.7 Remote start.......................... 41
16.8 Protection of personal
data ................................... 41
17 Basic settings .................. 42
18 Cleaning and maintenance .......... 42
18.1 Cleaning the drum ................... 42
18.2 Cleaning the detergent
drawer ................................ 42
18.3 Cleaning the drain pump................ 44
19 Troubleshooting ....................... 47
19.1 Emergency release ............... 59
20 Transport, store and
dispose of.................................. 59
20.1 Disassembling the device ............... 59
20.2 Installing transport
locks ............................... 59
20.3 Restarting the
appliance ................................. 59
20.4 Disposal of your old
appliance ....................................... 60
3

NLSafety
1 Safety
Observe the following safety regulations.
1.1 General instructions
†Please read this manual carefully.
†Keep the operating instructions and product information for future reference.
for use or for subsequent owners.
†Do not connect the device in case of transport damage.
1.2 Destination of the device
Only use the device:
†to wash machine-safe textiles and wool by hand
wash care label.
†with tap water and commercially available washing machine
detergents and maintenance products.
†for domestic use and in enclosed spaces within the
sly environment.
†to an altitude of 4000 m above sea level.
1.3 Restriction of users
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and/or knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the resulting hazards. understood. Children must
not play with the appliance.
Cleaning and user maintenance shall not be made by children
unless they are supervised.
Make sure that children up to 3 years old and pets cannot reach the
device.
4

SafetyNL
1.4 Secure installation
Observe the safety regulations when installing the device.
WARNING ‒ Risk of electric shock! Improper
installations are dangerous.
▶Connect and operate the device only in accordance with the
information on the type plate.
▶ Only connect the device to a mains supply with alternating
current via a properly installed earthing socket.
▶ The protective earth system of the electrical house installation must be
installed in accordance with the electrical engineering regulations. The
installation must have a sufficiently large conductor diameter.
▶ When using an earth leakage circuit breaker, only use a type
marked with .
▶ Never power the device via an external switching device, e.g. a
time switch or remote control.
▶ When the device is installed, the mains plug of the mains
connection cable must be freely accessible or, if free access is not
possible, an all-pole disconnecting device must be installed in the
permanently installed electrical system in accordance with the
installation instructions.
▶When setting up the device, make sure that the power cord is
not pinched or damaged.
Damaged power cord insulation is dangerous.
▶ Never bring the connecting cable into contact with hot
appliance parts or heat sources.
▶ Never bring the power cable into contact with sharp points or
edges.
▶ Never kink, pinch or alter the power cord.
WARNING ‒ Risk of fire!
Using an extended power cord and unauthorized adapters is
dangerous.
▶ Do not use extension cords or multiple sockets.
5

NLSafety
▶ If the power cord is too short, contact customer service.
▶Only use adapters approved by the manufacturer.
WARNING ‒ Risk of injury!
The heavy weight of the device can cause injuries when lifted.
▶ Do not lift the device alone.
If this appliance is installed incorrectly in a washer-dryer column,
the installed appliance may fall.
▶ Stack the dryer on top of a washing machine only with the dryer
manufacturer's connection kit. No other method of installation is
allowed.
▶ Do not install the appliance in a washer-dryer column if the dryer
manufacturer does not offer a suitable connection set.
▶ Do not install appliances from different manufacturers and with
different depths and widths in a washer-dryer column.
▶ Do not set up a washer-dryer column on a platform, the
devices can tilt.
WARNING ‒ Risk of suffocation!
Children can pull packing material over their head and become
entangled and suffocate.
▶Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION ‒ Risk of injury!
The device may vibrate or move during operation.
▶ Set up the device on a clean, flat and solid surface.
▶ Level the appliance using the appliance feet and a spirit level.
There is a tripping hazard with incorrectly laid hoses and mains
connection cables.
▶ Lay the hoses and connection cables in such a way that they cannot
be tripped over.
6

SafetyNL
If the appliance is moved by protruding parts, such as the loading
door, the parts can break off.
▶ Do not move the appliance by protruding parts.
CAUTION ‒ Risk of cutting!
Sharp edges on the device can cause cuts if touched.
▶Do not touch the device on sharp edges.
▶ Use protective gloves when installing and transporting the
device.
1.5 Safer use
WARNING ‒ Risk of electric shock!
A damaged appliance or power cord is dangerous.
▶ Never use a damaged device.
▶ Never pull on the power cord to disconnect the device from the
power supply. Always pull the plug on the power cord.
▶ If the appliance or the mains cable is damaged, immediately
unplug the mains cable from the socket or switch off the fuse in
the fuse box and close the tap.
▶ Contact customer service. Page 60 Penetrating moisture can
cause an electric shock.
▶ Only use the device in closed rooms.
▶ Never expose the device to excessive heat and humidity.
▶Do not use a steam cleaner, pressure washer, hoses or nozzles
to clean the appliance.
WARNING ‒ Risk of health hazard! Children can lock
themselves in the appliance and endanger their lives.
▶ Do not install the appliance behind a door that blocks or
prevents the opening of the appliance door.
7

NLSafety
▶ In the case of discarded appliances, remove the mains plug from
the socket, then cut the mains cable and damage the lock of the
appliance door so that the appliance door no longer closes.
WARNING ‒ Risk of suffocation!
Children can inhale or swallow small parts and choke.
▶ Keep small parts away from children.
▶ Do not allow children to play with small parts.
WARNING ‒ Risk of poisoning!
Detergents and care products can lead to poisoning if ingested.
▶In case of accidental ingestion, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
WARNING ‒ Risk of explosion!
If laundry has been pretreated with cleaning agents containing
solvents, this can lead to an explosion in the appliance.
▶ Rinse pre-treated laundry thoroughly with water before
washing.
CAUTION ‒ Risk of injury!
The cover plate may break when climbing or clambering on the
device.
▶ Do not climb or clamber on the device.
The appliance may tip over when sitting or leaning on the open
door.
▶ Do not sit or lean on the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the rotating drum can cause injury to hands.
▶ Wait for the drum to come to a complete stop before reaching inside the
drum with your hand.
8

SafetyNL
CAUTION ‒ Risk of burns!
The soap gets hot when washing at high temperatures.
▶Do not touch the hot soapy water.
CAUTION ‒ Risk of chemical burns! When opening the
detergent drawer, detergent and care products may splash out of
the appliance. Contact with eyes or skin may cause irritation.
▶ In case of contact with detergents or care products, rinse eyes
or skin thoroughly with clean water.
▶ In case of accidental ingestion, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
1.6 Safe cleaning and maintenance
Observe the safety instructions when cleaning and maintaining the
device.
WARNING ‒ Risk of electric shock! Improper
repairs are dangerous.
▶ Only qualified personnel may carry out repairs on the device.
▶ Only original spare parts may be used for repair of the device.
▶If the power cord of this appliance is damaged, it must be
replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard. Penetrating
moisture can cause a shock.
▶ Do not use a steam cleaner, pressure washer, hoses or nozzles
to clean the appliance.
WARNING ‒ Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use original spare parts and accessories from the
manufacturer.
9

NLSafety
WARNING ‒ Risk of poisoning!
Toxic fumes can be generated when cleaning agents containing
solvents are used.
▶ Do not use solvent-based cleaning agents.
10

Avoid material damageNL
▶Make sure that the internal
diameter of the water tap is at least
17 mm.
▶ Make sure that the thread length
on the connection to the water
tap is at least 10 mm.
Water pressure that is too low or too high can
interfere with the appliance function.
▶ Make sure that the water pressure
on the water supply system is at
least 100 kPa (1 bar) and at most
1000 kPa (10 bar).
▶ If the water pressure exceeds the
specified maximum value, a
pressure reducing valve must be
installed between the drinking
water connection and the hose set
of the device.
▶ Do not connect the device to the
mixer tap of a pressureless water
heater or boiler.
Modified or damaged water hoses can
lead to material damage and damage
to the device.
▶ Never kink, pinch, modify or cut
water hoses.
▶ Only use supplied water hoses or
original spare hoses.
▶Reuse never used water hoses.
Use with contaminated or too hot
water can cause material damage and
damage to the device.
▶ Only use the appliance with cold
tap water.
Unsuitable cleaning agents can
damage the surfaces of the device.
▶ Do not use sharp or abrasive
cleaning agents.
▶ Do not use strongly alcoholic
cleaning agents.
▶ Do not use hard scouring or
dishwashing sponges.
2 Material damage
avoid
Follow this instruction to avoid
material damage and damage to the
device.
PAY ATTENTION!
Incorrect dosage of fabric softeners,
detergents, care products and
cleaning agents can affect the
functioning of the appliance.
▶ Follow the manufacturer's dosing
recommendations.
Exceeding the maximum load
quantity affects the operation of the
appliance.
▶Observe and do not exceed the
maximum load for each
programme.
→ †Programs", Page 28
The device is secured for transport
with transport locks. Transport locks
that have not been removed can lead
to material damage and damage to
the device.
▶ Before commissioning, remove and
store all transport locks completely.
▶ Before every transport, install all
transport locks completely to avoid
transport damage.
Improper connection of the water
inlet hose can lead to material
damage.
▶ Tighten the screw connections on
the water supply hand-tight.
▶ It is best to connect the water inlet
hose directly to the water tap
without additional connecting
elements such as adapter,
extension, valve or the like.
▶Make sure that the valve housing of
the water inlet hose is installed
without contact with the
environment and that it is not
exposed to external forces.
11

NLEnvironmental protection and saving
▶ Clean the device only with water
and a soft, damp cloth.
▶ Remove all detergent residues,
spray mist or residues immediately
upon contact with the appliance.
Detergent according to the degree of
soiling of the laundry .
aFor a light to normal degree
of contamination, a small amount
of detergent is sufficient. Follow the
detergent manufacturer's dosing
recommendations.
3 Environmental protection and
savings Reduce washing temperature for
lightly and normally soiled laundry.
aAt low temperatures, it consumes
device less energy. For light to
normal soiling, lower
temperatures than those stated on
the care label are also sufficient.
3.1 Disposing of the
packaging
The packaging materials are
environmentally friendly and can be
reused.
▶Dispose of the individual components
separately according to type.
Set the maximum speed if the
laundry is subsequently to be dried
in the tumble dryer.
3.2 Energy- and resource-
efficient
aDryer laundry shortens the pro-
gramme time during drying and
reduces energy consumption. With
a higher spin speed, the residual
moisture in the laundry decreases
and the spinning sound volume
increases.
If you follow these directions, your
device will use less power and water.
Use programs with low temperatures
and longer washing times and use
the maximum load capacity.
Wash laundry without prewash.
aWashing with prewash extends
program duration and increases
energy and water consumption.
aThe energy consumption and water
consumption are the most efficient. The device has automatic load
matching.
Use economical program setting.
aThe automatic load matching
ming optimally adapts the water
consumption and program duration
to the type of textile and the load
capacity.
aWhen you set the program
For a programme, the display
shows the expected consumption.
12

Set up and connectNL
The device has an aqua sensor. 3.Open the appliance door.
→ †The Ministry in Essence",
Page 33
aThe aquasensor monitors during
the flush adjusts the turbidity of the
flush water and adjusts the duration
and number of flushing cycles
accordingly.
4.Remove the accessories from the
drum.
5.Close the appliance door.
4.2 Package contents
3.3 Energy Saving Mode After unpacking, check all parts for
transport damage and the
completeness of the delivery.
If you do not operate the device for a
longer period of time, it
automatically switches to energy-
saving mode.
The energy saving mode is exited
when you operate the device again.
If you do not operate the device
further, it will switch off.
PAY ATTENTION!
Use with incomplete or defective
accessories may impair the function
of the device or cause material
damage and damage to the device.
▶Do not use the device with
incomplete or defective accessories.
▶ Replace the accessories before
using the device.
→ †Accessories", Page 32
Remark:The device does not turn off
automatically when WiFi is activated.
Remark:The device has been checked
at the factory for correct operation.
Water stains may remain in the
device. The stains disappear after the
first wash.
4 Set up and connect
4.1 Unpacking device
PAY ATTENTION!
Objects that remain in the drum and
that are not intended for use with the
device can lead to material and device
damage.
▶Before use, remove all these items
and the supplied accessories from
the drum.
The delivery consists of: †
Washing machine
†Accompanying documents †
Transport protections
→ †Remove transport locks", page
14
†cover caps
†Water supply hose
→ †Connecting the water inlet hose",
page 16
1.Completely remove packaging
material and protection from the
device.
→ †Disposal of the packaging",
Page 12
2.Check the device for visible
damage.
13

NLSet up and connect
4.3 Installation site
requirements
installation site Requirements
Floor with wooden
beams
Place the device
guess at a
resistant
wooden plate (thick-
too minimal
30mm) which
screwed to the
floor.
WARNING
Risk of electric shock!
The device contains live parts.
Touching live parts is dangerous.
▶Do not use the appliance without
a cover. kitchen The device al-
borrow under a
continuous work
place sheet,
that fixed with the
adjacent
cabinet is connected
Pine tree. Required
niche width:
60 cm.
WARNING
Risk of injury!
When used on a plinth, the device can
tip over.
▶ The device feet for commissioning
on a plinth must be absolutely
with the fixings
→ Page 32 from the manufacturer.
on a wall no snakes
between wall and
clamping device
man.
PAY ATTENTION!
Freezing residual water in the device
can damage the device.
▶Do not place and use the device in
frost-sensitive places or outdoors.
If the device is tilted more than 40°,
residual water can run out of the
device and cause material damage.
▶ Carefully tilt the device.
▶ Transport the device upright.
4.4 Removing transport locks
The device is secured for transport
with transport locks at the rear of the
device.
Remark:Keep the screws of the
transport locks and the sleeves for
later transport
→ Page 59 †
installation site
Plinth
Requirements
The device with
locking lips
→ Page 32
confirm.
14

Set up and connectNL
1.Pull the hoses out of the holders. 4.Remove the 4 sleeves.
2.Loosen and remove all bolts of the 4
transport locks with a SW13 open-
end wrench
†
5.Install the 4 cover caps.
6.Push the 4 cover caps down.
3.Remove the mains connection cable from
the holder.
15

NLSet up and connect
4.5 Connecting the device Remark:Observe the pumping
heights.
The maximum pumping height bed
Connect water supply hose
1.Connect the water supply hose to the
appliance. The connection position
tie with a
hose clamp
(24-40 mm) bore
gene.
washbasin the water
feeding hose with
a bend
→ Page 32
fixate and
gene.
2.Connect the water inlet hose to the
tap (26.4 mm = 3/4"). plastic stand
pipe with rubber
run muff or a
floor drain
the water
feeding hose with
a bend
→ Page 32
fixate and
gene.
3.Open the tap carefully and check
that the connections are tight.
Connection types for water drainage
The information will help you to connect
this appliance to the water outlet.
PAY ATTENTION!
When draining, the water drain hose is
under pressure and can come loose from
the installed connection position.
know.
g against un-
gene.
▶The water drain hose
intended to loosen bor
16

Set up and connectNL
4.6 Adjusting the device 3.Tighten the lock nuts against the
housing with an open-end wrench
SW17 hand-tight.
To reduce noises and vibrations and to
prevent the device from walking, place
the device horizontally.
1.Loosen the lock nuts with a SW17
open-end wrench.
Hold the appliance foot while
doing so and do not adjust the
height.
4.7 Connecting the appliance
electrically
2.To adjust the appliance, turn the
appliance feet. Check the horizontal
adjustment of the appliance with a
spirit level.
Remark:Your home electrical
installation for this appliance must
comply with local legal and safety
regulations and must include an
earth leakage circuit breaker.
1.Insert the mains plug of the mains
cable of the device into a socket
in the vicinity of the device.
The connection data of the device
can be found in the technical data
→ Page 63 †
All appliance feet must be firmly
planted on the floor.
2.Check the mains plug for tightness.
17

NLGetting to know your device
5 Getting to know your device
5.1 Device
Here you will find an overview of the components of your device.
3 4 5 6
277
1
Depending on the device type, details in the picture may differ, e.g. the color
and m.the vor
1Service valve n pump
→ Page 44
e7Transport protections
→ Page 14
2Door
Detergent drawer → Page 19
3d
4Control p n
→ Page 19
a eel
5water drains ag
→ Page 16
l n
6mains connection abel →
Page 17
18

Getting to know your deviceNL
5.2 Detergent drawer 1Manual Dosing Compartment
2/ : Dosing container for
fabric softener or detergent
3: Detergent dispenser
1 2 3
5.3 Control panel
You can set all functions of your device and obtain information about the
operating status via the control panel.
1 1
2 3
1Programs →
Page 28
5.4 Operating logic
2Program selector
→ Pagina 33
Some areas of the display respond to
touch. You activate settings by
pressing the keys
e activated settings display
bright accent activated
settings
3to
p etching n → age 25 anddis-
play → Page 22
to press. d
are on it
honor. you can
19

NLusage
change or deactivate it by pressing
the corresponding button on the
display again.
5.Approx. Pour 1 liter of tap water into
the manual dosing compartment.
PAY ATTENTION!
Violent action on the display may
cause damage.
▶Do not exert strong pressure on
the display.
▶Do not press on the display with
pointed or sharp objects.
1 2
6.Put the powder detergent in the
manual dosing compartment.
g6
use
Before first use
gB
use
prepare the device for use
use.
To avoid foaming, use only half the
amount recommended by the
detergent manufacturer for light
soiling. Do not use wool or delicate
detergent.
6.1 Start the wash cycle
without laundry
Your device has been thoroughly
checked before leaving the factory. To
remove any residual water, wash
without any laundry the first time.
1.Press .
7.Slide the detergent drawer into the
appliance.
8.Press
to start the program.
(Start/Pause) to start the
The power-on process takes a few
seconds. aThe display shows the remaining
program duration.
aAfter the program end, it shows
display:end .
2.The programdrum cleaning
geneSet up.
3.the d
4.The W
e
a
ur close.
medium drawer pull out.
20
