BOTH LIGHTING Smart DJ S6 User manual

BO-S601
Smart DJ S6 6*18W RGBWA UV 6 in 1
Wireless DMX LED Uplight
USERMANUAL
Please read over this manual before operating the light

Introduction
Unpacking: Thank you for purchasing this product, all products has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the shipping carton for damage
that may have occurred during shipping. If the carton appears to be damaged, carefully inspect
your fixture for any damage and be sure all accessories necessary to operate the unit has arrived
intact. In the case damage has been found or parts are missing, please contact the manufacturer
or your dealer for further instructions. Do not return this unit to your dealer without first contacting.
Introduction: The Light is a DMX intelligent and battery powered LED par light. This par light is
light weight and compact which makes it a great piece for mobile DJ‟s and clubs.
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain
or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs
yourself; doing so will void your manufactures warranty. In the unlikely event your unit
may require service please contact the manufacturer or your dealer.
PLEASE recycle the shipping carton whenever possible.
General Instructions
To optimize the performance of this product, please read these operating instructions carefully to
familiarize you with the basic operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please keep this manual with the unit,
for future reference.
Notice :please pay attention to ventilation, to prevent the battery
overheat cause burning When charging.

Specifications
●Voltage: AC100V-250V 50/60Hz
●Power consumption:110W
●Lithium Battery:8800mAh
●Light source:6pcs 18W high brightness 6 in 1 Led
●LED angle:25 degree
●Color:16.7 million kinds of color change
●Control channels:6/10 chs
●Built in 2.4G receiver/ transmitter for wireless DMX operations
●Control mode: DMX512, master/slave, auto, sound active,IR control & WIFI Control
●Automatic model:color change,strobe,dimmer,gradual change change
●Operation menu: LCD display
●Packing size: 175*175*235mm
●N.W: 2.4kg
●G.W:3.1kg
Charging
Tip for the battery and charge:
● The battery can last for 3 hours when all LEDs on after full charge , and can last
for more than 6-7 hours on auto running mode. Up to 25 Hours with one color diode on.
Results will vary based on brightness of LEDs
● It is suggested to charge the battery for at least 4 hours, which will extend the life span of the
battery.
Most important: FIRST CHARGE THE FIXTURES FOR 6-7Hours on the First
Charge before use. Plug in Power cord. Turn off Power Switch and Turn off
other switch to charge.

Operation
MENU UP DOWN ENTER
There are four touch buttons under the LCD display: Menu, Down, Up, Enter. Normally, the LCD will
display the current DMX address code of the fixture. At this time, press Menu to enter the main
menu. Use the Up or Down buttons to navigate to the desired functions. Press Enter to select the
function you want to set up. Once the item has been selected, press Up or Down to scroll through
the various options. To select an option, press the Enter button. Then use the Up and Down buttons
to adjust the option settings. Once the adjustment is done, press Menu to exit back to the options
screen. Press Menu again to return to the main menu, and yet again to return to the start-up screen
displaying the DMX address code.

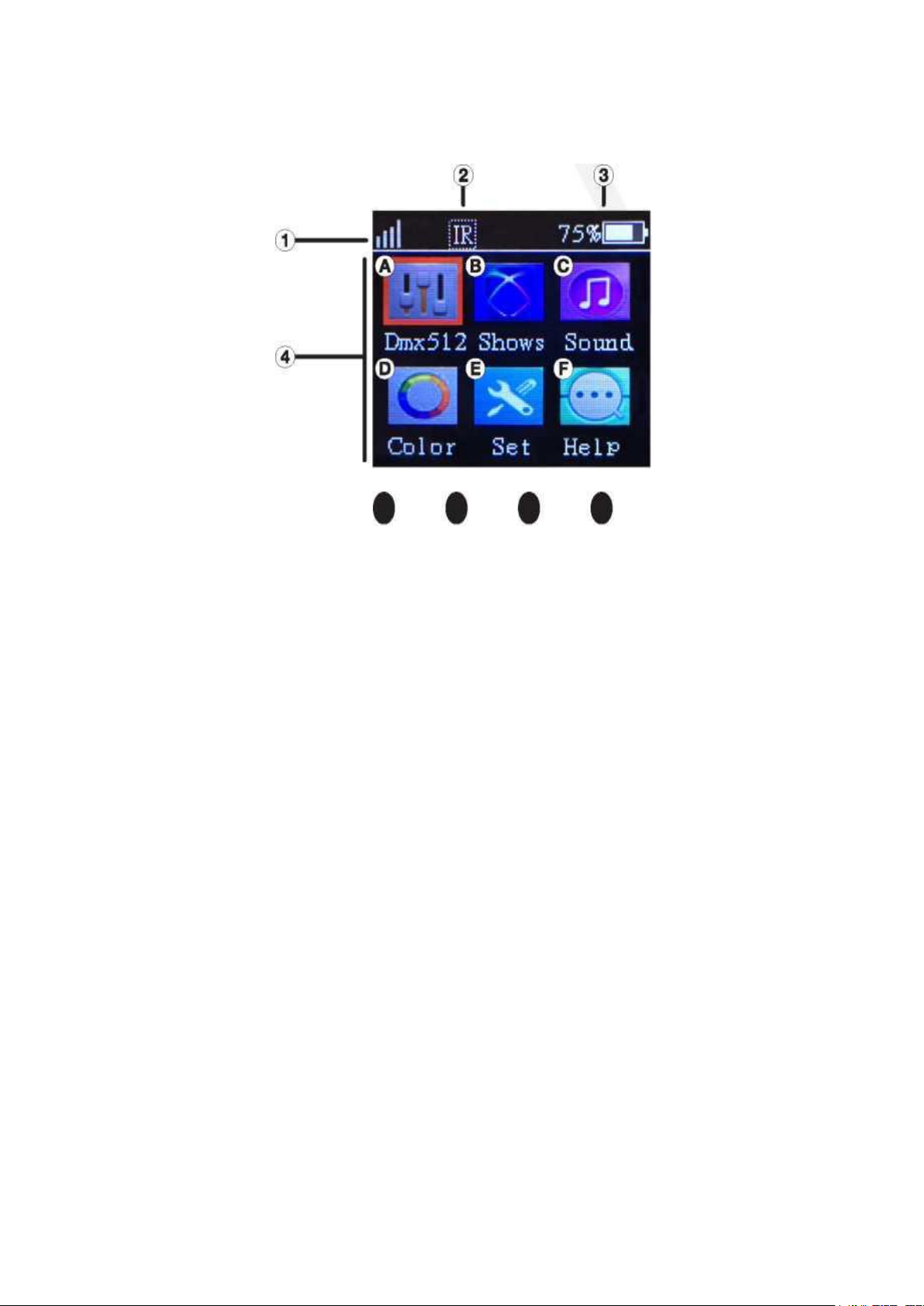

1. Wireless DMX signal strength
2. IR On/Off indicator. When the function is off, the IR icon will not be displayed.
3. Battery power indicators

4. Unit functions:
Unit
Function
A
DMX512
Use the Up and Down buttons to set the DMX address. Press Menu button to return
to the main menu.
B
Shows
Auto Mode
Speed
Use this menu to select one of the 4
Auto modes, Once you've
navigated to the desired mode,
press Enter to adjust the mode
speed using the Up and Down
buttons
Auto Color
0-99
Auto Fade
0-99
Auto Sudden
0-99
Auto Strobe
0-99
WiFi Mode
APP
C
Sound
Sound Mode
Sensitivity
Once you've navigated to the
desired mode, press Enter to adjust
the sound sensitivity level using the
Up and Down buttons. This will
determine how loud external sound
has to be to activate the fixture
Sound mode 1
0-100
Sound mode 2
0-100
Sound mode 3
0-100
Sound mode 4
0-100
D
Color
Custom Color
Here you can customize each individual color or you
can set the static color.
Use the Up and Down buttons to navigate to the
specific color, press Enter to select it, and then Up and
Down to set the color.
Static color
Preset color 1-32

E
Set
The settings
menu will allow
you to adjust the
following options
DMX channel
6/10 channel
2.4G wireless
On/off
Must be off for wired DMX controller operation
Infrared
turn function on/off
Display backlight
set backlight brightness
LCD close time
select the amount of time the LCD screen will remain
on before turning off to conserve power
Restore factory
to restore unit to original factory settings please enter
the following 4-digit code: 8888. Use the Up/Down
buttons to set digits and the enter button to move to
the next digit
Manual mode
Allows you to set brightness of each individual color.
To enter this mode use the following 4-digit code:
6666. Use the Up/Down buttons to set digits and the
enter button to move to the next digit
Battery
turn function on or off
Background color
choose from 8 background colors for the LCD screen.
E Help: displays important system information such
as unit name, software version, DMX channel setting,
total run time, and total user time
F
Help
displays important system information such as unit name, software version, DMX
channel setting, total run time, and total user time

Wireless Link Function
Setting Master Light
Select your master light.
Press the Menu button » choose Set» press Enter button » choose DMX channel, you can choose
6CH or 10CH. Please ensure that all the slave light channels are set to the same DMX channel as
the master light.
Press Menu button twice to return to the main menu.
Selecting Master Light Mode
You can choose from three modes: Shows, Sound, and Color. See unit functions section for mode
setting options.
Slave Light Settings
Turn on each slave light and set the DMX channel by following the instructions in step 2 of the
Setting Master Light section.
In main menu select DMX512 » press the Enter button » use the Up/Down buttons to set the light to
A001. Do this for each individual light All slave lights must be set to A001.
Once you've completed the procedures described above, the master lights wireless DMX signal
LED indicator should be red while the slave lights LED indicators should be green.
Noted: Make sure all the lights in the same wireless frequency.
The wireless Dmx signal has 7colors (red, green, yellow,blue,pink,cyan,white), each color means
one wireless group.
You can set and change the wireless Dmx group channel in the wireless Dmx signal button.

DMX Channel Functions
When using a DMX controller, use the chart below to reference each channel’s function.
Channel
6Channel mode
10 Channel mode
CH1
0 Off，1-255 Red Dimmer
0-255 Dimming
CH2
0 Off，1-255 Green Dimmer
0-255 Red dimming
CH3
0 Off，1-255 Blue Dimmer
0-255 Green dimming
CH4
0 Off，1-255 White Dimmer
0-255 Blue dimming
CH5
0 Off，1-255 Amber Dimmer
0-255 White dimming
CH6
0 Off，1-255 Purple Dimmer
0-255 Amber dimming
CH7
0-255 Purple dimming
CH8
0-255 Strobe
CH9
0-8 Close
9-50 Color selection mode
51-100 Auto Color mode
101-150 Auto Sudden mode
151-200 Auto Fade mode
201-220 Sound Mode1
221-240 Sound Mode2
241-255 Sound Mode3
CH10
0-255 Color and speed

Infrared remote control functions:
1, dimming up button
2, dimming down button
3, OFF closed light pause
4, ON light running
5, R, G, B, W, A, UV keys are 6 kinds of monochrome, up and down keys monotone light
6, 9 numeric keys for 9 static colors (AC 1...AC 9)
7, 0 key is a variety of color mixing keys, up and down keys to adjust 32 kinds of static
color mixing
8, AUTO button is the color jump function, the up and down keys adjust the speed
9, STROBE button is 6 kinds of monochrome strobe + white full strobe function, up and
down keys to adjust the speed
10, FADE key is the color mutation function, the up and down keys adjust the speed
11, SOUND button is the voice control function, up and down keys to adjust the voice
control mode 1, mode 2, mode 3, mode 4

WIFI mode of operation
In the "User Settings" screen, press the ENTER key, use the UP / DOWN keys
to select the "WiFi" (WIFI mode).Press ENTER button, there will be WiFi icon,
indicating that WiFi module is turned on, then you can set your phone to make the
connection control.Open the phone setup function, and find the wireless network
WLAN entry, to connect the device named LED_xxx.As the picture showed:
For IOS,Please search “Both Lighting” in app store.
For Android,Please Scan this QR code for download.

Battery Lasting Time (Preset color 1-32)
R
G
B
W
A
UV
BO-S601 SMART DJ S6
BATTERY LASTING TIME
(h/min)
COLOR 1
255
0
0
0
0
0
25h49m
COLOR 2
0
255
0
0
0
0
15h06m
COLOR 3
0
0
255
0
0
0
12h58m
COLOR 4
0
0
0
255
0
0
14h26m
COLOR 5
0
0
0
0
255
0
18h04m
COLOR 6
0
0
0
0
0
255
17h44m
COLOR 7
255
255
0
0
0
0
10h43m
COLOR 8
255
0
255
0
0
0
11h29m
COLOR 9
255
0
0
255
0
0
10h45m
COLOR 10
255
0
0
0
255
0
14h46m
COLOR 11
0
255
255
0
0
0
7h53m
COLOR 12
0
255
0
255
0
0
7h58m
COLOR 13
0
255
0
0
255
0
8h35m
COLOR 14
0
0
255
255
0
0
7h32m
COLOR 15
0
0
255
0
255
0
7h55m
COLOR 16
0
0
0
255
255
0
7h49m
COLOR 17
255
255
255
0
0
0
6h30m
COLOR 18
255
255
0
255
0
0
6h20m
COLOR 19
255
255
0
0
255
0
6h43m
COLOR 20
255
0
255
255
0
0
6h20m
COLOR 21
255
0
255
0
255
0
6h45m
COLOR 22
255
0
0
255
255
0
6h40m
COLOR 23
0
255
255
255
0
0
5h08m
COLOR 24
0
255
255
0
255
0
5h40m
COLOR 25
0
255
0
255
255
0
5h36m
COLOR 26
0
0
255
255
255
0
5h32m
COLOR 27
255
255
255
255
0
0
4h50m
COLOR 28
255
255
255
0
255
0
4h53m
COLOR 29
255
255
0
255
255
0
4h57m
COLOR 30
255
0
255
255
255
0
5h03m
COLOR 31
0
255
255
255
255
0
4h16m
COLOR 32
255
255
255
255
255
255
3h15m
