BougeRV CR03512 User manual

Dual Door Series
Capacity
35/45/55L
Please read this manual carefully before use and keep it properly for
further reference.

Contents
1 Package Contents
2 Safety Instructions
3 Preparing Before Use
4 Product Introduction
4.1 Product Features
4.2 Product Size
4.3 Product Structure
4.4 Reverse Door Opening Direction
5 Operation Instruction
5.1 Power Supply
5.2 Display Screen Initialization
5.3 Turn On/Off
5.4 Temperature Setting
5.5 MAX/ECO Mode Switching
5.6 Temperature Unit Switch
5.7 Car Battery Protection Setting H/M/L
6 Car Battery Protection(H/M/L) Voltage Reference
7 Error Code Problems and Troubleshooting
8 Cleaning and Storage
9 FAQ
10 Warranty and Maintenance
11 Specification
12 APP Control
---------------------------------------------------------------------Page1
--------------------------------------------------------------------Page2
-----------------------------------------------------------------Page3
------------------------------------------------------------------Page3
------------------------------------------------------------------------------------------------------------Page3
-------------------------------------------------------------------------------------------------------------------Page3
-----------------------------------------------------------------------------------------------------------Page6
-------------------------------------------------------------------------------------Page8
----------------------------------------------------------------Page9
------------------------------------------------------------------------------------------------------------------Page9
--------------------------------------------------------------------------------------------Page9
---------------------------------------------------------------------------------------------------------------------Page9
-------------------------------------------------------------------------------------------------------Page9
-------------------------------------------------------------------------------------------Page10
----------------------------------------------------------------------------------------------Page10
---------------------------------------------------------------------------Page11
------------------------Page11
----------------------------------Page14
-------------------------------------------------------------Page15
-------------------------------------------------------------------------------------Page16
------------------------------------------------------Page18
------------------------------------------------------------------------Page19
-------------------------------------------------------------------------Page20

1 Package Contents
1
User Manual 12/24V DC
Power Cord
110/220V AC
Power Adapter
Dual Door Series
Capacity
35/45/55L
Please read this manual carefully before use and keep it properly for
further reference.
Car Refrigerator

WARNING! Failure to obey these warnings could result in the malfunc-
tion of your device and possible injury to yourself and other users.
NOTICE!
· Do not operate the device if it is visibly damaged.
· Do not block the gaps of the device with small items like pins, wires, etc.
· Do not expose the device to rain or soak it in water.
· Do not place the device near naked flames or other heat sources (heaters, direct
sunlight,gas ovens etc.)
· Do not store explosive substances like spray cans with flammable propellants in the
device.
· Before starting the device, ensure that the power supply line and the plug are dry.
· Check if the voltage specification on the nameplate matches the power supply voltage
specification.
· Before starting the device, it must be left horizontal for more than 12 hours.
· Make sure that the device stays horizontal when it is running. The tilt angle must be
less than 5° for a long time running and less than 45° for short time running.
· The refrigerator must be well-ventilated for heat dissipation and make sure to keep
some space around it (Back Space 200mm, Side Space 100mm).
· The device may only be repaired by Qualified personnel. Improper repairs can lead to
safety hazards. If the power cable is damaged, it must be replaced by the manufacturer,
customer service, or a similarly Qualified person in order to prevent safety hazards.
· The device can be used by children aged eight years and over, as well as by persons
with reduced physical, sensory or mental abilities or lack of experience and knowledge.
However, they must be supervised during use or they must have been adequately
taught how to use the fridge safely and have been made aware of the risks involved
before using it.
· Children must be supervised to ensure that they do not play with the device.
· Disconnect the device or switch it off when you turn off the engine. Otherwise, you
may discharge the battery.
CAUTION!
·Food is suggested to be stored in its original packaging or in suitable containers.
· Set a suitable temperature for food stored in the device. Refer to the recommended
temperature for common food on Page11.
2 Safety Instructions
2

3 Preparing Before Use
1. Unpackage and take out the accessories, and let the device stand for 12 hours.
2. Before using it for the first time, clean the inside and outside of the car refrigerator
with a damp cloth and wait until it gets dry.
3. Place your refrigerator in a proper position which depends on your use scenario
（car, truck, RV, camper, Van, Jeep, SUV, boat, home, etc.）
4. According to your use scenario, please choose the right power cord (AC cord or
DC cord) for the right power supply. Please read the next part carefully for the details.
4 Product Introduction
4.1 Product Features
· High-efficiency DC compressor and conversion module.
· CFC free and great heat insulation.
· Fast cooling to -20°C / -4°F (based on 25°C / 77°F room temperature).
· LCD digital display for temperature setting.
· Dual compartments with individual temperature control.
· Three stage battery protection system prevents vehicle run out of battery.
3
4.2 Product Size
Capacity: 37Quart / 35L
Dimensions:
With handle: 28*18.1*17.4 in
(71.1*46*44.1cm)
Without handle: 23.6*15.7*17.4 in
(60*40*44.1cm)
Big zone: 12.2*10.6*13.5 in
(30.9*26.9*34.3cm)
Small zone: 12.2*7.9*6.6 in
(30.9*20*16.7cm)
N.W.: 40.7lb(18.44kg) 18.1
15.7
12.2
28
23.6
10.6 7.9
17.4
13.5
6.6

Capacity: 48Quart / 45L
Dimensions:
With handle: 28*18.1*19.9 in
(71.1*46*50.6cm)
Without handle: 23.6*15.7*19.9 in
(60*40*50.6cm)
Big zone: 12.2*10.6*16.1 in
(30.9*26.9*40.8cm)
Small zone: 12.2*7.9*9.1 in
(30.9*20*23.2cm)
N.W.: 42.3lb(19.19kg)
Capacity: 59Quart / 55L
Dimensions:
With handle: 28*18.1*22.5 in
(71.1*46*57.1cm)
Without handle: 23.6*22.5*19.9 in
(60*40*57.1cm)
Big zone: 12.2*10.6*18.6 in
(30.9*26.9*47.3cm)
Small zone: 12.2*7.9*11.7 in
(30.9*20*23.2cm)
N.W.: 43.2lb(19.61kg)
4
Capacity: 37Quart / 35L
Dimensions:
With handle: 25.5*15.7*17.4 in
(64.7*40*44.1cm)
Without handle: 23.6*15.7*17.4 in
(60*40*44.1cm)
Big zone: 12.2*10.6*13.5 in
(30.9*26.9*34.3cm)
Small zone: 12.2*7.9*6.6 in
(30.9*20*16.7cm)
N.W.: 35.6lb(16.14kg)
18.1
15.7
12.2
18.1
15.7
12.2
15.7
15.7
12.2
28
23.6
10.6 7.9
19.9
16.1
9.1
28
23.6
10.6
7.9
22.5
18.6
11.7
25.5
23.6
10.6 7.9
17.4
13.5
6.6

5
Capacity: 48Quart / 45L
Dimensions:
With handle: 25.5*15.7*19.9 in
(64.7*40*44.1cm)
Without handle: 23.6*15.7*19.9 in
(60*40*50.6cm)
Big zone: 12.2*10.6*16.1 in
(30.9*26.9*40.8cm)
Small zone: 12.2*7.9*9.1 in
(30.9*20*23.2cm)
N.W.: 36.4lb(16.5kg)
Capacity: 59Quart / 55L
Dimensions:
With handle: 25.5*15.7*22.5 in
(64.7*40*44.1cm)
Without handle: 23.6*22.5*19.9 in
(60*40*57.1cm)
Big zone: 12.2*10.6*18.6 in
(30.9*26.9*47.3cm)
Small zone: 12.2*7.9*11.7 in
(30.9*20*23.2cm)
N.W.: 37.9lb(17.2kg)
25.5
23.6
10.6 7.9
19.9
16.1
9.1
25.5
23.6
10.6
7.9
22.5
18.6
11.7
15.7
15.7
12.2
15.7
15.7
12.2

*there are buttons on both sides of the telescoping hand, which can be pressed at the
same time to pull the rod.
6

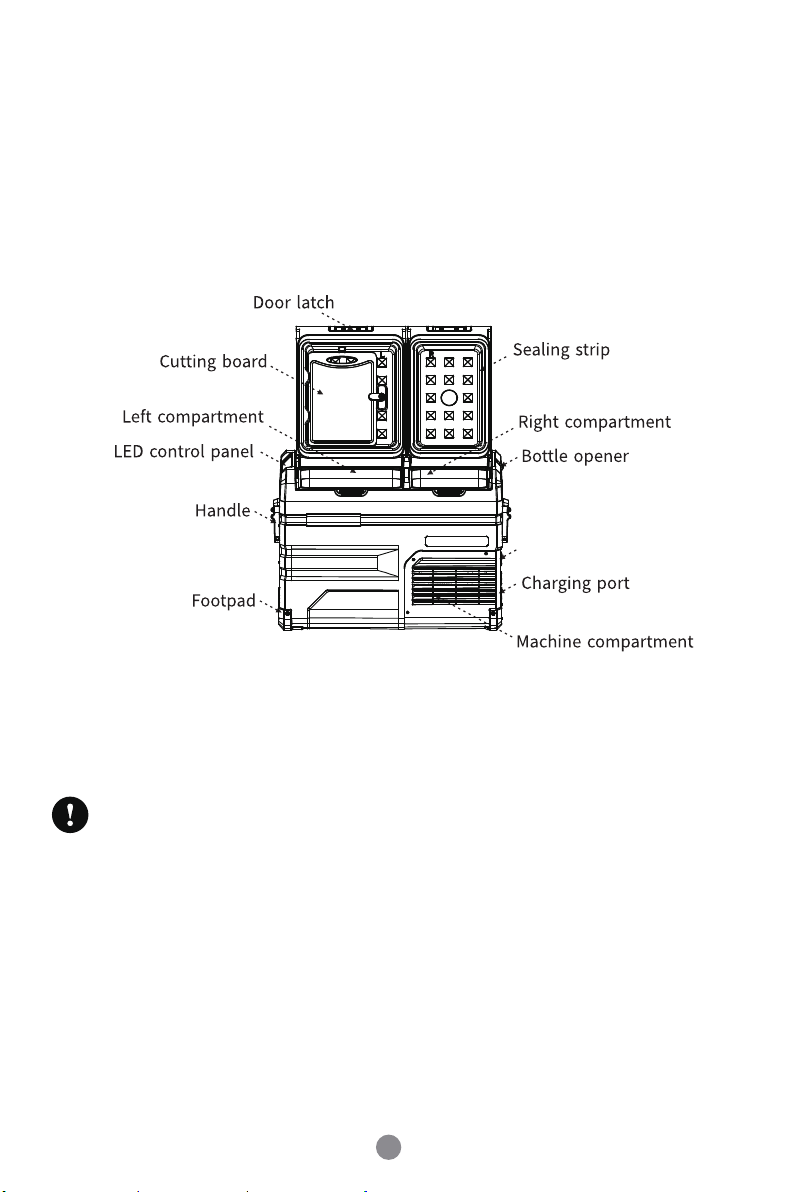

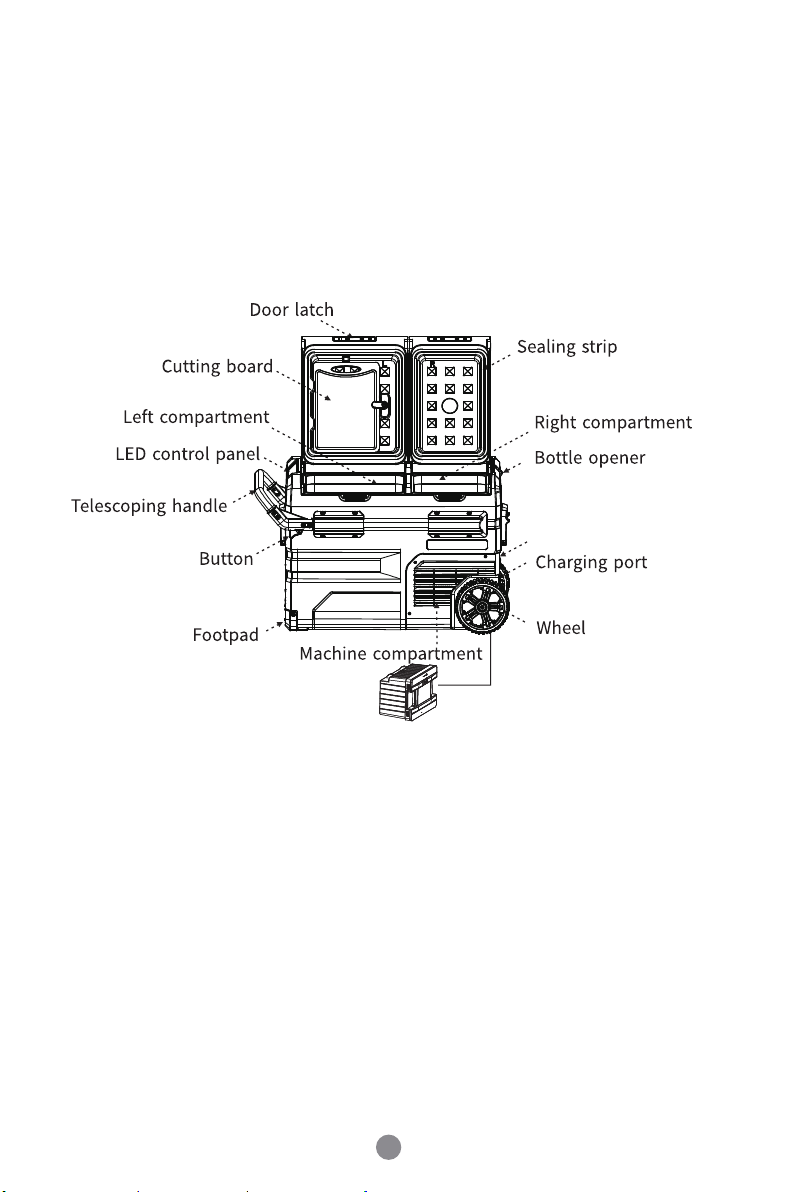

4.3 Procuct Structure
*Model:CR03512/ CR04512/ CR05512
If you need the BougeRV battery, please
search for it on Amazon or bougerv.com
Detachable battery
(NOT INCLUDE)

7
*Model:CR03512/ CR04512/ CR05512
Detachable battery
(NOT INCLUDE)
*Removable battery: press the left and right to remove/insert the battery, it will be
heavy in your hand, which is recommended to be hold with carefully and take it out
gently.
*The cutting board can be moved by turning the knob on the top cover, it is suggested
to clean and dry it after every use.
Note: the package does not include the battery. If you are interested,
please search "BougeRV battery" on Amazon or bougerv.com

8
The door opening direction can be changed according to actual needs, please follow
the instructions below:
Door Disassembly:
Door Installation:
4.4 Reverse Door Opening Direction

9
5 Operation Instruction
5.1 Power Supply: Connect to 12V/24V DC power, 100-240V AC power(using the
adapter), or use a backup lithium battery which can be recharged by solar(12~50V).
5.2 Display Screen Initialization: Connect to the power supply, the buzzer will make
a long beep, and the display will be on for 2 seconds then enter the normal operating
mode.
5.3 Turn On/Off: Short press to turn it on; Press and hold for 3 seconds to
turn it off.
5.4 Temperature Setting
5.4.1 Temp adjustment of the left compartment: When both left and right compart-
ments are set in running state, press or to enter the left compartment
temperature setting, press to increase temperature, and press to decrease
temperature.
5.4.2 Temp adjustment of the right compartment: Press or , when the temp
on the left flash, press to switch left/right compartment. When the temp on the
right is flash, you can press the or adjust the temp. The setting will be saved
after stopping operating for four seconds.
(Note: the temperature displayed is the current temperature of the compartments, it1 ll
take a while to reach the set temperature.)
5.4.3 Compartment ON / OFF: Under the running state, long press and at the
same time for three seconds to switch ON/OFF the left compartment, long press
and at the same time for three seconds to switch ON/OFF the right compartment,
two compartments cannot be switched off at the same time.

10
5.5 MAX/ECO Mode Switching: Under the running state, press to switch
MAX(fast cooling) and ECO (Energy saving Mode). (*Factory setting is MAX.)
5.6 Temperature Unit Setting: Switch off the fridge, long press for three
seconds until E1 displays, then switch to E5 by pressing again. Under E5 mode,
press or to select Celsius or Fahrenheit. (*Factory setting is °F.)
Reset: Switch off the fridge, long press for three seconds until E1 displays, under
E1 mode, and long press and at the same time for three seconds to reset it.

11
Voltage Reference:
5.7 Car Battery Protection Setting H/M/L: Under the running state, long press
for three seconds until the screen flashes, then press again to select protection
mode H(High), M(Middle), and L(Low).
(*Factory setting is H.)
6 Car Battery Protection(H/M/L) Voltage Reference
Due to the different output voltages between vehicles, H should be set when the
product is connected to car power, and M or L should be set when it is connected to a
portable power station or other backup battery.
The battery gear should be set from H to M or from M to L if there is a voltage protec-
tion code F1 shown on the panel. The battery gear should be set to H if the product
keeps working after turning off the car engine, or the product may drain the battery.
*the voltage is theoretical value, there may be a deviation in different sceneries.
*USB output: +5V DC/1A, suitable for small devices like mobile phones, tablets, etc.

12
Note: the package does not include the battery. If you are interested,
please search "BougeRV battery" on Amazon or bougerv.com.
· Battery ON/OFF: Long press the power button of the battery to turn it on/off, and short
press to display the current battery.
Wall outlet AC 100*240V
(using the dedicated adapter)
(Charging time≈8h)
E0404-17301

13
· Battery Saving: It is recommended to fully charge the refrigerator before your depar-
ture, and you can put your food & beverages in the refrigerator in advance so that the
battery can last longer. Unplug the battery or turn it off to prevent self-discharge when
not in use. *If the refrigerator won' t be in use for a long time, fully charge the battery
and turn it off.
· Discharging time (for reference only): In the low battery protection mode, the battery
can last about 4 hours after being fully charged. When the temperature of the refrigera-
tor is set between 2~8°C (ambient temperature 25°C), it can last 10 hours after the
internal temperature stabilizes. Remove or switch off the battery to prevent self-dis-
charge when not in use.
· Instruction for solar charging
Insert the solar charge cable into the refrigerator's “SOLAR” terminal.
MAX Solar Input Voltage: 50V; MAX Solar Input Current: 10A.
When connecting to a solar panel, please place the refrigerator in a cool place to
dissipate heat. The battery icon on the refrigerator display will show the charging status
when the battery is charging.
The charging input power should be higher than the working power of the refrigerator
(about 40-45W), or turn off the refrigerator to enter the standby state, otherwise the
battery will not be able to charge. It is recommended to use 100W solar panel.

14
7 Error Code Problems and Troubleshooting
Issues
Refrigerator does not
work
Refrigerator compart-
ments are too warm
Food is frozen
A "water flow" noise
from inside the fridge
There are waterdrops
around the refrigerator
casing or door gap.
The compressor is
slightly noisy when
starting
Code F1 displayed
Code F2 displayed
Code F3 displayed
Code F4 displayed
Code F5 displayed
Code F6 displayed
Code F7 or F8 displayed
Suggestions
Check if the switch is on.
Check if the plug and socket are connected well.
Check if the fuse has been burnt.
Check if the power supply has malfunctioned.
Switching on/off the fridge frequently may cause a start
delay of the compressor.
The door is opened frequently.
A large amount of warm or hot food was stored recently.
Wait for the refrigerator to reach its selected temperature.
The refrigerator has been disconnected for a while.
The temperature was set too low, please increase the
temperature.
It's a normal phenomenon, caused by the flow of refriger-
ant.
It's a normal phenomenon, the moisture will condense to
water when it touches the cold surface of the refrigerator.
It s a normal phenomenon, the noise will be reduced after
the compressor works stably.
Possible cause low voltage to the fridge. Adjust the battery
protection from H to M or from M to L.
Possible cause: condenser fan is overloaded.
Disconnect power to fridge for 30 minutes & re-start.
Possible cause: the compressor starts too frequently.
Disconnect power to fridge for 30 minutes & re-start.
Possible cause: compressor not kicking in.
Disconnect power to fridge for 30 minutes & re-start.
Possible cause: overheating of the compressor &
electronics.
Disconnect power to fridge for 30 minutes & re-start.
Possible cause: no parameter can be detected by the
controller.
Disconnect power to fridge for 30 minutes & re-start.
Possible cause: temperature sensor is faulty.
Contact manufacturer for service.

15
8 Cleaning and Storage
■Cleaning
·Unplug the device first to avoid electric shock.
·Use a wet cloth to clean the device and dry it.
·Remove the cover and drain from the hole at the bottom of the device.
·Do not soak the device in water and do not wash it directly.
·Do not use abrasive cleaning agents as these can damage the device.
■Storage
If the device will not be in use for a long time, please follow the steps:
·Turn off the power and remove the plug.
·Remove all the items stored in the device.
·Remove the cover and drain from the hole, wipe off excess water with a soft rag.
·Leave the lid slightly open to prevent odors from forming.
·Put the device in a cool and dry place.
■Defrosting
Humidity can form frost in the interior of the cooling device or on the evaporator, which
will affect the cooling performance. Defrost the device regularly to avoid this.
·Switch off the device.
·Take out the contents of the device.
·Keep the lid open.
·Remove the cover and drain from the hole.
·Wipe off the defrosted water.
Never use hard or sharp tools to remove ice or to loosen objects which
have frozen in place.

16
9 FAQ
Q1: Is there a cover for this refrigerator?
A1: Yes, there is. You could search for "BougeRV 37/48/59 quart fridge cover" on
Amazon.
Q2: Does it come with a battery installed?
A2: No, this refrigerator does not come with a battery. Our batteries are sold separately.
You can search "BougeRV battery" on Amazon or bougerv.com
Q3: How to connect the APP?
A3: First Step: Turn on the Bluetooth on your smart device; start the APP and click"
Search" to find nearby fridges.
Second Step: Click the fridge icon for Bluetooth pairing (the APP will prompt you to pair
the fridge by pressing the set button on the fridge's control panel when connecting the
fridge for the first time).
After pairing, the APP will switch to the main interface allowing you to control the
fridge.
Q4: How much is the power consumption of the refrigerator?
A4: It is divided into ECO and MAX. The ECO mode is 45W; the MAX mode is 60W.
Q5: What's the Outside temperature range this can be safely used?
A5: Temperature range: 50°F~122°F.
Q6: What is the adjustable temperature range of the refrigerator?
A6: -4 ~68°F.
Q7: How long does it take to cool down to the lowest temperature?
A7: The cooling rate depends on whether the refrigerator is empty or loaded. It usually
takes about an hour and a half for the empty box to reach the lowest temperature. The
more things in the refrigerator, the slower the cooling speed.

17
Q8: Does the fridge have to be plugged in for use?
A8: Yes, it must.
Q9: How long can the temperature be maintained after unplugging?
A9: Depends on the ambient temperature around it. If the compartments are filled, it will
take longer to warm. If it's empty, it's quick to warm.
Q10: How long can this continuously be run safely?
A10: As long as the power supply is maintained, our portable refrigerators can work 24
hours/ a day, just like home refrigerators.
Q11:Will it keeps ice cream frozen?
A11: Yes. By setting the temperature below 0°F, you can keep the ice cream frozen.
Q12: Can I make ice with ice cube trays?
A12: Yes. The internal temperature of this portable refrigerator is adjustable from -4°F
to 68°F. You can get ice cubes by setting the temperature below 32°F.
Q13: Can I get a new replacement if the parts of my refrigerator malfunction?
A13: Sure, we provide a 2-year warranty.
Q14: How can I register for the warranty on my refrigerator?
A14: You can contact our email "[e-mail] / bouger[email protected], and we
will give you the corresponding solution according to your problem."
