BougeRV 53 Quart User manual

For Portable Car Refrigerator
BougeRV 53 Quart / 42 Quart / 31 Quart

1. Safety Instructions Page1
2. Product Features Page2
3. Product Structure Page2
4. Preparing Before Use Page3
5. Function and Operation Page3
6. Car Battery Protection Voitage Reference Page5
7. Cleaning and Storage Page6
8. Troubleshooting and Error Problems Page6
9. Warranty and Maintenance Page9
10. Technical Information Page10

①
①
Compressor cooling hole
②
②
Fuse
③
③
Power interface
④
④
Three-level switch for battery protection
⑤
⑤
Elastic handle
⑥
⑥
Digital touch screen & Control panel
⑦
⑦
Seal rubber ring
⑧
⑧
Refrigerator cabinet

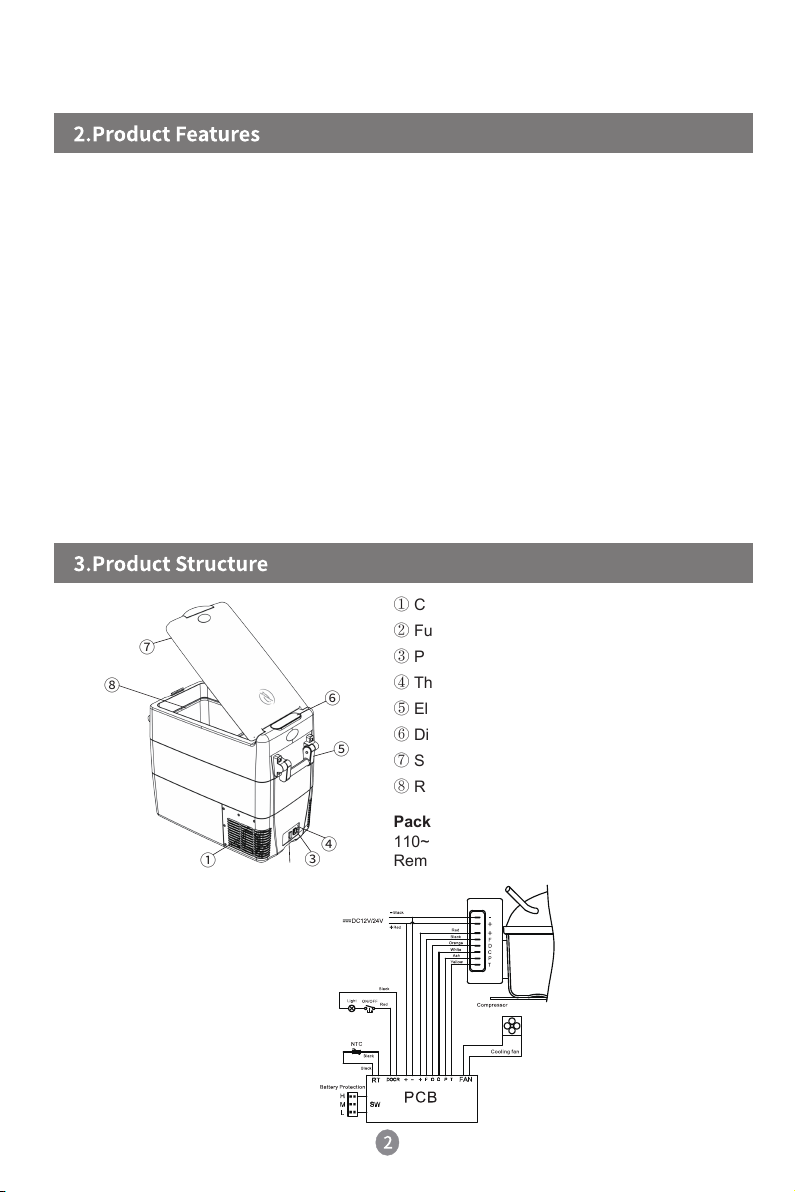

Car Refrigerator Electrical Schematic
Package included: 12/24V DC power cord,
110~240V AC power cord, User Manual,
Removable Basket.
Multiple Application Scenarios: you can use the fridge on various vehicles such as SUV,
Truck, RV, Camper, Jeep, Van, Boat, etc. You can take it with you, during camping,
tailgating, road trips， outdoor travels, off road, even at home.
Freezer or Refrigerator: with temp range -4 ℉~50℉, you can use it as a freezer or
refrigerator.
Energy Efficiency: with ECO energy saving mode, the operating mode is less than 45W.
It comsumes far less than 1kwh/day for its intelligent cycle work.
Fast Cooling with Compressor Refrigeration: running on Max mode in empty condi-
tion, the freezer could achieve 16 min fast cooling from 77℉ to 32℉ and 50 min from 77
℉ to -4℉.
3-level battery protection mode: the battery monitor will shut off the fridge/freezer as
soon as the supply voltage falls below the set level.
45dB Low Noise: the fridge is designed low noise to make sure you a good sleep after a
long driving.

Power Supply
1. Unpackage and take out the accessories, let it stand 24 hours.
2. Before using it for the first time, clean the inside and outside of the car refrigera-
tor (basket as well) with a damp cloth and wait until it gets dry.
3. Place your refrigerator at a proper position which depends on your use scenario
（car, truck, RV, camper, Van, Jeep, SUV, boat, home, etc.）
4. According to your use scenario, please choose the right power cord (AC cord or
DC cord) for the right power supply. Please read the next part carefully for the
details.
Connect to 12/24V DC power ( use in car, truck or power station)
Conect to 110~240V AC power( use at home with ac adapter)
4.Preparing Before Use
5.Function and Operation

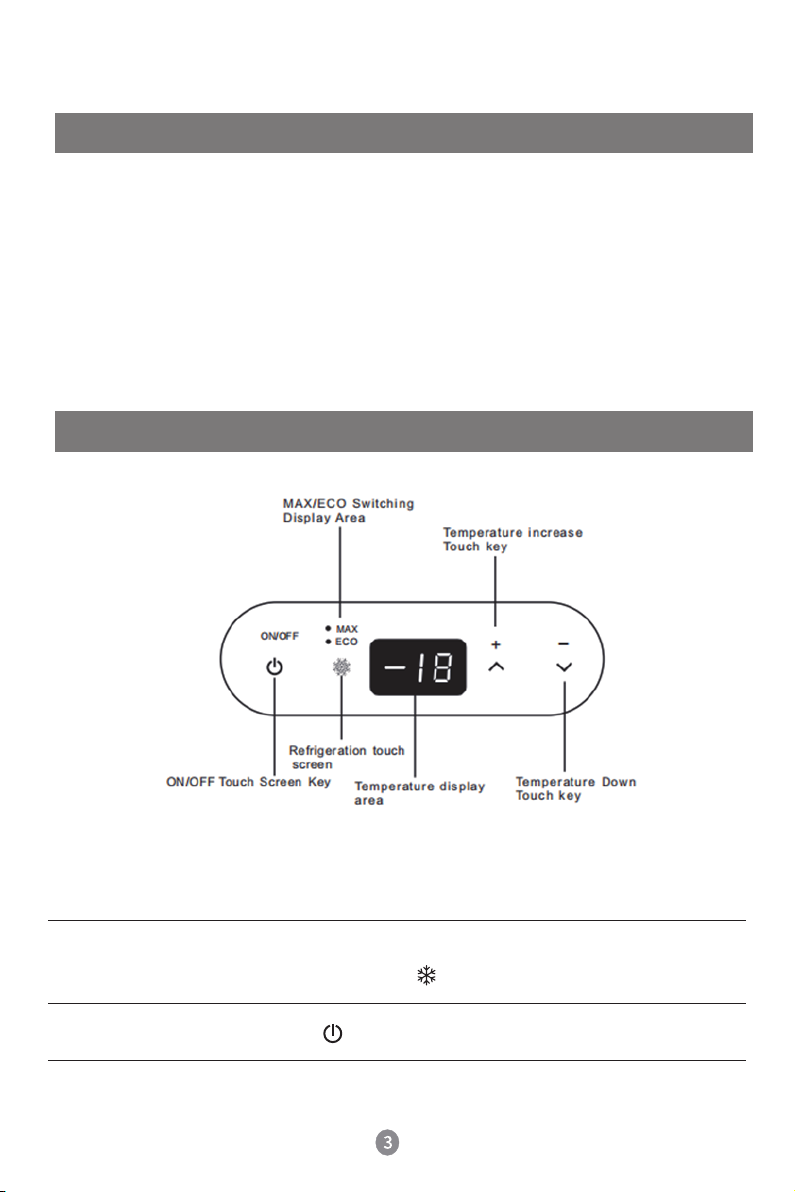

Display Screen
Initialization
At the moment when the refrigerator is powered on, you will
hear a beep, and the " " of display will keep flashing.
Turn on/off Hold the " " 3~5 seconds to turn on the refrigerator.

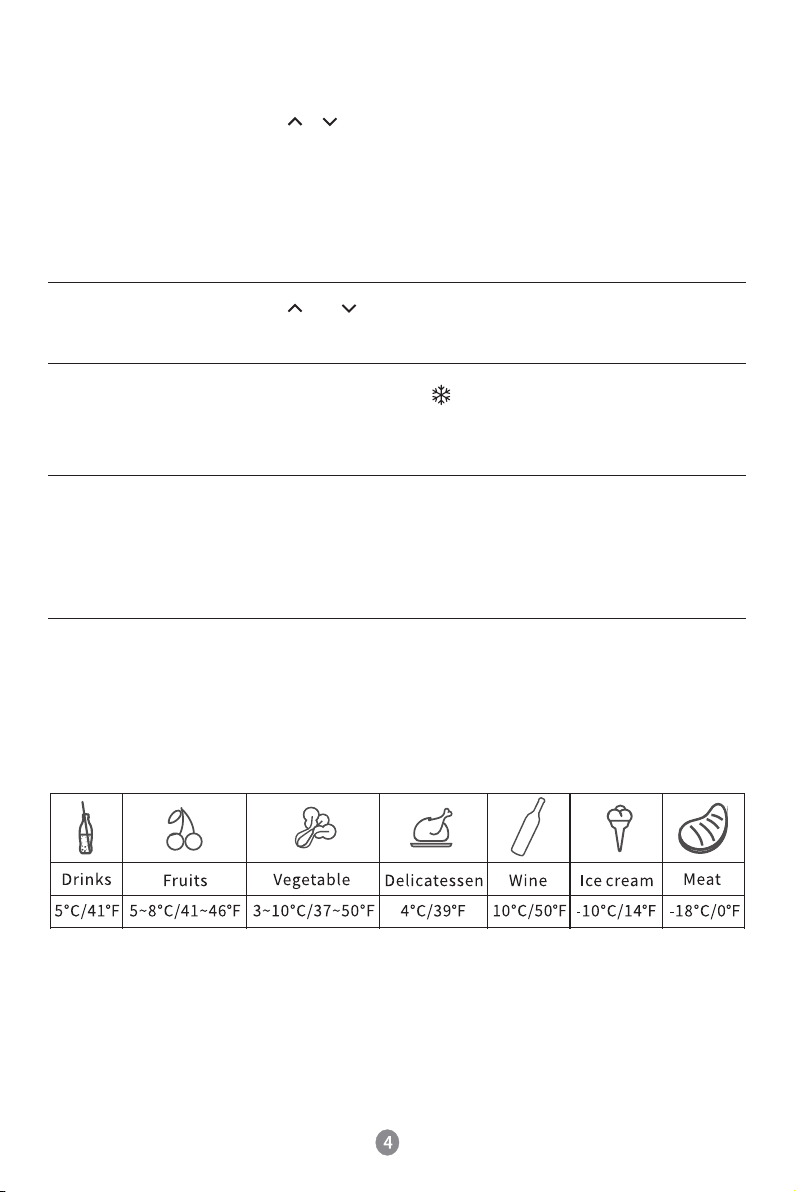

Recommended temperature for common food:
Temperature
Setting
Press or for tempreture setting, the setting will be saved
automatically after stopping operating for 4 seconds.
Keep holding the button, the tempreture will be adjusted fastly.
(Note: the tempreture displayed is the current temperature of
the compartment. it will take a while to reach the set temper-
ture.) Temperature setting range: -20~+10℃（-4~50℉）
The car refrigerator has a power-off memory function, and the working state (power
on/off state and working mode) before the power off is automatically restored after the
next power on, and there is no need to set it again.
Temperature Unit
Switch
Press and at the same time 3~5 seconds to switch Celseius (℃)
/Fahrenheit(℉）. (Factory setting is ℉）
MAX/ECO Mode
Switching
In woring status, press " " to switch MAX/ECO mode.
ECO (Green light): Energy Saving Mode, 45 watts.
MAX (white light): Fasting Cooling Mode, 60 watts.
Battery Protection
Mode
At the bottom of the refrigerator is the socket, where you can
choose HIGH, MEDIUM or LOW levels. We suggest to set high
level of the fridge when connect with car battery. To set medium
and low level when with other battery. (Factory setting is H）.

The BougeRV fridge/freezer is equipped with a battery preservation monitor.It
hasthree settings to monitor your battery to prevent a full discharge. The higher
the setting the higher the cut-off voltage will be.
When set to HIGH, the battery monitor will provide maximum protection for the
battery running the fridge/freezer against excessive/full discharge.
When set to LoW, the battery monitor will allow the fridge/freezer to use more of
the battery energy.
The battery monitor will shut off the fridge/freezer as soon as the supply voltage-
falls below the set level.The fridge/freezer will restart after 2 minutes once the
cut-in voltage is reached.
6.Car Battery Protection Voitage Reference
Voltage
NOTE:
Factory default voltage protection level sets to H Mode
Cut-out is the input voltage in which the fridge/freezer will turn off at.
Cut-in is the input voltage in which the fridge/freezer will turn on at.
High mode
12V DC Cut out 11.3V 10.1V 9.6V
12.5V 11.4V 10.9V
24.6V 22.3V 21.3V
26.0V 23.7V 22.7V
Cut in
Cut out
Cut in
24V DC
Medium Mode Low mode

7.Cleaning and Storage
If an abnormal situation cannot be resolved through simple fault analysis, please
contact professional customer service for assistance via [email protected]om.
1. The order number.
2. Where do you use it?
3. What power sources do you use?
4. What power cords do you use?
5. Set at ECO mode or MAX mode?
6. What is the set temperature？
7. How much food is inside? Is it empty?
8. Do you notice any errors on the display?
Note: in order to resolve the issue, you had better attach more details as follows
in your email.
8.Troubleshooting and Error Problems

The car refrigerator
does not work
Check whether if the power is connected correctly
or not
(If the plug is loose, positive and negative poles
are reversed).
Check whether the power switch on the operation
panel is turned on.
Check the cooling ventilation is normal.
Check whether if the fuse is blown or not.
check whether the door is closed
The door cover seal is damaged or deformed and
the seal is not strict.
Poor ventilation in the car refrigerator cooling.
Improper temperature settings.
Causes and solutions
Not cooling
Sufficiently
Some noises are normal
The place of car refrigerator is not stable.
Hit the wall or other items.
Internal parts loose or fall off.
Abnormal noise
Troubles
when the ambient air humidity> 75%, the surface
of the box will normally have slight condensation.
The refrigerator
surface condensation
It is normal for the temperature to float in a certain
range, and it is normal in the range of ± 5 ℃.
It is normal that the temperature measured by
yourself is 3 ℃ higher than that of the display
screen.
If the temperature does not drop all the time,
please adjust to the lowest temperature and stay
for a longer time.
Please touch the inner wall of the refrigerator with
your hand. If you can feel the cold obviously, there
is no problem with the refrigeration of the refriger-
ator.
Temperature fluctuation/
problems

The definition of the error code on the display
E3
E4
E2 Fan Problem
Compressor
turbine speed
too low.
E5
Er1
Controller chip
overheating
NTC opening or
short circuit
E1 Input voltage
too low
①Condition one: insert refrigerator power cord into
car cigar lighter when it doesn't start. Solution: to
connect the refrigerator later after the car starts.
②Condition two: the input voltage of the adapter is
too low. Solution: to adjust the battery protection
level to middle or low level. If fridge still no start
properly, pls use a new adapter.
Please replace a new fan when you confirm the
fan malfunction.
Compressor turbine speed too low.The input
voltage needs to be adjusted and reconnect the
power.
Controller chip overheating. It needs to shutdown
the power of fridge for 5 minutes. After hat, to
check whether if it is an overheating caused by the
blockage around the vent of the compressor.
①Condition one:E3 appears when use fridge in
car, pls shutdown fridge 5 minutes and after that,
it can work normally. If it still not works after
restart, it is E1 fault, with reference to E1 Fault
troubleshooting and solution.
②Condition two:E3 appears when use fridge at
home, to adjust battery protection level to middle
or low level. If it still no works properly, pls use a
new adapter.
Compressor Start
up frequently
Input voltage fault.
Error Code Error Type Solutions
8

Warranty
BougeRV PORTABLE CAR REFRIGERATOR comes with a 2-year warranty that commences from
the date of purchase on BougeRV Amazon Store or BougeRV Official Website, except following
situations:
Customer Service
If there is any problem with the operation or use of the product, please feel free to contact us
via:
VIP Service & Extra 1-year Warranty
Contrived damage.
Damage caused by force majeure such as earthquake, conflagration, etc.
Damage from inappropriate use or violating this instruction.
Damage or malfunction caused by disassembling.
24-month limited warranty
Lifetime technical support
[email protected]om
+(86)18924140684
[phone]（U.S.）
+(86)18924140684（China）
1. Search "QR Code" on your FB
2. Scan the QR Code beside
3. Join "BougeRV Car Refrigerator Club"
4. You become a VIP and get a 3-year warranty
1. Search "BougeRV.com"
2. Support--Warranty Registration
3. Sign up and submit
4. You become a VIP and get a 3-year warranty
Option 1
Option 2
9
9.Warranty and Maintenance

10.Technical Information
53 Quart
50 L=1.77 cu. ft. 40 L=1.41 cu. ft. 30 L=1.06 cu. ft.
ECO (Green light): Energy Saving Mode, 45 watts.
AC: 110~240V
DC: 12V/24V
-20~10℃(-4~50℉)
MAX (white light): Fasting Cooling Mode, 60 watts.
Refrigerant R-134a
42 Quart 31 Quart
