OWNER’S MANUAL
The Basics
of Metal Detecting
Your Pioneer 101 Metal Detector incorporates Motion Detection
Technology. Movement over an object is required in order for the
machine to detect the object and emit a tone.
While holding your Pioneer 101 Metal Detector as indicated in the
picture to the right, sweep the search coil slowly from side to side. While
sweeping, maintain the search coil level with the ground.
If the detector chatters, reduce the sensitivity by turning the left knob (Sensitivity)
counterclockwise.
When searching a possible target, move the search coil repeatedly over the target. Be certain that
the signal repeats during each pass over the target. If the tone does not repeat consistently, you
are probably detecting trash items or oxidation. Only dig up targets with repeatable tones.
IMPORTANT:
• Do not test the detector on the floor of a home or building.
• Most floors contain metal which will interfere with the detector’s operation.
• Unless air testing or demonstrating, use outside only.
PLEASE READ ALL INSTRUCTIONS BEFORE USING YOUR METAL DETECTOR

2
INTRODUCTION
The Pioneer 101 is a user-friendly instrument, requiring only a
minimum of operator skill, yet delivering effective performance over a
wide range of conditions and applications.
Streamlined in appearance,
with only two operating
knobs and a mode selection
switch, the Pioneer 101 has
eliminated the two most
difficult aspects of metal
detector operation, Tuning
and Ground Balancing. Both
of these functions are automatic
with the Pioneer 101.
The Pioneer 101 will detect
inextremegroundconditions,
ranging from salt (for beach
hunting) to black sand (for
gold prospecting), with no
operator adjustments to the
circuitry and with no loss of
sensitivity.
From salt water beach
conditions to black sand
deposits common at gold
prospecting locations, the
Pioneer 101 sees through
the earth’s naturally
occurring
minerals to find
buried metals.

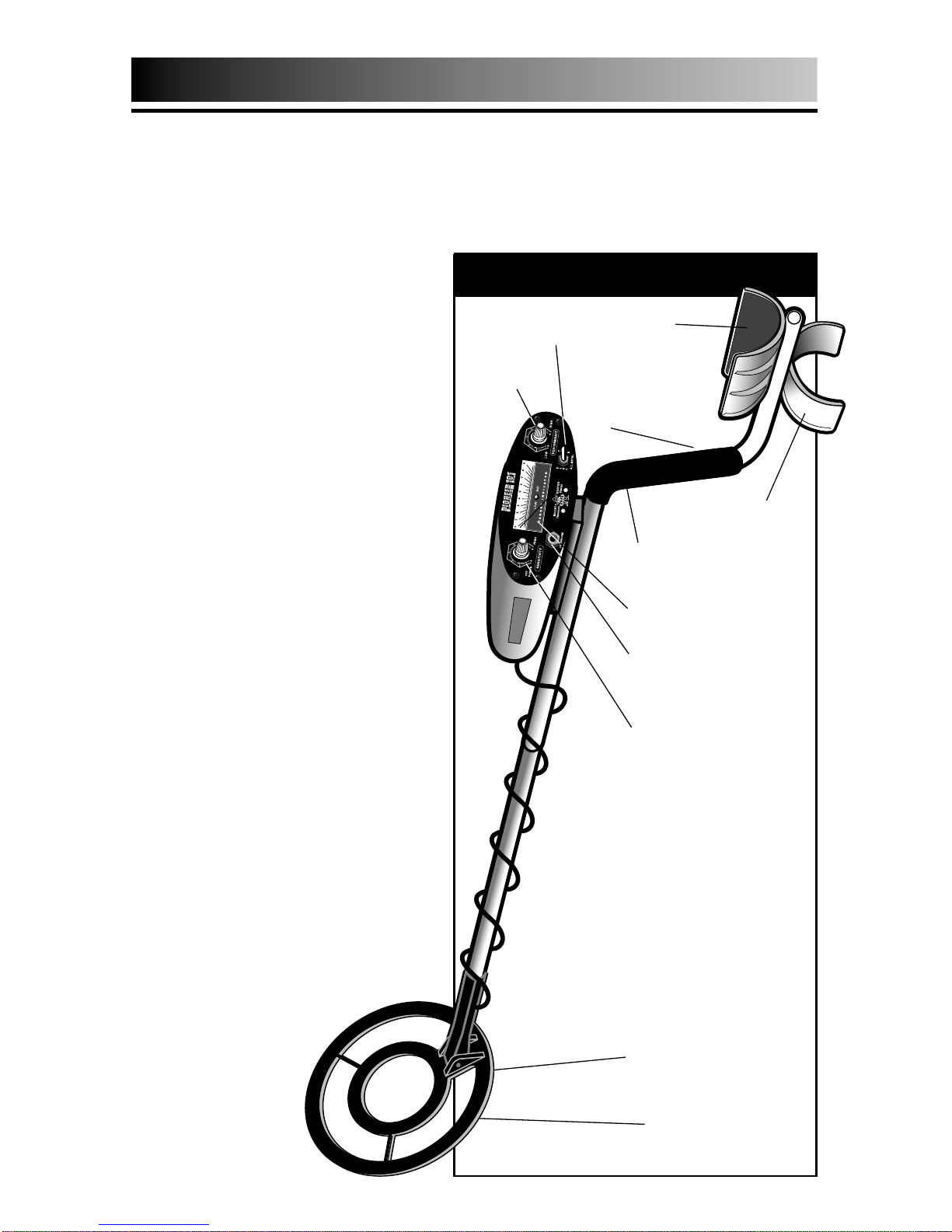

Pioneer 101 FEATURES
Interchangeable
Coil System
Headphone Jack
Three-Position
Toggle Switch
S-Rod
Handle
System
Meter System
Detector
Stand
8" Waterproof Coil
Comfort
Hand-grip
Padded
Armrest
Discriminate
Control
Sensitivity Control

3

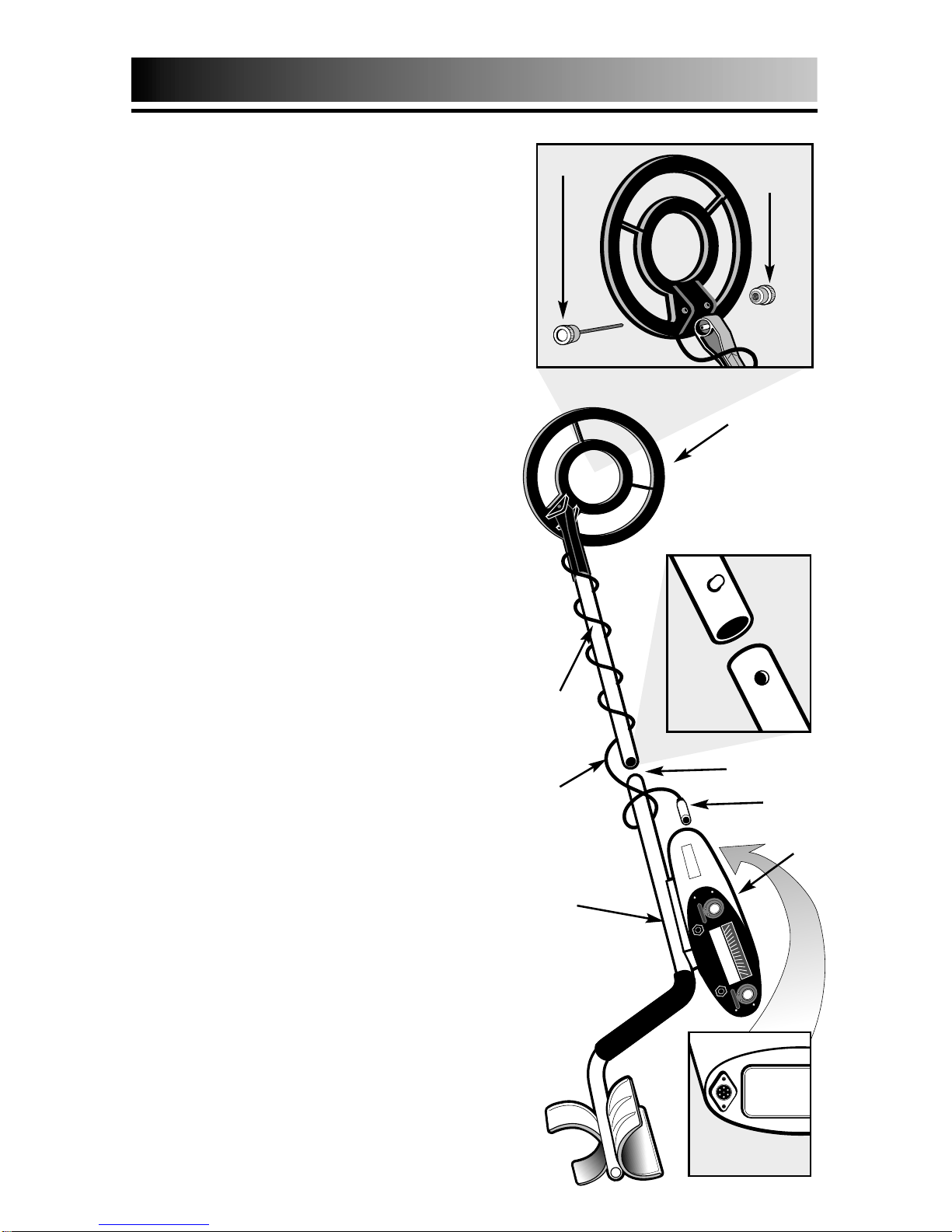

EASY ASSEMBLY
Search Coil
Search
Coil
Cable
Upper
Stem
Control
Housing
Plug
Lower
Stem
Assembling your Pioneer 101 Metal
Detector is easy and requires no
tools. Just follow these steps:
●
1Using the supplied bolt and
knurled knob, attach the search
coil to the lower stem.
●
2Press the button on the upper
end of the lower stem and slide
the lower stem into the upper
stem.
Adjust the stem to a length that lets you
maintain a comfortable upright posture,
with your arm relaxed at your side.
●
3Wind the search coil cable
around the stem. Leave enough
slack in the cable to let you adjust
the coil when you are hunting on
uneven ground. Then tighten the
knob at the end of the search
coil.
Note: To adjust the coil,
simply loosen the knob.
●
4Insert the coil’s plug into the
matching connector on the control
housing. Be sure the holes and
pins line up correctly.
Caution:
•Do not force the plug in.
Excess force will cause damage.
•To disconnect the cable, pull out
the plug. Do not pull on the cable.
Lower
Stem
Upper
Stem
Connector
on back of
control housing
Bolt Knurled
Knob
Bottom view
Bottom side

4
BATTERIES
IMPORTANT: Always use ALKALINE batteries for optimal
performance.
Always remove the batteries for prolonged storage.
CHECK THE BATTERIES if your detector exhibits any of the
following symptoms:
●
1The unit does not turn on.
●
2Low speaker volume.
●
3Unit beeps continuously at low sensitivity setting.
The Low Battery indicator light will come on and stay on if the
batteries are discharged. It should flash momentarily when the
Power Switch is turned off.
IMPORTANT: Your Pioneer 101 metal detector requires two 9-Volt
ALKALINE batteries.
Follow these steps to install the batteries.
●
1Carefully remove the battery
compartment door by pressing
the release clip on the right side
of the door.
●
2Snaponebatteryontoeachofthe
terminals and place the batteries
inside the compartment. Insert
one battery with the terminals
facing down, and the second
battery with terminals facing
outward.
●
3 Replace the compartment door
by carefully inserting opposite
side of clip first. Then press down
on clip side until battery door
snaps into place.
First Battery
Second Battery
First Battery
terminals facing in
Second Battery
terminals
facing out
Release
Clip

5
Pioneer 101 DEMONSTRATION
Here is a quick way to demonstrate the basic features of your Pioneer 101.
I. Supplies Needed
•A quarter (25¢)
•A nickel (5¢)
•A Penny (1¢)
•A small piece of aluminum foil
•A Nail
II. Position your Pioneer 101
•Place the detector on a table, with the search coil hanging over the edge.
•Be sure that the search coil is far away from walls or metal objects. Keep the search coil away
from any metal in the table.
III. Beginning Switch Settings
•Right Knob (Discriminate) –LOW
•Toggle Switch –Middle Position
•Turn detector on with "Sensitivity"
knob set to 3:00 position
•Reduce "Sensitivity" in case of interference
IV. All Metal Detection
A. Wave all objects over the search coil
•NOTICE THE SINGLE TONE
V. Tone Mode Detection
A. Move toggle switch to the right position –TONE
B. Turn the "Discriminate" knob to 2:00 (about 3/4 turn)
C. Sweep all of the different objects back and forth under the
search coil
•NOTICE THE DIFFERENT TONES
•NOTICE THE METALS REJECTED
VI. Disc Mode Detection
A. Move the toggle switch to the left position –DISC
B. Turn the "Discriminate" knob to LOW
C. Sweep all of the different objects back and forth under the
search coil.
•NOTICE THE METALS REJECTED
D. Turn the "Discriminate" knob slowly to the right while
sweeping all of the different objects at different settings.
•NOTICE THE DIFFERENT TONES
•NOTICE THE METALS REJECTED
TOGGLE SWITCH
TOGGLE SWITCH
TOGGLE SWITCH
ALL METAL
TONE
FULL DISC

6
The Pioneer 101 is a “motion”detector. This means that the
search coil must be moving to detect the presence of metal. When
practicing with a stationary metal detector, keep the target moving
over the coil. Objects held still under the search coil will not be
detected.
THREE MODES OF OPERATION
The Pioneer 101 allows for three modes of operation:
ALL METAL, TONE AND FULL DISCRIMINATE
After turning the unit on, and adjusting your Sensitivity to the
desired setting, you're now ready to decide on your mode of
operation.
ALL METAL: (Toggle Switch in the Middle) In this mode, all
different types of metal will be detected such as: iron, steel,
aluminum, brass, silver, copper and gold. Applications: Relic
Hunting, Gold Prospecting, Cache Hunting and general applications
such as property marker locating. This mode provides maximum
depth detection capability.
FULLDISCRIMINATE: (Toggle Switch to the Left) When using the
Full Discriminator, most trash items will be automatically rejected.
Adjust the DISCRIMINATE control higher to increase the range of
discrimination.
TONE DISCRIMINATE: (Toggle Switch to the Right) When using
the Tone Discriminator, a unique dual tone “beep”and automatic iron
rejection makes finding treasure fun and easy. It's also possible to
achieve a broken tone for certain pull-tabs by adjusting your
Discriminate control to the approximate center position (12:00).
With the two-tone discrimination, along with a broken tone for
pull-tabs, you will be able to identify types of buried metals
according to the audio tones emitted. Applications: Coinshooting,
Jewelry Hunting and detecting in highly trashed areas.
OPERATION

7
OPERATION
TONE MODE AUDIO RESPONSES
NO
RESPONSE
Iron & Steel
LOW
TONE
Gold & Nickel
BROKEN
TONE
Old & New Pull Tabs
HIGH
TONE
Copper, Silver & Brass
TONE DISCRIMINATION
(continued)
(Toggle switch to the Right) Classifies
detected metal objects by emitting a low
or high tone.
Adjust the DISCRIMINATE control higher to
increase the range of the low tone. It is
possible to set the DISCRIMINATE level so
that nickels have a low tone, larger coins
have a high tone, and pull-tabs have a low
tone or in-between “broken”tone. The
"broken" tone makes pull-tabs and trash easily recognizable.
Sensitivity will be reduced slightly when
using the Pioneer 101 in the Tone
Discrimination mode. If you want optimal
depth capability, operate in the All Metal
mode by turning the Discriminate control
completely counterclockwise; then turn the
Sensitivity control clockwise to its highest
clockwise position without chatter. If your
Pioneer 101 chatters or beeps erratically,
reduce the Sensitivity by turning the left
knob counterclockwise.

8
OPERATION
AUTO GROUIND CONTROL:
The Pioneer 101 automatic Ground Track feature allows operation
in virtually all soil conditions, regardless of mineral content.
Use it effectively on the beach or for gold prospecting. In the ALL
METAL Mode (Toggle switch in the middle), the Pioneer 101 will
detect gold nuggets through black sand and will find deeply buried
relics in all types of soil.
OPERATING TIPS:

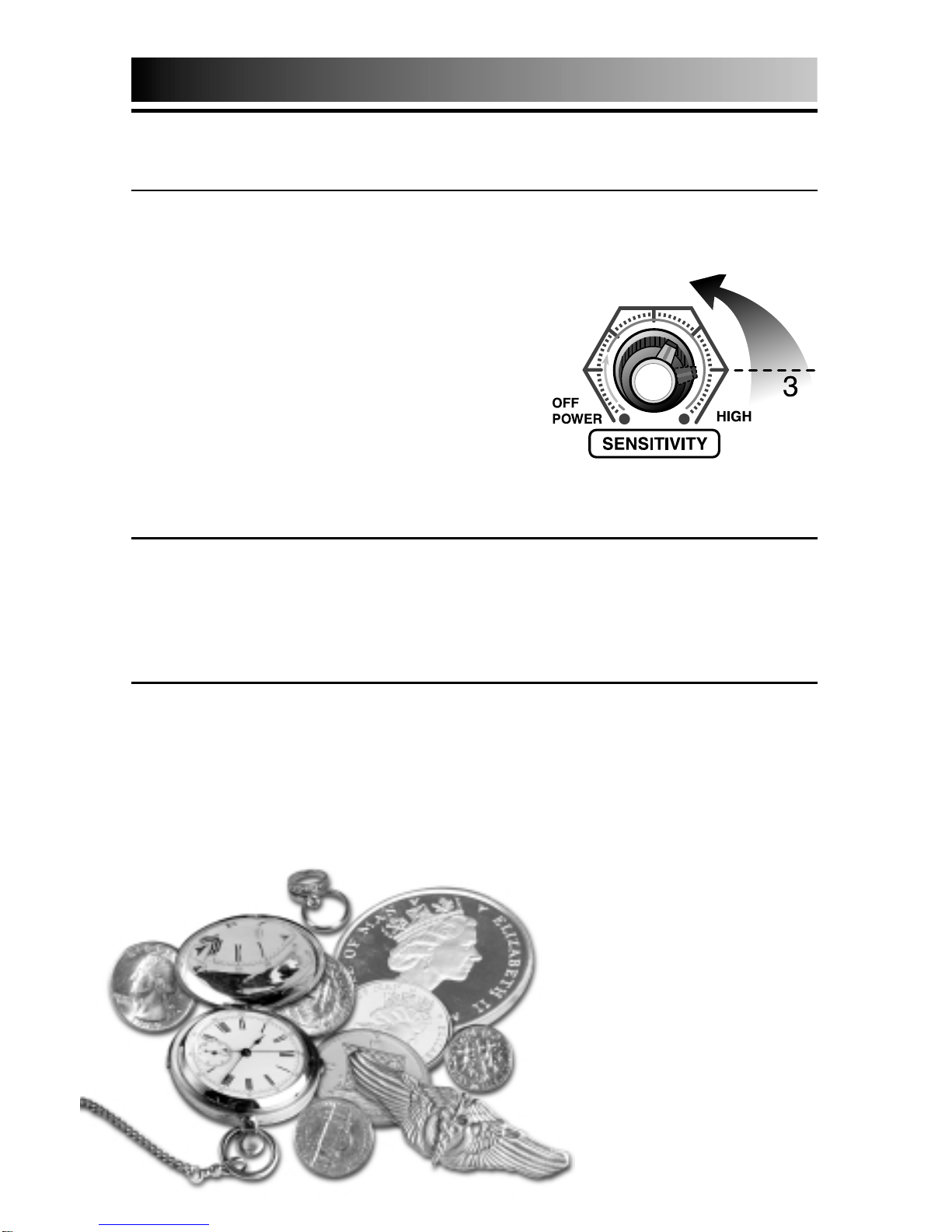

Turn the detector on using the left knob. NOTE: The detector will remain
silent when turned on. It will emit sound when metal passes beneath
the search coil.
As the left knob is clicked on, it will be at the lowest sensitivity
setting. Turning the control knob toward "HIGH" increases
sensitivity to small or deeply buried objects. If the unit “chatters”,
reduce the sensitivity slightly, until the chatter stops.
For maximum performance, operate with the sensitivity as high as
possible. The sensitivity can generally be set higher when operating
in Full Discriminate (DISC) or Tone Discriminate (TONE) modes.

9

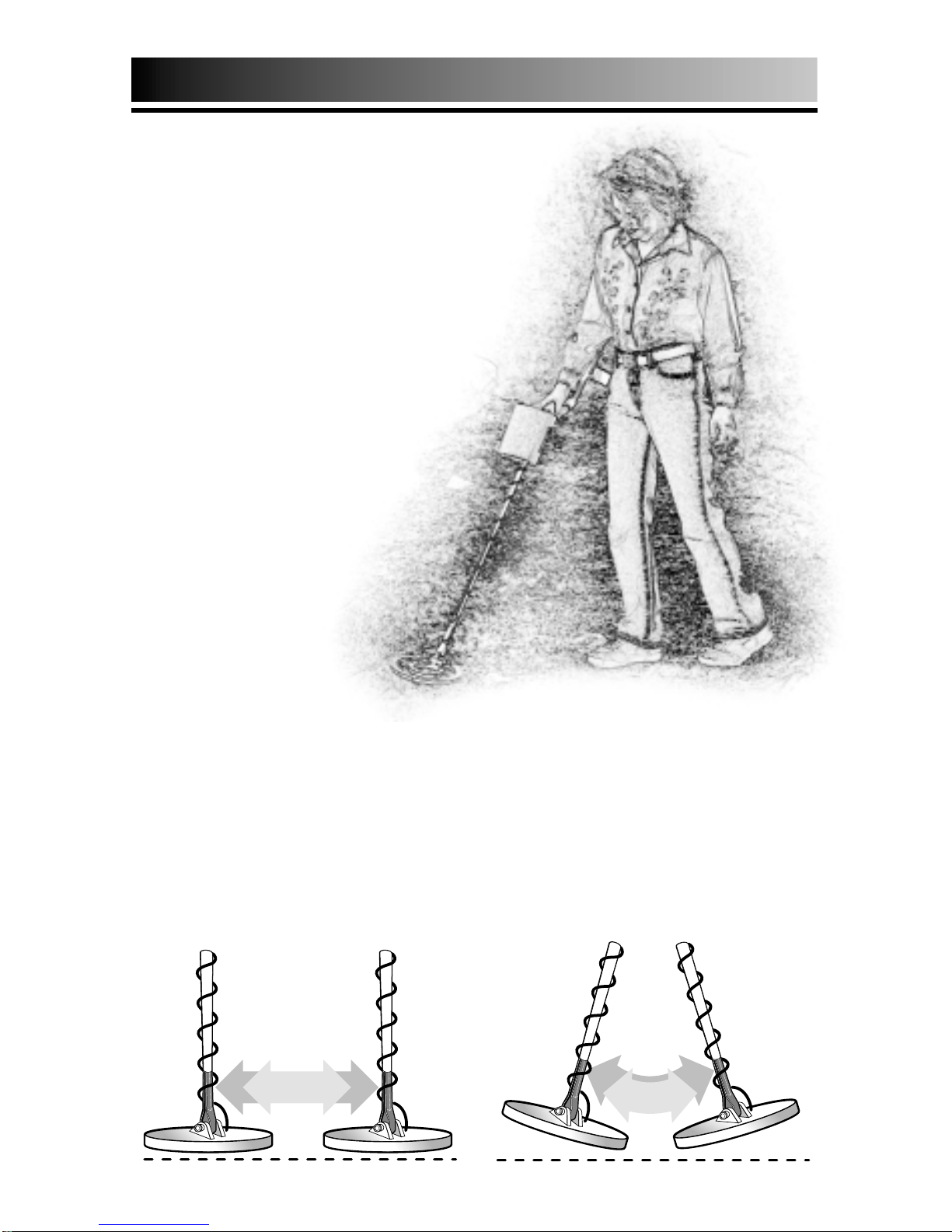

STANCE
Stand with your arm extended in front of
your body. Don’t bend or stoop; stand in a
comfortable position. Hold the unit so that
the search coil is about 1/2-inch above the
ground. Adjust the search coil so that it is
parallel to the ground.
SWEEP
Standing in the search position,
swing the search coil gently from
side to side, slightly overlapping
each sweep as you move
forward. Keep your search coil
approximately 1/2-inch above
the ground as you search.
Raising it during the sweep ,
or at the ends of your
sweep, can cause false
readings. Move slowly;
hurrying will cause you
to miss targets.
Most desireable objects will respond with a repeatable tone. When
discriminating, iron and foil objects generally do not respond. False
signals can be caused by trashy ground, electrical interference, or by large
irregular trash objects. These signals are easily recognized by their often
broken or non-repeatable nature.
IN THE FIELD
CORRECT WRONG

10
IN THE FIELD (cont.)
PINPOINTING
Accurate pinpointing takes practice and is best accomplished by
“X-ing”the suspected target area.
●
1Once a buried target is identified by a good tone response,
continue sweeping the coil over the target in a narrowing
side to side pattern.
●
2Take visual note of the place on the ground where the
“beep”occurs as you move the coil slowly from side to
side.
●
3Stop the coil directly over this spot on the ground.
●
4Now move the coil straight forward and straight back
towards you a couple of times.
●
5Again make visual note of the spot on the ground at which
the “beep”occurs.
●
6If needed, “X”the target at different angles to “zero in”on
the exact spot on the ground at which the “beep”occurs.
REMEMBER: The detector will beep just as the center of the
search coil passes directly over the buried object.
If you have difficulty pinpointing very strong signals, try lifting
the coil higher off the ground until a weaker, but more concise,
signal is heard. For very weak signals, try moving the coil in
short quick sweeps, closer to the ground.
WHAT
READS
LIKE THIS
…MAY
ACTUALLY
BE THIS

11
TROUBLESHOOTING
The following troubleshooting steps may assist you in case you’re
having problems with your Pioneer 101.
YOUR DETECTOR IS EMITTING ERRATIC SIGNALS
WHEN YOU’RE IN THE FIELD.
Your SENSITIVITY may be set too high.
Try reducing the SENSITIVITY slightly
until the false signaling disappears.
Remember to swing your coil slowly.
Some inconsistent signals will occur on
highly rusted metals. If the signal does not
repeat after successive passes of the coil
over the same area, then the target is usually not worthwhile.
Natural and man-made electromagnetic fields can cause interference.
YOUR DETECTOR IS NOT STABLE AND HAS A PULSING, DISTORTED
TONE INSTEAD OF A CLEAR TONE.
This can occur if you’re operating near another detector or near power
lines that can interfere with the detector’s operating frequency.
YOUR DETECTOR IS EMITTING A CONSTANT LOUD TONE OR
CONSTANT REPEATING TONES
This usually occurs when the batteries are low. Try replacing your
batteries with two new alkaline batteries.
NOTE: Always use Alkaline Batteries for proper performance.

12
CARE AND MAINTENANCE
Your Pioneer 101 Metal Detector is an example of superior design and
craftsmanship. The following suggestions will help you care for your
metal detector so that you can enjoy it for years.
Handle the metal detector gently
and carefully. Dropping it can
damage electronic components.
Use and store the metal detector
only in normal temperature
environments. Temperature
extremes can shorten the life of
electronic devices and distort or
melt plastic parts.
Wipe the metal detector with a
damp cloth occasionally to keep
it looking new. Do not use harsh
chemicals, cleaning solvents, or
strong detergents to clean the
metal detector.
The coil is waterproof and may
be submerged into either fresh or
salt water. Be careful to prevent
water from entering the control
housing. After using the coil in
salt water, rinse it with fresh
water to prevent corrosion of the
metal parts.

13
METAL DETECTING APPLICATIONS
COINSHOOTING
The most popular application for metal detectors
CONTROL SETTINGS REQUIRED:
●
1Toggle switch to the left (disc. mode).
●
2Discriminate knob at 3:00 (3/4 turn).
Only silver, copper and brass will be detected. Gold items will be
eliminated. Different denominations of coins will induce different
sounds.
RELIC HUNTING
A relic is a historical object, sometimes of great value. The most effective
method for locating relics is to first conduct historical research. Visit your local
library to learn of historical events having occurred in your area. You can then
target your search to a specific area and gain valuable insight into your local
history.
CONTROL SETTINGS REQUIRED:
●
1Toggle switch in center position.
●
2Discriminate knob is in OFF position.
CACHE HUNTING
A cache, pronounced “cash” , is a buried or hidden valuable stored
inside a case, can, strong box, or a bag. A cache could be the loot
from a bank robbery or just someone’s life savings. A cache is often
hidden in the floor or walls of an old house, or is buried nearby. Also
search old camp sites.
CONTROL SETTINGS REQUIRED:
●
1Toggle switch in center position.
●
2Discriminate knob is in OFF position.
JEWELRY HUNTING
Jewelry can be found wherever people congregate. Beaches, parks,
school yards and fair grounds are all littered with lost jewelry.
CONTROL SETTINGS REQUIRED:
●
1Toggle switch in RIGHT position (tone mode).
●
2Discriminate knob at half way, 12:00 position.
You should dig only the lower and high tones. Broken tones indicate

14
METAL DETECTING APPLICATIONS (cont.)
trash items. Gold rings will induce a low sound. Be aware that some
pull-tabs can also induce a low tone.
Silver will induce a high tone. Chains and necklaces are difficult to
find. If you are looking for gold rings, don’t get discouraged; you
will dig up many broken pull-tabs before you find your first gold
ring!
HOUSEHOLD APPLICATIONS
Find property markers, lost keys, machine parts, and other lost
items..
CONTROL SETTINGS REQUIRED:
●
1Toggle switch in center position.
●
2Discriminate control knob is in OFF position.
GOLD PROSPECTING
Find gold in abandoned gold mines and river beds where gold is
continuously washed down stream from its place of origin.
CONTROL SETTINGS REQUIRED:
●
1Toggle switch in center position.
●
2Discriminate control knob is in OFF position.

ACCESSORIES
15
MAXIMIZE YOUR METAL DETECTING EXPERIENCE WITH THESE
OPTIMAL BOUNTY HUNTER ACCESSORIES
4 INCH COIL
Great for searching in
trashy areas with its
smaller target area. Also
perfect for gold prospecting
and fitting into tight spaces.
10 INCH COIL
For maximum depth
detection.
HEADPHONES
Increase battery life and
find more deeply buried
objects, evidenced by faint
signals sometimes
undetected with the
standard speaker.
CARRY BAG
Custom-sized to carry your
Pioneer 101.
COIL COVERS
Protect your coil from wear
& tear. 4 inch, 8 inch, 10
inch.
www.detecting.com

TREASURE HUNTER’S CODE OF ETHICS:
1. Respect the rights and property of others.
2. Observe all laws, whether national, state or local.
3. Never destroy historical or archaeological treasures.
4. Leave the land and vegetation as it was. Fill in the holes.
5. All treasure hunters may be judged by the example you set.
Always obtain permission before searching any site. Be
extremely careful while probing, picking up, or discarding trash
items. And ALWAYS COVER YOUR HOLES!
First Texas Products, LP
1100 Pendale Road
El Paso, TX 79907
[phone]
REVISED 06/01
Bounty Hunter Metal Detectors are warranted against
defects in workmanship or materials under normal
use for five years from date of purchase to the
original user. Liability in all events is limited to the
purchase price paid. Liability under this Warranty is
limited to replacing or repairing, at our option, any
Bounty Hunter Detector returned, shipping cost
prepaid, to First Texas Products, LP. Damage due to
neglect, accidental damage or misuse of this product
is not covered by this warranty.
FIRST TEXAS PRODUCTS, LP
5-YEAR LIMITED WARRANTY
Copyright© 2001 by First Texas Products, L.P.
All rights reserved, including the right to reproduce this book, or parts thereof, in any form.
Published by First Texas Products, L.P.
Bounty Hunter®is a registered trademark of First Texas Products, L.P.
www.detecting.com
®
