Boyard CTAPT SB08 User manual

SB 08
COMPONENT PARTS
1Guide rails (left and right) 1 set
2
Side wall (left and right) with self-tapping screws
1 set
3
Back wall holder plate (left and right)
1 set
4Front wall fastener with the self-tapping screws 2 pcs
5Plug 2 pcs
NL – length of guide rails from the sidewall.
Minimal internal size of body in depth (NL+3 mm)
Dimensions for back
wall fastening
Dimensions for mounting
of front wall fasteners on the
internal surface of front wall
47,5 min
SCHEME OF GUIDE RAILS ADDITION
LW-75
NL-24
16
LW-87
84
16
MOUNTING DIMENSIONS for SB08
Front rim of body side wall
For sizes: 270 / 300 / 350 / 400
For sizes: 450 / 500 / 550
20
min 49 min 33
min 105
86
Dimensions of back wall for drawers with
SBR08 or SBR09 railings:
LW-87
135
16
LW-87
199
16
Central drawer with
1 pot rack + SBH41
High drawer with
2 pot racks + SBH42
Dimensions of back wall for drawers
with SBH40 or SBH45 holder plates
LW-87
135+Х
16
LW-87
199+Х+Y
16
Assembly of front wall fasteners and pot rack
Back wall assembly
646432
min
47,5
15,5
6432
min
47,5
15,5
323232 7
99
7
323232 64
DB8181
SBH45
SBDW08
14
224
9
37
33 16
14
256 37
33 16
SB08
assembly instruction
Assembly of front wall fasteners and pot rack
Back wall assembly
Central drawer with 1 pot rack
+ SBH40 + SBH45
High drawer with 2 pot racks
+ SBH40 (2 pcs) + SBH45
3232 11,6
59,5+X
3232 11,6
32
min
47,5
64+X32
min
47,5
15,515,5
Holder plate SBH40
64+X 64+Y
59,5+X 64+Y
9
11,6
23,2
Internal body dimension=LW
Back wall length LW-87
Box bottom LW-75
back wall
front wall
back wall
back wall
bott om
bott om
bott om
back wall
back wall
back wall
back wall

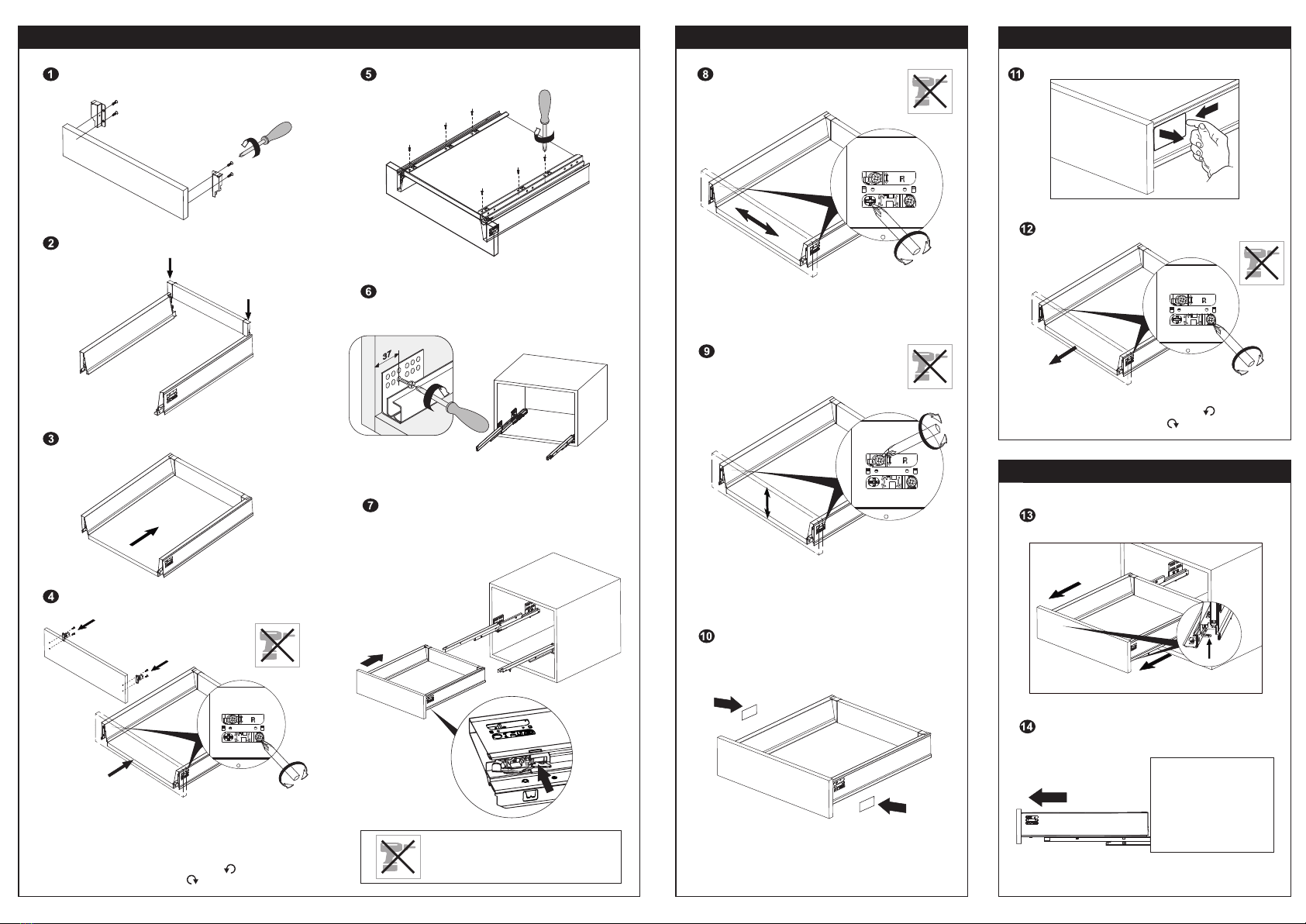

Mount the guide rails to the item body according
to the addition scheme.
Size 37 is only for
the assembled front wall.
Pull out the moving elements of guide rails, insert the
drawer and push it until the side walls are fixed with
the moving elements of guide rails. The joining is to
be carried out on the second lug of the fastener.
Insert (click into place) the plastic plugs.
Put together the assembled back wall and left/right
side walls.
Insert the drawer bottom into the dapping of left and
right side walls until the back wall stops it.
Fix the front wall fasteners in the drawer front wall with
the help of self-tapping screws. Attach the front wall to
the drawer sidewalls.
Turn the adjusting screw with the screwdriver
until it stops in the end position and disassemble
the front wall.
DRAWER REMOVING
Turn up the lever and unlock the drawer fasteners
with the guide rails to remove the whole drawer.
Pull the drawer and pick it off from the guide rails.
Attach the left and right holder plates (of back wall and pot rack)
to the drawer back wall with the help of self-tapping screws. Attach the sidewalls to the drawer bottom with the help
of self-tapping screws.
FRONT WALL DISASSEMBLY
Remove the plastic plugs to disassemble the front wall.
FRONT WALL ADJUSTMENT
DRAWER ASSEMBLY AND MOUNTING
Horizontal adjustment of the front wall from
the right and left (±1.5 mm)
Vertical adjustment of the front wall from
the right and left (±1.5 mm)
Front wall holder plate must be freely inserted into the side
plate being freely joined with the sidewall. Otherwise, turn
the adjusting screw with the screwdriver until it stops in the
end position.
Direction of adjusting screw rotation:
R (right side plate) counterclockwise
L (left side plate) clockwise
Direction of adjusting screw rotation:
R (right side plate) counterclockwise
L (left side plate) clockwise
Use the screwdriver for adjustment
Сlick into place
Сlick into place
Сlick into place
