Boyser DS-M Series User manual

www.boyser.com
Operating instruccions Peristaltic Pumps
DSM Series

2
Operating instruccions Peristaltic Pumps DSM Series
1. Introduction
This instruction manual must accompany the pump at all times for as long as it is in use.
The DSM series peristaltic pump is a machine for fluid handling intended to be used in
industrial areas, as such the instruction manual is part of the legislative provisions for the
safe and correct use of the pump.
This instruction manual does not substitute any installation standard or any additional
future standard.
1.1. How to use this manual
This manual is intended as a reference book by means of which qualified users are able
to install, commission and maintain the peristaltic pumps mentioned on the front cover.
1.2. Original instructions
The original instructions for this manual have been written in English. Other language
versions of this manual are a translation of the original instructions.
1.3. Other supplied documentation
Documentation of components such as motors and inverters is normally not included in
this manual. However, if additional documentation is supplied, you must follow the instruc-
tions in this additional documentation.
1.4. Service and support
For information with respect to specific adjustments, installation, maintenance or repair
jobs which fall beyond the scope of this manual, contact BOYSER. Make sure you have the
serial number peristaltic pump at hand.
1.5. Environment and disposal of waste
Enquire within your local government about the possibilities for reuse or environment
friendly processing of packaging materials, (contaminated) lubricant

3
2. Safety

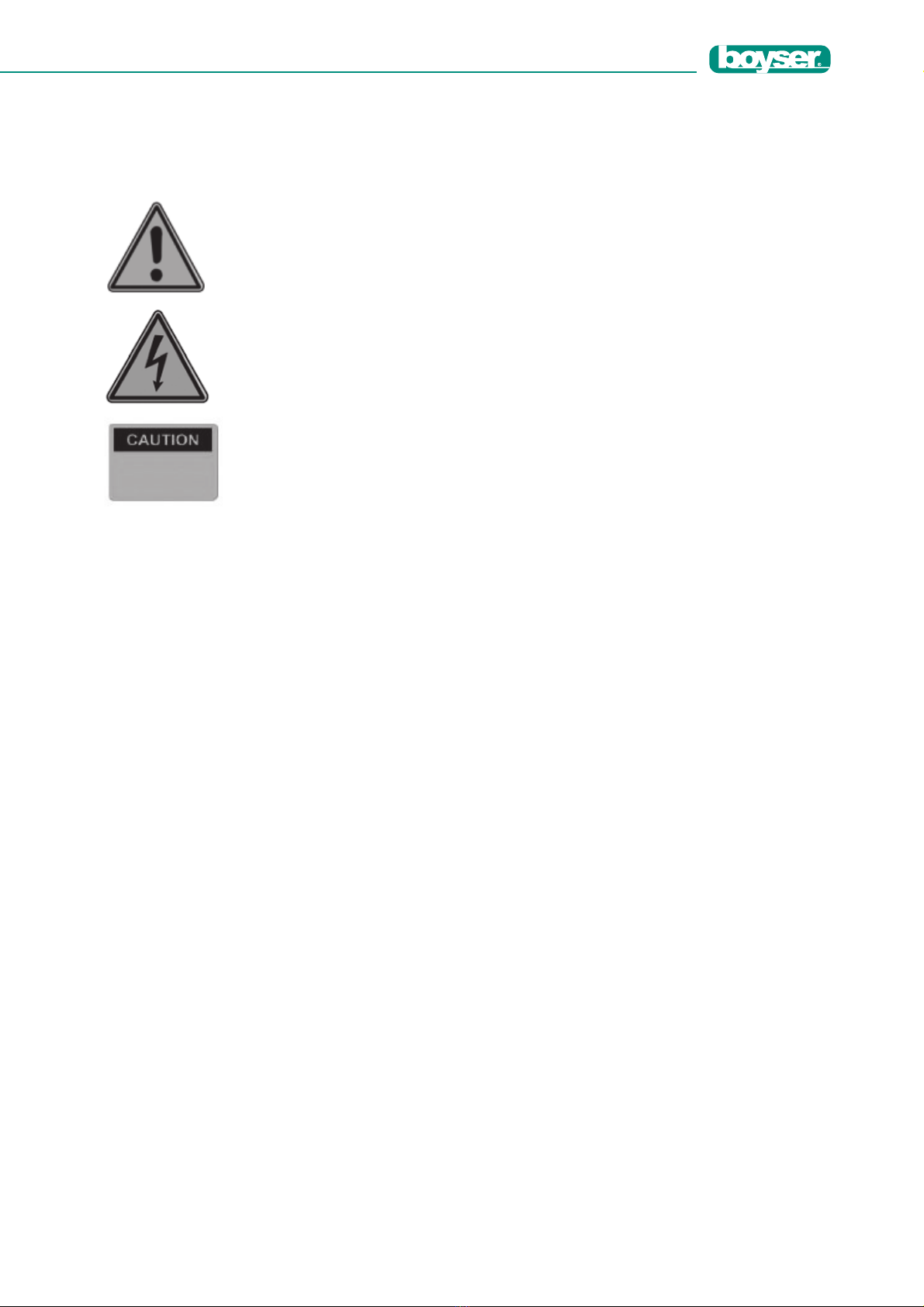

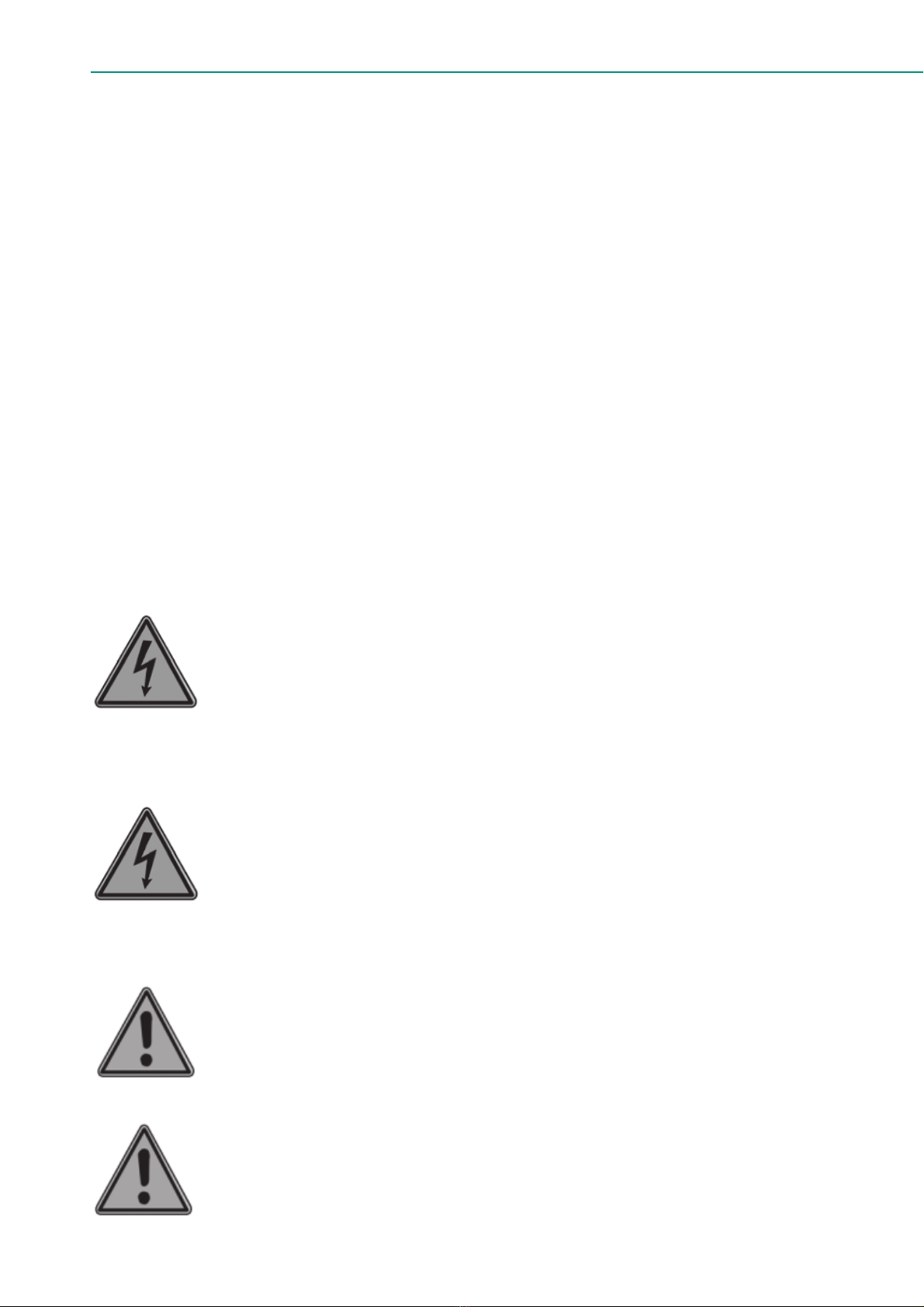

2.1. Explanation of the safety information
This symbol identifies the instructions of this manual, which must be
observed to avoid failure to meet safety standards.
This symbol identifies the instructions of this manual, which must be
observed to avoid compromising electrical safety.
This symbol identifies the instructions of this manual, which must be
observed to guarantee the correct operation of the pump.
Other documentation supplied: instructions in all additional documentation supplied with
the pump must also be followed (instructions for components such as gearbox, motor,
sensor, frequency controller).
2.2. Intended use
The peristaltic pump is exclusively designed for pumping suitable products. Every other
or further use is not in conformance with the intended use. In case of doubt, it is the use
which appears to be its intended use judging from the construction, execution and func-
tion of the product. Observing the instructions in the user’s documentation also belongs
to intended use.
Only use the pump in conformance with the intended use described above. The manu-
facturer cannot be held responsible for damage or harm resulting from use that is not in
conformance with the intended use. If you want to change the application of your peris-
taltic pump, contact BOYSER.
2.3. Responsibility
The manufacturer does not accept any responsibility for damage or harm caused by not
(strictly) observing the safety regulations and instructions in this manual and the also su-
pplied documentation, or by negligence during installation, use, maintenance and repair
of the peristaltic pumps mentioned on the front cover. Depending on the specific working
conditions or accessories used, additional safety instructions can be required.
2.4. User qualifications
Pumps are machines that can present dangers due to moving parts and the presence of
a pressurised fluid within the tube.

4
Operating instruccions Peristaltic Pumps DSM Series
THE FOLLOWING CAN CAUSE SERIOUS DAMAGE AND INJURY:
- Improper use
- Removal of the protections and/or disconnection of protective devices
- Lack of inspections and maintenance
The person responsible for safety should therefore guarantee that the pump is transpor-
ted, installed, put in service, used, maintained and repaired by qualified personnel who
should possess:
- Specific training and sufficient experience for the tasks.
- Knowledge of the technical standards and applicable laws.
- Knowledge of the national and local safety and installation standards.
Any work carried out on the electrical part of the pump should be authorized by the per-
son responsible for safety.
Given that the pump is intended to form part of a system, it is the responsibility of whoever
supervises the installation of the entire system to guarantee absolute safety, adopting the
necessary measures of additional protection.
2.5. General safety information
Live parts
Possible consequence: fatal or very serious injuries.
- Risk mitigation: the device must be disconnected from the power
supply before it is opened
- Isolate damaged, faulty or manipulated devices from the mains in
order to de-energise.
Lack of emergency stop switch
Possible consequence: fatal or very serious injuries.
- An emergency stop switch must be connected for the entire system.
This should enable the entire system to be shut down in the event
of an emergency in such a way that the overall system can be brou-
ght into a safe condition.
Unauthorized access
Possible consequence: Fatal or very serious injuries.
- Risk mitigation: ensure that there can be no unauthorized access to
the pump or to the system.
Hazardous media/contamination of persons and equipment
Possible consequences: Fatal / serious injuries, material damage.
- Ensure that the tubes are chemically resistant against the media

5
being handled.
- Always observe the safety data sheets for the media to be handled.
The system operator must ensure that these safety data sheets are
available and that kept up-to-date.
- The safety data sheets for the fluid being handled are always deci-
sive for initiating countermeasures and/or first aid in the event of
leakage of the fluid.
- Observe the general restrictions in relation to viscosity limits, che-
mical resistance and density.
- Always switch the pump off before exchanging the tube.
Incorrect and improper use
Possible consequence: fatal or very serious injuries.
- The unit is not intended to convey or regulate gases or solid media.
- Do not exceed the rated pressure, speed or temperature for the
pump.
- Maximum pressure on suction/inlet side is 0,5 bar (7 psi approx.).
- The unit may only be used in accordance with the technical data
and specifications provided in these operating instructions and in
the operating instructions for the individual components.
- This pump is NOT supplied for use in areas of risk from explosion.
ATEX versions of BOYSER pumps are available and they are supplied
with a special ATEX version of the instruction manual.
- Only switch the pump on if it has been properly fastened to the
floor.
- Only switch the pump on if the front cover has been attached.
- Do not carry out any maintenance operations or dismantle the
pump without first making sure that the pipes are not under pres-
sure and are empty or isolated.
- In the case of the tube becoming stuck during extraction or fitting it
is necessary to reverse the direction of the pump, re-lubricate, and
then repeat the operation.
- As the peristaltic pump is volumetric and its functioning is positive
displacement, it is necessary to prevent a possible overload of pres-
sure, due to, for example, the accidental closure of a valve. For this
reason, it is advisable to fit a safety device such as: a safety valve,
pressure limiter, etc.
Operational lifetime of the tubes
Possible consequence: fatal or very serious injuries.
- The tube has an indeterminate life and due to the possibility of its
breakage or deterioration, the user is responsible for the preven-

6
Operating instruccions Peristaltic Pumps DSM Series
tion of a possible (although most unlikely) incorporation of particles
from the tube into the product being pumped. This can be achieved
by means of filtration, a tube rupture alarm or other means suitable
for the respective process
CIP cleaning
- In the event of CIP cleaning, it is necessary to obtain information
from the manufacturer about correct installation of the pump (a
special installation is required) as well as regarding the compati-
bility of the cleaning agents with the tubes and the hydraulic con-
nections.
- Cleaning should be undertaken at the recommended maximum
temperature.
Direction of rotation/flow direction
Possible consequence: material damage, destruction of the unit.
- The pump’s direction of rotation in relation to the desired flow di-
rection must be checked prior to every start.
Disconnect the pump from the mains
Possible consequence: personal injury.
- Work may only be carried out on the pump after it has previously
been switched off and disconnected from the mains.
Environmental influences
Possible consequence: material damage up to destruction of the unit.
- The device is suitable for outdoor operation once it is covered and
protected from rain and direct sunlight. Ambient conditions must
also be respected, see Section 6.2 & 6.3.
- Take suitable measures to protect the device from environmental
influences such as
- UV rays
- moisture
- frost, etc.

7
3. Functional description
The DSM Series is a positive displacement pump. The feed chemical is conveyed by the
rotor squeezing the tube in the direction of flow. No valves are needed for this. This ensu-
res gentle handling of the metered media.
Maximum pressure on suction/inlet side is 0,5 bar (7 psi approx.).
The DSM Series has been designed for safe and uncomplicated operation, as well as
straightforward maintenance.
The DSM Series can be used for many different media. However, this pump type is often
the optimal solution for abrasive, shear-sensitive and viscous media.
Typical areas of use include processes where only a low discharge pressure is required
(max. 2 bar).
3.1. Main modules:
1. Drive Unit
2. Housing
3. Base frame
DSM DSM LAB
1
2
3
1
2
3

8
Operating instruccions Peristaltic Pumps DSM Series
DESCRIPTION UNIT TUBE (Ø) DSM DSM/LAB
Max. capacity
continuous l/h -- 55,8 25,4
Max. capacity
intermittent l/h -- 84 38,2
Capacity per
revolution
ml/rev 1,6 mm 0,4 --
ml/rev 3,2 mm 1,65 0,75
ml/rev 4,8 mm 3,80 1,72
ml/rev 6,4 mm 5,61 2,54
ml/rev 8,0 mm 10,00 4,55
Max. permissable
working pressure bar -- 2 2
Permissable
ambient temperature °C -- -10 to +40 -10 to +40
Permissable
product temperature °C -- -10 to +80 -10 to +60
Sound level at 1m dB (A) -- 70 70

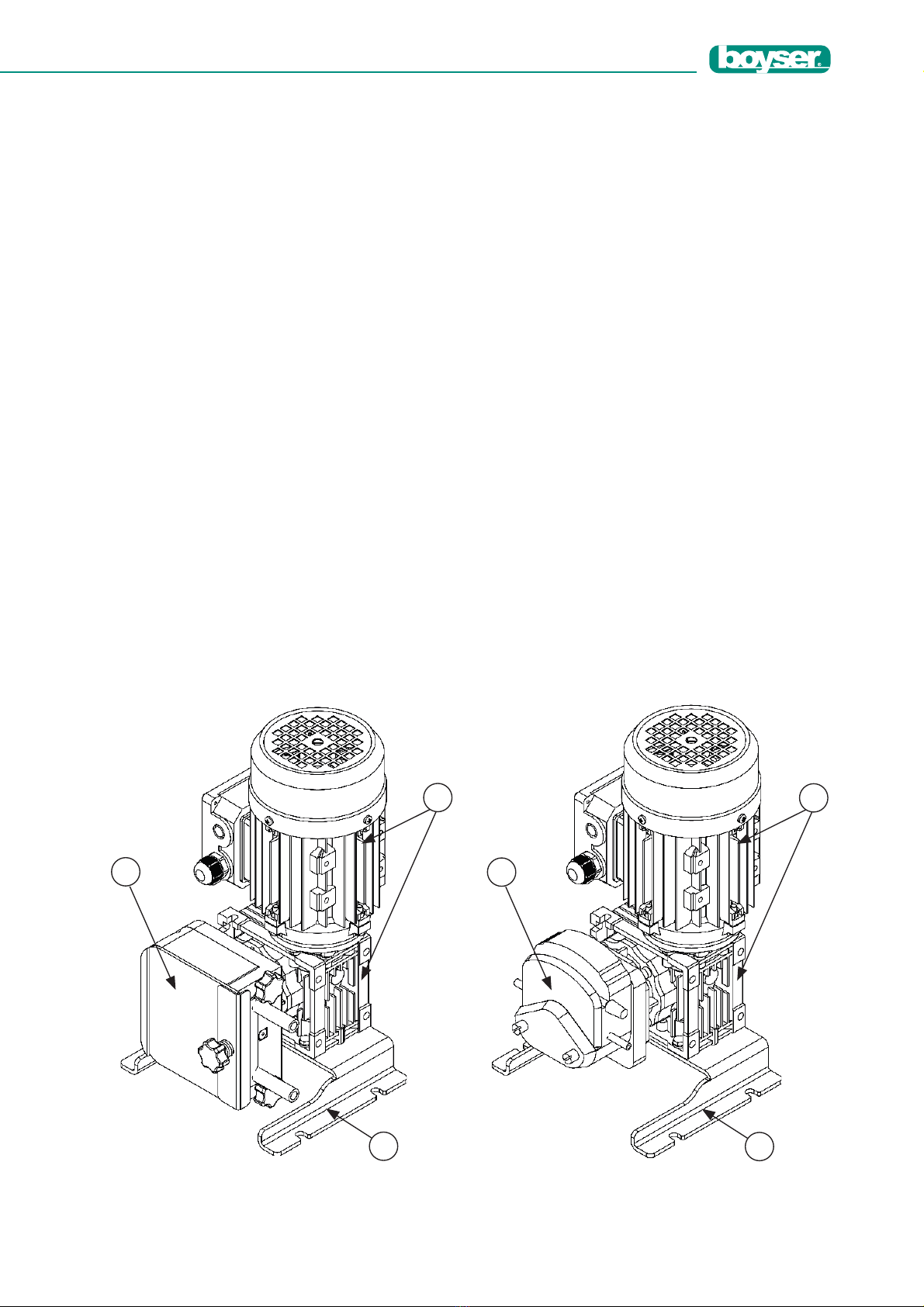

4. DESCRIPTION
4.1. Identification of the product
A: Pump head
B: Gearbox
C: Electric motor
4.2. Identification of the pump
MOD: Type number
Nº: Serial number
YEAR: Year of manufacture
DSM DSM LAB

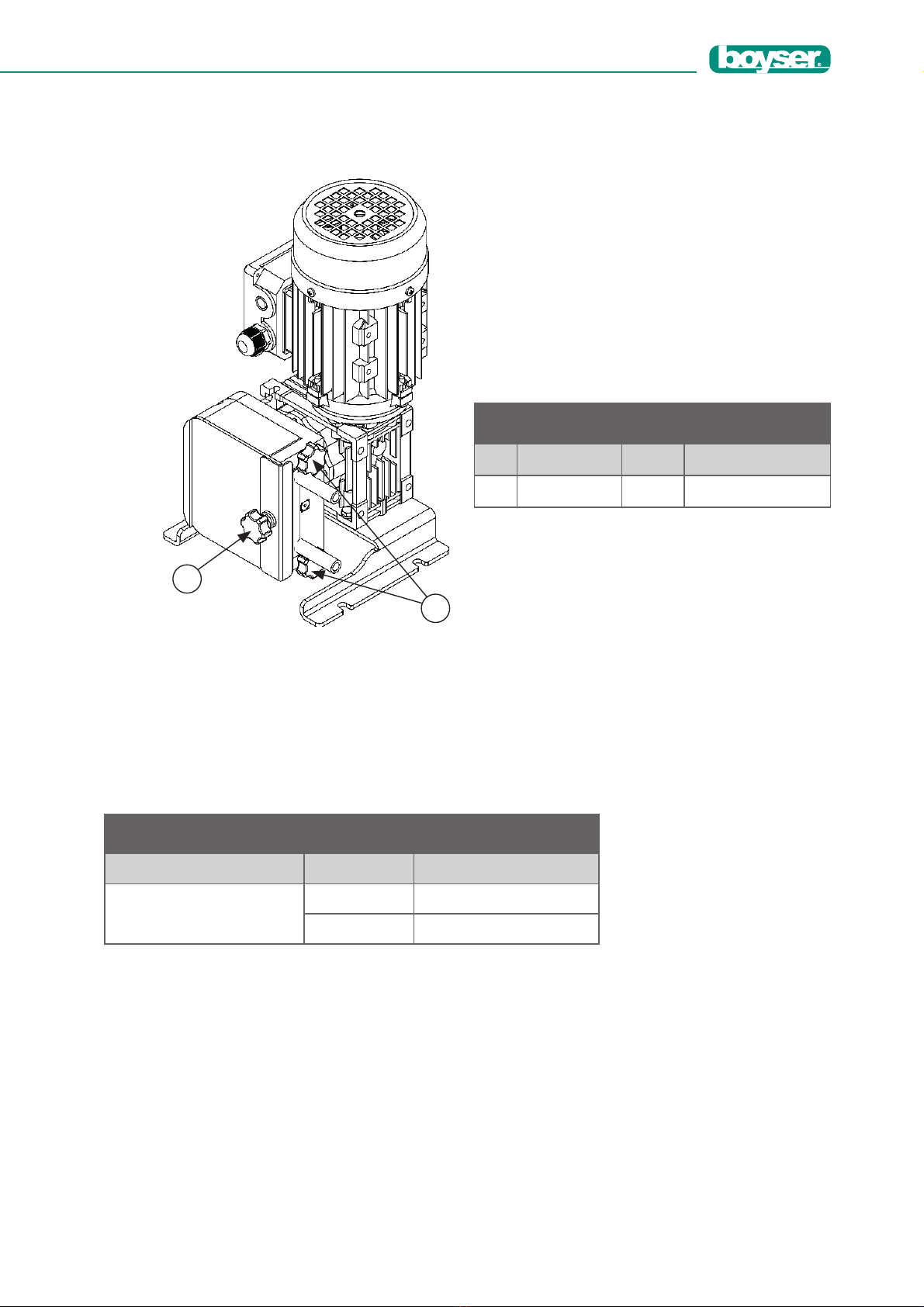

A
B
C

9
4.3. Identification of the gearbox (B)
The gearbox has an identity plate with the model, serial number and manufacturer’s de-
tails as well as information relevant to its function such as reduction ratio.
4.4. Identification of the electric motor (C)
The motor has an identity plate with the model, serial number and manufacturer’s details
as well as information relevant to its’ function such as electric power.
5. CONSTRUCTION
The pump housing is closed off with a bolted front cover in order to avoid the risk of injury.
The motor serves to drive the rotor. Two shoes attached to the rotor serve to press the
tube against the pump housing.
The rotary movement of the rotor alternately presses and releases the shoes against the
tube. This serves to suck the media and convey it into the metering line.

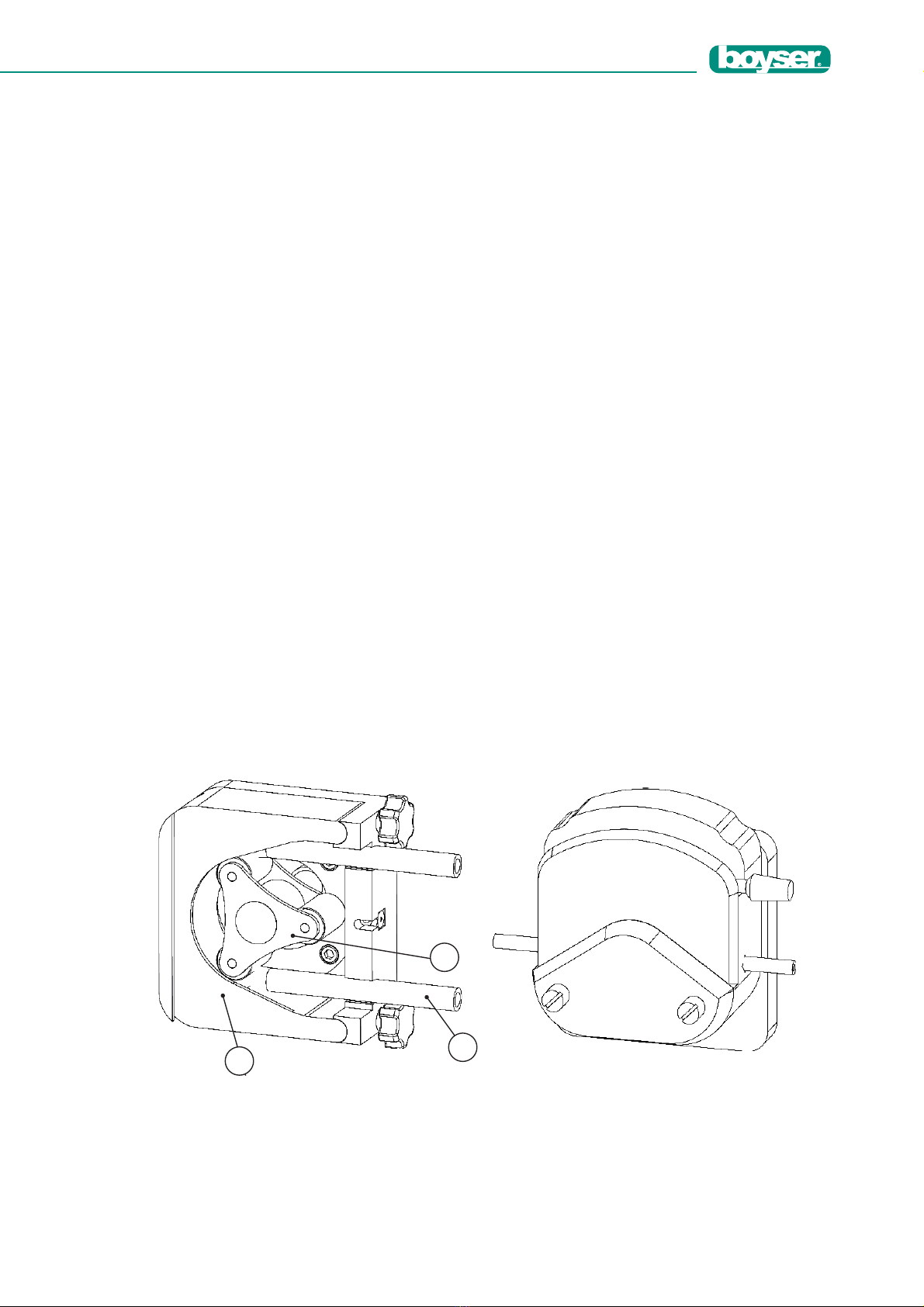

5.1. Diagram of functional principle
1. Housing
2. Rotor
3. Tube
DSM DSM LAB
13
2

10
Operating instruccions Peristaltic Pumps DSM Series
6. TRANSPORT AND STORAGE
6.1. Transport
- The pump is protected by cardboard packaging or a wooden crate.
- The packaging materials are recyclable.
6.2. Storage for less than 1 month
- The pump should be in a resting position, rotor in horizontal position.
- Avoid areas open to harsh weather or excessive humidity and temperatures lower
than 0°C or higher than 30°C.
- Spare tubes should be stored in a dry place away from direct light.
6.3. Storage for more than 1 month
- Avoid areas open to harsh weather or excessive humidity and temperatures lower
than 0°C or higher than 30°C.
- IMPORTANT Disassemble the tube from the housing (see section 8.2).
- For storage periods of longer than 30 days, protect the coupling surfaces (clamps,
reducers, motors) with adequate anti-rust protection.
- For storage periods longer than 6 months, rotate the rotor a few turns to prevent
damage to bearings and oil seals and to prevent grease migration.
- Spare tubes should be stored in a dry place away from direct light.
6.4. Elevation
- DSM pumps sizes can be lifted manually.
- It is the customer’s responsibility to adhere to local workplace legislation.
Weights DSM DSM/LAB
Total pump weight <11 kg <11 kg
<24,25 lbs <24,25 lbs
Lifting 1 person 1 person

11
7. ASSEMBLY, COMISSIONING AND INSTALLATION
7.1. Ambient conditions
Assembly is to be carried out in the following order.
If the pump has to be installed outdoors, then it is to be equipped with protection against
sunlight and weather influences.
When positioning the pump, ensure that sufficient room for access is provided for all types
of maintenance work.
Limit values for tube temperature and pressure.
Tube Material Min. Temp. (°C)
Feed chemical
Max. Temp (°C)
Feed chemical
Min. Temp (°C)
Environment
Max. Pressure
(bar)
NORPRENE - 10 90* - 10 2
SILICONE - 10 90* - 10 2
SOLVA - 10 70 - 10 2
* At max. temperature, the life of tube is drastically reduced.
Please contact BOYSER for applications with feed chemical temperature higher than 60°.
7.2. Commissioning
7.2.1. Testing prior to commissioning the pump
The following tests are to be carried out:
- Only switch the pump on if the front cover has been properly attached.
- Check that the mains voltage is suitable for the motor.
- Check that the thermal overload protection (not included in the delivery scope)
corresponds to the value specified on the motor type plate.
- Confirm that pump has been properly earthed.
- Connect the electric motor according to local applicable rules and regulations. The
electrical installation work must be carried out by qualified personnel.
- Check that the optional electrical components are connected and are working
properly.
- Check whether the direction of rotation is correctly adjusted.
7.3. Correct installation of the pump
- Ensure that the pump has not been damaged during transportation or storage.
Immediately report any damage to the supplier.

12
Operating instruccions Peristaltic Pumps DSM Series
- Ensure that all the packaging has been removed.
- Check that the information printed on the identification plate corresponds with
the order.
- Check the operating instructions in order to ensure that the flow values, pressures
& power consumption of the motor do not exceed rated values.
- Ensure that the tube is suitable for the fluid to be conveyed and that it is not
damaged.
- Make sure that the temperature of the liquid does not exceed the recommended
temperature range.
- Ensure that there is enough space for free airflow around the motor.
- Ensure that no nearby objects or direct sunshine radiate additional heat to the
motor.
7.3.1. Suction side
- Install a manometer in the pressure line if the back-pressure value is unknown.
Maximum pressure on suction/inlet side is 0,5 bar (7,25 psi approx.).
- The pump is to be positioned as near as possible to the liquid container, so that
the suction side is kept as short and straight as possible.
- The suction line must be absolutely airtight and made of a suitable material, so
that it does not collapse under vacuum.
- The diameter must correspond to the rated diameter of the tube. A larger diameter
is recommended in the event of viscous liquids.
- The pump is self-priming and does not require an admission valve.
- The pump is reversible and the suction side can be connected to either hydraulic
connection of the pump. Normally, the option is selected which is best suited to
the physical conditions of the rest of the installation.
7.3.2. Discharge side
- The discharge line is to be kept as straight and short as possible, in order to avoid
performance reduction.
- The diameter must correspond to the rated diameter of the tube. A larger diameter
is recommended in the event of viscous liquids.
- Do not close or block the outlet since, as it is a volumetric pump, it would cause
the tube to break or an electro-mechanical overload.

13
8. Torque values
8.1. Lubrication
DSM pumps only require a thin film of grease to reduce the friction between the roller and
the outer surface of the tube. No other lubrication is necessary.
Lubricant quantity table
Type Unit DSM-DSM/LAB
Lubricant - BOYSER
Silicone grease quantity gramme 10-20
ounce 0,35 – 0,71
8.1.1. Changing oil in gearbox
The instructions manual of the gearbox are usually delivered with the IOM of the Boyser
pump.
Some models of gearbox are lubricated for life, other models of gear reducers require
regular maintenance according to the instructions manual of the gear reducer manufac-
turer.
In case of doubt, please contact the gearbox manufacturer or their authorised distributor
in your country.
A
B
Description Units DSM- DSM/LAB
ACover bolts - Manual, no bolts
B Cover bolts - Manual, no bolts

14
Operating instruccions Peristaltic Pumps DSM Series

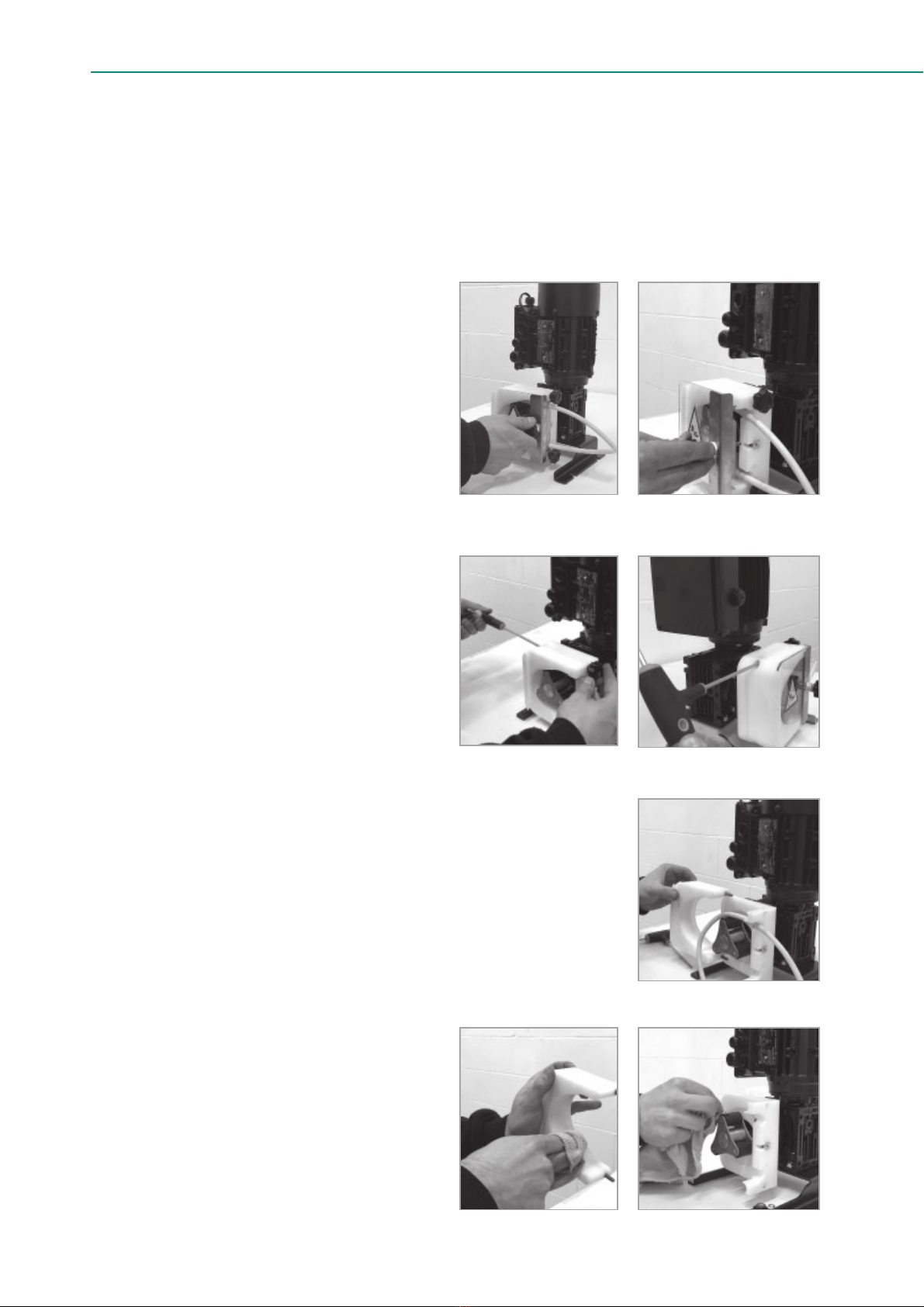

8.2. Exchanging the DSM tube
1. Close off all valves, in order to prevent leakage of the feed chemical.
2. Dismantle the pipes from both discharge and suction sides.
3. Remove the front cover. Front
covers of DSM Series can be
removed manually.
4. Insert an allen key into bolt
on the left of the housing to
stop the bolt from rotating
and twist off the star knob on
the right.
5. Slide off the removable housing.
6. Clean removable housing and
rollers.

15

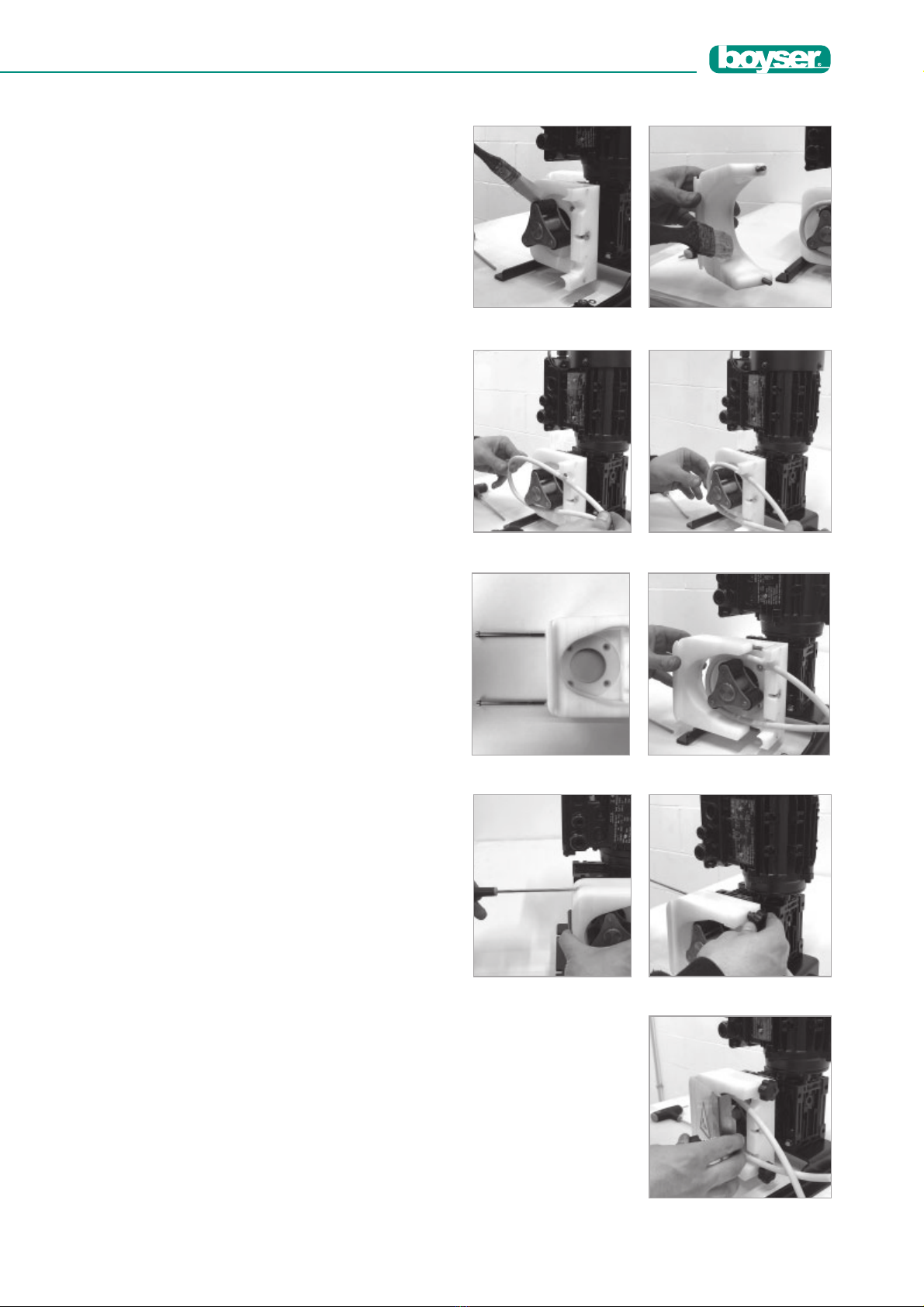

7. Apply lubricant to the rollers
and the removable housing
with a small brush.
8. Place new tube around the
roller and through the slots in
the housing.
9. Place the allen screws in the
removable housing and slide it
on the housing.
10. Use the allen key to stop the
bolt from rotating and twist
the star knob until both parts
of the housing are in contact.
11. Install the front cover.

16
Operating instruccions Peristaltic Pumps DSM Series

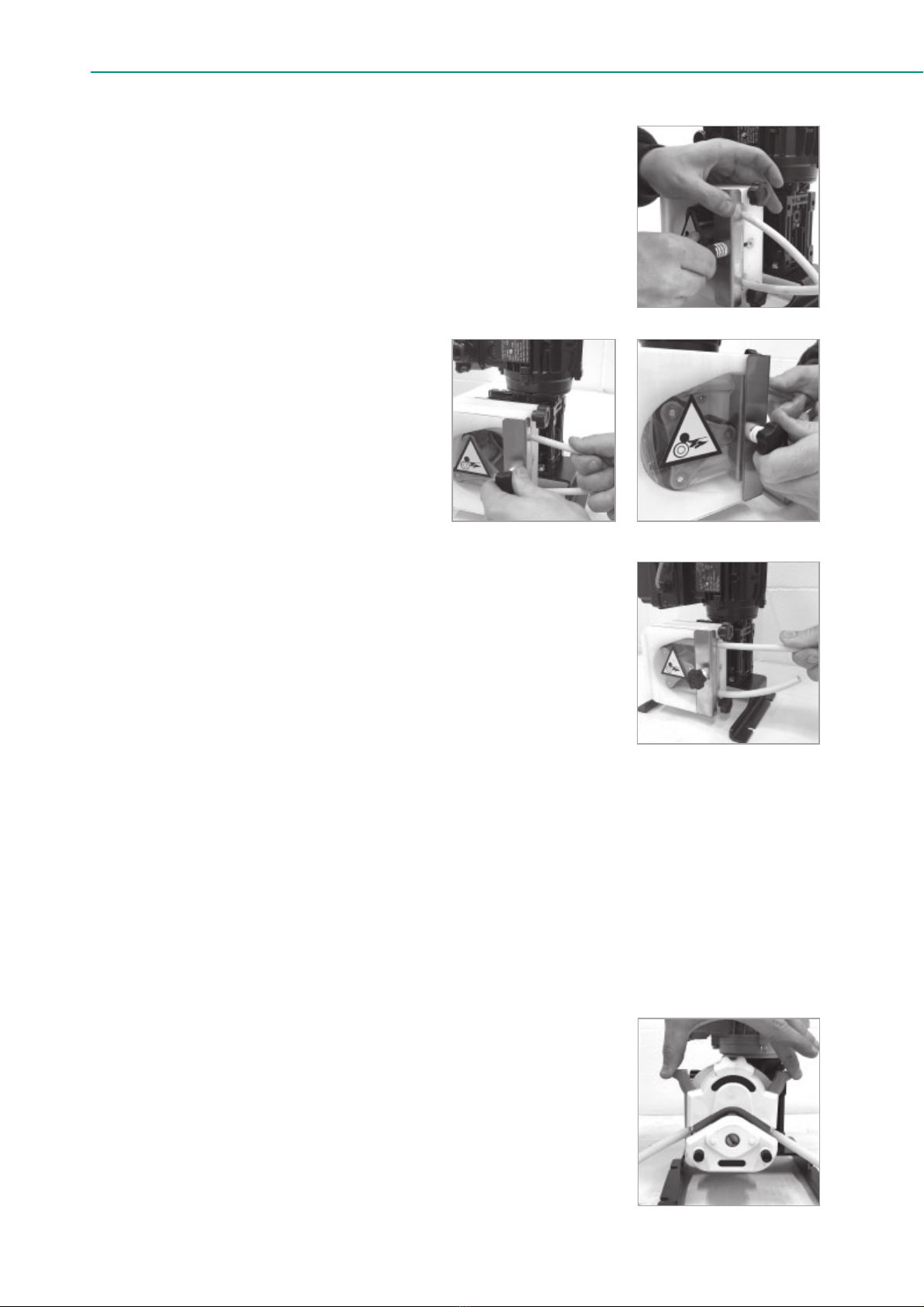

12. Begin to twist the star knob.
13. With one hand pull on the
tube without stretching it and
with the other hand continue
to twist the star knob until
the front cover is closed.
14. The tube changing process is complete. To check
that the tube is correctly held in place, pull on one
end to make sure that no movement is possible.
15. Mount the pipes from both discharge and suction sides.
16. Open all of the valves.
8.3. Exchanging the DSM-LAB tube
1. Close off all valves, in order to prevent leakage of the feed chemical.
2. Dismantle the pipes from both discharge and suc-
tion sides. Lift the lever.

17
3. Remove tube.
4. Position the new tube.
5. Lower the lever.
6. Mount the pipes from both discharge and suction sides.
7. Open all of the valves.
8.4. Replacement of electric motor
For repair or replacement of the electric motor they could be disassembled from the
pump housing. The pump is stable on its baseplate and will not fall over when the electric
motor is disassembled.
No support set is necessary.
8.5. Addition of leak detection sensor
Standard DSM pump housing is not prepared for addition of leak
detection sensor.
The alternative is to order the DSM pump assembled onto a co-
llector with its own leakage detector

18
Operating instruccions Peristaltic Pumps DSM Series

19
DSM SERIES

20
Operating instruccions Peristaltic Pumps DSM Series
9. Troubleshooting
Problem Possible cause Solution
Increased
pump tempe-
rature
Tube has no lubricant Lubricate tube
Increased product temperature Reduce product temperature
Insufficient or poor suction con-
ditions
Check suction line condition
Pump speed too high Reduce pump speed
Reduced flow
or pressure
Valves on discharge and or suc-
tion side completely or partially
closed
Open valves
Tube insufficiently compressed Check number of shims
Tube rupture (the product leaks
out into the housing)
Exchange tube and clean pump
Partial blockage of the suction
line
Clean pipe
Insufficient product quantity in
storage container
Fill storage container or exchange pump
Insufficient diameter on the suc-
tion side
Increase the diameter on the suction side,
as far as possible
Suction line too long Shorten the suction line, as far as possible
High viscosity of medium Reduce viscosity, as far as possible
Air introduction in the suction
connections
Check connections and accessories for air
tightness
High pulsation on suction Tighten connections and accessories
Mount anti-pulsation equipment
Reconsider application (speed, etc.)
Vibrations on
pumps and
pipelines
The pipes are not correctly fas-
tened
Fasten pipes correctly (e.g. wall brackets)
Pump speed too high Reduce pump speed
Insufficient nominal width of the
pipes
Increase nominal width
Pump base plate loose Fasten base plate
Pulsation dDSMers insufficient
or missing
Install pulsation dDSMers on suction and /
or discharge side
