BRABUS SHADOW 500 2021-2022 User manual

OWNER’S
MANUAL
BRABUS SHADOW 500
MODEL YEAR 2021-2022

Table of Contents
Table of Contents
1 Introduction................................................................................................................ 5
1.1 Purpose of this manual..................................................................................................................... 5
1.2 Safety symbols.................................................................................................................................. 5
1.3 Document conventions...................................................................................................................... 6
1.4 Copyright............................................................................................................................................6
1.5 Disclaimer ......................................................................................................................................... 6
1.6 Warranty.............................................................................................................................................7
2 Safety.........................................................................................................................8
2.1 Safety diagram...................................................................................................................................9
2.2 Fire protection and control................................................................................................................ 9
2.2.1 Fire control equipment.......................................................................................................... 10
2.2.2 Boat owners' and users' responsibilities............................................................................... 10
2.2.3 Checklist: Fire in the engine................................................................................................. 11
2.2.4 Checklist: After fire................................................................................................................ 11
2.3 Carbon monoxide............................................................................................................................ 11
2.4 Life raft.............................................................................................................................................12
3 Product overview.....................................................................................................14
3.1 Purpose of use................................................................................................................................ 14
3.2 Identification..................................................................................................................................... 14
3.3 Builder's plate.................................................................................................................................. 14
3.4 CE certification.................................................................................................................................15
3.5 Dimensions and weight .................................................................................................................. 15
3.6 Boat layout ..................................................................................................................................... 17
4 Product description..................................................................................................19
4.1 Stability and buoyancy.................................................................................................................... 19
4.1.1 Self-draining systems............................................................................................................ 19
4.1.2 Openings in the hull and deck.............................................................................................. 20
4.1.3 Bilge system.......................................................................................................................... 22
4.1.3.1 Bilge pumps and outlets.......................................................................................... 23
4.2 Technical systems............................................................................................................................26
4.2.1 Electrical system....................................................................................................................26
4.2.2 12 V system.......................................................................................................................... 26
4.2.3 Main switches .......................................................................................................................27
4.2.4 Direct supply switches...........................................................................................................28
4.2.5 Fuses..................................................................................................................................... 28
4.2.6 Heavy duty fuses...................................................................................................................29
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 1
-
-

Table of Contents
4.2.7 Batteries.................................................................................................................................30
4.2.7.1 Charging the batteries............................................................................................. 30
4.2.7.2 Winter storage ........................................................................................................ 31
4.2.7.3 Cleaning the batteries .............................................................................................31
4.2.8 110/230 V system..................................................................................................................31
4.2.9 Fuel system........................................................................................................................... 32
4.2.9.1 Refueling the boat....................................................................................................33
4.2.9.2 Maintaining the fuel system..................................................................................... 34
4.2.10 Fresh water system............................................................................................................. 34
4.2.11 Septic system...................................................................................................................... 35
4.2.11.1 Toilet seat............................................................................................................... 36
4.2.11.2 Septic tank..............................................................................................................37
4.2.12 Bow thruster........................................................................................................................ 37
4.3 Optional equipment..........................................................................................................................38
4.3.1 Heating system......................................................................................................................38
4.3.2 Anchor windlass.................................................................................................................... 38
5 Transportation..........................................................................................................40
5.1 Lifting the boat.................................................................................................................................40
5.2 Transporting and storing the boat................................................................................................... 41
6 Operation................................................................................................................. 43
6.1 Handling devices............................................................................................................................. 43
6.1.1 Steering console....................................................................................................................43
6.1.2 Steering console switch panel.............................................................................................. 45
6.1.3 Windscreen wipers ...............................................................................................................45
6.1.4 Steering system.....................................................................................................................45
6.1.4.1 Checking and topping up oil ................................................................................. 45
6.1.4.2 Steering maintenance ............................................................................................46
6.1.5 Starting the engine................................................................................................................ 46
6.2 Swivel seat - Driver and passenger seats...................................................................................... 46
6.3 Inspecting the boat.......................................................................................................................... 47
6.3.1 Checklist: Regular inspection before leaving harbor.............................................................47
6.3.2 Checklist: After using the boat.............................................................................................. 48
6.3.3 Notes for sunny conditions for Black OPS boats..................................................................48
6.4 Handling the boat............................................................................................................................ 49
6.4.1 Checklist: Boat handling before leaving harbor ................................................................... 49
6.4.2 Leaving the jetty ...................................................................................................................50
6.4.3 Driving the boat..................................................................................................................... 50
6.4.3.1 Dead man's switch ................................................................................................. 51
6.4.3.2 Driving at high speed...............................................................................................51
6.4.3.3 Driving in rough seas...............................................................................................52
6.4.3.4 Maneuvering in narrow channels.............................................................................52
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 2
-
-

Table of Contents
6.4.4 Visibility from steering position..............................................................................................53
6.4.5 Using the trim tabs................................................................................................................53
6.5 Preventing falling overboard............................................................................................................54
6.6 Anchoring, docking and mooring.....................................................................................................55
6.6.1 Fastening points.................................................................................................................... 55
6.6.2 Docking.................................................................................................................................. 55
6.6.3 Checklist: Before anchoring ................................................................................................. 56
6.6.4 Towing and mooring.............................................................................................................. 56
7 Maintenance............................................................................................................ 57
7.1 Cleaning and maintaining the gelcoat surface................................................................................ 57
7.1.1 Maintenance notes................................................................................................................ 59
7.2 Maintaining the interiors.................................................................................................................. 60
7.2.1 Wooden interiors................................................................................................................... 60
7.2.2 Plastic and painted surfaces................................................................................................. 60
7.2.3 Fabrics................................................................................................................................... 60
7.2.4 Doors and hatches................................................................................................................ 60
7.3 Maintaining the cover...................................................................................................................... 60
7.3.1 Cleaning the cover................................................................................................................ 61
7.4 Preventing corrosion with sacrificial anodes................................................................................... 61
7.5 Preventing frost damage................................................................................................................. 61
7.6 Checklist: Before winter lay-up........................................................................................................62
7.7 Checklist: Before launching............................................................................................................. 62
7.8 Corrective maintenance...................................................................................................................63
7.8.1 Deposits................................................................................................................................. 63
7.8.2 Scratches and nicks.............................................................................................................. 63
7.8.3 Stains..................................................................................................................................... 63
7.8.4 Deep marks, gouges and holes............................................................................................ 63
8 Environment.............................................................................................................64
8.1 Requirements for North America.....................................................................................................64
9 Appendix I: Checklists.............................................................................................65
9.1 Checklist: Fire in the engine........................................................................................................... 65
9.2 Checklist: After fire.......................................................................................................................... 65
9.3 Checklist: Regular inspection before leaving harbor.......................................................................65
9.4 Checklist: After using the boat........................................................................................................ 66
9.5 Checklist: Boat handling before leaving harbor ............................................................................. 66
9.6 Checklist: Before anchoring ........................................................................................................... 67
9.7 Checklist: Before winter lay-up........................................................................................................67
9.8 Checklist: Before launching............................................................................................................. 68
10 Appendix II: Fuel system...................................................................................... 69
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 3
-
-

Table of Contents
11 Appendix III: Electrical diagrams...........................................................................70
12 Appendix IV: Warning label placement................................................................. 71
13 Appendix V: AIS Decontamination – North America.............................................72
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 4
-
-

1 Introduction
1 Introduction
1.1 Purpose of this manual
This instruction manual contains important information and instructions for using your boat.
In this owner's manual you can find important information that help you handle and maintain your
boat. The manual contains detailed information about the boat and the systems installed, and general
information about handling and taking care of the boat. The latest version of the manual is available in
electronic format at the manufacturer's website.
Read the manual carefully and familiarize yourself with your boat before you start to use it. Also ensure
that the anticipated wind and wave conditions correspond to the design category of your boat, and that
you and your crew are able to handle the boat in these conditions.
This owner's manual is not a substitute for boating safety skills or good
seamanship.
If this is your first boat or if this boat type is new to you, ensure you can handle the
boat before you set out for the first time.
For information about local sea schools and approved instructors, please ask your
boat dealer, the local boat clubs and national motorboat or yacht federations for
advice.
This owner’s manual is not a detailed maintenance or troubleshooting guide. If problems occur, contact
the boat manufacturer or its local representative. When you are in need of maintenance or repair and
alteration work, always turn to competent and trained professionals. Changes that can affect the boat’s
security features must be assessed, carried out and documented by competent professionals. The boat
manufacturer cannot be held responsible for unauthorized modifications. Every change to the boat’s
center of gravity (from highly mounted heavy equipment or a new engine type etc.) significantly affects
the stability, trim and performance of the boat.
Keep this manual in a safe place and pass it on to the new owner if you sell your boat. If the manual is
mislaid or destroyed, a copy can be ordered from your dealer or downloaded from the manufacturer's
website.
See the purchase agreement or order for the scope of your purchase. In case something does not work
satisfactorily with your boat or its equipment, you can check the service documents for possible service
and repair measures. If uncertain, always contact your dealer.
1.2 Safety symbols
This instruction manual contains danger, warning, caution and notice statements informing the user or
authorized service representatives of any potential harm to the product or person.
Hazard is defined as a source of potential injury to a person.
All abnormal use is forbidden, including disregarding information on safety.
DANGER Danger indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 5
-
-

1 Introduction
WARNING Warning indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION Caution indicates a potentially hazardous situation which, if not avoided, might
result in minor or moderate injury.
NOTICE Notice indicates a potential situation which, if not avoided, might result in
property damage or in an undesirable result or state.
The information icon calls attention to information that clarifies or simplifies a
procedure.
1.3 Document conventions
Units
This manual uses SI units in accordance with ISO 1000. In some cases, other units may have been used
alongside.
An exception is the wind velocity, which in the Recreational Boat Directive is given in the Beaufort Scale.
Terminology
In this manual, the right side of the hull is referred to as starboard (STB) and the left side as port.
1.4 Copyright
Copyright ©2022 Axopar Boats / Brabus Marine. All rights reserved.
This Owner's Manual is protected by copyright controlled by Axopar Boats / Brabus Marine. This manual
cannot be wholly or partly reproduced without prior written authorization by Axopar Boats / Brabus
Marine. This material also contains confidential information, which may not be disclosed to others without
the prior written consent of Axopar Boats / Brabus Marine.
1.5 Disclaimer
The material in this manual is for information purposes only.
Axopar Boats / Brabus Marine reserves the right to change the products without prior notice to improve
reliability, function, design or other characteristics of the products. Axopar Boats / Brabus Marine
assumes no liability for any damages, losses, costs or expenses arising out of or relating to the use of
this manual or the products described herein.
Axopar Boats / Brabus Marine makes no representations and warranties with respect to this manual,
either express or implied, including, but not limited to, the implied warranties of merchantability and
fitness for a particular purpose.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 6
-
-

1 Introduction
1.6 Warranty
The Limited Warranty for the boat and the relevant contact information are enclosed as a separate
document.
For any warranty claims, please contact your Axopar/Brabus Marine dealer mentioned on the cover
page.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 7
-
-

2 Safety
2 Safety
WARNING The boat owner is responsible for making sure that the safety equipment on the
boat meets the rules and regulations of the local authorities.
• Keep the necessary safety equipment up to date and on the boat at all
times.
Check the preferred location of the major safety equipment in the section Safety
diagram.
WARNING Overloading the boat can damage the engine, even when shut off.
• When loading the boat, never exceed the maximum recommended load
of the boat shown in the builder's plate.
• Always load the boat carefully and distribute loads appropriately to
maintain design trim.
• Avoid placing heavy equipment or material high up in the boat.
The liquids in the built-in tanks are not included in the maximum load shown on
the builder's plate.
WARNING When out on the water, always use the seats intended for the passengers.
Do not exceed the maximum number of persons allowed in the boat, shown in the
builder's plate.
The total weight of the persons on board and their personal luggage must never
exceed the maximum load of the boat shown in the builder's plate.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 8
-
-

2 Safety

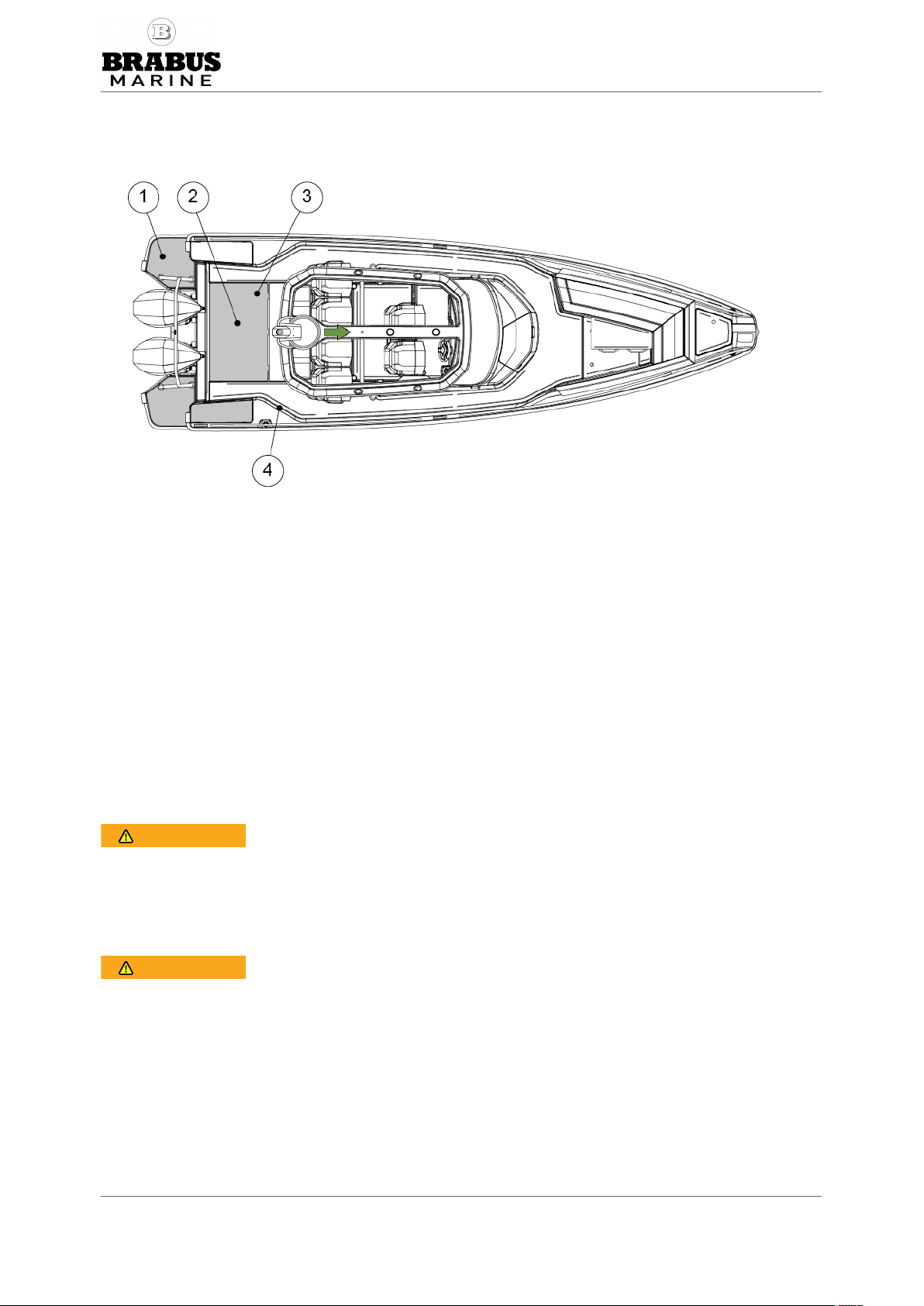

2.1 Safety diagram
(1) Swim ladder
(2) Life raft storage
(3) CO monitor (if aft cabin option selected)
(4) Fire extinguisher
→ Exit
2.2 Fire protection and control
The most common fire sources are the engine and the stove. If there is a fire in the boat, it may result in
an explosion.
WARNING Fire usually spreads very fast — be quick to extinguish the fire with the fire
extinguisher on the boat!
See the section Safety diagram for the exact location of the fire extinguisher(s).
If the fire starts to get out of control, leave the burning boat to save lives.
WARNING Always put down the fire by depriving the fire of oxygen.
Do not use water!
Using water in fire involving flammable liquids can spread the liquid and make the
fire worse.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 9
-
-

2 Safety
WARNING If the fire reaches the fuel containers, an explosion may occur and cause a large
area around the boat to burn.
• Keep the bilge clean and check it regularly for fuel and gas fumes or fuel
and oil leaks.
• Do not hang curtains or other flammable material near or above any
equipment with naked flames.
• Never leave the boat unattended when the heater is switched on.
• Never refuel or replace gas containers when the engines are running.
• Never smoke when handling fuel or gas.
• Never block evacuation routes or emergency exits.
• Never block access to safety equipment such as fuel valves or main
power switches.
• Never block access to fire extinguishers, visible or concealed.
• Never modify the boat’s systems (especially electrical, fuel or gas
systems).
2.2.1 Fire control equipment
Check the exact locations of the fire control equipment in the section Safety diagram.
Fire extinguishers
You must fit the boat with hand-held fire extinguishers with the following output and locations:
• The fire extinguisher must have a fire rating of at least 13A/89B (2 kg).
• Check the exact locations of the fire extinguishers in the section Safety diagram.
The fire extinguishers are not included in the manufacturer's delivery.
Fire blanket
A fire blanket is ideal for putting out small fires and also one of the best options if a person's clothes
catch fire.
• Keep a fire blanket onboard in an easily accessible place.
2.2.2 Boat owners' and users' responsibilities
It is your responsibility as the boat owner and user to ensure that the fire control equipment is accessible
at all times.
• Check the fire extinguishing equipment regularly at the intervals specified for the equipment.
• Replace equipment with expired date immediately with equivalent or better equipment.
• Advice the crew and guests of the location and instructions for use of the fire control equipment,
and the location of evacuation routes and emergency exits.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 10
-
-

2 Safety
2.2.3 Checklist: Fire in the engine
• Stop the engine.
• Steer the boat up against the wind, if possible.
• Make sure all passengers have life jackets.
• If necessary:
◦ Evacuate the passengers.
◦ Call for sea rescue.
• Shut off fuel and main power switches.
• Extinguish the fire.
• Wait until fully certain that the fire has been extinguished before opening the engine cover.
Carefully open the engine cover and be prepared to use the handheld fire extinguisher if
necessary for post-fire extinguishing.
• Put out possible smoldering fires with water.
2.2.4 Checklist: After fire
• Open doors and windows for better ventilation.
• Inspect the boat and its equipment, and repair any damages.
• Contact local authorities, if needed.
• Make sure that the fire extinguishing equipment is refilled or replaced after use.
2.3 Carbon monoxide
WARNING Carbon monoxide (CO) is colorless, odorless, tasteless, and extremely dangerous
gas.
All engines, generators, and fuel burning appliances produce CO as exhaust.
Prolonged exposure to low concentrations or very quick exposure to high
concentrations may cause brain damage or death.
Open all doors, curtains, windows, and hatches to let fresh air circulate when
running an engine or generator or burning any fuel while the boat is anchored,
moored or docked.
There is a carbon monoxide monitor system in the boat. For the exact location of the CO monitor, see the
section Safety diagram.
• With regular intervals, check that the monitor system is functioning. For instructions, see
the equipment manufacturer's manual.
It is not possible to turn the CO monitor off when the boat is in use.
If you can smell engine or generator exhaust, you are inhaling CO. CO can also be present without the
smell of exhaust fumes.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 11
-
-

2 Safety
If the CO alarm is activated, make sure all persons onboard exit the closed spaces.
• If exhaust fumes are detected or if CO accumulation is suspected on the boat, take immediate
action to ventilate these fumes.
• Turn off all engines and generators.
• Open all hatches, windows and ports to ventilate.
Changing course and speed to place the boat heading into the wind can improve ventilation.
Symptoms of carbon monoxide poisoning are dizziness, ears ringing, headache, nausea and
unconsciousness. A poisoning victim’s skin often turns cherry red.
Because the carbon monoxide gas is odorless, colorless and tasteless, it is unlikely to be noticed until a
person is affected.
•If CO poisoning is suspected, have the victim breath fresh air deeply.
•If breathing stops, resuscitate.
• A victim often revives, but then relapses because organs are damaged by the lack of oxygen.
Seek immediate medical attention.
High levels of carbon monoxide may accumulate in the following ways:
• Blocking hull exhausts while operating at slow speed or if exhausts are submerged.
• Using canvas curtains.
• Winds blowing exhaust toward boat occupants.
• Operating engine or generator in a confined space.
• Operating with the bow high.
Dangerous concentrations of carbon monoxide are present if:
• the engine or generator exhaust systems leak
• insufficient fresh air is circulating where people are present
• fumes move from the rear of the boat into the cockpit and cabin area.
To minimize the danger of CO accumulation when the engine and generator are running or when using
burning fuel applications:
• Be sure to have sufficient ventilation when using canvas or window-type side curtains when
underway, anchored, moored or docked.
• If the convertible top is installed, operate with the forward hatch open and leave the cabin door
open.
• Operate all burning fuel appliances, such as charcoal, propane, LPG, CNG or alcohol cooking
devices, in areas where fresh air can circulate.
Do not use such devices where there is no noticeable air movement, especially in the cabin,
when anchored, moored or docked.
• Do not idle the engine without moving the boat for more than 15 minutes at a time.
• Inspect the exhaust system regularly. See the manufacturer's manual for instructions.
2.4 Life raft
The boat is not equipped with a life raft by the manufacturer.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 12
-
-

2 Safety
Storing a life raft
If you decide to acquire a life raft for your boat, Axopar Boats recommends that you stow it to the aft of
the boat, so that it is easily accessible in case of emergency.
Using the life raft
The life raft must be tied to the stern of the boat and prepared for use.
In an emergency, it is easiest and safest to board the life raft from the swimming deck. Switch off the
engine before using the life raft.
Follow the life raft manufacturer’s instructions.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 13
-
-

3 Product overview
3 Product overview
3.1 Purpose of use
The boat is a recreational boat, thus not suitable for professional use.
3.2 Identification
Each boat has a unique identification code, containing 14 characters and a hyphen.
The height of the code text is 6 mm, and it is located on the starboard side of the stern.
Example: FI – BOT8C001F920 Data
FI Country of manufacturer: Finland
- Hyphen
BOT Manufacturer: Axopar Boats
8S Boat model
• C = Cabin
• S = Spyder
001 Boat number
F Manufacturing month
• A = January
• B = February
• C = March
• etc.
9 Last digit of the manufacturing year
20 Model year
3.3 Builder's plate
The builder’s plate is always located close to the steering position of the boat.
Eurofins Expert Services Oy has inspected that the boat fulfills the Recreational Boat Directive and
related standards' requirements.
The builder's plate contains the following information:
• Boat model
• Manufacturer's address
• Maximum number of persons on board
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 14
-
-

3 Product overview
• Maximum load: total weight of persons including personal luggage and basic equipment,
and excluding tank contents
• Maximum engine power
• Maximum engine weight
• Issuer of the CE certificate.
3.4 CE certification
This boat is classified to CE categories B and C.
The category is determined according to the maximum number of persons allowed onboard.
The CE certification indicates that a boat is designed and built in such a way that it retains its stability and
buoyancy in given circumstances and meets other important requirements that are characteristic of the
category in question. One of these requirements is that the boat must be easy to maneuver.
The CE categories classification also signifies that a boat is designed and constructed to withstand the
following parameters in respect of stability, buoyancy, and other relevant essential requirements stated.
Category Description
A. Ocean The boat is designed for extended voyages, where conditions experienced may exceed wind
force 8 on Beaufort Scale and include significant wave heights of at least 4 meters.
Under such conditions, the boat must be largely self-sufficient.
B. Offshore The boat is designed for offshore voyages, where conditions up to and including wind force 8 on
Beaufort Scale and significant wave heights up to and including 4 meters may be experienced.
C. Inshore The boat is designed for voyages in coastal waters, large bays, estuaries, lakes and rivers, where
conditions up to and including wind force 6 Beaufort Scale and significant wave heights up to and
including 2 m may be experienced.
3.5 Dimensions and weight
Dimensions
Dimension SI units US units
Hull length (LH) 9.2 m 30 ft 1 in
Overall length (LMAX)
(excluding engine)
9.2 m 30 ft 1 in
Hull beam (BH) 3.0 m 9 ft 8 in
Draught at max. load 0.8 m 2 ft 8 in
Height measured from waterline at
light load
2.8 m 9 ft 8 in
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 15
-
-

3 Product overview
Power
SI units US units
Maximum recommended power with
twin engines
2 x 186 kW 2 x 250 hp
Weight and loading
SI units US units
Hull weight (excluding engine) 1796 kg 3960 lb
Category B Category C
Maximum number of persons
Default weights:
• Adult: 75 kg (165 lb)
• Child: 37.5 kg (83 lb)
6 9
Category B Category C
SI units US units SI units US units
Total weight of all
persons
450 kg 992 lb 675 kg 1488 lb
Weight of unloaded
boat with maximum
weight outboard
engines
2567 kg 5659 lb 2567 kg 5659 lb
Maximum
recommended load
796 kg 1755 lb 1021 kg 2251 lb
Boat weight at
maximum load
3363 kg 7414 lb 3588 kg 7910 lb
of which
SI units US units
Maximum recommended engine
weight
626 kg 1380 lb
Personal luggage 50 kg 110 lb
Fresh water (39 l) 39 kg 86 lb
Septic water (45 l) 45 kg 99 lb
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 16
-
-

3 Product overview
SI units US units
Fuel (260 l) 195 kg 430 lb
Other liquids (heater fuel) 17 kg 37 lb
Life raft weight 24 kg 53 lb
Total weight of fuel, water and other
liquids
296 kg 653 lb
Mass on trailer 2818 kg 6213 lb
Tank capacity
SI units US units
Fuel tank 260 l 69 gal
Fresh water tank 39 l 10 gal
Septic tank 45 l 12 gal
The boat's stability assessment is based on maximum load conditions.
The maximum recommended load only contains the weight components mentioned above.
3.6 Boat layout
The boat has several deck options. The layout of the equipment and the technical components may vary
depending on the chosen accessories.
The standard boat has a flat aft deck with stowage underneath.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 17
-
-

3 Product overview

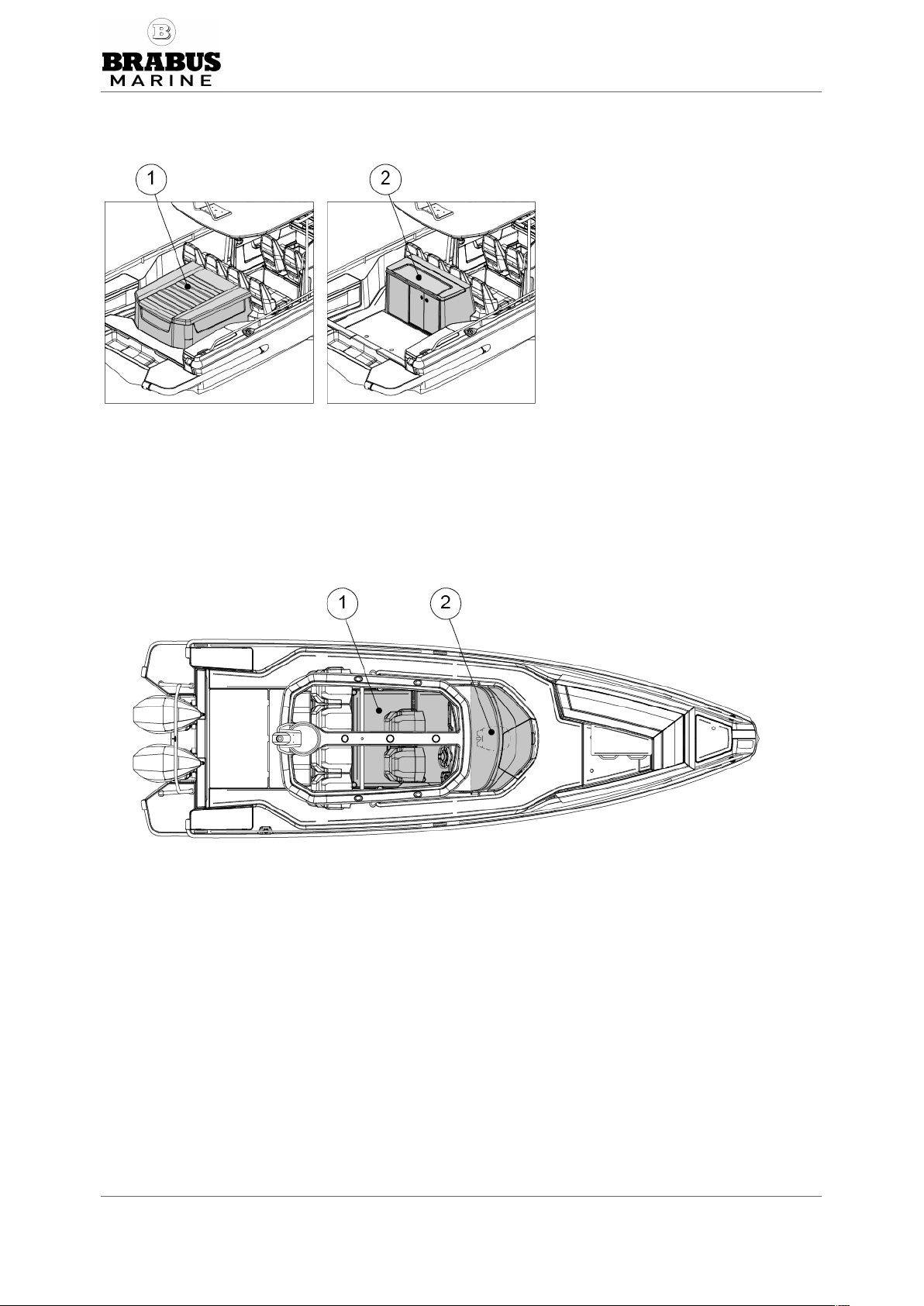

The stowage can be replaced with optional extra equipment such as an aft cabin or a wetbar.
(1) Aft cabin
(2) Wetbar
As an option, the cabin can be equipped with a pilothouse pentry. In the front part of the cabin, there is a
toilet with a door that opens to the front deck.
(1) Pilothouse pantry
(2) Toilet
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 18
-
-

4 Product description
4 Product description
4.1 Stability and buoyancy
Pay attention to the stability and buoyancy of the boat.
All weight dispositions (for example installing a fishing tower or radar, and engine replacement) can have
a significant impact on the stability, trim, and performance of the boat.
• The bilge water level needs to be kept at a minimum.
• The stability of the boat is compromised if any weight is placed in a high position.
In stormy weather, all hatches, compartments and doors must be kept closed to minimize the risk of
flooding.
Breaking waves represent a significant danger to stability.
WARNING To avoid the risk of flooding, always keep the seacocks closed when not in use
(for example, the seacock for the toilet’s flushing water).
4.1.1 Self-draining systems
The boat is equipped with self-draining systems for the whole deck area. The system is drained through
drain holes in the aft of the boat. In addition to rainwater, the drain holes are intended to drain water
ending up on the deck through splashing or from breaking waves.
There are drain holes for water in both aft corners of the deck. The openings are directly connected to
the sea. The deck of the boat has been designed to allow the water to drain straight into the sea via the
water gullies.
(1) Drain hole
The drain holes must be open at all times. Clean the holes regularly by removing any accumulated debris
to prevent clogging.
The system is built so as to drain the water from the deck in normal use. Do not close the taps when
using the boat or when the boat is attached to the dock.
Brabus Shadow 500 2021-2022 Document ID: 500MY22-202205EN
Owner's Manual
© 2022 Axopar Boats / Brabus Marine Page 19
-
-
